LESSON 4: SPECIAL SERVICE TOOLS AND PROCEDURES

4-9

•

Oil Pressure Switch Operation – The Electric Motor/Transaxle Test

Box interfaces directly with the oil pressure switch. By manually

turning on and off the oil pump, the Electric Motor/Transaxle Test

Box turns a light on and off respectively.

•

Oil Pump Operation – In addition to monitoring the oil pressure

switch, the Electric Motor/Transaxle Test Box also provides

information on oil pump operation. A manual switch to turn the oil

pump on and off is provided on the front of the tester along with an

interface for a digital voltmeter. This interface will provide the

technician with a voltage that is directly proportional to the current

flowing to the oil pump. This current will be checked to verify that

it is within a specified range for proper operation.

Equipment Hookup

•

The Electric Motor/Transaxle Test Box connects to both the

transaxle connections and the cigar lighter socket.

– 9-Pin Transaxle Connector – Located on the top of the motor

assembly in front of the three power leads.

– Oil Pressure Switch Connector – Located on the lower rear of

the gear cover.

– Oil Pump Bulkhead Connector – On the gear cover in front of

the driver side halfshaft.

LESSON 4: SPECIAL SERVICE TOOLS AND PROCEDURES

4-10

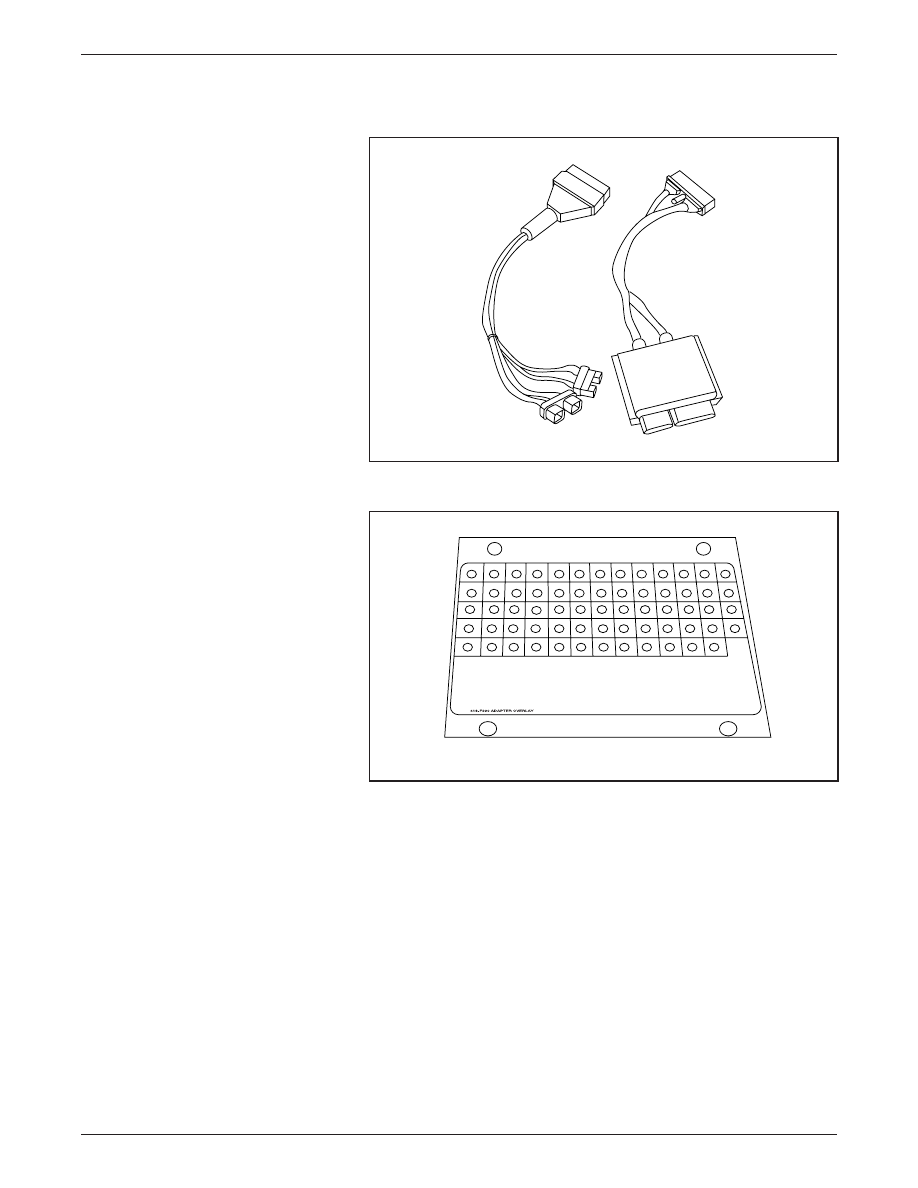

104-Pin Breakout Box (BOB) and BCM/TIM
Breakout Box Adapter Cable and Overlay

BCM/TIM Breakout Box Adapter Cable

ER143-A

ER144-A

A1

A14

A27

A40

B1

B2

B3

B13

B14

B15

B16

B17

B18

B19

B20

B21

B22

B23

B24

B4

B5

B6

B7

B8

B9

B10

B11

B12

A2

A3

A4

A5

A6

A15

A16

A17

A18

A19

A20

A21

A22

A23

A24

A25

A26

A28

A29

A30

A31

A32

A33

A34

A35

A36

A37

A38

A39

A7

A8

A9

A10

A11

A12

A13

Breakout Box (BOB) Overlay

•

The breakout box (BOB) is used in the same manner on the

Ranger EV as on conventional vehicles.

•

When it is used on the Interface adapter assembly (IAA) module,

no adapter cable or overlay is required.

•

When using the BOB for battery control module (BCM)/traction

inverter module (TIM) diagnostics, the, BCM/TIM Breakout Box

Adapter Cable and Overlay are required.

•

It is utilized when performing low-voltage diagnostics on the

BCM or TIM.

LESSON 4: SPECIAL SERVICE TOOLS AND PROCEDURES

4-11

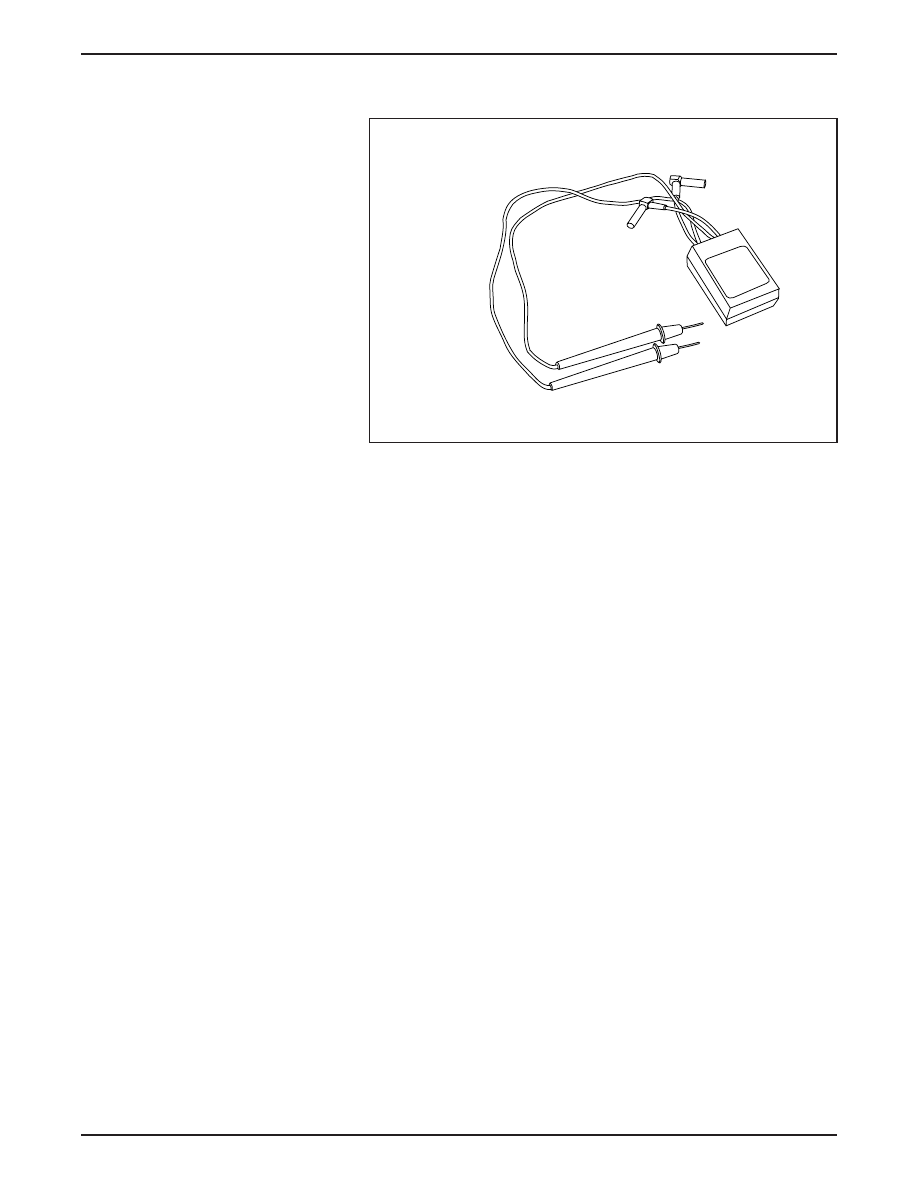

Capacitor Discharge Tool

Capacitor Discharge Tool

•

The Capacitor Discharge Tool is used to ensure that capacitors

have discharged prior to performing vehicle service.

•

Connects to a Digital Volt-Ohmmeter (DVOM) to determine when

the voltage has completely discharged.

ER145-A

LESSON 4: SPECIAL SERVICE TOOLS AND PROCEDURES

4-12

8-Volt Battery Charger

•

It is used to charge the 8-volt battery modules of the traction

battery pack.

– It is only used when an individual battery module requires

charging prior to being inserted into the traction battery pack.

– Modules that have sat for more than seven days will require

charging before being installed into a battery pack.

– Charger automatically reduces voltage to a trickle when the

battery is fully charged.
