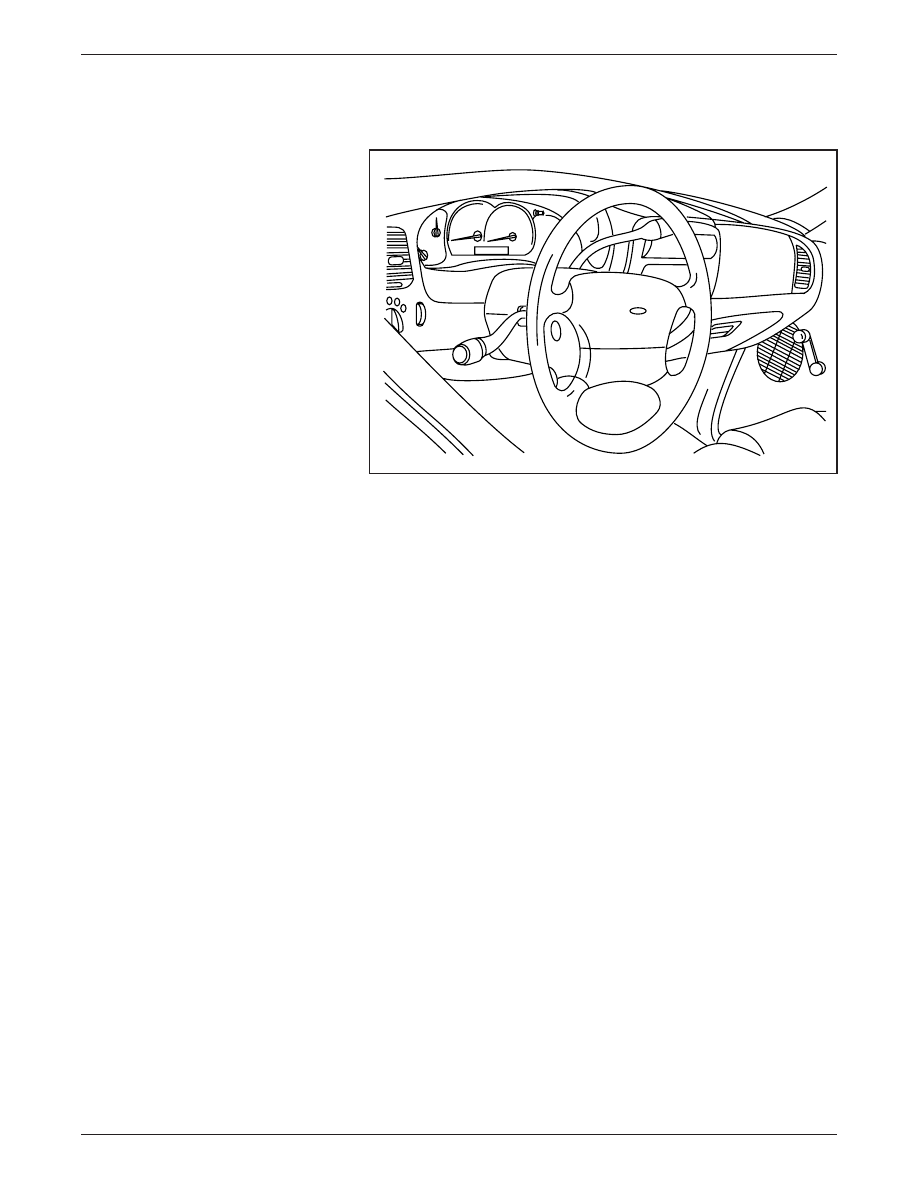

LESSON 1: VEHICLE OVERVIEW 1-61 ACTIVITY 1 – VEHICLE OVERVIEW – WORKSHEET C SAFETY FEATURE IDENTIFICATION STUDENT ANSWER SHEET OBJECTIVES: To describe the safety features found on the Electric Ranger. DIRECTIONS: Select the correct response for each statement or question. 1. The inertia shutoff switch is located: A. Beside the 12-volt battery in the underhood compartment. B. Below the evaporator assembly in the passenger compartment. C. Next to the diagnostic connector in the underhood compartment. D. Above the TIM and close to the left rear fender. 2. When does the electric hazard warning lamp illuminate? A. When the driver’s key is turned to the ON position (lamp prove-out). B. When a high level of current leakage is detected. C. When a high voltage interlock is disconnected. D. All of the above. 3. What color identifies a high voltage cable? A. Red. B. Orange. C. Yellow. D. All of the above. 4. Which of the following is not equipped with a high voltage interlock? A. The cover of the high voltage power distribution box. B. The connector from the traction battery to the high voltage power distribution box (4-pin connector). C. The connector from the traction battery to the TIM (2-pin connector). D. The cover of the traction battery. 5. High voltage components are identified by: A. Identification tags. B. Red color coding. C. Warning labels. D. Plastic insulation. END OF WORKSHEET C |
