LESSON 2: VEHICLE OPERATION

2-3

•

The instrument cluster has several new gauges and warning lamps

(covered later in this lesson).

•

When the driver key is turned to the START position, there is no

starter motor noise (although the vehicle is activated).

•

The Electric Ranger “creeps” forward like a gasoline-powered

vehicle with an automatic transmission that is in gear (after the

vehicle is “started” and the key remains in the ON position foot

off brake).

•

During deceleration, a higher drag is felt due to the regenerative

braking system (covered later in this lesson).

LESSON 2: VEHICLE OPERATION

2-4

INSTRUMENT CLUSTER GAUGES

Battery State of Charge Gauge

•

The Battery State of Charge Gauge is the equivalent of the fuel

gauge on a gasoline-powered vehicle.

– F is indicated when the traction battery is fully charged.

– E is indicated when the traction battery is discharged to the point

where additional operation will reduce traction battery life.

•

The BCM monitors the percent of charge of each battery module

and calculates the average state of charge of the traction battery.

•

The BCM sends battery state of charge information to the IAA

through the J1850 (SCP) network.

•

The IAA uses the Battery State of Charge Gauge to indicate the

traction battery state of charge.

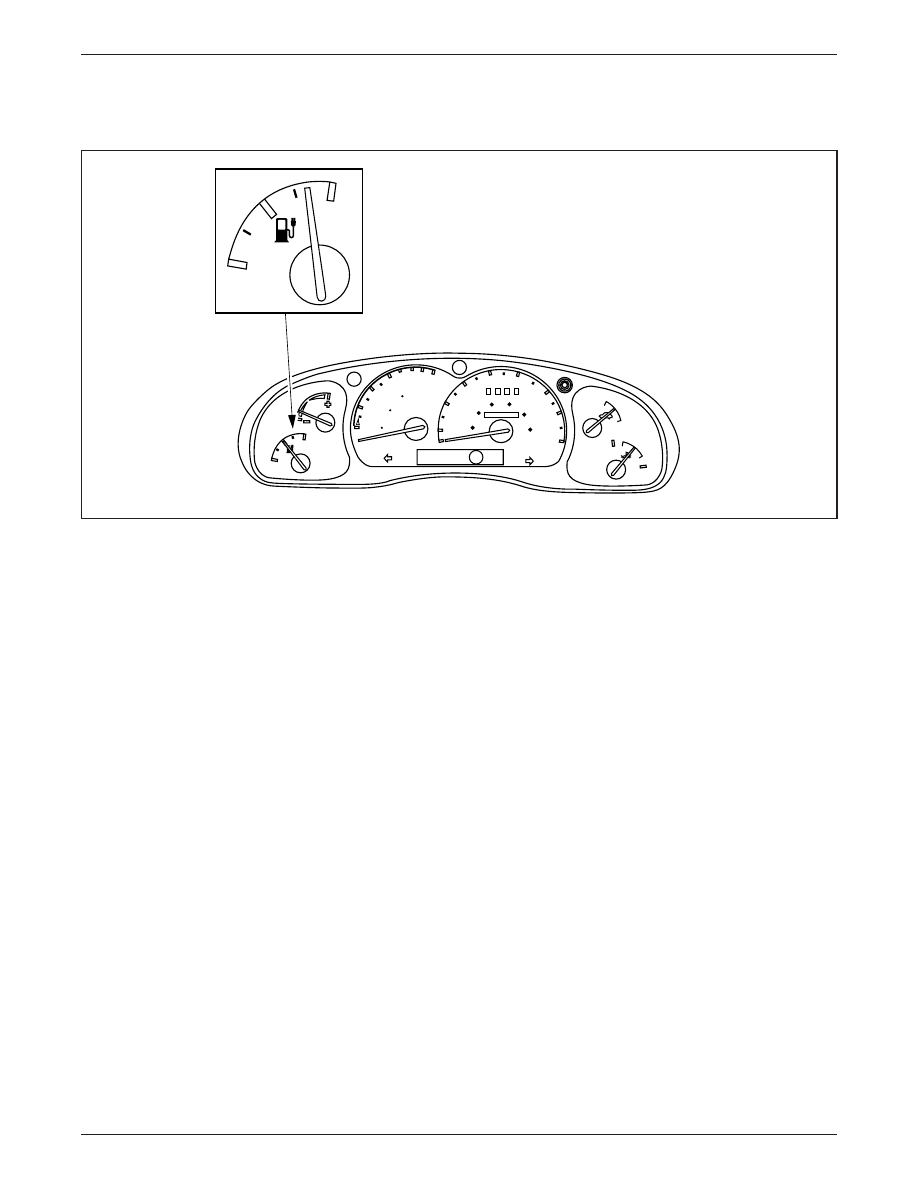

Battery State of Charge Gauge

ER052-A

F

E

ECON

0

2

4

6

DISTANCE
TO EMPTY

km

MILES

0

0

0

0

50

100

20

10

30

40

50

60

70

80

0 0 0 0 0 0

20

40

60

80

100

120

MPH

km/h

ON

OFF

H

C

P   R N D E

F

E

LESSON 2: VEHICLE OPERATION

2-5

Battery State of Charge Gauge Inputs

NOTE: The POWER LIMIT and Low Fuel Warning Lamps flash

when the gauge reads empty. Vehicle performance will be extremely

limited at this point; the driver must pull over off the road (to the

shoulder) as quickly and safely as possible.

ER119-A

INSTRUMENT CLUSTER

BATTERY STATE
OF CHARGE GAUGE

IAA

BCM

LESSON 2: VEHICLE OPERATION

2-6

ECON (Economy) Gauge

ER053-A

F

E

ECON

0

2

4

6

DISTANCE
TO EMPTY

km

MILES

0

0

0

0

50

100

20

10

30

40

50

60

70

80

0 0 0 0 0 0

20

40

60

80

100

120

MPH

km/h

ON

OFF

H

C

P   R N D E

ECON

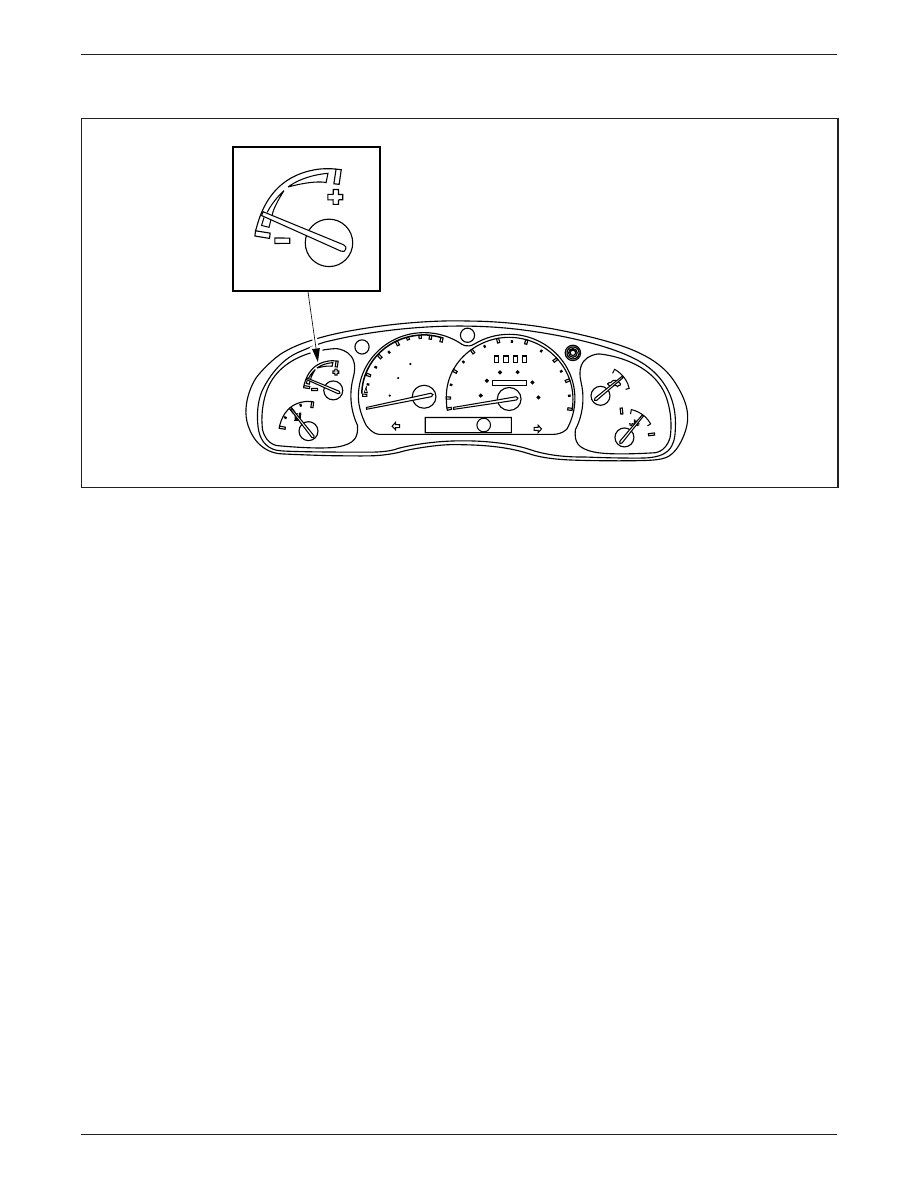

ECON (Economy) Gauge

•

The Economy Gauge not only shows the driver that his/her actions

affect vehicle range, but that driving more economically can

increase the vehicle range.

•

The gauge reading reflects:

– drivetrain power usage.

– vehicle speed.

– climate control usage.

– regeneration effects.

•

The needle will move toward the plus (+) sign (green band) when

the driver minimizes power usage or puts power back into the

vehicle.

•

The needle will move toward the minus (-) sign (yellow band)

when the driver accelerates quickly or turns on loads that reduce

vehicle range.

•

The IAA monitors several inputs and uses this information to

control the ECON Gauge.
