Ford Ranger EV. Electric Manual - part 14

LESSON 1: VEHICLE OVERVIEW

1-53

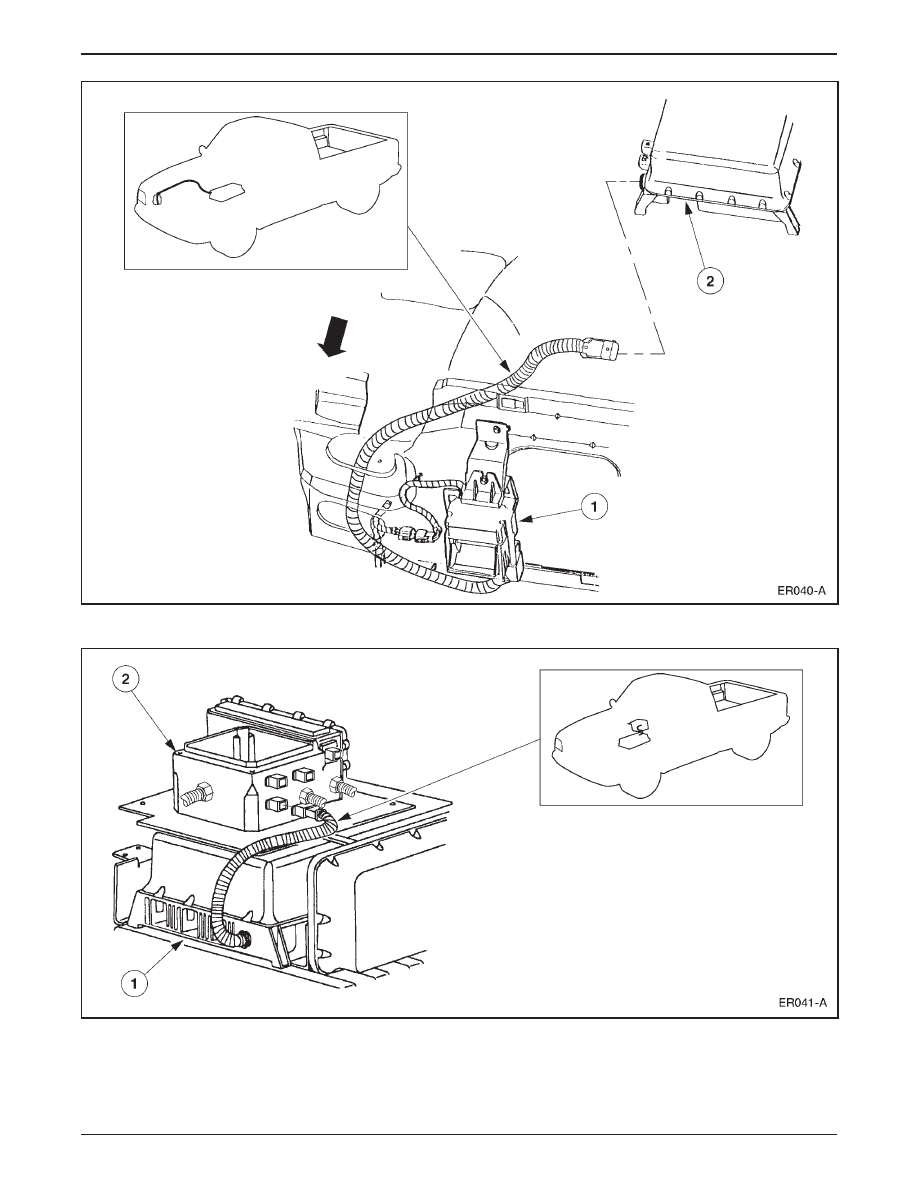

High Voltage Wiring from Charge Inlet (1) to Battery Charger (2)

High Voltage Wiring from Battery Charger (1) to High Voltage Power Distribution Box (2)

LESSON 1: VEHICLE OVERVIEW

1-54

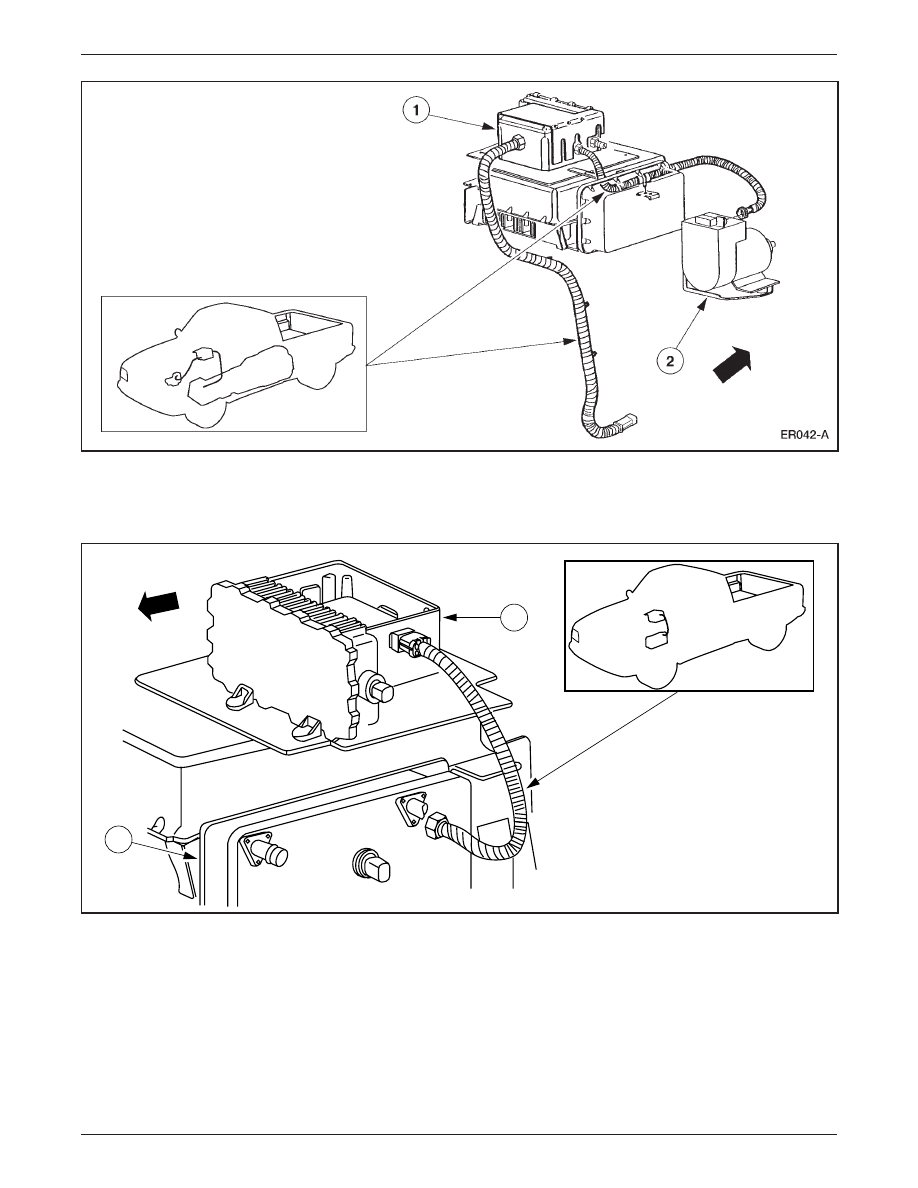

High Voltage Wiring from High Voltage Power Distribution Box (1) to Traction Battery

High Voltage Wiring from High Voltage Power Distribution Box (1) to

Power Steering Controller Assembly (2)

High Voltage Wiring from High Voltage Power Distribution  Box (3) to DC/DC Converter (4)

ER043-A

3

4

LESSON 1: VEHICLE OVERVIEW

1-55

High Voltage Wiring from Traction Battery (1) to TIM (2)

High Voltage Wiring from TIM (3) to Motor/Transaxle (4)

ER045-A

4

3

LESSON 1: VEHICLE OVERVIEW

1-56

High Voltage Wiring from High Voltage Power Distribution Box (1) to PTC Switching Module (2)

High Voltage Wiring from PTC Switching Module (3) to PTC Heater

ER046-A

2

1
