LESSON 1: VEHICLE OVERVIEW

1-49

•

If the green START light goes out and the amber CHARGE

INTERRUPT light illuminates:

– operation has been discontinued by the Class A ground fault

detection system.

– due to the high sensitivity of this system, the charge operation

will be shut down if either the charge cord plug or the charge

inlet is wet or damp.

•

Press the STOP button to reset the system.

– If further attempts are unsuccessful, it is likely that a ground

fault exists.

– If a ground fault exists, it must be repaired to continue the

charging operation.

•

Complete charging procedure is covered in Lesson 2.

LESSON 1: VEHICLE OVERVIEW

1-50

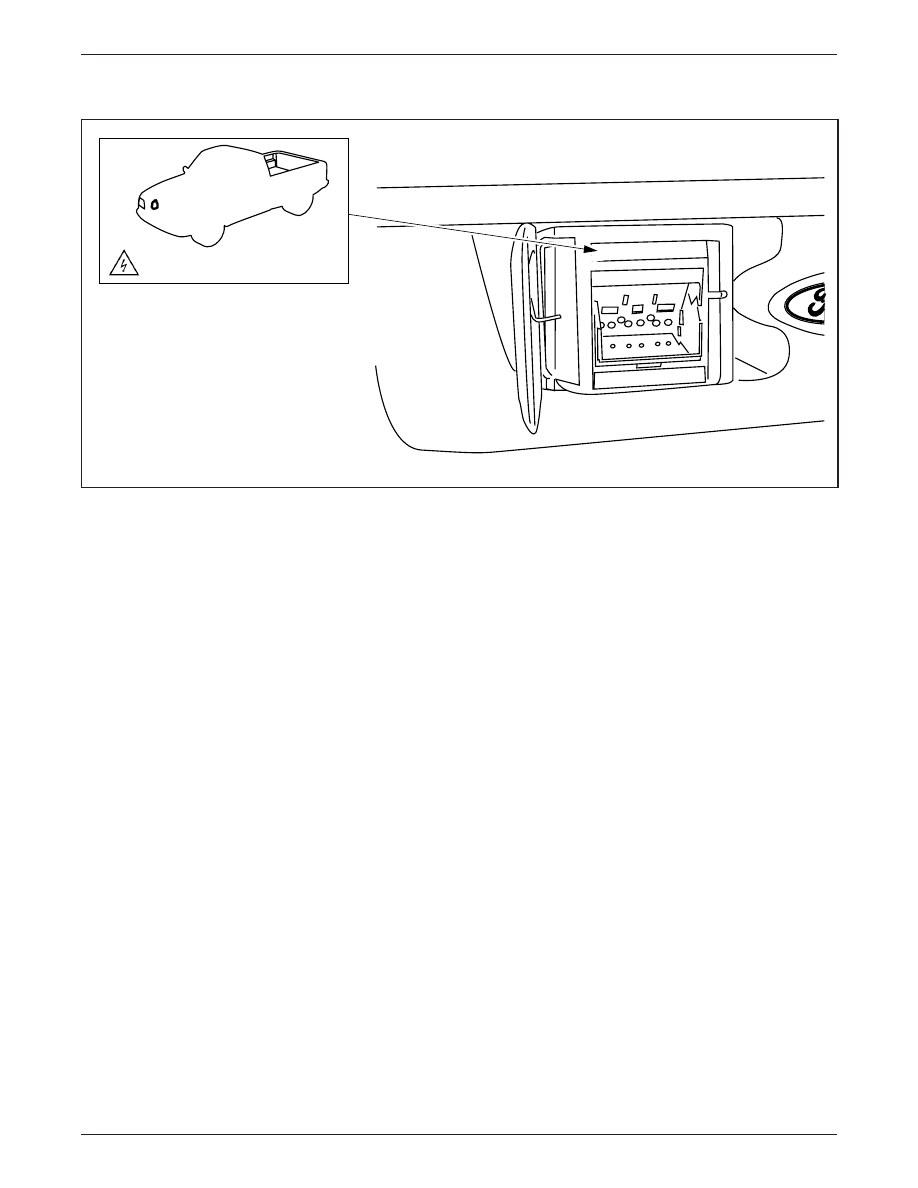

Charge Inlet

Charge Inlet

•

The charge inlet is equivalent to the fuel filler port on a gasoline-

powered vehicle.

•

The Electric Ranger receives power in the form of 240-volt

AC current.

•

An EV industry standard plug fits into the charge inlet.

– Located between the headlights behind a grille access door.

•

The high voltage wiring that connects the charge inlet to the

on board battery charger is energized only during charging.

ER037-A

HIGH VOLTAGE COMPONENT

LESSON 1: VEHICLE OVERVIEW

1-51

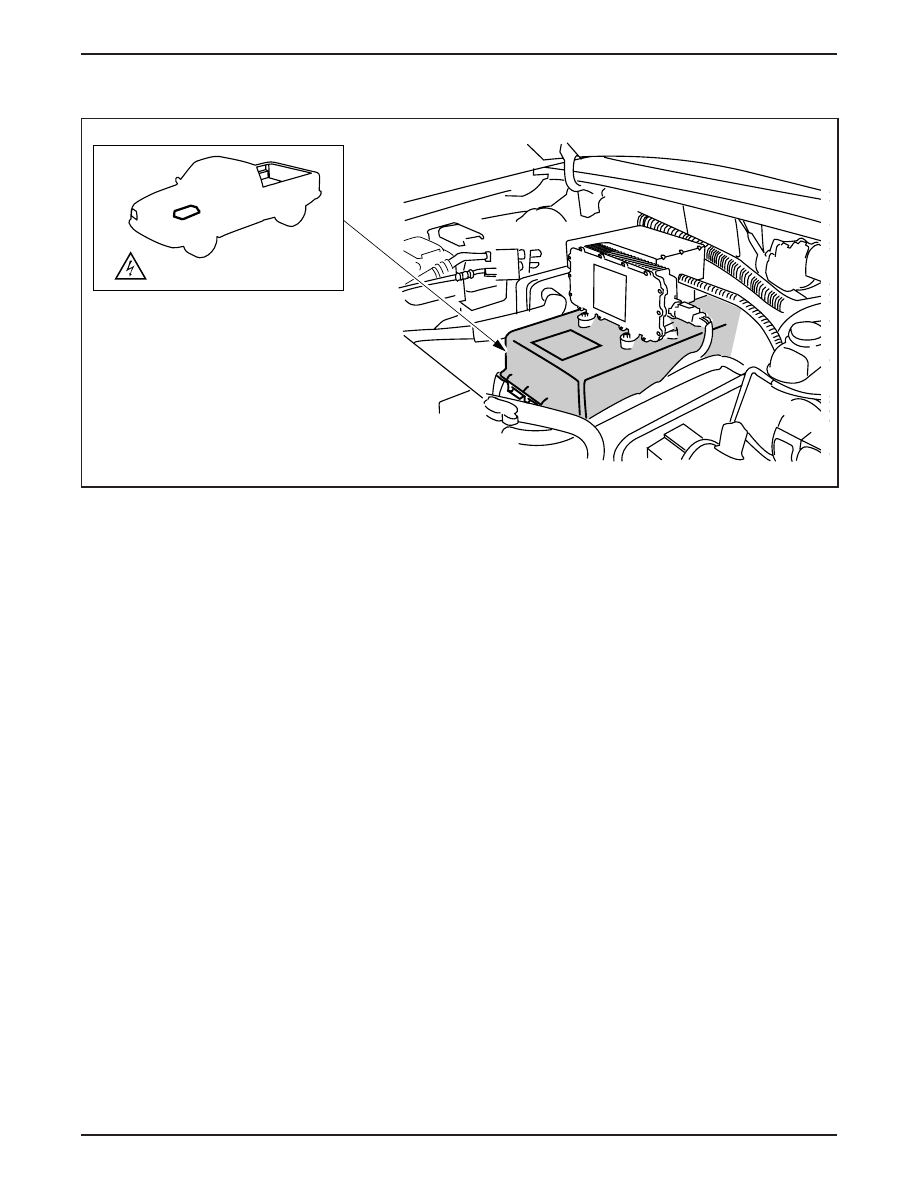

Battery Charger

Battery Charger

•

The on-board battery charger (arrow) is located in the underhood

compartment beneath the high voltage power distribution box.

•

The on-board battery charger receives 240-volt 40 amp AC current

from the power control station (PCS) and converts it into DC

current.

•

The on-board battery charger operates only with a charger cord

plugged into the charge inlet.

– The vehicle cannot be started or driven with the charger cord

attached to the charge inlet.

•

Internal fans provide cooling during battery charger operation.

ER038-A

HIGH VOLTAGE COMPONENT

LESSON 1: VEHICLE OVERVIEW

1-52

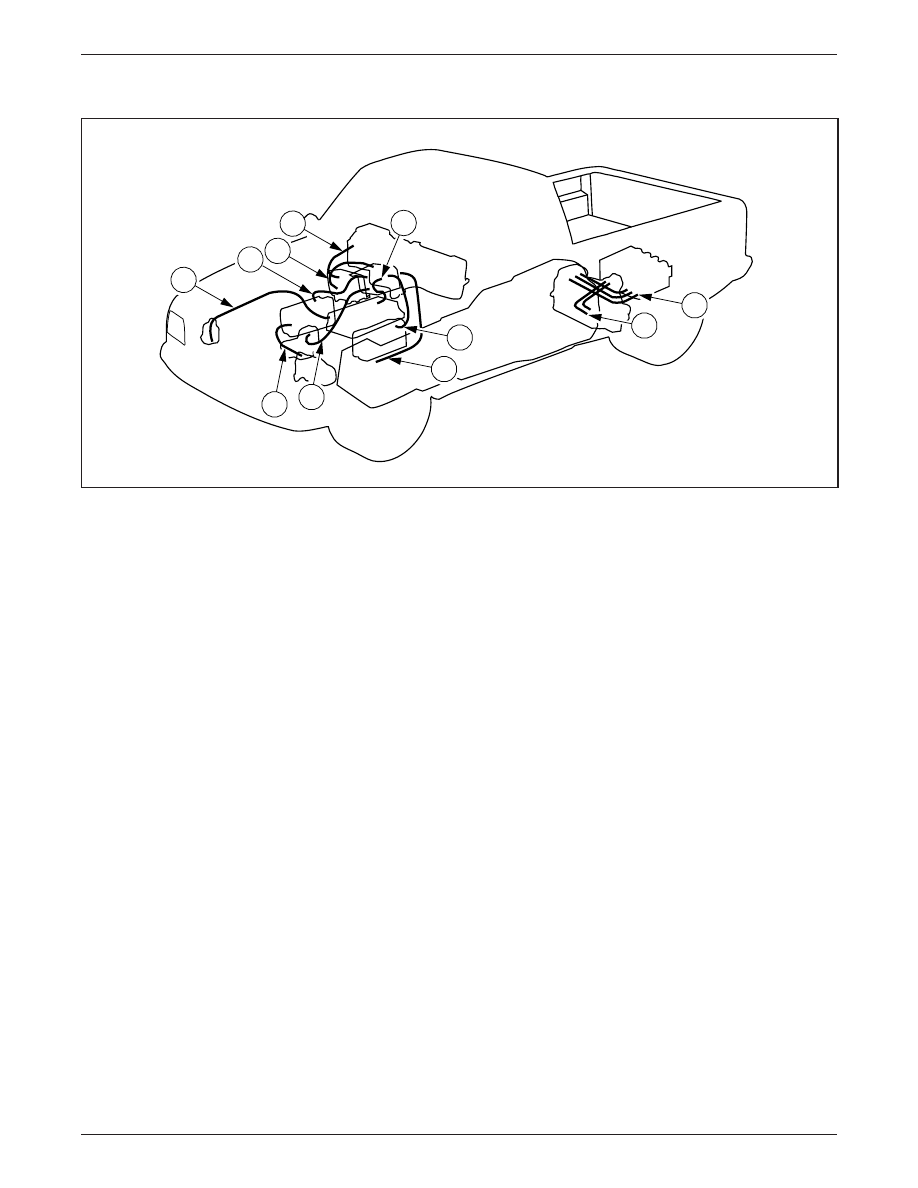

HIGH VOLTAGE WIRING

•

All high voltage wiring is covered with color-coded with orange

convolute.

•

High voltage wiring connects the following components:

A. From battery charger to high voltage power distribution box

B. From TIM to motor/transaxle

C. From traction battery to TIM

D. From high voltage power distribution box to DC/DC converter

E. From traction battery to high voltage power distribution box

F. From high voltage power distribution box to power steering

controller assembly

G. From A/C inverter motor controller to A/C compressor

H. From charge inlet to battery charger

I.

From high voltage power distribution box to A/C inverter

motor controller

J.

From high voltage power distribution box to PTC switching

module

K. From PTC switching module to PTC heater

•

The illustrations on the following pages provide a reference for the

high voltage cables on the Electric Ranger.

High Voltage Wiring

ER039-A

A

C

B

E

F

G

H

I

K

D

J
