Ford Transit (2018 year). Manual - part 60

E169199

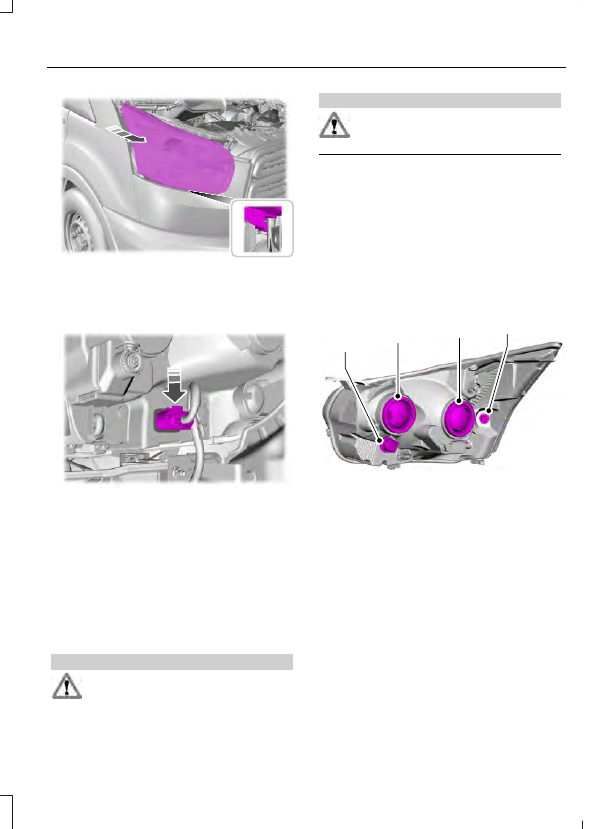

3. Pull the headlamp toward the front of

your vehicle to disengage it from its
locating points and then lift the
headlamp up.

E169200

4. Disconnect the electrical connectors.

Note: When you install the headlamp, make
sure that you correctly attach the electrical
connector.

Note: When you install the headlamp, make
sure that you correctly engage its locating
points.

CHANGING A BULB

WARNINGS

Switch all of the lamps and the
ignition off. Failure to follow this
warning could result in serious

personal injury.

WARNINGS

Bulbs become hot when in use. Let
them cool down before you remove
them.

Use the correct specification bulb.  See
Bulb Specification Chart (page 248).

The following instructions describe how to
remove the bulbs. Install in the reverse
order unless otherwise stated.

Note:  LED lamps are not serviceable.  See
an authorized dealer.

Headlamp

E175739

B

C

D

A

Parking lamp and direction
indicator lamp.

A

Headlamp high beam.

B

Headlamp low beam and
daytime running lamp.

C

Side marker lamp.

D

Note: You may have to remove a cover to
gain access to the bulb.

Side Marker Lamp

3

E175740

2

1.

Remove the headlamp.  See
Removing a Headlamp (page 242).

2. Turn the bulb holder counterclockwise

and remove it.

3. Remove the bulb by pulling it straight

out.

Parking Lamp and Direction Indicator
Lamp

3

E175741

2

1.

Remove the headlamp.  See
Removing a Headlamp (page 242).

2. Turn the bulb holder counterclockwise

and remove it.

3. Remove the bulb by pulling it straight

out.

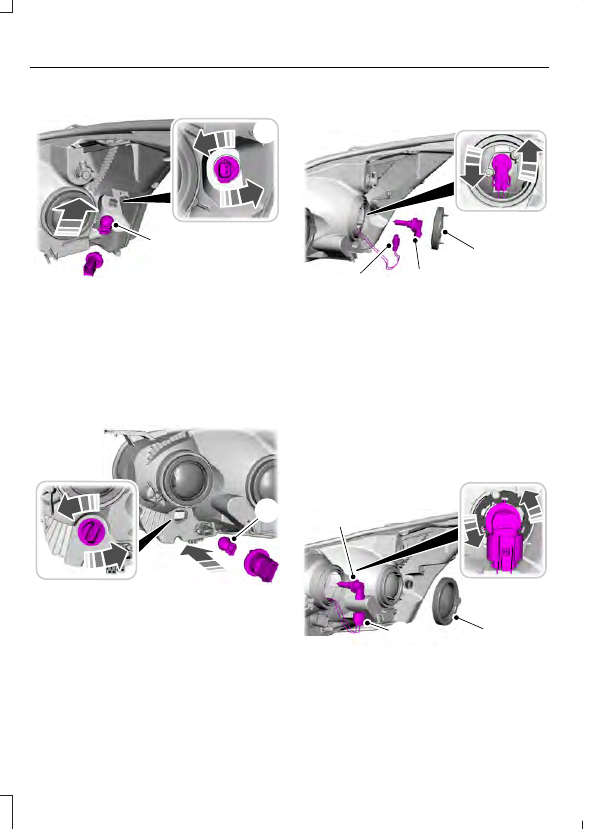

Headlamp Low Beam and Daytime
Running Lamp

4

3

2

E175742

1.

Remove the headlamp.  See
Removing a Headlamp (page 242).

2. Remove the cover.

3. Turn the bulb counterclockwise and

remove it.

4. Disconnect the electrical connector.

Note: Do not touch the bulb glass.

Note: You cannot separate the bulb from
the bulb holder.

Headlamp High Beam

4

3

2

E175743

1.

Remove the headlamp.  See
Removing a Headlamp (page 242).

2. Remove the cover.

3. Turn the bulb counterclockwise and

remove it.

4. Disconnect the electrical connector.

Note: Do not touch the bulb glass.

Note: You cannot separate the bulb from
the bulb holder.

Front Clearance Lamp

 (If Equipped)

E181397

2

1

1.

Carefully remove the lamp.

2. Turn the bulb holder counterclockwise

and remove it.

3. Remove the bulb by pulling it straight

out.

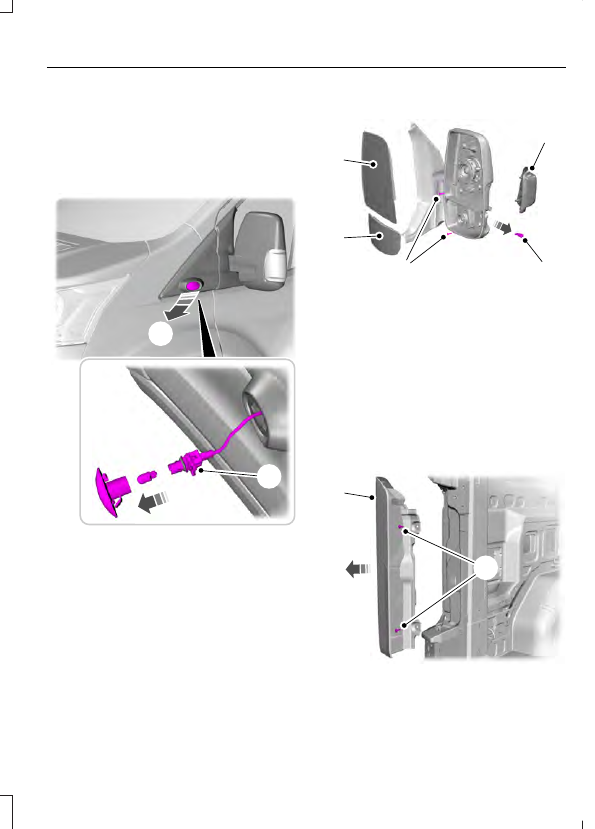

Side Direction Indicator

 (If Equipped)

E169209

3

1

4

5

2

1.

Remove the large mirror glass. Tilt the
mirror glass fully up, pull the mirror
glass toward you from the bottom.

2. Remove the small mirror glass. Tilt the

mirror glass fully down, pull the mirror
glass toward you from the top.

3. Remove the screws.

4. Remove the lamp lens.

5. Remove the bulb.

Rear Lamps

E175758

2

1

1.

Remove the screws.

2. Remove the lamp.

3

E175745

3. Turn the bulb holder counterclockwise

and remove it.

A

B

C

4

E175746

Tail and brake lamp.

A

Reversing lamp.

B

Rear clearance lamp.

C

4. Remove the bulb by pulling it straight
out.

Central High Mounted Brake Lamp

This is not a serviceable item, see an
authorized dealer if it fails.

License Plate Lamp

3

2

1

E72789

1.

Carefully release the spring clip.

2. Remove the lamp.
3. Turn the bulb holder counterclockwise

and remove it. Pull the bulb straight
out.

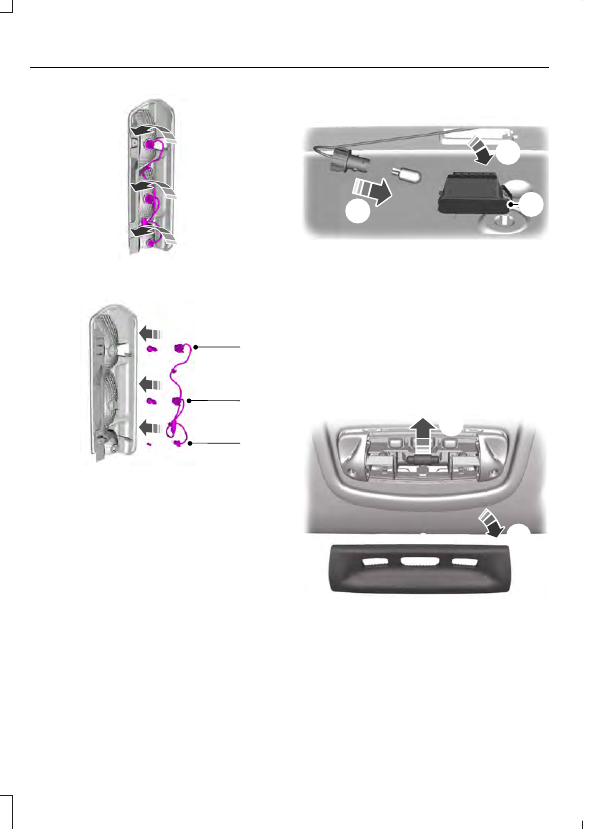

Interior Lamp

Vehicles with Interior Sensors

1

2

E154370

1.

Carefully remove the lens.

2. Remove the bulb.
