2

E152529

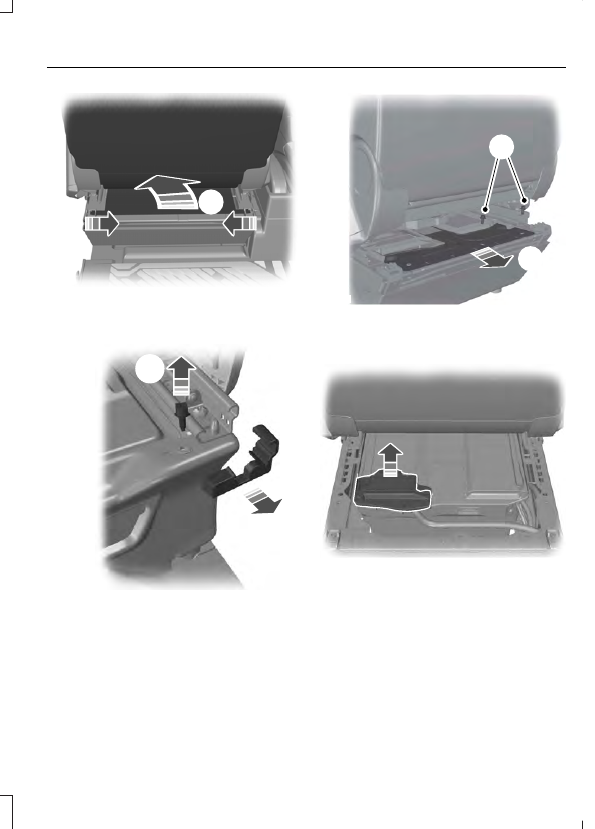

2. Unhook the cover flap and tuck it under

the seat valance.

E146781

3

4

3. Remove the seat track end caps on

both sides.

4. Remove the seat adjustment end stop

bolts at the front of the seat on both
sides.

5

6

E146773

5. Remove the battery clamp and cover

bolts.

6. Remove the battery clamp and cover.

E162774

7.

Remove the battery terminal cover and
remove the negative (-) terminal.

8

E162775

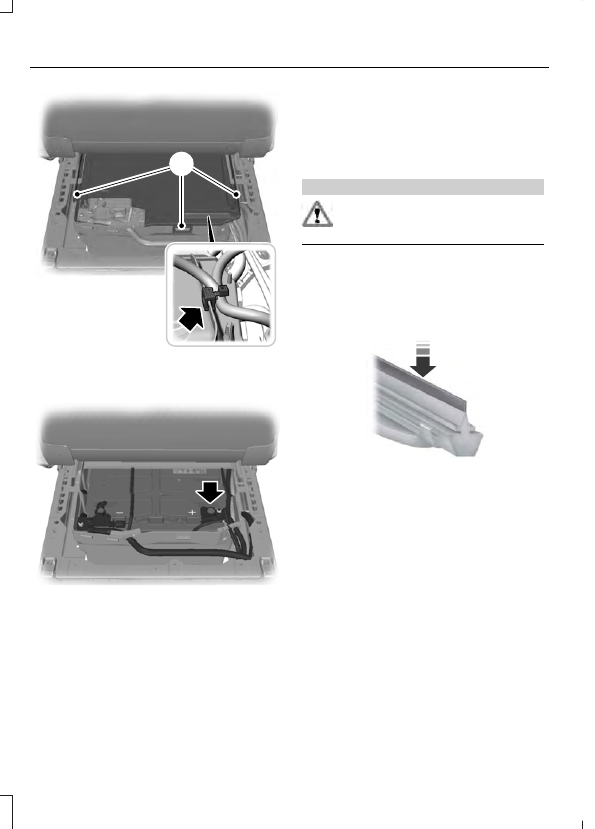

8. Remove the cable securing clips from

the cover. Release the retaining clips
and remove the cover.

E162776

9. Remove the positive (+) terminal and

remove the battery.

10.

Move the second battery toward the
rear of the vehicle. Disconnect the
battery terminals and remove the
battery.

Note: Single batteries are mounted the
opposite way around in the battery tray. The
negative terminal is toward the rear of the
vehicle.

Installing the Battery

WARNING

Make sure that you securely fasten
the seat runner bolts before installing
the covers.

Install in the reverse order.

CHECKING THE WIPER
BLADES

E142463

Run the tip of your fingers over the edge of
the blade to check for roughness.

Clean the wiper blades with washer fluid
or water applied with a soft sponge or
cloth.

CHANGING THE FRONT WIPER
BLADES

Note: Do not hold the wiper blade when
lifting the wiper arm.

Note: Make sure that the wiper arm does
not spring back against the glass when the
wiper blade is not attached.

E72899

1

2

1.

Lift the wiper arm.  Press the wiper
blade locking button.

2. Remove the wiper blade.

3. To install, reverse the removal

procedure.

Note: Make sure that the wiper blade locks
into place.

ADJUSTING THE HEADLAMPS

Vertical Aim Adjustment

If your vehicle has been involved in a crash,
have the aim of the headlamp beam
checked by an authorized dealer.

Headlamp Aiming Target

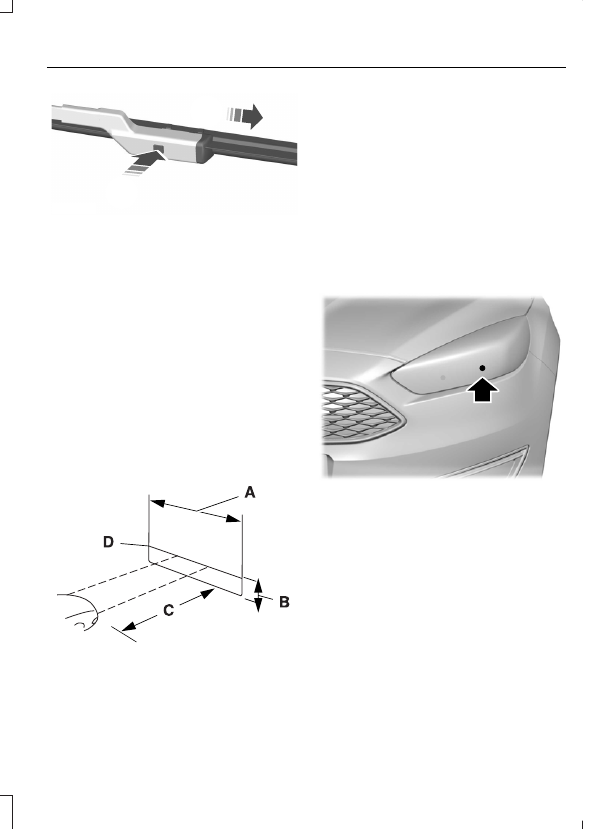

E142592

8 ft (2.4 m)

A

Ground to the center of the
headlamp low beam bulb

B

25 ft (7.6 m)

C

Horizontal reference line

D

Vertical Aim Adjustment Procedure

1.

Park your vehicle on level ground
approximately 25 ft (7.6 m) from a wall
or screen.

2. Measure the distance from the ground

to the center of the headlamp low
beam bulb and mark an 8 ft (2.4 m)
long horizontal reference line on the
wall or screen at this height.

E199411

Note: There may be an identifying mark on
the lens to help you locate the center of the
bulb.

Note: To see a clearer light pattern while
adjusting one headlamp, you may want to
block the light from the other headlamp.

3. Switch on the low beam headlamps

and open the hood.

E142465

4. On the wall or screen you will observe

a flat zone of high intensity light
located at the top of the beam pattern.
If the top edge of the flat zone of high
intensity light is not on the horizontal
reference line, adjust the aim of the
headlamp beam.

E164485

5. Locate the vertical adjuster on each

headlamp. Use a suitable tool, for
example a screwdriver or hexagonal
socket, to turn the adjuster clockwise
or counterclockwise to adjust the
vertical aim of the headlamp. The
horizontal edge of the brighter light
should touch the horizontal reference
line.

6. Close the hood and switch off the

lamps.

Horizontal Aim Adjustment

The horizontal aim of the headlamp beam
on your vehicle is not adjustable.

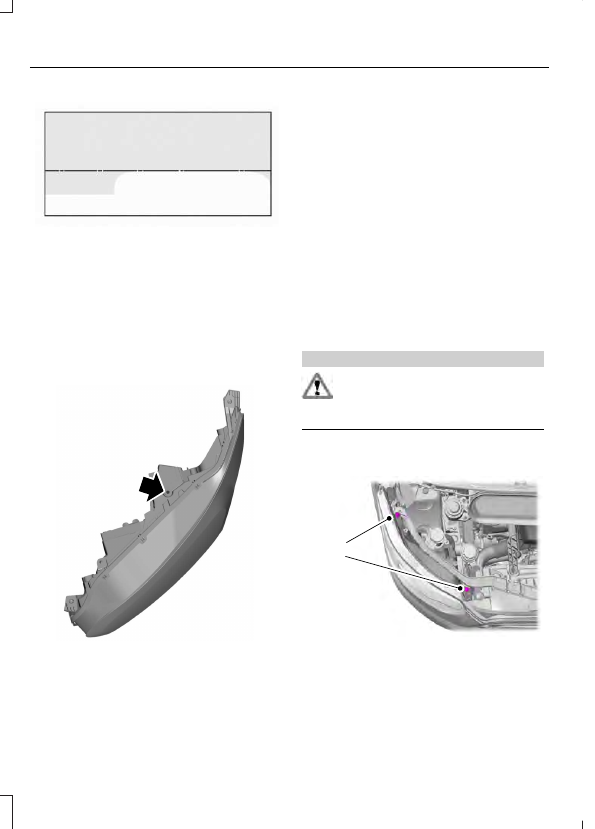

REMOVING A HEADLAMP

WARNING

Switch all of the lamps and the
ignition off. Failure to follow this
warning could result in serious

personal injury.

1.

Open the hood.  See Opening and
Closing the Hood (page 223).

E169198

2

2. Remove the screws.
