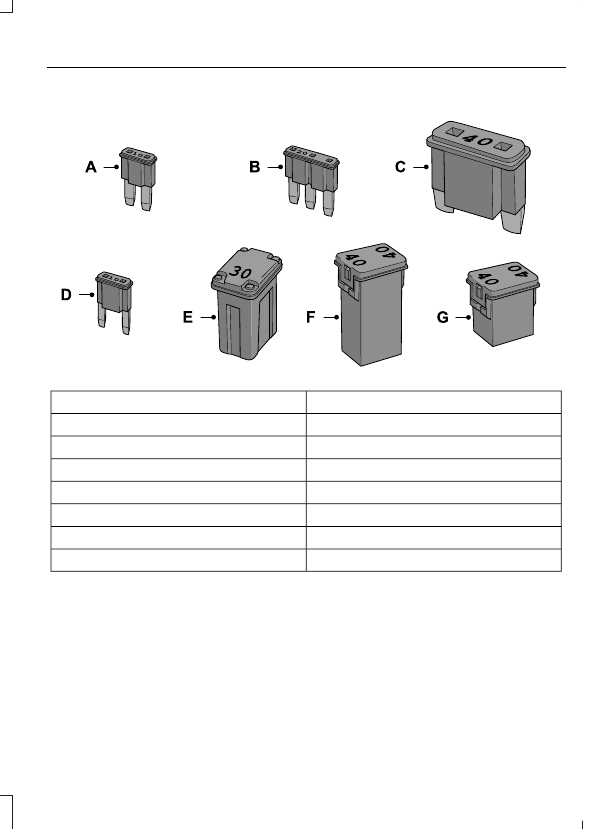

Fuse Types

E207206

Fuse Type

Callout

Micro 2

A

Micro 3

B

Maxi

C

Mini

D

M Case

E

J Case

F

J Case Low Profile

G

GENERAL INFORMATION

Have your vehicle serviced regularly to help
maintain its roadworthiness and resale
value. There is a large network of
authorized dealers that are there to help
you with their professional servicing
expertise. We believe that their specially
trained technicians are best qualified to
service your vehicle properly and expertly.
They are supported by a wide range of
highly specialized tools developed
specifically for servicing your vehicle.

If your vehicle requires professional service,
an authorized dealer can provide the
necessary parts and service. Check your
warranty information to find out which
parts and services are covered.

Use only recommended fuels, lubricants,
fluids and service parts conforming to
specifications. Motorcraft® parts are
designed and built to provide the best
performance in your vehicle.

Precautions

•

Do not work on a hot engine.

•

Make sure that nothing gets caught in
moving parts.

•

Do not work on a vehicle with the
engine running in an enclosed space,
unless you are sure you have enough
ventilation.

•

Keep all open flames and other burning
material (such as cigarettes) away
from the battery and all fuel related
parts.

Working with the Engine Off

1.

Set the parking brake and shift to park
(P).

2. Switch off the engine.

3. Block the wheels.

Working with the Engine On

WARNING

To reduce the risk of vehicle damage
and/or personal burn injuries, do not
start your engine with the air cleaner

removed and do not remove it while the
engine is running.

1.

Set the parking brake and shift to park
(P).

2. Block the wheels.

OPENING AND CLOSING THE
HOOD

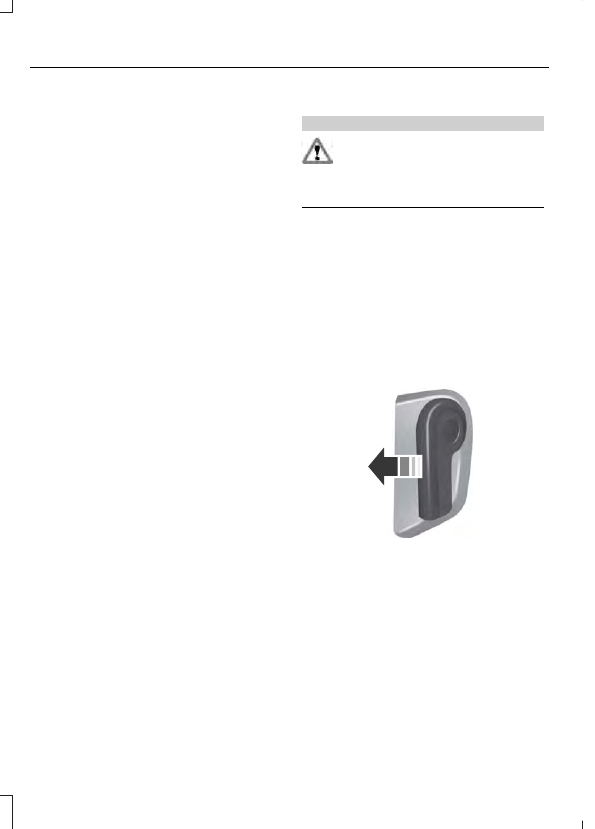

1.

Inside the vehicle, pull the hood release
handle located under the left-hand
side of the instrument panel.

E142457

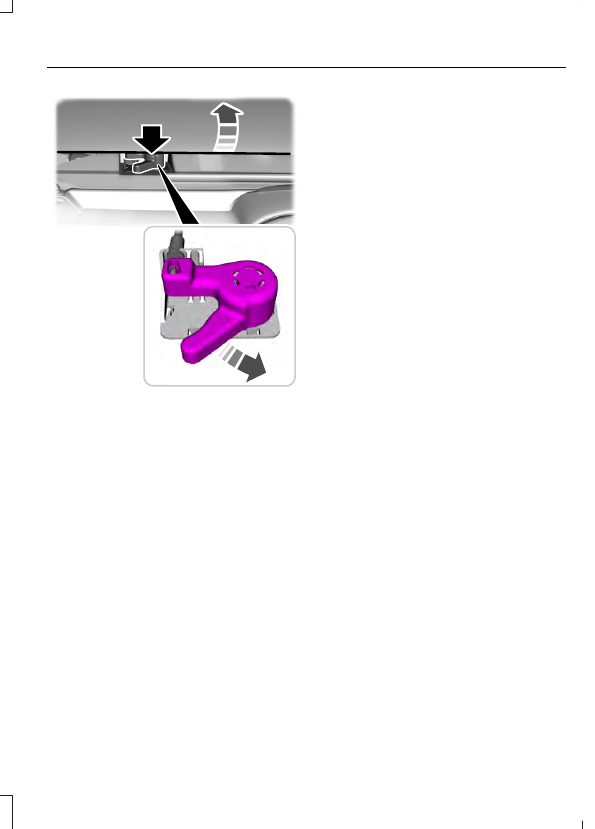

2. Go to the front of your vehicle and

locate the secondary release lever
under the front of the hood, left of
center, and push it to your right-hand
side to release.

E189028

3. Lift the hood and support it with the

prop rod.

4. To close the hood, remove the support

rod from the catch and secure
correctly.

5. Lower the hood and allow it to drop

under its own weight for the last 8 in
to 12 in (20 cm to 30 cm).

Note: Make sure the hood is fully closed.

UNDER HOOD OVERVIEW - 1.0L ECOBOOST™

A

I

H

F

G

B

C

D

E

E141341

Brake and clutch fluid reservoir (right-hand drive).  See Brake Fluid Check
(page 222).

A

Engine oil filler cap.  See Engine Oil Check (page 216).

B

Brake and clutch fluid reservoir (left-hand drive).  See Brake Fluid Check (page
222).

C

Battery.  See Changing the 12V Battery (page 223).

D

Power distribution box.  See Fuses (page 201).

E

Air filter assembly.  See Changing the Engine Air Filter (page 235).

F

Engine oil dipstick.  See Engine Oil Dipstick (page 216).

G

Windshield washer fluid reservoir.  See Washer Fluid Check (page 223).

H

Engine coolant reservoir.  See Engine Coolant Check (page 218).
