Ford Focus (2017 year). Manual - part 51

Circuits protected

Ampere

rating

Fuse

Central locking ground.

20A

F83

Driver's door unlock ground.

20A

F84

Voltage quality monitoring (KL15).

7.5A

F85

Manual air conditioning heater module.
Forward looking camera.
Radio.
Moonroof module.

Restraint system.

10A

F86

Occupant weight sensor.

Heated steering wheel.

15A

F87

Not used.

-

F88

Not used.

-

F89

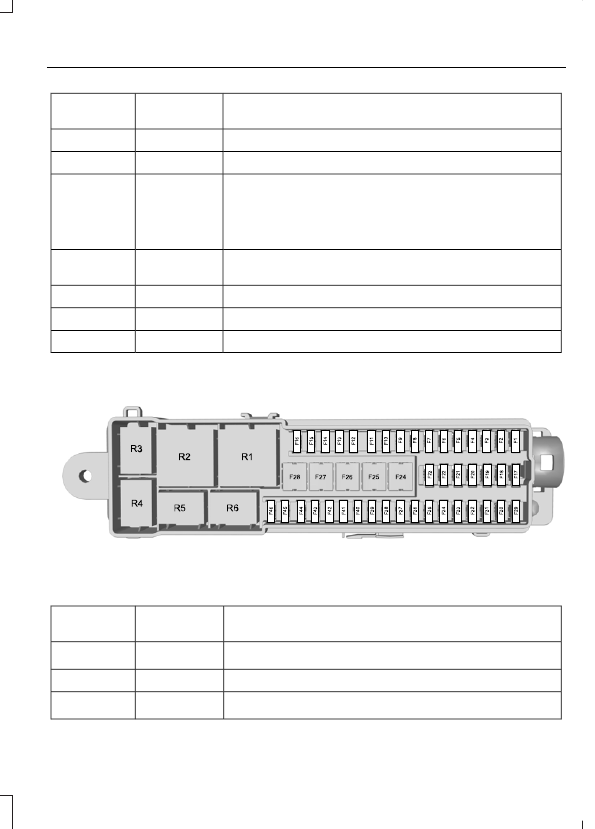

Luggage Compartment Fuse Box

E129927

Circuits protected

Ampere

rating

Fuse

Ignition relay.

5A

*

F1

Not used.

-

F2

Keyless vehicle door handles.

5A

*

F3

Circuits protected

Ampere

rating

Fuse

Door module (left-hand front) (electric windows, central
locking, heated exterior mirrors).

25A

*

F4

Door module (right-hand front) (electric windows, central
locking, heated exterior mirrors).

25A

*

F5

Door module (left-hand rear) (electric windows).

25A

*

F6

Door module (right-hand rear) (electric windows).

25A

*

F7

Not used.

-

F8

Power driver's seat adjust.

25A

*

F9

Digital signal processing amplifier.

25A

*

F10

Keypad switch.

5A

*

F11

Not used.

-

F12

Not used.

-

F13

Not used.

-

F14

Not used.

-

F15

Not used.

-

F16

Not used.

-

F17

Not used.

-

F18

Not used.

-

F19

Not used.

-

F20

Not used.

-

F21

Not used.

-

F22

Not used.

-

F23

Not used.

-

F24

Not used.

-

F25

Not used.

-

F26

Not used.

-

F27

Circuits protected

Ampere

rating

Fuse

Not used.

-

F28

Blind spot monitor.

5A

*

F29

Rear view camera without start stop module.

Parking aid module.

5A

*

F30

Not used.

-

F31

Not used.

-

F32

Not used.

-

F33

Not used.

-

F34

Not used.

-

F35

Not used.

-

F36

Not used.

-

F37

Not used.

-

F38

Not used.

-

F39

Not used.

-

F40

Not used.

-

F41

Not used.

-

F42

Not used.

-

F43

Not used.

-

F44

Not used.

-

F45

Not used.

-

F46

*

Mini fuses

**

Cartridge fuses

Circuits switched

Relay Type

Relay

Ignition switch.

Power relay

R1

Not used.

-

R2

Not used.

-

R3

Not used.

-

R4

Not used.

-

R5

Not used.

-

R6

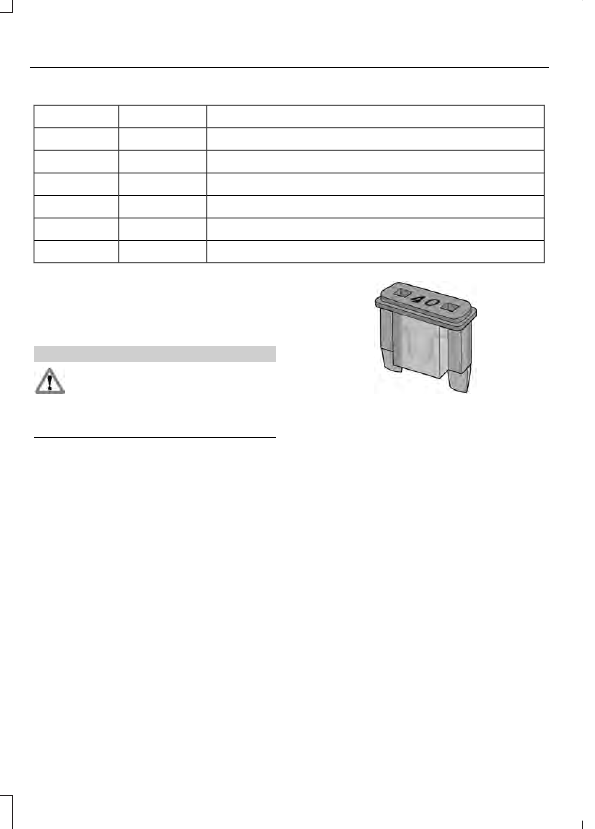

CHANGING A FUSE

Fuses

WARNING

Always replace a fuse with one that
has the specified amperage rating.
Using a fuse with a higher amperage

rating can cause severe wire damage and
could start a fire.

E217331

If electrical components in the vehicle are
not working, a fuse may have blown. Blown
fuses are identified by a broken wire within
the fuse. Check the appropriate fuses
before replacing any electrical
components.
