Circuits protected

Ampere

rating

Fuse

Total mass air flow sensor - 2.0 GDI.

15A

*

F33

Ignition coils - 1.0L EcoBoost.

Run on water pump.

10A

*

F34

Variable valves.
Canister purge valve.

Crankshaft position sensor.

10A

*

F35

Universal heated exhaust gas oxygen sensor.
Canister purge valve.

Active grille shutter.

5A

*

F36

Daytime running lamps.

15A

*

F37

Headlamp control module

Transmission control module global shifter (switched
battery power).

15A

*

F38

Heated driver seat.

15A

*

F39

Electric power assisted steering.

5A

*

F40

Body control module KL15 supply.

20A

*

F41

Rear wiper motor.

15A

*

F42

Headlamp unit (dynamic bending motor).

15A

*

F43

Not used.

-

F44

Heated passenger seat.

15A

*

F45

Electric power windows (without door control unit).

25A

**

F46

Heated exterior mirrors (without door control unit).

7.5A

*

F47

Not used.

-

F48

*

Mini fuses

**

Cartridge fuses

Circuits switched

Relay Type

Relay

Intercooler fan.

Micro relay

R1

Horn.

Micro relay

R2

Front window defroster (partially heated windscreen).

Micro relay

R3

Not used.

-

R4

Rear wiper.

Micro relay

R5

Not used.

-

R6

Not used.

-

R7

Delayed accessory power.

Power relay

R8

Not used.

-

R9

Starter relay.

Mini relay

R10

Air conditioning clutch.

Micro relay

R11

Cooling fan relay.

Power relay

R12

Blower motor.

Mini relay

R13

Powertrain control module.

Mini relay

R14

Rear window defroster.

Power relay

R15

Ignition.

Power relay

R16

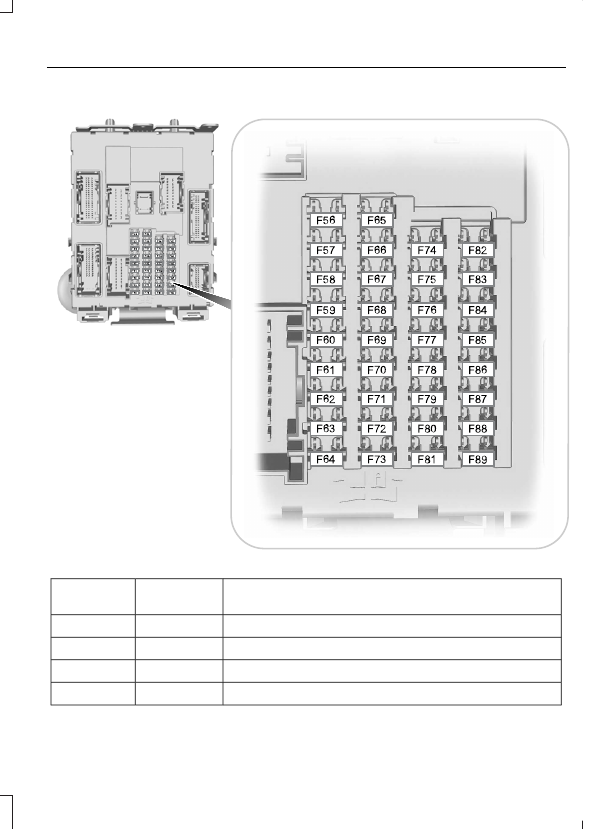

Passenger Compartment Fuse Box

E129926

Circuits protected

Ampere

rating

Fuse

Fuel pump supply.

20A

F56

Not used.

-

F57

Not used (spare).

-

F58

Passive anti-theft system supply.

5A

F59

Circuits protected

Ampere

rating

Fuse

Interior lamps, driver's door switch pack, glove box,
ambient lighting, electric moonroof.

10A

F60

Front cigar lighter.

20A

F61

2nd row power point.

Not used (spare).

-

F62

Not used.

-

F63

Not used.

-

F64

Luggage compartment lid release.

10A

F65

Driver's door lock.

20A

F66

Information and entertainment display.

7.5A

F67

Global Positioning System.
SYNC module.

Not used.

-

F68

Instrument cluster.

5A

F69

Central locking.

20A

F70

Air conditioning.

7.5A

F71

Steering wheel control module.

7.5A

F72

Battery back-up sounder (alarm system).

7.5A

F73

Onboard diagnostics system.

Headlamp unit (main beam).

15A

F74

Front fog lamps.

15A

F75

Reversing lamp.

10A

F76

Washer pump.

20A

F77

Ignition switch or start button.

5A

F78

Audio unit, hazard and door lock buttons.

15A

F79

Electric moonroof.

20A

F80

Radio frequency receiver.

5A

F81

Washer pump ground.

20A

F82
