3. Press and hold the front of the control

to the first action point, until the sun
shade fully opens.

4. Press and hold the rear of the control

to the first action point, until the sun
shade fully closes.

If you do not complete Step 2 within 15
seconds of Step 1, the relearning function
end. Switch the ignition off, wait for
another 30 seconds and then switch the
ignition back on again. Start the procedure
again from the beginning.

Confirm that relearning was successful by
opening and closing the sun shade.

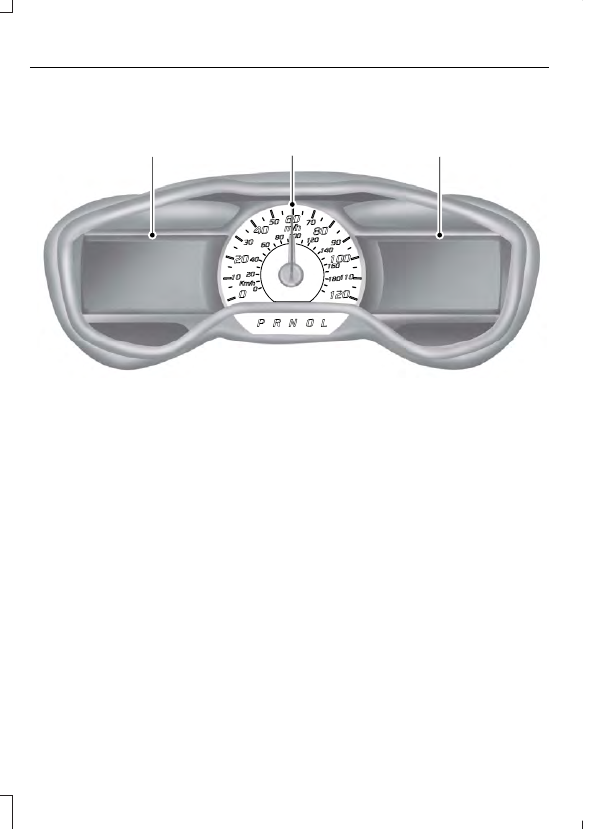

GAUGES

A

C

B

E162393

Left Information Display.

A

Speedometer.

B

Right Information Display.

C

Left Information Display

Odometer

Located in the bottom of the information
display. Registers the accumulated
distance your vehicle has traveled.

Battery Gauge:

For Energi vehicles, a large battery gauge
is provided when the vehicle operates in
Plug-In Power Mode only.  See Plug-In
Hybrid Vehicle Operation (page 137).
The fill level indicates the amount of
energy stored in the high voltage battery
that is available for Plug-in Power Mode.

A full fill represents the total amount of
energy you can get from an external charge
(plugging your vehicle in). When the fill
reaches empty, your vehicle automatically
enters Hybrid Mode and the large battery
gauge will no longer be shown.

An optional small battery gauge is provided
for Hybrid vehicles and for Hybrid Mode
only in Energi vehicles. You can switch this
feature on in the Settings menu under
Battery Display.  See General Information
(page 92).  The fill level, or State of Charge,
indicates the amount of energy stored in
the high voltage battery as a percent of
total energy capacity. The level increases
or decreases as the battery charges and
discharges during normal operation.

Regen Display:

A circular arrow symbol displays when
energy is being recaptured through the
regenerative braking system. You can
switch the Regen Display off in the Settings
menu.  See General Information (page
92).

Fuel Gauge:

Note: The fuel gauge may vary slightly
when your vehicle is moving or on a gradient.

Switch the ignition on. The fuel gauge will
indicate approximately how much fuel is
left in the fuel tank. The arrow adjacent to
the fuel pump symbol indicates on which
side of your vehicle the fuel filler door is
located.

The needle should move toward F when
you refuel your vehicle. If the needle points
to E after adding fuel, this indicates your
vehicle needs service soon.

After refueling some variability in needle
position is normal:

•

It may take a short time for the needle
to reach F after leaving the gas station.
This is normal and depends upon the
slope of pavement at the gas station.

•

The fuel amount dispensed into the
tank is a little less or more than the
gauge indicated. This is normal and
depends upon the slope of pavement
at the gas station.

•

If the gas station nozzle shuts off
before the tank is full, try a different
gas pump nozzle.

Low Fuel Reminder

A low fuel reminder triggers when the fuel
gauge needle is at 1/16th.

Variations:

Distance-to-empty

Fuel gauge position

Driving type (fuel economy

conditions)

35–80 mi (56–129 km)

1/16th

Highway driving

35 mi (56 km)

1/16th

Severe duty driving (trailer

towing, extended idle)

Vehicle Settings and Personalization

Display/Trip

See General Information (page 92).

Information

See General Information (page 92).

Settings

See General Information (page 92).

Brake Coach Display:

The Brake Coach appears after the vehicle
has come to a stop. It coaches you to brake
in a manner which maximizes the amount
of energy returned through the
regenerative braking system. The percent
displayed is an indication of the
regenerative braking efficiency with 100%
representing the maximum amount of
energy recovery.

This feature can be switched on or off in
the information displays settings menu.
See General Information (page 92).

Trip Summary:

The Trip Summary displays upon shutting
off your vehicle. The information is
cumulative over the last trip. A new trip
begins each time you start your vehicle
(when the Ready to Drive message comes
on).

•

Distance - Displays the total distance
traveled, distance traveled on battery
power only (EV distance) and Regen
distance. Regen distance is the
estimated range gained from energy
recaptured through regenerative
braking.

•

Energy Use - Displays the average fuel
economy. In addition for Energi,
displays the total electrical energy used
while in Plug-in Power Mode in kilowatt
hours (kWh).

•

Brake Score - The percent displayed is
an indication of the regenerative
braking efficiency for the trip.

Note: Corresponding trip efficiency leaves
appear on the right information display upon
shutting off your Hybrid vehicle. On Energi
vehicles the trip efficiency leaves are shown
on the right information display when the
vehicle operates in Hybrid Mode for the
entire trip. For trips with Plug-in Power Mode
operation an estimate of your EV Range/Full
Charge is provided along with a listing of
factors and their contributions to this
estimate. See Next Full Charge under Right
Information Display in this chapter.

Right Information Display

Entertainment

See your SYNC information.

Navigation or Compass

See your SYNC information.

Phone

See your SYNC information.

Fuel Economy

See General Information (page 92).

Vehicle Range

Vehicle range indicates the estimated
distance your vehicle will travel with the
energy currently onboard. The range is
displayed at the bottom of the screen with
gasoline range shown in white and electric
range (Energi only) shown in blue.

•

Gasoline Range: Is the estimated
distance to empty based on the fuel
remaining in the tank.

•

Electric Range: Is the estimated
distance you can travel in Plug-In
Power Mode with the engine off. This
range is based on a calculation
determined by the amount of energy
stored in the high voltage battery as a
result of charging while plugged in and
the energy being used while driving.

The amount of energy being used while
driving is affected by:

•

Mild or aggressive acceleration or
braking.

•

Your vehicle speed.

•

Your use of accessories such as climate
control.

•

The ambient temperature and other
weather conditions.

•

City or highway driving.

•

Road grades.

Note: It is normal for vehicle range
estimates to vary due to changes in average
energy usage. This is why you will typically
see different range estimates each time you
fill up your fuel tank or fully charge your
battery.
