Trip Efficiency Leaves

Trip Efficiency Leaves display upon
shutting off your Hybrid vehicle. For Energi
vehicles the trip efficiency leaves are
displayed only when the vehicle operates
in Hybrid for the entire trip. The number of
leaves represent the average for the last
trip. A new trip begins each time you start
your vehicle (when the Ready to Drive
message comes on). Corresponding Trip
Summary data displays on the left
information display.

Next Full Charge

The Next Full Charge display is shown
upon shutting off your Energi vehicle
whenever your vehicle operates in Plug-in
Power Mode for a portion of your trip.

Miles or kilometers per full charge

This is an estimate of the EV Range you
would see if you plugged in and fully
charged your vehicle right now. The
estimate is based on your energy usage
while driving. Energy usage is affected by
your driving style and route, climate control
use, outside temperature and other factors.

Energy usage effects (+/-)

A green bar indicates a positive effect on
your EV range per full charge estimate. An
amber bar indicates a negative effect. The
bigger the bar the bigger the effect on your
estimate.

•

Driving style/route – This includes
energy used to propel your vehicle
based on your driving style and route.
Your driving style includes how fast you
drive and whether your acceleration
and braking is mild or aggressive. Your
route includes factors such as the
amount of city or highway driving and
road grades.

•

Climate control use – This includes
energy used by your vehicle’s high
voltage climate control components
such as the electric A/C compressor
and the electric heater.

•

Outside temp./other – This includes
energy losses due to outside
temperature and other conditions
which reduce vehicle system efficiency.
Energy used for low voltage
accessories such as cabin fans, heated
seats, headlights, etc. is also included.

WARNING LAMPS AND
INDICATORS

The following warning lamps and
indicators will alert you to a vehicle
condition that may become serious. Some
lamps will light when you start your vehicle
to make sure they work. If any lamps
remain on after starting your vehicle, refer
to the respective system warning lamp for
further information.

Note: Some warning indicators appear in
the information display and function the
same as a warning lamp but do not display
when you start your vehicle.

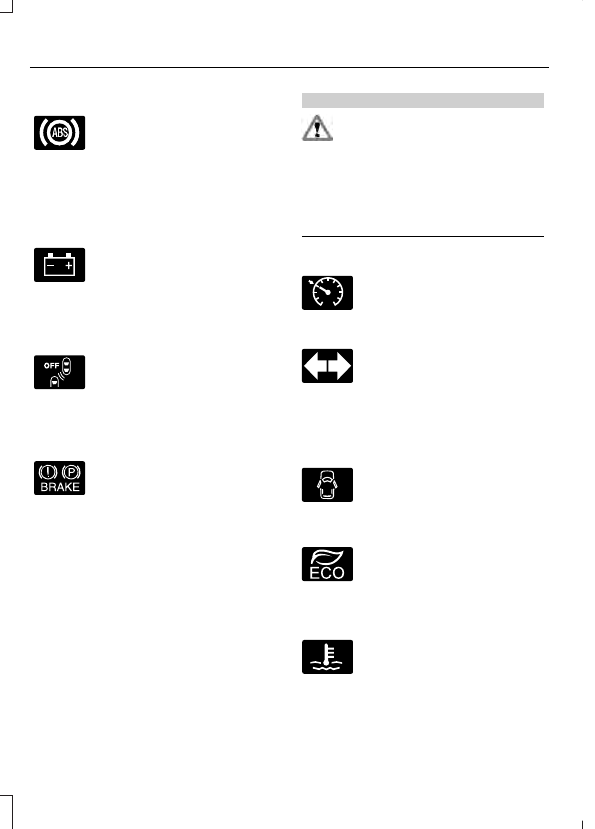

Anti-Lock Braking System

If it lights when you are driving,
this indicates a malfunction. You
will continue to have normal

braking (without anti-lock braking system)
unless the brake system warning lamp also
lights. Have the system checked by an
authorized dealer.

Battery

If it lights while driving, this
indicates a malfunction. Switch
off all unnecessary electrical

equipment and have the system checked
by an authorized dealer immediately.

Blind Spot Monitor

 (If Equipped)

E151262

It illuminates when you switch
this feature off or in conjunction
with a message.  See Blind Spot

Information System (page 179).  See
Information Messages (page 101).

Brake System

E144522

Lights when you engage the
parking brake with the ignition
on.

If it lights when you are driving, check that
you do not have the parking brake
engaged. If you do not have the parking
brake engaged, this indicates low brake
fluid level or a brake system malfunction.
Have the system checked immediately by
an authorized dealer.

WARNING

Driving your vehicle with the warning
lamp on is dangerous. A significant
decrease in braking performance

may occur. It may take you longer to stop
your vehicle. Have your vehicle checked as
soon as possible. Driving extended
distances with the parking brake engaged
can cause brake failure and the risk of
personal injury.

Cruise Control

 (If Equipped)

E71340

Lights when you switch on this
feature.

Direction Indicator

Lights when you switch on the
left or right direction indicator or
hazard warning flasher. If the

indicators stay on or flash faster, check for
a burned out bulb.  See Changing a Bulb
(page 238).

Door Ajar

Displays when the ignition is on
and any door is not completely
closed.

EcoSelect

E194390

Lights when you switch on this
feature.  See EcoSelect (page
139).

Engine and Motor Coolant
Temperature

Lights when the engine or motor
coolant temperature is high.
Stop the vehicle as soon as

possible, switch off the engine and let cool.

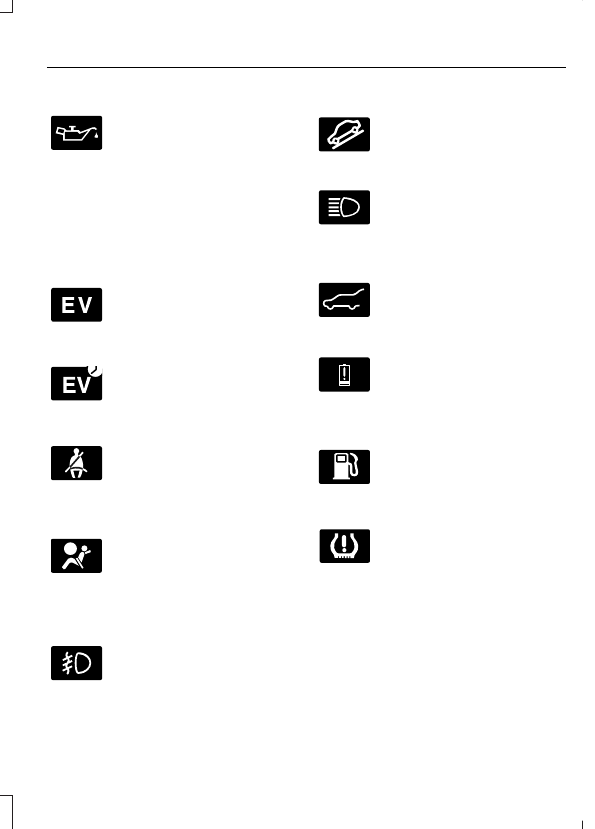

Engine Oil

If it lights with the engine running
or while you are driving, this
indicates a malfunction. Stop

your vehicle as soon as it is safe to do so
and switch off the engine. Check the engine
oil level.  See Engine Oil Check (page 226).

Note: Do not resume your journey if it lights
despite the level being correct. Have the
system checked by an authorized dealer
immediately.

EV Now

E144814

Lights when you select this
feature on.  See Plug-In Hybrid
Vehicle Operation (page 137).

EV Later

E151263

Lights when you select this
feature on. See Plug-In Hybrid
Vehicle Operation (page 137).

Fasten Seatbelt

E71880

It will light and a tone will sound
to remind you to fasten your
seatbelt.  See Seatbelt

Reminder (page 34).

Front Airbag

E67017

If it fails to light when you start
your vehicle, continues to flash
or remains on, this indicates a

malfunction. Have the system checked by
an authorized dealer.

Front Fog Lamps

 (If Equipped)

Lights when you switch the front
fog lamps on.

Grade Assist

 (If Equipped)

E162456

Lights when you switch on grade
assist.

High Beam

Lights when you switch the high
beam headlamps on. It will flash
when you use the headlamp

flasher.

Liftgate Ajar

E162453

Lights when the liftgate is not
completely closed.

Low Battery

 (If Equipped)

E144691

Lights when the battery level is
low. You may also see a
message suggesting you reduce

your usage of the climate system.

Low Fuel Level

Lights when the fuel level is low
or the fuel tank is nearly empty.
Refuel as soon as possible.

Low Tire Pressure Warning

Lights when your tire pressure is
low. If the lamp remains on with
the engine running or when

driving, check your tire pressure as soon as
possible.

It also lights momentarily when you switch
on the ignition to confirm the lamp is
functional. If it does not light when you
switch on the ignition, or begins to flash at
any time, have the system checked by an
authorized dealer.

Parking Lamps

Lights when you switch the
parking lamps on.

Powertrain Fault

Lights when the system detects
a powertrain or high-voltage
charge system fault. If the

indicator stays on or continues to come on,
contact an authorized dealer as soon as
possible.

Note: If your vehicle detects certain faults,
it will not allow you to operate the
accelerator pedal. If this happens, press the
brake pedal and release it. This will activate
limp home vehicle operation. In limp home
vehicle operation, your vehicle will
accelerate in a controlled manner up to a
maximum speed of 35 mph (56 km/h) on
a flat surface. If you apply the brake pedal
or move the transmission to neutral (N) you
can override your vehicle’s acceleration.

Ready to Drive

E144692

Lights after your switch your
vehicle on and it is ready to drive.
A corresponding message may

display stating ready to drive.

Service Engine Soon

If the service engine soon
indicator light stays on after you
switch on the engine, this

indicates that the On-Board Diagnostics
system (OBD) has detected a malfunction
of the vehicle emissions control system.
Refer to On-Board diagnostics (OBD) in
the Fuel and Refueling chapter for more
information about having your vehicle
serviced.  See Emission Control System
(page 149).

If the light is blinking, engine misfire is
occurring which could damage your
catalytic converter. Drive in a moderate
fashion (avoid heavy acceleration and
deceleration) and have your vehicle
serviced immediately.

WARNING

Under engine misfire conditions,
excessive exhaust temperatures
could damage the catalytic

converter, the fuel system, interior floor
coverings or other vehicle components,
possibly causing a fire. Have your vehicle
checked as soon as possible.

The service engine soon indicator lights
when you first switch on the ignition prior
to engine start to check the bulb and to
indicate whether the vehicle is ready for
Inspection and Maintenance testing.

Normally, the service engine soon light will
stay on until you switch on the engine, then
turn itself off if no malfunctions are
present. However, if after 15 seconds the
service engine soon light blinks eight times,
it means that the vehicle is not ready for
Inspection and Maintenance testing.  See
Emission Control System (page 149).

Stability Control

E138639

Lights when the system is active.
If it remains on or does not light
when you switch the ignition on,

this indicates a malfunction. During a
malfunction, the system will turn off. Have
the system checked by an authorized
dealer immediately. See Using Stability
Control (page 167).
