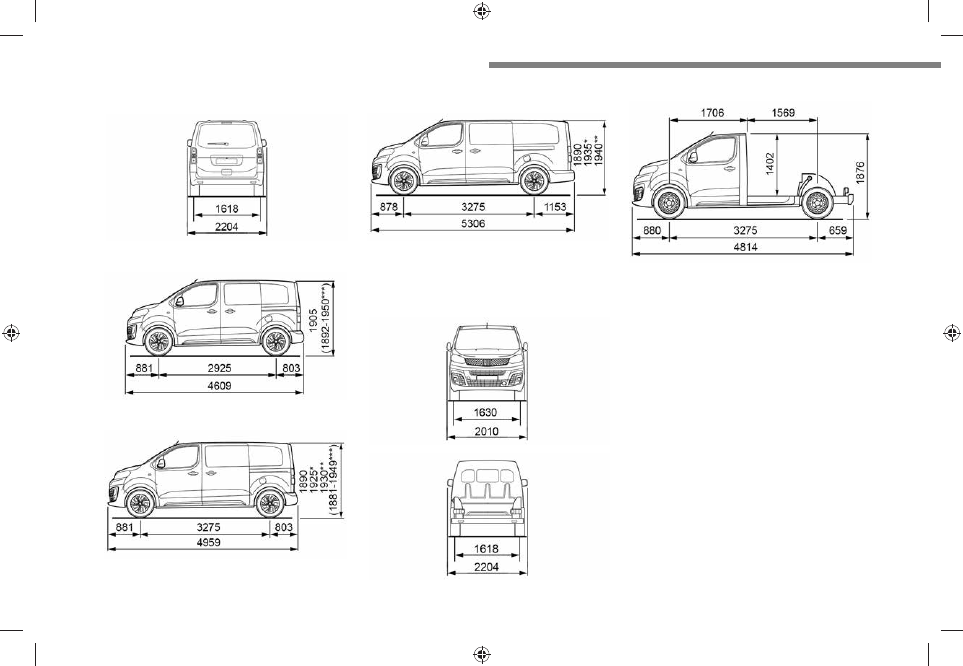

244

Technical data

Tailgate





XS





M





XL





* Increased payload.
** Increased payload with high body.
*** Depending on country of sale.

Platform cab













14/02/2022   15:34:00

245

Technical data

9

Identification markings

Various visible

markings for vehicle identification

and vehicle search.





A. Vehicle Identification Number (VIN), under

the bonnet.

Stamped on the chassis.

B. Vehicle Identification Number (VIN), on the

dashboard.

Printed on an adhesive label visible through the
windscreen.

C. Manufacturer's label.

Affixed to the centre pillar.

Bears the following information:
–  Manufacturer’s name.
–  European whole vehicle type approval
number.

–  Vehicle Identification number (VIN).

–  Gross vehicle weight (GVW).
–  Gross train weight (GTW).
–  Maximum weight on the front axle.
–  Maximum weight on the rear axle.

D. Tyres/paint code label.





Affixed to the driver's door.

Bears the following information about the tyres:
–  Tyre pressures, unladen and laden.

–  Tyre specification, made up of the dimensions

and type as well as the load and speed indices.

–  Spare tyre inflation pressure.

Also indicates the paint colour code.

The vehicle may be originally equipped
with tyres with higher load and speed

indices than those indicated on the label,

without affecting tyre pressure (on cold tyres).

In the event of a change in the type of tyres,

contact a Fiat Dealership for the tyre fits

approved for the vehicle.

14/02/2022   15:34:01

246

Bluetooth® audio system

Bluetooth

®

 audio system





The different functions and settings

described vary according to the version

and configuration of your vehicle.

As a safety measure and because it

requires sustained attention by the driver,

the pairing of a Bluetooth

®

 mobile telephone

with the Bluetooth

®

 hands-free system of your

audio system must be done with the

vehicle

stationary

 and the ignition on.

Your audio system is coded in such a
way that it will only operate in your

vehicle.
All work on the system must be carried out

exclusively by a dealer or qualified workshop,

to avoid any risk of electrocution, fire or

mechanical faults.

To avoid discharging the battery, the

audio system may switch off after a few

minutes if the engine is not running.

First steps

Press: On/Off.

Rotate: adjust volume.
Short press: change audio source (radio;
USB; AUX (if equipment connected); CD;

streaming).
Long press: display the

Telephone

 menu (if a

telephone is connected).

Adjust audio settings:

Front/rear fader; left/right balance; bass/

treble; loudness; audio ambience.
Activate/Deactivate automatic volume
adjustment (based on the vehicle’s speed).

Radio :

Short press: display the list of radio

stations.
Long press: update the list.

Media :

Short press: display the list of folders.
Long press: display the available sorting options.

Select the screen display mode, between:
Date; Audio functions; Trip computer;

Telephone.

Confirm or display contextual menu.



Buttons 1 to 6.

Short press: select the preset radio station.
Long press: preset a radio station.

Radio:

Automatic step by step search up/down

for radio stations.

Media:

Select previous/next CD, USB, streaming track.
Scroll in a list.

Radio:

Manual step by step search up/down for

radio stations.
Select previous/next MP3 folder.

Media:

Select previous/next folder/genre/artist/playlist
on the USB device.
Scroll in a list.

Cancel the current operation.
Go up one level (menu or folder).

Access the main menu.

Activate/Deactivate TA function (traffic

announcements).

Long press: select type of announcement.

Selection of FM/DAB/AM wavebands.

14/02/2022   15:34:02

247

Bluetooth® audio system

10

Steering-mounted
controls

Steering mounted controls -

Type 1





Radio:

Select the previous / next preset radio

station.
Select the previous / next item in a menu or a
list.

Media:

Select the previous / next track.
Select the previous / next item in a menu or a
list.

Radio:

Short press: display the list of radio

stations.
Long press: update the list.

Media:

Short press: display the list of folders.
Long press: display the available sorting options.

Other than telephone call:

Short press: changing audio source

(radio; USB; AUX (if equipment connected); CD;

streaming), confirmation if the

"Telephone"



menu is open.
Long press: open the "

Telephone

" menu.

In the event of a telephone call:

Short press: accept the call.

Long press: reject the call.

During a telephone call:

Short press: open the contextual telephone
menu.
Long press: end the call.

Confirm a selection.



Increase volume.

Decrease volume.

Mute / Restore sound by simultaneously
pressing the increase and decrease

volume buttons.

Steering mounted controls -

Type 2





Access to the main menu.

Increase volume.

Mute / Restore the sound.

Decrease volume.

Other than telephone call:

Short press: changing audio source

(radio; USB; AUX (if equipment connected); CD;

streaming), confirmation if the

"Telephone"



menu is open.

Long press: open the "

Telephone

" menu.

In the event of a telephone call:

Short press: accept the call.
Long press: reject the call.

During a telephone call:

Short press: open the contextual telephone
menu.
Long press: end the call.

Start voice recognition on your
smartphone via the system.

Radio:

Short press: display the list of radio

stations.
Long press: update the list.

Media:

Short press: display the list of folders.
Long press: display the available sorting options.

Radio:

Select the previous / next preset radio

station.
Select the previous / next item in a menu or a
list.

Media:

Select the previous / next track.
Select the previous / next item in a menu or a
list.

Press the thumbwheel: confirm.

Menus

Depending on version.

"

Multimedia

": Media settings, Radio

settings.

14/02/2022   15:34:03

248

Bluetooth® audio system

"

Telephone

": Call, Directory

management, Telephone management,

Hang up.

"

Trip computer

".

"

Maintenance

": Diagnosis, Warning log,

etc.
"

Connections

": Manage connections,

search for devices.
"

Personalisation-configuration

": Define

the vehicle parameters, Choice of

language, Display configuration, Choice of units,

Date and time adjustment.

Press the "

MENU

" button.

Move from one menu to another.

Enter a menu.

Radio

Selecting a station

Press the

SOURCE

 button repeatedly

and select the radio.
Press this button to select a waveband
(FM / AM / DAB).
Press one of the buttons for an automatic
search for radio stations.
Press one of the buttons to carry out a
manual search up / down for radio

frequencies.

Press this button to display the list of
stations received locally.

To update this list, press for more than two
seconds. The sound is cut while updating.

RDS

The external environment (hills,
buildings, tunnels, car parks,

underground, etc.) may block reception,
including in RDS tracking mode. This is a

normal effect of the way in which radio waves

are transmitted and does not indicate any
failure of the audio system.

If RDS is not available, the RDS symbol
appears struck out on the display.

RDS, if activated, allows you to continue
listening to the same station by

automatically retuning to alternative
frequencies. However, in certain conditions,
RDS station tracking may not be possible
nationwide, as radio stations do not always
cover the entire country. This can explain the
loss of reception of a station during a journey.

Short procedure

In "

Radio

" mode, press the

OK

button to activate

or deactivate RDS directly.

Long procedure

Press the

MENU

 button.

Select "

Audio functions

".

Press

OK

.

Select the "

FM waveband preferences

"

function.
Press

OK

.

Select "

Frequency tracking (RDS)

".

Press

OK

, RDS is displayed on the

screen.

Play TA messages

The TA (Traffic Announcement) function

gives priority to TA alert messages. To

operate, this function needs good reception of
a radio station that carries this type of

message. When a traffic report is transmitted,

the current audio source (Radio, CD, etc.) is
interrupted automatically to play the TA
message. Normal play of the media
previously playing is resumed at the end of
the message.

Take care when increasing the volume
while listening to TA messages. The

volume may prove too high on return to the
original audio source.

14/02/2022   15:34:03

249

Bluetooth® audio system

10

Press the

TA

 button to activate or

deactivate traffic messages.

Receiving INFO messages

The INFO function gives priority to TA
alert messages. To be active, this

function needs good reception of a radio
station that transmits this type of message.
When a message is transmitted, the current
audio source (Radio, CD, USB, etc.) is
interrupted automatically to receive the INFO
message. Normal play of the media
previously playing is resumed at the end of
the message.

Make a long press on this button to
display the list of categories.
Select or deselect categories.

Activate or deactivate the reception of the

corresponding messages.

Display TEXT INFOS

Radio text is information transmitted by
the radio station related to the station's

current programme or song.

When the radio station is displayed in the
screen, press

OK

 to display the

contextual menu.

Select "

RadioText (TXT) display

" and

confirm

OK

 to save.

DAB (Digital Audio
Broadcasting) radio

Terrestrial Digital Radio

Depending on version

If the current DAB radio station is not
available on FM, "DAB FM" is struck out.





1

Options display: if active but not available, the
display will be struck out.

2

Display showing the name of the current
station.

3

Preset stations, buttons 1 to 6.
Short press: select the preset radio station.
Long press: memorise a radio station.

4

Display showing the name of the “multiplex”
service being used.

5

RadioText (TXT) display for the current radio
station.

6

Represents the signal strength for the band
being listened to.

When changing region, updating the list
of preset radio stations is recommended.





Full list of radio stations and "multiplexes".

Terrestrial digital radio

Digital radio provides a superior audio
quality and also additional categories of

traffic announcements (TA INFO).

The different "multiplex / ensemble” services

offer a choice of radio stations in alphabetical

order.

Change of band (FM1, FM2, DAB, etc.)

Change of station within the same
"multiplex / ensemble".
Starting of a search for the previous / next
"multiplex / ensemble".
Long press: selection of the categories of
news desired among Transport, News,

Entertainment and Special Flash (available
depending on the station).

14/02/2022   15:34:03

250

Bluetooth® audio system

When the radio station is displayed in the
screen , press "

OK

" to display the

contextual menu.
(Frequency search (RDS), DAB / FM auto
tracking, RadioText (TXT) display, Information
on the station, etc.)

DAB / FM station tracking

"DAB" does not have 100% coverage of
the country.

When the digital signal is weak, "DAB / FM
auto tracking" allows you to continue
listening to the same station, by automatically
switching to the corresponding analogue FM
station (if it exists).
When the "DAB / FM auto tracking" is active,
the DAB station will be selected automatically.

Press the

MENU

 button.

Select "

Multimedia

" and confirm.



Select "

DAB / FM auto tracking

" and

confirm.

If "DAB / FM auto tracking" tracking is
enabled, there is a lag of a few seconds

when the system switches to the analogue
FM station sometimes with a change in
volume.

If the "DAB" station you are listening to is
not available on FM ("

DAB/FM

" option

struck out), or if "DAB / FM auto tracking" is
not on, the sound will be cut when the digital
signal is too weak.

Media

USB socket

Insert the USB memory stick into the USB
socket or connect the USB device to the

USB socket using a suitable cable (not supplied).
The system changes automatically to "USB"
source.

To protect the system, do not use a USB
hub.

Any additional devices connected to the

system must comply with the standard

applicable to the product and/or the standard

IEC 60950-1.

The system builds playlists (in temporary
memory); this operation can take from a

few seconds to several minutes at the first

connection.

Reduce the number of non-music files and the

number of folders to reduce the waiting time.
Playlists are updated every time a new USB
memory stick is connected.

When the USB socket is used, the
portable device charges automatically.

Play mode

The play modes available are:
–

Normal

: the tracks are played in order,

depending on the classification of the selected

files.

–

Random

: the tracks in an album or folder are

played in a random order.
–

Random on all media

: all of the tracks saved

in the media are played in random order.
–

Repeat

: the tracks played are only those from

the current album or folder.

Press this button to display the contextual
menu for the Media function.
Press this button to select the chosen
play mode.

Press this button to confirm.



The choice made is displayed at the top of the
screen.

Choosing a track to play

Press one of these buttons to go to the
previous / next track.
Press one of these buttons to go to the
previous / next folder.

File classification

Make a long press on this button to

display the different classifications.

14/02/2022   15:34:04

251

Bluetooth® audio system

10

Select by "

Folder

" / "

Artist

" / "

Genre

" /

"

Playlist

".

Depending on availability and type of device
used.

Press

OK

 to select the desired

classification, then press

OK

 again to

confirm.

Playing files

Make a short press on this button to

display the chosen classification.

Navigate in the list using the left / right
and up / down buttons.

Confirm the selection by pressing

OK

.

Press one of these buttons to go to the
previous / next track in the list.

Press and hold one of these buttons for fast
forward or rewind.

Press one of these buttons to go to the
previous / next "

Folder

" / "

Artist

" /

"

Genre

" / "

Playlist

"* in the list.

Input AUX socket (AUX)

Depending on equipment

Connect a portable device (MP3 player,
etc.) to the auxiliary jack socket using an

audio cable (not supplied).

Any additional devices connected to the

system must comply with the standard

* Depending on availability and the type of device used.

applicable to the product and/or the standard

IEC 60950-1.

Press the

SOURCE

 button several times

in succession and select "

AUX

".

First adjust the volume on your portable device
(to a high level). Then adjust the volume on your
audio system. Controls are managed via the
portable device.

Do not connect the same device to both
the auxiliary jack socket and the USB

port at the same time.

CD

player

Insert circular compact discs only.
Some anti-pirating systems, on original discs
or CDs copied using a personal recorder, may

cause faults which are no reflection on the

quality of the original player.
Insert a CD in the player, play begins
automatically.

External CD players connected via the
USB port are not recognised by the

system.

To play a disc which has already been
inserted, press the

SOURCE

 button

several times in succession and select "

CD

".

Press one of the buttons to select a track
on the CD.

Press the

LIST

 button to display the list of

tracks on the CD.
Press and hold one of these buttons for
fast forward or rewind.

Playing an MP3 compilation

Insert an MP3 compilation in the CD player.
The audio equipment searches for all of the
music tracks, which may take anything between
a few seconds and several tens of seconds,
before play begins.

On a single disc, the CD player can read

up to 255 MP3 files spread over 8

directory levels.
However, it is advisable to keep to a limit of
two levels to reduce the access time before
the CD is played.
The folder structure is not observed during
playback.

All of the files are displayed on a single level.

To play a disc which has already been
inserted, press the

SOURCE

 button

several times in succession and select "

CD

".

Press one of the buttons to select a folder
on the CD.
Press one of the buttons to select a track
on the CD.
Press the

LIST

 button to display the list of

directories of the MP3 compilation.

14/02/2022   15:34:04

252

Bluetooth® audio system

Press and hold one of these buttons for
fast forward or rewind.

Bluetooth

®

 audio streaming

Streaming allows music files on the telephone to

be played via the vehicle's speakers.
Connect the telephone.
(Refer to the "

Pairing a Bluetooth® telephone

"

section).

Activate the streaming source by pressing

SOURCE.

In

 certain cases, playback of the audio files must

be initiated from the keypad.

Audio files can be selected using the buttons on

the audio system control panel and the steering-
mounted controls. The contextual information
can be displayed on the screen.
If the telephone supports the function. The audio
quality depends on the quality of transmission by
the telephone.

Connecting Apple

®

 players

Connect the Apple

®

 player to the USB socket

using a suitable cable (not supplied).
Play starts automatically.
Control is via the audio system.

The classifications available are those of the

portable device connected (artists / albums /
genres / playlists).
The version of software in the audio system may
not be compatible with the generation of your
Apple

®

 player.

Information and advice

The CD player can play audio files with “.mp3”,

“.wma”, “.wav” and “.aac” file extensions, with a

bit rate of 32 to 320 Kbps.
It also supports TAG mode (ID3 tag, WMA TAG).

No other file types (".mp4", etc.) can be read.

Files of the ".wma" type should be to the wma 9

standard.
The sampling rates supported are 11, 22, 44 and
48 kHz.
Via the USB socket, the system can play audio

files with the extension “.mp3”, “.wma”, “.wav”,

“.cbr”, “.vbr" with a bit rate of 32 to 320 Kbps.

No other file types (".mp4", etc.) can be read.

Files of the ".wma" type should be to the wma 9

standard.
The sampling rates supported are 11, 22, 44 and
48 kHz.
File names should have fewer than 20
characters, avoiding special characters (e.g.
« ? ; ù) so as to avoid any reading or display
problems.
In order to be able to play a burned CDR or

CDRW, select ISO 9660 standards level 1, 2, or

Joliet, if possible, when burning the CD.
If the disc is burned in another format, it may not
be played correctly.
It is recommended that the same burning
standard always be used on an individual disc,
with the lowest speed possible (4x maximum) for
the best acoustic quality.

In the particular case of a multi-session CD, the
Joliet standard is recommended.
To protect the system, do not use a USB hub.

Only use USB memory sticks formatted
to FAT 32 (File Allocation Table).

It is recommended that you use genuine
Apple

®

 USB cables to guarantee correct

operation.

Telephone

Pairing a Bluetooth

®



telephone

As a safety measure and because it

requires sustained attention by the driver,

the pairing of a Bluetooth

®

 mobile telephone

with the Bluetooth

®

 hands-free system of your

audio system must be done with the

vehicle

stationary

 and the ignition on.

Activate the telephone's Bluetooth

®



function and ensure that it is "visible to

all" (telephone configuration).

14/02/2022   15:34:04

253

Bluetooth® audio system

10

The services available depend on the
network, the SIM card and the

compatibility of the Bluetooth

®

 devices used.

Refer to your telephone’s user guide and your
service provider to check which services you
are able to access.

Procedure from the telephone

Select the name of the system in the list
of detected devices.

If the pairing procedure fails, we
recommend deactivating and then

reactivating the Bluetooth

®

 function on the

telephone.

Procedure from the system

Press the

MENU

 button.

Select "

Connections

".

Confirm with

OK.



Select "

Search for a device

".

Confirm with

OK.



A window is displayed with a search in progress
message.
In the list of devices detected, select a telephone
to pair. Only one telephone can be paired at a
time.

Completing the pairing

To complete the pairing, whichever
procedure is used (from the telephone or

from the system), confirm that the code is the

same in the system and in the telephone and
validate.

If pairing fails, the number of attempts is not
restricted.

A message appears on the screen confirming

the pairing.

Information and advice

The "

Telephone

" menu provides access to the

following functions in particular: "

Directory

", if

your telephone is fully compatible, "

Calls list

",

"

Consult the paired devices

".

Depending on the type of telephone, you may be

asked to accept or confirm access by the system

to each of these functions.

Go to the Brand's website for more
information (compatibility, more help,

etc.).

Managing connections

The telephone connection automatically
includes hands free operation and audio

streaming.
The ability of the system to connect to just

one profile depends on the telephone. Both

profiles may connect by default.

Press the

MENU

 button.

Select "

Connections

".

Press

OK

 to confirm.



Select "Bluetooth

Connections

management

" and confirm. The list of

paired telephones is displayed.

Press

OK

 to confirm.



Indicates that a device is connected.

A number indicates the profile of the

connection with the system:

–  1 for media or 1 for telephone.
–  2 for media and telephone.

Indicates connection of the audio

steaming profile.

Indicates connection of the hands-free

telephone profile.

Select a telephone.

Press

OK

 to confirm.



Then select and confirm:



–  "

Connect telephone

"/"

Disconnect

telephone

" : to connect/disconnect the

telephone or the hands-free kit only.
–  "

Connect media player

"/"

Disconnect media

player

" : to connect/disconnect streaming only.

14/02/2022   15:34:04

254

Bluetooth® audio system

–  "

Connect telephone + media

player

"/"

Disconnect telephone + media

player

" : to connect/disconnect the telephone

(hands-free kit and streaming).
–  "

Delete connection

": to delete the pairing.

When you delete a pairing in the system,
remember to delete it from your

telephone as well.

Press

OK

 to confirm.



Receiving a call

An incoming call is announced by a ring and a
superimposed display in the screen.

Select the "

YES

" tab in the screen using

the buttons.

Confirm with

OK.



Press this button at the steering mounted
controls to accept the call.

Making a call

In the "

Telephone

" menu.

Select "

Call

".

Select "

Dial

".

Or
Select "

Directory

".

Or
Select "

Calls list

".

Confirm with

OK.



Press this button for more than two
seconds for access to your directory, then

navigate using the thumb wheel.

Ending a call

In the "

Telephone

" menu.

Select "

End call

".

Confirm with

OK

 to end the call.

During a call, press one of these buttons
for more than two seconds.

The system accesses the telephone's
contacts directory, depending on its

compatibility, and while it is connected via
Bluetooth.

With certain telephones connected by
Bluetooth you can send a contact to the

directory of the audio system.
Contacts imported in this way are saved in a
permanent directory visible to all, whatever
the telephone connected.
The menu for the directory is not accessible if
it is empty.

Managing calls

During a call, press

OK

 to display the

contextual menu.

End call

In the contextual menu, select "

Hang up

"

to end the call.

Confirm with

OK.



Microphone off

(so that the caller cannot hear)

In the contextual menu:

–  select "

Micro OFF

" to switch off the

microphone.
–  deselect "

Micro OFF

" to switch the

microphone on.

Confirm with

OK.



Telephone mode

In the contextual menu:

–  select "

Telephone mode

" to transfer the

call to the telephone (for example, to leave the
vehicle while continuing a conversation).
–  deselect "

Telephone mode

" to transfer the

call to the vehicle.

Confirm with

OK.



If the contact has been cut off, when you

reconnect on returning to the vehicle,
the Bluetooth connection will be restored
automatically and sound returned to the
system (depending on the compatibility of the
telephone).
In some cases, the Telephone mode must be
activated from the telephone.

14/02/2022   15:34:04

255

Bluetooth® audio system

10

Interactive voice response

From the contextual menu, select "

DTMF

tones

" and confirm to use the digital

keypad to navigate in the interactive voice
response menu.

Confirm with

OK.



Consultation call

From the contextual menu, select
"

Switch

" and validate to return to a call

left on hold.

Confirm with

OK.



Directory

To access the directory, press and hold

SRC/TEL

.

Select "

Directory

" to see the list of

contacts.

Confirm with

OK.



To modify the contacts saved in the
system, press

MENU

 then select

"

Telephone

" and confirm.

Select "

Directory management

" and confirm.

You can:
–  "

Consult an entry

",

–  "

Delete an entry

",

–  "

Delete all entries

".

The system accesses the telephone's
contacts directory, depending on its

compatibility, and while it is connected via
Bluetooth.

With certain telephones connected by
Bluetooth you can send a contact to the

directory of the audio system.
Contacts imported in this way are saved in a
permanent directory visible to all, whatever the
telephone connected.
The menu for the directory is not accessible if it
is empty.

Voice recognition

This function allows you to use your
smartphone's voice recognition via the system.
To start voice recognition, depending on the type
of steering mounted controls:
Make a long press on the end of the lighting
control stalk.
OR

Press this button.

Voice recognition requires the use of a

compatible smartphone first connected to

the vehicle by Bluetooth.

Frequently asked
questions

The following information groups together the
answers to the most frequently asked questions
concerning your audio system.

With the engine off, the audio system

switches off after a few minutes of use.

When the engine is switched off, the audio

system operating time depends on the state of
charge of the battery.

The switch-off is normal: the audio system

switches to economy mode and switches off to

avoid discharging the vehicle's battery.

►  Start the vehicle’s engine to increase the

charge of the battery.

The message "the audio system is

overheated" is displayed onscreen.

To protect the installation if the ambient
temperature is too high, the audio system
switches to an automatic thermal protection
mode, in which the volume may be decreased or
the CD player stopped.

►  Switch the audio system off for a few minutes

to allow the system to cool.

Radio

There is a difference in sound quality

between the different audio sources (radio,

CD, etc.).

For optimal listening quality, the audio settings
(Volume, Bass, Treble, Ambience and Loudness)

can be adjusted to different audio sources,

resulting in audible differences when switching

between sources (radio, CD, etc.).

►  Check that the audio settings (Volume, Bass,

Treble, Ambience and Loudness) are appropriate
to the sources being listened to. We recommend
setting the audio functions (Bass, Treble, Fr-Re

14/02/2022   15:34:05

256

Bluetooth® audio system

balance and Le-Ri balance) to the middle
position, setting the musical ambience to "None",
setting loudness correction to "Active" in CD
mode and "Inactive" in Radio mode.

The preset stations do not function (no

sound, 87.5 MHz is displayed, etc.).

The wrong waveband is selected.

►  Press the BAND button to return to the

waveband (FM, FM2, DAB, AM) on which the
stations are preset.

Traffic announcement (TA) is shown but I

receive no traffic information.

The radio station is not part of the regional traffic

information network.

►  Tune to a radio station that broadcasts traffic

information.

The reception quality of the tuned radio

station gradually deteriorates or the station

presets are inoperative (no sound, 87.5 MHz

is displayed, etc.).

The vehicle is too far from the selected station’s
transmitter, or no transmitter is present in the
geographical area.

►  Activate the RDS function to allow the system

to check for a more powerful transmitter in the
area.
The environment (hills, buildings, tunnels,
basement car parks, etc.) may block reception,
including in RDS mode.
This is a perfectly normal phenomenon, and is
not indicative of an audio system malfunction.

The aerial is absent or has been damaged (for
example when going through an automatic car
wash or in an underground car park).

►  Have the aerial checked by a dealer.

The sound intermittently cuts out for 1 or 2

seconds in radio mode.

During this brief sound cut-out, the RDS
searches for another frequency giving better
reception of the station.

►  Switch off the RDS function if the

phenomenon occurs too frequently and always
on the same route.

Media

The Bluetooth connection is cut.

The battery in the peripheral device may not be

sufficiently charged.

►  Charge the battery in the peripheral device.

The message "USB device error" is displayed

in the screen.

The USB stick has not been recognised, or may
be corrupted.

►  Reformat the USB memory stick.

The CD is systematically ejected or is not

played.

The CD is upside down, cannot be read, does

not contain audio files or contains audio files of a

format not recognised by the audio system.
The CD is protected by an anti-pirating system
not recognised by the audio system.

►  Check that the CD is inserted in the player

the right way up.

►  Check the condition of the CD: the CD cannot

be played if it is too badly damaged.

►  Check the content in the case of a burned

CD: read the recommendations in the "Audio"
section.
Due to poor quality, certain burned CDs will not
be played by the audio system.

The CD audio quality is is poor.

The CD is scratched or of poor quality.

►  Insert good quality CDs and store them in

suitable conditions.
The audio settings (bass, treble, ambience) are
unsuitable.

►  Return bass and treble settings to 0, without

selecting an ambience.

I am unable to play the music files on my

smartphone via the USB port.

Depending on the smartphone, access by the
audio system to music on the smartphone may
have to be approved on the latter.

►  Manually activate the MTP profile on the

smartphone (USB settings menu).

Telephone

I am unable to access my voicemail.

Few telephones or service providers allow the
use of this function.

►  Call your voicemail, via the telephone menu,

using the number provided by your operator.

I am unable to access my directory of

contacts.

►  Check the compatibility of your telephone.

14/02/2022   15:34:05

257

Bluetooth® audio system

10

You did not grant access to your contacts when
pairing the telephone.

►  Accept or confirm access by the system to

the contacts on your telephone.

I am unable to continue a conversation when

getting into my vehicle.

Handset mode is activated.

►  Deselect handset mode to transfer the call to

the vehicle.

I am unable to pair my telephone by

Bluetooth.

Telephones (models, versions of operating

systems) have their own specificities in the

pairing procedure and some telephones are not
compatible.

►  Before starting the pairing procedure, delete

the telephone pairing from the system

and

 the

system pairing from the telephone, in order to
view the compatibility of the telephones.

14/02/2022   15:34:05

258

Connect Radio

Connect Radio





Multimedia audio system -

Applications - Bluetooth

®



telephone

The functions and settings described
vary according to the vehicle version and

configuration, as well as the country of sale.

For safety reasons and because they
require sustained attention by the driver,

the following operations must be carried out
with the

vehicle stationary

 and the ignition

on:
–  Pairing the smartphone with the system via
Bluetooth.
–  Using the smartphone.
–  Connecting to the CarPlay

®

 or Android

Auto applications (certain applications stop
displaying when the vehicle is moving).

–  Changing the system settings and

configuration.

The system is protected so that it only
operates in the vehicle.

The message

Energy economy mode

 is

displayed when the system is about to go into
standby.

The system’s Open Source Software
(OSS) source codes are available at the

following addresses:
https://www.groupe-psa.com/fr/oss/
https://www.groupe-psa.com/en/oss/

First steps

With the engine running, a press mutes
the sound.

With the ignition off, a press turns the system on.

Increase or decrease the volume using
the wheel or the "plus" or "minus" buttons
(depending on the equipment).
Use the buttons on either side of or below the
touch screen to access the menus, then press
the virtual buttons on the touch screen.
Depending on the model, use the "Source" and
"Menu" buttons on the left of the touch screen to
access the menus, then press the virtual buttons
on the touch screen.

At all times it is possible to display the rolling

menus by pressing the screen briefly with three

fingers.

All touch-sensitive areas on the screen are
white.
On pages with multiple tabs at the bottom of the
screen, you can switch between pages either
by tapping the tab for the desired page or by
swiping the pages to the left or right with your

finger.

Press in the shaded area to go back up a level

or confirm.

Press the back arrow to go back a level or

confirm.

The touch screen is of the "capacitive"
type.

To clean the screen, use a soft, non-abrasive
cloth (e.g. spectacles cloth) with no additional
product.
Do not use sharp objects on the screen.
Do not touch the screen with wet hands.

Certain information is displayed permanently in
the upper bar of the touch screen:
–  Air conditioning status information (depending
on version), and direct access to the
corresponding menu.
–  Radio Media and Telephone menu status
information.
–  Privacy status information.
–  Access to the touch screen and digital
instrument panel settings.

14/02/2022   15:34:05

259

Connect Radio

11

Audio source selection (depending on
equipment):
–  FM/DAB/AM radio stations (depending on
equipment).
–  Telephone connected via Bluetooth and
Bluetooth multimedia broadcast (streaming).
–  USB Memory stick.
–  Media player connected via the auxiliary
socket (depending on equipment).





In the "Settings" menu, it is possible to

create a profile for an individual or for a

group of people with shared interests, and

configure a wide range of settings (radio

presets, audio settings, ambiences, etc.).
Settings are applied automatically.

In very hot conditions, the volume may
be limited to protect the system. It may

enter standby mode (with the screen and

sound off) for 5 minutes or more.

The system will resume normal operation
when the temperature in the passenger
compartment has dropped.

Steering-mounted
controls

Steering mounted controls -

Type 1





Radio:

Select the previous/next preset radio

station.
Select the previous/next item in a menu or a list.

Media:

Select the previous/next track.
Select the previous/next item in a menu or a list.

Radio:

Short press: display the list of radio

stations.
Long press: update the list.

Media:

Short press: display the list of folders.
Long press: display the available sorting options.

Change audio source (radio; USB; AUX if
equipment connected; CD; streaming).

Confirm a selection.



Increase volume.

Decrease volume.

Mute/restore sound by simultaneously
pressing the increase and decrease

volume buttons.

Steering mounted controls -

Type 2





Voice control

:

This control is located on the steering

wheel or at the end of the lighting control stalk
(depending on equipment).
Short press: smartphone voice commands via
the system.

Increase volume.

Decrease volume.
Mute by pressing the volume increase

and decrease buttons simultaneously
(depending on equipment).
Restore the sound by pressing one of the two
volume buttons.

Media

 (short press): change the

multimedia source.

Telephone

 (short press): start telephone

call.

14/02/2022   15:34:06
