212

Practical information

Promptly clean up any stains containing
chemicals liable to damage the vehicle's
paintwork (including tree resin, bird
droppings, insect secretions, pollen and tar).
Depending on the environment, clean the
vehicle frequently to remove salty deposits
(in coastal areas), soot (in industrial areas)
and mud/salts (in wet or cold areas). These
substances can be highly corrosive.

Contact a Fiat Dealership or a qualified

workshop for advice on removing stubborn
stains requiring special products (such as tar
or insect removers).
Preferably, have paint touch-ups performed

by a Fiat Dealership or a qualified workshop.

Interior

When washing the vehicle, never use a
water hose or high-pressure jet to clean

the interior.
Liquids carried in cups or other open
containers can spill, presenting a risk of
damage to the instruments and controls and
the controls located on the centre console. Be
vigilant!
To clean instrument panels, touch screens
or other displays, wipe gently with a soft,
dry cloth. Do not use products (e.g. alcohol,
disinfectant) or soapy water directly on these
surfaces - risk of damage!

Bodywork

High-gloss paint

Do not use abrasive products, solvents,
petrol or oil to clean the bodywork.

Never use an abrasive sponge to clean
stubborn stains - risk of scratching the
paintwork!
Do not apply polish in strong sunshine, or to
plastic or rubber parts.

Use a soft cloth and soapy water or a pH
neutral product.

Gently wipe the bodywork with a clean

microfibre cloth.

Apply polish with the vehicle clean and dry.
Comply with the instructions for use stated on
the product.

Textured paint

This type of paint reacts under the effect of

light, through variations in appearance and

finish that highlight the lines and contours of the

vehicle. Its varnish is enriched with particles that

remain visible and create a unique satin effect

with relief. Its slightly granular texture gives it a
surprising touch.

Never attempt to clean without water.
Never clean your vehicle in an automatic

roller-brush car wash.

Never select the programme with hot wax

finish.

Never use high-pressure lances equipped
with brushes - risk of scratching paint!
Never apply glossy polish or preservatives to
the bodywork or alloy wheels; these products
irreversibly reveal glossy or spotted areas.

Choose high-pressure wash, or at least

high-flow water jet.

Rinse the vehicle with demineralised water.

Only a clean microfibre cloth is recommended

for wiping the vehicle; pass it over the vehicle
without rubbing.

Carefully wipe off any fuel spilt on the

bodywork using a soft cloth, then allow to dry.

Clean off minor marks (for example, finger

marks), using a maintenance product
recommended by Fiat.

Decals

(Depending on version)

Do not use a high-pressure washer to
clean the vehicle - risk of damaging or

detaching the decals!

Use

 a high-flow hose (temperature

between 25°C and 40°C).

Place the jet of water perpendicular to the
surface to be cleaned.
Rinse the vehicle with demineralised water.

14/02/2022   15:33:54

213

Practical information

7

Leather

Leather is a natural product. Appropriate regular
care is essential for its durability.
It must be protected and nourished using a

specific leather product, to keep it supple and

preserve its original appearance.

Do not use maintenance products which
are not suitable for cleaning leather

(e.g. solvent, detergent, petrol, pure alcohol).
Do not use bleaching or colour-removal
products (e.g. perchloroethylene).
When cleaning items partly made from
leather, take care not to damage the other

materials with the specific leather product.

Before cleaning greasy stains or liquids,
quickly mop up any surplus.

Before cleaning, wipe off any residues liable

to scuff the leather, using a cloth that has

been dampened with demineralised water
and thoroughly wrung out.
Clean the leather, without rubbing too
vigorously, using a soft cloth moistened with
soapy water or a pH-neutral product.
Dry with a soft, dry cloth.

14/02/2022   15:33:54

214

In the event of a breakdown

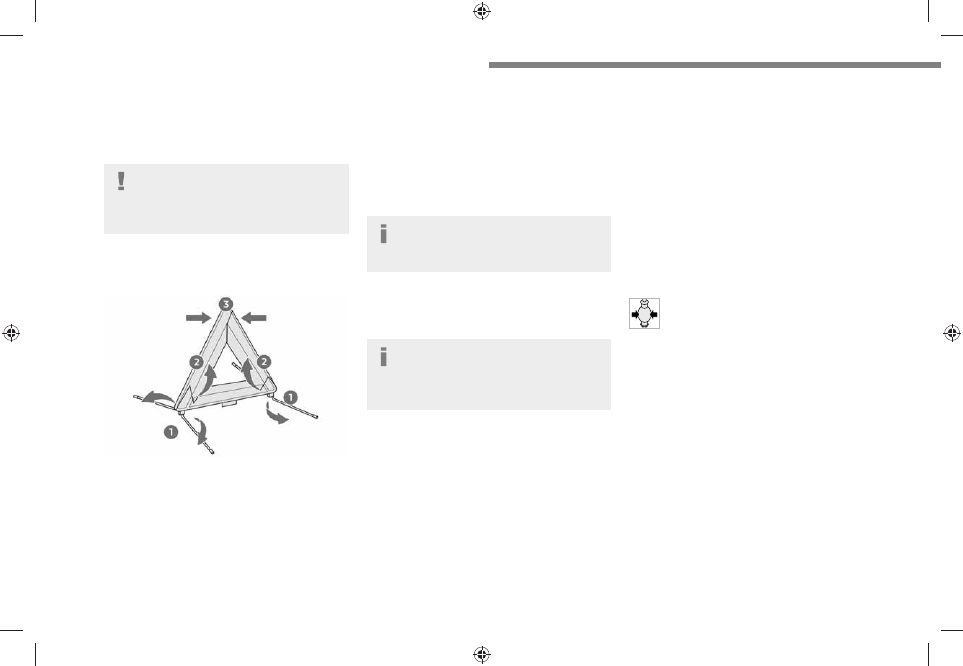

Warning triangle

This reflective and dismantlable device is to be

installed on the side of the road when a vehicle
is broken down or damaged.

Before getting out of the vehicle

Turn on the hazard warning lamps, then

put on the safety vest to assemble and install
the triangle.

Assembling and placing the

triangle





For versions supplied with a triangle as original
equipment, refer to the illustration above.
For other versions, refer to the assembly
instructions provided with the triangle.

►  Put the triangle in place behind the vehicle,

as required by local legislation.

Running out of fuel
(Diesel)

With Diesel engines, the fuel system must be
primed if you run out of fuel.

Before starting to prime the system

, it is

essential to put at least 5 litres of Diesel into the
fuel tank.

For more information on

Refuelling

 and

on

Misfuel prevention (Diesel)

, refer to

the corresponding section.

For non-BlueHDi versions, the fuel system
components are located in the engine
compartment; this may be under a removable
cover.

For more information on the

Engine

compartment

, in particular the location

of these components under the bonnet, refer
to the corresponding section.

1.5 BlueHDi engines

►  Switch on the ignition (without starting the

engine).

►  Wait around 1 minute and switch off the

ignition.

►  Operate the starter motor to start the engine.

If the engine does not start at the first attempt,

do not keep trying, but restart the procedure.

2.0 BlueHDi engines

►  Switch on the ignition (without starting the

engine).

►  Wait around 6 seconds and switch off the

ignition.

►  Repeat the operation 10 times.

►  Operate the starter motor to start the engine.

If the engine does not start at the first attempt,

do not keep trying, but restart the procedure.

2.0 HDi engines

►  Open the bonnet and then, if necessary,

unclip the cover to access the priming pump.

►  Loosen the degassing bolt.

►  Operate the priming pump until fuel

appears in the transparent tube.

►  Retighten the degassing bolt.

►  Operate the starter motor until the engine

starts (if the engine does not start at the first

attempt, wait around 15 seconds before trying
again).

►  If the engine does not start after a few

attempts, operate the priming pump again, then
the starter motor.

►  Put the cover back in place and clip it in, then

close the bonnet.

14/02/2022   15:33:54

215

In the event of a breakdown

8

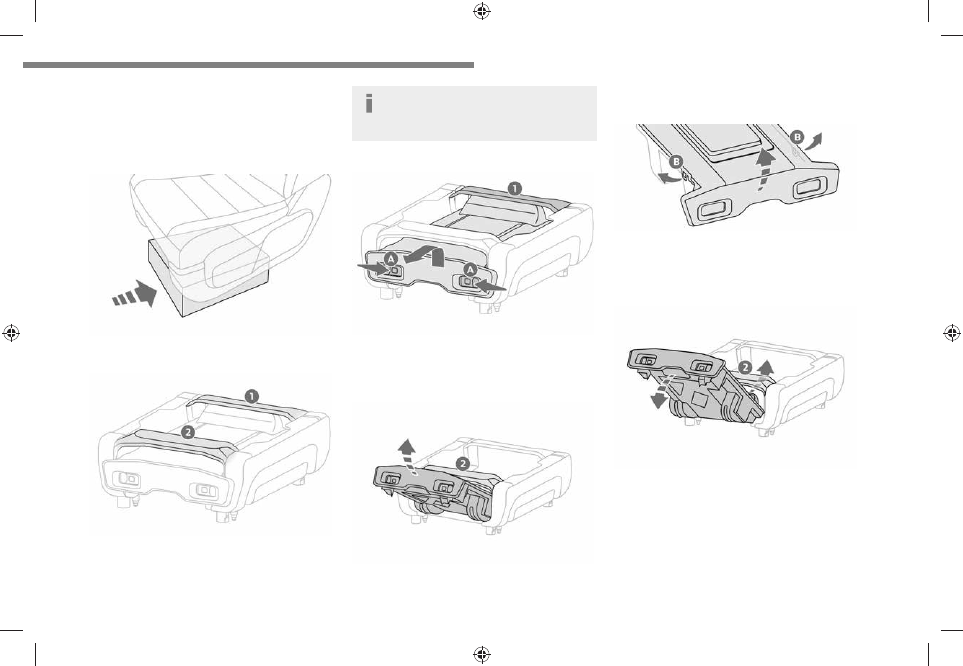

Tool box

Access the tools

Access





The tool box is located under the left-hand front
seat.





As a safety measure, bars

1

 and

2



prevent the box escaping from its

housing, if it is not correctly secured.

Removing and opening





►  Press latches

A

 and slide them inwards to

release the box.

►  To take it past bar

1

, raise the box slightly

then pull it as far as it will go.





►  Then, lift the box upwards to take it past bar

2

.





►  Unclip fixings

B

 on the cover, then open it for

access to the tools.

Storage

►  Refit the cover on the box and clip fixings

B

.





►  Position the box with the front inclined

upwards.

►  To take it past bar

2

, push the box in and

down.

►  To take it past bar

1

, raise the box slightly

then push it fully in.



14/02/2022   15:33:55

216

In the event of a breakdown



►  Once the box is

fully home

 in its housing,

push it against the floor carpet then slide latches

A

 outwards to secure it.

Pull on the box to check that it is secure
in its housing.

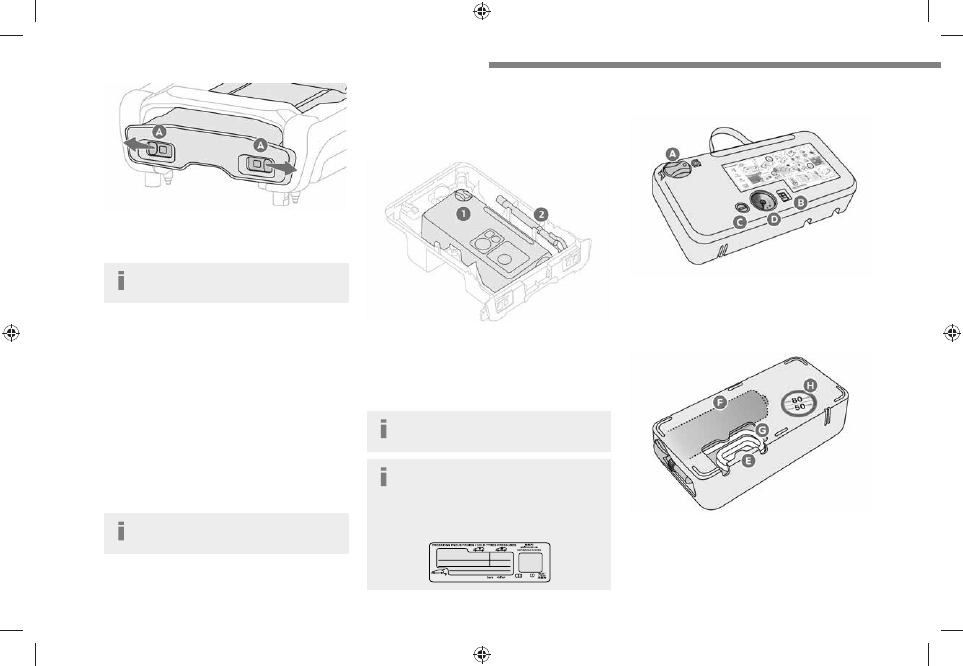

Temporary puncture
repair kit

Made up of a compressor and a sealant
cartridge, it allows you to carry out a

temporary

repair

 of the tyre so that you can drive to the

nearest garage.
It is designed to repair most punctures located
on the tyre tread.

Access to the kit

This kit is stowed in a tool box.

For more information on the

Tool box

,

refer to the corresponding section.

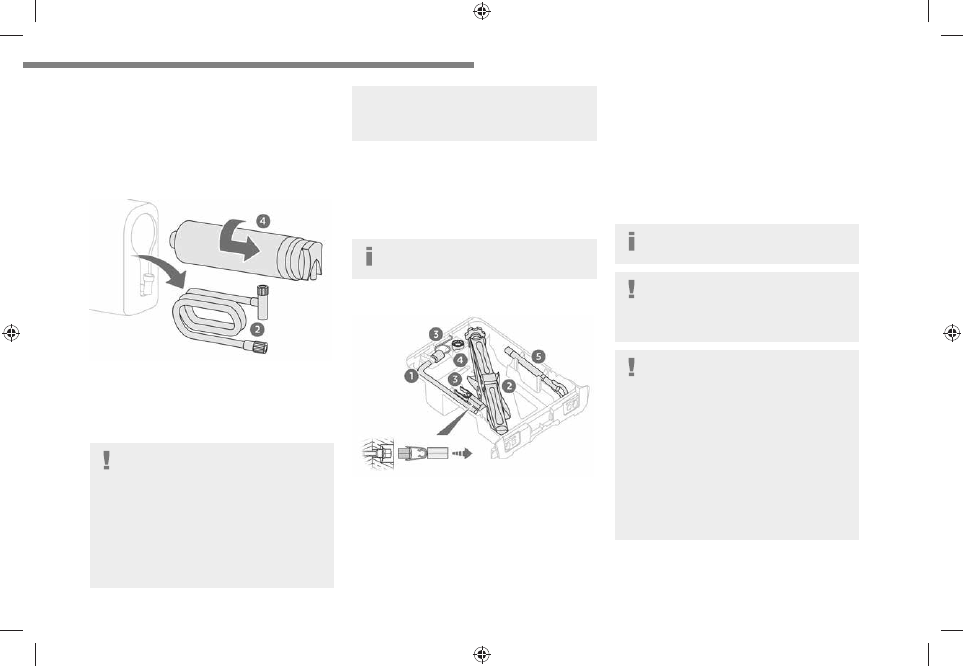

List of tools

These tools are specific to the vehicle and may

vary according to the level of equipment. Do not
use them for any other purpose.





1.

12 V compressor.
Contains a sealant cartridge for the
temporary repair of a tyre and can also be
used for adjusting tyre pressures.

2.

Towing eye.

For more information on

Towing

, please

refer to the corresponding section.

Tyre inflation pressures are indicated on

this label.

For more information on

Identification

markings

, particularly this label, refer to the

corresponding section.

Composition of the kit





A.

"Repair" or "Inflation" position selector.

B.

On

I

/off

O

 switch.

C.

Deflation button.

D.

Pressure gauge (in bars and psi).





E.

Compartment housing a cable with an
adaptor for a 12 V socket.

F.

Sealant cartridge.

G.

White pipe with cap for repair and inflation.

14/02/2022   15:33:55

217

In the event of a breakdown

8

H.

Speed limit sticker.

The vehicle's electrical system allows the
connection of the compressor for long

enough to inflate a tyre after a puncture

repair.
Only use the two 12 V sockets, located at the

front

, to connect your compressor.

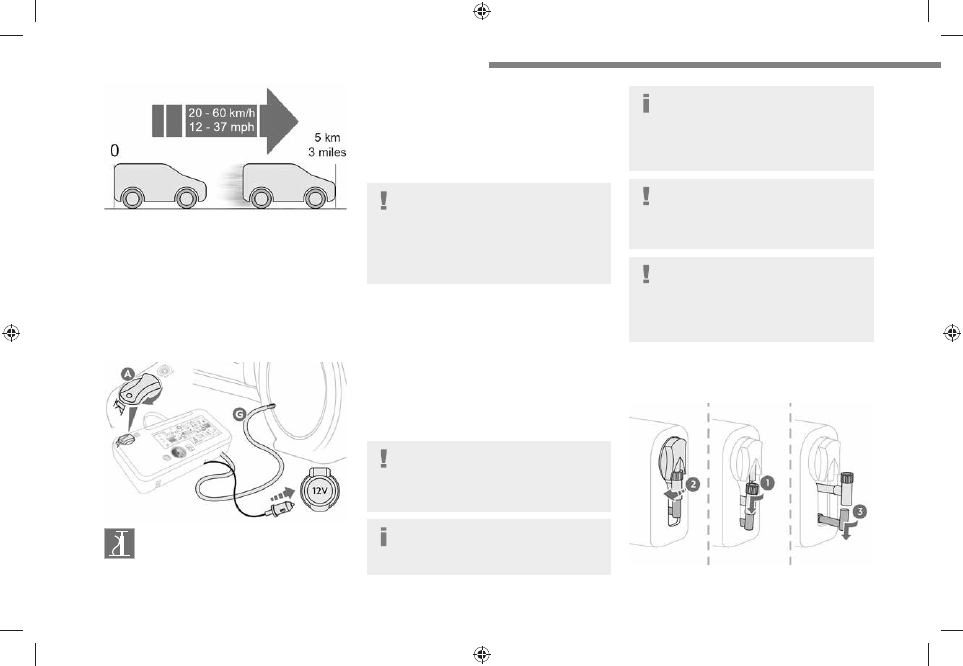

Repair and sealing

procedure

►  Park the vehicle without obstructing any

traffic and apply the parking brake.

►  Follow the safety instructions (hazard

warning lamps, warning triangle, wearing high
visibility vest, etc.) according to the legislation in
force in the country where you are driving.

►  Switch off the ignition.

►  Turn the selector

A

 to the "Repair"

position.

►  Check that switch

B

 is in position "

O

".

Avoid removing any foreign bodies which

have penetrated the tyre.





►  Uncoil the white pipe

G

 fully.

►  Unscrew the cap from the white pipe.

►  Connect the white pipe to the valve of the

tyre to be repaired.

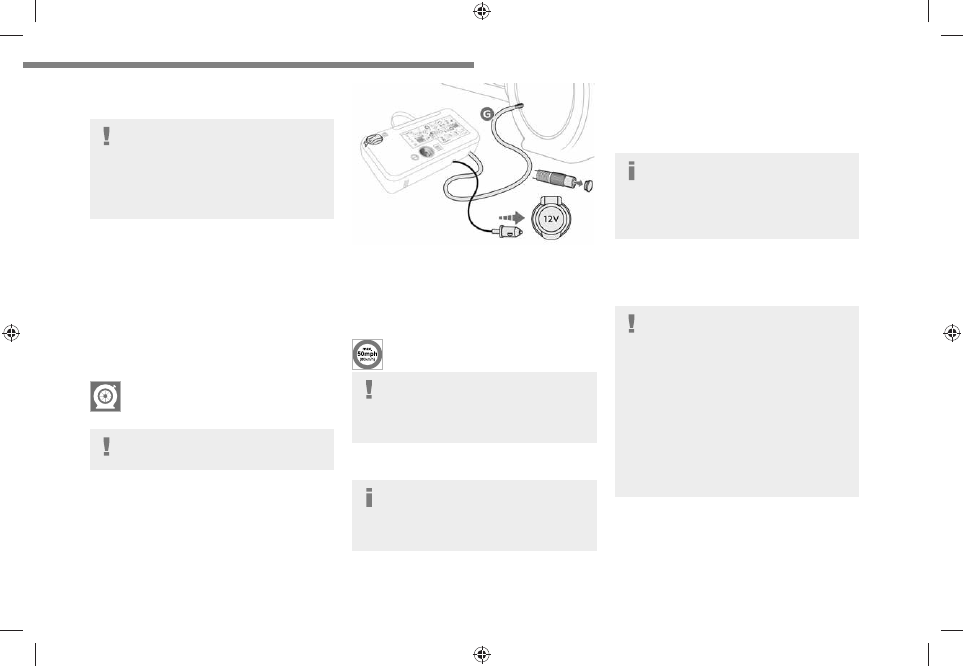

►  Connect the compressor's electrical plug to

the vehicle's 12 V socket.

►  Affix the speed limit sticker.



The speed limit sticker must be secured
to the interior of the vehicle in the driver's

field of vision, to remind you that a wheel is in

temporary use.

►  Start the vehicle and leave the engine

running.

Do not start the compressor before
connecting the white pipe to the tyre

valve: the sealant product would be expelled
through the pipe.

►  Switch on the compressor by moving switch

B

 to position

I

 until the tyre pressure reaches

2.0 bars. The sealant product is injected under
pressure into the tyre; do not disconnect the
pipe from the valve during this operation (risk of
blowback).

If after approximately seven minutes this
pressure is not reached, this indicates

that the tyre is not repairable; contact a Fiat

Dealership or a qualified workshop for

assistance.

►  Remove the kit and screw the cap back on

the white pipe. Take care to avoid contaminating

the vehicle with traces of fluid. Keep the kit to

hand.

Take care, the sealant product is harmful
if swallowed and causes irritation to the

eyes.
Keep this product out of the reach of children.

The use-by date of the fluid is marked on the

bottle.
After use, do not discard the bottle in
standard waste, take it to a Fiat Dealership or
an authorised waste disposal site.
Do not forget to obtain a new bottle of
sealant, available from a Fiat Dealership or a

qualified workshop.



14/02/2022   15:33:55

218

In the event of a breakdown



►  Drive immediately for approximately three

miles (five kilometres), at reduced speed

(between 12 and 37 mph (20 and 60 km/h)), to
plug the puncture.

►  Stop to check the repair and

measure the

tyre pressure

 using the kit.

Inflating, adjusting and

checking tyre pressures





►  Turn selector

A

 to the "Inflation"

position.

►  Uncoil the white pipe

G

 fully.

►  Connect the white pipe to the valve on the

repaired tyre.

►  Reconnect the compressor's electric plug to

the vehicle's 12 V socket.

►  Start the vehicle and leave the engine

running.

Go to a Fiat Dealership or a qualified

workshop as soon as possible.

You must tell the technician that the kit has
been used. After inspection, the technician
will advise you on whether the tyre can be
repaired or if it must be replaced.

►  Adjust the tyre pressure using the

compressor (to inflate: set switch

B

 to position

"

I

"; to deflate: set switch

B

 to position "

O

" and

press button

C

), according to the vehicle's tyre

pressure label located by the driver's door.
A subsequent loss of pressure indicates that the
puncture has not been fully sealed; contact a

Fiat Dealership or a qualified workshop to have

your vehicle repaired.

►  Remove the kit and stow it.

►  Drive at reduced speed (50 mph

(80 km/h) max.), limiting the distance

travelled to approximately 125 miles
(200 km).

The compressor can also be used,
without injecting sealant, to check and

adjust the tyre pressures.

If after approximately 7 minutes the
required pressure is not reached, this

indicates that the tyre is irreparably damaged;

contact a Fiat Dealership or a qualified

workshop for assistance.

Do not drive more than 125 miles (200
km) with a repaired tyre; see a Fiat

Dealership or a qualified workshop to have

the tyre changed.

Should the pressure of one or more tyres
be adjusted, it is necessary to reinitialise

the under-inflation detection system.

For more information on

Tyre under-inflation

detection

, refer to the corresponding section.

Removing the pipe and

cartridge





14/02/2022   15:33:56

219

In the event of a breakdown

8

►  Turn the pipe assembly

2

 to the left until it

comes into contact with the unit.

►  Disconnect the connector

1

 from the cartridge

by turning it a quarter turn anti-clockwise.

►  Pull the pipe assembly

2

 out slightly, then

disconnect the connector

3

 from the air intake

pipe by turning it a quarter turn anti-clockwise.





►  Remove the pipe assembly

2

.

►  Hold the compressor up vertically.

►  Unscrew the cartridge

4

 from the bottom.

To fit the new cartridge and new pipe, carry out

these operations in reverse order.

Beware of fluid discharge.

The expiry date of the fluid is indicated

on the cartridge.
The sealant cartridge is designed for single
use; it must be replaced even if only partly
used.
After use, do not discard the cartridge in
standard waste, take it to a Fiat Dealership or
an authorised waste disposal site.

Do not forget to obtain a new cartridge,

available from a Fiat Dealership or a qualified

workshop.

Spare wheel

Access to the tools

The tools are stowed in a tool box.

For more information on the

Tool box

,

refer to the corresponding section.

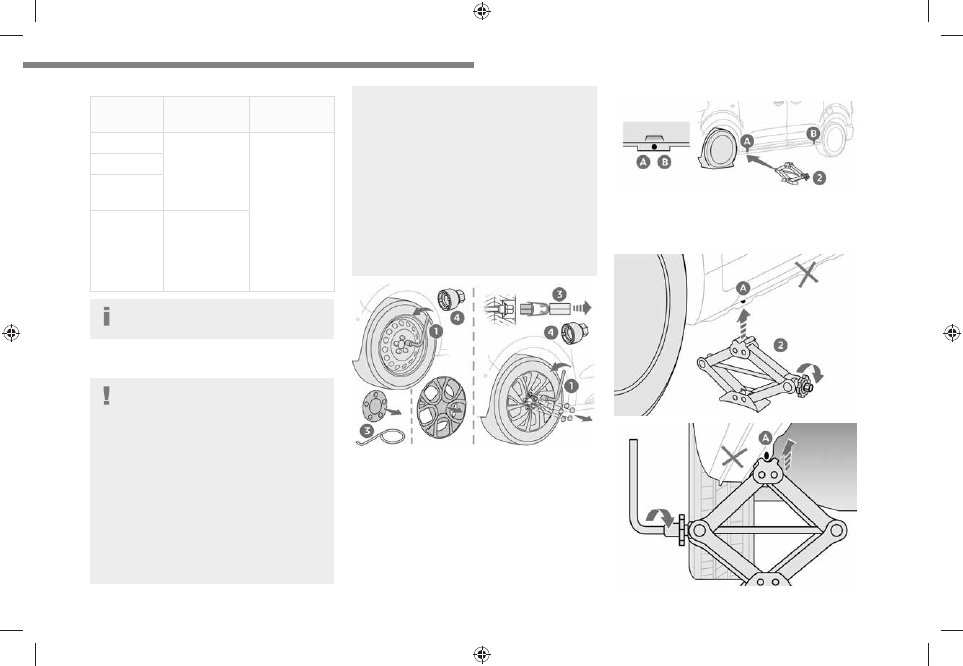

List

of tools

1.

Wheelbrace.
Used to remove the wheel bolts and raise/
lower the jack.

2.

Jack.
Used to raise the vehicle.

3.

Wheel bolt cover/wheel trim removal tool.
Depending on the vehicle's equipment, this is
used to remove the wheel bolt covers on alloy
wheels or the wheel trim on steel wheels.

4.

Socket for "anti-theft" wheel bolts.
Used to adapt the wheelbrace to the special
"anti-theft" bolts.

5.

Towing eye.

 For more information on

Towing

, please

refer to the corresponding section.

These tools are specific to the vehicle

and may vary according to the level of

equipment.
Do not use them for any other purpose.

The jack must only be used to change a
wheel with a damaged or punctured tyre.

Do not use any jack other than the one
supplied with the vehicle.
If the vehicle does not have its original jack,

contact a Fiat Dealership or a qualified

workshop to obtain the one that was intended
by the manufacturer.
The jack meets European standards, as

defined in the Machinery Directive 2006/42/

CE.
The jack does not require any maintenance.

14/02/2022   15:33:56

220

In the event of a breakdown

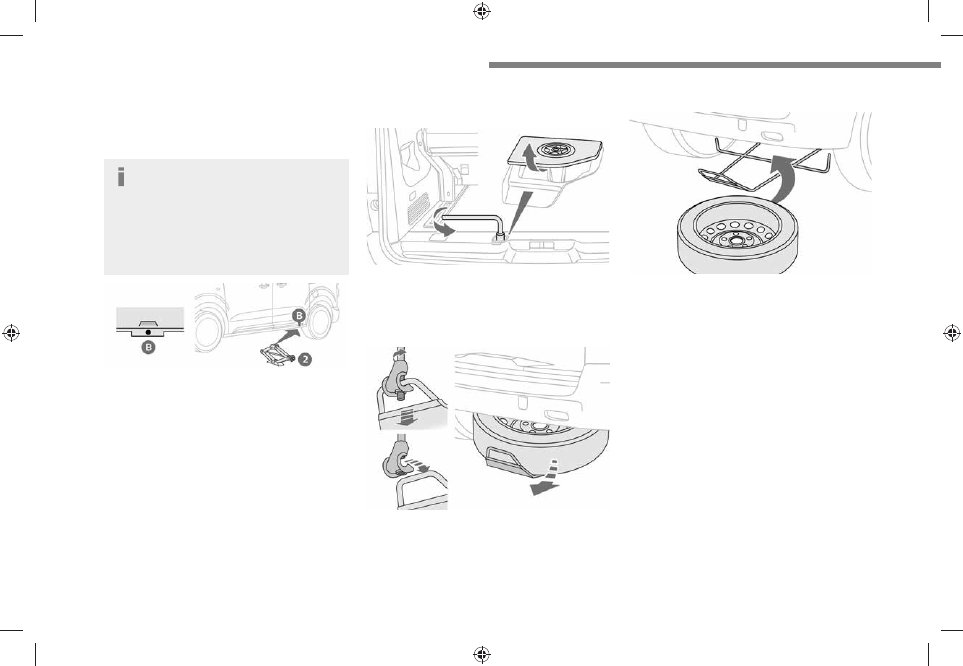

Accessing the spare wheel

►  Access to the spare wheel is from the rear.

►  Depending on version, open the side-hinged

doors or the tailgate.

To avoid any unwanted opening of the
electric side door(s), deactivate the

Hands-Free Tailgate Access function in the

vehicle configuration menu.

For more information on the

Hands-free

sliding side door

, refer to the corresponding

section.





►  If the vehicle is fitted with a towbar, raise

the rear of the vehicle using the jack (must be
at jacking point

B

) to allow sufficient space to

remove the spare wheel.

Remove the spare wheel from the

carrier





►  Access the carrier bolt, located on the rear

door sill.

►  Slacken the bolt using the wheelbrace (about

14 turns) until the carrier is low enough to allow
the carrier hook to be disengaged.





►  Release the carrier from the hook, take the

spare wheel and place it next to the wheel to be
changed.

Refit the spare wheel in the carrier





►  Position the wheel facing the carrier.

►  Progressively return the wheel to the carrier

by pushing alternately at the left and right until it

is clear of the hook fixing area.

►  Engage the carrier on the hook, then tighten

the bolt using the wheelbrace until the bolt is fully
tightened.

Tyre in

the carrier

You can change the size of the tyre on the spare
wheel by following the instructions below.

14/02/2022   15:33:56

221

In the event of a breakdown

8

Original

 tyre

size

XS-M

XL

215/65 R16

Placing a

225 wheel in

the carrier is

prohibited.

There is no

restriction.

215/60 R17

215/60 R17

M&S

225/55 R17

Placing a 215

wheel in the

carrier is not

recommended

(risk of noise).

A punctured tyre of size 215 or 225 can

be placed in the carrier.

Removing a wheel

Parking the vehicle

Immobilise the vehicle where it does

not obstruct traffic: the ground must be level,

stable and non-slippery.

With a manual gearbox, engage first gear

then switch off the ignition to block the

wheels.
With an automatic gearbox, place the gear
selector in position

P

 then switch off the

ignition to block the wheels.
With a drive selector, place the gear selector
in position

P

 then switch off the ignition to

block the wheels.

Apply the parking brake, unless it is
programmed to automatic mode (for an
electric parking brake), and check that the
indicator lamp lights up on the instrument
panel.
Ensure that the occupants have left the
vehicle and are located in a safe place.
Never go underneath a vehicle raised using a
jack; use an axle stand.
With an electric parking brake, place a chock
against the wheel diagonally opposite to the
one being replaced.





►  With a steel wheel, remove the bolt cover

using tool

3

 or the wheel trim by hand.

►  With an alloy wheel, remove the cover from

each of the bolts using tool

3

.

►  If the vehicle is so equipped, fit security bolt

socket

4

 to wheelbrace

1

 to slacken the security

bolt.

►

Slacken

 (without removing) the other wheel

bolts using just wheelbrace

1

.





►  Place the foot of the jack on the ground and

ensure that it is directly below the

A

 or

B

 jacking

point provided on the underbody, whichever is
closest to the wheel to be changed.









14/02/2022   15:33:56

222

In the event of a breakdown

►  Use the knob to extend the jack

2

 until its

head comes into contact with jacking point

A

 or

B

, whichever is used; contact surface

A

 or

B

 on

the vehicle must be correctly engaged with the
central part of the head of the jack.

►  Raise the vehicle until there is sufficient

space between the wheel and the ground, to

then easily fit the spare (not punctured) wheel.

Risk of injury!
Ensure that the jack is stable. If the

ground is slippery or loose, the jack may slip
or collapse.
Ensure that the jack is positioned strictly at
one of the jacking points

A

 or

B

 under the

vehicle, making sure that the vehicle's contact
surface is correctly centred on the head of the
jack. Otherwise, there is a risk of damage to
the vehicle and/or of the jack collapsing.





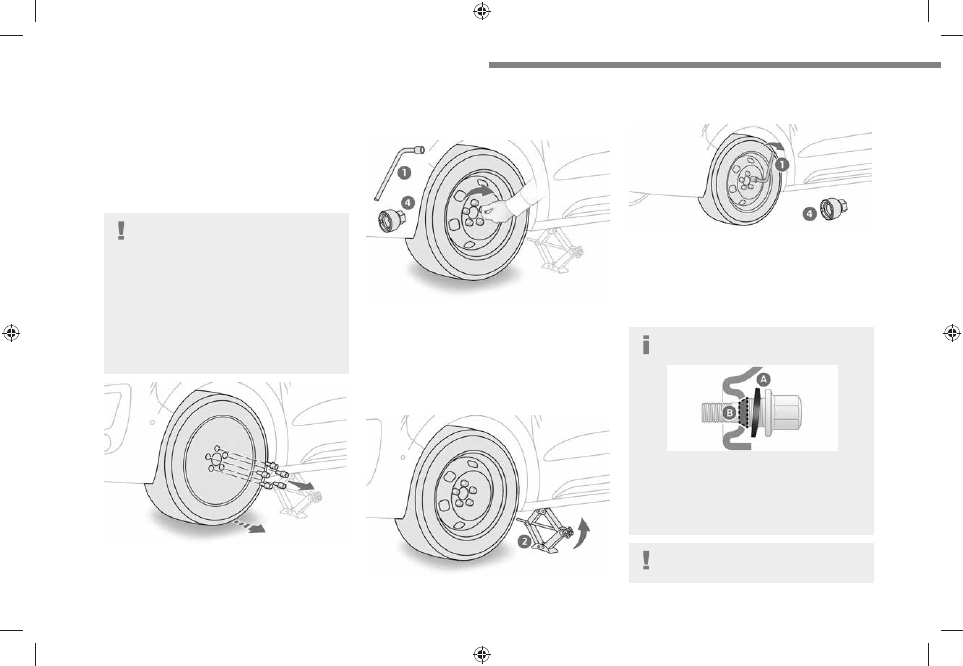

►  Remove the bolts and store them in a clean

place.

►  Remove the wheel.

Fitting the wheel





►  Fit the wheel on the hub.

►  Screw in the bolts by hand as far as possible.

►  If fitted to your vehicle,

pre-tighten

 the anti-

theft bolt using the wheelbrace

1

 fitted with the

anti-theft socket

4

.

►

Pre-tighten

 the other bolts using the

wheelbrace

1

 only.





►  Lower the vehicle again fully.

►  Fold jack

2

 and remove it.





►  If fitted to your vehicle, tighten the anti-theft

bolt using the wheelbrace

1

 fitted with the anti-

theft socket

4

.

►

Tighten

 the other bolts using the

wheelbrace

1

 only.

►  Stow the tools in the tool box.

Fitting a steel or "space-saver" type

spare wheel

If the vehicle is fitted with alloy wheels, the

washers

A

 do not make contact with the steel

or "space-saver" type spare wheel. The wheel
is held in place by the conical contact surface

B

 of each bolt.

After changing a wheel

Stow the punctured wheel in the carrier.

14/02/2022   15:33:56

223

In the event of a breakdown

8

Go promptly to a Fiat Dealership or a qualified

workshop.
Have the punctured tyre examined. After
inspection, the technician will advise you on
whether the tyre can be repaired or if it must
be replaced.

Some driving aid functions should be
disabled, e.g. the Active Safety Brake.

If your vehicle has tyre under-inflation

detection, check the tyre pressures and

reinitialise the system.
For more information on

Tyre under-inflation

detection

, refer to the corresponding section.

Tyre under

-inflation detection

The steel spare wheel does not have a

sensor.

Wheel

with

 wheel trim

When refitting the wheel

, refit the wheel

trim, starting by aligning the cutout with the
valve and then pushing the trim into place all
round its edge with the palm of your hand.

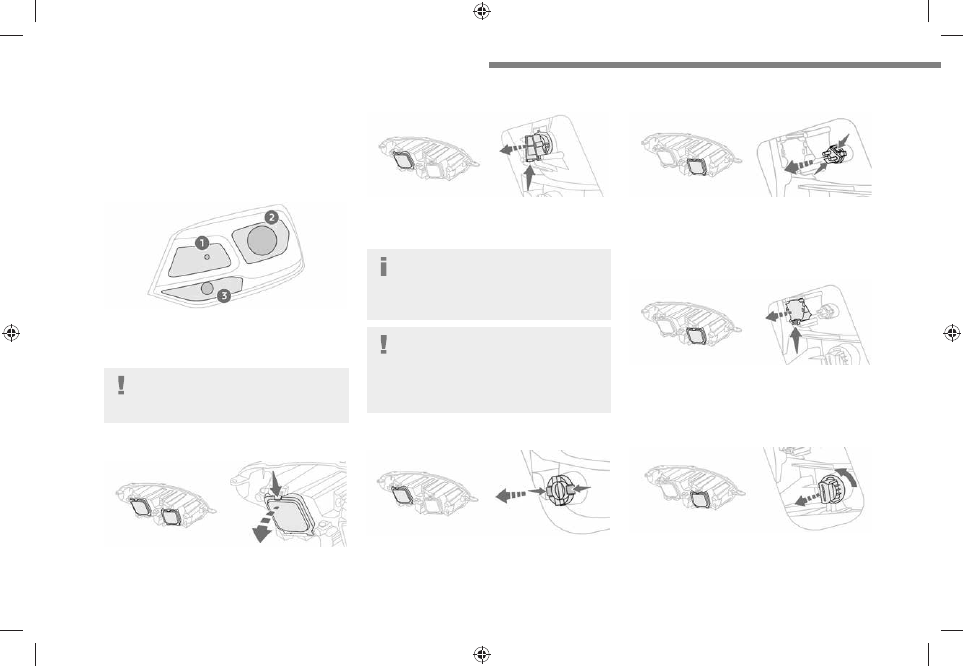

Changing a bulb

In some weather conditions (e.g. low
temperature or humidity), misting on the

internal surface of the glass of the headlamps

and rear lamps is normal, and will disappear
after the lamps have been on for a few
minutes.

The headlamps have polycarbonate
lenses with a protective coating:

–

Do not clean them with a dry or abrasive

cloth, nor with detergent or solvent

products.

–  Use a sponge and soapy water or a pH
neutral product.
–  When using a high-pressure washer on
persistent marks, do not keep the lance
directed towards the headlamps, lamps or
their edges for too long, so as not to damage
their protective coating and seals.

Changing a bulb must only be done with

the ignition off and after the headlamp /

lamp has been switched off for several

minutes - risk of serious burns!
Do not touch the bulb directly with your

fingers; use a lint-free cloth.

It is essential only to use anti-ultraviolet
(UV) type bulbs, so as not to damage the
headlamp.
Always replace a failed bulb with a new bulb

of the same type and specification. To avoid

lighting imbalance, replace the bulbs in pairs.

Halogen bulbs (Hx)

To ensure good quality lighting, check

that the bulb is correctly positioned in its
housing.

Opening the bonnet/Accessing the

bulbs

Proceed with caution when the engine is hot -
risk of burns!
Take care with objects or clothing that could
be caught in the blades of the cooling fan -
risk of strangulation!

After changing a bulb

To refit, carry out the operations in

reverse order to removal.
Close the protective cover very carefully to
guarantee the sealing of the lamps.

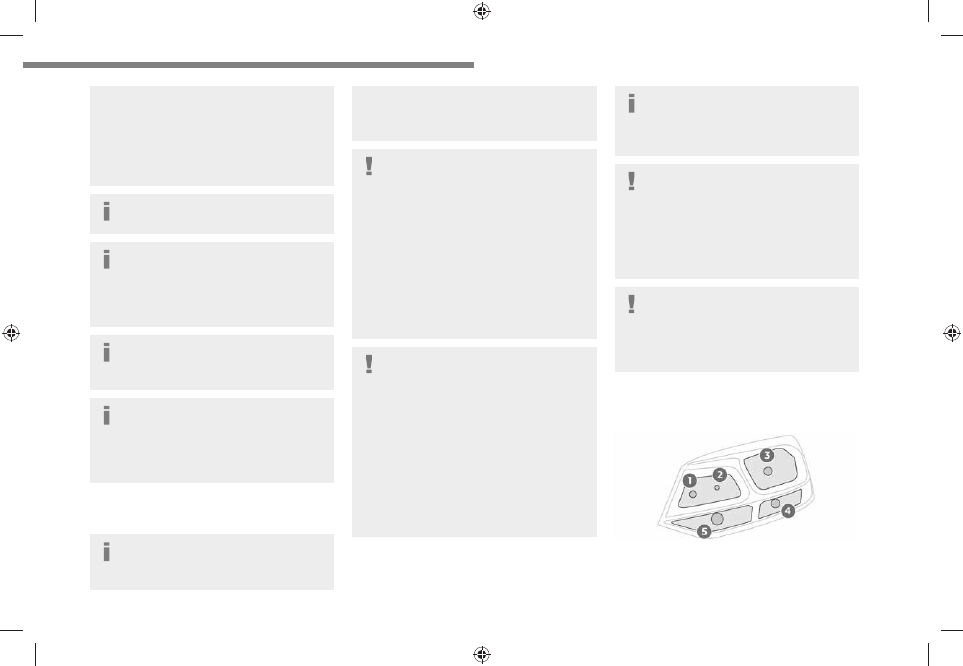

Model with halogen

headlamps





1.

Sidelamps (W5W-5W)

2.

Main beam headlamps (H1-55W)

14/02/2022   15:33:57

224

In the event of a breakdown

3.

Dipped beam headlamps (H7-55W)

4.

Daytime running lamps (W21W LL-21W)

5.

Direction indicators (PY21W-21W amber)

Model with Xenon



headlamps





1.

Main beam headlamps (H1-55W)

2.

Dipped beam headlamps (D8S-25W)

3.

Direction indicators (PY21W-21W amber)

Be aware of the zone behind the right
lamp (vehicle direction), which may be

hot with a risk of burning (degassing hoses).

Accessing the bulbs





►  Press the upper clip on the cover then tilt it

backwards to remove it.

Dipped beam headlamps





►  Press the lower clip on the connector and

remove the assembly of connector and bulb.

►  Pull out the bulb and replace it.

When refitting the connector and bulb in

the lamp unit, correctly position the

assembly in its housing until it clicks into
place.

Do not touch the Xenon lamps (D8S)
– risk of electrocution!

If you need to replace this type of bulb, you

must contact a Fiat Dealership or a qualified

workshop.

Daytime running lamps





►  Press the two side clips on the connector and

remove the assembly of connector and bulb.

►  Pull out the bulb and replace it.

Sidelamps





►  Press the two side clips on the connector and

remove the assembly of connector and bulb.

►  Pull out the bulb and replace it.

Main beam headlamps





►  Press the lower clip on the connector and

remove the assembly of connector and bulb.

►  Pull out the bulb and replace it.

Direction indicators





►  Turn the bulb holder a quarter turn

anti-clockwise.

14/02/2022   15:33:57

225

In the event of a breakdown

8

►  Remove the bulb holder and replace the

faulty bulb.

Rapid flashing of a direction indicator

lamp (left or right) indicates that one of

the bulbs on the corresponding side has
failed.

Amber-coloured bulbs must be replaced

by bulbs with identical specifications and

colour.

Daytime running lamps/

sidelamps





For the replacement of these bulbs, contact a

Fiat Dealership or a qualified workshop.

A replacement kit for the LEDs is available from
Fiat Dealerschips.

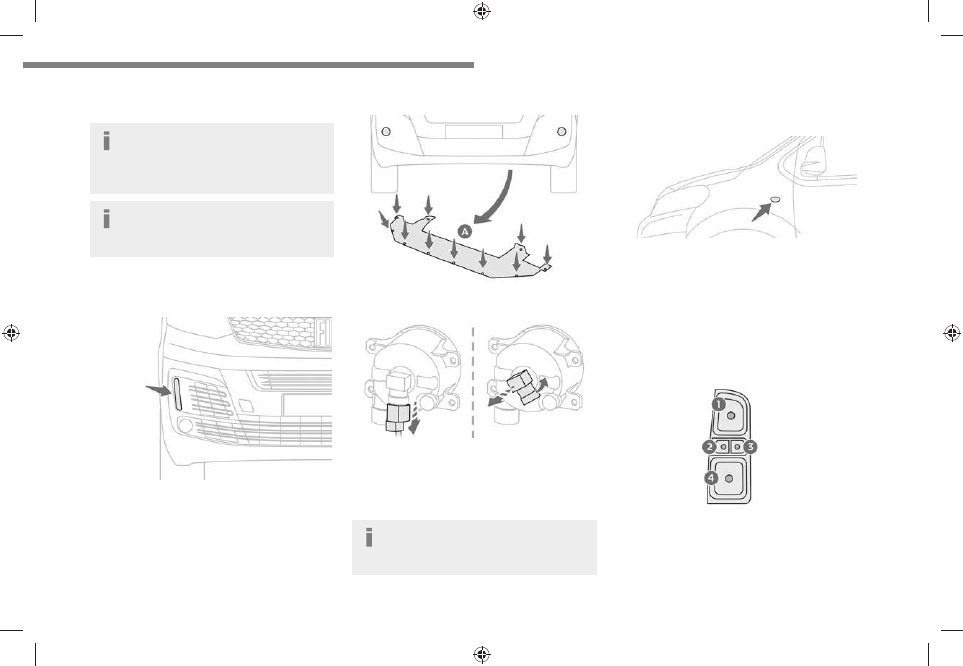

Front foglamps (H11-55W)





►  Underneath the front bumper, slacken the

bolts on deflector

A

, then remove it.





►  Press the locking clip and disconnect the

connector.

►  Unscrew the bulb holder a quarter turn anti-

clockwise and remove it.

►  Replace the faulty bulb.

You can also contact a Fiat Dealership or

a qualified workshop to replace these

bulbs.

Direction indicator side

repeater





–  Push the repeater towards the rear and
release it.

–  When refitting, engage the repeater towards

the front and then slide it backwards.
Amber coloured bulbs (direction indicators and
side repeaters) must be replaced with bulbs of

identical specification and colour.

Rear lamps





1.

Brake lamps/Sidelamps (P21/5W-21/5W)

2.

Direction indicators (PY21W-21W amber)

3.

Reversing lamps (P21W-21W)

4.

Foglamps/Sidelamps (P21/4W-21/4W)

14/02/2022   15:33:57

226

In the event of a breakdown

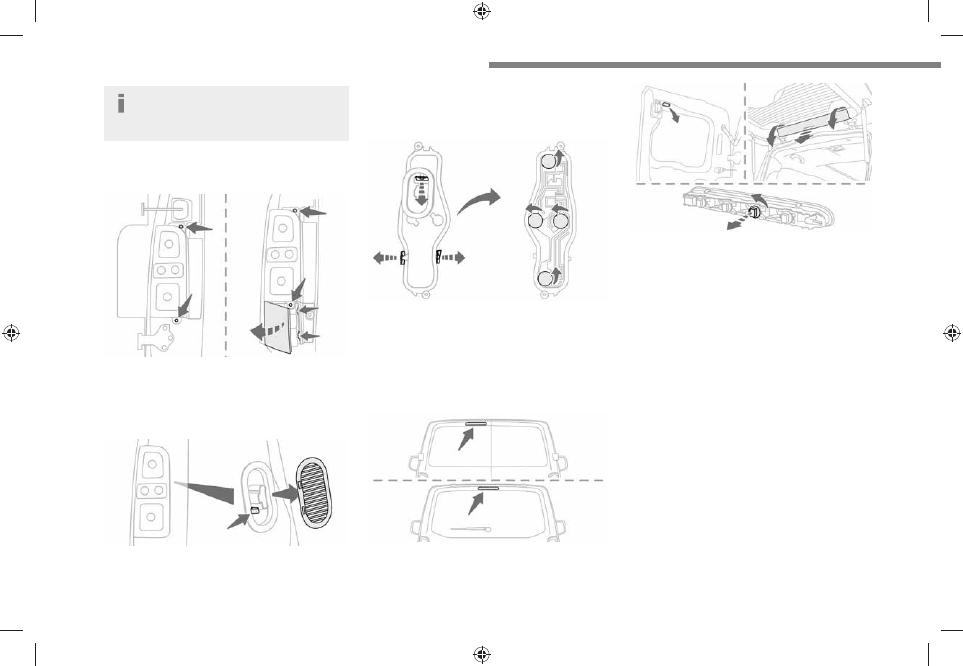

For vehicles with interior trim, contact a

Fiat Dealership or a qualified workshop

to have the work done.

►  Identify the defective lamp and then,

depending on the version, open the rear doors or
the tailgate.





►  With side-hinged doors, unscrew the 2 fixing

screws from the outside.

►  With the tailgate, unclip the plastic trim from

the outside and then tilt it outwards to remove it.

Then unscrew the 2 fixing screws.





►  From the inside, and depending on the

version, remove the ventilation grille.

►  While holding the lamp in place, press the

clip on the inside then carefully remove the lamp.

►  Disconnect the electrical connector.





►  Spread the 3 lugs slightly, then extract the

bulb holder.

►  Remove the faulty bulb by pressing lightly on

it, then turning it a quarter turn clockwise.

►  Replace the bulb.

Third brake lamp (W5W - 5W)





►  Depending on version, open the rear left-

hand door or tailgate.





►  With side-hinged doors, remove the plastic

cover with the aid of a screwdriver.

►  With a tailgate, unclip the trim at each end,

rotating it from bottom to top, then unclip the
centre clips to remove it.

►  Using a screwdriver through the aperture,

push the lamp towards the outside.

►  Disconnect the electrical connector and then

remove the lamp.

►  Unscrew the bulb holder a quarter turn anti-

clockwise and replace the faulty bulb.

To refit, press on the lamp to clip it into place.

14/02/2022   15:33:57

227

In the event of a breakdown

8

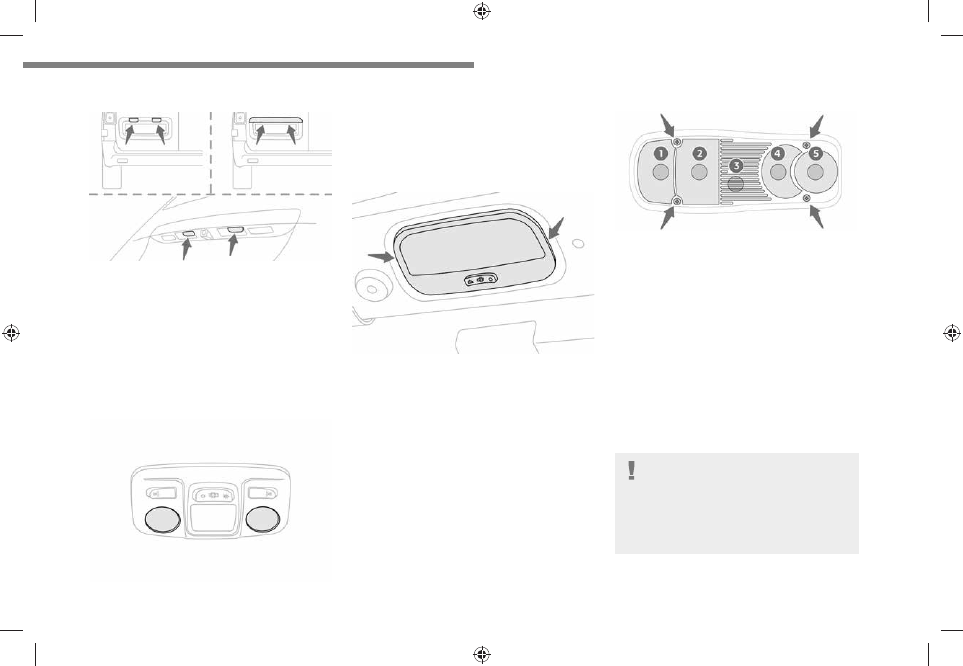

Number plate lamps (W5W-W)





►  Insert a thin screwdriver into one of the cut-

outs on the exterior of the lens.

►  Push it outwards to unclip it.

►  Remove the lens and replace the faulty bulb.

To refit, press the lens to clip it in.

Courtesy lamps (

front and

rear)

LED courtesy lamps





For the replacement of these bulbs, contact a

Fiat Dealership or a qualified workshop.

A replacement kit for the LEDs is available from
Fiat Dealerships.

Courtesy lamps with bulb

W5W-5W





►  Unclip the lens by inserting a thin screwdriver

into the slots at each side of the courtesy lamp.

►  Remove the bulb and change it.

To refit, clip the lens in place and ensure that it

is secure.

Platform cab (rear lamps)

1.

Direction indicators (P21W-21W).

2.

Brake lamps (P21W-21W).

3.

Sidelamps (R10W-10W).

4.

Reversing lamps (P21W-21W).

5.

Foglamps (P21W-21W).

►  Locate the faulty bulb.

►  Unscrew the 4 fixing screws from the lens

unit and remove it.

►  Remove the faulty bulb by pressing lightly on

it, then turning it a quarter turn clockwise.

►  Change the bulb.

Fuses

Changing a

fuse

All work must be carried out only by a

Fiat Dealership or a qualified workshop

The replacement of a fuse by a third party
could cause a serious malfunction of the
vehicle.

14/02/2022   15:33:57
