180

Practical information

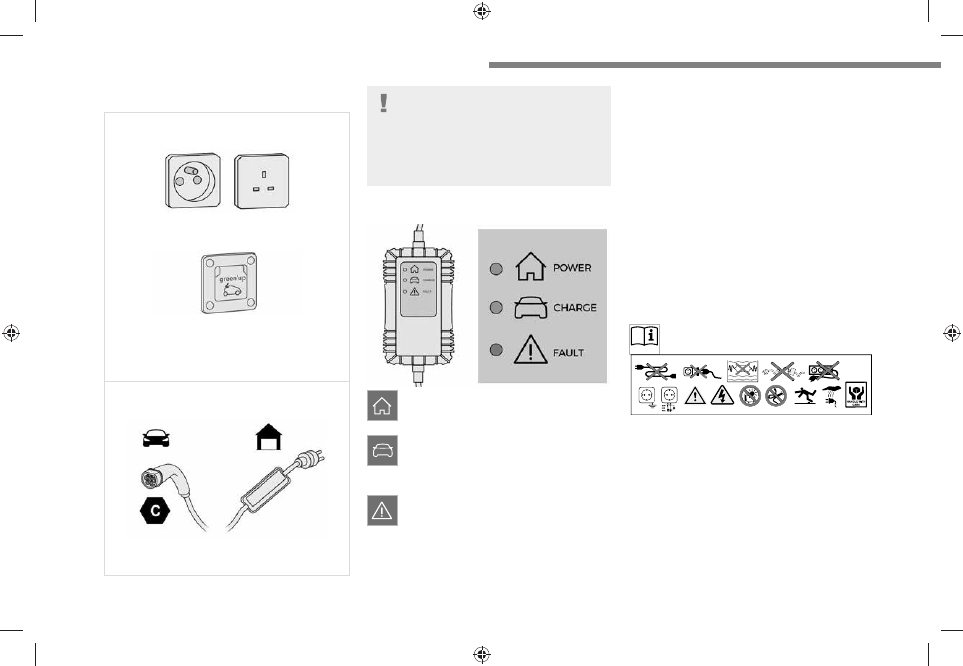

Standard charging, mode 2

Domestic socket

(standard charging - alternating current (AC))





Mode 2 with a standard socket: 8 A maximum

charging current.





Mode 2 with a Green'Up socket: 16 A

maximum charging current.

To have this type of socket installed, call a

professional installer.

Specific domestic charging cable - mode

2 (AC)





Identification label

C

 on the charging

connector (vehicle side).

Specific domestic charging cable

(mode 2)

You must not damage the cable.
In the event of damage, do not use it and

contact a Fiat Dealership or a qualified

workshop to replace it.

Control unit (mode 2)





POWER

Green: electrical connection established;

charging can begin.

CHARGE

Flashing green: charging in progress or

temperature pre-conditioning activated.
Fixed green: charging complete.

FAULT

Red: fault; charging not permitted or must

be stopped immediately. Check that everything
is connected correctly and that the electrical
system is not faulty.

If the indicator lamp does not go off, contact a

Fiat Dealership or a qualified workshop.

Upon plugging the charging cable into a
domestic socket, all of the indicator lamps come

on briefly.

If no indicator lamps come on, check the
domestic socket's circuit-breaker:
–  If the circuit-breaker has tripped, contact a
professional to check that the electrical system
is compatible and/or carry out any necessary
repairs.
–  If the circuit-breaker has not tripped, stop
using the charging cable and contact a Fiat

Dealership or a qualified workshop.

Control unit label - Recommendations

Refer to the handbook before use.

1.

Incorrect use of this charging cable may

result in fire, property damage and serious

injury or death by electrocution!

2.

Always use a correctly earthed power
socket, protected by a 30 mA residual
current device.

3.

Always use an electrical socket protected
by a circuit-breaker appropriate for the
electrical circuit’s current rating.

14/02/2022   15:33:45

181

Practical information

7

4.

The weight of the control unit must not be
borne by the electrical socket, plug and
cables.

5.

Never use this charging cable if it is
defective or in any way damaged.

6.

Never attempt to repair or open this
charging cable. It contains no repairable
parts - replace the charging cable if it is
damaged.

7.

Never immerse this charging cable in water.

8.

Never use this charging cable with an
extension cable, a multi-plug socket, a
conversion adaptor or on a damaged
electrical socket.

9.

Do not unplug the plug from the wall as a
means of stopping charging.

10.

Immediately stop charging, by locking and
then unlocking the vehicle using the remote
control key, if the charging cable or wall
socket feel burning hot to the touch.

11.

This charging cable includes components
liable to cause electrical arcing or sparks.

Do not expose to flammable vapours.

12.

Only use this charging cable with Fiat
vehicles.

13.

Never plug the cable into the wall socket (or
unplug it) with wet hands.

14.

Do not force the connector if it is locked into
the vehicle.

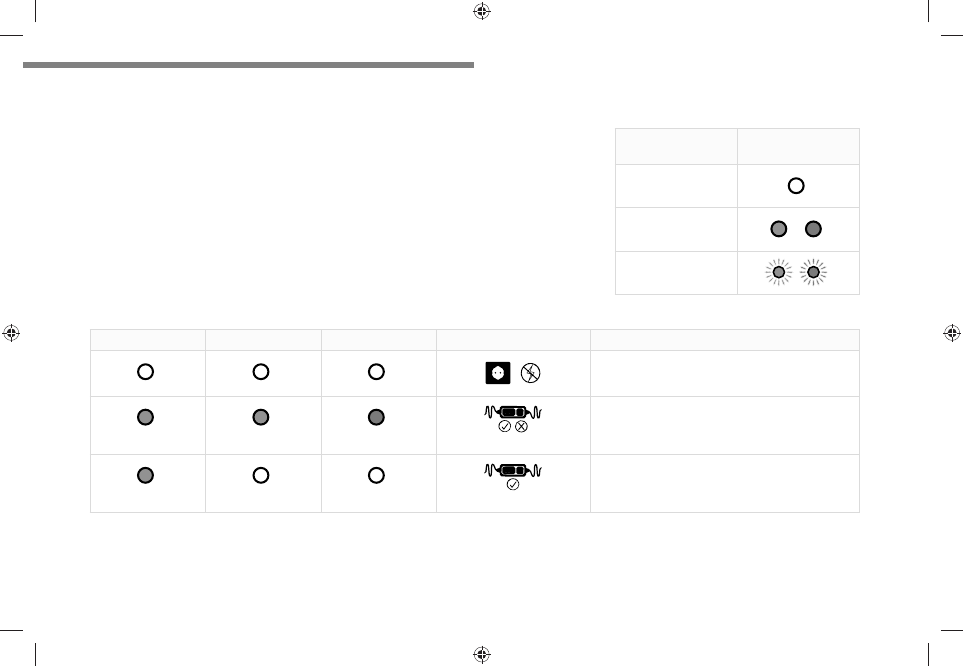

Control unit label - State of indicator

lamps

State of the

indicator lamp

Off





On







Flashing







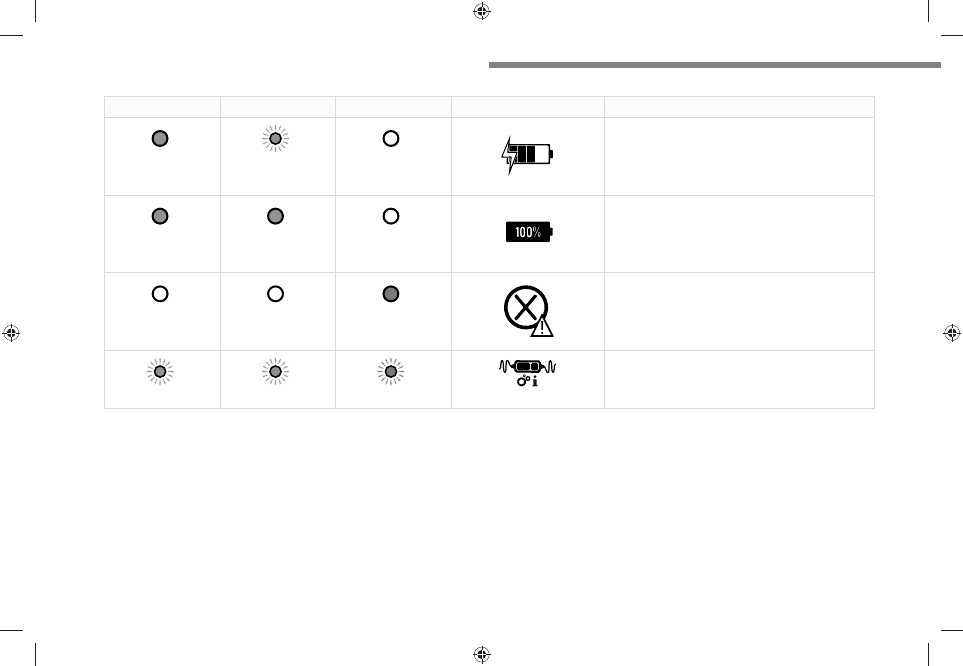

POWER

CHARGE

FAULT

Symbol

Description

















Not connected to the power supply or power is not
available from the infrastructure.





(green)





(green)





(red)





The control unit is currently performing a self-test.





(green)













Connected only to the infrastructure or to the
infrastructure and to the Electric Vehicle (EV) but
no charging in progress.

14/02/2022   15:33:45

182

Practical information

POWER

CHARGE

FAULT

Symbol

Description





(green)





(green)









Connected to the power supply and to the Electric
Vehicle (EV).
The EV is on charge or in a temperature pre-
conditioning sequence.





(green)





(green)









Connected to the power supply and to the Electric
Vehicle (EV).
The EV is waiting for charging or the charging of
the EV is completed.













(red)





Control unit malfunction. No charging allowed.
If an error indicator reappears after a manual
reset, the control unit must be checked by a Fiat
Dealership before the next charge.





(green)





(green)





(red)





The control unit is in diagnostic mode.

Manual reset procedure

The control unit can be reset by simultaneously disconnecting the charging connector and the wall socket.

Then, reconnect the wall socket first. For more information, refer to the handbook.

14/02/2022   15:33:46

183

Practical information

7

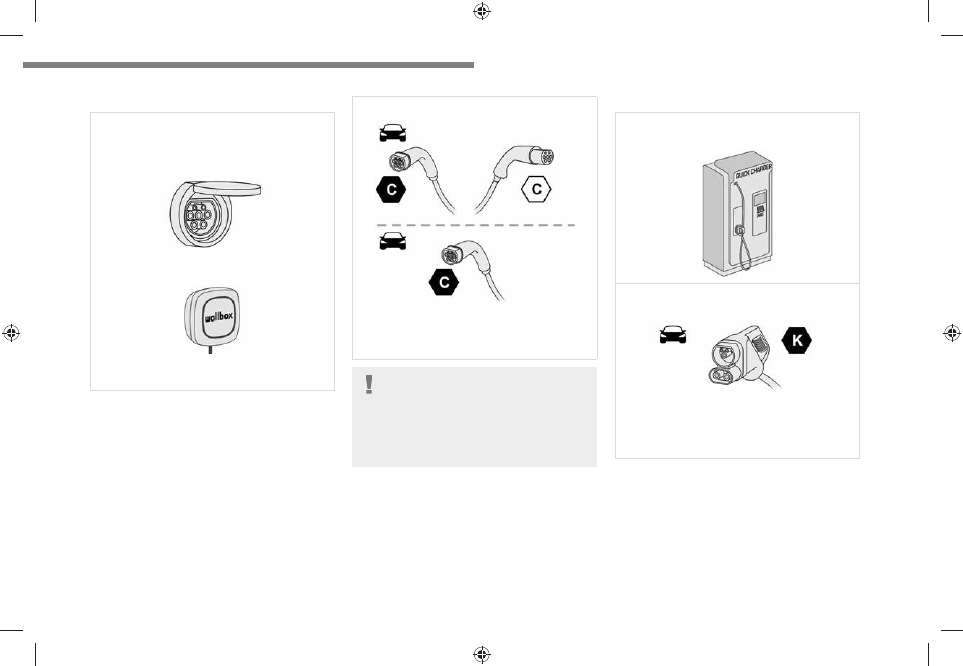

Accelerated charging, mode 3

Accelerated charging unit (depending on

version)

(accelerated charging - single-phase or three-

phase alternating current (AC))





In mode 3 with an accelerated charging unit:

32 A maximum charging current.





In mode 3 with an accelerated charging unit

(Wallbox): 32 A maximum charging current.

Charging cable, mode 3 (AC)





Identification labels

C

 on the charging

connector (vehicle side) and on the socket

(charger side).

Accelerated charging unit

Do not disassemble or modify the

charging unit - Risk of electrocution and/or

fire!

Refer to the charging unit manufacturer's user
manual for the operating instructions.

Superfast charging, mode 4

Fast public charger

(superfast charging - direct current (DC))





Charging cable, mode 4 (DC)

(integrated into the fast public charger)





Identification label

K

 on the charging

connector (vehicle side).

Only use fast public chargers where the cable

length does not exceed 30 metres.

Charging the traction
battery (Electric)

To recharge, connect the vehicle to a domestic
electricity supply (domestic or accelerated
charging) or to a fast public charger (superfast
charging).

14/02/2022   15:33:46

184

Practical information

For a full charge, follow the desired charging
procedure without pausing it, until it ends
automatically. Charging can be either immediate
or deferred (except fast public charger, mode 4).
You can stop domestic or accelerated charging
at any time by unlocking the vehicle and
removing the nozzle. For superfast charging,
refer to the fast public charger.
For more information on the charging displays
on the

Instrument panel

 and the

Touch screen

,

refer to the corresponding section.

For more information on

Remote

functions

, refer to the corresponding

section.

As a safety measure, the engine will not

start if the charging cable is plugged into

the connector on the vehicle. A warning is
displayed on the instrument panel.

Cooling the traction battery

The cooling fan in the engine

compartment comes on during charging to
cool the on-board charger and the traction
battery.

Low load / Driving

Driving when the charge level of the

traction battery is too low can lead to the
vehicle breaking down and can lead to
accidents or serious injuries. ALWAYS make

sure the traction battery has a sufficient

charge level.

Low load / Parking

If the outside temperature is negative,

it is recommended not to park your vehicle
outside for several hours at a low load (less
than 20%).

Vehicle immobilised for 1 to 12

months

Discharge the traction battery down to 2 or
3 bars on the charge level indicator on the
instrument panel.
Do not connect the charging cable.
Always park the vehicle in a place with
temperatures between -10°C and 30°C
(parking in a place with extreme temperatures
can damage the traction battery).
Disconnect the cable from the (+) terminal
of the accessory battery in the engine
compartment.
Connect a 12 V battery charger to the (+)
and (-) terminals of the accessory battery
about every 3 months in order to recharge the
accessory battery and maintain an operating
voltage.

Precautions

Our electric vehicles have been developed in
accordance with the recommendations on the

maximum limits for electromagnetic fields, as

issued by the International Commission on Non-

Ionizing Radiation Protection (ICNIRP - 1998

Guidelines).

Wearers of pacemakers or equivalent

devices

Ask your doctor about what precautions

you should take, or ask the manufacturer

of your implanted electro-medical device about
whether its operation is guaranteed in an
environment which complies with the ICNIRP
recommendations.

If in doubt

Domestic or accelerated charging

: do

not remain inside or near the vehicle, or near
the charging cable or charging unit, even for
a short time.

For domestic or accelerated charging

Before charging

Depending on the context:

►  Have a professional check that the

electrical system to be used complies with
applicable standards and is compatible with
the vehicle.

►  Have a professional electrician install

a dedicated domestic power socket or
accelerated charging unit (Wallbox)
compatible with the vehicle.
You should preferably use the charging cable
available as an accessory.

14/02/2022   15:33:46

185

Practical information

7

For more information, contact a Fiat

Dealership or a qualified workshop.

During charging

While charging is in progress, unlocking

the vehicle will cause the charging to stop.
If no action is taken on one of the openings
(door or boot) or on the charging nozzle, the
vehicle will lock again after 30 seconds and
charging will resume automatically.
Never work under the bonnet:
–  Some areas remain very hot, even an hour
after charging ends - risk of burns!
–  The fan may start at any time - risk of cuts
or strangulation!

After charging

Check that the charging flap is closed.

Do not leave the cable connected to the
domestic power socket - risk of short-circuit
or electrocution in the event of contact with or
immersion in water!

For superfast charging

Before charging

Check that the fast public charging

station and its charging cable are compatible
with the vehicle.
If the exterior temperature is below:
–  0°C, charging times may be extended.

–  -20°C, charging is still possible, but
charging times may be extended even further

(the battery has to be heated first).

After charging

Check that the charging flap is closed.

Connection

►  Before

charging, check that the drive selector

is in mode

P

, otherwise charging is not possible.

►  Open the charging flap by pressing the

push-button, and check that there are no foreign
bodies on the charging connector.

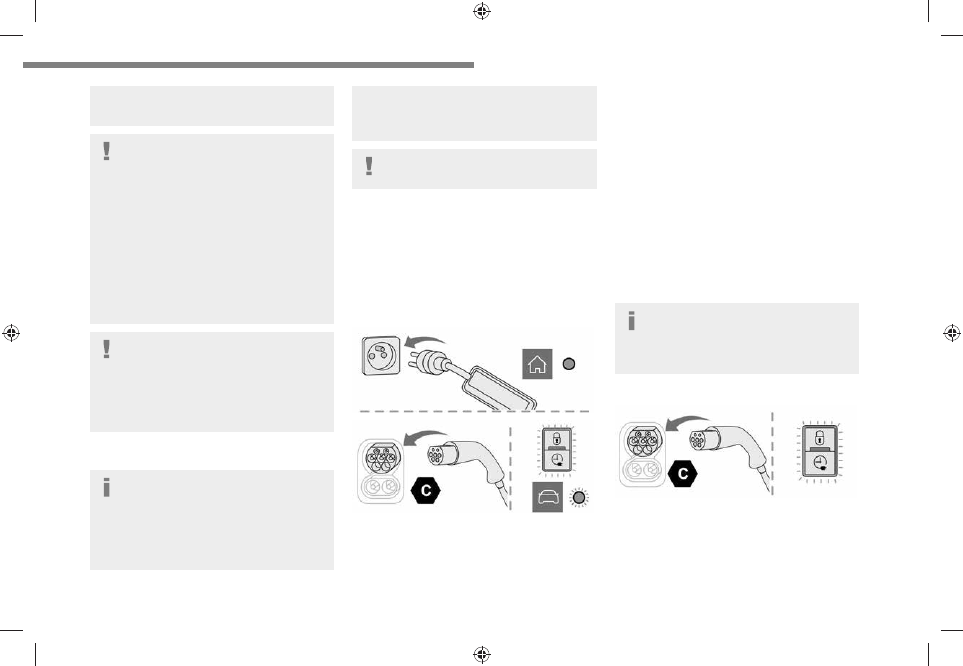

Domestic charging, mode 2









►  Connect the charging cable from the control

unit to the domestic socket.

When the connection is made, all of the indicator
lamps on the control unit light up, then only the

POWER

 indicator lamp remains on in green.

►  Remove the protective cover from the

charging nozzle.

►  Insert the nozzle into the charging connector.

The start of charging is confirmed by the flashing

green

CHARGE

 indicator lamps in the flap, then

those on the control unit.
If this is not the case, charging has not
started; restart the procedure, ensuring that all
connections are properly established.

The red indicator lamp in the flap comes on to

indicate that the nozzle is locked.

When charging is complete and while the
charging cable is still connected, opening

the driver's door will display the charge level
on the instrument panel for about 20 seconds.

Accelerated charging, mode 3





►  Follow the accelerated charging unit

(Wallbox) user instructions.

►  Remove the protective cover from the

charging nozzle.

►  Insert the nozzle into the charging connector.

14/02/2022   15:33:46

186

Practical information

The start of charging is confirmed when the

charging indicator lamp in the flap flashes green.

If this is not the case, charging has not started;
restart the procedure, ensuring that the
connection has been properly established.

The red indicator lamp in the flap comes on to

indicate that the nozzle is locked.

Superfast charging, mode 4





►  Depending on version, remove the protective

cover from the lower part of the connector.

►  Follow the instructions for use of the fast

public charger and connect the cable from the
fast public charger to the vehicle's connector.

The start of charging is confirmed by the flashing

green charging indicator lamp in the flap.

If this is not the case, charging has not started;
restart the procedure, ensuring that the
connection is properly established.

The red indicator lamp in the flap comes on to

indicate that the nozzle is locked.

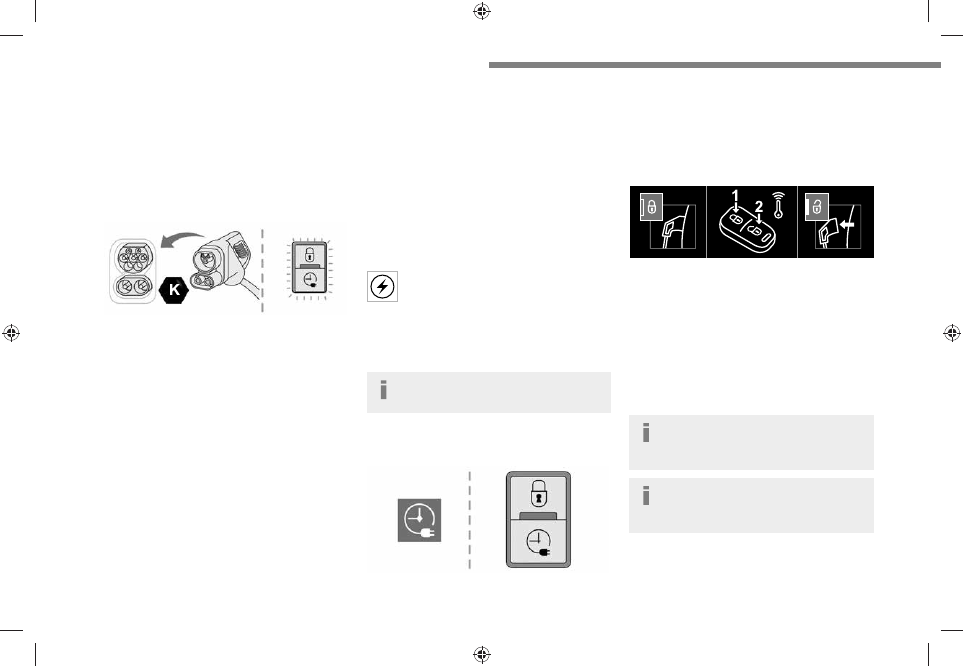

Deferred charging

Settings
At a Fiat Dealership or qualified workshop,

with Bluetooth

®

 audio system

By default, the deferred charging start time is set
to midnight (vehicle time).
You can have the deferred charging start time

modified.

Visit a Fiat Dealership or a qualified workshop.

In the vehicle, with Connect Nav

►  In the

Energy

 touch screen menu,

select the

Charge

 page.

►  Set the charging start time.

►  Press

OK

.

The setting is saved in the system.

Activation

Deferred charging is only possible with
modes 2 and 3.

►  After programming the deferred charging,

connect your vehicle to the desired charging
equipment.





►  Lock the vehicle.

►  Press this button in the flap within one

minute to activate the system (confirmed by the

charging indicator lamp coming on in blue).

Disconnection





Before disconnecting the nozzle from the
charging connector:

►  If the vehicle is unlocked,

lock it and then

unlock it

.

►  If the vehicle is locked, unlock it.

The red indicator lamp in the flap goes out to

confirm that the charging nozzle is unlocked.

►  In modes 2 and 3, remove the charging

nozzle within

30 seconds

.

The charging indicator lamp comes on in white.

With selective door unlocking activated,
press the unlocking button twice to

disconnect the charging nozzle.

When charging is complete, the green

charging indicator lamp in the flap goes

out after about 2 minutes.

14/02/2022   15:33:47

187

Practical information

7

Domestic charging, mode 2

The end of charging is confirmed when the green

CHARGE

 indicator lamp on the control unit and

the green charging indicator lamp in the flap

come on fixed.

►  Replace the protective cover on the charging

nozzle and close the charging flap.

►  Disconnect the control unit end of the

charging cable from the domestic socket.

Accelerated charging, mode 3

The end of charging is indicated by the charging

control unit and by the fixed lighting of the green

indicator lamp in the flap.

►  Hang up the nozzle on the charging unit and

close the charging flap.

Superfast charging, mode 4

The end of charging is indicated by the charger

and by the fixed lighting of the green indicator

lamp in the flap.

►  You can also pause charging by

pressing this button in the flap (in mode 4

only).

►  Hang up the nozzle on the charger.

►  Depending on version, replace the protective

cover on the lower section and close the

charging flap.

When the charging nozzle is
disconnected, a message on the

instrument panel indicates that charging is
complete, even if the charging nozzle was

disconnected before full charging was
completed.

Energy economy mode

This system manages the duration of use of

certain functions, in order to conserve a sufficient

level of charge in the battery with the ignition off.

After switching off the engine and for a maximum

cumulative period of around 30 minutes, you can
continue to use functions such as the audio and
telematics system, dipped beam headlamps or
courtesy lamps.

Selecting the mode

A confirmation message is displayed when

energy economy mode is entered, and the active
functions are placed on standby.

If a telephone call is in progress at the
time, it will be maintained for around 10

minutes via the audio system’s hands-free
system.

Exiting the mode

These functions are automatically reactivated the
next time the vehicle is used.
To restore the use of these functions
immediately, start the engine and let it run:
–  For less than 10 minutes, to use the
equipment for approximately 5 minutes.

–  For more than 10 minutes, to use the
equipment for approximately 30 minutes.

Let the engine run for the specified duration to

ensure that the battery charge is sufficient.

To recharge the battery, avoid repeatedly or
continuously restarting the engine.

A flat battery prevents the engine from

starting.

For more information on the

12 V battery

,

refer to the corresponding section.

Load reduction mode

This system manages the use of certain
functions according to the level of charge
remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates certain
functions, such as the air conditioning and the
heated rear screen.
The deactivated functions are reactivated
automatically as soon as conditions permit.

Snow chains

In wintry conditions, snow chains improve
traction as well as the behaviour of the vehicle
when braking.

Snow chains must be fitted only to the

front wheels. They must never be fitted to

"space-saver" type spare wheels.

14/02/2022   15:33:47

188

Practical information

Observe the legislation in force in your
country relating to the use of snow

chains and maximum authorised speeds.

Only use chains that have been designed for the

type of wheel fitted to your vehicle.

Original tyre size

Type of chain

215/65 R16

12 mm link

215/60 R17

KONIG K-SUMMIT

VAN K84

225/55 R17

You can also use snow socks.
For more information, contact a Fiat Dealership

or a qualified workshop.

Installation tips

►  To fit the snow chains during a journey, stop

the vehicle on a flat surface at the side of the

road.

►  Apply the parking brake and position any

wheel chocks under the wheels to prevent
movement of the vehicle.

►  Fit the snow chains following the instructions

provided by the manufacturer.

►  Move off gently and drive for a few moments,

without exceeding 31 mph (50 km/h).

►  Stop the vehicle and check that the snow

chains are correctly tightened.

It is strongly recommended that you

practise fitting the snow chains on a level

and dry surface before setting off.

Avoid driving with snow chains on roads

that have been cleared of snow to avoid

damaging the vehicle's tyres and the road

surface. If the vehicle is fitted with alloy

wheels, check that no part of the chain or its

fixings is in contact with the wheel rim.

Towing device

Load distribution

►  Distribute the load in the trailer so that the

heaviest items are as close as possible to the
axle, and the nose weight approaches the
maximum permitted without exceeding it.
Air density decreases with altitude, thus reducing
engine performance. The maximum towable load
must be reduced by 10% per 1,000 metres of
altitude.

Use genuine towing devices and wiring
harnesses approved by Fiat. We

recommend having them fitted by a Fiat

Dealership or a qualified workshop.

If not fitted by a Fiat Dealership, they must

still be fitted in accordance with the vehicle

manufacturer's instructions.
Certain driving or manoeuvring aid functions
are automatically deactivated while an
approved towing system is in use.

Comply with the maximum authorised
towable weight, as indicated on your

vehicle's registration certificate, on the

manufacturer's label and in the

Technical

data

 section of this guide.

Complying with the maximum authorised

nose weight (towball weight) also includes

the use of accessories (bicycle carriers,

tow boxes, etc.).

Observe the legislation in force in the
country where you are driving.

Electric motor

An electric

vehicle may be fitted with a

towing device.
It is therefore possible to tow a trailer or
caravan.

Contact a Fiat Dealership or qualified

workshop for more information and to obtain a
suitable towing device.

Roof bars/Roof rack

As a safety measure and to avoid

damaging the roof, it is essential to use

the roof bars and roof racks approved for your
vehicle.

Observe the instructions on fitting and use

contained in the guide supplied with the roof
bars and racks.

14/02/2022   15:33:47

189

Practical information

7

Recommendations

Distribute the load uniformly, taking care

to avoid overloading one of the sides.
Arrange the heaviest part of the load as close
as possible to the roof.

Secure the load firmly.

Drive gently: the vehicle will be more

susceptible to the effects of side winds and its

stability may be affected.

Regularly check the security and tight
fastening of the roof bars, at least before each
trip.
Remove the roof bars once they are no longer
needed.

As this value may change, please verify

the maximum load quoted in the guide

supplied with the roof bars.
If the height exceeds 40 cm, adapt the speed

of the vehicle to the profile of the road to

avoid damaging the roof bars and the fixings

on the vehicle.
Be sure to refer to national legislation in order
to comply with the regulations for transporting
objects that are longer than the vehicle.

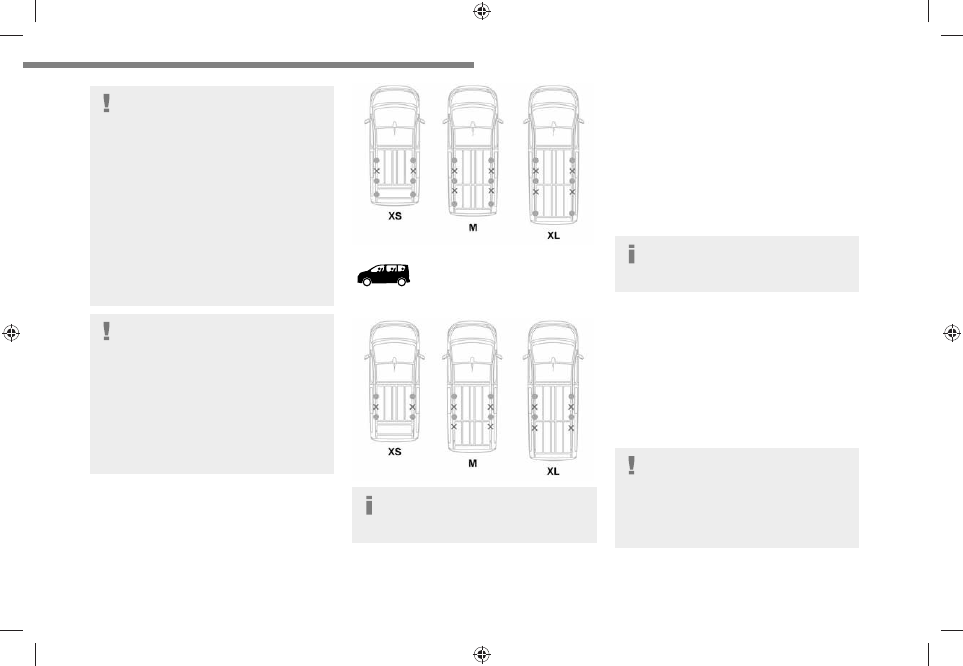

Roof bars

A maximum of 3 roof bars (or 2 bars for the
version with panoramic sunroof) can be installed
- use the positions marked in green.









With panoramic sunroof





Max.

 authorised load weight:

–  over 2 roof bars: 100 kg,

–  distributed over 3 roof bars: 150 kg.

To install the transverse roof bars, use the fixing

points provided for this purpose:

►  Open the fixing covers on each bar.

►  Put each fixing point in place and lock them

to the roof one by one.

►  Ensure that the roof bars are correctly fitted

(by shaking them).

►  Close the fixing covers on each bar.

The bars can be interchanged and are adaptable

to each pair of fixing points.

Roof racks

Max.

 authorised load weight:

–  XS: 140 kg,

–  M and XL: 170 kg.

To fit a roof rack, use the fixing points provided

for this purpose:

►  Place the roof rack on the roof aligned with

the fixing points and secure each one to the roof

in turn.

►  Ensure that the roof rack is correctly fitted (by

shaking it).

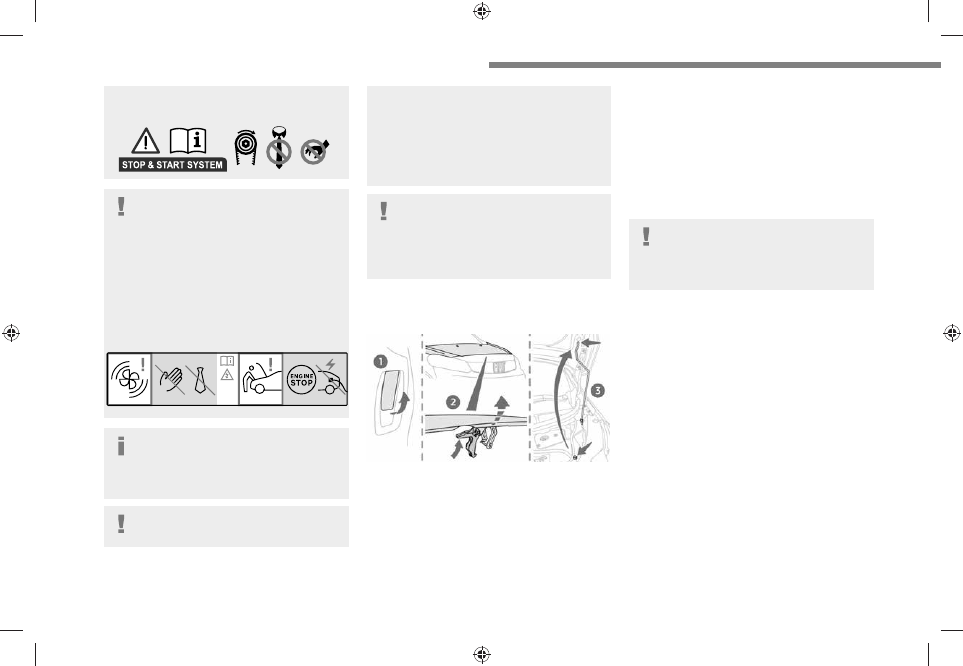

Bonnet

Stop & Start

Before doing anything under the bonnet,

you must switch off the ignition to avoid any

risk of the engine restarting automatically.
Take care with objects or clothing that could
be caught in the blades of the cooling fan

14/02/2022   15:33:47

190

Practical information

or in certain moving components - risk of
strangulation and serious injury!

Electric motor

Take care with objects or clothing that

could be caught in the blades of the cooling
fan or in certain moving components - risk of
strangulation and serious injury!
Before carrying out any work under the

bonnet, you must switch off the ignition, check

that the

READY

 indicator lamp is off on the

instrument panel and disconnect the nozzle
from the charging connector if it is connected.

The location of the interior bonnet
release lever prevents the bonnet being

opened when the left-hand front door is
closed.

When the engine is hot, handle the
exterior safety catch and the bonnet stay

with care (risk of burns), using the protected
area.
When the bonnet is open, take care not to
damage the safety catch.
Do not open the bonnet under very windy
conditions.

Cooling of the engine when stopped

The engine cooling fan may start after

the engine has been switched off.

Take care with objects or clothing that

could be caught in the blades of the fan!

Opening

►  Open the door.





►  Pull the release lever

1

, located at the bottom

of the door frame, towards you.

►  Tilt the safety catch

2

 upwards, then raise the

bonnet.

►  Unclip the stay

3

 from its housing and place it

in the support slot to hold the bonnet open.

Closing

►  Hold the bonnet and

 pull out the stay from the

support slot.

►  Clip the stay in its housing.

►  Lower the bonnet and release it near the end

of its travel.

►  Pull on the bonnet to check that it is locked

correctly.

Because of the presence of electrical
equipment under the bonnet, it is strongly

recommended that exposure to water (rain,
washing, etc.) be limited.

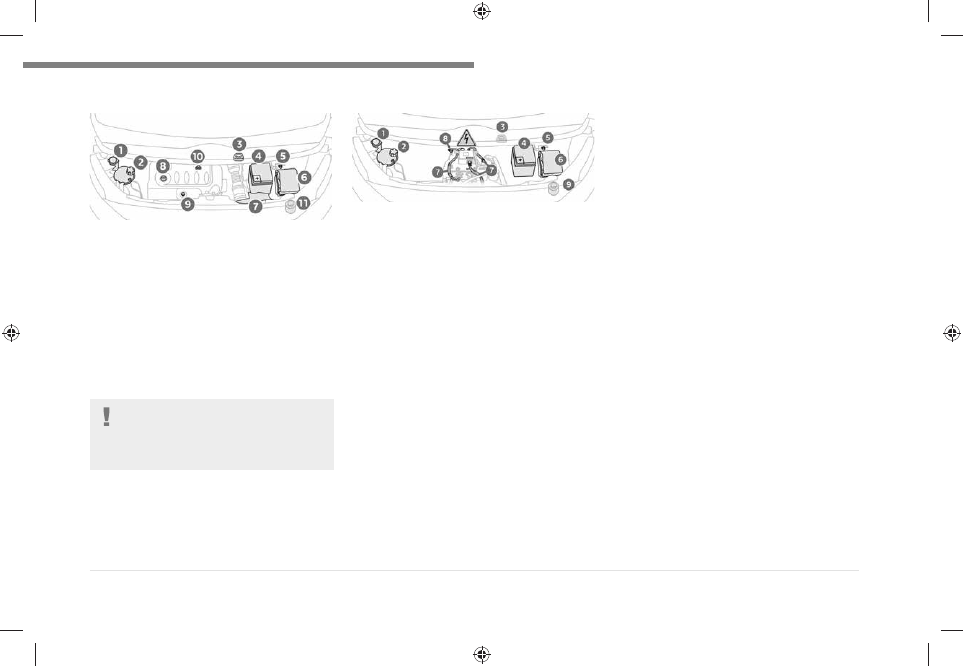

Engine compartment

The engine shown here is an example for
illustrative purposes only.
The locations of the following components may
vary:

–  Air filter.

–  Engine oil dipstick.

–  Engine oil filler cap.

–  Priming pump.

14/02/2022   15:33:47

191

Practical information

7

Diesel engine





1.

Screenwash fluid reservoir

2.

Engine coolant reservoir

3.

Brake fluid reservoir

4.

Battery

5.

Remote earth point (-)

6.

Fusebox

7.

Air filter

8.

Engine oil filler cap

9.

Engine oil dipstick

10.

Priming pump*

11.

Power steering fluid reservoir

Diesel fuel

system

This system is under very high pressure.

All work must be carried out only by a Fiat

Dealership or a qualified workshop

* Depending on engine.

Electric motor





1.

Screenwash fluid reservoir

2.

Engine coolant reservoir (level only)

3.

Brake fluid reservoir

4.

Battery/Fuses

5.

Remote earth point (-)

6.

Fusebox

7.

400 V electrical circuit

8.

Emergency circuit-breaker for emergency
services and maintenance technicians

9.

Power steering fluid reservoir

For more information on the

Charging system

(Electric)

, refer to the corresponding section.

14/02/2022   15:33:48

192

Practical information

Servicing and maintenance

Scheduled servicing plan (Diesel version)

Once you have carried out the last intervention in the table, continue with the scheduled servicing, maintaining the frequency indicated in the plan
by marking each operation with a dot or dedicated note. Warning: simply restarting the maintenance from the start of the plan may cause the

allowed interval to be exceeded for some operations!

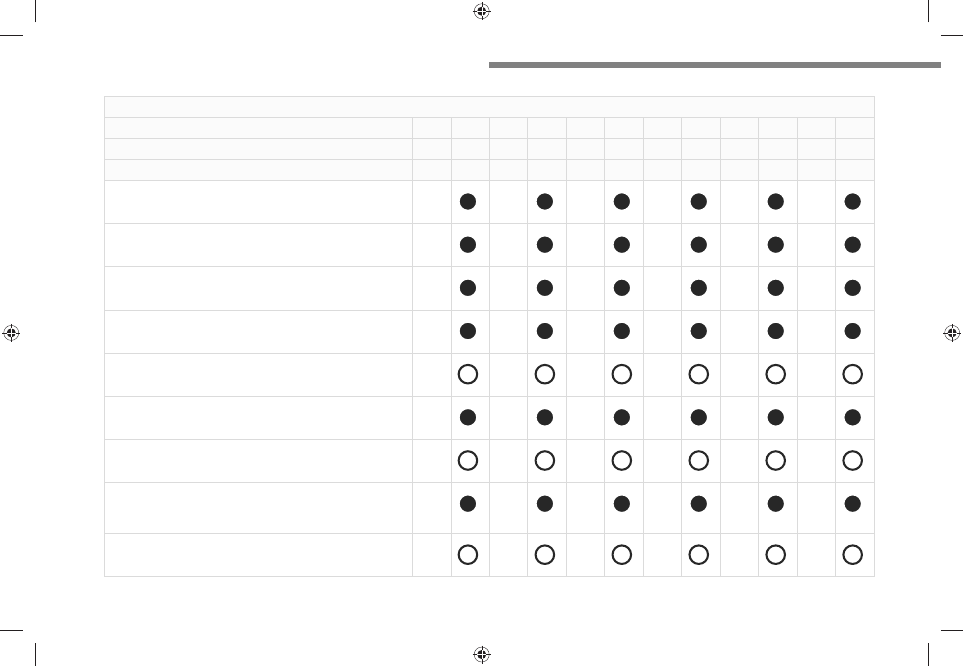

1.5 Diesel Engine

Thousands of miles

12

24

36

48

60

72

84

96

108

120

132

144

Thousands of kilometres

20

40

60

80

100

120

140

160

180

200

220

240

Years

1

2

3

4

5

6

7

8

9

10

11

12

Check (examples, if provided: low voltage, ancilliaries,
remote control, telematic box module) batteries condition
and possibly recharge

























Check tyre condition/wear (including the spare wheel) and,
if necessary, adjust pressure; check the expiry date of the
temporary tyre repair kit

























Check condition and operation of lighting system
(examples: headlights, direction indicators, hazard warning
lights, boot, passenger compartment, glove compartment,
instrument panel warning lights)

























Check horn

























Check operation of the windscreen wiper/washer system
and adjust nozzles, if necessary

























14/02/2022   15:33:48

193

Practical information

7

1.5 Diesel Engine

Thousands of miles

12

24

36

48

60

72

84

96

108

120

132

144

Thousands of kilometres

20

40

60

80

100

120

140

160

180

200

220

240

Years

1

2

3

4

5

6

7

8

9

10

11

12

Check windscreen/rear window wiper blade position/wear
(for markets/versions, where provided)

























Check cleanliness of hood and boot locks, cleanliness and
lubrication of linkage

























Check the conditon of exterior bodywork, the fixing of

under-body protectors, the sealing of rubber elements
(examples: gaiters, sleeves,bushes), hoses and pipes
(exhaust line, fuel system, brakes, radiator, engine,
gearbox) and their housings

























Check condition of front brake calipers, discs, pads and
operation of pad wear indicator

























Check condition of rear brake calipers, discs, pads and
operation of pad wear indicator

























Check front and rear brake pad wear (1)

























Check dampers sealing

























Check brake pedal

























14/02/2022   15:33:48

194

Practical information

1.5 Diesel Engine

Thousands of miles

12

24

36

48

60

72

84

96

108

120

132

144

Thousands of kilometres

20

40

60

80

100

120

140

160

180

200

220

240

Years

1

2

3

4

5

6

7

8

9

10

11

12

Check clutch travel and adjust if necessary or check the
condition of the automatic wear compensation device

























Check parking brake lever travel and adjust, if necessary

























Auto diagnostic memories reading check

























Check and, if necessary, top up engine compartment fluid

levels (examples: engine coolant, brakes, screenwash) (2)

























Road test (3)

























Check the condition and tensioning of the ancillaries drive
belt(s)

























Check exhaust emissions/smokiness

























Use the diagnosis socket to check fuel/engine
management system operation and engine oil decay (the
latter for versions/markets, where provided)

























Check cleanliness of sliding side door lower guides for
versions with S.S.D.

























14/02/2022   15:33:49

195

Practical information

7

1.5 Diesel Engine

Thousands of miles

12

24

36

48

60

72

84

96

108

120

132

144

Thousands of kilometres

20

40

60

80

100

120

140

160

180

200

220

240

Years

1

2

3

4

5

6

7

8

9

10

11

12

Check of the particle emission filter additive level

(NC)

Check of the clogging of the particle emission filter (4)













Check and bleed fuel filter if necessary

























Replacement of fuel filter

(5)

Replacement of ancillaries drive belt (7)





Replacement of ancillaries drive belt kit (7)





Replacement of timing kit and coolant pump (7)





Replacement of air filter

(10)

Change engine oil and replace oil filter (11)

























Change the brake fluid

(12)

Replacement of passenger compartment filter (13)

























14/02/2022   15:33:49
