228

In the event of a breakdown

Installing electrical accessories

The vehicle's electrical system is

designed to operate with standard or optional
equipment.

Before fitting other electrical equipment or

accessories to your vehicle, contact a Fiat

Dealership or a qualified workshop.

Fiat accepts no responsibility for the cost
incurred in repairing the vehicle or for

rectifying malfunctions resulting from the
installation of accessories not supplied or not
recommended by Fiat and not installed in
accordance with its recommendations, in
particular when the combined power
consumption of all of the additional equipment
connected exceeds 10 milliamperes.

12 V battery / Accessory
battery

Procedure for starting the engine using another
battery or for charging a discharged battery.

Lead-acid starter batteries

These batteries contain harmful
substances (sulphuric acid and lead).

They must be disposed of in accordance
with regulations and must never under any
circumstances be discarded with household
waste.

Dispose of used batteries at a designated
collection point.

Protect your eyes and face before
handling the battery.

All operations on the battery must be carried
out in a well ventilated area and away from

naked flames and sources of sparks, to avoid

any risk of explosion or fire.

Wash your hands afterwards.

Electric motor

Flat accessory battery

It is no longer possible to start the motor

or recharge the traction battery.

Precautions before working on the

accessory battery

Select mode

P

, switch off the ignition, check

that the instrument panel is off and that the

vehicle is not being charged.

Jump-starting another vehicle

Do not use the accessory battery to

jump-start another vehicle or to charge
another vehicle's battery.

Symbols

No sparks or naked flames, no smoking.



Always protect your eyes. Explosive

gases can cause blindness and injury.
Keep the vehicle's battery out of the reach
of children.
The vehicle's battery contains sulphuric
acid which can make you go blind or

cause severe burns.

For more information, refer to the
handbook.
Explosive gases can be present close to
the battery.

Always replace the battery with one of

equivalent specification.

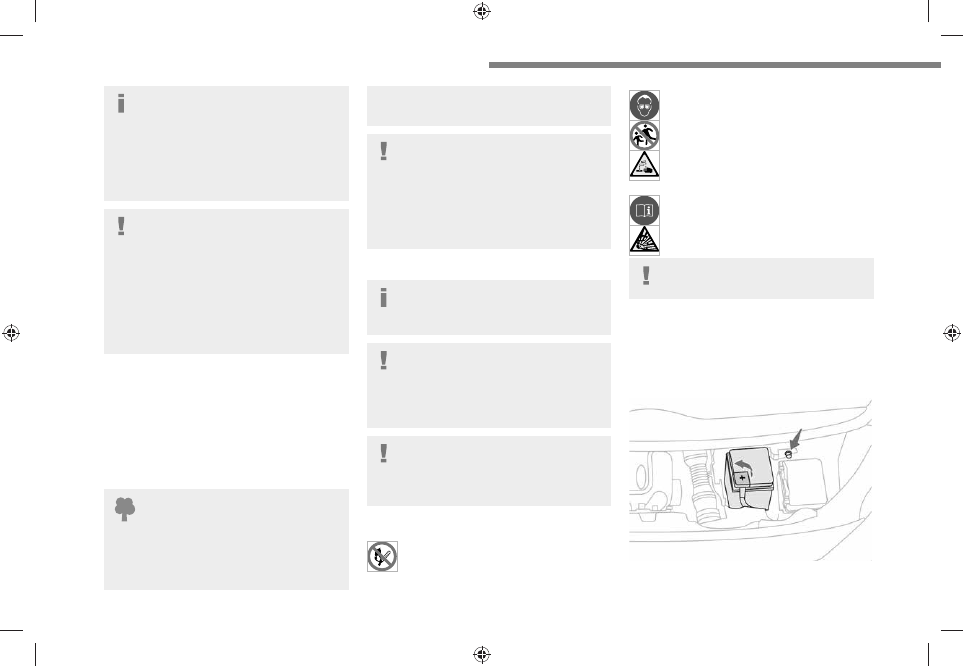

Access to the battery

The battery is located under the bonnet.

►  Open the bonnet using the interior release

lever, then the exterior safety catch.

►  Secure the bonnet stay.





14/02/2022   15:33:58

229

In the event of a breakdown

8

►  Remove the plastic cover to access the (+)

terminal, if your vehicle has one.
The battery (-) terminal is not accessible.
There is a remote earth point near the battery.

For more information on the

Bonnet

 and

the

Engine

, refer to the corresponding

sections.

Starting using another

battery

If the vehicle's battery is flat, the engine can be

started using a backup battery (either external or
from another vehicle) and jump leads or using a
battery booster.

Never start the engine by connecting a
battery charger.

Never use a 24 V or higher battery booster.
Check beforehand that the backup battery
has a nominal voltage of 12 V and a capacity
at least equal to that of the discharged
battery.
The two vehicles must not be in contact with
each other.

Switch off all electricity-consuming equipment

on both vehicles (audio system, wipers,
lighting, etc.).
Make sure that the jump leads are well away
from the engine’s moving parts (fan, belt,
etc.).
Do not disconnect the (+) terminal while the
engine is running.





►  Lift the plastic cover on the (+) terminal, if the

vehicle has one.

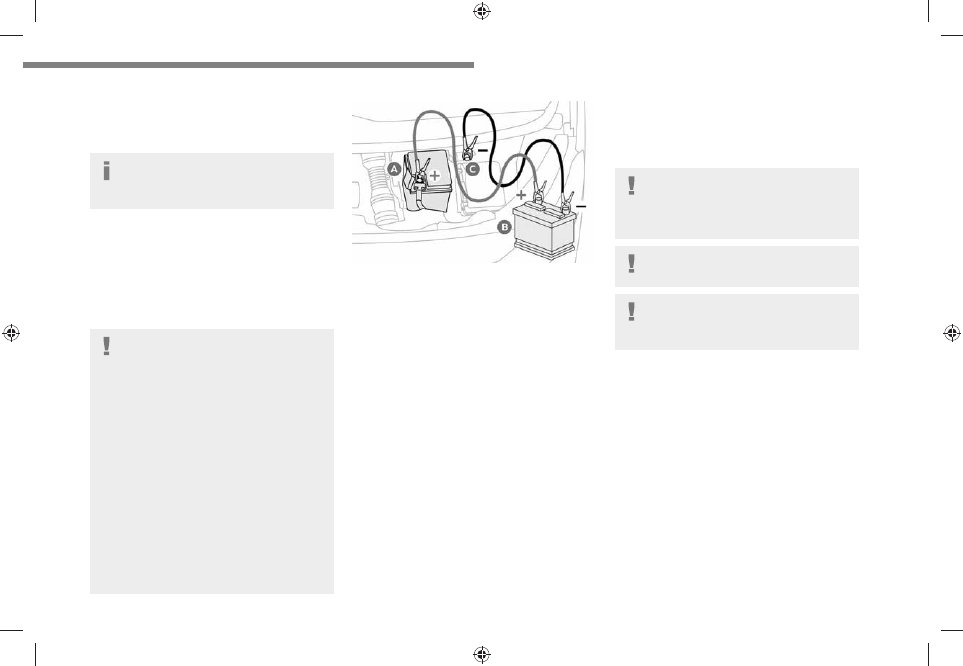

►  Connect the red cable to the (+) terminal of

flat battery

A

 (at the metal elbow), then to the

(+) terminal of the backup battery

B

 or of the

booster.

►  Connect one end of the green or black cable

to the (-) terminal of the backup battery

B

 or of

the booster (or to an earth point on the assisting
vehicle).

►  Connect the other end of the green or black

cable to the earth point

C

.

►  Start the engine on the assisting vehicle and

leave it running for a few minutes.

►  Operate the starter on the broken down

vehicle and let the engine run.
If the engine does not start immediately, switch

off the ignition and wait a few moments before

trying again.

►  Wait for it to return to idle.

►  Disconnect the jump leads

in reverse order

.

►  Refit the plastic cover to the (+) terminal, if

the vehicle has one.

►  Allow the engine to run for at least

30 minutes, with the vehicle stationary, so that
the battery reaches an adequate state of charge.

Driving immediately without having

reached a sufficient level of charge may

affect some of the vehicle's functions (e.g.

Stop & Start).

To disconnect, proceed in reverse order.

Automatic gearbox

Never try to start the engine by pushing

the vehicle.

Charging the battery using a

battery charger

For optimum service life of the battery, it is
essential to maintain an adequate state of
charge.
In some circumstances, it may be necessary to
charge the battery:
–  When using the vehicle mainly for short
journeys.

–  If the vehicle is to be taken off the road for

several weeks.

Contact a Fiat Dealership or a qualified

workshop.

14/02/2022   15:33:58

230

In the event of a breakdown

To charge the vehicle's battery yourself,
use only a charger compatible with

lead-acid batteries with a nominal voltage of
12 V.

Follow the instructions provided by the
manufacturer of the charger.

Never reverse polarities.

It is not necessary to disconnect the
battery.

►  Switch the ignition off.

►  Switch off all electrical consumers (audio

system, lighting, wipers, etc.).





►  Switch off charger

B

 before connecting

the cables to the battery, so as to avoid any
dangerous sparks.

►  Ensure that the charger cables are in good

condition.

►  Lift the plastic cover on the (+) terminal, if the

vehicle has one.

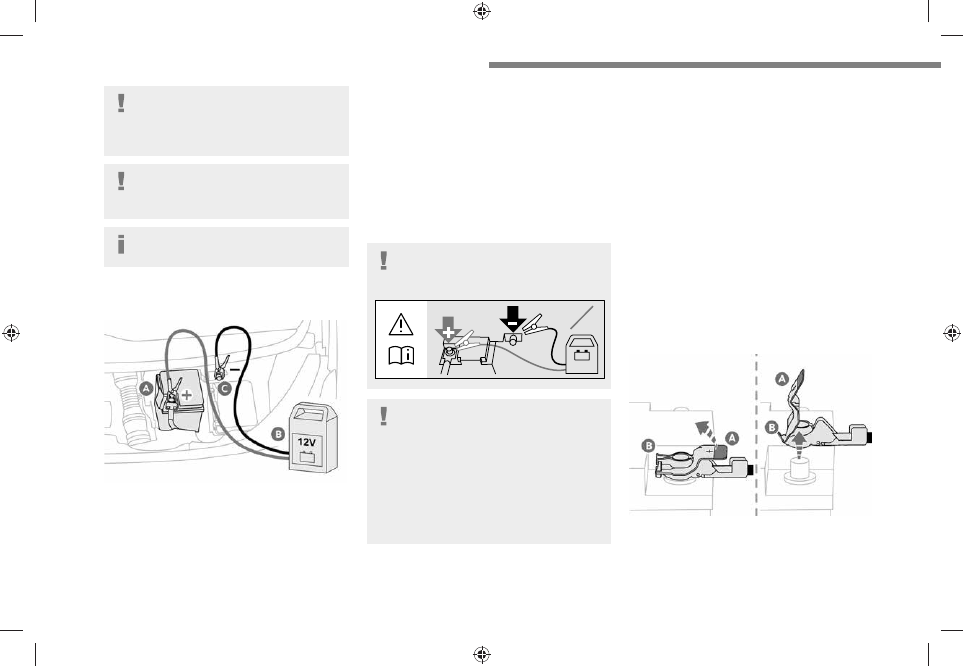

►  Connect the cables of charger

B

 as follows:

•  the positive (+) red cable to the (+) terminal

of battery

A

.

•  the negative (-) black cable to earth point

C



on the vehicle.

►  At the end of the charging operation, switch

off charger

B

 before disconnecting the cables

from battery

A

.

If this label is present, use only a 12 V
charger to avoid causing irreversible

damage to the electrical components.

24V

12V

Frozen battery

Never try to charge a frozen battery - risk

of explosion!
If the battery has frozen, have it checked by

a Fiat Dealership or by a qualified workshop,

who will verify that the internal components
have not been damaged and that the case
has not cracked, which could lead to a risk of
leakage of toxic and corrosive acid.

Disconnecting/reconnecting

the battery

In order to maintain an adequate state of
charge for starting the engine, we recommend
disconnecting the battery if the vehicle is to be
unused for an extended period.
Before disconnecting the battery:

►  Close all openings (doors, tailgate, windows).

►  Switch off all electricity-consuming devices

(audio system, wipers, lamps, etc.).

►  Switch off the ignition and wait for 4 minutes.

After accessing the battery, it is only necessary
to disconnect the (+) terminal.

Quick-release terminal clamp

Disconnecting the (+) terminal





►  Depending on equipment, lift the plastic cover

on the

(+)

 terminal.

►  Raise lever

A

 fully to release clamp

B

.

►  Remove clamp

B

 by lifting it off.

14/02/2022   15:33:58

231

In the event of a breakdown

8

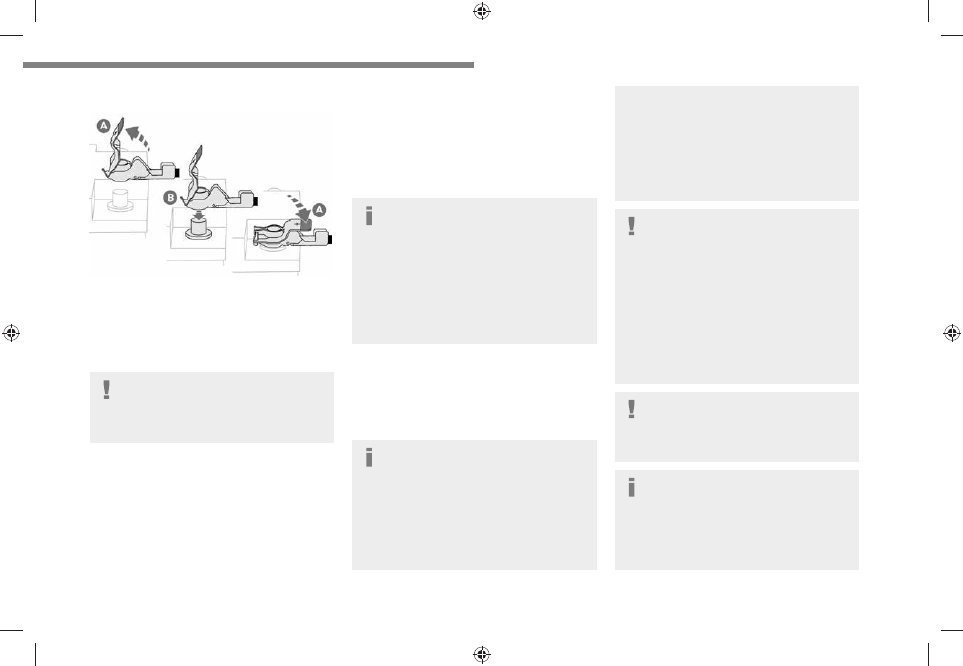

Reconnecting the (+) terminal





►  Raise lever

A

 fully.

►  Refit open clamp

B

 on the

(+)

 terminal.

►  Push clamp

B

 fully down.

►  Lower lever

A

 to lock clamp

B

.

►  Depending on equipment, lower the plastic

cover on the

(+)

 terminal.

Do not force the lever when pressing on
it, as if the clamp is not positioned

correctly, locking will then not be possible.
Start the procedure again.

Following reconnection

After reconnecting the battery, turn on the
ignition and wait 1 minute before starting the
engine, to enable the electronic systems to
initialise.
If minor problems nevertheless persist following
this operation, contact a Fiat Dealership or a

qualified workshop.

Referring to the relevant section, reinitialise
certain equipment:
–  Remote control key or electronic key
(depending on version).
–  Electric windows.
–  Date and time.
–  Preset radio stations.

The Stop & Start system may not be
operational during the trip following the

first engine start.

In this case, the system will only be available
again after a continuous period with the
vehicle immobilised, the duration of which
depends on the exterior temperature and the
state of charge of the battery (up to about 8
hours).

Towing the vehicle

Procedure for having your vehicle towed or
for towing another vehicle using a removable
mechanical device.

General recommendations

Observe the legislation in force in the

country where you are driving.
Check that the towing vehicle is heavier than
the towed vehicle.
The driver must remain at the wheel of the
towed vehicle and must have a valid driving
licence.

When towing a vehicle with all four wheels on
the ground, always use an approved towbar;
ropes and straps are prohibited.

The towing vehicle must move off gently.

When the vehicle is towed with its engine

off, there is no longer braking and steering

assistance.

A professional recovery service must

be called in the following cases:

–  broken down on a motorway or main road;
–  not possible to put the gearbox into neutral,
unlock the steering, or release the parking
brake;
–  not possible to tow a vehicle with an
automatic gearbox, with the engine running;
–  towing with only two wheels on the ground;
–  four-wheel drive vehicle;
–  no approved towbar available.

Before towing the vehicle, it is essential
to put the vehicle in free-wheeling mode.

For more information on

Free-wheeling

, refer

to the corresponding section.

Electric motor

An electric vehicle cannot under any

circumstances be used to tow another
vehicle.
However, it may be used, for example, to exit
a rut.

14/02/2022   15:33:59

232

In the event of a breakdown

With a manual gearbox, place the gear
lever in neutral.

With an automatic gearbox, place the gear
selector in position

N

.

Failure to adhere to this instruction may lead
to damage to some braking components and
the lack of braking assistance on restarting
the engine.

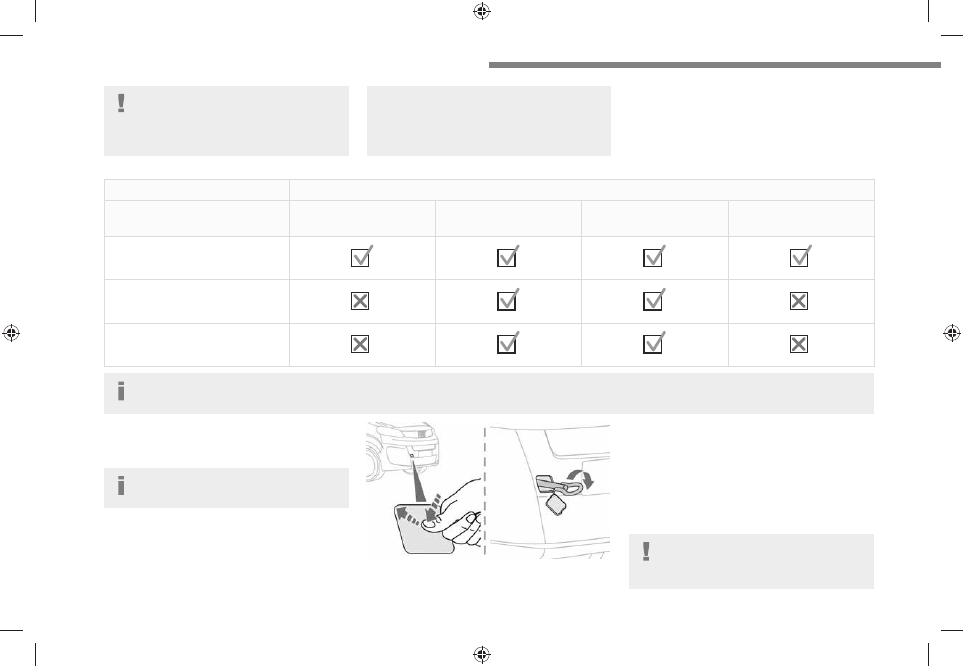

Towing constraints

Type of vehicle

(engine/gearbox)

Front wheels on the

ground

Rear wheels on the

ground

Flatbed

4 wheels on the ground

with towbar

Internal combustion/Manual

















Internal combustion/Automatic

















Electric

















In case of battery or electric parking brake failure, it is essential to call a professional using flatbed recovery vehicles (excluding manual gearbox).



Accessing the towing eye

The towing eye is stowed in the tool box.

For more information on the

Tool box

,

refer to the corresponding section.

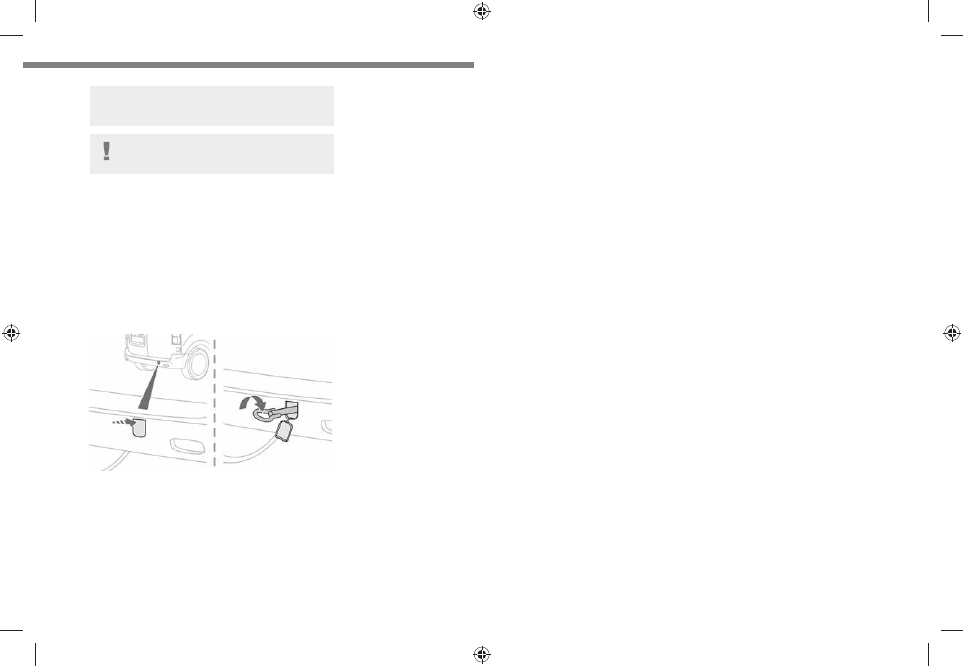

Towing your vehicle

To access the front screw thread:





–  Slide a finger from the centre of the cover

plate to the upper corner (as shown above) to
unclip it.
To be towed:

►  Screw the towing eye in fully.

►  Install the towbar.

►  Put the gearbox into neutral.

Failure to observe this instruction could
result in damage to certain components

(e.g. braking, transmission) and to the

14/02/2022   15:33:59

233

In the event of a breakdown

8

absence of braking assistance the next time
the engine is started.

Never tow the vehicle with the driving

wheels on the ground and the engine off.

►  Unlock the steering and release the parking

brake.

►  Switch on the hazard warning lamps on both

vehicles in accordance with the legislation in
force in the country in which you are driving.

►  Move off gently, drive slowly and only for a

short distance.

Towing another vehicle

To access the rear screw thread:





–  Press the cover (as shown above) to unclip it.
To tow:

►  Screw the towing eye in fully.

►  Install the towbar.

►  Switch on the hazard warning lamps on both

vehicles.

►  Move off gently, drive slowly and only for a

short distance.

14/02/2022   15:33:59

234

Technical data

Engine technical data and
towed loads

Engines

The engine characteristics are given in the
vehicle's registration document, as well as in
sales brochures.
Only the values available at the time of
publication are presented in the tables.

Contact a Fiat Dealership or a qualified

workshop to obtain missing values.

The maximum power corresponds to the
value type-approved on a test bed, under

conditions defined by European legislation

(Directive 1999/99/EC).

For more information, contact a Fiat Dealership

or a qualified workshop.

Weights and towed loads

The weights and towed loads relating to
the vehicle are indicated on the registration
document, as well as in sales brochures.
These values are also indicated on the
manufacturer's plate or label.
For more information, contact a Fiat Dealership

or a qualified workshop.

The GTW (Gross Train Weight) and towed load
values indicated are valid up to a maximum
altitude of 1,000 metres. The towed load value

must be reduced by 10% for each additional
1,000 metres of altitude.
The maximum authorised nose weight
corresponds to the weight permitted on the
towball.

When exterior temperatures are high, the
vehicle performance may be limited in

order to protect the engine. When the exterior
temperature is higher than 37°C, reduce the
towed weight.

Towing even with a lightly loaded vehicle

can adversely affect its road holding.

Braking distances are increased when towing
a trailer.
When using a vehicle to tow, never exceed
a speed of 62 mph (100 km/h) (observe the
local legislation in force).

14/02/2022   15:33:59

235

Technical data

9

Engines and towed loads - Diesel EURO 4/5

*  Increased payload.





Engines

HDi 150 BVM6

HDi 150 EAT6/EAT8

BlueHDi 150 BVM6

BlueHDi 150 EAT6/

EAT8

Gearboxes

Manual 6-speed

Automatic 6/8-speed

Manual 6-speed

Automatic 6/8-speed

Code

DW10F

DW10FD

Cubic capacity (cc)

1,997

1,997

Max. power: EC standard (kW)

110

110

Fuel

Diesel

Diesel

Length

XS, M, XL

(L1/L2/L3)

M*, XL*

(L2/L3)*

XS, M, XL

(L1/L2/L3)

M*, XL*

(L2/L3)*

XS, M, XL

(L1/L2/L3)

M*, XL*

(L2/L3)*

XS, M, XL

(L1/L2/L3)

M*, XL*

(L2/L3)*

Braked trailer
(within the GTW
limit) (kg)
on a 10% or 12%
gradient

6-7-8-9 seats

1,100

800

1,100

800

Unbraked trailer
(kg)

750

750

750

750

Maximum
authorised nose
weight (kg)

44

32

44

32

14/02/2022   15:33:59

236

Technical data

Engines and towed loads - Diesel EURO 6.2





Engines

BlueHDi 100 S&S BVM6

BlueHDi 120 S&S BVM6

BlueHDi 120 S&S EAT8

Gearboxes

Manual 6-speed

Manual 6-speed

Automatic 8-speed

Code

DV5RUCd - ML6 - STT

DV5RUC - ML6 - STT

DW10FEU - AMN8 - STT

Cubic capacity (cc)

1,499

1,499

1,997

Max. power: EC standard (kW)

75

88

88

Fuel

Diesel

Diesel

Diesel

Length

XS/M/XL

(L1/L2/L3)

M*/XL*

(L2/L3)*

XS/M/XL

(L1/L2/L3)

M*/XL*

(L2/L3)*

XS/M/XL

(L1/L2/L3)

M*/XL*

(L2/L3)*

Braked trailer (within the
GTW limit) (kg)
on a 10% or 12% gradient

6-7-8-9 seats

1,800

2,000

1,800

2,000

2,300

2,500

Unbraked trailer (kg)

750

750

750

750

750

750

Maximum authorised nose
weight (kg)

72

80

72

80

92

100

*  Increased payload.

14/02/2022   15:33:59

237

Technical data

9

Engines

BlueHDi 150 S&S BVM6

BlueHDi 180 S&S EAT8

Gearboxes

Automatic 6-speed

Automatic 8-speed

Code

DW10FD - ML6 - STT

DW10FDCU - AMN8 - STT

Cubic capacity (cc)

1,997

1,997

Max. power: EC standard (kW)

110

130

Fuel

Diesel

Diesel

Length

XS/M/XL

(L1/L2/L3)

M*/XL*

(L2/L3)*

XS/M/XL

(L1/L2/L3)

M*/XL*

(L2/L3)*

Braked trailer (within the
GTW limit) (kg)
on a 10% or 12% gradient

6-7-8-9 seats

2,300

2,500

2,300

2,500

Unbraked trailer (kg)

750

750

750

750

Maximum authorised nose
weight (kg)

92

100

92

100

14/02/2022   15:33:59

238

Technical data

Engines and towed loads - Diesel EURO 6.3





Engines

BlueHDi 100 S&S BVM6

BlueHDi 120 S&S BVM6

BlueHDi 140 S&S BVM6

Gearboxes

Manual 6-speed

Manual 6-speed

Manual 6-speed

Code

DV5RUCd - ML6 - STT

DV5RUC - ML6 - STT

DW10FDDU - ML6 - STT

Cubic capacity (cc)

1,499

1,499

1,997

Max. power: EC standard (kW)

75

88

103

Fuel

Diesel

Diesel

Diesel

Length

XS/M/XL

(L1/L2/L3)

M*/XL*

(L2/L3)*

XS/M/XL

(L1/L2/L3)

M*/XL*

(L2/L3)*

XS/M/XL

(L1/L2/L3)

M*/XL*

(L2/L3)*

Braked trailer (within the
GTW limit) (kg)
on a 10% or 12% gradient

6-7-8-9 seats

1,400

1,400

1,900

1,900

Unbraked trailer (kg)

750

750

750

750

Maximum authorised nose
weight (kg)

84

84

84

84

*  Increased payload.

14/02/2022   15:33:59

239

Technical data

9

Engines

BlueHDi 140 S&S EAT8

BlueHDi 180 S&S EAT8

Gearboxes

Automatic 8-speed

Automatic 8-speed

Code

DW10FDDU - AMN8 - STT

DW10FDCU - AMN8 - STT

Cubic capacity (cc)

1,997

1,997

Max. power: EC standard (kW)

103

130

Fuel

Diesel

Diesel

Length

XS/M/XL

(L1/L2/L3)

M*/XL*

(L2/L3)*

XS/M/XL

(L1/L2/L3)

M*/XL*

(L2/L3)*

Braked trailer (within the
GTW limit) (kg)
on a 10% or 12% gradient

6-7-8-9 seats

1,900

1,900

1,900

1,900

Unbraked trailer (kg)

750

750

750

750

Maximum authorised nose
weight (kg)

84

84

84

84

14/02/2022   15:33:59

240

Technical data

Motor and towed loads - Electric

Electric motor

Electric motor

Technology

Synchronous with permanent magnets

Max. power : EC standard (kW)/(hp)

100/136

Traction battery

Technology

Lithium-Ion

Battery pack

S: 18 modules (L1/L2/L3)

XL: 27 modules (L2/L3)*

Installed capacity (kWh)

50 or 75

Domestic charging

Mode 2

Alternating current (AC) voltage
Rating (A)

230

8 or 16

Accelerated charging

Mode 3

Alternating current (AC) voltage
Rating (A)

230 (single-phase or three-phase)

16 or 32

Superfast charging

Mode 4

Direct current (DC) voltage

400

* Battery pack not available for right-hand drive Combi, Business, Feel, Shine, Business Lounge vehicles.

14/02/2022   15:34:00

241

Technical data

9

Towed loads





Model codes:

ZZKXZ

Braked trailer (within the GTW limit) (kg)
on a 10% or 12% gradient

1,000

Unbraked trailer (kg)

750

Maximum authorised nose weight (kg)

60





Model codes:

V1ESZ/V1EZZ/VZESZ/VZEZZ

Code:

MEL ZAE BATT S/

MEL ZAE BATT XL

Length

XS, M, XL

(L1/L2/L3)

Braked trailer (within the GTW limit) (kg)
on a 10% or 12% gradient

5-6-7-8-9 seats

1,000

Unbraked trailer (kg)

750

Maximum authorised nose weight (kg)

60

14/02/2022   15:34:00

242

Technical data

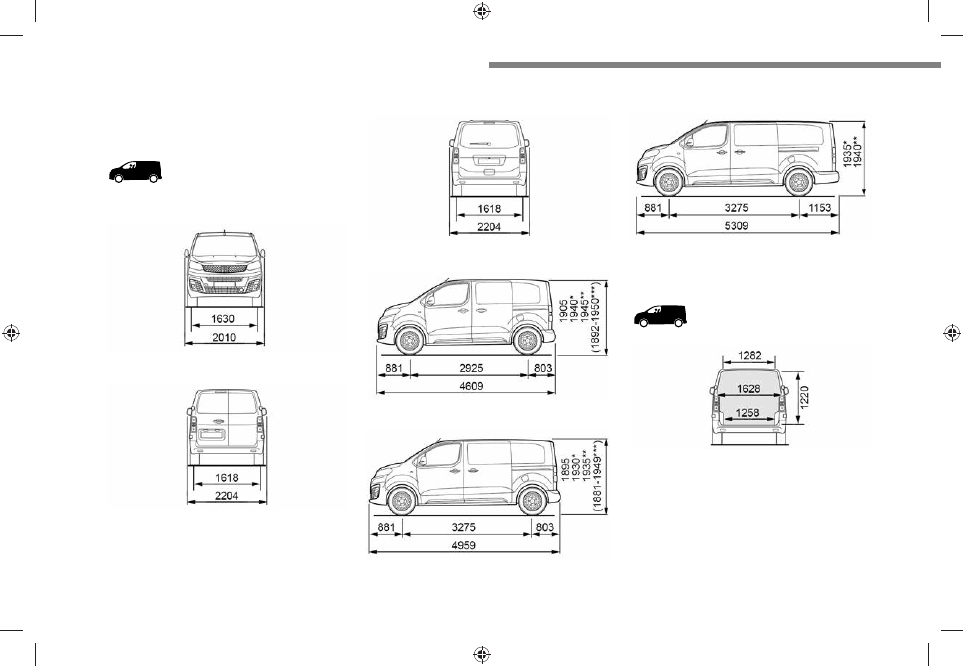

Dimensions (mm)

These dimensions have been measured on an
unladen vehicle.





Mirrors folded





Side-hinged doors





Tailgate





XS





M





XL





* Increased payload.
** Increased payload with high body.
*** Depending on country of sale.









14/02/2022   15:34:00

243

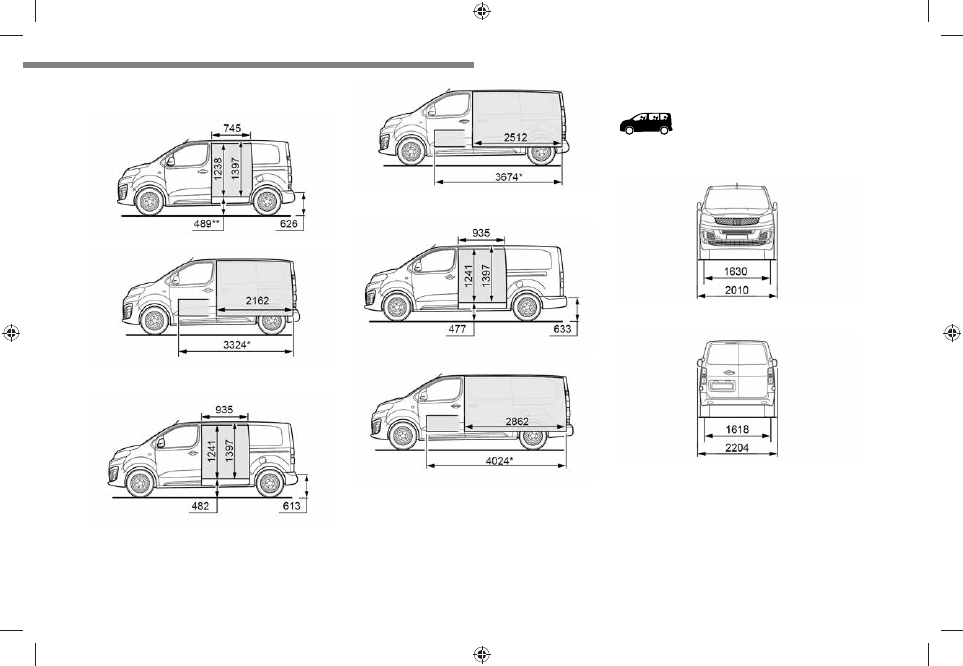

Technical data

9

XS









M









XL









* With Moduwork, flap removed.

** Vehicle empty and not loaded.





Mirrors folded





Side-hinged doors





14/02/2022   15:34:00
