HM484Q Engine. Manual - part 19





Flywheel and clutch

67

Check of clutch plate

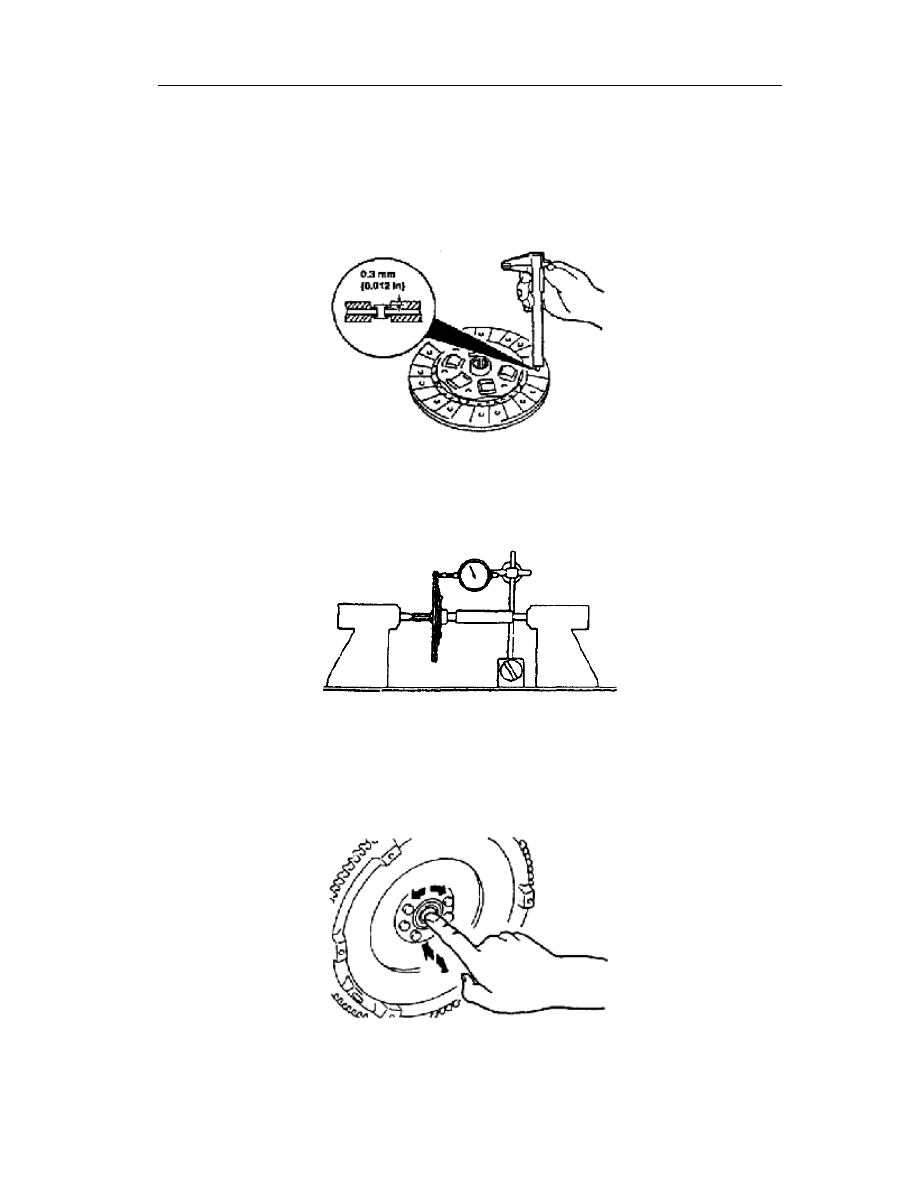

1.  Use a vernier caliper to measure the rivets at both sides and the depth of disc plate

between the surfaces.

l  If the standard exceeded, the clutch disc plate shall be replaced.



Depth:

≥0.3mm {0.012in}



2.  Use a dial gauge to measure the radical run-out of clutch disc plate

l  If the standard exceeded, the clutch disc plate shall be replaced.



Radical run-out:

≤0.7mm {0.028in}



Check of pilot bearing

Forcibly turn the bearing in axis direction instead of removing the pilot bearing.

l  If unable to rotate or there is strong resistance or abnormal noise, the pilot

bearing shall be replaced.





Flywheel and clutch

68

Check of flywheel

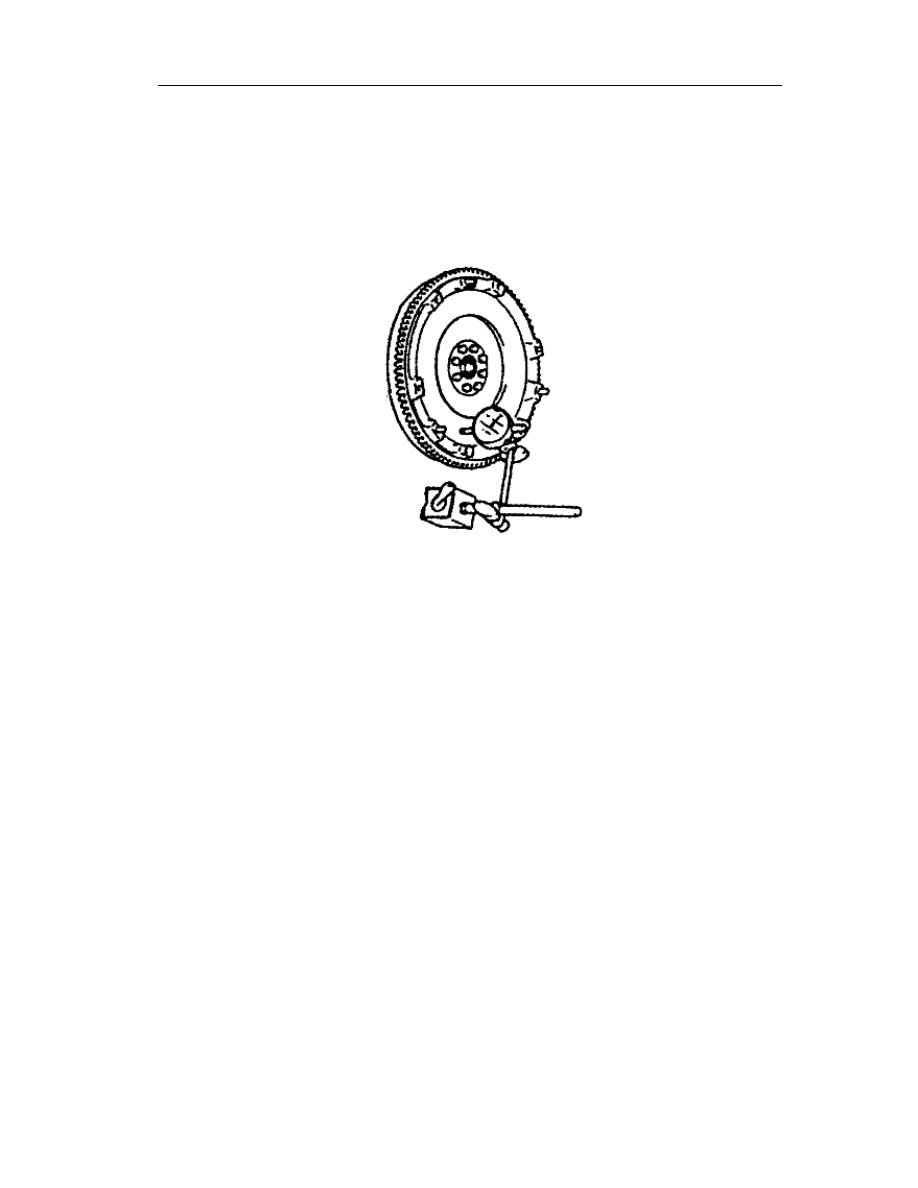

1.  Fit the dial gauge on the cylinder block.

2.  Turn the flywheel and measure the radical run-out of flywheel.

l  If the standard exceeded, the flywheel shall be replaced.



Radical run-out:

≤0.13mm{0.0051in}



Cylinder block and crank connecting rod mechanisms

69

Cylinder block and crank connecting rod mechanisms

Break down/installation of cylinder block and crank connecting rod mechanisms

1.  Remove the cylinder head (See

——Cylinder Head), Oil Pan Body, Oil Pump

(See

——Lubrication System), Crankshaft Rear Cover (See——Flywheel and Clutch).

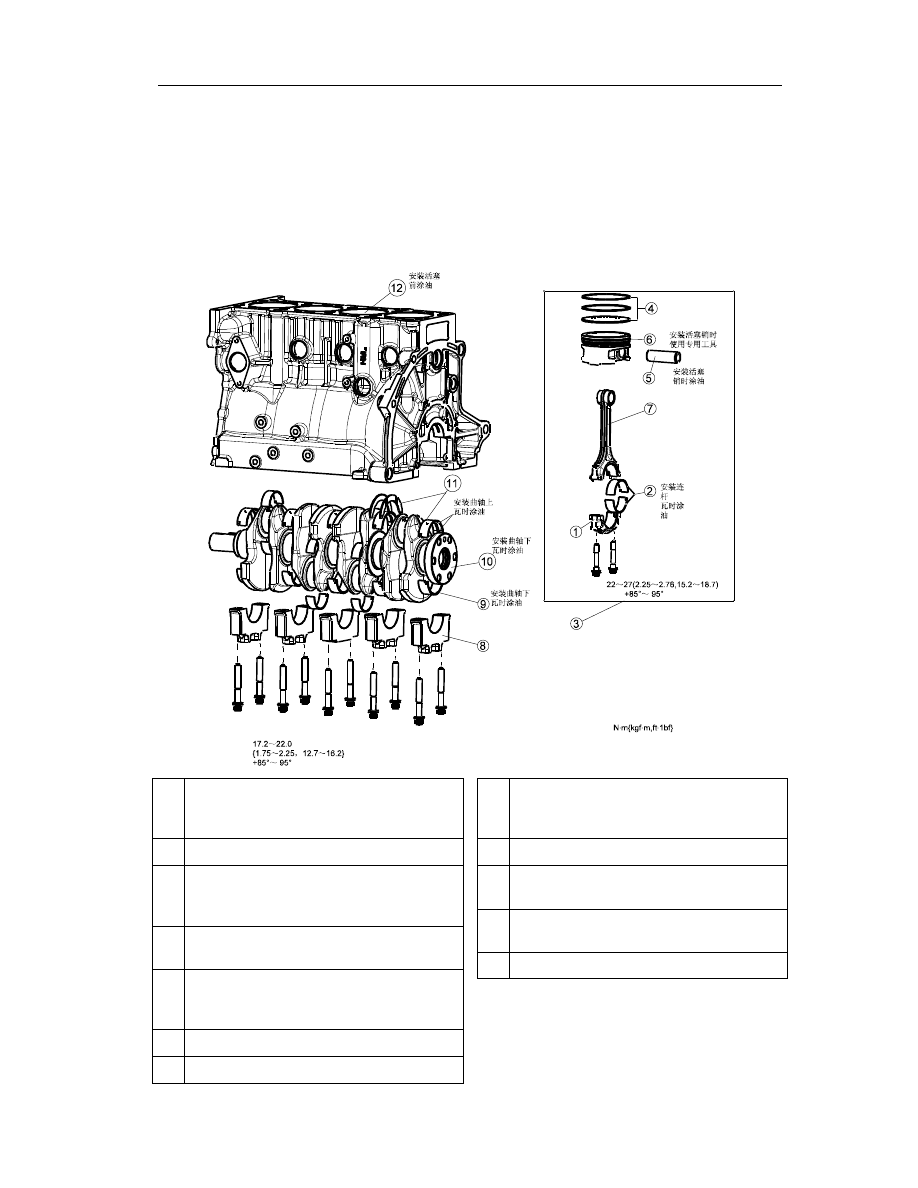

2.  Disassemble as per the order shown in Fig.

3.  Assemble as per the reversing order of disassembly.



Connecting rod cap
(See

——Removal/Installation

Instructions)

Connecting rod bearing

piston connecting rod
assembly(See

——Removal/Installation

Instructions)

Piston ring              (See

——Installation

Instructions)

Piston pin
(See

——Removal/Installation

Instructions)

Piston

Connecting rod

Main bearing
cap(See

——Removal/Installation

Instructions)

Lower bearing of crankshaft

10

Crankshaft ( See

——Disassembly

instructions)

11

Upper bearing of crankshaft and thrust
bearing

12  Cylinder block

Cylinder block and crank connecting rod mechanisms

70

Disassembly of connecting rod cap

Check the end gap of connecting rod (See

——this section, Check of Connecting Rod).

Disassembly of piston and connecting rod

Check the crankshaft pin clearance (See

——this section, Check of connecting rod).

Disassembly of piston pin

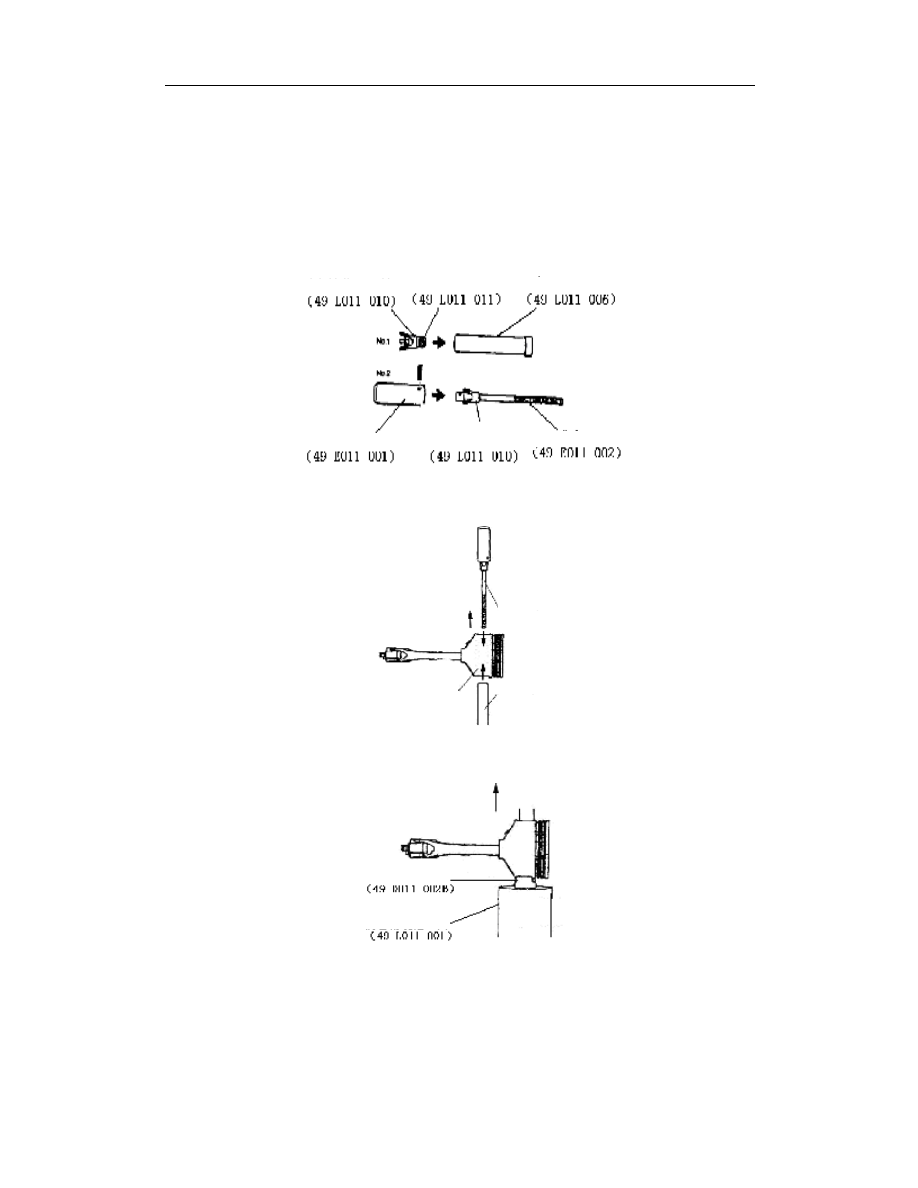

1.  As shown in Fig. fit the special tools no. 1 and 2.



2.  As shown in Fig., insert the special tool no.2 into the piston pin and tighten on the

special tool no.1.



3.  As shown in the following figure, fit the special tool fitted as per the 2

nd

 step and the

piston connecting rod assembly on the special tool.



4.  Use a press to press out the piston pin.



Disassembly of main bearing cap

1.  Check the end gap of crankshaft (See

——this section, Check/Repair of Crankshaft).

Piston pin assembling tools

Special tool no.1

The mark side of

piston F is the

extruded direction

Piston pin assembling tools Piston pin assembling tools

Piston pin assembling tools

Guide apparatus



Screw

Special tool no.2

Piston pin

Special tool no.1

Stop bolt

Piston pin assembling tools
