HM484Q Engine. Manual - part 10





Timing sprocket

31

7.  Remove the upper timing sprocket rail.

Assembly instructions of tensioner

1.  Repress the detent by use of a bench vice (direction shown in Fig.) and insert a hard wire

into the lockhole to lock up the tensioner.



2.  Fit the tensioner on the cylinder block and tighten the bolt.



Assembly instructions of tensioner arm

After the installation, the tensioner arm cannot be tightened too much, swing the tensioner arm
to see if it can freely drop down.

Lockhole

Direction of detent repression

Detent

Timing sprocket

32

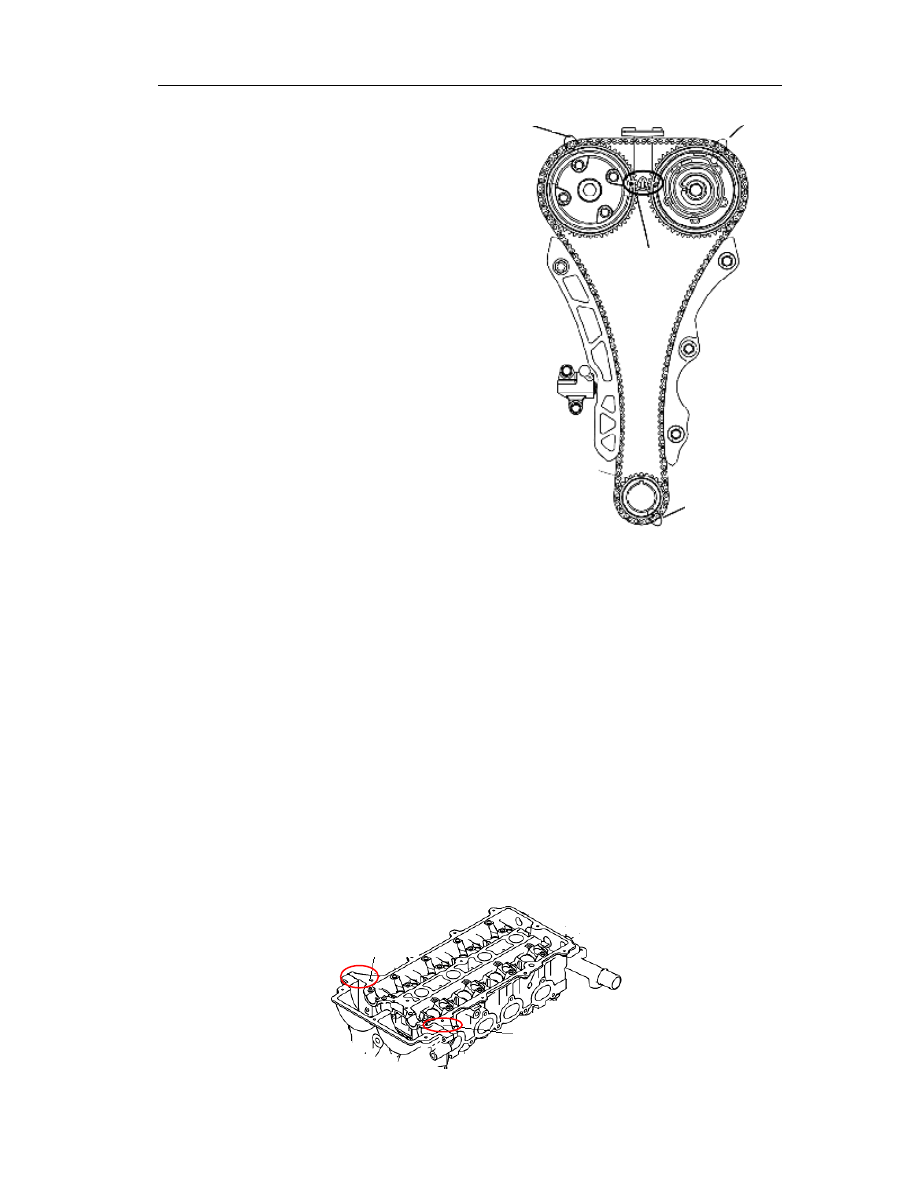

Assembly instructions of timing sprocket

1.  Rotate  the  intake/exhaust  camshafts  so

as  to  bring  2  timing  marks  on  the  intake
and exhaust VVTs to a specified angel.

2.  Install the timing sprocket rail.

3.  Install the timing sprocket.

l  The

timing

marks

on

the

intake/exhaust

VVT

and

timing

sprocket  should  be  aligned  with  that
on the timing sprocket.

4.  Fit  the  tensioner  arm  (See

——Assembly

Instructions of Tensioner Arm).

l  Be sure that the timing sprocket stays

in  the  timing  sprocket  rail  and
tensioner arm groove.

5.  Pull out the lock pin of tensioner, now the

tappet will pop up and push the tensioner
arm to compress the timing sprocket.

l  Confirm that the timing sprocket chain

is in the guide groove of tensioner arm
and timing sprocket rail.



6.  Confirm that all timing marks (4) are completely aligned.

l  If  not aligned, disassemble the timing sprocket, and restart the operation from the

1

st

 step.

7.  Turn  clockwise  two  crankshaft  ring  and  confirm  that  two  valve  check  signs  on  the

intake/exhaust VVT sprockets have been aligned.

l  If not aligned, restart from the 1

st

 step.



Assembly instructions of cylinder head cover

1.  Confirm that there are no oil, water and other foreign substances in the cylinder head cover

groove.

2.  Confirm that the cylinder head cover gasket has fully attached in the groove of cylinder

head cover.

3.  Smear sealant on the joint part between the cylinder head and timing sprocket casing.



Timing mark

Timing mark

Timing mark

Intake side

Exhaust side

Valve check sign

Key slot faced

upward

Sealant coating area

Sealant coating area

Timing sprocket

33

4.  Assemble the cylinder head cover bolt in the reversing order of the disassembly

instructions of cylinder head cover (See

——Disassembly of Cylinder Head Cover)



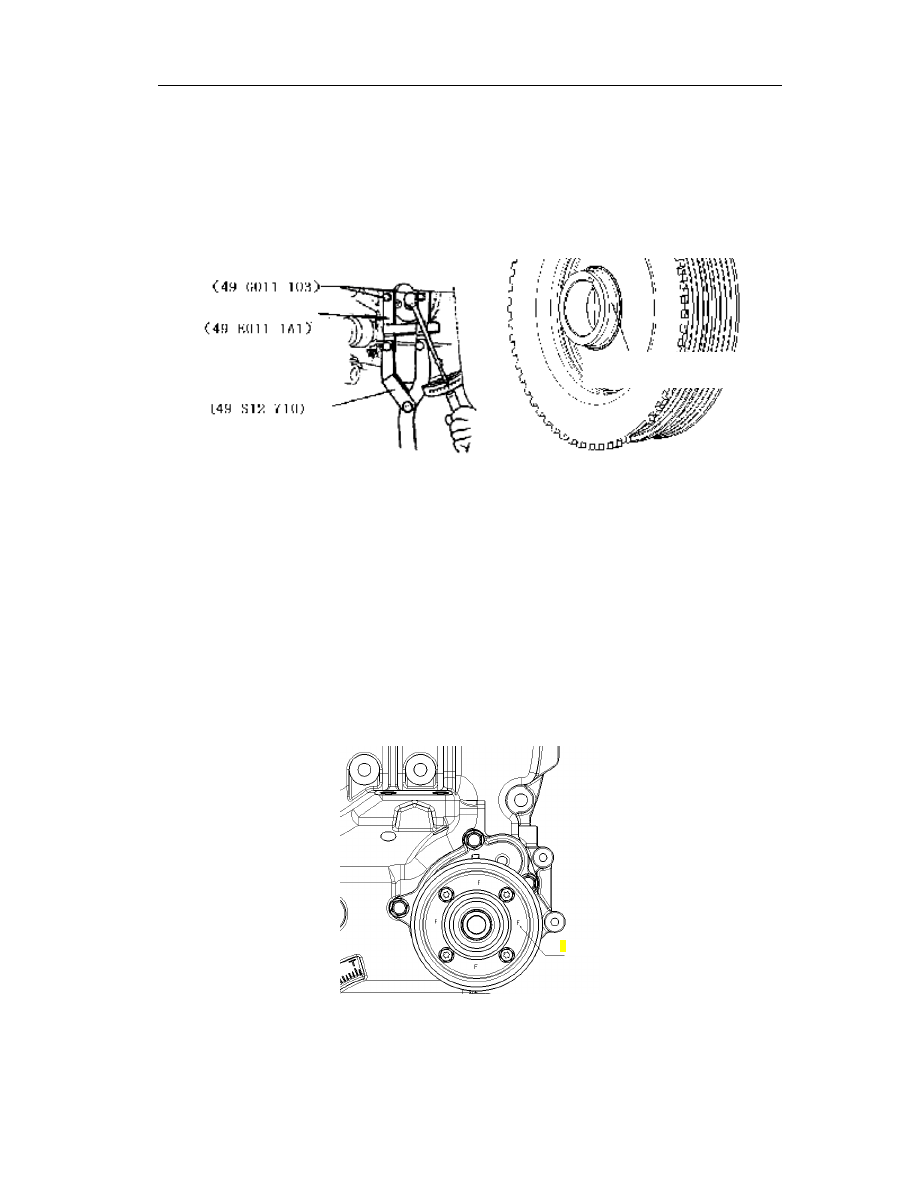

Assembly instructions of crankshaft pulley

Use a special tool to fix crankshaft for further assembly.

l  Smear oil on the contact surface between the crankshaft pulley and oil seal.





















Assembly instructions of water pump pulley

1.  Fit the water pump pulley, orienting the sign

“F” outward.



2.  After the engine belt assembled, apply force on the water pump pulley bolt.





Bolt component

Fixture component

Studded connection fixture

Contact surface between the

crankshaft pulley and oil seal

F mark

Lubrication system

34

Lubrication system

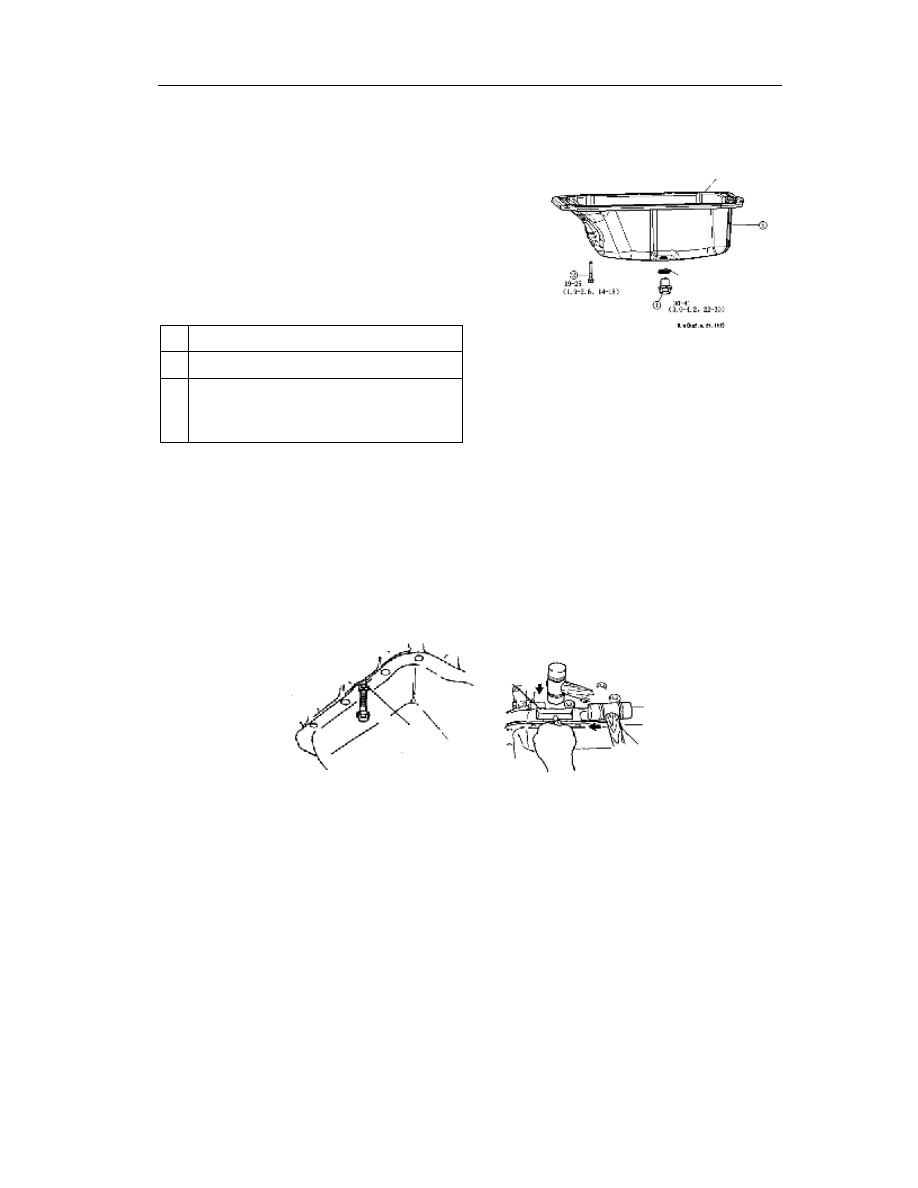

Removal/installation of oil pan

1.  Drain out the engine oil (See

——Check

on the CBU, Replacement of Engine Oil).

2.  Disassemble as per the order show in

Fig. below

3.  Assemble in the reversing order of

disassembly.

1  Drain plug

2  Bolt

Oil pan

See

——Removal/installation

instructions







Disassembly instructions of oil pan

1.  Remove the oil pan bolt.

2.  Remove sealant from the bolt threads.

3.  Screw in a bolt on the welded nut so to save a small clearance between the oil pan and oil

pan body.

4.  Use a split tool to dismantle the oil pan.





Apply sealant all around

before installation

Need to replace parts

after removal

Welded nut

Split tool
