HM484Q Engine. Manual - part 9





Intake and Exhaust Systems

27

Intake and exhaust systems

Removal/installation of intake and exhaust systems

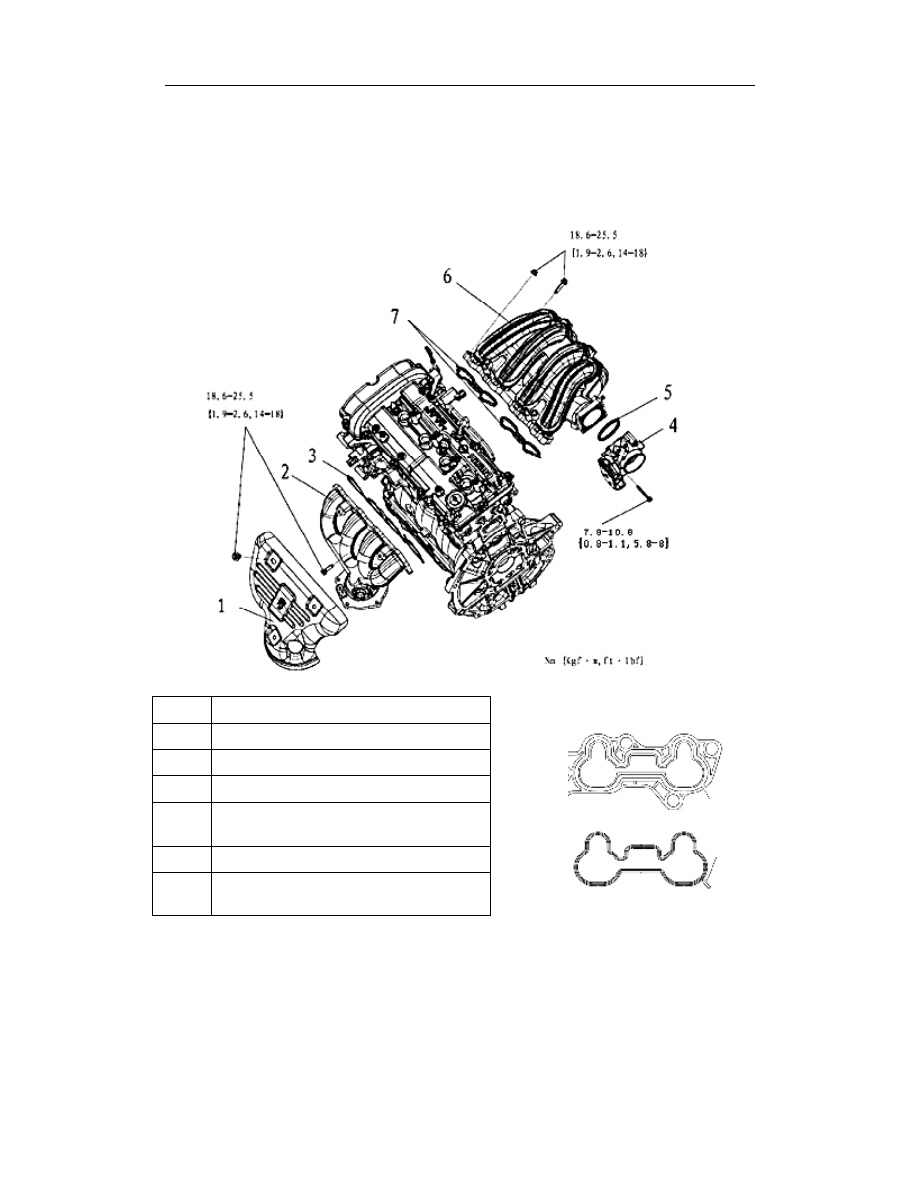

1.  Disassemble as per the order shown in Fig.

2.  Assemble in the reversing order of disassembly.



Thermal shield of exhaust manifold

2

Exhaust manifold

3

Exhaust manifold gasket

Throttle body

Sealant ring of throttle body (See
Assembly Instructions)

Intake manifold

Sealant ring of intake manifold (See
Assembly instructions)



Assembly instructions of intake manifold sealant ring

At the installation time, you shall properly put the sealant ring into the groove of intake manifold
and enable the error proofing mark to clamp into the positioning groove of intake manifold.

Caution

l  Prior to the installation, the  sealant ring shall be checked for any damaged, if

Positioning

groove

Proofing

mark

Intake and Exhaust Systems

28

yes, it shall be replaced.

Installation instructions of throttle body sealant ring

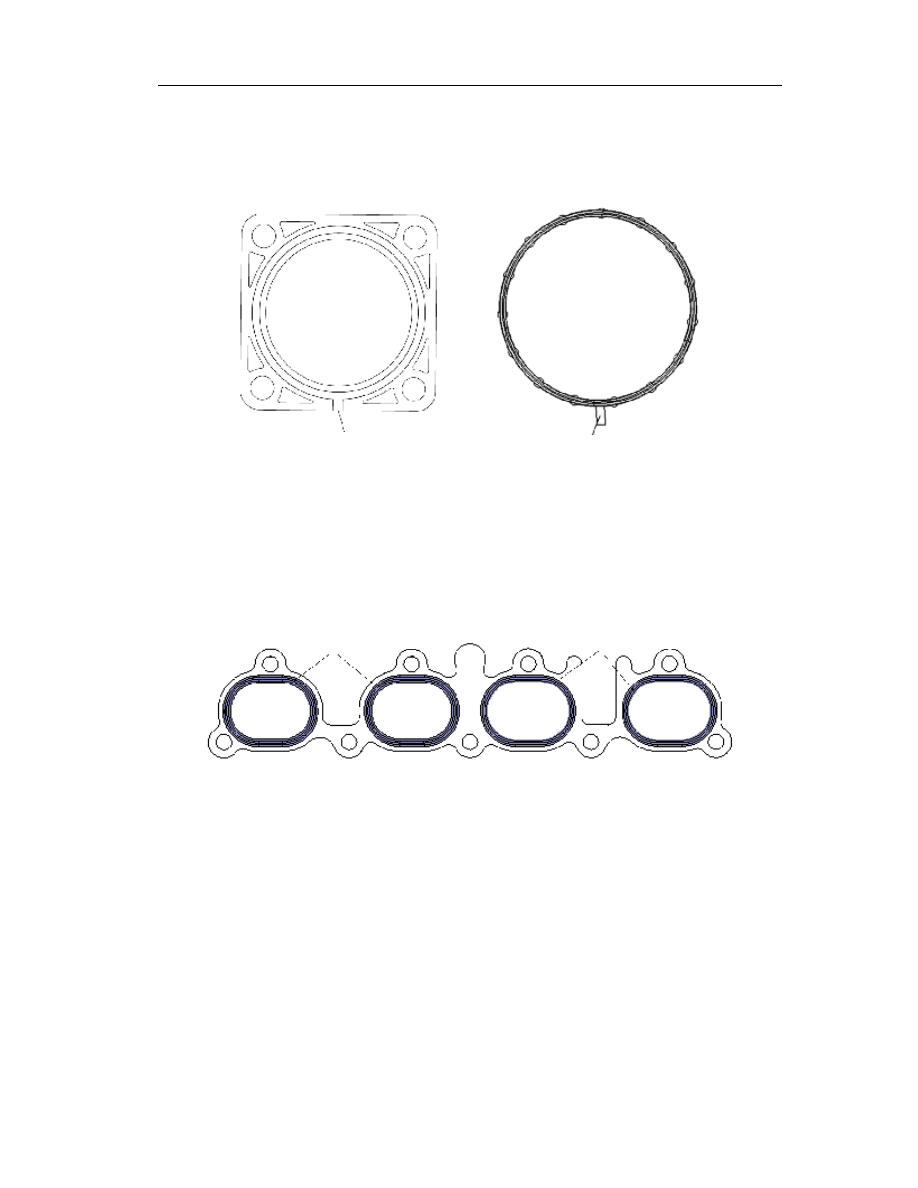

At the installation time, you shall properly put the sealant ring into the groove of throttle body
and enable the error proofing mark to clamp into the positioning groove of throttle body.





Caution;

l  Prior to the installation, the seal strip shall be checked for any damaged, if yes,

it shall be replaced

Installation instructions of exhaust manifold gasket

At the installation time, raised part of spacer shall face to the exhaust manifold.







Positioning groove

Error proofing mark

Bulge part of rib faces

to the exhaust manifold

Bulge part of rib faces

to the exhaust manifold

Timing sprocket

29

Timing sprocket

Lubrication system of timing sprocket

1.  Remove the engine belt (See

——Generator).

2.  Remove the camshaft position sensor and crankshaft position sensor (See

——Ignition and

Control Systems).

3.  Remove the ignition coil (See

——Ignition).

4.  Remove the cylinder head cover (See

——Cylinder Head Cover).

5.  Remove the timing sprocket casing (See

——Timing Sprocket Casing).

6.  Remove the oil pan.

7.  Remove the oil pan body.

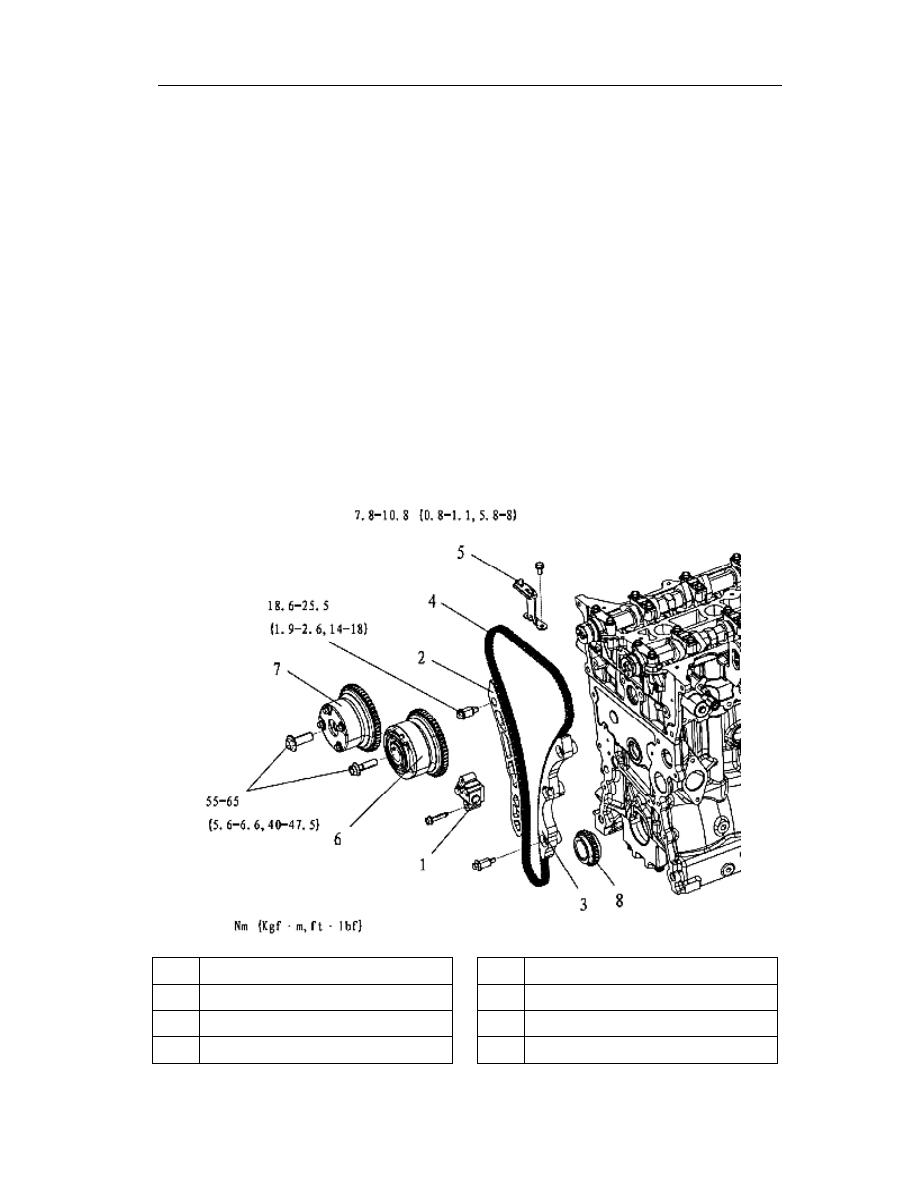

8.  Disassemble as per the order shown in Fig.

9.  Assemble in the reversing order of disassembly.

10.  Adjust the deflection/tension of engine belt (See

——Generator).

11.  Check the clearance of crankshaft position sensor (See

——Ignition and Control Systems).



Tensioner

Tensioner arm

Timing sprocket guide

Timing sprocket

Upper guide of timing sprocket

Exhaust VVT

Intake VVT

Timing sprocket



Other thread torque not indicated:

Timing sprocket

30

Lubrication system of tensioner

1.  Disassembly as per the order shown in Fig.

2.  Assemble in the reversing order of disassembly.

Instructions to the removal of tensioner

1.  Unscrew the tensioner bolt.

2.  Slowly take out the tensioner (prevent a sudden pop-up of plunger).

Disassembly instructions of crankshaft pulley

Use a special tool to fix the crankshaft for disassembly.



Disassembly instructions of cylinder head cover

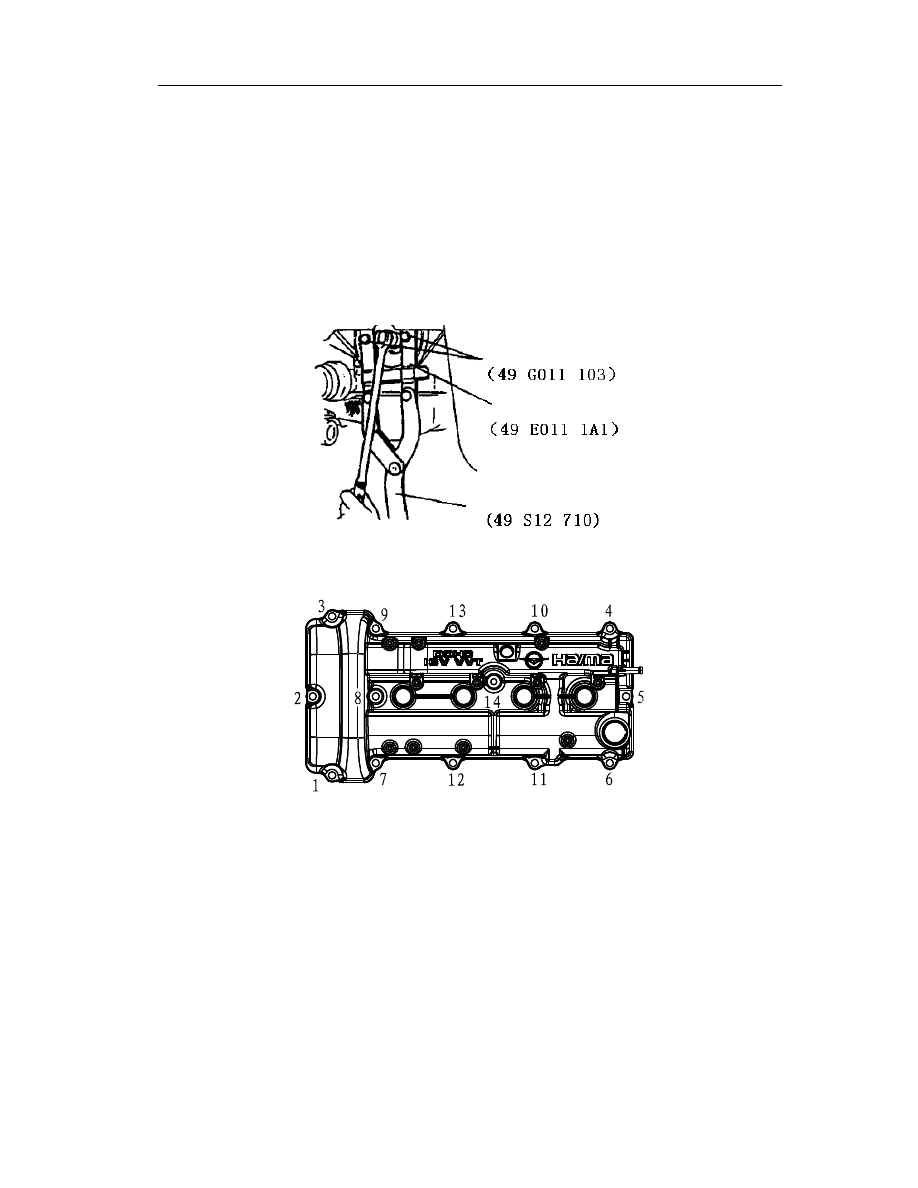

Unscrew the bolts in 2-3 steps as per the order shown in Fig.t.



Disassembly instructions of timing sprocket

1.  Fit the lock bolt of crankshaft pulley.

2.  Turn clockwise the crankshaft and align with the valve check sign.

l  Key slot of timing sprocket faced upward.

l  Align with the valve check sign on the intake and exhaust of VVT timing

sprocket.

3.  Disassemble the tensioner (See

——Disassembly of Tensioner).

4.  Remove the tensioner arm.

5.  Remove the timing sprocket rail.

6.  Remove the timing sprocket.

Bolt component

Fixture component

Studded connection fixture
