HM484Q Engine. Manual - part 7





Generator and Starter

19

Generator and starter

Lubrication system of Engine

Warning

l  When disassembling/assembling a generator on the CBU, you should remove

first the battery cable, otherwise the terminal B of generator will get in touch
with the bodywork , cause sparks and result in personnel injury and electrical
component damage.

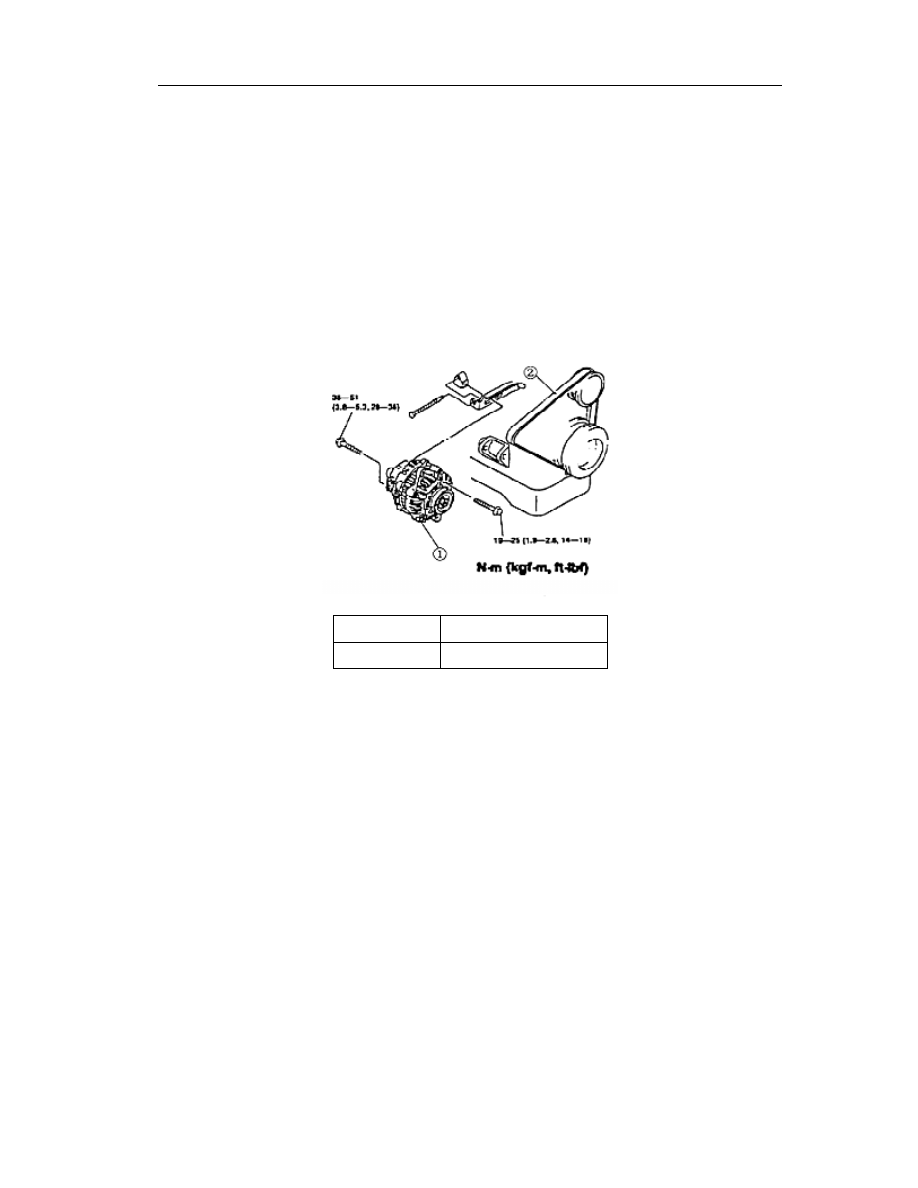

1.  Disassemble as per the order shown in Fig.

2.  Assemble in the reversing order of disassembly.

3.

Check the deflection /tension of belt (See

——Engine belt, Check of Engine Belt).



Generator

Alternator belt



Check of engine belt

1.  When necessary, check the deflection and tension of engine belt.



Deflection check of engine belt



Attention

l  The belt deflection shall be checked in 30mins after the engine cooled down or

shut down.

1.  Appropriate pressure of 98N{10kgf, 22lbf} is to be added between two pulleys.

l  If the deflection is out of the specified scope, adjust the engine belt (See

——

Adjustment of Engine Belt).



Limit value: 10mm {0.39in}

Generator and Starter

20



Tension check of engine belt

Attention

l  The tension check may replace the deflection check. The tension pulley shall be

checked in 30mins after the engine cooled down or shut down.

1.  Use a special tool to check the belt tension between two driving wheels.

l  If the tension is beyond the specified range, the adjustment is necessary

(See

—— Adjustment of Engine Belt).



Limit value: 392N {40kgf, 88lbf}





Adjustment of engine belt

1.

Loosen the pillar bolt A and bolt B.



2.  Adjust the deflection or tension of belt by regulating the stud C.

Attention

l  If replacing by a new engine belt or an engine belt run not more than 5mins,

adjust as per the standard measure of a new part.

l  If an engine belt operated more than 5mins, adjust as per the standard measure

of an old part.

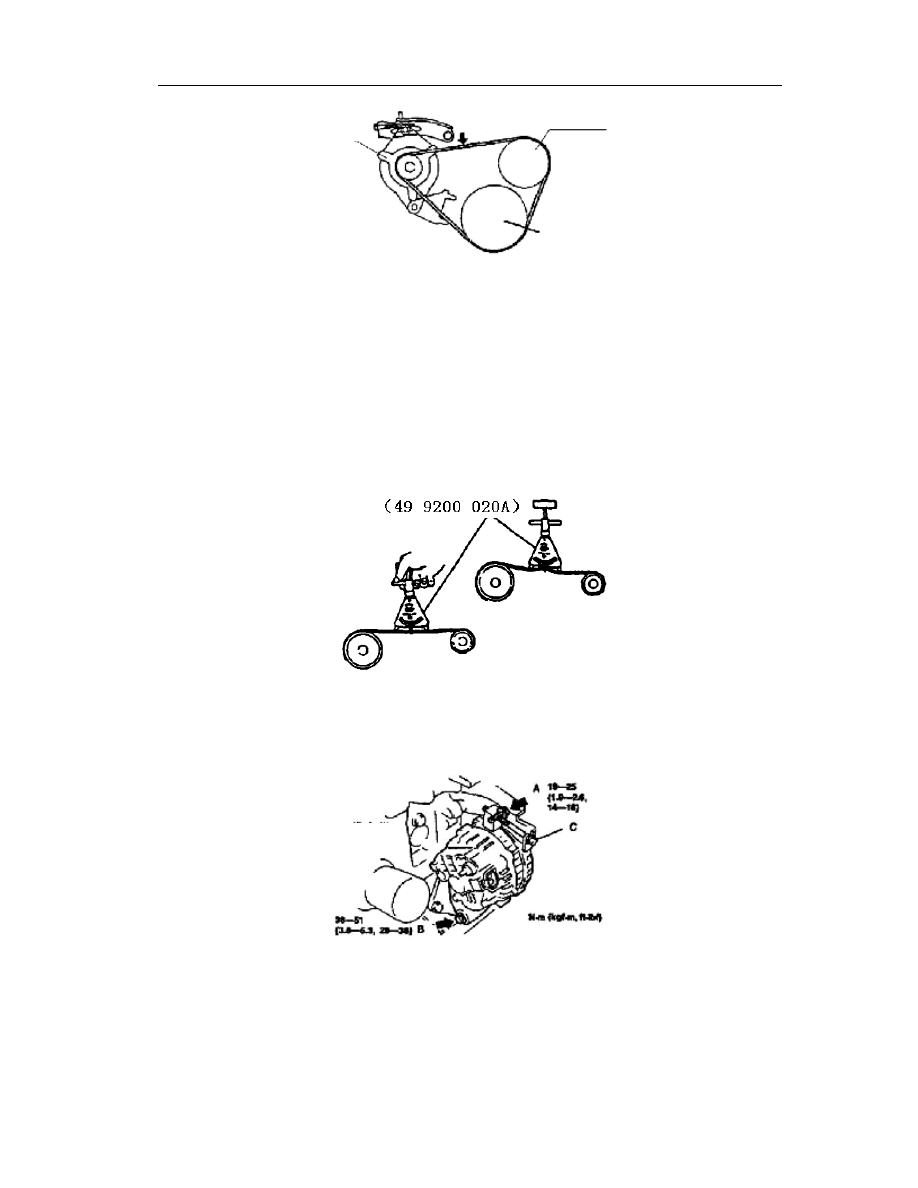

Generato

Measuring

point

Water pump pulley

Crankshaft pulley

Belt pressure gauge

Engine





At the time of

measurement

At the time of

installation

Generator and Starter

21



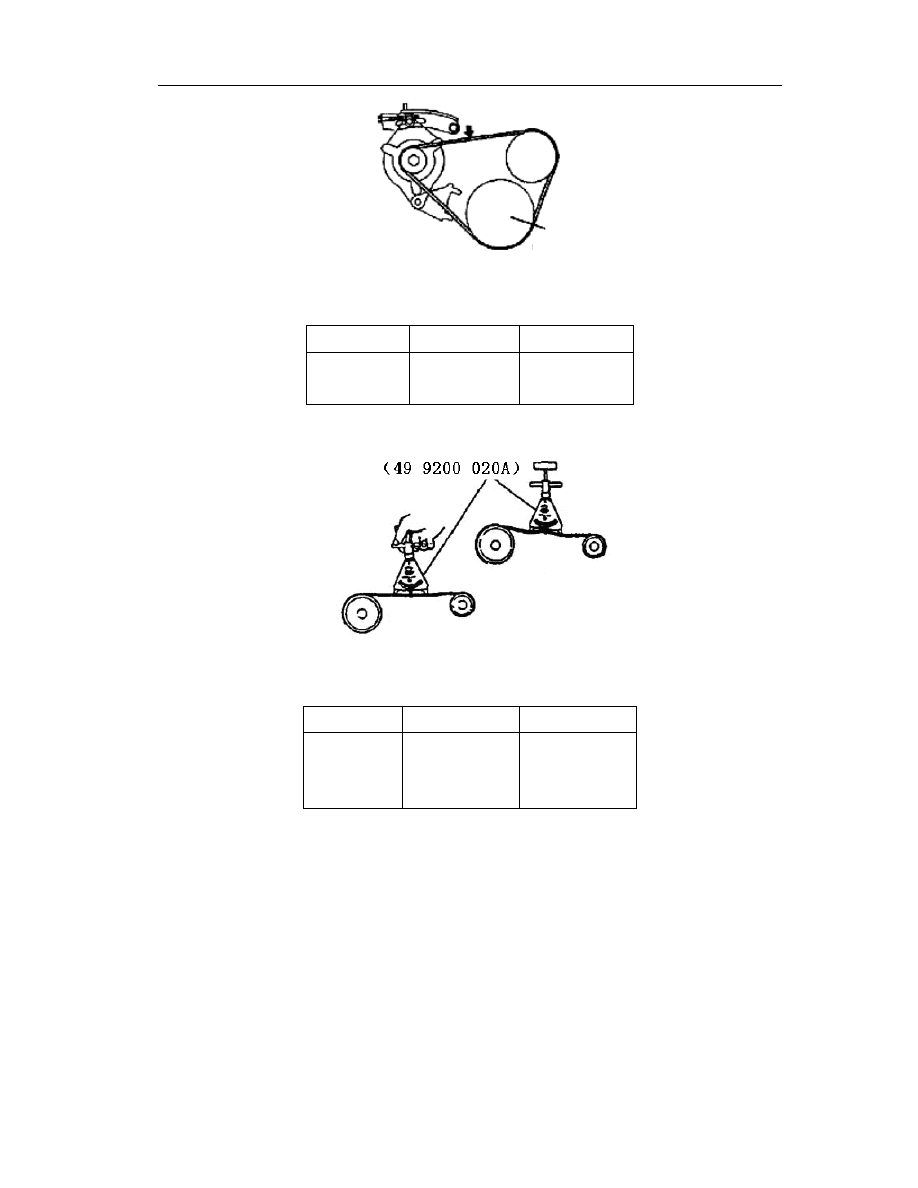

Deflection mm{in}

[The force of 98N{10kgf, 22lbf} shall be applied in-between]



New

Old

Alternator

belt

6.5~7.5

{0.26~0.29}

7.0~9.0

{0.28~0.35}







Tension N{kgf, lbf}



New

Old

Alternator

belt

686~834

{70~85,

160~180}

490~686

{50~70,

120~150}

3.  Tighten the bolts A and B as per the torque shown in Table.

4.  Check the deflection or tension of belt (See

——Check of Engine Belt).

l  If not within the standard value, readjust by starting from the 1

st

 step and.

Check of engine

1.  Confirm that the battery has been charged.

2.  Confirm that the deflection/tension of belt is within the defined range (See

——Generator,

Check of Engine Belt).

3.  Set the ignition switch in the

“ON” position, now the charge warning light is lit.

4.  Confirm that the charge warning light goes off when the engine started operating.

l  If not in such case, refer to CBU Faults Diagnostic and Disposal.

Engine

Measuring point

Water

pump

Crankshaft pulley

Belt pressure gauge

At the time of
measurement

At the time of

installation

Generator and Starter

22

Lubrication system of starter



Warning

l  When removing and installing the starter on the CBU, if the negative cable of

battery is not loosened, the starter terminal B will produce sparks by the access
into connection or the contact with the body, this will cause personnel injury
and result in the electrical component damage, thus you should firstly remove
the negative cable of battery when doing the following operations.

1.  Remove the negative cable of battery.

2.  Disassemble as per the order shown in Fig.

3.  Assemble in the reversing order of disassembly.

Cable terminal B

Cable terminal S

Starter





Check of starter

On-board check

1.  Confirm that the battery has been charged.

2.  Start up the starter to confirm it is running in stable operation and without noise.

l  If incorrect, set the ignition switch onto the

“START”position and measure the

voltage at the terminals S and B.

—    If the voltage is out of the specified range, check and repair the harness and ignition

switch.

—  If the voltage is in the specified range, remove the starter and check the solenoid switch

and starter.



Standard value:  >8V

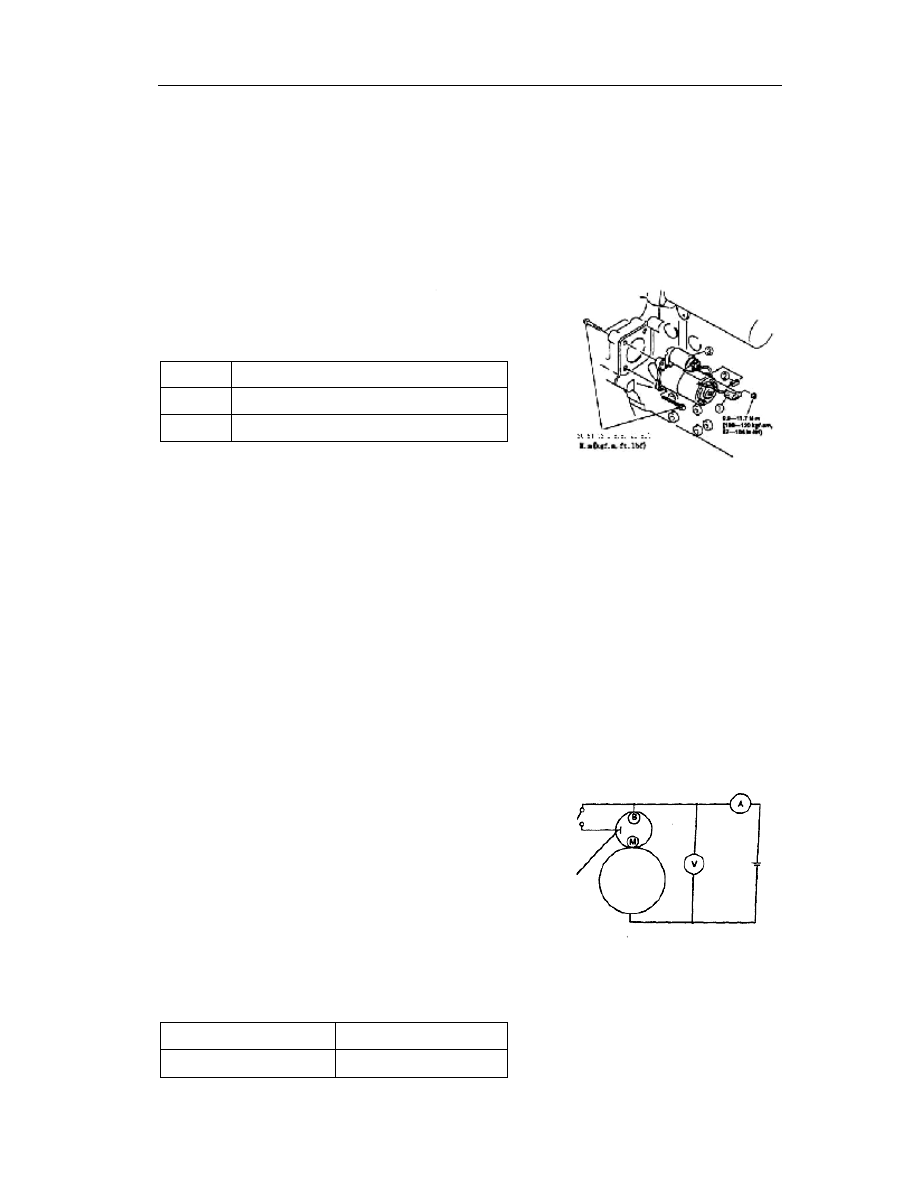

No-load test

1.  Confirm that the battery has been charged.

2.  As shown in Fig., connect the starter, battery,

voltmeter and ammeter.

3.  Have the starter run and confirm it runs in the

stable operation.

4.  While the starter is running, measure the voltage

and current.

l  If incorrect, repair or replace.

Standard

Voltage (V)

11.5

Current (A)

<80





Ignition

switch

Terminal S

B

at

te

ry



Starter
