HM484Q Engine. Manual - part 5





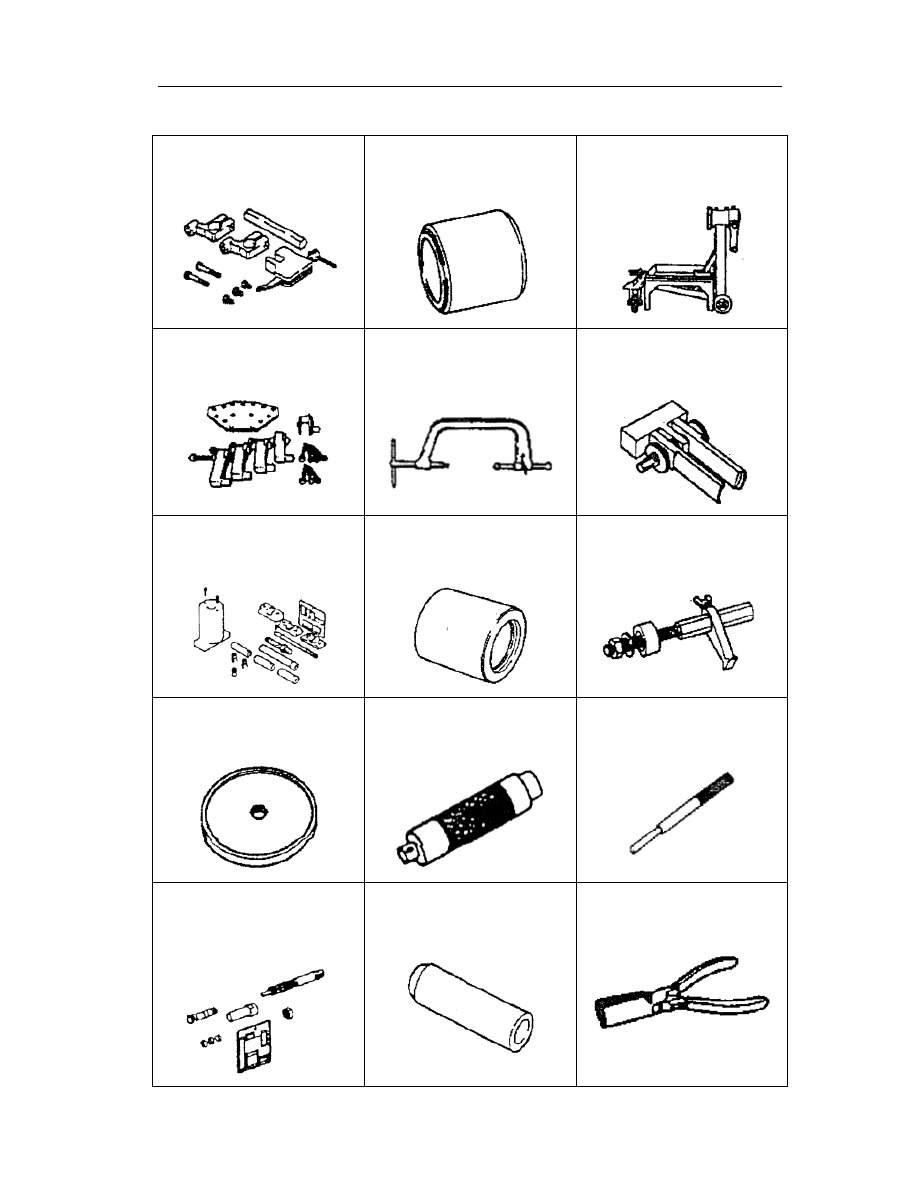

Special tool

11

Special tools

49 T012 0A0A

Tappet retainer component



49 B014 001

Seal installer



49 0107 680A

Engine service platform



49 L010 1A0

Engine hook components



49 0636 100B

Valve spring puller



49 B012 0A2

Pivot



49 L011 0A0B

Piston pin assembly kit



49 T028 302

Dust cover installer



49 E011 1A0

Gear rim stop device



49 W033 105

Seal installer



49 G030 797

Handle (Part of 49G030 795)



49 B012 005

Puller/installer of valve guide



49 L012 0A0A

Installer  component  of  valve
oil seal and guide



49 E011 001

Guide apparatus



49 S120 170

Puller of valve oil seal



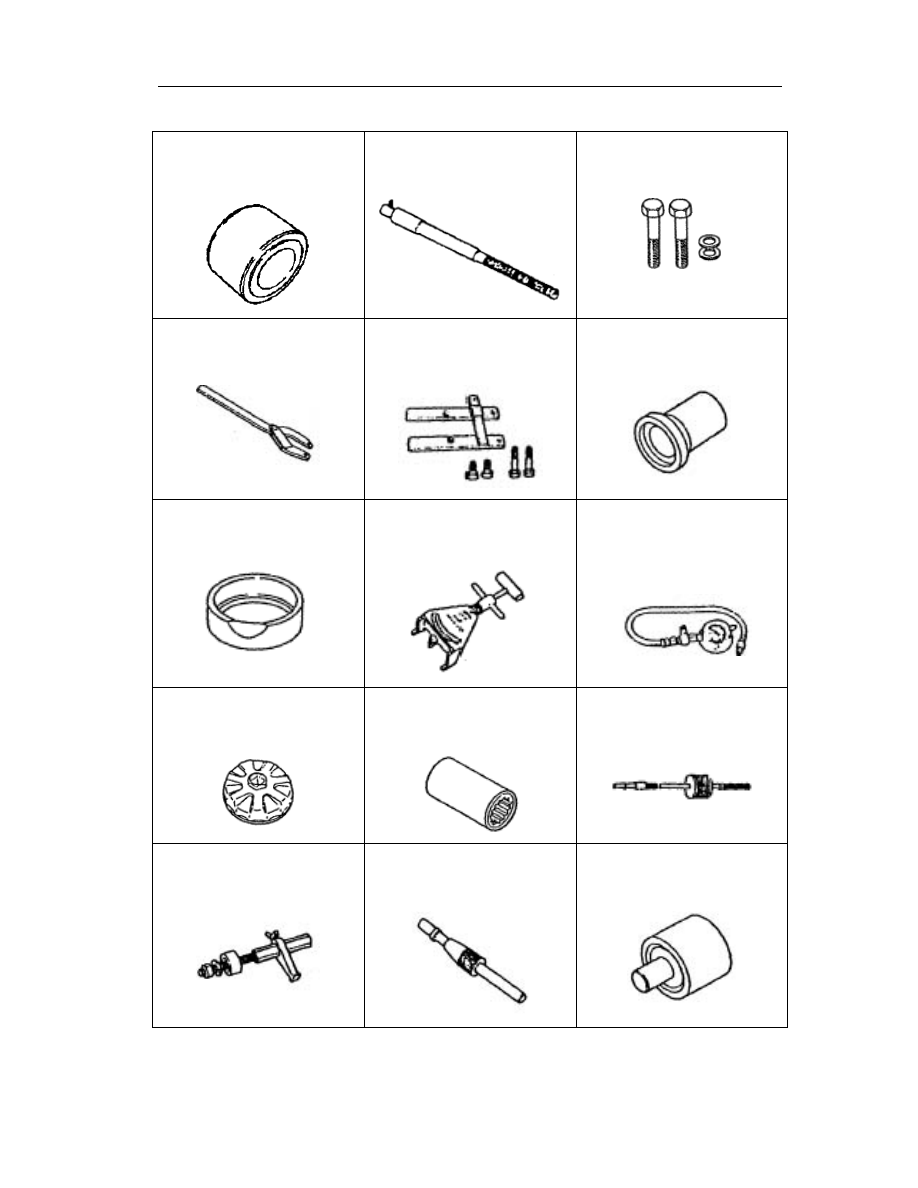

Special tool

12

Special tools

49 B010 001

Seal installer



49 E011 002

Screw



49 G011 103

Bolt component



49 S12 710

Studded connection fixture



49 E011 1A1

Fixture component



49 H010 401

Seal installer



49 G033 107A

Dust cover installer



49 9200 020A

Belt pressure gauge



49 0187 280A

Oil pressure gauge





49 G014 001

Oil filter sleeve



49 D015 001

Extension sleeve



49 1285 071

Needle bearing puller



49 E011 1A0

Gear rim assembly fixtures



49 SE01 310A

Clutch disc positioning tool



49 F028 202

Sleeve mounting unit





Use of Engine Service Platform

13

Inspection and maintenance on CBU

Check of compression pressure

Warning

l  The oil temperature is very hot when the engine remains in warm-up state.

In case of disassembly and assembly, be cautious of scald.

1.  Warn up the engine to the normal operating temperature;

2.  Flame out and let the engine cool down for 10mins;

3.  Remove the fuel pump relay (See the appropriate CBU Service Manual);

4.  Remove the spark plug of cylinder 1(See the Ignition and Control Systems);

5.  Disconnect  the  harness  joint  of  ignition  coil  (See  the  appropriate  CBU  Service

Manual);

6.  Connect a pressure gauge in the spark plug hole of cylinder 1;

7.  Step to the end the throttle pedal and start the engine;

8.  Record the max.reading of barometer;

9.  Check each cylinder pressure as per the above-said method.

l  If the pressure of one or more cylinders are too low, or the pressure

difference between the cylinders too much exceeded the specified range,
drop some dots of engine oil inside and recheck the pressure;

—  If the pressure increased, the piston, piston ring and cylinder wall may be worn and

the overhaul is necessary;

—  If the pressure of adjacent cylinder is too low, it means that the cylinder pad may have

been damaged or the cylinder head deformed, the overhaul is necessary;

—  If the compression pressure is still low, it indicates that the valve may be clamped or

the seal surface is not in tight contact and the overhaul is necessary;

—  Compression pressure

kPa {kgf/cm

2

, psi}[rpm]

Items

Compression pressure

Standard value

1370{14.0, 199}[300]

Minimum limit

1080{11.0, 156}[300]

Maximum limit of pressure difference

among cylinders

200kPa {2.0kgf/cm

2

, 28psi}

10.  Take out the pressure gauge.

11.  Connect the ignition coil harness.

12.  Fit the fuel pump relay.

13.  Fit the spark plug.



Tightening torque: 22~25N

·m{2.3~2.6kgf·m, 16~18ft·lbf}.



Use of Engine Service Platform

14



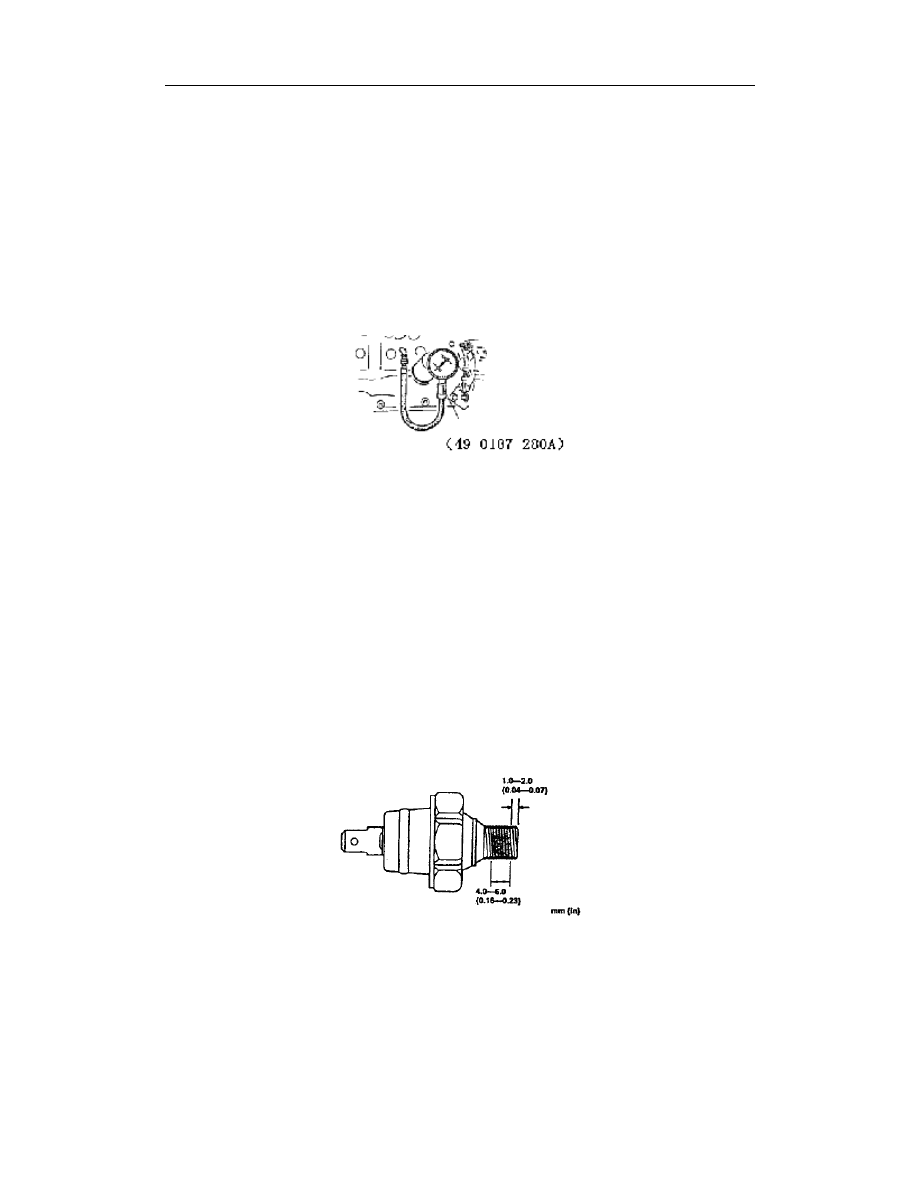

Check of oil pressure

Warning

l  As waste oil is carcinogenic, wash your skin with soap and clean water

after the work.



The oil temperature of warm-up engine is very hot and easily scalding,
operate after the engine shut down and cooled down.

1.  Remove the oil pressure switch.

2.  Fit the special tools on the mounting hole of oil pressure switch.



3.  Warn up the engine to the normal operating temperature.

4.  Bring the engine up to the specified speed and pay attention to the reading of oil

gauge.

l  If the pressure gauge is not within the specified range, check the reason

and repair and replace as needed.

Attention

l  The oil of different viscosity and temperature may varies in pressure.



Oil pressure: 446~588kPa{4.6~6.1kgf/cm

2

, 64~841psi}[2500rpm]

5.  Flame out the engine and let it cool down.

6.  Remove the special tool.

7.  As shown in the following Fig., evenly smear the sealant on the threads of oil

pressure switch.



8.  Fit the oil pressure switch with the tightening torque: 12~14.7N

·m{1.2~1.5kgf·m,

9~10.7ft

·lbf}.

9.    Start the engine and check whether there is any oil leakage.





Oil pressure gauge

The bolt needs to smear the

sealant when in reuse
