Particulate Matter Pollution
Information

PM2.5 is particulate patter pollution smaller
than 2.5 microns in size in the air.

PM2.5 particles can include cigarette smoke,
road level pollution, industrial pollution, and
some allergens.

The numbers provided by the cabin PM2.5
sensor are estimates of the concentrations
of particles in the cabin air. The
measurement unit is μg/m3, representing
mass (micrograms of particulates) per unit of
air volume (cubic meter of air).

The colors around the PM2.5 numbers
provide visual cues about the concentration
levels.

Note:

PM2.5 is only one pollution type

contributing to an Air Quality Index and by
itself does not represent the Air Quality
Index.

AUTO AIR REFRESH INDICATORS

(IF EQUIPPED)

The indicator area is on the touchscreen
feature bar and displays one of the following:

E324585

Indicates blower motor is on for
filtering and PM2.5 is low.

E283817

Indicates the blower motor is on
for filtering.

E324586

Indicates the blower motor is off.

E324587

Indicates the status is not available.

REFRESHING THE INTERIOR AIR

MANUALLY REFRESHING THE
INTERIOR AIR

 (If Equipped)

1.

Press

MENU

 on the climate control unit.

2. Press

Cabin Refresh

 on the touchscreen.

Note:

Climate control settings could change

for about 90 seconds to help flow outside
air into the cabin. You can change the
blower motor speed to the settings you
prefer.

AUTOMATICALLY REFRESHING THE
INTERIOR AIR

 (If Equipped)

If the cabin air recirculates continuously for
longer than 35 minutes, climate control
settings could change automatically for about
90 seconds to help flow outside air into the
cabin.

Refreshing the Interior Air Upon Start

If the cabin is above a certain high
temperature while parked for over 30
minutes, when you start the engine the
climate control system settings could change
for approximately 60 seconds to help flow
outside air into the cabin.

Note:

The system is not designed to cool the

interior air temperature.

174

Interior Air Quality

AUTO AIR REFRESH HINTS

 (IF

EQUIPPED)

To further improve the quality of air in the
cabin:

•

Adjust the windows and other cabin
openings such as the moonroof.

•

Switch recirculated air on or off.

•

Manually refresh the interior air.

•

Adjust the blower motor speed.

•

Replace the cabin air filter at regular
intervals.

INTERIOR AIR QUALITY –
TROUBLESHOOTING

INTERIOR AIR QUALITY –
INFORMATION MESSAGES

 (If Equipped)

Note:

 Depending on your vehicle options,

not all messages display or are available.
Certain messages may be abbreviated or
shortened depending upon which cluster
type you have.

Action

Message

Allow time for the cabin PM2.5 sensor to cool down, warm up, or dry

out.

Environmental Limit

Allow a few seconds for the cabin PM2.5 sensor to start up.

Initializing

175

Interior Air Quality

SITTING IN THE CORRECT
POSITION

WARNING:

Sitting improperly, out of

position or with the seatback reclined too
far can take weight off the seat cushion
and affect the decision of the passenger
sensing system, resulting in serious injury
or death in the event of a crash. Always sit
upright against your seat back, with your
feet on the floor.

WARNING:

Do not recline the seat

backrest too far as this can cause the
occupant to slide under the seatbelt,
resulting in personal injury in the event of
a crash.

WARNING:

Do not place objects

higher than the top of the seat backrest.
Failure to follow this instruction could result
in personal injury or death in the event of
a sudden stop or crash.

E68595

When you use them properly, the seat, head
restraint, seatbelt and airbags will provide
optimum protection in the event of a crash.

We recommend that you follow these
guidelines:

•

Sit in an upright position with the base of
your spine as far back as possible.

•

Do not recline the seat backrest so that
your torso is more than 30 degrees from
the upright position.

•

Adjust the head restraint so that the top
of it is level with the top of your head and
as far forward as possible. Make sure that
you remain comfortable.

•

Keep sufficient distance between
yourself and the steering wheel. We
recommend a minimum of 10 in (25 cm)
between your breastbone and the airbag
cover.

•

Hold the steering wheel with your arms
slightly bent.

•

Bend your legs slightly so that you can
press the pedals fully.

•

Position the shoulder strap of the seatbelt
over the center of your shoulder and
position the lap strap tightly across your
hips.

Make sure that your driving position is
comfortable and that you can maintain full
control of your vehicle.

176

Seats

HEAD RESTRAINTS

WARNING:

Fully adjust the head

restraint before you sit in or operate your
vehicle. This will help minimize the risk of
neck injury in the event of a crash. Do not
adjust the head restraint when your vehicle
is moving.

WARNING:

The head restraint is a

safety device. Whenever possible it should
be installed and properly adjusted when
the seat is occupied. Failure to adjust the
head restraint properly could reduce its
effectiveness during certain impacts.

Note:

Adjust the seat backrest to an upright

driving position before adjusting the head
restraint. Adjust the head restraint so that
the top of it is level with the top of your head
and as far forward as possible. Make sure
that you remain comfortable. If you are
extremely tall, adjust the head restraint to
its highest position.

Adjusting the Head Restraints

Front Seat Head Restraints

The head restraints consist of:

An energy absorbing head
restraint.

A

Two steel stems.

B

Guide sleeve adjust and release
button.

C

Guide sleeve unlock and remove
button.

D

Raising the Head Restraint

Pull the head restraint up.

Lowering the Head Restraint

1.

Press and hold the C button.

2. Push the head restraint down.

Removing the Head Restraint

1.

Pull the head restraint up until it reaches
its highest position.

2. Press and hold the C and D buttons.

3. Pull the head restraint up.

Installing the Head Restraint

Align the steel stems into the guide sleeves
and push the head restraint down until it
locks.

Tilting Head Restraints

The front head restraints tilt for extra comfort.
To tilt the head restraint, do the following:

177

Seats

E144727

1.

Adjust the seat backrest to an upright
driving or riding position.

2. Pivot the head restraint forward toward

your head to the position you prefer.

After the head restraint reaches the
forward-most tilt position, pivot it forward
again to release it to the rearward, un-tilted
position.

Second Row Center Seat Head Restraint
(If Equipped)

E286400

The head restraints consist of:

An energy absorbing head
restraint.

A

Two steel stems.

B

Guide sleeve adjust and release
buttons.

C

Raising the Head Restraint

Pull the head restraint up.

Lowering the Head Restraint

1.

Press and hold the C buttons.

2. Push the head restraint down.

Second Row Outermost Seat Head
Restraints

E3333

3

2

2

253

E33

33

3

2

2

2

2

253

2

2

2

2

2

2

2

2

2

2

2

2

253

2

2

2

253

2

253

3

2

253

2

3

253

3

2

253

3

3

2

253

53

The head restraints consist of:

An energy absorbing head
restraint.

A

Two steel stems.

B

Guide sleeve unlock and remove
button.

C

178

Seats

Removing the Head Restraint

1.

Press and hold the C buttons.

2. Pull the head restraint up.

Installing the Head Restraint

Align the steel stems into the guide sleeves
and push the head restraint down until it
locks.

Third Row Seat Head Restraints

E286397

The head restraints consist of:

An energy absorbing head
restraint.

A

Two steel stems.

B

Fold strap.

C

Folding the Head Restraint

Pull the fold strap (C). Pull the head restraint
back up to reset.

Power Front Head Restraints (If equipped)

E222280

To raise the head restraint, lift the switch up
until you reach a comfortable height.

To lower the head restraint, press the switch
down.

To move the head restraint forward, push
the switch forward until you reach the
desired position.

To move the head restraint rearward, push
the switch rearward.

POWER SEATS

WARNING:

Do not adjust the driver

seat or seat backrest when your vehicle is
moving. This may result in sudden seat
movement, causing the loss of control of
your vehicle.

WARNING:

Do not place cargo or

any objects behind the seatback before
returning it to the original position.

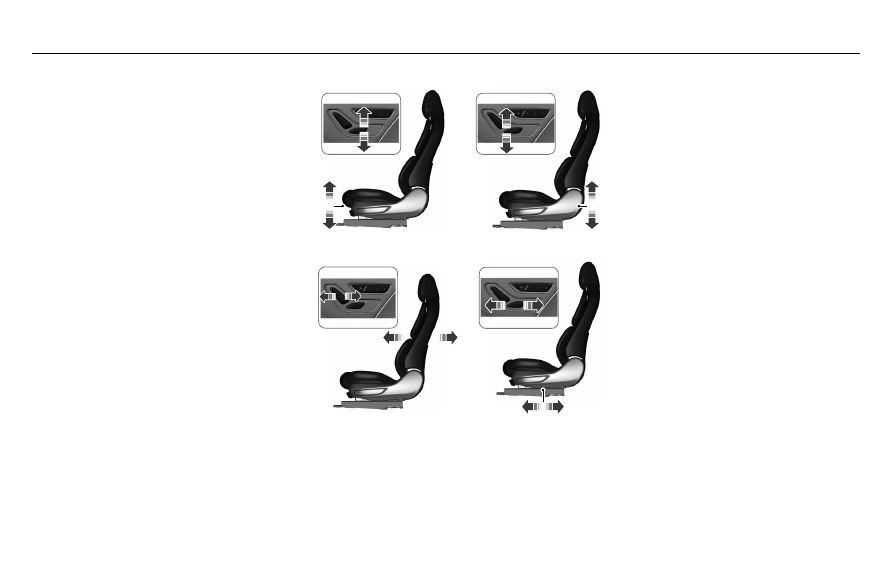

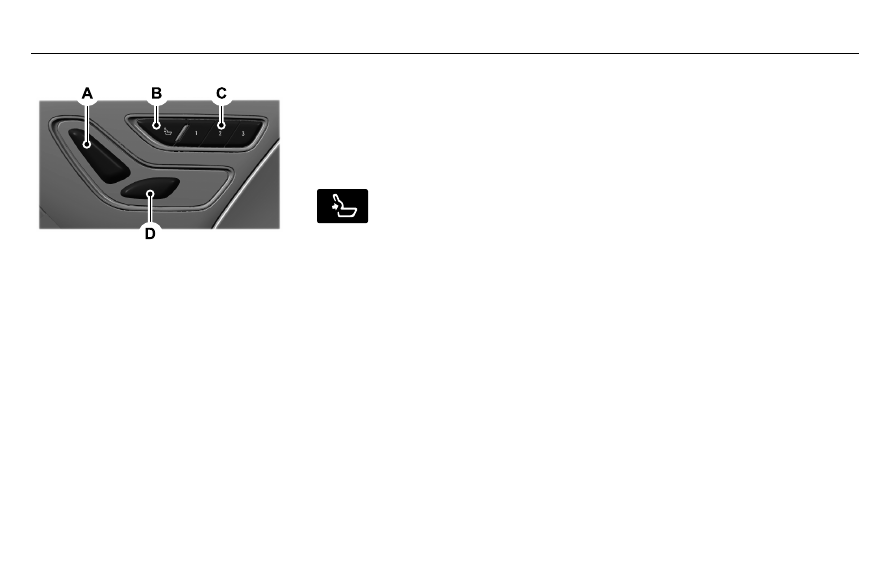

10-Way and 12-Way Seat Controls

The power seat controls are on the door.

179

Seats

E285258

Recline.

A

Lumbar control.

B

Memory function.

C

Seat adjust (forward, backward,
height and tilt).

D

E285278

Press this button to access the
lumbar menu on the touchscreen.

180

Seats

E285488

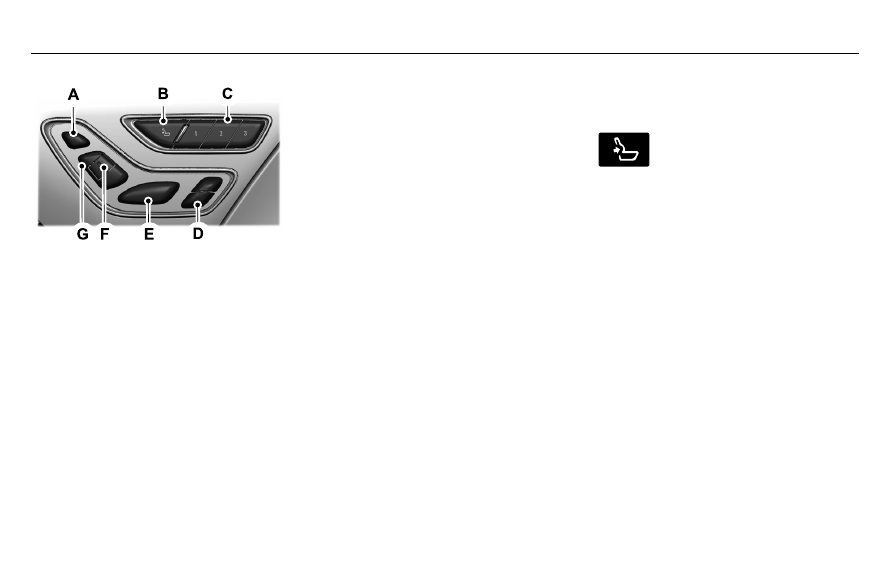

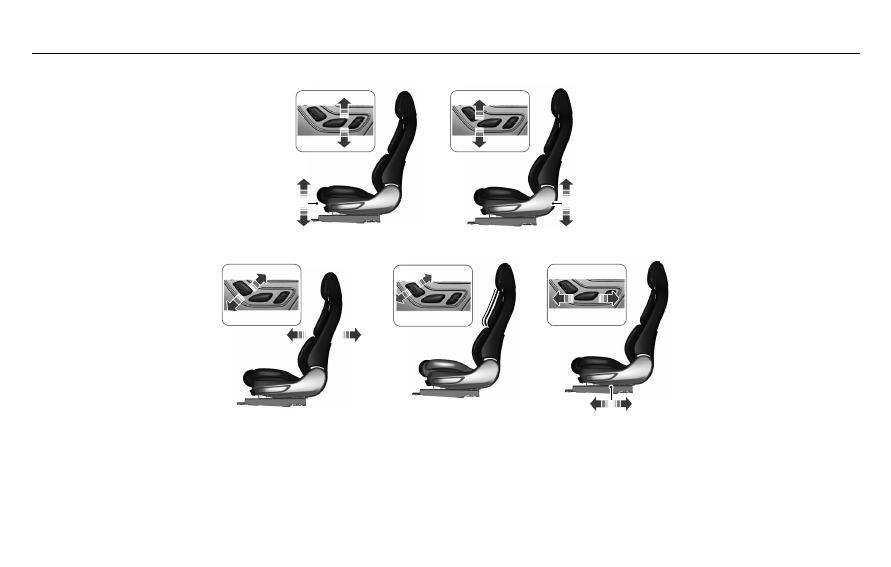

30-Way Seat Controls

The power seat controls are on the door.

181

Seats

E282855

Head restraint.

A

Lumbar support.

B

Memory function.

C

Independent leg and thigh seat
extensions.

D

Seat adjust (forward, backward,
height and tilt).

E

Upper seat backrest.

F

Recline.

G

E285278

Press this button to access the
lumbar menu on the touchscreen.

182

Seats

E254489

183

Seats

Adjusting the Length of the Seat Cushion

E285685

Adjusting the Multi-Contour Front
Seats With Active Motion

 (If Equipped)

Note:

The engine must be running or the

vehicle must be in accessory mode to
activate the seats.

Note:

Allow a few seconds for any selection

to activate. The seat backrest and cushion
massage cannot function at the same time.

You can adjust this feature through the
touchscreen.  See

SYNC™ 3

 (page 507).

MEMORY FUNCTION

WARNING:

Before activating the

memory seat, make sure that the area
immediately surrounding the seat is clear
of obstructions and that all occupants are
clear of moving parts.

WARNING:

Do not use the memory

function when your vehicle is moving.

This feature recalls the position of the
following:

•

Driver seat.

•

Power mirrors.

•

Optional power steering column.

The memory control is on the driver door.

E283882

Saving a Preset Position

1.

Switch the ignition on.

2. Adjust the memory features to the

positions you prefer.

3. Press and hold the preferred preset

button until you hear a single tone.

You can save up to three preset memory
positions. You can save a memory preset at
any time.

184

Seats

Recalling a Preset Position

Press and release the preset button
associated with your preferred driving
position. The memory features move to the
position stored for that preset.

Note:

You can only recall a preset memory

position when the ignition is off, or when the
transmission is in park (P) or neutral (N) and
the vehicle is not moving if the ignition is on.

You can also recall a preset memory position
by:

•

Pressing the unlock button on your
remote control if it is linked to a preset
position.

•

Unlocking the intelligent driver door
handle if a linked remote control is
present.

•

Recalling a personal profile in your SYNC
3 menu.

Note:

Using a linked remote control to recall

your memory position when the ignition is
off moves the seat to the easy entry position.

Note:

Pressing any active memory feature

adjustment control, or any memory button
during a memory recall, cancels the
operation.

Easy Entry and Exit Feature

If you enable the easy entry and exit feature,
it moves the driver seat position rearward up
to 2 in (5 cm) when you switch the ignition
off.

The driver seat returns to the previous
position when you switch the ignition on.

You can enable or disable this feature
through the touchscreen.  See

Settings

(page 555).

Personal Profiles

This feature allows you to create multiple
personal profiles enabling users to
personalize vehicle’s settings. You can
create one profile for each preset memory
seat button along with a guest profile. You
can recall a profile using SYNC 3 or the
preset button you selected when you created
your profile. You can also link a remote
control and a mobile device to your profile,
which are used to recall it.

Creating a Personal Profile

Use the SYNC display to create a personal
profile.

1.

Switch the ignition on and leave the
vehicle in park (P).

2. Select the Personal Profiles button under

Settings.

3. Follow the instructions on the display.

185

Seats

Linking a Personal Profile to Your Remote
Control or Mobile Device

You can save preset memory positions for
up to three remote controls, by assigning a
remote control to a personal profile in your
SYNC 3. You can assign three additional
remote controls set up as Phone as a Key.
See

Keys and Remote Controls

 (page 68).

Use the SYNC display to link a remote
control, mobile device or both to a personal
profile.

1.

Switch the ignition on and leave the
vehicle in park (P).

2. Select the Personal Profiles button under

Settings.

3. Touch the arrow for the profile you wish

to link to a remote control or mobile
device.

4. Select the correct button to link a remote

control, mobile device, or both.

5. Follow the instructions on the display.

Note:

To successfully link a mobile device,

the mobile device must be present in your
vehicle, and must have previously been
setup as a remote control for your vehicle.

Note:

If more than one linked remote control

is in range, the memory function moves to
the settings of the first key to initiate a
memory recall.

Note:

The guest profile consists of existing

settings when there is no driver profile
created. After you create a driver profile, the
guest profile serves as an additional driver
profile.

Note:

You cannot link a personalized name,

a memory seat button or a remote control
to a guest profile.

Personal Settings

Personal Profiles allow you to personalize
positional settings such as seats and mirrors,
as well as non-positional settings such as
radio, navigation, driver assist and system
settings.  See

SYNC™ 3

 (page 507).  You

cannot change the menu locations and
settings of those personalized features with
Personal Profiles.

Note:

Non-positional settings are saved to

the active driver profile whenever you
change a setting.

Note:

You can save positional settings if you

press and hold a memory seat button.

Recalling and Changing a Profile

You can recall a profile by:

•

Using a remote control or mobile device
that has been linked to a driver profile to
access the remote start feature, press an
unlock button or open the door with the
exterior door handle.

•

Pressing a memory seat button that has
been linked to a driver profile.

•

Using the Personal Profiles menu on the
SYNC touchscreen.

Note:

The recalled profile replaces the

previously active profile. If the active profile
is not your preferred profile, you can change
it using any of the three methods listed.

186

Seats

When you switch on the Personal Profiles
feature:

•

Unlocking a door with a remote control
or mobile device that is not linked to a
driver profile does not change the active
profile, but remains the last known
profile. It will not change the positional
settings.

•

Pressing a memory seat button that is
not linked to a driver profile or has not
been saved to a preset setting does not
change active profile, but remains in the
last known profile. It will not change the
positional settings.

•

Pressing a memory seat button that is
not linked to a driver profile but has been
saved to a preset setting does not recall
any non-positional settings, but recalls
the positional settings that you saved to
that memory seat button.

See

SYNC™ 3 Troubleshooting

 (page 557).

When you switch off a Personal Profiles
feature:

•

Unlocking a door with a remote control
or mobile device does not recall any
non-positional settings, but still recalls
positional settings from the driver profile
which the remote control or mobile
device had been linked to.

•

Pressing a memory seat button that has
not been linked to a driver profile or has
not been saved to a preset setting does
not recall any settings, positional or
non-positional.

•

Pressing a memory seat button that has
been linked to a driver profile or has
saved to a preset setting does not recall
any non-positional settings, but recalls
the positional settings that you saved to
that memory seat button.

REAR SEATS

WARNING:

Always drive and ride

with your seatback upright and the lap belt
snug and low across the hips.

WARNING:

Do not recline the seat

backrest too far as this can cause the
occupant to slide under the seatbelt,
resulting in personal injury in the event of
a crash.

Adjusting the Second Row Outermost
Seats Backrest

E281809

187

Seats

Lift the handle and adjust the seat backrest
rearward or forward.

Folding the Second Row Outermost
Seats Flat

E281813

Lift the handle and fold the seat backrest
forward until it is flat.

Adjusting the Second Row Seats for
Easy Entry

WARNING:

Do not drive your vehicle

with a seat that is unlatched or in the
folded position. Failure to follow this
instruction could result in personal injury
or death in the event of a sudden stop or
crash.

WARNING:

Do not place cargo or

any objects behind the seat backrest
before returning it to the original position.
Pull on the seat backrest to make sure that
it has fully latched after returning the seat
backrest to its original position. An
unlatched seat may become dangerous if
you stop suddenly or have a crash.

WARNING:

Do not adjust a seat or

release a seat floor latch when the vehicle
is moving. Failure to follow this instruction
could result in personal injury or death in
a sudden stop or crash.

Note:

You may have to move the front row

seat forward to allow the second row seat
to be fully folded.

Note:

 You can move the second row

outermost seats forward to allow access to
the third row seats.

This feature allows for easier entry and exit
to and from the third row seat.

Folding the Second Row Center Seat

E281821

Pull the strap to fold the seat backrest flat.

To return the seat to the upright position,
rotate the seat backrest until it locks.

188

Seats

To recline the seat backrest, pull the strap
and adjust the seat backrest rearward or
forward.

Adjusting the Second Row Outermost Seats

E286395

Lift the handle to move the seat forward or
rearward.

Adjusting the Second Row Seats with
Power Easy Entry

WARNING:

Do not fold a seat if it is

occupied. Failure to follow this instruction
could result in personal injury.

The easy entry seat allows for easier entry
and exit to and from the third row seat.

E281819

Press the button on top of the second row
seat backrest to move the seat forward. This
provides access to the third row.

E281818

1.

Push the seat forward.

2. To return the seat to the seating position,

push the seat backrest rearward until it
latches.

189

Seats
