Adjusting the Third Row Power Seats

WARNING:

Do not fold a seat if it is

occupied. Failure to follow this instruction
could result in personal injury.

WARNING:

Do not place cargo or

any objects behind the seatback before
returning it to the original position.

WARNING:

Do not drive your vehicle

with a seat that is unlatched or in the
folded position. Failure to follow this
instruction could result in personal injury
or death in the event of a sudden stop or
crash.

Note:

The power rear seat functions disable

10 minutes after you switch the ignition off.
The transmission must be in park (P) and the
liftgate must be open to operate the seats.

The control buttons are inside the liftgate
area.

E251776

Press to fold the left-hand third row
seat.

A

Press to fold and unfold both third
row seats.

B

Press to fold the right-hand third
row seat.

C

To return the third-row seat backrest to the
original position, press the corresponding
control again.

If the seats are inoperable, do the following:

1.

Make sure that the engine is running and
the tailgate is open.

2. Make sure that there are no objects on

the seats that would prevent them from
folding completely.

3. Press and hold button B for one minute

until both seats completely fold and
unfold.

4. Press button A and button C to confirm

each seat is operational.

Note:

During this procedure, the seat may

appear to be fully unfolded. Continue holding
the switch for a few seconds.

If the power rear seat disables after 10
minutes, you can enable the seat by:

•

Opening any door.

•

Pressing the unlock button on the key
fob.

190

Seats

•

Pressing any keyless entry keypad
button.

•

Switching the ignition on.

HEATED SEATS

WARNING:

Use caution when using

the heated seat if you are unable to feel
pain to your skin because of advanced
age, chronic illness, diabetes, spinal cord
injury, medication, alcohol use, exhaustion
or other physical conditions. The heated
seat could cause burns even at low
temperatures, especially if used for long
periods of time. Failure to follow this
instruction could result in personal injury.

WARNING:

Do not poke sharp

objects into the seat cushion or seat
backrest. This could damage the heated
seat element and cause it to overheat.
Failure to follow this instruction could result
in personal injury.

WARNING:

Do not place anything on

the seat that blocks the heat, for example
a seat cover or a cushion. This could cause
the seat to overheat. Failure to follow this
instruction could result in personal injury.

Front Seats

Do not do the following:

•

Place heavy objects on the seat.

•

Operate the heated seat if water or any
other liquid spills on the seat. Allow the
seat to dry thoroughly.

Note:

The engine must be running to use

this feature.

E146322

Press the heated seat symbol to cycle
through the various heat settings and off.
More indicator lights indicate warmer
settings.

Note:

The heated seats switch on during a

remote start if they are enabled.

Note:

The heated seats may switch on when

you start your vehicle if they were on when
you previously switched your vehicle off.

Automatic Climate Controlled Seats

 (If

Equipped)

When you switch on the auto setting, the
seats switch between the heated seats and
ventilated seats to match your climate control
setting.

Second Row Heated Seats

The heated seat controls are on the rear of
the center console.

191

Seats

VENTILATED SEATS

 (IF EQUIPPED)

Do not do the following:

•

Spill liquid on the front seats. This may
cause the air vent holes to become
blocked and not work properly.

•

Place cargo or objects under the seats.
They may block the air intake causing
the air vents to not work properly.

The engine must be running to use this
feature.

E224689

Press this symbol to cycle through the
various ventilation settings and off. More
indicator lights indicate higher fan speeds.

Note:

The ventilated seats switch on during

a remote start if they are enabled.

Note:

The ventilated seats may switch on

when you start your vehicle if they were on
when you previously switched your vehicle
off.

If the engine falls below 350 RPM when the
ventilated seats are on, the system turns off.
You need to switch it back on.

Note:

To improve comfort, use the ventilated

seats along with the vehicle’s air
conditioning system.

Automatic Climate Controlled Seats

 (If

Equipped)

When you switch on the auto setting, the
seats switch between the heated seats and
ventilated seats to match your climate control
setting.

192

Seats

WHAT IS THE REAR OCCUPANT
ALERT SYSTEM

The rear occupant alert system monitors
vehicle conditions and notifies you to check
for rear seat occupants when you switch the
ignition off.

HOW DOES THE REAR OCCUPANT
ALERT SYSTEM WORK

The system monitors when rear doors have
been opened and closed to indicate the
potential presence of an occupant in the rear
seat.

A message displays in the information and
entertainment display screen and an audible
warning sounds when you switch the ignition
off after any of the following conditions have
been met:

•

A rear door is opened or closed while
the ignition is on.

•

You switch the ignition on within 15
minutes of a rear door opening and
closing.

•

You switch the ignition on within 15
minutes of the alert having displayed or
sounded.

REAR OCCUPANT ALERT SYSTEM
PRECAUTIONS

WARNING:

On hot days, the

temperature inside the vehicle can rise
very quickly. Exposure of people or animals
to these high temperatures for even a short
time can cause death or serious heat
related injuries, including brain damage.
Small children are particularly at risk.

WARNING:

Do not leave children or

pets unattended in your vehicle. Failure to
follow this instruction could result in
personal injury or death.

REAR OCCUPANT ALERT SYSTEM
LIMITATIONS

The system does not detect the presence of
objects or passengers in the rear seat. It
monitors when rear doors are opened and
closed.

Note:

It is possible to receive an alert when

there is no rear seat occupant, but alert
conditions are met.

Note:

It is possible to receive no alert when

there is an occupant in the rear seat, if alert
conditions are not met. For example, if a rear
seat occupant does not enter the vehicle
through a rear door.

Note:

The audible warning does not sound

when the front door is opened before you
switch the ignition off.

193

Rear Occupant Alert System

SWITCHING REAR OCCUPANT
ALERT SYSTEM ON AND OFF

1.

Press

Settings

 on the touchscreen.

2. Press

Vehicle

.

3. Switch

Rear Occupant Alert

 on or off.

Note:

The default setting is on.

Note:

Performing a master reset causes the

system to switch on again.

Semiannual Reminder

 (If Equipped)

When you switch the system off, a message
appears every six months as a reminder that
the system is off. You can switch the system
back on or leave it off.

REAR OCCUPANT ALERT SYSTEM
INDICATORS

E350472

E350472

Message

Check rear seats for occupants.

Displays when you switch your vehicle off
after the alert conditions are met.

The message displays for a short period of
time.  Press

Close

 to acknowledge and

remove the message.

Note:

Depending on your SYNC version, the

graphic may look different from what you
see here.

REAR OCCUPANT ALERT SYSTEM
AUDIBLE WARNINGS

Sounds when you switch your vehicle off
after the alert conditions are met.

The warning sounds for a short period of
time.

194

Rear Occupant Alert System

GARAGE DOOR OPENER
INTRODUCTION

HomeLink Wireless Control System

The universal garage door opener replaces
the common handheld garage door opener
with a three-button transmitter integrated
into the driver-side sun visor.

E18821

E1882111

How Does The Garage Door Opener
Work

The system includes two primary features, a
garage door opener and a platform for
remote activation of devices within the home.
You can program garage doors as well as
entry gate operators, security systems, entry
door locks and home or office lighting.

Additional assistance can be found online at

www.homelink.com/Ford

 or by calling the

toll-free help line at 1-800-355-3515.

Garage Door Opener Limitations

Canadian radio-frequency laws require
transmitter signals to time out, or quit, after
several seconds – which may not be long
enough for HomeLink to pick up the signal.
U.S. gate operators time-out in the same
manner.

GARAGE DOOR OPENER
PRECAUTIONS AND
FREQUENCIES

Garage Door Opener Precautions

WARNING:

Do not use the system

with any garage door opener that does not
have the safety stop and reverse feature
as required by U.S. Federal Safety
Standards (this includes any garage door
opener manufactured before April 1, 1982).
A garage door opener which cannot detect
an object, signaling the door to stop and
reverse, does not meet current federal
safety standards. Using a garage door
opener without these features increases
the risk of serious injury or death.

195

Garage Door Opener

FCC and RSS-210 Industry Canada
Compliance

WARNING:

Changes or modifications

not expressively approved by the party
responsible for compliance could void the
user's authority to operate the equipment.
The term "IC:" before the radio certification
number only signifies that Industry Canada
technical specifications were met.

This device complies with Part 15 of the FCC
Rules and with RSS-210 of Industry Canada.
Operation is subject to the following two
conditions: (1) this device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired
operation.

This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment. End Users must follow the
specific operating instructions for satisfying
RF exposure compliance. This transmitter
must be at least 8 in (20 cm) from the user
and must not be co-located or operating in
conjunction with any other antenna or
transmitter.

PROGRAMMING THE GARAGE
DOOR OPENER

To clear all stored codes in the garage door
opener in your vehicle, use the

clear

function. To override one button, use the

reprogram

 function.

Note:

Make sure that the garage door and

security device are free from obstruction
when you are programming. Do not program
the system with the vehicle in the garage.

Clearing the Garage Door Opener

E188213

E188213

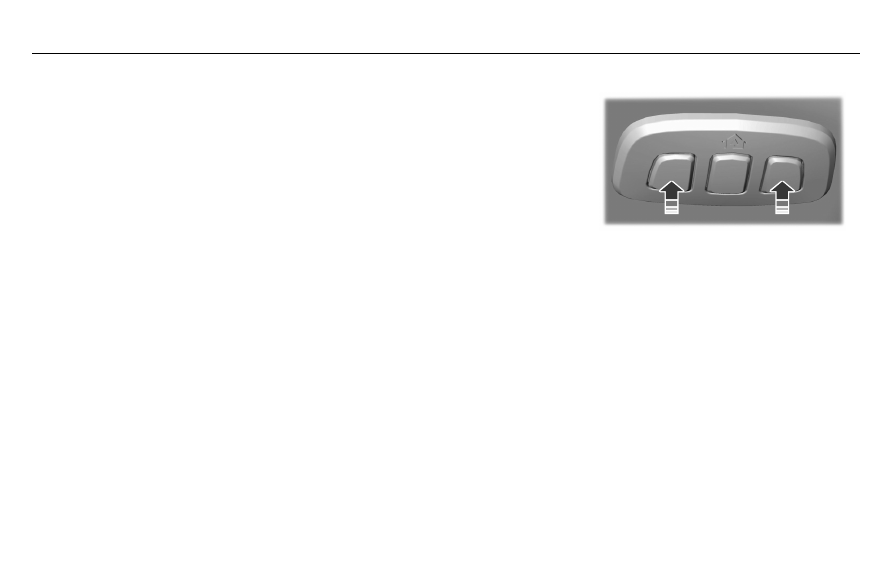

To clear all stored codes in the garage door
opener in the vehicle:

1.

Press and hold the outer two function
buttons simultaneously for approximately
10 seconds until the indicator above the
buttons flashes rapidly.

2. When the indicator flashes, release the

buttons.

Note:

This clears all stored codes. You

cannot erase individual buttons.

196

Garage Door Opener

Note:

You can program a maximum of three

devices. To change or replace any of the
three devices after they have been initially
programmed, you must either clear all codes,
or reprogram each individual button.

Note:

We recommend that upon the sale or

lease termination of your vehicle, you erase
the programmed function buttons for security
reasons.

Reprogramming the Garage Door
Opener

If a button on your garage door opener has
already been programmed, you can override
it. To program a device to a previously
trained button:

1.

Press and hold the desired button for
approximately 20 seconds until the
indicator begins to flash.

2. Without releasing the button, proceed to

Step 3 of

Programming the Garage Door

Opener to your Handheld Transmitter

.

Programming the Garage Door Opener
to your Handheld Transmitter

Note:

The programming steps below assume

you are programming a HomeLink that was
not previously programmed. If your
HomeLink was previously programmed, you
may need to

clear

 or

reprogram

 your

HomeLink buttons.

Note:

Put a new battery in the handheld

transmitter. This allows for quicker training
and accurate transmission of the
radio-frequency signal.

Note:

Make sure that the garage door and

security device are free from obstruction
when you are programming. Do not program
the system with the vehicle in the garage.

E188213

E188213

To program your in-vehicle HomeLink
function button with your handheld
transmitter:

1.

With your vehicle parked outside of the
garage, switch your vehicle on, but do
not start your vehicle.

2. Press and release one of the three

HomeLink function buttons that you
would like to program.

Note:

The indicator should begin to flash. If

the indicator does not flash, press and hold
the function button for 20 seconds until the
indicator begins to flash.

197

Garage Door Opener

3. Hold your handheld garage door

transmitter 1–3 in (2–8 cm) away from the
HomeLink button you want to program.

4. Press and hold the handheld transmitter

button you want to program while
watching the indicator on HomeLink.
Continue to hold the handheld button
until the HomeLink indicator flashes
rapidly or is continuously on.

Note:

You may need to use a different

method if you live in Canada or have
difficulties programming your gate operator
or garage door opener.

5. Press and hold the HomeLink button you

programmed for two seconds, then
release. You may need to do this twice
to activate the door.

Note:

If the indicator stays on, the

programming is complete.

Note:

If the HomeLink indicator flashes

rapidly, repeat Step 5.

Note:

If your device still does not operate,

you must program your garage door.

6. To program additional buttons, repeat

Steps 1–4.

Note:

Make sure you keep the original

remote control transmitter for use in other
vehicles as well as for future system
programming.

Programming the Garage Door Opener
to your Garage Door Opener Motor

Note:

Make sure that the garage door and

security device are free from obstruction
when you are programming. Do not program
the system with the vehicle in the garage.

E142659

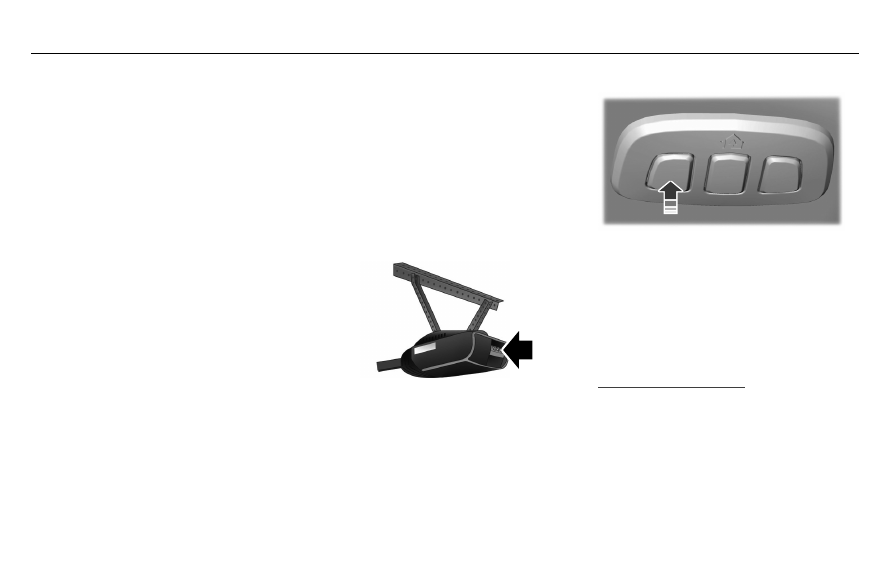

1.

Press the learn button on the garage
door opener motor and then you have
30 seconds to complete the next two
steps.

2. Return to your vehicle.

E188212

E188212

3. Press and hold one of the three

HomeLink function buttons you want to
program for two seconds, then release.

4. Repeat Step 3. Depending on your brand

of garage door opener, you may need to
repeat this sequence a third time.

Additional assistance can be found online at

www.homelink.com/Ford

 or by calling the

toll-free help line at 1-800-355-3515.

198

Garage Door Opener

Programming the Garage Door Opener
to your Gate Opener Motor

Gate Operator / Canadian Programming

Canadian radio-frequency laws require
transmitter signals to time-out (or quit) after
several seconds of transmission – which may
not be long enough for HomeLink to pick up
the signal during programming. Similar to
this Canadian law, some U.S. gate operators
are designed to time-out in the same manner.

Note:

If programming a garage door opener

or gate operator, it is advised that you
unplug the device during the

cycling

 process

to prevent possible overheating.

1.

Press and release your handheld
transmitter,

every two seconds

, until the

HomeLink indicator flashes rapidly or is
continuously on.

2. Release the handheld transmitter button.

3. Press and hold the HomeLink function

button you want to program for two
seconds, then release. You may need to
do this twice to activate the door.

Note:

If the indicator stays on, the

programming is complete.

Note:

If the HomeLink indicator flashes

rapidly, repeat Step 3.

4. To program additional buttons, repeat

Steps 1–4.

Additional assistance can be found online at

www.homelink.com/Ford

 or by calling the

toll-free help line at 1-800-355-3515.

199

Garage Door Opener

12 Volt DC Power Point

WARNING:

Do not plug optional

electrical accessories into the cigar lighter
socket. Incorrect use of the cigar lighter
can cause damage not covered by the
vehicle warranty, and can result in fire or
serious injury.

Note:

When you switch the ignition on, you

can use the socket to power 12 volt
appliances with a maximum current rating
of 15 amps.

Note:

If the power supply does not work after

you switch the ignition off, switch the ignition
on.

Note:

Do not hang any accessory from the

accessory plug.

Note:

Do not use the power point over the

vehicle capacity of 12 volt DC 180 watts or
a fuse may blow.

Note:

Always keep the power point caps

closed when not in use.

Do not insert objects other than an accessory
plug into the power point. This damages the
power point and may blow the fuse.

Run the vehicle for full capacity use of the
power point.

To prevent the battery from running out of
charge:

•

Do not use the power point longer than
necessary when the vehicle is not
running.

•

Do not leave devices plugged in
overnight or when you park your vehicle
for extended periods.

USB Port and Power Point Locations

USB Ports and Power Points may be in the
following locations:

•

On the lower instrument panel.

•

Inside the first row center console.

•

Inside the second row center console.

•

On the front of the center console.

•

On the rear of the center console.

•

In the cargo area.

•

On the passenger side floor panel.

•

3rd row on the quarter trim panels.

Note:

Some of the USB ports may not have

data transfer capabilities.

Note:

Incorrect use of the USB ports can

cause damage not covered by the vehicle
warranty.

110 Volt AC Power Point

WARNING:

Do not keep electrical

devices plugged in the power point
whenever the device is not in use. Do not
use any extension cord with the 110 volt
AC power point, since it will defeat the
safety protection design. Doing so may
cause the power point to overload due to
powering multiple devices that can reach
beyond the 150 watt load limit and could
result in fire or serious injury.

Note:

The power point turns off when you

switch off the ignition, when the vehicle is
not in accessory mode or when the battery
voltage drops below 11 volts.

200

Auxiliary Power Points

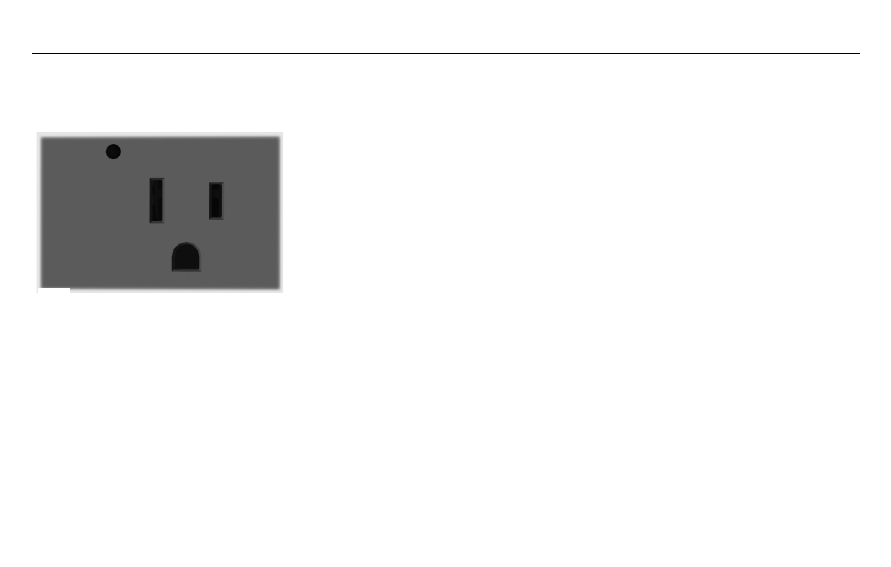

You can use the power point for electric
devices that require up to 150 watts. It is on
the rear of the center console.

E247586

When the indicator light on the power point
is:

•

On: The power point is working, the
ignition is ON or the vehicle is in
accessory mode.

•

Off: The power point is OFF, the ignition
is OFF or the vehicle is not in accessory
mode.

•

Flashing: The power point is in fault
mode.

Due to the different technologies used on
its construction, some devices may exceed
the capacity shown on its label when they
are initially plugged-in.

The power outlet temporarily turns off power
when in fault mode if the device exceeds the
150 watt limit. Unplug your device and switch
the ignition off. Switch the ignition back on,
but do not plug your device back in. Let the
system cool off and switch the ignition off to
reset the fault mode. Switch the ignition back
on and make sure the indicator light remains
on.

Do not use the power point for certain
electric devices, including:

•

Cathode-ray, tube-type televisions.

•

Motor loads, such as vacuum cleaners,
electric saws and other electric power
tools or compressor-driven refrigerators.

•

Measuring devices, which process
precise data, such as medical equipment
or measuring equipment.

•

Other appliances requiring an extremely
stable power supply such as
microcomputer-controlled electric
blankets or touch-sensor lamps.

201

Auxiliary Power Points

WHAT IS THE WIRELESS
ACCESSORY CHARGER

The wireless accessory charger allows you
to charge one compatible Qi wireless
charging device on the charging area.

WIRELESS ACCESSORY CHARGER
PRECAUTIONS

WARNING:

Wireless charging

devices can affect the operation of
implanted medical devices, including
cardiac pacemakers. If you have any
implanted medical devices, we recommend
that you consult with your physician.

Keep the charging area clean and remove
foreign objects prior to charging a device.

Do not place items with a magnetic strip or
radio-frequency identification chip, for
example passports, parking tickets,
transportation passes or credit cards, near
the charging area when charging a device.
Damage could occur to the magnetic strip
or radio-frequency identification chip.

Do not place metal objects, for example
remote controls, coins and candy wrappers,
on or near the charging area when charging
a device. Metal objects may heat up and
degrade the charging performance, in
addition to causing interruptions in charging.

Charging could be interrupted, degraded, or
could stop if any of the following occur:

•

The system detects a foreign object.

•

The device is misaligned on the charging
area.

•

The device moves on the active charging
area when the vehicle is in motion.

•

The vehicle ambient temperature is too
high.

•

You attempt to charge a non-Qi
compatible device on the wireless
charger.

Note:

During charging, the device and the

charger could heat up, this is normal. If the
battery gets hotter than usual, the device
may stop charging.

LOCATING THE WIRELESS
ACCESSORY CHARGER

E297549

The charging area is on the center
console or in the media bin below
the instrument panel.

CHARGING A WIRELESS DEVICE

Place the device on the center of the
charging surface with the charging side
down. The charging stops after your device
reaches a full charge.

You can use the charger when the vehicle
is in accessory mode, when the vehicle is
running, or when SYNC is on.

Displays on the status bar when
wireless charging is in progress.

202

Wireless Accessory Charger

 (If Equipped)

Note:

The charging performance may be

affected if your device is in a case. It may be
necessary to remove the case to wirelessly
charge your device.

Note:

Software and firmware updates may

affect device compatibility, including the use
of unofficial software or firmware. You should
verify charging functionality with your
specific devices in-vehicle.

203

Wireless Accessory Charger

 (If Equipped)

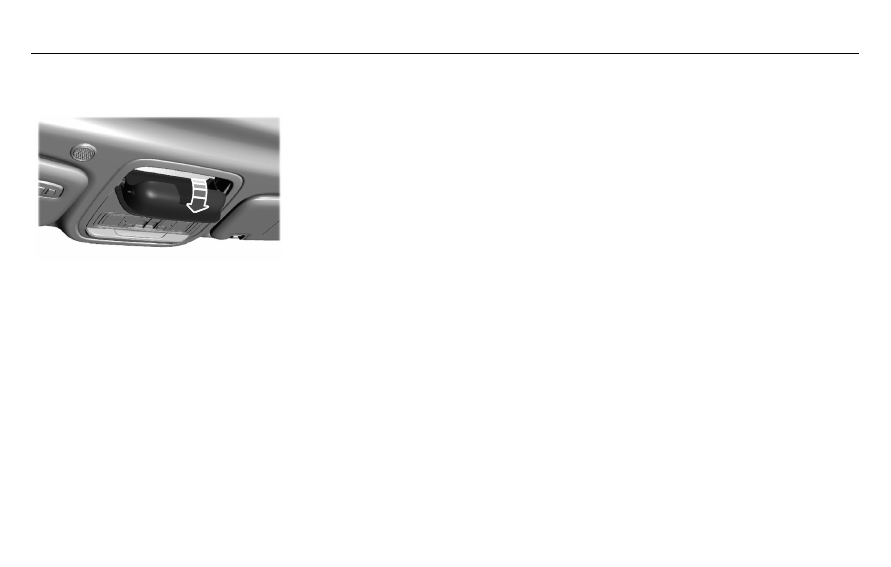

OVERHEAD CONSOLE

E307323

E307323

Press near the rear edge of the door to open
it.

204

Storage Compartments

GENERAL INFORMATION

WARNING:

Extended idling at high

engine speeds can produce very high
temperatures in the engine and exhaust
system, creating the risk of fire or other
damage.

WARNING:

Do not park, idle or drive

your vehicle on dry grass or other dry
ground cover. The emission system heats
up the engine compartment and exhaust
system, creating the risk of fire.

WARNING:

Do not start the engine

in a closed garage or in other enclosed
areas. Exhaust fumes are toxic. Always
open the garage door before you start the
engine. Failure to follow this instruction
could result in personal injury or death.

WARNING:

Exhaust leaks may result

in entry of harmful and potentially lethal
fumes into the passenger compartment. If
you smell exhaust fumes inside your
vehicle, have your vehicle inspected
immediately. Do not drive if you smell
exhaust fumes.

If you disconnect the battery, your vehicle
may exhibit some unusual driving
characteristics for approximately 6 mi (10 km)
after you reconnect it. This is because the
engine management system must realign
itself with the engine. You can disregard any
unusual driving characteristics during this
period.

The powertrain control system meets all
Canadian interference-causing equipment
standard requirements regulating the
impulse electrical field or radio noise.

When you start the engine, avoid pressing
the accelerator pedal before and during
operation. Only use the accelerator pedal
when you have difficulty starting the engine.

KEYLESS STARTING

Note:

The system may not function if the

remote control is close to metal objects or
electronic devices, for example keys or a
cell phone.

Note:

A valid remote control must be located

inside your vehicle to switch the ignition on
and start your vehicle.

Ignition Modes

E144447

The keyless starting system has three
modes:

Off:

 Turns the ignition off.

205

Starting and Stopping the Engine
