282

SERVICING AND MAINTENANCE

F65

–

Spare

F66

–

10 Amp Red

Sunroof */ LRSM */ RVM / DSRC / USB Port / DTV * / WCP *

F67

–

15 Amp Blue

CDM/UCI Port/USB Port

F68

–

20 Amp Yellow

RR Wiper Mtr

F69

–

15 Amp Blue

Spot Light Feed *

F70

–

20 Amp Yellow

Fuel Pump Mtr

F71

–

30 Amp Green

Amplifier */ ANCM *

F72

–

10 Amp Red

ECM *

F73

–

15 Amp Blue

HID Headlamp RT *

F74

–

Spare

F75

–

10 Amp Red

Dual Batt Ctrl *

F76

–

10 Amp Red

ESP

F77

–

10 Amp Red

DTCM / ELSD *

F78

–

10 Amp Red

ECM / EPS

F79

–

Spare

F80

–

10 Amp Red

UGDO

F81

–

20 Amp Yellow

Trlr Tow RT Turn / Stop *

F82

–

10 Amp Red

SCCM / Cruise Control / DTV *

F83

–

10 Amp Red

Fuel Door

F84

–

15 Amp Blue

Cluster

Cavity

Cartridge Fuse

Micro Fuse

Description

* If Equipped

SERVICING AND MAINTENANCE

283

F85

–

10 Amp Red

ORC (Airbag)

F86

–

10 Amp Red

ORC (Airbag)

F87

–

Spare

F88

–

15 Amp Blue

Cluster / CSG * / ITBM *

F89

–

Spare

F90

–

Spare

F91

–

20 Amp Yellow

Pwr Outlet Cargo Area

F92

–

10 Amp Red

Rr Console Lamp * / RR Pwr Outlet

F93

–

20 Amp Yellow

Cigar Lighter

F94

–

10 Amp Red

Sbw / Tcase Sw

F95

–

10 Amp Red

Rr Cam / Blind Spot Snsr *

F96

–

10 Amp Red

Rr Seat Heater Sw*

F97

–

20 Amp Yellow

Rr Htd Sts / Htd Str Wheel *

F98

–

20 Amp Yellow

Front Htd Sts * / Vent Sts

F99

–

10 Amp Red

Hvac / Dash / Hlfm/ Prktronx

F100

–

10 Amp Red

Active Damping *

F101

–

15 Amp Blue

In Car Temp Sensor / Humidity Sensor

F102

–

15 Amp Blue

Spare

F103

–

10 Amp Red

RR HVAC *

F104

–

20 Amp Yellow

PWR OUT-IP / Console / Trnk

Cavity

Cartridge Fuse

Micro Fuse

Description

* If Equipped

284

SERVICING AND MAINTENANCE

ULB

EPLACEMENT

Replacement Bulbs, Names, And Part Numbers

In the instance a bulb needs to be replaced, this section includes bulb description and replacement part numbers.
NOTE:

See an authorized dealer for LED bulb replacement.

Interior Bulbs

Bulb Name

Bulb Number

Glove Compartment Lamp

194

Grab Handle Lamp

L002825W5W

Overhead Console Reading Lamps

VT4976

Visor Vanity Lamp

V26377

Rear Cargo Lamp

214–2

Underpanel Courtesy Lamps

906

Instrument Cluster (General Illumination)

103

Telltale/Hazard Lamp

Exterior Bulbs

Bulb Name

Bulb Number

Low Beam/High Beam/LED Headlamps

LED (Serviced at an authorized dealer)

Front Turn Signal Lamps (Bulb Reflector)

7444NA

Front DRL/Turn/Park Lamp (Premium)

LED (Serviced at an authorized dealer)

Front DRL/Park Lamp (Base)

LED (Serviced at an authorized dealer)

SERVICING AND MAINTENANCE

285

Bulb Replacement

NOTE:

Lens fogging can occur under certain atmospheric

conditions. This will usually clear as atmospheric

conditions change to allow the condensation to

change back into a vapor. Turning the lamps on will

usually accelerate the clearing process.

FRONT TURN SIGNAL

See the following steps to replace:
1. Open the hood.
2. Rotate the turn signal bulb a quarter turn

counterclockwise to remove from housing.

3. Disconnect the electrical connector and

replace the bulb.

FRONT FOG LAMPS

The front fog lamps are LEDs. See an authorized

dealer for service.

REAR TAIL, STOP AND TURN SIGNAL LAMPS

The rear tail, stop, and turn signal lamps are LED.

See an authorized dealer for replacement.

Front Side Marker Lamps

LED (Serviced at an authorized dealer)

Front Fog Lamps

LED (Serviced at an authorized dealer)

Rear Tail Lamps/Side Marker Lamps

LED (Serviced at an authorized dealer)

Rear Stop/Turn Signal Lamps

LED (Serviced at an authorized dealer)

Rear Liftgate Tail Lamps

LED (Serviced at an authorized dealer)

Rear Backup Lamps

921 (W16W)

Rear License Lamps

LED (Serviced at an authorized dealer)

Center High Mounted Stop Lamp (CHMSL)

LED (Serviced at an authorized dealer)

Exterior Bulbs

Bulb Name

Bulb Number

CAUTION!

Do not touch the new bulb with your fingers. Oil

contamination will severely shorten bulb life. If

the bulb comes in contact with an oily surface,

clean the bulb with rubbing alcohol.

286

SERVICING AND MAINTENANCE

REAR LIFTGATE MOUNTED BACK-UP LAMPS

See the following steps to replace:
1. Raise the liftgate.
2. Use a fiber stick or flat blade screw driver to

pry the lower trim from the liftgate.

3. Back-up lamps are now visible.

Rotate socket(s) counterclockwise.

4. Remove/replace bulb(s).
5. Reinstall the socket(s).
6. Reverse process to reinstall the liftgate trim.

CENTER HIGH MOUNTED STOP LAMP (CHMSL)

The Center High Mounted Stop Lamp is an LED

assembly. See an authorized dealer for

replacement.

REAR LICENSE LAMP

The rear license lamps are LEDs. See an

authorized dealer for service.

TIRES

IRE

AFETY

NFORMATION

Tire safety information will cover aspects of the

following information: Tire Markings, Tire

Identification Numbers, Tire Terminology and

Definitions, Tire Pressures, and Tire Loading.

Tire Markings

NOTE:



P (Passenger) — Metric tire sizing is based on

US design standards. P-Metric tires have the

letter “P” molded into the sidewall preceding the

size designation. Example: P215/65R15 95H.



European — Metric tire sizing is based on Euro

pean design standards. Tires designed to this

standard have the tire size molded into the side

wall beginning with the section width. The letter

"P" is absent from this tire size designation.

Example: 215/65R15 96H.



LT (Light Truck) — Metric tire sizing is based on

US design standards. The size designation for

LT-Metric tires is the same as for P-Metric tires

except for the letters “LT” that are molded into

the sidewall preceding the size designation.

Example: LT235/85R16.



Temporary spare tires are designed for tempo

rary emergency use only. Temporary high pres

sure compact spare tires have the letter “T” or

“S” molded into the sidewall preceding the size

designation. Example: T145/80D18 103M.



High flotation tire sizing is based on US design

standards and it begins with the tire diameter

molded into the sidewall. Example: 31x10.5

R15 LT.

1 — US DOT Safety Standards

Code (TIN)
2 — Size Designation
3 — Service Description
4 — Maximum Load
5 — Maximum Pressure
6 — Treadwear, Traction and

Temperature Grades

SERVICING AND MAINTENANCE

287

TIRE SIZING CHART

EXAMPLE:

Example Size Designation: P215/65R15XL 95H, 215/65R15 96H, LT235/85R16C, T145/80D18 103M, 31x10.5 R15 LT
P = Passenger car tire size based on US design standards, or
"....blank...." = Passenger car tire based on European design standards, or
LT = Light truck tire based on US design standards, or
T or S = Temporary spare tire or
31 = Overall diameter in inches (in)
215, 235, 145 = Section width in millimeters (mm)
65, 85, 80 = Aspect ratio in percent (%)



Ratio of section height to section width of tire, or

10.5 = Section width in inches (in)
R = Construction code



"R" means radial construction, or



"D" means diagonal or bias construction

15, 16, 18 = Rim diameter in inches (in)
Service Description:
95 = Load Index



A numerical code associated with the maximum load a tire can carry

H = Speed Symbol



A symbol indicating the range of speeds at which a tire can carry a load corresponding to its load index under certain operating conditions



The maximum speed corresponding to the speed symbol should only be achieved under specified operating conditions (i.e., tire pressure, vehicle loading,

road conditions, and posted speed limits)

288

SERVICING AND MAINTENANCE

Tire Identification Number (TIN)

The TIN may be found on one or both sides of the tire; however, the date code may only be on one side. Tires with white sidewalls will have the full TIN, including

the date code, located on the white sidewall side of the tire. Look for the TIN on the outboard side of black sidewall tires as mounted on the vehicle. If the TIN is

not found on the outboard side, then you will find it on the inboard side of the tire.

Load Identification:
Absence of the following load identification symbols on the sidewall of the tire indicates a Standard Load (SL) tire:



XL = Extra load (or reinforced) tire, or



LL = Light load tire or



C, D, E, F, G = Load range associated with the maximum load a tire can carry at a specified pressure

Maximum Load – Maximum load indicates the maximum load this tire is designed to carry
Maximum Pressure – Maximum pressure indicates the maximum permissible cold tire inflation pressure for this tire

EXAMPLE:

DOT MA L9 ABCD 0301
DOT = Department of Transportation



This symbol certifies that the tire is in compliance with the US Department of Transportation tire safety standards and is approved for highway use

MA = Code representing the tire manufacturing location (two digits)
L9 = Code representing the tire size (two digits)
ABCD = Code used by the tire manufacturer (one to four digits)

SERVICING AND MAINTENANCE

289

Tire Terminology And Definitions

03 = Number representing the week in which the tire was manufactured (two digits)



03 means the 3rd week

01 = Number representing the year in which the tire was manufactured (two digits)



01 means the year 2001



Prior to July 2000, tire manufacturers were only required to have one number to represent the year in which the tire was manufactured.

Example: 031 could represent the 3rd week of 1981 or 1991

Term

Definition

B-pillar

The vehicle B-pillar is the structural member of the body located behind the front door.

Cold Tire Inflation Pressure

Cold tire inflation pressure is defined as the tire pressure after the vehicle has not been

driven for at least three hours, or driven less than 1 mile (1.6 km) after sitting for a minimum

of three hours. Inflation pressure is measured in units of PSI (pounds per square inch) or

kPa (kilopascals).

Maximum Inflation Pressure

The maximum inflation pressure is the maximum permissible cold tire inflation pressure

for this tire. The maximum inflation pressure is molded into the sidewall.

Recommended Cold Tire Inflation Pressure

Vehicle manufacturer’s recommended cold tire inflation pressure as shown on the

tire placard.

Tire Placard

A label permanently attached to the vehicle describing the vehicle’s loading capacity, the

original equipment tire sizes and the recommended cold tire inflation pressures.

EXAMPLE:

290

SERVICING AND MAINTENANCE

Tire Loading And Tire Pressure

NOTE:

The proper cold tire inflation pressure is listed on

the driver’s side B-pillar or the rear edge of the

driver's side door.
Check the inflation pressure of each tire, including

the spare tire (if equipped), at least monthly and

inflate to the recommended pressure for your

vehicle.

Example Tire Placard Location (Door)

Example Tire Placard Location (B-pillar)

Tire And Loading Information Placard

This placard tells you important information about

the:
1. Number of people that can be carried in the

vehicle.

2. Total weight your vehicle can carry.

3. Tire size designed for your vehicle.
4. Cold tire inflation pressures for the front, rear,

and spare tires.

The vehicle maximum load on the tire must not

exceed the load carrying capacity of the tire on your

vehicle. You will not exceed the tire's load carrying

capacity if you adhere to the loading conditions,

tire size, and cold tire inflation pressures specified

on the Tire and Loading Information placard

page 138.

NOTE:

Under a maximum loaded vehicle condition, Gross

Axle Weight Ratings (GAWRs) for the front and rear

axles must not be exceeded.
For further information on GAWRs, vehicle loading,

and trailer towing

page 138.

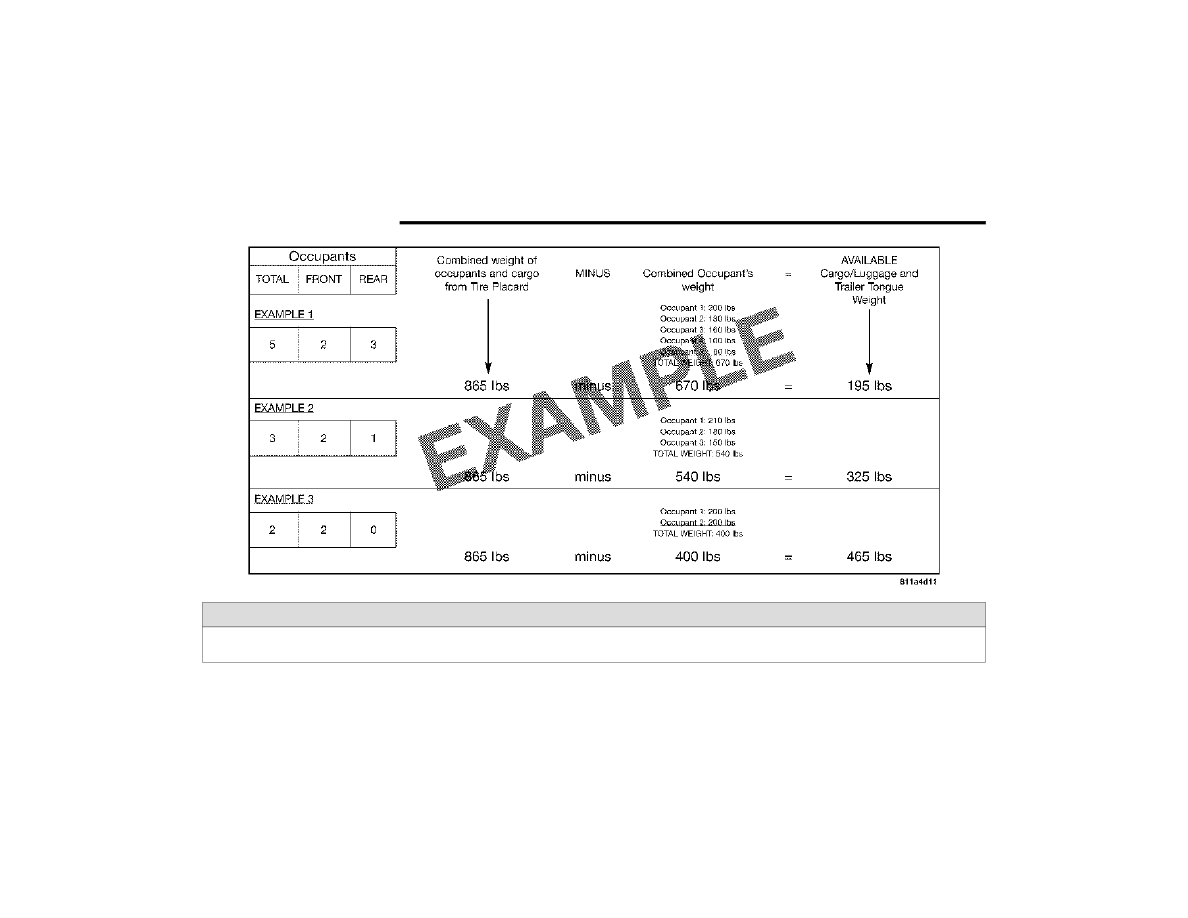

To determine the maximum loading conditions of

your vehicle, locate the statement “The combined

weight of occupants and cargo should never

exceed XXX kg or XXX lbs” on the Tire and Loading

Information placard. The combined weight of

occupants, cargo/luggage and trailer tongue

weight (if applicable) should never exceed the

weight referenced here.

SERVICING AND MAINTENANCE

291

Steps For Determining Correct Load

Limit—
(1) Locate the statement “The combined

weight of occupants and cargo should

never exceed XXX kg or XXX lbs.” on your

vehicle's placard.
(2) Determine the combined weight of

the driver and passengers that will be

riding in your vehicle.
(3) Subtract the combined weight of the

driver and passengers from XXX kg or

XXX lbs.
(4) The resulting figure equals the

available amount of cargo and luggage

load capacity. For example, if “XXX”

amount equals 1400 lbs. and there will

be five 150 lb passengers in your

vehicle, the amount of available cargo

and luggage load capacity is 650 lbs.

(1400-750 (5x150) = 650 lbs.)

(5) Determine the combined weight of

luggage and cargo being loaded on the

vehicle. That weight may not safely

exceed the available cargo and luggage

load capacity calculated in Step 4.
(6) If your vehicle will be towing a trailer,

load from your trailer will be transferred

to your vehicle. Consult this manual to

determine how this reduces the

available cargo and luggage load

capacity of your vehicle.

Metric Example For Load Limit
For example, if “XXX” amount equals 635 kg and

there will be five 68 kg passengers in your vehicle,

the amount of available cargo and luggage load

capacity is 295 kg (635-340 (5x68) = 295 kg) as

shown in step 4.
NOTE:



If your vehicle will be towing a trailer, load from

your trailer will be transferred to your vehicle.

The following table shows examples on how to

calculate total load, cargo/luggage, and towing

capacities of your vehicle with varying seating

configurations and number and size of occu

pants. This table is for illustration purposes only

and may not be accurate for the seating and

load carry capacity of your vehicle.



For the following example, the combined weight

of occupants and cargo should never exceed

865 lbs (392 kg).

292

SERVICING AND MAINTENANCE

WARNING!

Overloading of your tires is dangerous. Overloading can cause tire failure, affect vehicle handling, and increase your stopping distance.

Use tires of the recommended load capacity for your vehicle. Never overload them.

SERVICING AND MAINTENANCE

293

(Continued)

IRES

— G

ENERAL

NFORMATION

Tire Pressure

Proper tire inflation pressure is essential to the

safe and satisfactory operation of your vehicle.

Four primary areas are affected by improper tire

pressure:



Safety



Fuel Economy



Tread Wear



Ride Comfort and Vehicle Stability

Safety

Both underinflation and overinflation affect the

stability of the vehicle and can produce a feeling of

sluggish response or over responsiveness in the

steering.
NOTE:



Unequal tire pressures from side to side may

cause erratic and unpredictable steering

response.



Unequal tire pressure from side to side may

cause the vehicle to drift left or right.

Fuel Economy
Underinflated tires will increase tire rolling

resistance resulting in higher fuel consumption.

Tread Wear
Improper cold tire inflation pressures can cause

abnormal wear patterns and reduced tread life,

resulting in the need for earlier tire replacement.
Ride Comfort And Vehicle Stability
Proper tire inflation contributes to a comfortable

ride. Overinflation produces a jarring and

uncomfortable ride.

Tire Inflation Pressures

The proper cold tire inflation pressure is listed on

the driver's side B-pillar or rear edge of the driver's

side door.
At least once a month:



Check and adjust tire pressure with a good

quality pocket-type pressure gauge. Do not

make a visual judgment when determining

proper inflation. Tires may look properly inflated

even when they are underinflated.



Inspect tires for signs of tire wear or visible

damage.

WARNING!



Improperly inflated tires are dangerous and

can cause collisions.



Underinflation increases tire flexing and can

result in overheating and tire failure.



Overinflation reduces a tire's ability to cushion

shock. Objects on the road and chuckholes

can cause damage that result in tire failure.



Overinflated or underinflated tires can affect

vehicle handling and can fail suddenly,

resulting in loss of vehicle control.



Unequal tire pressures can cause steering

problems. You could lose control of your

vehicle.



Unequal tire pressures from one side of the

vehicle to the other can cause the vehicle to

drift to the right or left.



Always drive with each tire inflated to the

recommended cold tire inflation pressure.

WARNING!

CAUTION!

After inspecting or adjusting the tire pressure,

always reinstall the valve stem cap. This will

prevent moisture and dirt from entering the

valve stem, which could damage the valve stem.

294

SERVICING AND MAINTENANCE

Inflation pressures specified on the placard are

always “cold tire inflation pressure”. Cold tire

inflation pressure is defined as the tire pressure

after the vehicle has not been driven for at least

three hours, or driven less than 1 mile (1.6 km)

after sitting for a minimum of three hours. The cold

tire inflation pressure must not exceed the

maximum inflation pressure molded into the

tire sidewall.
Check tire pressures more often if subject to a

wide range of outdoor temperatures, as tire

pressures vary with temperature changes.
Tire pressures change by approximately 1 psi

(7 kPa) per 12°F (7°C) of air temperature change.

Keep this in mind when checking tire pressure

inside a garage, especially in the Winter.
Example: If garage temperature = 68°F (20°C)

and the outside temperature = 32°F (0°C) then

the cold tire inflation pressure should be increased

by 3 psi (21 kPa), which equals 1 psi (7 kPa) for

every 12°F (7°C) for this outside temperature

condition.
Tire pressure may increase from 2 to 6 psi (13 to

40 kPa) during operation. DO NOT reduce this

normal pressure build up or your tire pressure will

be too low.

Tire Pressures For High Speed Operation

The manufacturer advocates driving at safe

speeds and within posted speed limits. Where

speed limits or conditions are such that the vehicle

can be driven at high speeds, maintaining correct

tire inflation pressure is very important. Increased

tire pressure and reduced vehicle loading may be

required for high-speed vehicle operation. Refer to

an authorized tire dealer or original equipment

vehicle dealer for recommended safe operating

speeds, loading and cold tire inflation pressures.

Radial Ply Tires

Tire Repair
If your tire becomes damaged, it may be repaired if

it meets the following criteria:



The tire has not been driven on when flat.



The damage is only on the tread section of your

tire (sidewall damage is not repairable).



The puncture is no greater than a ¼ of an

inch (6 mm).

Consult an authorized tire dealer for tire repairs

and additional information.
Damaged Run Flat tires, or Run Flat tires that have

experienced a loss of pressure should be replaced

immediately with another Run Flat tire of identical

size and service description (Load Index and

Speed Symbol). Replace the tire pressure sensor

as well as it is not designed to be reused.

Run Flat Tires — If Equipped

Run Flat tires allow you the capability to drive

50 miles (80 km) at 50 mph (80 km/h) after a

rapid loss of inflation pressure. This rapid loss of

inflation is referred to as the Run Flat mode. A Run

Flat mode occurs when the tire inflation pressure is

of/or below 14 psi (96 kPa). Once a Run Flat tire

reaches the Run Flat mode it has limited driving

capabilities and needs to be replaced immediately.

WARNING!

High speed driving with your vehicle under

maximum load is dangerous. The added strain

on your tires could cause them to fail. You could

have a serious collision. Do not drive a vehicle

loaded to the maximum capacity at continuous

speeds above 75 mph (120 km/h).

WARNING!

Combining radial ply tires with other types of tires

on your vehicle will cause your vehicle to handle

poorly. The instability could cause a collision.

Always use radial ply tires in sets of four. Never

combine them with other types of tires.

SERVICING AND MAINTENANCE

295

A Run Flat tire is not repairable. When a Run Flat

tire is changed after driving with an underinflated

tire condition, please replace the TPMS sensor as

it is not designed to be reused when driven under

Run Flat mode 14 psi (96 kPa) condition.
NOTE:

TPMS sensor must be replaced after driving the

vehicle on a flat tire condition.
It is not recommended driving a vehicle loaded at

full capacity or to tow a trailer while a tire is in the

Run Flat mode.
For more information

page 193.

Tire Spinning

When stuck in mud, sand, snow, or ice conditions,

do not spin your vehicle's wheels above 30 mph

(48 km/h) or for longer than 30 seconds

continuously without stopping.

Tread Wear Indicators

Tread wear indicators are in the original equipment

tires to help you in determining when your tires

should be replaced.

Tire Tread

These indicators are molded into the bottom of the

tread grooves. They will appear as bands when the

tread depth becomes a 1/16 of an inch (1.6 mm).

When the tread is worn to the tread wear

indicators, the tire should be replaced.

Life Of Tire

The service life of a tire is dependent upon varying

factors including, but not limited to:



Driving style



Tire pressure - Improper cold tire inflation pres

sures can cause uneven wear patterns to

develop across the tire tread. These abnormal

wear patterns will reduce tread life, resulting in

the need for earlier tire replacement.



Distance driven



Performance tires, tires with a speed rating of V

or higher, and Summer tires typically have a

reduced tread life. Rotation of these tires per

the vehicle scheduled maintenance is highly

recommended.

NOTE:

Wheel valve stem must be replaced as well when

installing new tires due to wear and tear in existing

tires.

WARNING!

Fast spinning tires can be dangerous. Forces

generated by excessive wheel speeds may

cause tire damage or failure. A tire could

explode and injure someone. Do not spin your

vehicle's wheels faster than 30 mph (48 km/h)

for more than 30 seconds continuously when

you are stuck, and do not let anyone near a

spinning wheel, no matter what the speed.

1 — Worn Tire
2 — New Tire

WARNING!

Tires and the spare tire should be replaced after

six years, regardless of the remaining tread.

Failure to follow this warning can result in

sudden tire failure. You could lose control and

have a collision resulting in serious injury or

death.

296

SERVICING AND MAINTENANCE

Keep dismounted tires in a cool, dry place with as

little exposure to light as possible. Protect tires

from contact with oil, grease, and gasoline.

Replacement Tires

The tires on your new vehicle provide a balance of

many characteristics. They should be inspected

regularly for wear and correct cold tire inflation

pressures. The manufacturer strongly

recommends that you use tires equivalent to the

originals in size, quality and performance when

replacement is needed

page 295. Refer to the

Tire and Loading Information placard or the

Vehicle Certification Label for the size designation

of your tire. The Load Index and Speed Symbol for

your tire will be found on the original equipment

tire sidewall.
For more information relating to the Load Index

and Speed Symbol of a tire

page 287.

It is recommended to replace the two front tires or

two rear tires as a pair. Replacing just one tire can

seriously affect your vehicle’s handling. If you ever

replace a wheel, make sure that the wheel’s

specifications match those of the original wheels.
It is recommended you contact an authorized tire

dealer or original equipment dealer with any

questions you may have on tire specifications or

capability. Failure to use equivalent replacement

tires may adversely affect the safety, handling, and

ride of your vehicle.

IRE

YPES

All Season Tires — If Equipped

All Season tires provide traction for all seasons

(Spring, Summer, Autumn, and Winter). Traction

levels may vary between different all season tires.

All season tires can be identified by the M+S, M&S,

M/S or MS designation on the tire sidewall. Use all

season tires only in sets of four; failure to do so

may adversely affect the safety and handling of

your vehicle.

Summer Or Three Season Tires —

If Equipped

Summer tires provide traction in both wet and dry

conditions, and are not intended to be driven in

snow or on ice. If your vehicle is equipped with

Summer tires, be aware these tires are not

designed for Winter or cold driving conditions.

Install Winter tires on your vehicle when ambient

temperatures are less than 40°F (5°C) or if roads

are covered with ice or snow. For more

information, contact an authorized dealer.
Summer tires do not contain the all season

designation or mountain/snowflake symbol on the

tire sidewall. Use Summer tires only in sets of four;

failure to do so may adversely affect the safety and

handling of your vehicle.

WARNING!



Do not use a tire, wheel size, load rating, or

speed rating other than that specified for your

vehicle. Some combinations of unapproved

tires and wheels may change suspension

dimensions and performance characteristics,

resulting in changes to steering, handling, and

braking of your vehicle. This can cause unpre

dictable handling and stress to steering and

suspension components. You could lose

control and have a collision resulting in

serious injury or death. Use only the tire and

wheel sizes with load ratings approved for

your vehicle.



Never use a tire with a smaller load index or

capacity, other than what was originally

equipped on your vehicle. Using a tire with a

smaller load index could result in tire over

loading and failure. You could lose control and

have a collision.



Failure to equip your vehicle with tires having

adequate speed capability can result in

sudden tire failure and loss of vehicle control.

CAUTION!

Replacing original tires with tires of a different

size may result in false speedometer and

odometer readings.

SERVICING AND MAINTENANCE

297

Snow Tires

Some areas of the country require the use of snow

tires during the Winter. Snow tires can be identified

by a “mountain/snowflake” symbol on the tire

sidewall.

If you need snow tires, select tires

equivalent in size and type to the original

equipment tires. Use snow tires only in

sets of four; failure to do so may

adversely affect the safety and handling of

your vehicle.
Snow tires generally have lower speed ratings than

what was originally equipped with your vehicle and

should not be operated at sustained speeds over

75 mph (120 km/h). For speeds above 75 mph

(120 km/h) refer to original equipment or an

authorized tire dealer for recommended safe

operating speeds, loading and cold tire inflation

pressures.

While studded tires improve performance on ice,

skid and traction capability on wet or dry surfaces

may be poorer than that of non-studded tires.

Some states prohibit studded tires; therefore, local

laws should be checked before using these tire

types.

PARE

IRES

— I

QUIPPED

NOTE:

For vehicles equipped with Tire Service Kit instead

of a spare tire, please refer to “Tire Service Kit” in

“In Case Of Emergency” for further information.

For restrictions when towing with a spare tire

designated for temporary emergency use

page 145.

Spare Tire Matching Original Equipped Tire

And Wheel — If Equipped

Your vehicle may be equipped with a spare tire and

wheel equivalent in look and function to the

original equipment tire and wheel found on

the front or rear axle of your vehicle.

This spare tire may be used in the tire rotation for

your vehicle. If your vehicle has this option, refer to

an authorized tire dealer for the recommended tire

rotation pattern.

Compact Spare Tire — If Equipped

The compact spare is for temporary emergency

use only. You can identify if your vehicle is

equipped with a compact spare by looking at the

spare tire description on the Tire and Loading

Information Placard located on the driver’s side

door opening or on the sidewall of the tire.

Compact spare tire descriptions begin with the

letter “T” or “S” preceding the size designation.

Example: T145/80D18 103M.
T, S = Temporary Spare Tire
Since this tire has limited tread life, the original

equipment tire should be repaired (or replaced)

and reinstalled on your vehicle at the first

opportunity.
Do not install a wheel cover or attempt to mount a

conventional tire on the compact spare wheel,

since the wheel is designed specifically for the

compact spare tire. Do not install more than one

compact spare tire and wheel on the vehicle at any

given time.

WARNING!

Do not use Summer tires in snow/ice conditions.

You could lose vehicle control, resulting in

severe injury or death. Driving too fast for

conditions also creates the possibility of loss of

vehicle control.

CAUTION!

Because of the reduced ground clearance, do

not take your vehicle through an automatic car

wash with a compact or limited use temporary

spare installed. Damage to the vehicle may

result.

Content .. 16 17 18 19 ..
