GETTING TO KNOW YOUR VEHICLE

Winter Operation

To ensure the best possible heater and defroster

performance, make sure the engine cooling

system is functioning properly and the proper

amount, type, and concentration of coolant is

used. Use of the Air Recirculation mode during

Winter months is not recommended, because it

may cause window fogging.

Vacation/Storage

For information on maintaining the Climate Control

system when the vehicle is being stored for an

extended period of time, see

page 282.

Window Fogging

Vehicle windows tend to fog on the inside in mild,

rainy, and/or humid weather. To clear the

windows, select Defrost or Mix mode and increase

the front blower speed. Do not use the

Recirculation mode without A/C for long periods,

as fogging may occur.

Outside Air Intake

Make sure the air intake, located directly in front of

the windshield, is free of obstructions, such as

leaves. Leaves collected in the air intake may

reduce airflow, and if they enter the air distribution

box, they could plug the water drains. In Winter

months, make sure the air intake is clear of ice,

slush, and snow.

Cabin Air Filter

The Climate Control system filters out dust and

pollen from the air. Contact an authorized dealer to

service your cabin air filter, and to have it replaced

when needed.

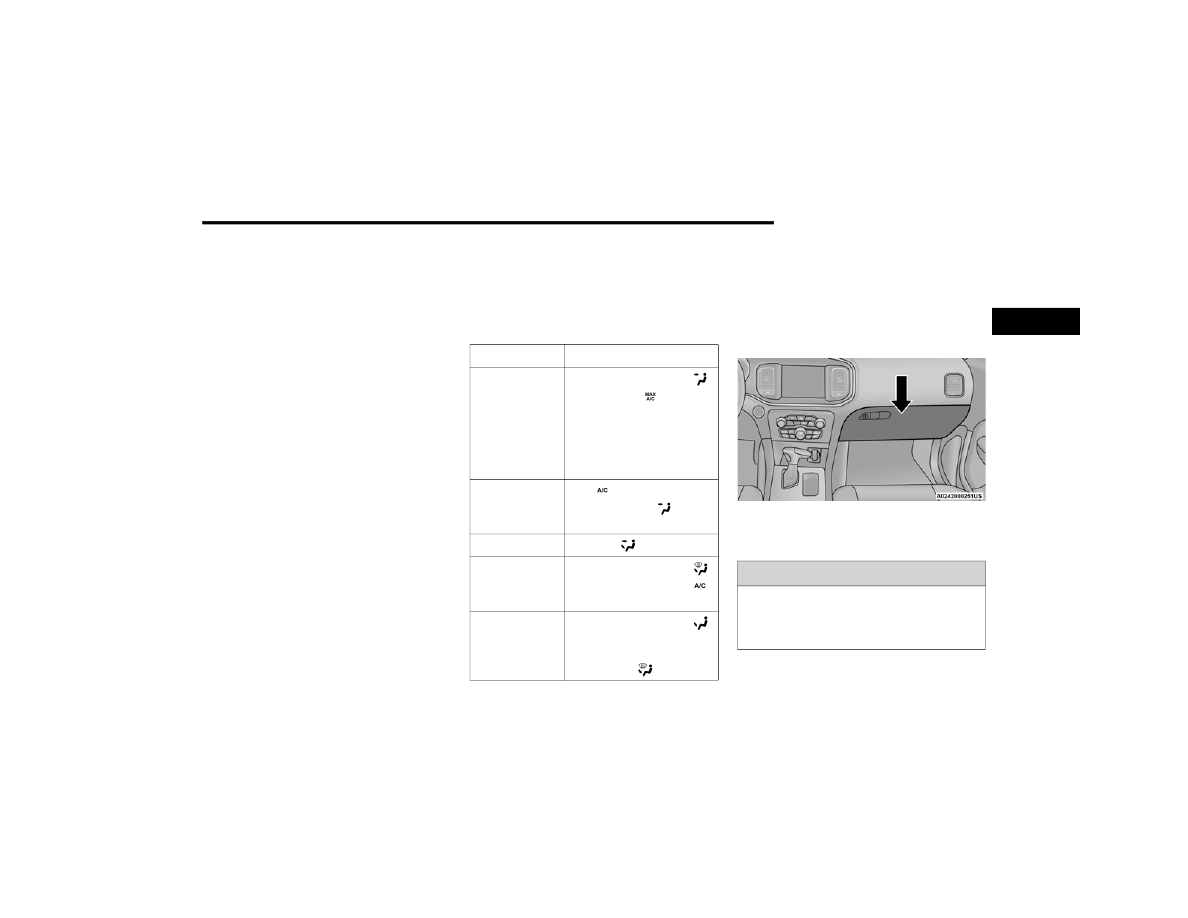

Operating Tips Chart

INTERIOR STORAGE AND EQUIPMENT

TORAGE

Glove Compartment

The glove compartment is located on the

passenger side of the instrument panel.

Glove Compartment

To open the glove compartment, pull the release

handle.

WEATHER

CONTROL SETTINGS

Hot Weather And

Vehicle Interior Is

Very Hot

Set the mode control to

(Panel Mode), (MAX A/C)

on, and blower on high. Roll

down the windows for a

minute to flush out the hot

air. Adjust the controls as

needed to achieve comfort.

Warm Weather

Turn (A/C) on and set the

mode control to (Panel

Mode).

Cool Sunny

Operate in (Bi-Level Mode).

Cool & Humid

Conditions

Set the mode control to

(Mix Mode) and turn on

(A/C) to keep windows clear.

Cold Weather

Set the mode control to

(Floor Mode). If windshield

fogging starts to occur, move

the control to (Mix Mode).

WARNING!

Do not operate this vehicle with a glove

compartment in the open position. Driving with

the glove compartment open may result in injury

in a collision.

GETTING TO KNOW YOUR VEHICLE

Door Storage

Large storage areas are built into the door panels

for easy access.

Console Features

Two separate storage compartments are located

underneath the center console armrest.

Center Console

Inside the center console armrest, there is a

removable upper storage tray that can be slid

forward/rearward on rails for access to the lower

storage area. This tray has an integrated coin

holder, along with additional area for small items

and handheld devices. Below the upper tray, the

lower storage compartment is made for larger

items, like tissue boxes. In addition, the 12 Volt

power outlet, USB, and AUX jack are located here.

Center Console Storage

Sunglasses Bin Door

At the front of the console a compartment is

provided for the storage of a pair of sunglasses.

The storage compartment access is a “push/push”

design. Push the chrome pad on the door to open.

Push the chrome pad on the door to close.

Sunglasses Bin Door

1 — Lower Storage Area
2 — Upper Storage Tray

WARNING!

Do not operate this vehicle with a console

compartment lid in the open position. Driving

with the console compartment lid open may

result in injury in a collision.

GETTING TO KNOW YOUR VEHICLE

USB/AUX C

ONTROL

This feature allows an external USB device to be

plugged into the USB port.
Plugging in a smartphone device to a USB port may

activate Android Auto™ or Apple CarPlay®

features, if equipped. For further information, refer

to “Android Auto™” or “Apple CarPlay®” in the

Owner’s Manual Supplement.

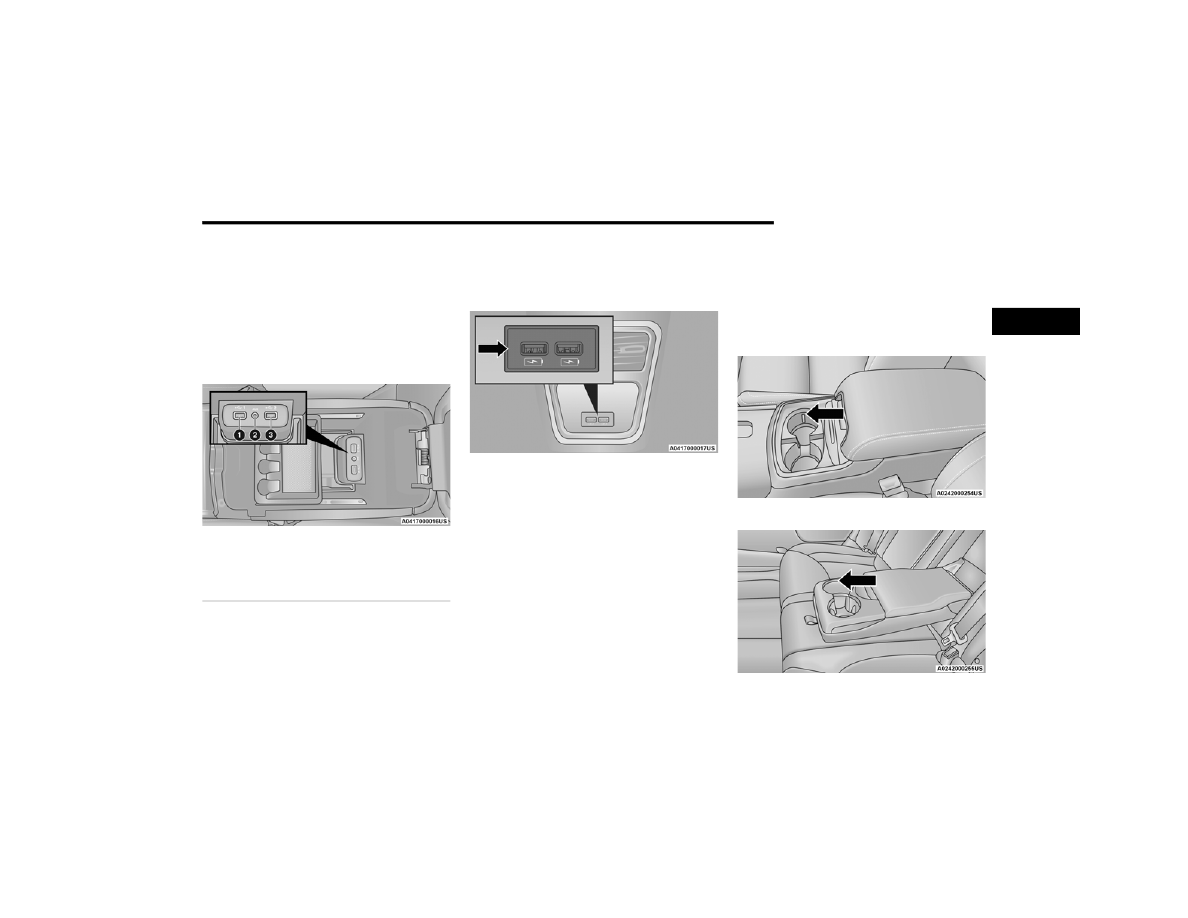

AUX/USB Ports

Located on the rear of the front center console are

dual USB “Charge Only” ports. The USB “Charge

Only” ports will recharge battery operated USB

devices when connected.

Rear USB Charging Ports

NOTE:

Charge unsupported devices with the Charge Only

USB ports. If an unsupported device is plugged into

a Media USB port, a message will display on the

touchscreen that the device is not supported by

the system.

LLUMINATED

UPHOLDERS

—

QUIPPED

On some vehicles the front and/or rear cupholders

are equipped with a light ring that illuminates the

cupholders. The brightness of the light rings are

controlled by the Dimmer Control

page 49.

Light Ring Around Front Cupholders

Light Ring Around Rear Cupholders

1 — USB 1 Port
2 — AUX Jack
3 — USB 2 Port

GETTING TO KNOW YOUR VEHICLE

OWER

UTLETS

Your vehicle is equipped with 12 Volt (15 Amp)

power outlets that can be used to power cellular

phones, small electronics and other low powered

electrical accessories. The power outlets are

labeled with either a “key” or a “battery” symbol to

indicate how the outlet is powered. Power outlets

labeled with a key symbol are powered when the

ignition is in the ON or ACC position, while the

outlets labeled with a battery symbol are

connected directly to the battery and powered at

all times.
NOTE:

All accessories connected to the battery powered

outlets should be removed or turned off when the

vehicle is not in use to protect the battery against

discharge.

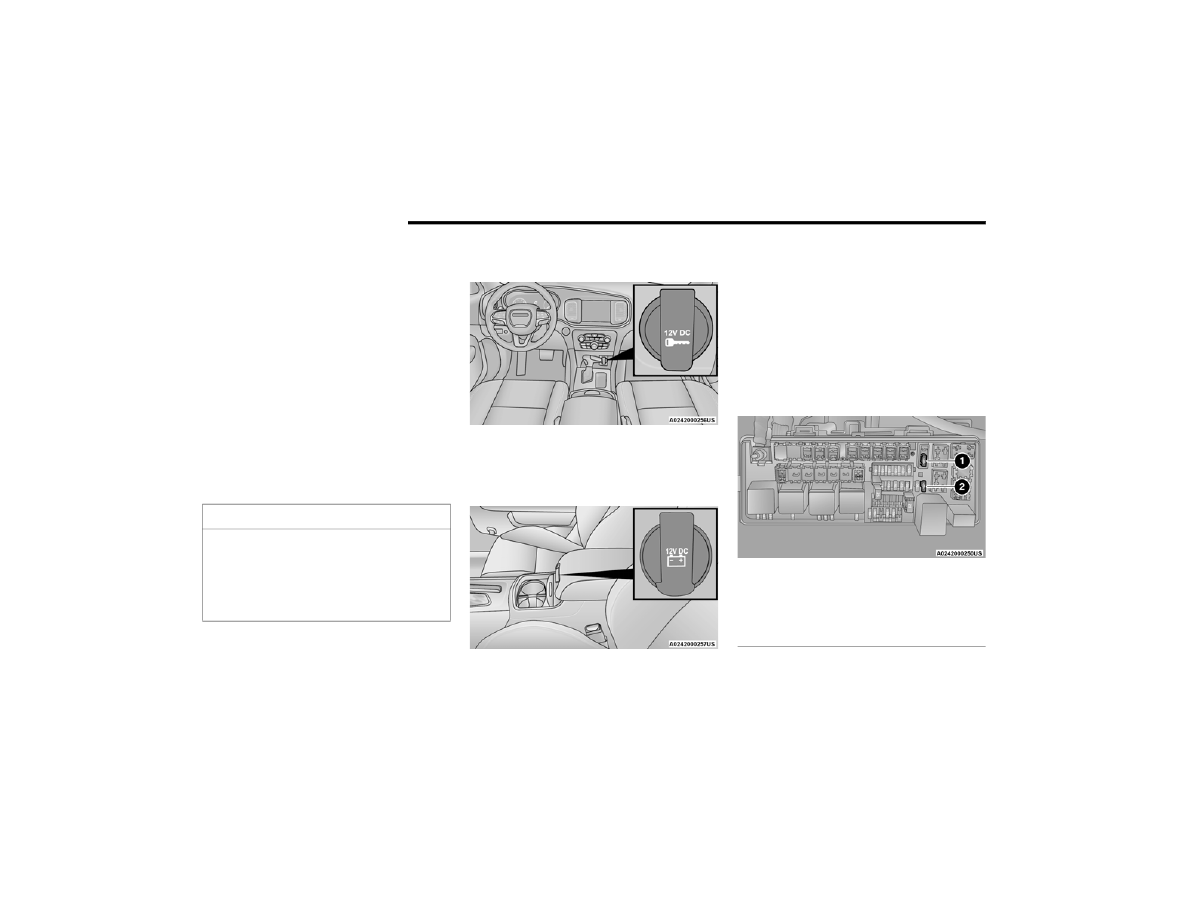

The front power outlet is located inside the storage

area on the center stack of the instrument panel.

Front Power Outlet

In addition to the front power outlet, there is also a

power outlet located in the storage area of the

center console.

Center Console Power Outlet

If the Media Hub is in use, do not exceed the

maximum power of 100 Watts (8 Amps) for the

center console power outlet. When the Media Hub

is not in use, the outlet can deliver up to 160 Watts

(13 Amps). If the power rating is exceeded, the

fuse protecting the system needs to be replaced.
NOTE:

The instrument panel power outlet and dual rear

console USB ports can be changed to battery

powered all the times by moving the #12 20 Amp

fuse from “IGN” to “B+”

page 252.

Power Outlet Fuse Locations

CAUTION!

Power outlets are designed for accessory plugs

only. Do not insert any other object in the power

outlets as this will damage the outlet and blow

the fuse. Improper use of the power outlet can

cause damage not covered by your New Vehicle

Limited Warranty.

1 — #12 Fuse 20 Amp Yellow Instrument Panel

Power Outlet/Dual USB Charge Only Ports
2 — #38 Fuse 20 Amp Yellow Center Console

Power Outlet/Media Hub

GETTING TO KNOW YOUR VEHICLE

(Continued)

WINDOWS

OWER

INDOW

ONTROLS

The window controls on the driver's door control all

the door windows.

Power Window Switches

The passenger door windows can also be operated

by using the single window controls on the

passenger door trim panel. The window controls

will operate only when the ignition is in the ACC or

ON/RUN position.

WARNING!

To avoid serious injury or death:



Only devices designed for use in this type of

outlet should be inserted into any 12 Volt

outlet.



Do not touch with wet hands.



Close the lid when not in use and while driving

the vehicle.



If this outlet is mishandled, it may cause an

electric shock and failure.

CAUTION!



Many accessories that can be plugged in draw

power from the vehicle's battery even when

not in use (i.e., cellular phones, etc.). Eventu

ally, if plugged in long enough, the vehicle's

battery will discharge sufficiently to degrade

battery life and/or prevent the engine from

starting.



Accessories that draw higher power (i.e.,

coolers, vacuum cleaners, lights, etc.) will

degrade the battery even more quickly. Only

use these intermittently and with greater

caution.



After the use of high power draw accessories

or long periods of the vehicle not being started

(with accessories still plugged in), the vehicle

must be driven a sufficient length of time to

allow the alternator to recharge the vehicle's

battery.



Power outlets are designed for accessory

plugs only. Do not hang any type of accessory

or accessory bracket from the plug. Improper

use of the power outlet can cause damage.

CAUTION!

GETTING TO KNOW YOUR VEHICLE

To open the window part way (manually), push the

window switch down briefly and release.
NOTE:

The power window switches will remain active for

up to 10 minutes after the ignition is placed in the

OFF position. Opening either front door will cancel

this feature. The timing is programmable within

Uconnect Settings

page 123.

UTOMATIC

INDOW

EATURES

Auto-Down Feature
The driver and front passenger door power window

switches have an Auto-Down feature. Push the

window switch down to the second detent, release,

and the window will go down automatically.
To stop the window from going all the way down

during the Auto-Down operation, pull up or push

down on the switch briefly.
Auto-Up Feature With Anti-Pinch Protection
Pull the window switch up to the second detent and

the window will go up automatically.
To stop the window from going all the way up

during the Auto-Up operation, push down on the

switch briefly.
To close the window part way, lift the window

switch briefly and release it when you want the

window to stop.
If the window runs into any obstacle during

auto-closure, it will reverse direction and then go

back down. Remove the obstacle and use the

window switch again to close the window.

NOTE:

Any impact due to rough road conditions may

trigger the auto-reverse function unexpectedly

during auto-closure. If this happens, pull the switch

lightly and hold to close the window manually.

ESET

UTO

-U

Should the Auto-Up feature stop working, the

window may need to be reset. To reset Auto-Up:
1. Pull the window switch up to close the window

completely and continue to hold the switch up

for an additional two seconds after the

window is closed.

2. Push the window switch down firmly to open

the window completely and continue to hold

the switch down for an additional two seconds

after the window is fully open.

WARNING!

Never leave children unattended in a vehicle,

and do not let children play with power windows.

Do not leave the key fob in or near the vehicle, or

in a location accessible to children, and do not

leave the Keyless Enter ‘n Go™ Ignition in the

ACC or ON/RUN position. Occupants, particularly

unattended children, can become entrapped by

the windows while operating the power window

switches. Such entrapment may result in serious

injury or death.

WARNING!

There is no anti-pinch protection when the

window is almost closed. To avoid personal

injury be sure to clear your arms, hands, fingers

and all objects from the window path before

closing.

GETTING TO KNOW YOUR VEHICLE

INDOW

OCKOUT

WITCH

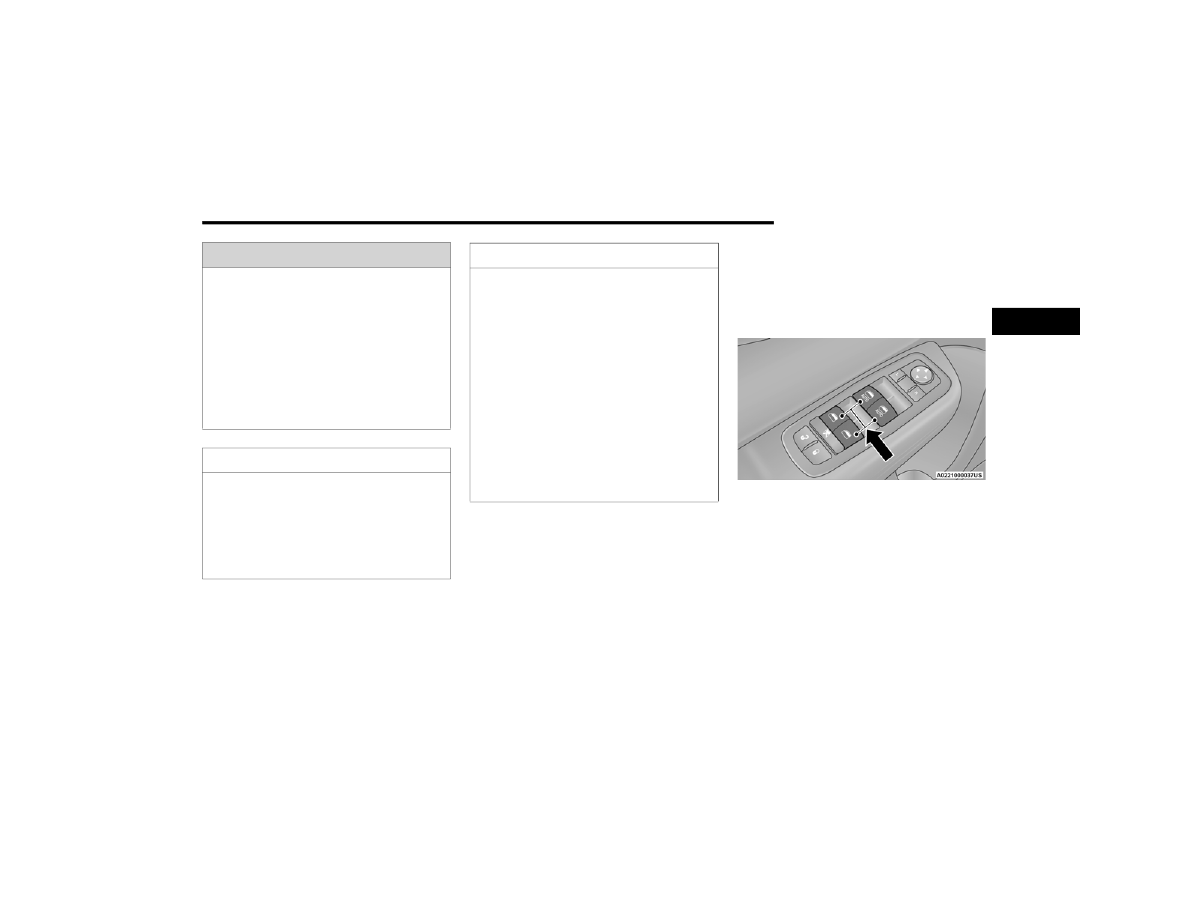

The window lockout switch on the driver's door trim

panel allows you to disable the window controls on

the rear passenger doors. To disable the window

controls, push and release the window lockout

button. To enable the window controls, push and

release the window lockout button again.

Window Lockout Switch

IND

UFFETING

Wind buffeting can be described as the perception

of pressure on the ears or a helicopter-type sound

in the ears. Your vehicle may exhibit wind buffeting

with the windows down, or the sunroof (if

equipped) in certain open or partially open

positions. This is a normal occurrence and can be

minimized. If the buffeting occurs with the rear

windows open, open the front and rear windows

together to minimize the buffeting. If the buffeting

occurs with the sunroof open, adjust the sunroof

opening to minimize the buffeting or open any

window.

POWER SUNROOF — IF EQUIPPED

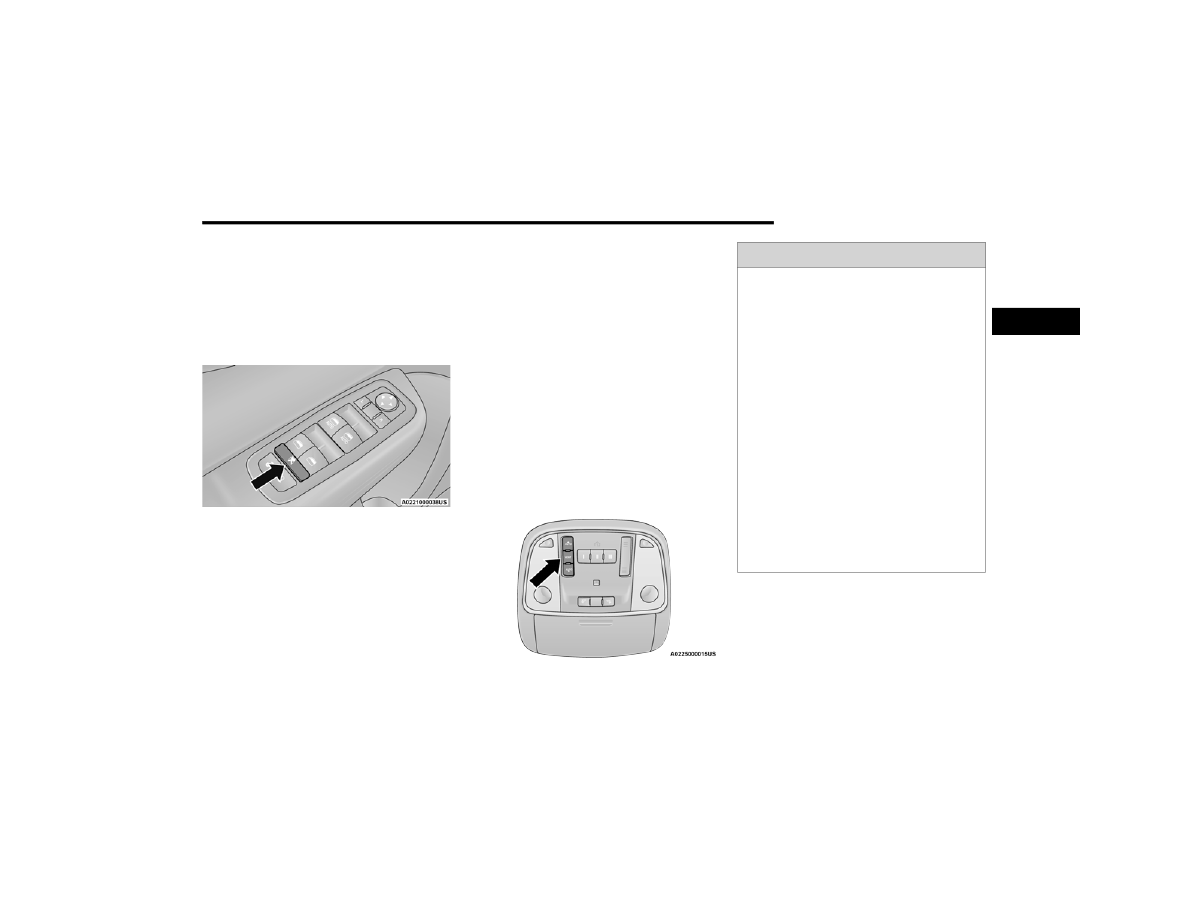

The power sunroof switch is located between the

sun visors on the overhead console.

Power Sunroof Switch

WARNING!



Never leave children unattended in a vehicle,

or with access to an unlocked vehicle. Never

leave the key fob in or near the vehicle, or in a

location accessible to children. Do not leave

the Keyless Enter ‘n Go™ Ignition in the ACC or

ON/RUN position. Occupants, particularly

unattended children, can become entrapped

by the power sunroof while operating the

power sunroof switch. Such entrapment may

result in serious injury or death.



In a collision, there is a greater risk of being

thrown from a vehicle with an open sunroof.

You could also be seriously injured or killed.

Always fasten your seat belt properly and

make sure all passengers are also properly

secured.



Do not allow small children to operate the

sunroof. Never allow your fingers, other body

parts, or any object, to project through the

sunroof opening. Injury may result.

GETTING TO KNOW YOUR VEHICLE

PENING

LOSING

UNROOF

Express Open/Close
Push the switch rearward and release it within

one-half second and the sunroof will open

automatically from any position. The sunroof will

open fully and stop automatically.
Push the switch forward and release it within

one-half second and the sunroof will close

automatically from any position. The sunroof will

close fully and stop automatically.
During Express Open or Express Close operation,

any other movement of the sunroof switch will stop

the sunroof.
Manual Open/Close
To open the sunroof, push and hold the switch

rearward to full open.
To close the sunroof, push and hold the switch in

the forward position.
Any release of the switch during open or close

operation will stop the sunroof movement. The

sunroof will remain in a partially opened position

until the switch is operated and held again.

Venting The Sunroof
Push and release the Vent button within one-half

second and the sunroof will open to the vent

position. This is called “Express Vent” and it will

occur regardless of sunroof position. During

Express Vent operation, any movement of the

switch will stop the sunroof.

INCH

ROTECT

EATURE

This feature will detect an obstruction in the

closing of the sunroof during the Express Close

operation. If an obstruction in the path of the

sunroof is detected, the sunroof will automatically

retract. Remove the obstruction if this occurs.
NOTE:

If three consecutive sunroof close attempts result

in Pinch Protect reversals, Pinch Protect will

disable and the sunroof must be closed in Manual

mode.

UNSHADE

PERATION

The sunshade can be opened manually. However,

the sunshade will open automatically as the

sunroof opens.
NOTE:

The sunshade cannot be closed if the sunroof is

open.

UNROOF

AINTENANCE

Use only a non-abrasive cleaner and a soft cloth to

clean the glass panel. Periodically check for and

clear out any debris that may have collected in the

tracks.

GNITION

PERATION

The power sunroof switch can remain active in

Accessory Delay for up to approximately

10 minutes after the vehicle’s ignition is placed to

the OFF position. Opening either front door will

cancel this feature.
This feature is programmable using the Uconnect

system

page 123.

GETTING TO KNOW YOUR VEHICLE

HOOD

PENING

OOD

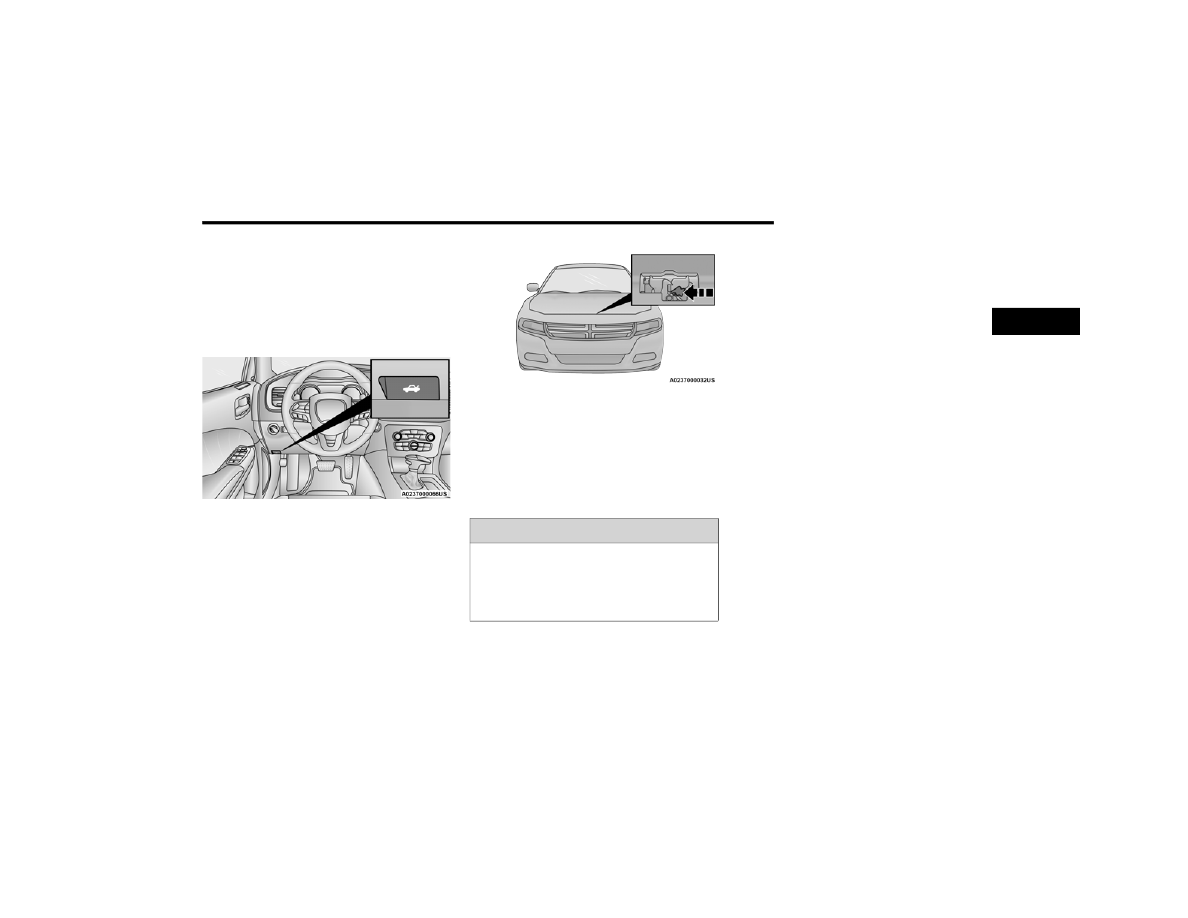

To open the hood, two latches must be released.
1. Pull the release lever located underneath the

driver’s side of the instrument panel.

Hood Release Lever

2. Reach under the hood, move safety latch to

the left and lift the hood.

Safety Catch Lever Location

LOSING

OOD

In one continuous motion, pull down on the front

edge of the hood with moderate force until the

angle is below the crossover point (where the gas

props are no longer resisting) and let the hood

continue to fall closed from its own inertia.

TRUNK

PENING

RUNK

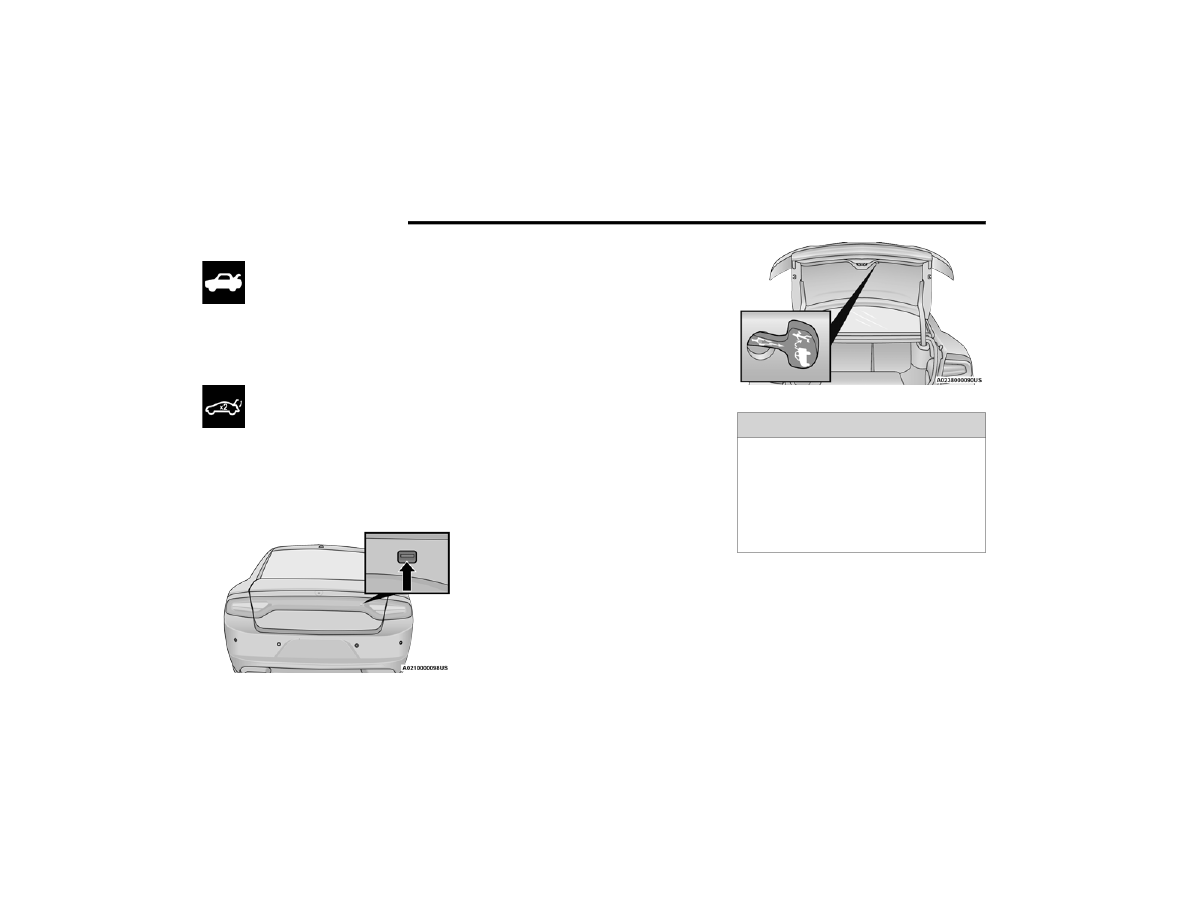

The trunk may be opened in several ways:



Power trunk release button on the instrument

panel



Trunk button on the key fob



Trunk Passive Entry button

page 24



Internal Emergency release handle located on

the underside of the decklid overhang

NOTE:

Without a key in proximity behind the truck, the

passive entry trunk release button will only release

the truck latch when the vehicle is unlocked.
With the ignition in the ON/RUN position, the trunk

open symbol will display in the instrument cluster

indicating that the trunk is open. The odometer

display will reappear once the trunk is closed.
With the ignition in the OFF position, the trunk

open symbol will display until the trunk is closed.

WARNING!

Be sure the hood is fully latched before driving

your vehicle. If the hood is not fully latched, it

could open when the vehicle is in motion and

block your vision. Failure to follow this warning

could result in serious injury or death.

GETTING TO KNOW YOUR VEHICLE

Power Trunk Release Button

The trunk can be opened from inside the

vehicle using the power trunk release

button located on the instrument panel

to the left of the steering wheel.

NOTE:

The gear selector must be in PARK before the

button will operate.
Key Fob Trunk Release Button

Push the power trunk button on the key

fob twice within five seconds to release

the trunk.

Passive Entry Button
Push the trunk Passive Entry button which is located

on the right side of the trunk lid. This button will

release the trunk when the vehicle is unlocked, or

when the vehicle is locked and a valid Passive Entry

Key fob is within 5 ft (1.5 m) of the trunk.

Trunk Passive Entry Button

LOSING

RUNK

With one or more hands placed on the outside

trunk surface push the trunk lid down until you

hear the trunk lock latch into place.
NOTE:

Before closing the trunk lid, make sure your key fob

is not inside the trunk area. The trunk will latch

then automatically unlock if the key fob is

detected, not allowing the key fob to be locked in

the trunk area.

RUNK

AFETY

Trunk Emergency Release
As a security measure, a trunk internal emergency

release lever is built into the trunk latching

mechanism. In the event of an individual being

locked inside the trunk, the trunk can be opened

by actuating the glow-in-the-dark handle attached

to the trunk latching mechanism.

Trunk Emergency Release

WARNING!

Do not allow children to have access to the

trunk, either by climbing into the trunk from

outside, or through the inside of the vehicle.

Always close the trunk lid when your vehicle is

unattended. Once in the trunk, young children

may not be able to escape, even if they entered

through the rear seat. If trapped in the trunk,

children can die from suffocation or heat stroke.

GETTING TO KNOW YOUR INSTRUMENT PANEL

INSTRUMENT CLUSTER

GETTING TO KNOW YOUR INSTRUMENT PANEL

GETTING TO KNOW YOUR INSTRUMENT PANEL

NSTRUMENT

LUSTER

ESCRIPTIONS

1. Tachometer



Indicates the engine speed in revolutions

per minute (RPM x 1000).

2. Instrument Cluster Display



When the appropriate conditions exist, this

display shows the instrument cluster

display messages

page 69.

3. Speedometer



Indicates vehicle speed.

4. Temperature Gauge



The temperature gauge shows engine

coolant temperature. Any reading within the

normal range indicates that the engine

cooling system is operating satisfactorily.



The gauge pointer will likely indicate a

higher temperature when driving in hot

weather, up mountain grades, or when

towing a trailer. It should not be allowed to

exceed the upper limits of the normal oper

ating range.

5. Fuel Gauge



The pointer shows the level of fuel in the

fuel tank when the Keyless Push Button

Ignition is in the ON/RUN position.



The fuel pump symbol points to

the side of the vehicle where the

fuel door is located.

NOTE:

The hard telltales will illuminate for a bulb check

when the ignition is first cycled.

INSTRUMENT CLUSTER DISPLAY

Your vehicle is equipped with an instrument cluster

display, which offers useful information to the

driver. With the ignition in the OFF mode, opening/

closing of a door will activate the display for

viewing, and display the total miles, or kilometers,

in the odometer. Your instrument cluster display is

designed to display important information about

your vehicle’s systems and features. Using a driver

interactive display located on the instrument

panel, your instrument cluster display can show

you how systems are working and give you

warnings when they are not. The steering wheel

mounted controls allow you to scroll through the

main menus and submenus. You can access the

specific information you want and make selections

and adjustments.

WARNING!

A hot engine cooling system is dangerous. You or

others could be badly burned by steam or boiling

coolant. You may want to call an authorized

dealer for service if your vehicle overheats. If you

decide to look under the hood yourself, follow

the warnings under Cooling System

page 248.

CAUTION!

Driving with a hot engine cooling system could

damage your vehicle. If the temperature gauge

reads “H” pull over and stop the vehicle. Idle the

vehicle with the air conditioner turned off until

the pointer drops back into the normal range. If

the pointer remains on the “H”, turn the engine

off immediately and call an authorized dealer for

service.

GETTING TO KNOW YOUR INSTRUMENT PANEL

OCATION

ONTROLS

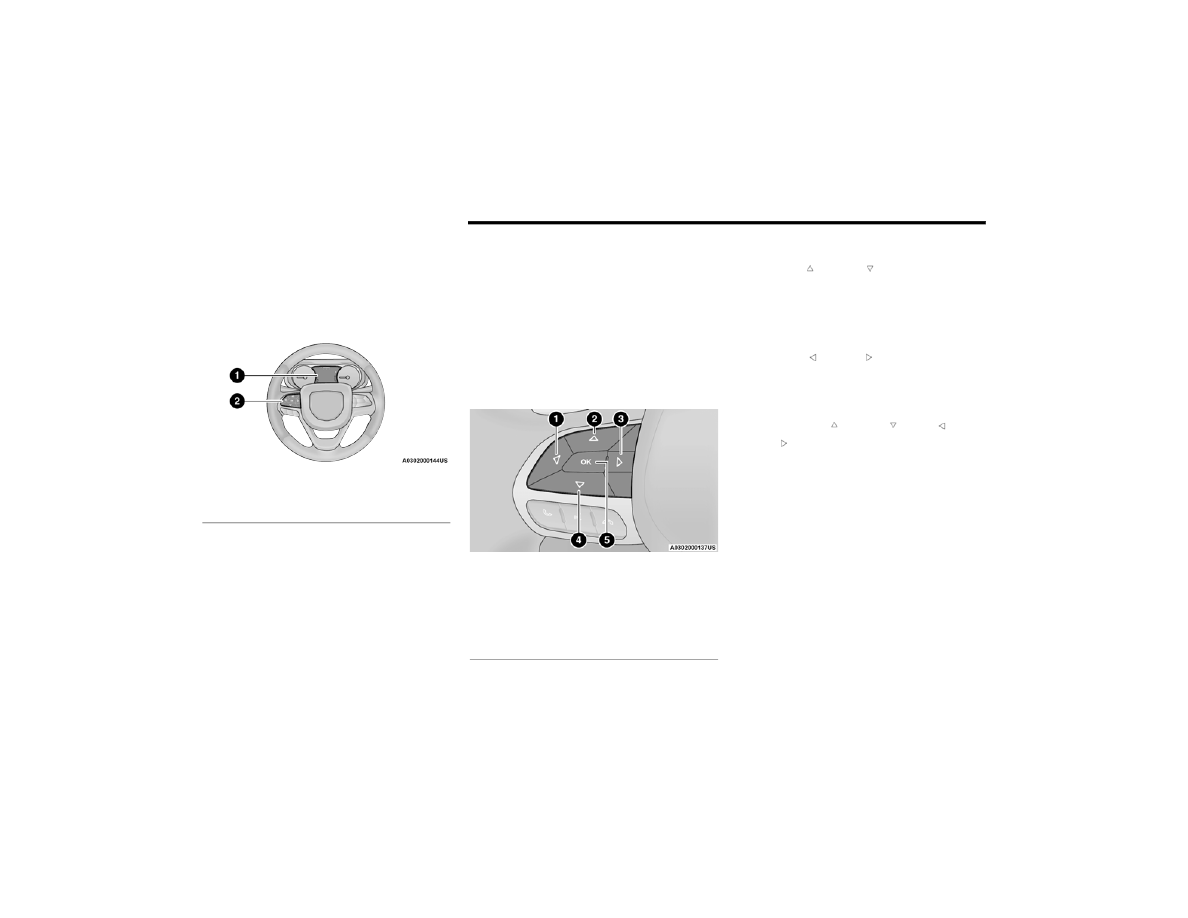

The instrument cluster display features an

interactive display which is located in the

instrument cluster.

Instrument Cluster Display Location And Controls

This system conveniently allows the driver to select

a variety of useful information by pushing the

arrow buttons located on the left side of the

steering wheel. The instrument cluster display

menu items consist of the following:



Speedometer



Vehicle Info



Performance — If Equipped



Driver Assist — If Equipped



Fuel Economy



Trip



Audio



Messages



Screen Setup

The system allows the driver to select information

by pushing the following buttons mounted on the

steering wheel:

Instrument Cluster Display Controls

Up And Down Arrow Buttons:
Using the up or down arrow button allows

you to cycle through the Main Menu Items.
Changes the Main Screen area and Menu Title

area.
Left And Right Arrow Buttons:
Using the left or right arrow button allows

you to cycle through the submenu items of the

Main menu item.
NOTE:



Holding the up or down or left or
right arrow button will continuously loop

through the currently selected menu or options

presented on the screen.



Upon returning to a main menu, the last

submenu screen viewed within that main menu

will be displayed.

OK Button:
For Digital Speedometer:



Pushing the OK button changes units (mph or

km/h).

For Screen Setup:



OK button allows user to enter menu and

submenus.

1 – Instrument Cluster Display Screen
2 – Instrument Cluster Display Controls

1 — Left Arrow Button
2 — Up Arrow Button
3 — Right Arrow Button
4 — Down Arrow Button
5 — OK Button

GETTING TO KNOW YOUR INSTRUMENT PANEL



Within each submenu layer, the up and
down arrow buttons will allow the user to

select the item of interest.



Pushing the OK button makes the selection and

a confirmation screen will appear (returning the

user to the first page of the submenu).



Pushing the left arrow button will exit each

submenu layer and return to the main menu.

NGINE

IFE

ESET

Oil Change Required
Your vehicle is equipped with an engine oil change

indicator system. The “Oil Change Required”

message will display in the instrument cluster

display for five seconds after a single chime has

sounded, to indicate the next scheduled oil change

interval. The engine oil change indicator system is

duty cycle based, which means the engine oil

change interval may fluctuate, dependent upon

your personal driving style.
Unless reset, this message will continue to display

each time you place the ignition in the ON/RUN

position. To turn off the message temporarily, push

and release the OK or arrow buttons. To reset the

oil change indicator system (after performing the

scheduled maintenance), refer to the following

procedure.

Vehicles Equipped With Keyless Enter ’n Go™ —

Ignition
Use the steering wheel instrument cluster display

controls for the following procedure(s):
1. Without pressing the brake pedal, push the

ENGINE START/STOP button and place the

ignition in the ON/RUN position (do not start

the engine).

2. Push and release the down arrow button to

scroll downward through the main menu to

“Vehicle Info.”

3. Push and release the right arrow button to

access the ”Oil Life” screen.

4. Push and hold the OK button to reset oil life. If

conditions are met, the gauge and numeric

display will update to show 100%. If conditions

are not met a pop-up message of "To reset oil

life engine must be off with ignition in run” will

be displayed (for five seconds), and the user

will remain at the Oil Life screen.

5. Push and release the up or down arrow

button to exit the submenu screen.

NOTE:

If the indicator message illuminates when you start

the vehicle, the oil change indicator system did not

reset. If necessary, repeat this procedure.

Secondary Method Of Resetting Engine Oil Life
1. Without pressing the brake pedal, push the

ENGINE START/STOP button and place the

ignition to the ON/RUN position (do not start

the engine).

2. Fully press the accelerator pedal, slowly, three

times within ten seconds.

3. Without pushing the brake pedal, push the

ENGINE START/STOP button once to return the

ignition to the OFF position.

NOTE:

If the indicator message illuminates when you start

the vehicle, the oil change indicator system did not

reset. If necessary, repeat this procedure.

ERFORMANCE

HIFT

NDICATOR

(PSI) —

QUIPPED

The PSI is enabled on vehicles with manual

transmission, or when a vehicle with automatic

transmission is in manual shift mode. The PSI

provides the driver with a visual indication within

the instrument cluster display when the driver

configured gear shift point has been reached and

the driver is still accelerating. This indication

notifies the driver to change gear corresponding to

the configured RPMs in the head unit.

GETTING TO KNOW YOUR INSTRUMENT PANEL

NSTRUMENT

LUSTER

ISPLAY

ELECTABLE

ENU

TEMS

Push and release the up or down arrow

button until the desired Selectable Menu item is

displayed in the instrument cluster display.
Follow the Menu or submenu prompts as desired.

Speedometer

Push and release the up or down arrow

button until the speedometer menu is displayed in

the instrument cluster display. Push and release

the OK button to toggle units (km/h or mph) of the

speedometer.

Vehicle Info

Push and release the up or down arrow

button until the “Vehicle Info” menu is displayed in

the instrument cluster display. Push and release
the right or left arrow button to scroll

through the submenus items of “Vehicle Info.”

Follow the directional prompts to access or reset

any of the following “Vehicle Info” submenu items:



Tire Pressure Monitor



Coolant Temperature



Trans Temperature



Oil Temperature



Oil Pressure



Oil Life



Battery Voltage



Intake Air Temperature — If Equipped



Engine Torque — If Equipped



Engine Power — If Equipped



Air-Fuel Ratio — If Equipped

Driver Assist — If Equipped

The Driver Assist menu displays the status of the

ACC and LaneSense systems.
Push and release the up or down arrow

button until the Driver Assist menu is displayed in

the instrument cluster display.
Adaptive Cruise Control (ACC) Feature
The instrument cluster displays the current ACC

system settings. The information displayed

depends on ACC system status.
Push the ACC on/off button (located on the

steering wheel) until one of the following displays

in the instrument cluster display:
Adaptive Cruise Control Off
When ACC is deactivated, the display will read

“Adaptive Cruise Control Off.”
Adaptive Cruise Control Ready
When ACC is activated but the vehicle speed

setting has not been selected, the display will read

“Adaptive Cruise Control Ready.”

Push the SET + or the SET- button (located on the

steering wheel) and the following will display in the

instrument cluster display:
ACC SET
When ACC is set, the set speed will display in the

instrument cluster.
The ACC screen may display once again if any ACC

activity occurs, which may include any of the

following:



Distance Setting Change



System Cancel



Driver Override



System Off



ACC Proximity Warning



ACC Unavailable Warning

The instrument cluster display will return to the last

display selected after five seconds of no ACC

display activity

page 96.

LaneSense — If Equipped
The instrument cluster displays the current

LaneSense system settings. The information

displayed depends on LaneSense system status

and the conditions that need to be met

page 109.

Content .. 2 3 4 5 ..
