Dodge Charger (2022 year). Manual in english

GETTING TO KNOW YOUR VEHICLE



The doors are manually locked using the door

lock knobs.



Three attempts are made to lock the doors

using the door panel switch and then the doors

are closed.



There is a valid Passive Entry key fob outside the

vehicle within 5 ft. (1.5 m) of a Passive Entry

door handle.

To Lock The Vehicle’s Doors And Trunk
With one of the vehicle’s Passive Entry key fobs

within 5 ft (1.5 m) of either front door handle,

pushing the Passive Entry lock button will lock the

vehicle.

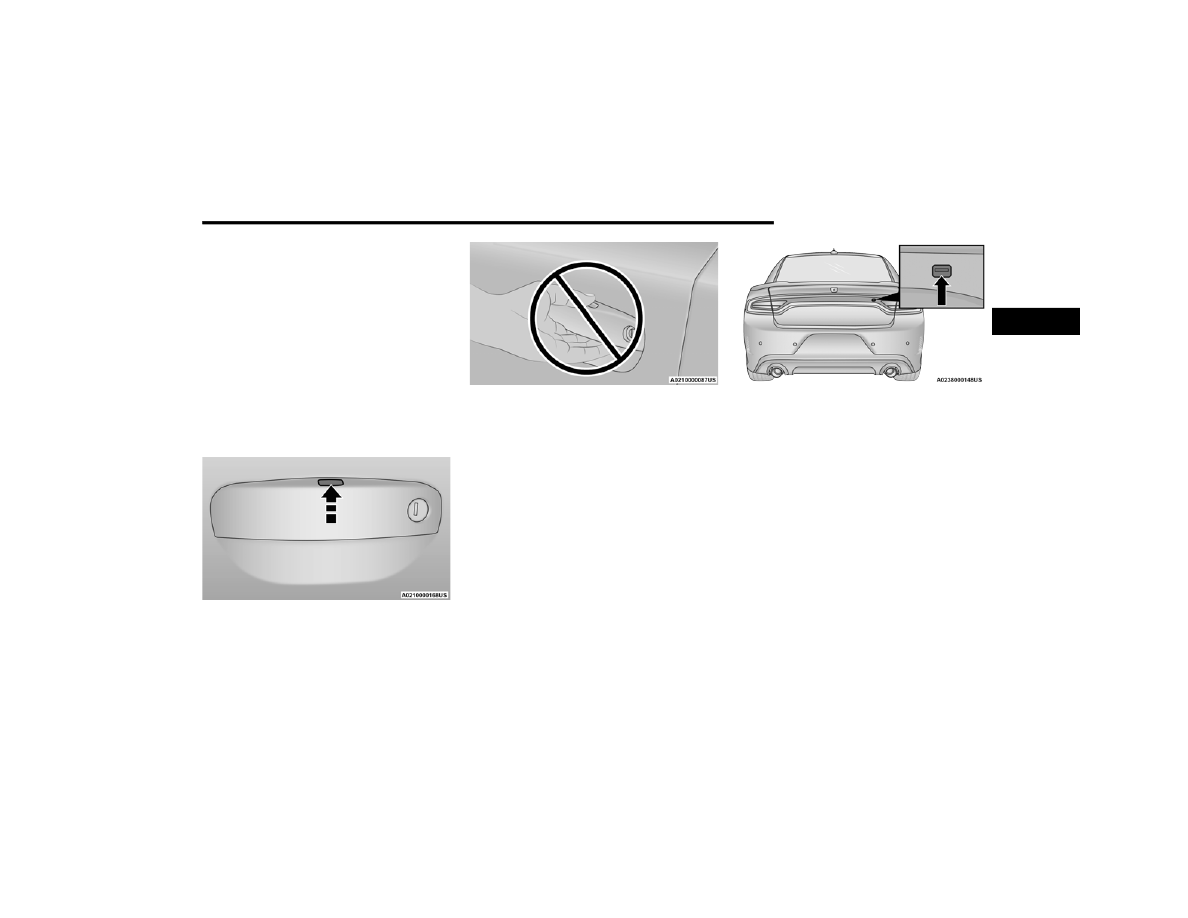

Push The Door Handle Button To Lock

NOTE:

DO NOT grab the door handle, when pushing the

door handle lock button. This could unlock the

door(s).

Do NOT Grab The Door Handle When Locking

NOTE:



After pushing the door handle button, you must

wait two seconds before you can lock or unlock

the doors, using either Passive Entry door

handle. This is done to allow you to check if the

vehicle is locked by pulling the door handle

without the vehicle unlocking.



If Passive Entry is disabled using the Uconnect

Settings, the key protection described in

"Frequency Operated Button Integrated Key

(FOBIK-Safe)" remains active/functional.



The Passive Entry system will not operate if the

key fob battery is depleted.

To Unlock/Enter The Trunk
With a valid Passive Entry key fob within 5 ft

(1.5 m) of the deck lid, push the button located on

the right side of the deck lid.

Trunk Passive Entry Button

NOTE:

If you inadvertently leave your vehicle's Passive

Entry key fob in the trunk and try to close the deck

lid, the deck lid will automatically unlatch, unless

another one of the vehicle’s Passive Entry key fobs

is outside the vehicle and within 5 ft (1.5 m) of the

deck lid

page 296.

UTOMATIC

NLOCK

OORS

XIT

The doors will unlock automatically on vehicles

with power door locks after the following sequence

of actions:
1. The Automatic Unlock Doors On Exit feature is

enabled within Uconnect Settings

page 123.

2. All doors are closed.

GETTING TO KNOW YOUR VEHICLE

3. The gear selector was not in PARK, then is

placed in PARK.

4. The driver door is opened.
5. The doors were not previously unlocked.

UTOMATIC

OOR

OCKS

—

QUIPPED

The auto door lock feature default condition is

enabled. When enabled, the door locks will lock

automatically when the vehicle's speed exceeds

15 mph (24 km/h). The auto door lock feature is

enabled/disabled within Uconnect Settings

page 123.

HILD

-P

ROTECTION

OOR

OCK

YSTEM

— R

EAR

OORS

To provide a safer environment for small children

riding in the rear seats, the rear doors are

equipped with a Child-Protection Door Lock

system.
To use the system, open each rear door, use a flat

blade screwdriver (or emergency key) and rotate

the dial to the lock or unlock position. When the

system on a door is engaged, that door can only be

opened by using the outside door handle even if

the inside door lock is in the unlocked position.

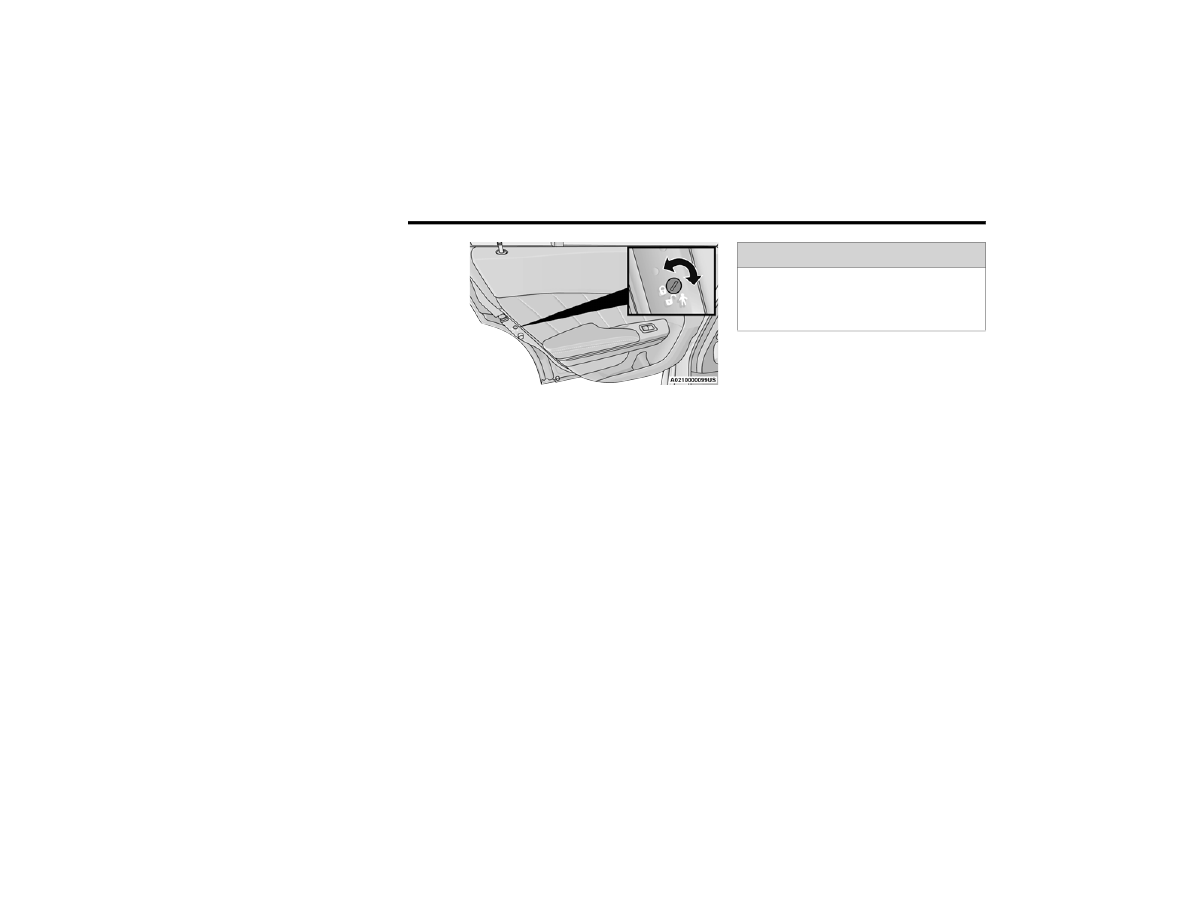

Child-Protection Door Lock Function

NOTE:



When the Child-Protection Door Lock system is

engaged, the door can be opened only by using

the outside door handle even though the inside

door lock is in the unlocked position.



After disengaging the Child-Protection Door

Lock system, always test the door from the

inside to make certain it is in the unlocked posi

tion.



After engaging the Child-Protection Door Lock

system, always test the door from the inside to

make certain it is in the locked position.



For emergency exit with the system engaged,

pull up on the door lock knob (unlocked posi

tion), roll down the window, and open the door

with the outside door handle.

NOTE:

Always use this device when carrying children.

After engaging the child lock on both rear doors,

check for effective engagement by trying to open a

door with the internal handle. Once the

Child-Protection Door Lock system is engaged, it is

impossible to open the doors from inside the

vehicle. Before getting out of the vehicle, be sure to

check that there is no one left inside.

STEERING WHEEL

ANUAL

ILT

ELESCOPING

TEERING

OLUMN

— I

QUIPPED

This feature allows you to tilt the steering column

upward or downward. It also allows you to lengthen

or shorten the steering column. The tilt/

telescoping control is located below the steering

wheel at the end of the steering column.

WARNING!

Avoid trapping anyone in a vehicle in a collision.

Remember that the rear doors can only be

opened from the outside with the

Child-Protection locks are engaged (locked).

GETTING TO KNOW YOUR VEHICLE

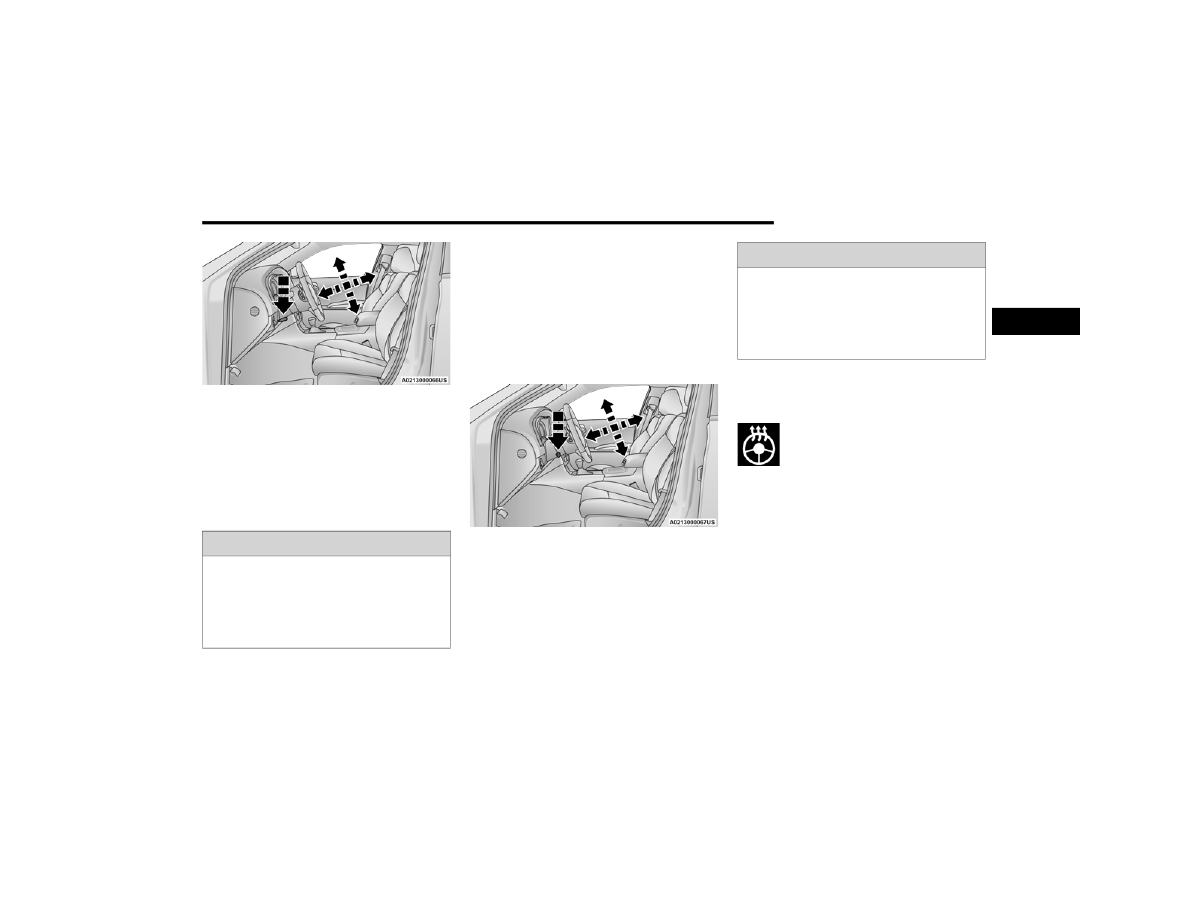

Manual Tilt/Telescoping Control Handle

To unlock the steering column, push the control

downward (toward the floor). To tilt the steering

column, move the steering wheel upward or

downward as desired. To lengthen or shorten the

steering column, pull the steering wheel outward

or push it inward as desired. To lock the steering

column in position, push the control upward until

fully engaged.

OWER

ILT

ELESCOPING

TEERING

OLUMN

— I

QUIPPED

This feature allows you to tilt the steering column

upward or downward. It also allows you to lengthen

or shorten the steering column. The power tilt/

telescoping steering column control is located

below the multifunction lever on the steering

column.

Power Tilt/Telescoping Switch

Use the four-way control to adjust the steering

column.
NOTE:

For vehicles equipped with Driver Memory

Settings, use the key fob or the memory switch on

the driver's door trim panel to return the tilt/tele

scopic steering column to saved positions

page 29.

EATED

TEERING

HEEL

—

QUIPPED

The steering wheel contains a heating

element that helps warm your hands in

cold weather. The heated steering wheel

has only one temperature setting. Once

the heated steering wheel has been turned on, it

will stay on until the operator turns it off. The

heated steering wheel may not turn on when it is

already warm.
The heated steering wheel button is located on the

center of the instrument panel below the radio

screen, and within the Climate or Controls screen

of the touchscreen.



Press the heated steering wheel button once to

turn the heating element on.



Press the heated steering wheel button a

second time to turn the heating element off.

WARNING!

Do not adjust the steering column while driving.

Adjusting the steering column while driving, or

driving with the steering column unlocked, could

cause the driver to lose control of the vehicle.

Failure to follow this warning may result in

serious injury or death.

WARNING!

Do not adjust the steering column while driving.

Adjusting the steering column while driving, or

driving with the steering column unlocked, could

cause the driver to lose control of the vehicle.

Failure to follow this warning may result in

serious injury or death.

GETTING TO KNOW YOUR VEHICLE

NOTE:

The engine must be running for the heated

steering wheel to operate.
For information on use with the Remote Start

system, see

page 19.

UCONNECT VOICE RECOGNITION

NTRODUCING

OICE

ECOGNITION

Start using Uconnect Voice Recognition with these

helpful quick tips. It provides the key Voice

Commands and tips you need to know to control

your vehicle’s Voice Recognition (VR) system.

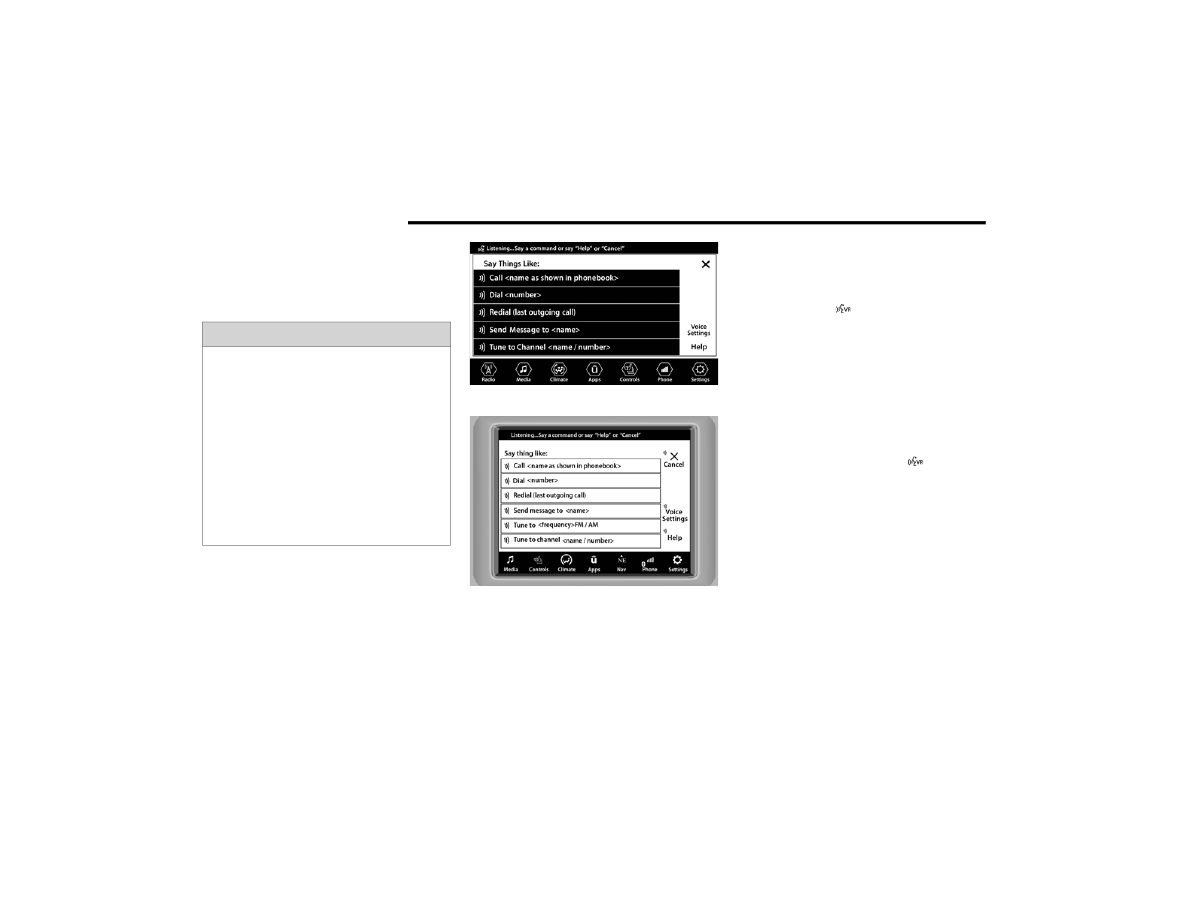

Uconnect 4 With 7-inch Display

Uconnect 4C NAV With 8.4-inch Display

If you see the NAV icon on the bottom bar or in the

Apps menus of your 8.4-inch touchscreen, you

have the Uconnect 4C NAV system. If not, you have

a Uconnect 4C with 8.4-inch display system.

ASIC

OICE

OMMANDS

The following Voice Commands can be given at any

point while using your Uconnect system.
Push the VR button . After the beep, say:



“Cancel” to stop a current voice session



“Help” to hear a list of suggested Voice

Commands



“Repeat” to listen to the system prompts again

Notice the visual cues that inform you of your VR

system’s status. Cues appear on the touchscreen.

TARTED

The Voice Recognition (VR) button is used to

activate/deactivate your Voice Recognition

system.
Helpful hints for using Voice Recognition:



Reduce background noise. Wind and passenger

conversations are examples of noise that may

impact recognition.



Speak clearly at a normal pace and volume

while facing straight ahead.



Each time you give a Voice Command, you must

first push the Voice Recognition (VR) button,

wait until after the beep, then say your Voice

Command.

WARNING!



Persons who are unable to feel pain to the

skin because of advanced age, chronic illness,

diabetes, spinal cord injury, medication,

alcohol use, exhaustion, or other physical

conditions must exercise care when using the

steering wheel heater. It may cause burns

even at low temperatures, especially if used

for long periods.



Do not place anything on the steering wheel

that insulates against heat, such as a blanket

or steering wheel covers of any type and mate

rial. This may cause the steering wheel heater

to overheat.

GETTING TO KNOW YOUR VEHICLE



You can interrupt the help message or system

prompts by pushing the VR button and saying a

Voice Command from the current category.

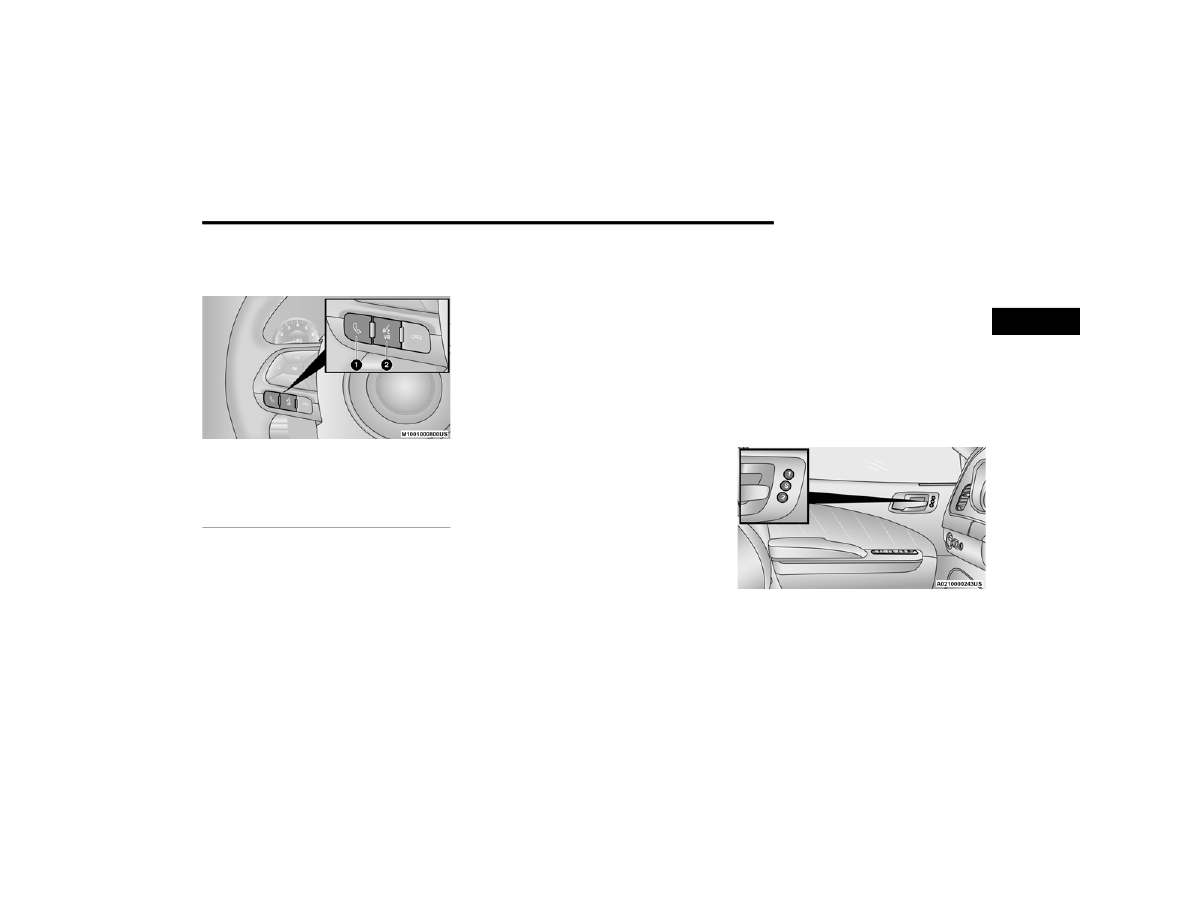

Uconnect Voice Command Buttons

DDITIONAL

NFORMATION

Uconnect are registered trademarks and Mopar

Owner Connect is a trademark of FCA US LLC.

SiriusXM® and all related marks and logos are

trademarks of SiriusXM® Radio Inc.

page 296.

Uconnect System Support:



US residents visit

www.DriveUconnect.com or

call: 1-877-855-8400 (24 hours a day 7 days a

week)



Canadian residents visit

www.DriveUcon

nect.ca or call: 1-800-465-2001 (English) or

1-800-387-9983 (French)

SiriusXM Guardian™ services support:



US residents visit

www.driveuconnect.com/

sirius-xm-guardian or call: 1-844-796-4827



Canadian residents visit

https://www.driveu

connect.ca/en/sirius-xm-guardian or call:

1-877-324-9091

DRIVER MEMORY SETTINGS — IF EQUIPPED

This feature allows the driver to save up to two

different memory profiles for easy recall through a

memory switch. Each memory profile saves

desired position settings for the following features:



Driver seat



Easy Entry/Exit seat (if equipped)



Side mirrors



Power tilt/telescoping steering column (if

equipped)



A set of desired radio station presets

NOTE:



Your vehicle is equipped with two key fobs, each

can be linked to either memory position 1 or 2.



Be sure to program the radio presets prior to

programming the memory settings.

The memory settings switch is located on the

driver’s door trim panel. The switch consists of

three buttons:



The set (S) button, which is used to activate the

memory save function.



The (1) and (2) buttons which are used to recall

either of two saved memory profiles.

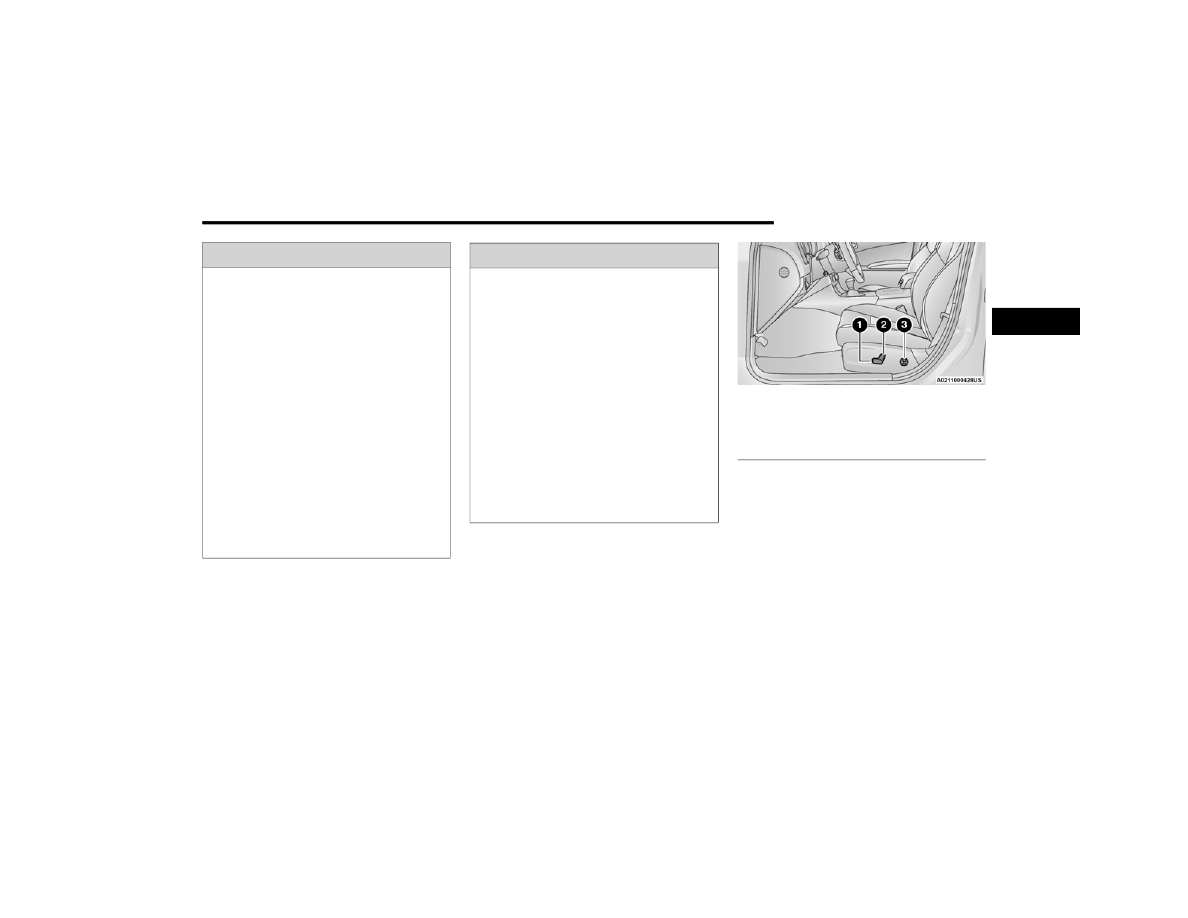

Memory Setting Switch

1 — Push To Start Or Answer A Phone Call And

Send Or Receive A Text
2 — Push The Voice Recognition Button To Begin

Radio, Media, Navigation And Climate Functions

GETTING TO KNOW YOUR VEHICLE

ROGRAMMING

EMORY

EATURE

To create a new memory profile, perform the

following:
NOTE:

Saving a new memory profile will erase the

selected profile from memory.
1. Place the vehicle’s ignition in the ON/RUN

position (do not start the engine).

2. Adjust all memory profile settings to desired

preferences (i.e., seat, side mirror, power tilt

and telescopic steering column [if equipped],

and radio station presets).

3. Push and release the set (S) button on the

memory switch, and then push the desired

memory button (1 or 2) within five seconds.

The instrument cluster display will display

which memory position has been set.

NOTE:

Memory profiles can be set without the vehicle in

PARK, but the vehicle must be in PARK to recall a

memory profile.

INKING

NLINKING

EMORY

Your key fobs can be programmed to recall one of

two saved memory profiles.
NOTE:

Before programming your key fobs you must select

the “Memory Linked To Fob” feature through the

Uconnect system

page 123.

To program your key fobs, perform the following:
1. Place the vehicle’s ignition in the OFF

position.

2. Select a desired memory profile, 1 or 2.
3. Once the profile has been recalled, push and

release the set (S) button on the memory

switch.

4. Within five seconds, push and release button

(1) or (2) accordingly. “Memory Profile Set” (1

or 2) will display in the instrument cluster.

5. Push and release the lock button on the key

fob within 10 seconds.

NOTE:

Your key fob can be unlinked from your memory

settings by pushing the set (S) button, followed by

pushing the unlock button on the key fob within 10

seconds.

EMORY

OSITION

ECALL

NOTE:

If a recall is attempted when the vehicle is not in

PARK, a message will be displayed in the

instrument cluster display.
To recall the memory settings for driver one or two,

push the desired memory button number (1 or 2)

or the unlock button on the key fob linked to the

desired memory position.
A recall can be canceled by pushing any of the

memory buttons (S, 1, or 2) during a recall. When

a recall is canceled, the driver seat will stop

moving. A delay of one second will occur before

another recall can be selected.
NOTE:

If the vehicle is equipped with Passive Entry, the

memory settings are recalled when using Passive

Entry to unlock the driver's door with a linked key

fob.

GETTING TO KNOW YOUR VEHICLE

(Continued)

SEATS

Seats are a part of the Occupant Restraint system

of the vehicle.

ANUAL

DJUSTMENT

RONT

EATS

) —

QUIPPED

Manual Front Seat Forward/Rearward

Adjustment

Some models may be equipped with a manual

front passenger seat. The seat can be adjusted

forward or rearward by using a bar located by the

front of the seat cushion, near the floor.

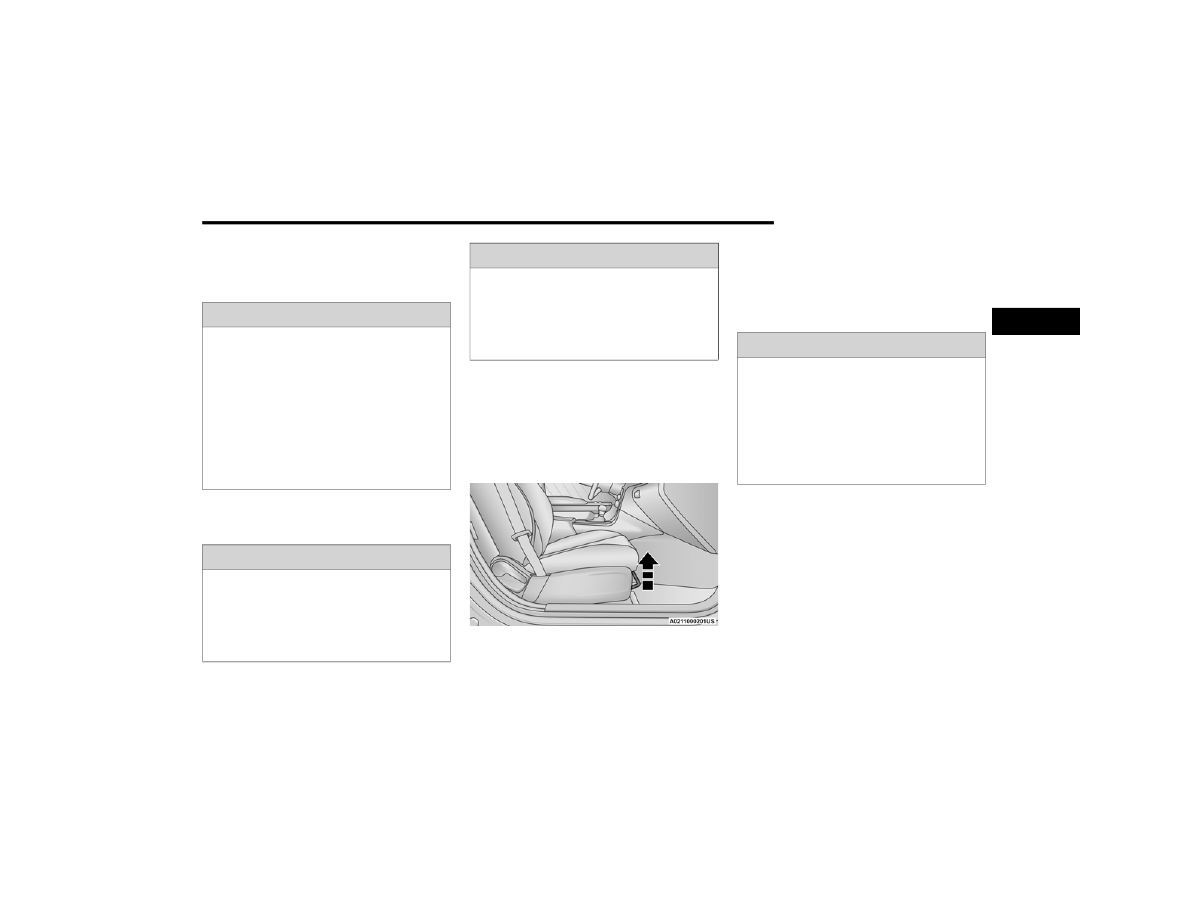

Manual Seat Adjusting Bar

While sitting in the seat, lift up on the bar located

under the seat cushion and move the seat forward

or rearward. Release the bar once you have

reached the desired position. Then, using body

pressure, move forward and rearward on the seat

to be sure that the seat adjusters have latched.

WARNING!



It is dangerous to ride in a cargo area, inside

or outside of a vehicle. In a collision, people

riding in these areas are more likely to be seri

ously injured or killed.



Do not allow people to ride in any area of your

vehicle that is not equipped with seats and seat

belts. In a collision, people riding in these areas

are more likely to be seriously injured or killed.



Be sure everyone in your vehicle is in a seat

and using a seat belt properly.

WARNING!



Adjusting a seat while the vehicle is moving is

dangerous. The sudden movement of the seat

could cause you to lose control. The seat belt

might not be adjusted properly and you could

be injured. Adjust the seat only while the

vehicle is parked.



Do not ride with the seatback reclined so that

the shoulder belt is no longer resting against

your chest. In a collision you could slide under

the seat belt and be seriously or even fatally

injured. Use the recliner only when the vehicle

is parked.

WARNING!



Adjusting a seat while driving may be

dangerous. Moving a seat while driving could

result in loss of control which could cause a

collision and serious injury or death.



Seats should be adjusted before fastening the

seat belts and while the vehicle is parked.

Serious injury or death could result from a

poorly adjusted seat belt.

GETTING TO KNOW YOUR VEHICLE

Manual Front Seat Recline

To adjust the seatback, lift the lever located on the

outboard side of the seat, lean back to the desired

position and release the lever. To return the

seatback, lift the lever, lean forward and release

the lever.

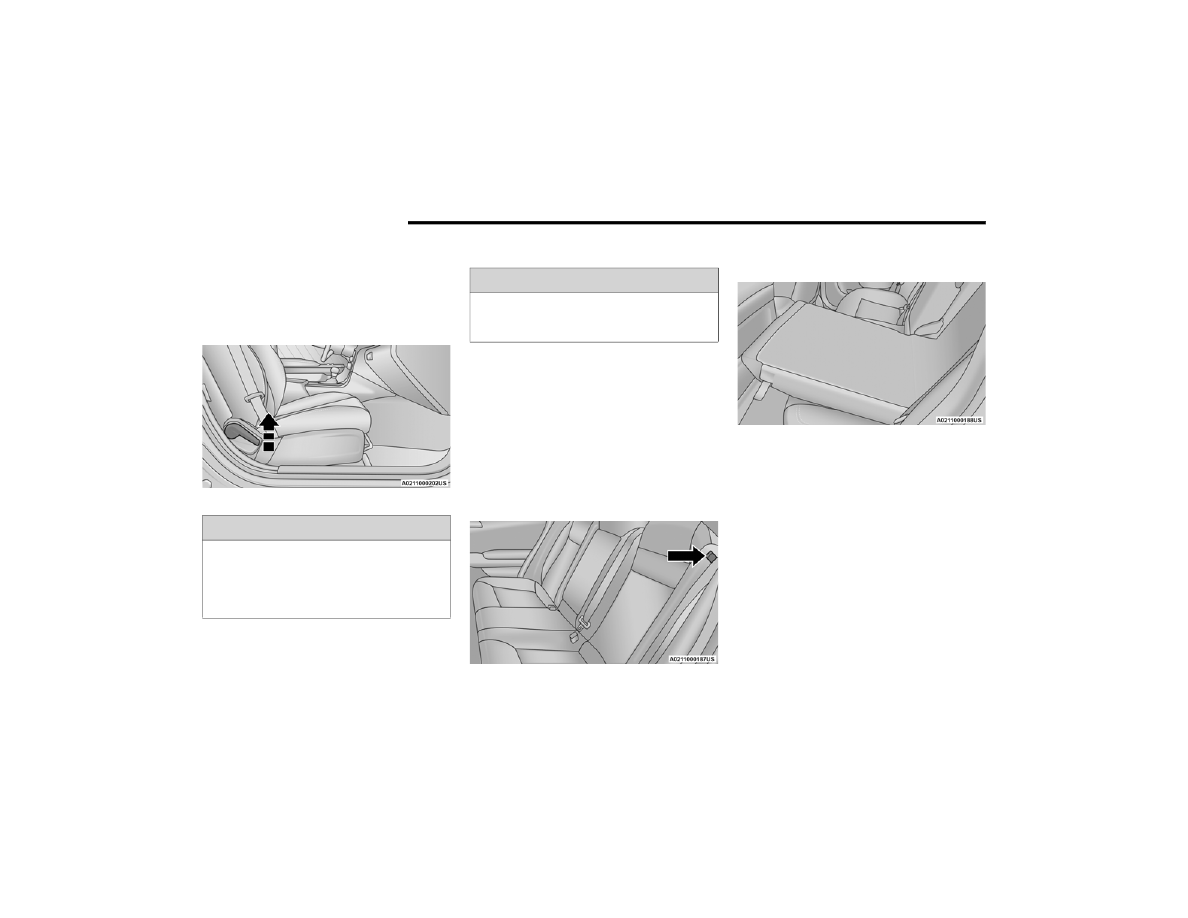

Manual Recline Lever

ANUAL

DJUSTMENT

EAR

EATS

)

Folding Rear Seat

The 60/40 split-folding rear seatbacks can be

folded forward to provide an additional storage

area. When the seats are folded down, they

provide a continuous, nearly-flat extension of the

trunk load floor.
To fold the rear seatback, pull on the loops located

on the upper seatback.
NOTE:

These loops can be tucked away when not in use.

Rear Seatback Loop

After releasing the seatback, it can be folded

forward.

Folded Rear Seatback

NOTE:

You may experience deformation in the seat

cushion from the seat belt buckles if the seats are

left folded for an extended period of time. This is

normal and by simply unfolding the seats to the

open position, over time the seat cushion will

return to its normal shape.
When the seatback is unfolded into the upright

position, make sure it is latched by strongly pulling

on the top of the seatback above the seat strap.

WARNING!

Do not ride with the seatback reclined so that

the shoulder belt is no longer resting against

your chest. In a collision you could slide under

the seat belt, which could result in serious injury

or death.

WARNING!

Do not pile luggage or cargo higher than the top of

the seatback. This could impair visibility or become a

dangerous projectile in a sudden stop or collision.

GETTING TO KNOW YOUR VEHICLE

(Continued)

OWER

DJUSTMENT

RONT

EATS

) —

QUIPPED

Some models may be equipped with eight-way

power driver and front passenger seats. The power

seat switches are located on the outboard side of

the seat. There are two switches that control the

movement of the seat cushion and the seatback.

Power Seat Switches

Adjusting The Seat Forward Or Rearward

The seat can be adjusted both forward and

rearward by using the power seat switch. The seat

will move in the direction of the switch. Release the

switch when the desired position has been

reached.

Adjusting The Seat Up Or Down

The height of the seats can be adjusted up or down

by using the power seat switch. The seat will move

in the direction of the switch. Release the switch

when the desired position has been reached.

WARNING!



Be certain that the seatback is securely

locked into position. If the seatback is not

securely locked into position, the seat will not

provide the proper stability for child seats

and/or passengers. An improperly latched

seat could cause serious injury.



The cargo area in the rear of the vehicle (with

the rear seatbacks in the locked-up or folded

down position) should not be used as a play

area by children when the vehicle is in motion.

They could be seriously injured in a collision.

Children should be seated and using the

proper restraint system.



To help protect against personal injury,

passengers should not be seated in the rear

cargo area. The rear cargo space is intended

for load carrying purposes only, not for

passengers, who should sit in seats and use

seat belts.

The weight and position of cargo and

passengers can change the vehicle center of

gravity and vehicle handling. To avoid loss of

control resulting in personal injury, follow these

guidelines for loading your vehicle:



Always place cargo evenly on the cargo floor.

Put heavier objects as low and as far forward

as possible.



Place as much cargo as possible in front of the

rear axle. Too much weight or improperly

placed weight over or behind the rear axle can

cause the rear of the vehicle to sway.



Do not pile luggage or cargo higher than the

top of the seatback. This could impair visibility

or become a dangerous projectile in a sudden

stop or collision.

WARNING!

1 — Seat Control
2 — Seatback Control
3 — Power Lumbar

GETTING TO KNOW YOUR VEHICLE

(Continued)

Tilting The Seat Up Or Down

The angle of the seat cushion can be adjusted up

or down using the power seat switch. The front of

the seat cushion will move in the direction of the

switch. Release the switch when the desired

position has been reached.

Reclining The Seatback

The angle of the seatback can be adjusted forward

or rearward by using the power seat switch. The

seat will move in the direction of the switch.

Release the switch when the desired position is

reached.

Power Lumbar — If Equipped

Vehicles equipped with power driver or passenger

seats may also be equipped with power lumbar.

The power lumbar switch is located on the

outboard side of the power seat. Push the switch

forward or rearward to increase or decrease the

lumbar support.

Easy Entry/Exit Seat — If Equipped

This feature provides automatic driver seat

positioning to enhance driver mobility when

entering and exiting the vehicle.
The distance the driver seat moves depends on

where you have the driver seat positioned when

you place the vehicle’s ignition in the OFF position.



When you place the vehicle’s ignition in the OFF

position, the driver seat will move about 2.4 inches

(60 mm) rearward if the driver seat position is

greater than or equal to 2.7 inches (67.7 mm)

forward of the rear stop. The seat will return to its

previously set position when you place the

vehicle’s ignition in the ACC or RUN position.



The Easy Entry/Easy Exit feature is disabled

when the driver seat position is less than 0.9 of

an inch (22.7 mm) forward of the rear stop. At

this position, there is no benefit to the driver by

moving the seat for Easy Exit or Easy Entry.

When enabled in Uconnect Settings, Easy Entry

and Easy Exit positions are stored in each memory

setting profile

page 29.

NOTE:

The Easy Entry/Exit feature is enabled or disabled

through the programmable features in the

Uconnect system

page 123.

EATED

EATS

— I

QUIPPED

WARNING!



Adjusting a seat while driving may be

dangerous. Moving a seat while driving could

result in loss of control which could cause a

collision and serious injury or death.



Seats should be adjusted before fastening the

seat belts and while the vehicle is parked.

Serious injury or death could result from a

poorly adjusted seat belt.



Do not ride with the seatback reclined so that

the shoulder belt is no longer resting against

your chest. In a collision you could slide under

the seat belt, which could result in serious

injury or death.

CAUTION!

Do not place any article under a power seat or

impede its ability to move as it may cause

damage to the seat controls. Seat travel may

become limited if movement is stopped by an

obstruction in the seat’s path.

WARNING!



Persons who are unable to feel pain to the

skin because of advanced age, chronic illness,

diabetes, spinal cord injury, medication,

alcohol use, exhaustion or other physical

condition must exercise care when using the

seat heater. It may cause burns even at low

temperatures, especially if used for long

periods of time.

GETTING TO KNOW YOUR VEHICLE

Front Heated Seats

The front heated seats control buttons

are located within the Uconnect system.

You can gain access to the control

buttons through the climate screen and

the controls screen.
You can choose from HI, LO, or OFF heat settings.

The indicator arrows in the touchscreen buttons

indicate the level of heat in use. Two indicator

arrows will illuminate for HI, and one for LO.

Turning the heating elements off will return the

user to the radio screen.



Press the heated seat button once to turn the HI

setting on.



Press the heated seat button a second time to

turn the LO setting on.



Press the heated seat button a third time to turn

the heating elements off.

If the HI-level setting is selected, the system will

automatically switch to LO-level after

approximately 60 minutes of continuous

operation. At that time, the display will change

from HI to LO, indicating the change. The LO-level

setting will turn off automatically after

approximately 45 minutes.
NOTE:



Once a heat setting is selected, heat will be felt

within two to five minutes.



The engine must be running for the heated

seats to operate.

For information on use with the Remote Start

system, see

page 19.

Rear Heated Seats

On some models, the two rear outboard

seats may be equipped with heated

seats. There are two heated seat

switches that allow the rear passengers

to operate the seats independently. The heated

seat switches for each heater are located on the

rear of the center console.
You can choose from HI, LO, or OFF heat settings.

The indicator lights in each switch indicate the

level of heat in use. Two indicator lights will

illuminate for HI, one for LO, and none for off.



Push the switch once to turn the HI setting on.



Push the switch a second time to turn the LO

setting on.



Push the switch a third time to turn the heating

elements off.

If the HI-level setting is selected, the system will

automatically switch to LO-level after

approximately 60 minutes of continuous

operation. At that time, the number of illuminated

LEDs changes from two to one, indicating the

change. The LO-level setting will turn off

automatically after approximately 45 minutes.



Do not place anything on the seat or seatback

that insulates against heat, such as a blanket

or cushion. This may cause the seat heater to

overheat. Sitting in a seat that has been over

heated could cause serious burns due to the

increased surface temperature of the seat.

WARNING!



Persons who are unable to feel pain to the skin

because of advanced age, chronic illness,

diabetes, spinal cord injury, medication, alcohol

use, exhaustion or other physical condition

must exercise care when using the seat heater.

It may cause burns even at low temperatures,

especially if used for long periods of time.



Do not place anything on the seat or seatback

that insulates against heat, such as a blanket

or cushion. This may cause the seat heater to

overheat. Sitting in a seat that has been over

heated could cause serious burns due to the

increased surface temperature of the seat.

GETTING TO KNOW YOUR VEHICLE

NOTE:



Once a heat setting is selected, heat will be felt

within two to five minutes.



The engine must be running for the heated

seats to operate.

RONT

ENTILATED

EATS

—

QUIPPED

The ventilated seats are equipped with

fans that can be controlled through the

climate and control screen in the

Uconnect system. The fans operate at

two speeds, HI and LO.



Press the ventilated seat button once to choose

HI.



Press the ventilated seat button a second time

to choose LO.



Press the ventilated seat button a third time to

turn the ventilated seat off.

NOTE:

The engine must be running for the ventilated

seats to operate.
For information on use with the Remote Start

system, see

page 19.

EAD

ESTRAINTS

Head restraints are designed to reduce the risk of

injury by restricting head movement in the event of

a rear impact. Head restraints should be adjusted

so that the top of the head restraint is located

above the top of your ear.

NOTE:

Do not reverse the head restraints (making the

rear of the head restraint face forward) in an

attempt to gain additional clearance to the back of

your head.

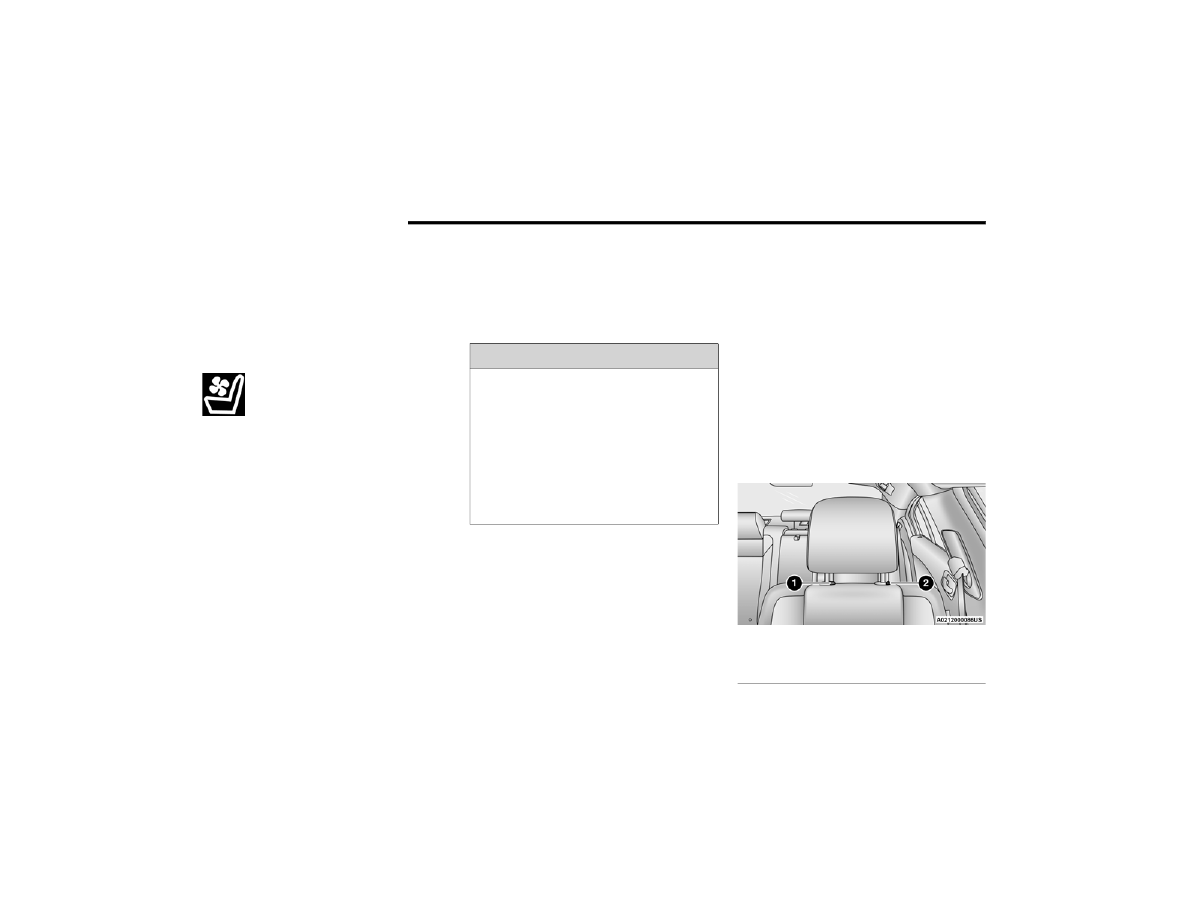

Reactive Head Restraints — Front Seats

The front driver and passenger seats are equipped

with Reactive Head Restraints (RHR). In the event

of a rear impact, the RHR will automatically extend

forward minimizing the gap between the back of

the occupant’s head and the RHR.
The RHR will automatically return to their normal

position following a rear impact. If the RHR do not

return to their normal position, see an authorized

dealer immediately.
To raise the head restraint, pull upward on the

head restraint. To lower the head restraint, push

the adjustment button located at the base of the

head restraint and push downward on the head

restraint.

Adjustment Button

WARNING!



All occupants, including the driver, should not

operate a vehicle or sit in a vehicle’s seat until

the head restraints are placed in their proper

positions in order to minimize the risk of neck

injury in the event of a crash.



Head restraints should never be adjusted

while the vehicle is in motion. Driving a vehicle

with the head restraints improperly adjusted

or removed could cause serious injury or

death in the event of a collision.

1 — Release Button
2 — Adjustment Button

GETTING TO KNOW YOUR VEHICLE

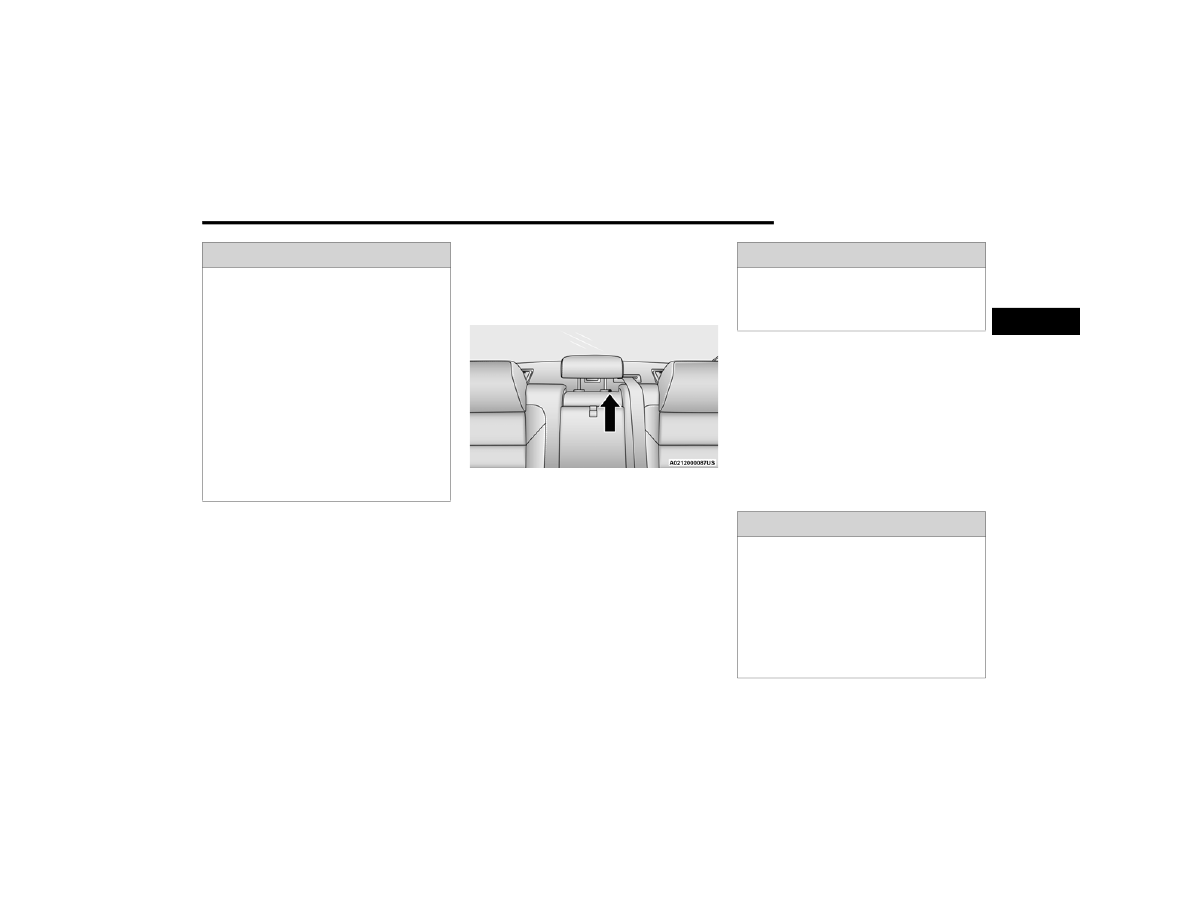

Rear Head Restraints

The center head restraint has two adjustable

positions: up or down. When the center seat is

being occupied, the head restraint should be in the

raised position. When there are no occupants in

the center seat, the head restraint can be lowered

for maximum visibility for the driver.

To raise the head restraint, pull upward on the

head restraint. To lower the head restraint, push

the adjustment button located at the base of the

head restraint and push downward on the head

restraint.

Adjustment Button

NOTE:



The head restraint should only be removed by

qualified technicians, for service purposes only.

If the center rear head restraint requires

removal, see an authorized dealer.



The outboard head restraints are not adjust

able.

Front Head Restraint Removal

To remove the head restraint, raise it up as far as

it can go. Then, push the adjustment button and

the release button at the base of each post while

pulling the head restraint up. To reinstall the head

restraint, put the head restraint posts into the

holes. Then, adjust it to the appropriate height.
NOTE:

Do not reposition the head restraint 180 degrees

to the incorrect position in an attempt to gain addi

tional clearance to the back of the head.

WARNING!



A loose head restraint thrown forward in a colli

sion or hard stop could cause serious injury or

death to occupants of the vehicle. Always

securely stow removed head restraints in a

location outside the occupant compartment.



ALL the head restraints MUST be reinstalled in

the vehicle to properly protect the occupants.

Follow the reinstallation instructions prior to

operating the vehicle or occupying a seat.



Do not place items over the top of the Reac

tive Head Restraint, such as coats, seat

covers or portable DVD players. These items

may interfere with the operation of the Reac

tive Head Restraint in the event of a collision

and could result in serious injury or death.

WARNING!

ALL the head restraints MUST be reinstalled in

the vehicle to properly protect the occupants.

Follow the reinstallation instructions prior to

operating the vehicle or occupying a seat.

WARNING!



A loose head restraint thrown forward in a colli

sion or hard stop could cause serious injury or

death to occupants of the vehicle. Always

securely stow removed head restraints in a

location outside the occupant compartment.



ALL the head restraints MUST be reinstalled in

the vehicle to properly protect the occupants.

Follow the reinstallation instructions prior to

operating the vehicle or occupying a seat.

GETTING TO KNOW YOUR VEHICLE

MIRRORS

NSIDE

EARVIEW

IRROR

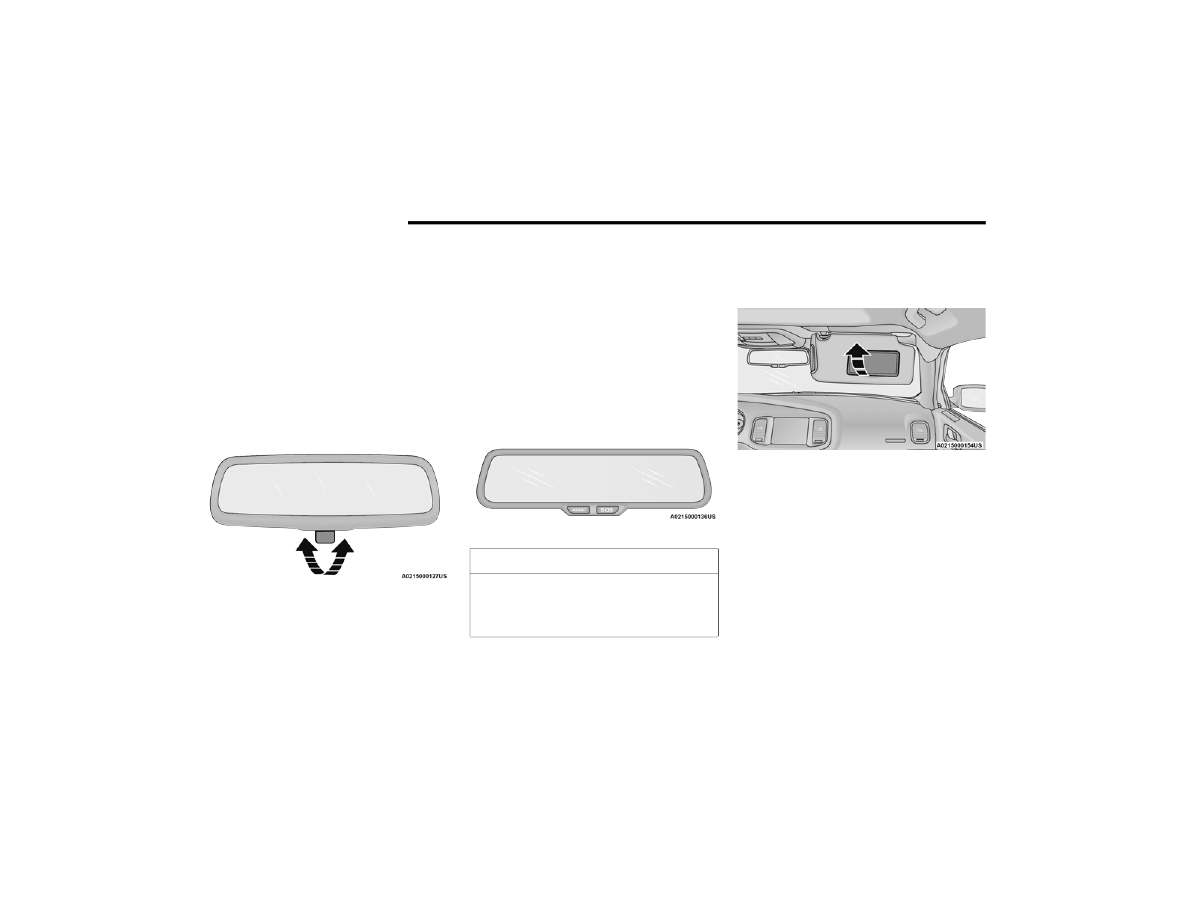

Manual Mirror— If Equipped

The rearview mirror can be adjusted up, down, left,

and right. The mirror should be adjusted to center

on the view through the rear window.
Headlight glare from vehicles behind you can be

reduced by moving the small control under the

mirror to the night position (toward the rear of the

vehicle). The mirror should be adjusted while set in

the day position (toward the windshield).

Adjusting Rearview Mirror

Automatic Dimming Mirror — If Equipped

The rearview mirror can be adjusted up, down, left,

and right. The mirror should be adjusted to center

on the view through the rear window.
This mirror automatically adjusts for headlight

glare from vehicles behind you.
NOTE:

The Automatic Dimming Mirror feature is disabled

when the vehicle is in REVERSE to improve the

driver’s rear view.
The Automatic Dimming feature can be turned on

or off through the Uconnect system

page 123.

Automatic Dimming Mirror

LLUMINATED

ANITY

IRRORS

To access an illuminated vanity mirror, flip down

one of the visors and lift the cover.

Illuminated Vanity Mirror

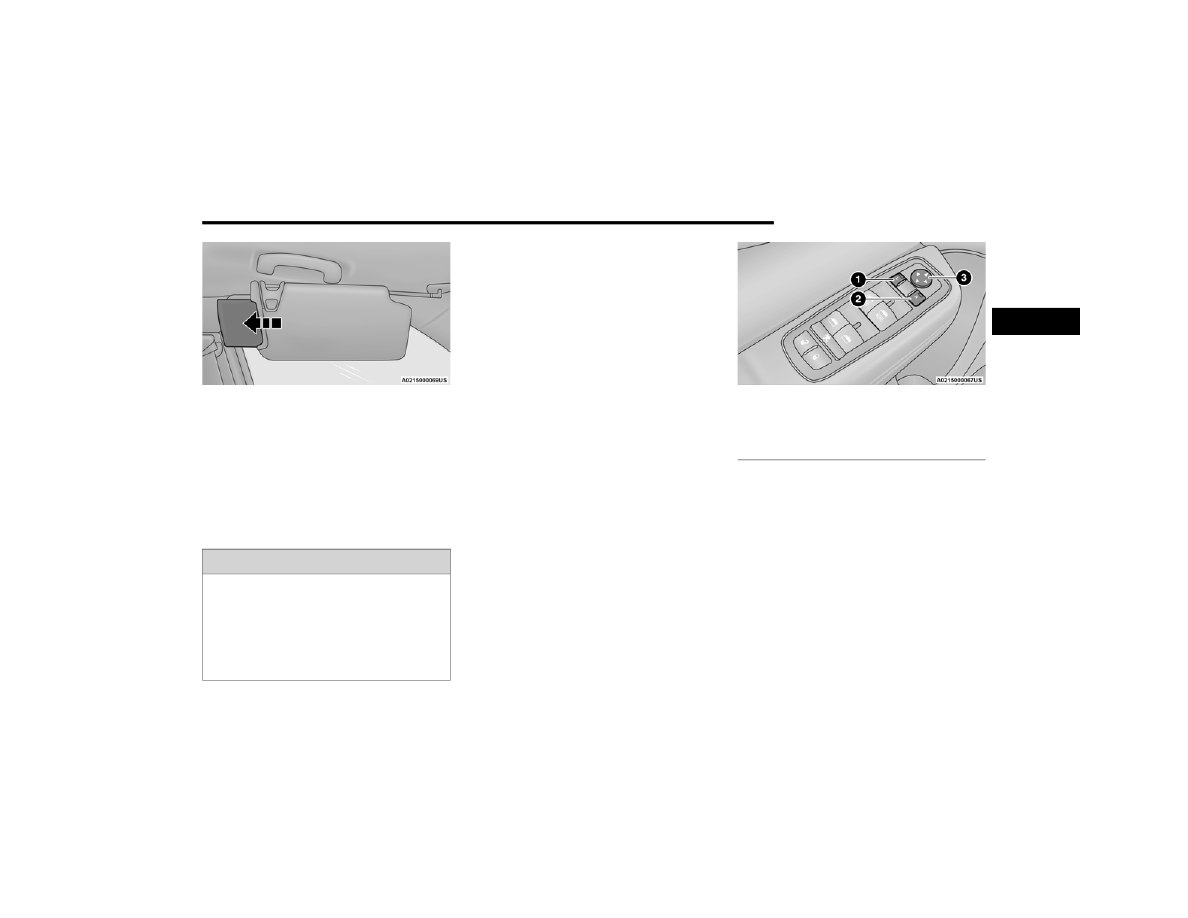

Sun Visor “Slide-On-Rod” Feature —

If Equipped

The sun visor “Slide-On-Rod” feature allows for

additional flexibility in positioning the sun visor to

block out the sun.
1. Fold down the sun visor.
2. Unclip the visor from the corner clip.
3. Pivot the sun visor toward the side window.
4. Extend the sun visor for additional sun

blockage.

CAUTION!

To avoid damage to the mirror during cleaning,

never spray any cleaning solution directly onto

the mirror. Apply the solution onto a clean cloth

and wipe the mirror clean.

GETTING TO KNOW YOUR VEHICLE

Slide-On-Rod Feature

NOTE:

The sun visor can also be extended while the sun

visor is against the windshield for additional sun

blockage through the front of the vehicle.

UTSIDE

IRRORS

The outside mirror(s) can be adjusted to the center

of the adjacent lane of traffic to achieve the

optimal view.

RIVER

UTSIDE

UTOMATIC

IMMING

IRROR

— I

QUIPPED

The driver’s outside mirror will automatically adjust

for glare from vehicles behind you. This feature is

controlled by the inside automatic dimming mirror

and will automatically adjust for headlight glare

when the inside mirror adjusts.

OWER

IRRORS

The power mirror switch is located on the driver's

side door trim panel.
The power mirror controls consist of mirror select

buttons and a four-way mirror control switch. To

adjust a mirror, push the mirror select button for

the mirror that you want to adjust. Using the mirror

control switch, push on any of the four arrows for

the direction that you want the mirror to move.

Power Mirror Control

Power mirror preselected positions can be

controlled by the optional Driver Memory Settings

feature

page 29.

WARNING!

Vehicles and other objects seen in an outside

convex mirror will look smaller and farther away

than they really are. Relying too much on side

convex mirrors could cause you to collide with

another vehicle or other object. Use your inside

mirror when judging the size or distance of a

vehicle seen in a side convex mirror.

1 — Left Mirror Selection
2 — Right Mirror Selection
3 — Mirror Direction Control

GETTING TO KNOW YOUR VEHICLE

EATED

IRRORS

— I

QUIPPED

These mirrors are heated to melt frost or

ice. This feature will be activated

whenever you turn on the rear window

defroster (if equipped)

page 51.

ILT

IDE

IRRORS

EVERSE

—

QUIPPED

This feature provides automatic outside mirror

positioning which will assist with the driver’s

ground visibility. The outside mirrors will move

slightly downward from the present position when

the vehicle is shifted into REVERSE. The outside

mirrors will then return to the original position

when the vehicle is shifted out of REVERSE. If the

vehicle is equipped with memory settings, this

feature will be linked to the programmable

settings.
NOTE:

The Tilt Side Mirrors In Reverse feature can be

turned on and off using the Uconnect system

page 123.

UNIVERSAL GARAGE DOOR OPENER

(HOMELINK®)

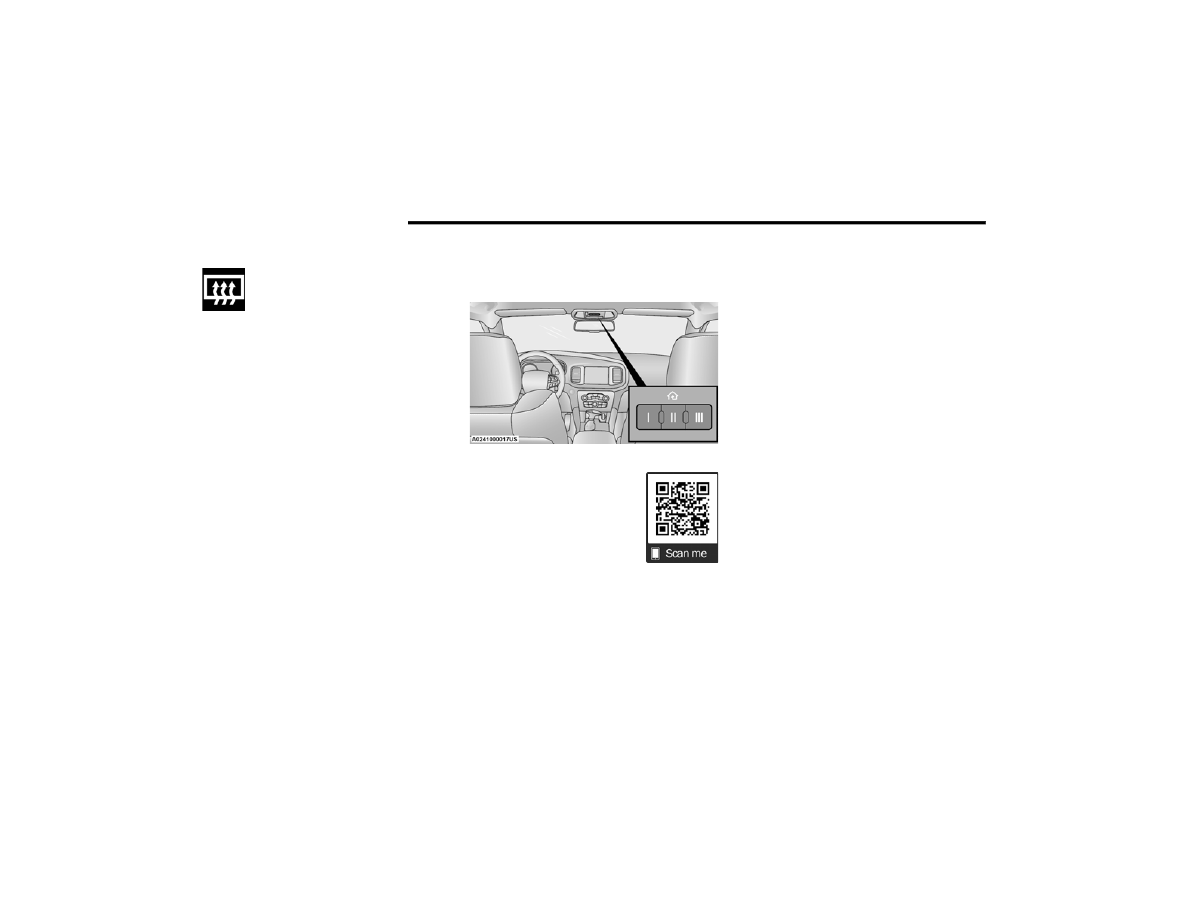

HomeLink® Buttons And Indicator Light

Use this QR code to access your

digital experience.



HomeLink® replaces up to

three hand-held transmitters

that operate devices such as

garage door openers, motor

ized gates, lighting, or home

security systems. The HomeLink® unit is



The HomeLink® buttons that are located in the

overhead console or sun visor designate the

three different HomeLink® channels.



To operate HomeLink®, push and release any

of the programmed HomeLink® buttons. These

buttons will activate the devices they are

programmed to with each press of the corre

sponding HomeLink® button.



The HomeLink® indicator light is located above

the center button.

NOTE:

HomeLink® is disabled when the Vehicle Security

system is active

page 296.

EFORE

EGIN

ROGRAMMING

OME

INK

For efficient programming and accurate

transmission of the Radio Frequency (RF) signal, it

is recommended that a new battery be placed in

the hand-held transmitter of the device that is

being programmed to the HomeLink® system.

Make sure your hand-held transmitter is

programmed to activate the device you are trying

to program your HomeLink® button to.
Ensure that your vehicle is parked outside of the

garage before you begin programming.
It is recommended that you erase all the channels

of your HomeLink® before you use it for the first

time.

Dodge Charger (2022 year). Manual in english - page 2
