Please follow the table below for proper tire size, chain
type, and axle recommendations:

Vehicle

Axle Recommendations

Tire Sizes

Chain Class

1500 Models

Rear Only

P265/70R17

S Class

2500 Models

Rear Only

LT245/70R17E
LT265/70R18E
LT275/70R18E

U Class

2500 Power Wagon Mod-

els

Rear Only

LT285/70R17D

U Class

3500 (Single Rear Wheel)

Models

Rear Only

LT265/70R18E
LT275/70R18E

U Class

3500 (Dual Rear Wheel)

Models

Front/Rear

LT235/80R17E

U Class

668

STARTING AND OPERATING

WARNING!

Using tires of different size and type (M+S, Snow)
between front and rear axles can cause unpredictable
handling. You could lose control and have a collision.

CAUTION!

To avoid damage to your vehicle or tires, observe the
following precautions:
• Because of restricted traction device clearance be-

tween tires and other suspension components, it is
important that only traction devices in good condi-
tion are used. Broken devices can cause serious
damage. Stop the vehicle immediately if noise
occurs that could indicate device breakage. Remove
the damaged parts of the device before further use.

(Continued)

CAUTION! (Continued)

• Install device as tightly as possible and then re-

tighten after driving about ½ mile (0.8 km).

• Do not exceed 30 mph (48 km/h).

• Drive cautiously and avoid severe turns and large

bumps, especially with a loaded vehicle.

• Do not drive for a prolonged period on dry pave-

ment.

• Observe the traction device manufacturer’s instruc-

tions on the method of installation, operating
speed, and conditions for use. Always use the
suggested operating speed of the device manufac-
turer’s if it is less than 30 mph (48 km/h).

• Do not use traction devices on a compact spare tire.

STARTING AND OPERATING

669

TIRE ROTATION RECOMMENDATIONS

Tires on the front and rear axles of vehicles operate at
different loads and perform different steering, driving,
and braking functions. For these reasons, they wear at
unequal rates.

These effects can be reduced by timely rotation of tires.
The benefits of rotation are especially worthwhile with
aggressive tread designs such as those on all season type
tires. Rotation will increase tread life, help to maintain
mud, snow and wet traction levels and contribute to a
smooth, quiet ride.

Refer to the “Maintenance Schedule” for the proper
maintenance intervals. More frequent rotation is permis-
sible if desired. The reasons for any rapid or unusual
wear should be corrected prior to rotation being per-
formed.

The suggested rotation method is the “rearward cross”
shown in the following diagram. This rotation pattern
does not apply to some directional tires that must not be
reversed.

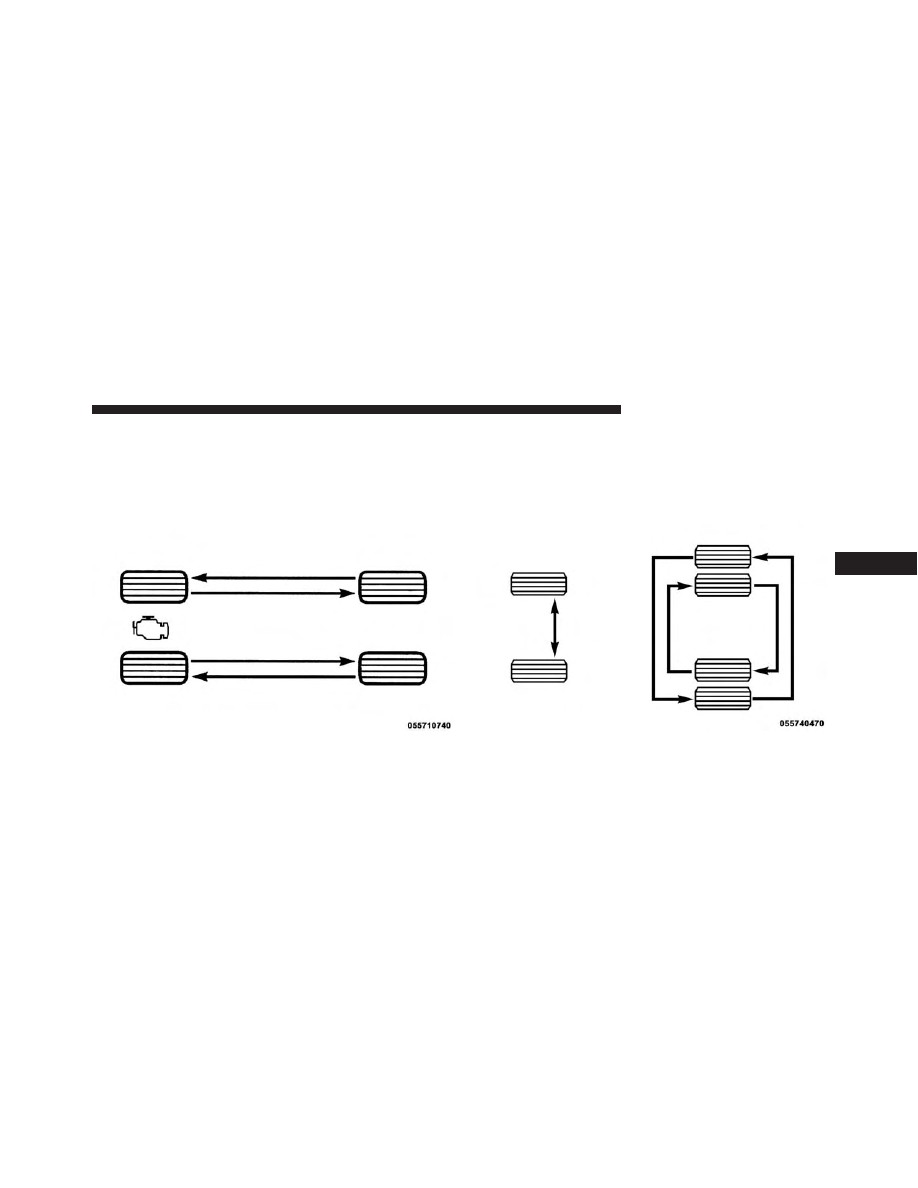

Tire Rotation

670

STARTING AND OPERATING

Directional Tires — If Equipped

For the R/T package with 22” tires and wheels, the
rotational direction of the tire must be taken into consid-
eration when rotating the tires. The recommended rota-
tion pattern for directional tires is shown below.

Dual Rear Wheels — If Equipped

The tires used on dual wheel assemblies should be
matched for wear to prevent overloading one tire in a set.
To check if tires are even, lay a straight edge across all
four tires. The straight edge should touch all the tires.

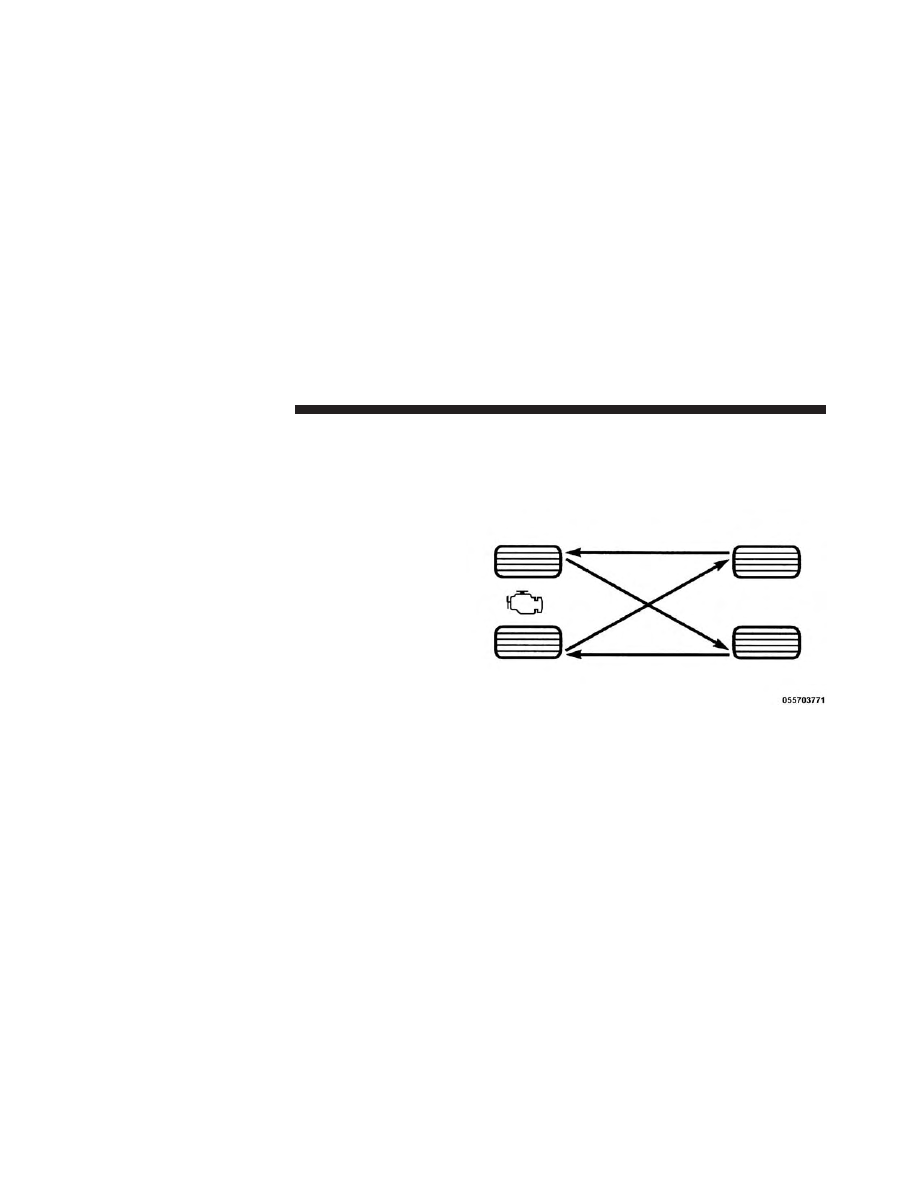

Tire Rotation

STARTING AND OPERATING

671

NOTE:

If your vehicle is equipped with a Tire Pressure

Information System (TPIS):

• The Tire Pressure Information System (TPIS) uses

unique sensors in the inner rear wheels to help identify
them from the outer rear wheels, because of this, the
inner and outer wheel locations can’t be switched.

• After a tire rotation is completed, as shown below, the

system can auto learn the locations of each sensor ID.
Auto learning/localization occurs when the vehicle
ignition status is changed from Off to On and speeds of
greater than 5 mph (8km/h) are obtained and remain
over 5 mph (8km/h) for at about a 15 minute period.
You may need to drive for 20 minutes to account
slower speeds and stops.

• If the tires are rotated incorrectly, The Auto localization

of the TPIS sensors will fail to locate correctly resulting
in incorrect locations for the pressure values displayed
in the Instrument Cluster.

CAUTION!

• 3500 Dual Rear Tires may only have one approved

direction of rotation. This is to accommodate the
asymmetrical design (tread pattern) of the On/Off-
Road tire and the use of Outline White Letter
(OWL) tires.

• When replacing a flat, the spare tire may have to be

remounted on the rim, or installed at a different
location, to maintain the correct placement of the
tire on the wheel relative to the tire/wheel position
on the truck. For example, if the spare is used to
replace an outer rear tire it will have to be re-
mounted on the rim so that the wheel is dished
inward. That way the tread design of asymmetrical
tires and the white writing of the OWL tires will
maintain proper position.

672

STARTING AND OPERATING

TIRE PRESSURE MONITOR SYSTEM (TPMS)

The Tire Pressure Monitor System (TPMS) will warn the
driver of a low tire pressure based on the vehicle recom-
mended cold placard pressure.

The tire pressure will vary with temperature by about 1
psi (7 kPa) for every 12°F (6.5°C). This means that when
the outside temperature decreases, the tire pressure will
decrease. Tire pressure should always be set based on
cold inflation tire pressure. This is defined as the tire
pressure after the vehicle has not been driven for at least
three hours, or driven less than 1 mile (1.6 km) after a
three hour period. The cold tire inflation pressure must
not exceed the maximum inflation pressure molded into
the tire sidewall. Refer to “Tires – General Information”
in “Starting And Operating” for information on how to
properly inflate the vehicle’s tires. The tire pressure will

also increase as the vehicle is driven - this is normal and
there should be no adjustment for this increased pres-
sure.

The TPMS will warn the driver of a low tire pressure if
the tire pressure falls below the low-pressure warning
limit for any reason, including low temperature effects
and natural pressure loss through the tire.

The TPMS will continue to warn the driver of low tire
pressure as long as the condition exists, and will not turn
off until the tire pressure is at or above the recommended
cold placard pressure. Once the low tire pressure warn-
ing (Tire Pressure Monitoring [TPM] Telltale Light) illu-
minates, you must increase the tire pressure to the
recommended cold placard pressure in order for the “Tire
Pressure Monitoring Telltale Light” to turn off. The
system will automatically update and the “Tire Pressure
Monitoring Telltale Light” will turn off once the system
receives the updated tire pressures. The vehicle may need

STARTING AND OPERATING

673

to be driven for up to 20 minutes above 15 mph
(25 km/h) in order for the TPMS to receive this informa-
tion.

For example, your vehicle may have a recommended
cold (parked for more than three hours) placard pressure
of 30 psi (207 kPa). If the ambient temperature is 68°F
(20°C) and the measured tire pressure is 27 psi (186 kPa),
a temperature drop to 20°F (-7°C) will decrease the tire
pressure to approximately 23 psi (158 kPa). This tire
pressure is sufficiently low enough to turn ON the “Tire
Pressure Monitoring Telltale Light.” Driving the vehicle
may cause the tire pressure to rise to approximately
27 psi (186 kPa), but the “Tire Pressure Monitoring
Telltale Light” will still be ON. In this situation, the “Tire
Pressure Monitoring Telltale Light” will turn OFF only
after the tires are inflated to the vehicle’s recommended
cold placard pressure value.

CAUTION!

• The TPMS has been optimized for the original

equipment tires and wheels. TPMS pressures and
warning have been established for the tire size
equipped on your vehicle. Undesirable system op-
eration or sensor damage may result when using
replacement equipment that is not of the same size,
type, and/or style. Aftermarket wheels can cause
sensor damage.

• Using aftermarket tire sealants may cause the Tire

Pressure Monitoring System (TPMS) sensor to be-
come inoperable. After using an aftermarket tire
sealant it is recommended that you take your
vehicle to an authorized dealership to have your
sensor function checked.

• After inspecting or adjusting the tire pressure al-

ways reinstall the valve stem cap. This will prevent

(Continued)

674

STARTING AND OPERATING

CAUTION! (Continued)

moisture and dirt from entering the valve stem,
which could damage the TPMS sensor.

NOTE:

• The TPMS is not intended to replace normal tire care

and maintenance or to provide warning of a tire failure
or condition.

• The TPMS should not be used as a tire pressure gauge

while adjusting your tire pressure.

• Driving on a significantly under-inflated tire causes

the tire to overheat and can lead to tire failure.
Under-inflation also reduces fuel efficiency and tire
tread life, and may affect the vehicle’s handling and
stopping ability.

• The TPMS is not a substitute for proper tire mainte-

nance, and it is the driver’s responsibility to maintain

correct tire pressure using an accurate tire pressure
gauge, even if under-inflation has not reached the level
to trigger illumination of the “Tire Pressure Monitor-
ing Telltale Light.”

• Seasonal temperature changes will affect tire pressure,

and the TPMS will monitor the actual tire pressure in
the tire.

Premium System

The Tire Pressure Monitor System (TPMS) uses wireless
technology with wheel rim mounted electronic sensors to
monitor tire pressure levels. Sensors mounted to each
wheel as part of the valve stem transmit tire pressure
readings to the receiver module.

NOTE:

It is particularly important for you to check the

tire pressure in all of the tires on your vehicle monthly
and to maintain the proper pressure.

STARTING AND OPERATING

675

The TPMS consists of the following components:

• Receiver module
• Four TPM sensors
• Various TPMS messages, which display in the Elec-

tronic Vehicle Information Center (EVIC)/Driver In-
formation Display (DID)

• TPM Telltale Light
The matching full size spare wheel and tire assembly (if
equipped) has a TPM sensor. The full size spare can be
used in place of any of the four road tires. A spare with a
pressure below the low-pressure limit will not cause the
“Tire Pressure Monitoring Telltale Light” to illuminate or
the chime to sound while it is stored in the spare tire
location.

Tire Pressure Monitoring Low Pressure Warnings

The “Tire Pressure Monitoring Telltale Light” will
illuminate in the instrument cluster and a chime

will sound when tire pressure is low in one or more of the

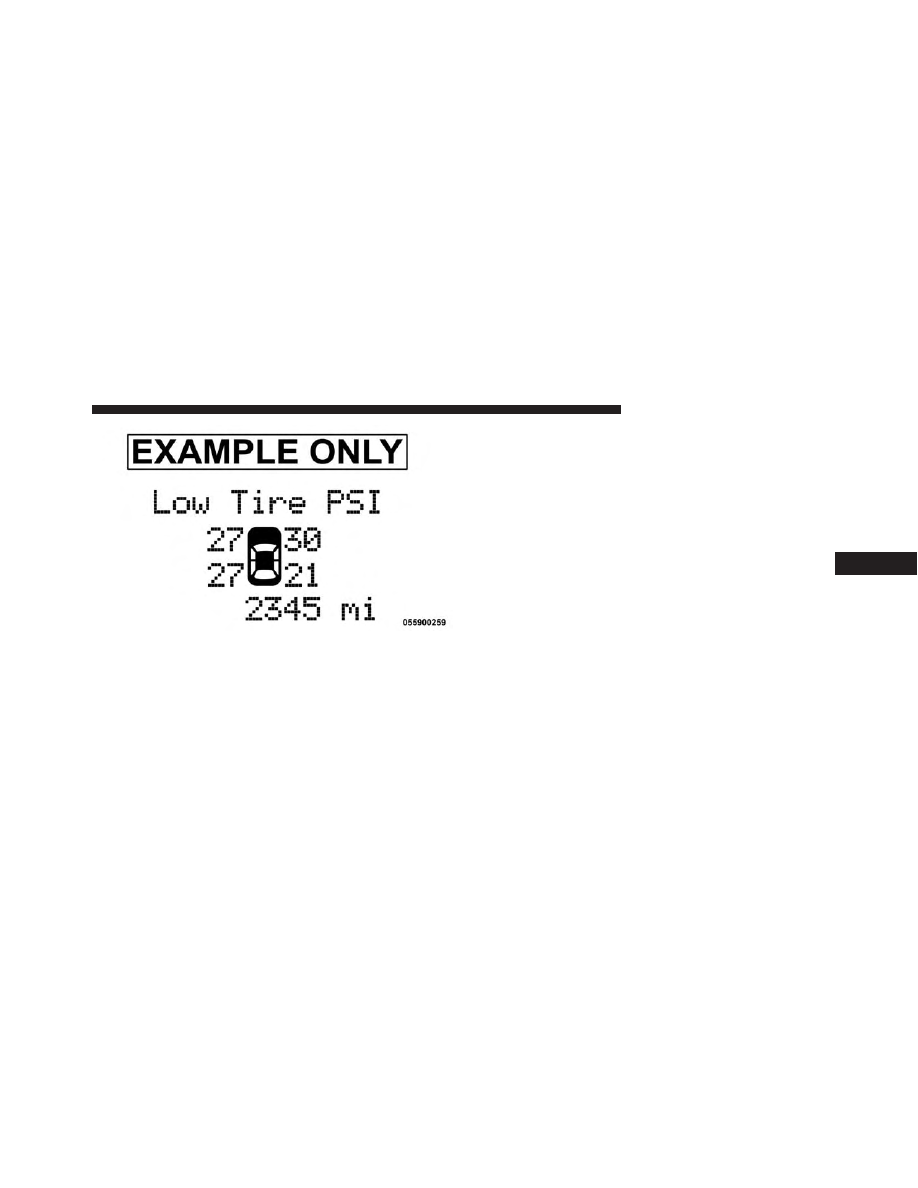

four active road tires. In addition, the EVIC/DID will
display a “LOW TIRE” message and a graphic showing
the pressure values of each tire with the low tire pressure
values in a different color. An

⬙Inflate to XX⬙ message will

also be displayed.

676

STARTING AND OPERATING

Should this occur, you should stop as soon as possible
and inflate the tires with a low pressure condition (those
in a different color in the EVIC/DID graphic) to the
vehicle’s recommended cold placard pressure inflation
value as shown in the

⬙Inflate to XX⬙ message. Once the

system receives the updated tire pressures, the system

will automatically update, the graphic display in the
EVIC/DID will return to it’s original color, and the “Tire
Pressure Monitoring Telltale Light” will turn off. The
vehicle may need to be driven for up to 20 minutes above
15 mph (24 km/h) in order for the TPMS to receive this
information.

Service TPMS Warning

If a system fault is detected, the “Tire Pressure Monitor-
ing Telltale Light” will flash on and off for 75 seconds and
then remain on solid. The system fault will also sound a
chime. In addition, the EVIC/DID will display a

⬙SER-

VICE TPM SYSTEM

⬙ message for a minimum of five

seconds and then display dashes (- -) in place of the
pressure value to indicate which sensor is not being
received.

“LOW TIRE PRESSURE” Message

STARTING AND OPERATING

677

If the ignition switch is cycled, this sequence will repeat,
providing the system fault still exists. If the system fault
no longer exists, the “Tire Pressure Monitoring Telltale
Light” will no longer flash, and the

⬙SERVICE TPM

SYSTEM

⬙ message will no longer display, and a pressure

value will display in place of the dashes. A system fault
can occur due to any of the following:

• Signal interference due to electronic devices or driving

next to facilities emitting the same radio frequencies as
the TPM sensors.

• Installing aftermarket window tinting that contains

materials that may block radio wave signals.

• Accumulation of snow or ice around the wheels or

wheel housings.

• Using tire chains on the vehicle.
• Using wheels/tires not equipped with TPM sensors.

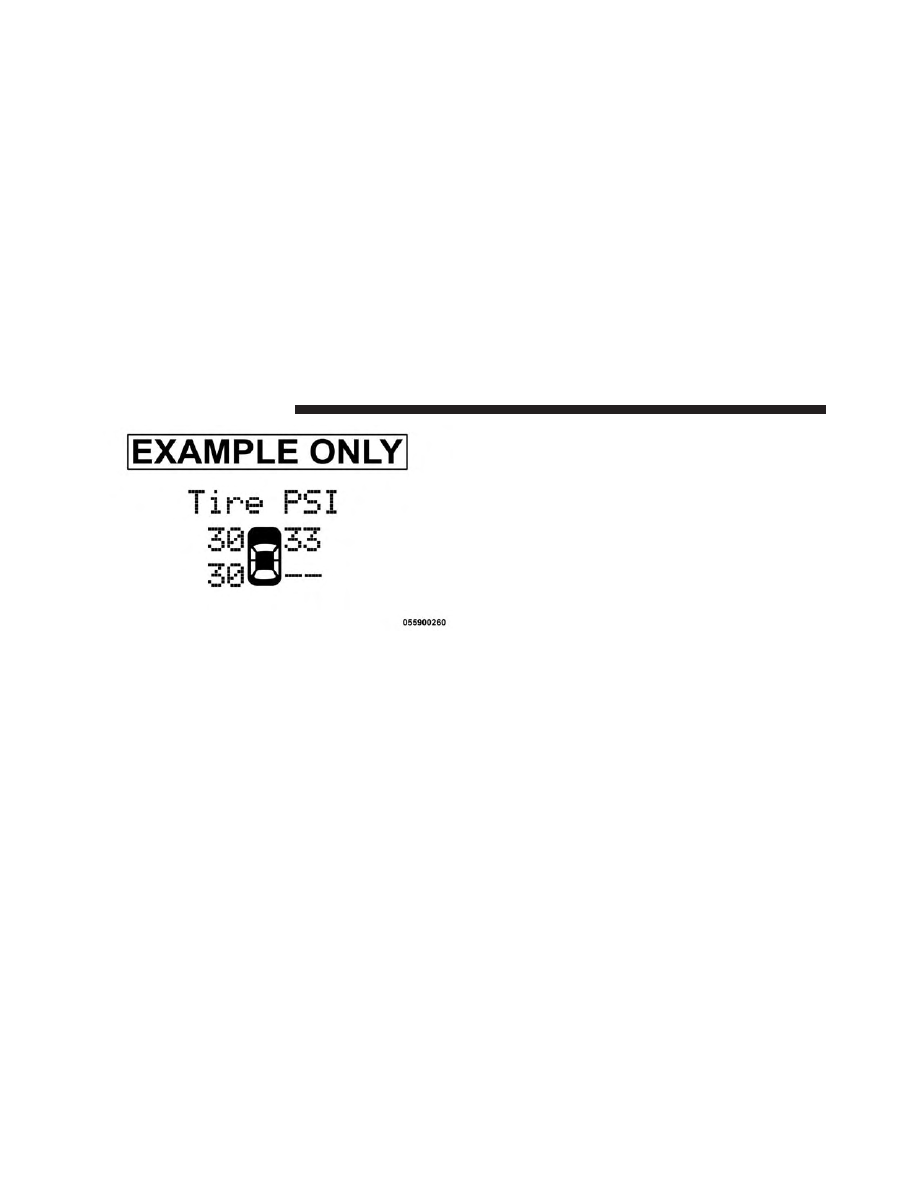

Tire Pressure Monitor Display

678

STARTING AND OPERATING

Vehicles With Matching Full Size Spare

• The matching full size spare wheel and tire assembly

has a TPM sensor that can be monitored by the TPMS.

• If you install the full size spare in place of a road tire

that has a pressure below the low-pressure warning
limit, upon the next ignition switch cycle, a chime will
sound and the “Tire Pressure Monitoring Telltale
Light” will turn ON. In addition, the EVIC/DID will
display a “LOW TIRE” message and a graphic show-
ing the low tire pressure value in a different color. An

⬙Inflate to XX⬙ message will also be displayed.

• After driving the vehicle for up to 20 minutes above

15 mph (25 km/h) the “Tire Pressure Monitoring
Telltale Light” will turn OFF and the pressure value
will be updated and return to it’s original color, as long
as no tire pressure is below the low-pressure warning
limit in any of the four active road tires.

Vehicles With Non Matching Full Size Spare Or Com-
pact Spare

• The non matching full size spare or compact spare tire

does not have a TPM sensor. Therefore, the TPMS will
not monitor the pressure in the non matching full size
spare or compact spare tire.

• If you install the non matching full size spare or

compact spare tire in place of a road tire that has a
pressure below the low-pressure warning limit, upon
the next ignition switch cycle, the TPM Telltale Light
and a “LOW TIRE” message will remain ON and a
chime will sound. In addition, the graphic in the
EVIC/DID will still display a flashing pressure value
or a pressure value in a different color.

• After driving the vehicle for up to 20 minutes above

15 mph (24 km/h), the TPM Telltale Light will flash on
and off for 75 seconds and then remain on solid. In
addition, the EVIC/DID will display a

⬙SERVICE TPM

STARTING AND OPERATING

679

SYSTEM

⬙ message for a minimum of five seconds and

then display dashes (- -) in place of the pressure value.

• For each subsequent ignition switch cycle, a chime will

sound, the TPM Telltale Light will flash on and off for
75 seconds and then remain on solid, and the EVIC/
DID will display a

⬙SERVICE TPM SYSTEM⬙ message

for a minimum of five seconds and then display
dashes (- -) in place of the pressure value.

• Once you repair or replace the original road tire and

reinstall it on the vehicle in place of the non matching
full size spare or compact spare, the TPMS will update
automatically. In addition, the TPM Telltale Light will
turn OFF and the graphic in the EVIC/DID will
display a new pressure value instead of dashes (- -), as
long as no tire pressure is below the low-pressure
warning limit in any of the four active road tires. The

vehicle may need to be driven for up to 20 minutes
above 15 mph (24 km/h) in order for the TPMS to
receive this information.

Tire Pressure Information System (TPIS) 3500
Series Trucks

Your vehicle may be equipped with a Tire Pressure
Information System (TPIS).

The Tire Pressure Information System (TPIS) uses wire-
less technology with wheel rim mounted electronic sen-
sors to transmit tire pressure levels. Sensors mounted to
each wheel as part of the valve stem transmit tire
pressure readings to the receiver module.

NOTE:

It is particularly important for you to check the

tire pressure in all of the tires on your vehicle monthly
and to maintain the proper pressure.

680

STARTING AND OPERATING

The TPIS consists of the following components:

• Receiver module
• Four TPM sensors (Single Rear Wheel (SRW) applica-

tions)

• Six TPM sensors (Dual Rear Wheel (DRW) applica-

tions)

• Pressure display in the Electronic Vehicle Information

Center (EVIC)/Driver Information Display (DID)

The TPIS system will display all four (Single Rear Wheel
(SRW) applications) or six (Dual Rear Wheel (DRW)
applications) tire pressure values in the EVIC/DID dis-
play.

If a system fault is detected, the EVIC/DID will display a

⬙SERVICE TPM SYSTEM⬙ message for a minimum of five
seconds and then display dashes (- -) in place of the
pressure value to indicate which sensor is not being
received.

If the ignition switch is cycled, this sequence will repeat,
providing the system fault still exists. If the system fault
no longer exists, the

⬙SERVICE TPM SYSTEM⬙ message

will no longer be displayed, and a pressure value will
display in place of the dashes. A system fault can occur
due to any of the following:

• Signal interference due to electronic devices or driving

next to facilities emitting the same radio frequencies as
the TPM sensors.

• Installing aftermarket window tinting that contains

materials that may block radio wave signals.

• Accumulation of snow or ice around the wheels or

wheel housings.

• Using tire chains on the vehicle.
• Using wheels/tires not equipped with TPM sensors.

STARTING AND OPERATING

681

General Information

This device complies with Part 15 of the FCC rules and
RSS 210 of Industry Canada. Operation is subject to the
following conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received,

including interference that may cause undesired op-
eration.

NOTE:

Changes or modifications not expressly approved

by the party responsible for compliance could void the
user’s authority to operate the equipment.

FUEL REQUIREMENTS

3.6L Engine

This engine is designed to meet all
emissions regulations and provide op-
timum fuel economy and performance
when using high quality unleaded
“Regular” gasoline having a posted
octane number of 87 as specified by
the (R+M)/2 method. The use of

higher octane “Premium” gasoline is not required, as it
will not provide any benefit over “Regular” gasoline in
these engines.

While operating on gasoline with an octane number of
87, hearing a light knocking sound from the engine is not
a cause for concern. However, if the engine is heard
making a heavy knocking sound, see your dealer imme-
diately. Use of gasoline with an octane number lower

682

STARTING AND OPERATING

than 87 can cause engine failure and may void or not be
covered by the New Vehicle Limited Warranty.

Poor quality gasoline can cause problems such as hard
starting, stalling, and hesitations. If you experience these
symptoms, try another brand of gasoline before consid-
ering service for the vehicle.

5.7L Engine

This engines is designed to meet all
emissions regulations and provide sat-
isfactory fuel economy and perfor-
mance when using high quality un-
leaded gasoline having a posted
octane number range of 87 to 89 as
specified by the (R+M)/2 method. The

use of 89 octane “Plus” gasoline is recommended for
optimum performance and fuel economy.

STARTING AND OPERATING

683

Dodge Ram 2500 (2016 year). Manual - part 42
