(5) Determine the combined weight of luggage and
cargo being loaded on the vehicle. That weight may
not safely exceed the available cargo and luggage load
capacity calculated in Step 4.

(6) If your vehicle will be towing a trailer, load from
your trailer will be transferred to your vehicle. Con-
sult this manual to determine how this reduces the
available cargo and luggage load capacity of your
vehicle.

Metric Example For Load Limit

For example, if “XXX” amount equals 635 kg and there
will be five 68 kg passengers in your vehicle, the amount
of available cargo and luggage load capacity is 295 kg
(635-340 (5x68) = 295 kg) as shown in step 4.

NOTE:

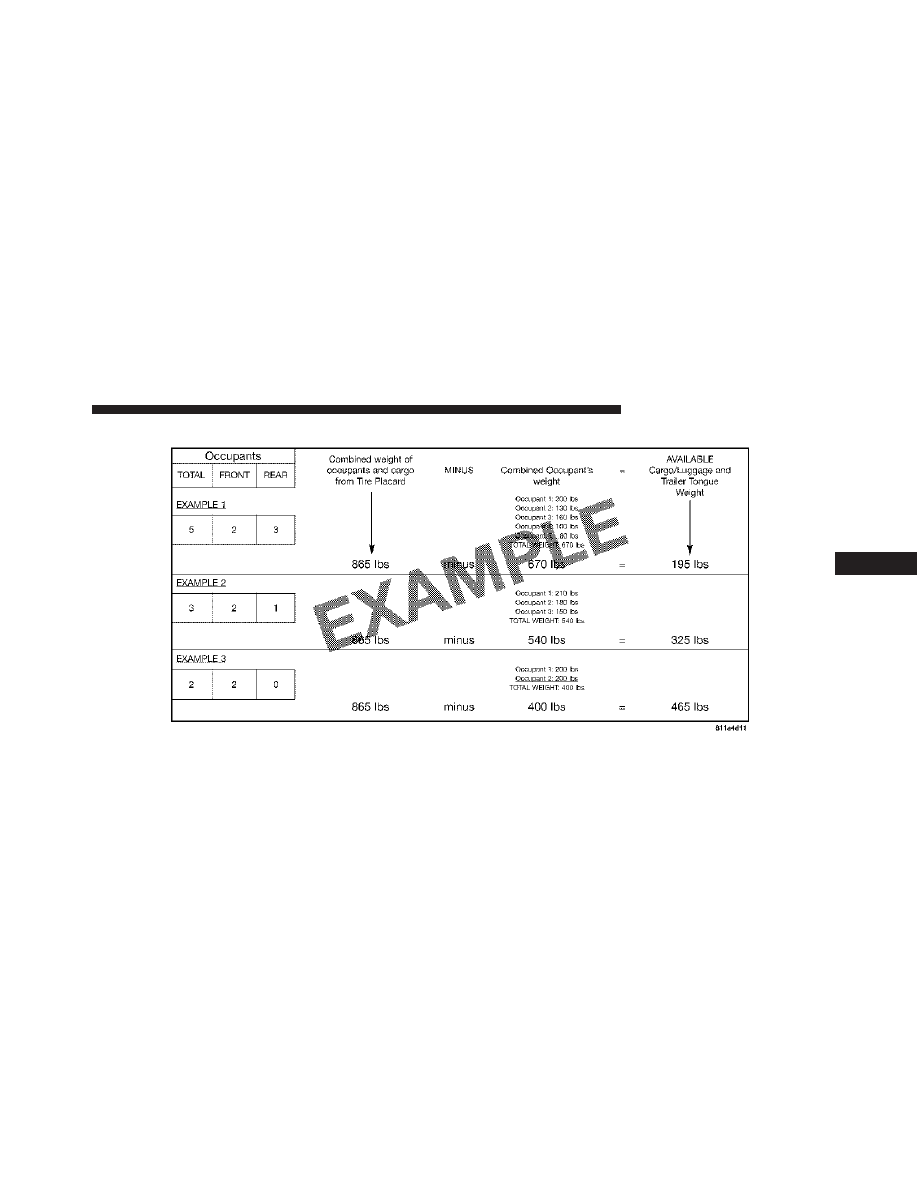

• If your vehicle will be towing a trailer, load from your

trailer will be transferred to your vehicle. The follow-
ing table shows examples on how to calculate total
load, cargo/luggage, and towing capacities of your
vehicle with varying seating configurations and num-
ber and size of occupants. This table is for illustration
purposes only and may not be accurate for the seating
and load carry capacity of your vehicle.

• For the following example, the combined weight of

occupants and cargo should never exceed 865 lbs
(392 kg).

652

STARTING AND OPERATING

WARNING!

Overloading of your tires is dangerous. Overloading
can cause tire failure, affect vehicle handling, and
increase your stopping distance. Use tires of the
recommended load capacity for your vehicle. Never
overload them.

TIRES — GENERAL INFORMATION

Tire Pressure

Proper tire inflation pressure is essential to the safe and
satisfactory operation of your vehicle. Four primary areas
are affected by improper tire pressure:

• Safety and Vehicle Stability
• Economy
• Tread Wear

• Ride Comfort

Safety

WARNING!

• Improperly inflated tires are dangerous and can

cause collisions.

• Underinflation increases tire flexing and can result

in overheating and tire failure.

• Overinflation reduces a tire’s ability to cushion

shock. Objects on the road and chuckholes can
cause damage that result in tire failure.

• Overinflated or underinflated tires can affect ve-

hicle handling and can fail suddenly, resulting in
loss of vehicle control.

• Unequal tire pressures can cause steering prob-

lems. You could lose control of your vehicle.

(Continued)

654

STARTING AND OPERATING

WARNING! (Continued)

• Unequal tire pressures from one side of the vehicle

to the other can cause the vehicle to drift to the
right or left.

• Always drive with each tire inflated to the recom-

mended cold tire inflation pressure.

Both under-inflation and over-inflation affect the stability
of the vehicle and can produce a feeling of sluggish
response or over responsiveness in the steering.

NOTE:

• Unequal tire pressures from side to side may cause

erratic and unpredictable steering response.

• Unequal tire pressure from side to side may cause the

vehicle to drift left or right.

Fuel Economy

Underinflated tires will increase tire rolling resistance
resulting in higher fuel consumption.

Tread Wear

Improper cold tire inflation pressures can cause abnor-
mal wear patterns and reduced tread life, resulting in the
need for earlier tire replacement.

Ride Comfort And Vehicle Stability

Proper tire inflation contributes to a comfortable ride.
Over-inflation produces a jarring and uncomfortable
ride.

Tire Inflation Pressures

The proper cold tire inflation pressure is listed on the
driver’s side B-Pillar or rear edge of the driver’s side
door.

STARTING AND OPERATING

655

At least once a month:

• Check and adjust tire pressure with a good quality

pocket-type pressure gauge. Do not make a visual
judgement when determining proper inflation. Tires
may look properly inflated even when they are under-
inflated.

• Inspect tires for signs of tire wear or visible damage.

CAUTION!

After inspecting or adjusting the tire pressure, al-
ways reinstall the valve stem cap. This will prevent
moisture and dirt from entering the valve stem,
which could damage the valve stem.

Inflation pressures specified on the placard are always
“cold tire inflation pressure”. Cold tire inflation pressure
is defined as the tire pressure after the vehicle has not
been driven for at least three hours, or driven less than 1

mile (1.6 km) after sitting for a minimum of three hours.
The cold tire inflation pressure must not exceed the
maximum inflation pressure molded into the tire side-
wall.

Check tire pressures more often if subject to a wide range
of outdoor temperatures, as tire pressures vary with
temperature changes.

Tire pressures change by approximately 1 psi (7 kPa) per
12°F (7°C) of air temperature change. Keep this in mind
when checking tire pressure inside a garage, especially in
the Winter.

Example: If garage temperature = 68°F (20°C) and the
outside temperature = 32°F (0°C) then the cold tire
inflation pressure should be increased by 3 psi (21 kPa),
which equals 1 psi (7 kPa) for every 12°F (7°C) for this
outside temperature condition.

656

STARTING AND OPERATING

Tire pressure may increase from 2 to 6 psi (13 to 40 kPa)
during operation. DO NOT reduce this normal pressure
build up or your tire pressure will be too low.

Tire Pressures For High Speed Operation

The manufacturer advocates driving at safe speeds and
within posted speed limits. Where speed limits or condi-
tions are such that the vehicle can be driven at high
speeds, maintaining correct tire inflation pressure is very
important. Increased tire pressure and reduced vehicle
loading may be required for high-speed vehicle opera-
tion. Refer to your authorized tire dealer or original
equipment vehicle dealer for recommended safe operat-
ing speeds, loading and cold tire inflation pressures.

WARNING!

High speed driving with your vehicle under maxi-
mum load is dangerous. The added strain on your
tires could cause them to fail. You could have a
serious collision. Do not drive a vehicle loaded to the
maximum capacity at continuous speeds above
75 mph (120 km/h).

Radial Ply Tires

WARNING!

Combining radial ply tires with other types of tires
on your vehicle will cause your vehicle to handle
poorly. The instability could cause a collision. Al-
ways use radial ply tires in sets of four. Never
combine them with other types of tires.

STARTING AND OPERATING

657

Tire Repair

If your tire becomes damaged, it may be repaired if it
meets the following criteria:

• The tire has not been driven on when flat.
• The damage is only on the tread section of your tire

(sidewall damage is not repairable).

• The puncture is no greater than a ¼ of an inch (6 mm).
Consult an authorized tire dealer for tire repairs and
additional information.

Damaged Run Flat tires, or Run Flat tires that have
experienced a loss of pressure should be replaced imme-
diately with another Run Flat tire of identical size and
service description (Load Index and Speed Symbol).

Tire Types

All Season Tires — If Equipped

All Season tires provide traction for all seasons (Spring,
Summer, Fall and Winter). Traction levels may vary
between different all season tires. All season tires can be
identified by the M+S, M&S, M/S or MS designation on
the tire sidewall. Use all season tires only in sets of four;
failure to do so may adversely affect the safety and
handling of your vehicle.

Summer Or Three Season Tires — If Equipped

Summer tires provide traction in both wet and dry
conditions, and are not intended to be driven in snow or
on ice. If your vehicle is equipped with Summer tires, be
aware these tires are not designed for Winter or cold
driving conditions. Install Winter tires on your vehicle
when ambient temperatures are less than 40°F (5°C) or if
roads are covered with ice or snow. For more informa-
tion, contact an authorized dealer.

658

STARTING AND OPERATING

Summer tires do not contain the all season designation or
mountain/snowflake symbol on the tire sidewall. Use
Summer tires only in sets of four; failure to do so may
adversely affect the safety and handling of your vehicle.

WARNING!

Do not use Summer tires in snow/ice conditions. You
could lose vehicle control, resulting in severe injury
or death. Driving too fast for conditions also creates
the possibility of loss of vehicle control.

Snow Tires

Some areas of the country require the use of snow tires
during the Winter. Snow tires can be identified by a
“mountain/snowflake” symbol on the tire sidewall.

If you need snow tires, select tires
equivalent in size and type to the
original equipment tires. Use snow
tires only in sets of four; failure to do
so may adversely affect the safety and
handling of your vehicle.

Snow tires generally have lower speed ratings than what
was originally equipped with your vehicle and should
not be operated at sustained speeds over 75 mph
(120 km/h). For speeds above 75 mph (120 km/h), refer
to original equipment or an authorized tire dealer for
recommended safe operating speeds, loading and cold
tire inflation pressures.

STARTING AND OPERATING

659

While studded tires improve performance on ice, skid
and traction capability on wet or dry surfaces may be
poorer than that of non-studded tires. Some states pro-
hibit studded tires; therefore, local laws should be
checked before using these tire types.

Run Flat Tires — If Equipped

Run Flat tires allow you the capability to drive 50 miles
(80 km) at 50 mph (80 km/h) after a rapid loss of inflation
pressure. This rapid loss of inflation is referred to as the
Run Flat mode. A Run Flat mode occurs when the tire
inflation pressure is of/or below 14 psi (96 kPa). Once a
Run Flat tire reaches the run flat mode it has limited
driving capabilities and needs to be replaced immedi-
ately. A Run Flat tire is not repairable.

It is not recommended driving a vehicle loaded at full
capacity or to tow a trailer while a tire is in the run flat
mode.

See the tire pressure monitoring section for more infor-
mation.

Spare Tires — If Equipped

NOTE:

For vehicles equipped with Tire Service Kit

instead of a spare tire, please refer to the “Tire Service
Kit” section located in your Owner’s Information kit for
further information.

CAUTION!

Because of the reduced ground clearance, do not take
your vehicle through an automatic car wash with a
compact or limited-use temporary spare installed.
Damage to the vehicle may result.

660

STARTING AND OPERATING

Spare Tire Matching Original Equipped Tire And
Wheel — If Equipped

Your vehicle may be equipped with a spare tire and
wheel equivalent in look and function to the original
equipment tire and wheel found on the front or rear axle
of your vehicle. This spare tire may be used in the tire
rotation for your vehicle. If your vehicle has this option,
refer to an authorized tire dealer for the recommended
tire rotation pattern.

Compact Spare Tire — If Equipped

The compact spare is for temporary emergency use only.
You can identify if your vehicle is equipped with a
compact spare by looking at the spare tire description on
the Tire and Loading Information Placard located on the
driver’s side door opening or on the sidewall of the tire.
Compact spare tire descriptions begin with the letter “T”
or “S” preceding the size designation. Example: T145/
80D18 103M.

T, S = Temporary Spare Tire

Since this tire has limited tread life, the original equip-
ment tire should be repaired (or replaced) and reinstalled
on your vehicle at the first opportunity.

Do not install a wheel cover or attempt to mount a
conventional tire on the compact spare wheel, since the
wheel is designed specifically for the compact spare tire.
Do not install more than one compact spare tire and
wheel on the vehicle at any given time.

WARNING!

Compact spares are for temporary emergency use
only. With these spares, do not drive more than
50 mph (80 km/h). Temporary use spares have limited
tread life. When the tread is worn to the tread wear
indicators, the temporary use spare tire needs to be

(Continued)

STARTING AND OPERATING

661

WARNING! (Continued)

replaced. Be sure to follow the warnings, which
apply to your spare. Failure to do so could result in
spare tire failure and loss of vehicle control.

Full Size Spare — If Equipped

The full size spare is for temporary emergency use only.
This tire may look like the originally equipped tire on the
front or rear axle of your vehicle, but it is not. This spare
tire may have limited tread life. When the tread is worn
to the tread wear indicators, the temporary use full size
spare tire needs to be replaced. Since it is not the same as
your original equipment tire, replace (or repair) the
original equipment tire and reinstall on the vehicle at the
first opportunity.

Limited Use Spare — If Equipped

The limited use spare tire is for temporary emergency use
only. This tire is identified by a label located on the

limited use spare wheel. This label contains the driving
limitations for this spare. This tire may look like the
original equipped tire on the front or rear axle of your
vehicle, but it is not. Installation of this limited use spare
tire affects vehicle handling. Since it is not the same as
your original equipment tire, replace (or repair) the
original equipment tire and reinstall on the vehicle at the
first opportunity.

WARNING!

Limited use spares are for emergency use only. In-
stallation of this limited use spare tire affects vehicle
handling. With this tire, do not drive more than the
speed listed on the limit use spare wheel. Keep
inflated to the cold tire inflation pressures listed on
your Tire and Loading Information Placard located
on the driver’s side B-Pillar or the rear edge of the

(Continued)

662

STARTING AND OPERATING

WARNING! (Continued)

driver’s side door. Replace (or repair) the original
equipment tire at the first opportunity and reinstall it
on your vehicle. Failure to do so could result in loss
of vehicle control.

Tire Spinning

When stuck in mud, sand, snow, or ice conditions, do not
spin your vehicle’s wheels above 30 mph (48 km/h) or
for longer than 30 seconds continuously without stop-
ping.

Refer to “Freeing A Stuck Vehicle” in “What To Do In
Emergencies” for further information.

WARNING!

Fast spinning tires can be dangerous. Forces gener-
ated by excessive wheel speeds may cause tire dam-
age or failure. A tire could explode and injure some-
one. Do not spin your vehicle’s wheels faster than
30 mph (48 km/h) for more than 30 seconds continu-
ously when you are stuck, and do not let anyone near
a spinning wheel, no matter what the speed.

Tread Wear Indicators

Tread wear indicators are in the original equipment tires
to help you in determining when your tires should be
replaced.

STARTING AND OPERATING

663

These indicators are molded into the bottom of the tread
grooves. They will appear as bands when the tread depth
becomes a 1/16 of an inch (1.6 mm). When the tread is

worn to the tread wear indicators, the tire should be
replaced. Refer to “Replacement Tires” in this section for
further information.

Life Of Tire

The service life of a tire is dependent upon varying
factors including, but not limited to:

• Driving style.
• Tire pressure - Improper cold tire inflation pressures

can cause uneven wear patterns to develop across the
tire tread. These abnormal wear patterns will reduce
tread life, resulting in the need for earlier tire replace-
ment.

• Distance driven.
• Performance tires, tires with a speed rating of V or

higher, and Summer tires typically have a reduced

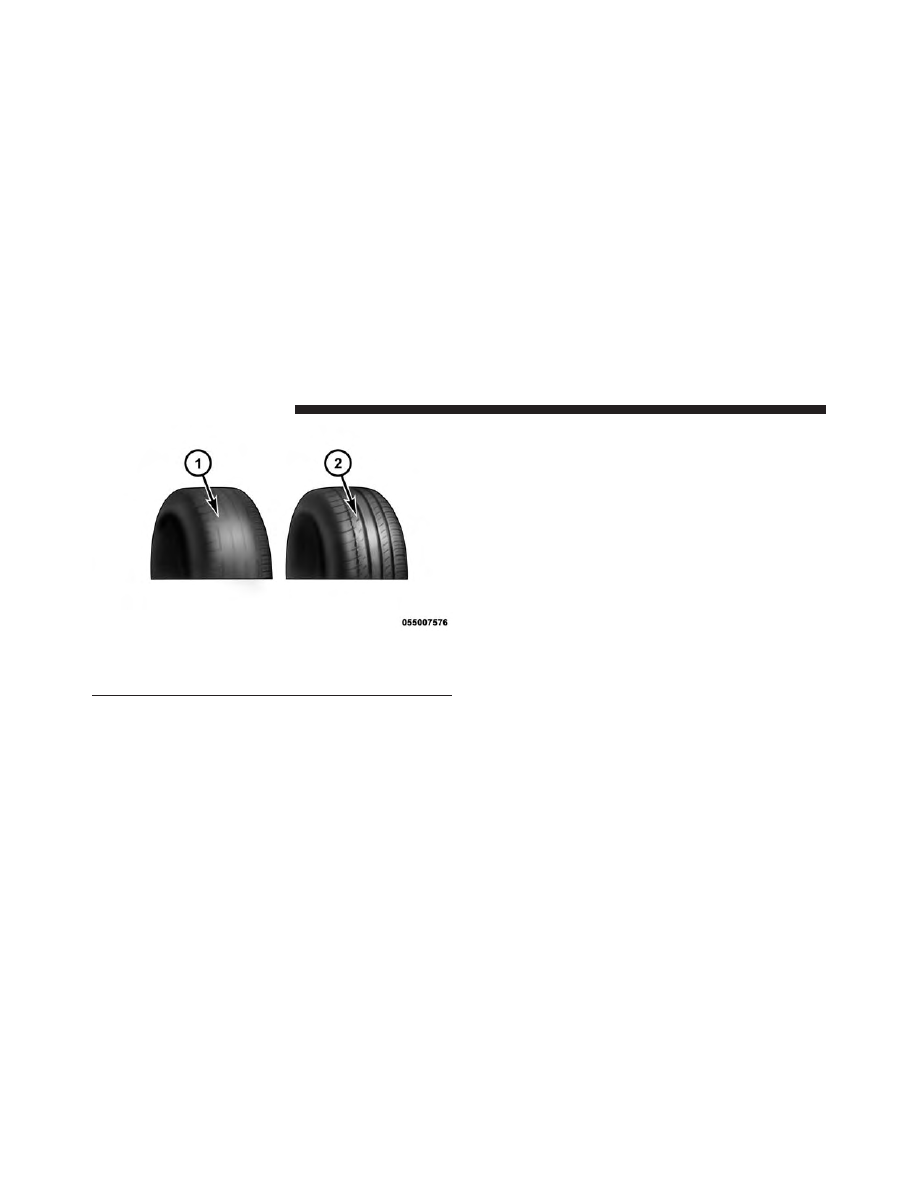

Tire Tread

1 — Worn Tire
2 — New Tire

664

STARTING AND OPERATING

tread life. Rotation of these tires per the vehicle main-
tenance schedule is highly recommended.

WARNING!

Tires and the spare tire should be replaced after six
years, regardless of the remaining tread. Failure to
follow this warning can result in sudden tire failure.
You could lose control and have a collision resulting
in serious injury or death.

Keep dismounted tires in a cool, dry place with as little
exposure to light as possible. Protect tires from contact
with oil, grease, and gasoline.

Replacement Tires

The tires on your new vehicle provide a balance of many
characteristics. They should be inspected regularly for

wear and correct cold tire inflation pressures. The manu-
facturer strongly recommends that you use tires equiva-
lent to the originals in size, quality and performance
when replacement is needed. Refer to the paragraph on
“Tread Wear Indicator”. Refer to the Tire and Loading
Information placard or the Vehicle Certification Label for
the size designation of your tire. The Load Index and
Speed Symbol for your tire will be found on the original
equipment tire sidewall. See the Tire Sizing Chart ex-
ample found in the “Tire Safety Information” section of
this manual for more information relating to the Load
Index and Speed Symbol of a tire.

It is recommended to replace the two front tires or two
rear tires as a pair. Replacing just one tire can seriously
affect your vehicle’s handling. If you ever replace a
wheel, make sure that the wheel’s specifications match
those of the original wheels.

STARTING AND OPERATING

665

It is recommended you contact your authorized tire
dealer or original equipment dealer with any questions
you may have on tire specifications or capability. Failure
to use equivalent replacement tires may adversely affect
the safety, handling, and ride of your vehicle.

WARNING!

• Do not use a tire, wheel size or rating other than

that specified for your vehicle. Some combinations
of unapproved tires and wheels may change sus-
pension dimensions and performance characteris-
tics, resulting in changes to steering, handling, and
braking of your vehicle. This can cause unpredict-
able handling and stress to steering and suspen-
sion components. You could lose control and have
a collision resulting in serious injury or death. Use

(Continued)

WARNING! (Continued)

only the tire and wheel sizes with load ratings
approved for your vehicle.

• Never use a tire with a smaller load index or

capacity, other than what was originally equipped
on your vehicle. Using a tire with a smaller load
index could result in tire overloading and failure.
You could lose control and have a collision.

• Failure to equip your vehicle with tires having

adequate speed capability can result in sudden tire
failure and loss of vehicle control.

CAUTION!

Replacing original tires with tires of a different size
may result in false speedometer and odometer read-
ings.

666

STARTING AND OPERATING

SUPPLEMENTAL TIRE PRESSURE INFORMATION
— IF EQUIPPED

A light load vehicle condition is defined as two passen-
gers [150 lbs (68 kg) each] plus 200 lbs (90 kg) of cargo.
Cold tire inflation pressures for a lightly loaded vehicle
will be found on the face of the driver’s door.

TIRE CHAINS (TRACTION DEVICES)

Use of traction devices require sufficient tire-to-body
clearance. Follow these recommendations to guard
against damage.
• Traction device must be of proper size for the tire, as

recommended by the traction device manufacturer.

STARTING AND OPERATING

667

Dodge Ram 2500 (2016 year). Manual - part 41
