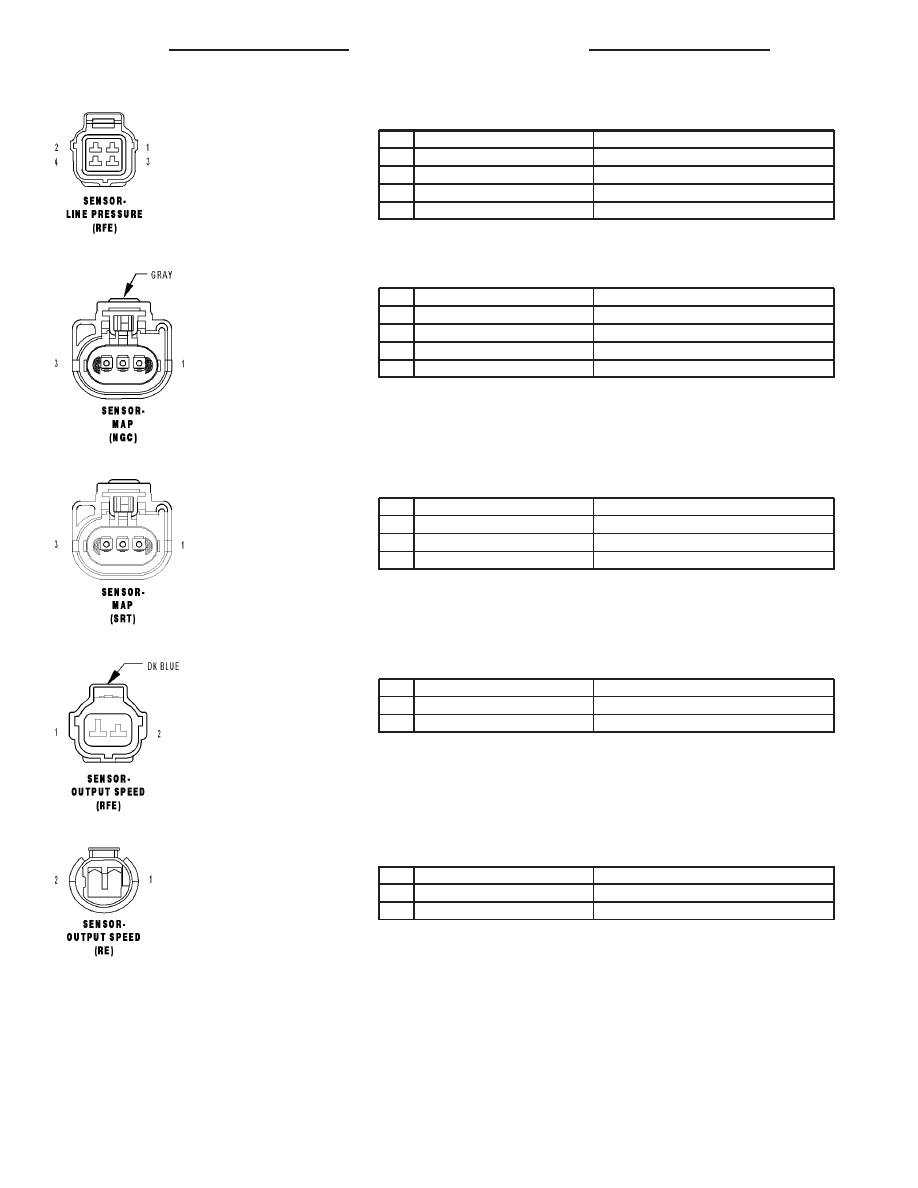

SENSOR-LINE PRESSURE (RFE) - 4 WAY

CAV

CIRCUIT

FUNCTION

1

K900 18DB/DG

SENSOR GROUND

2

F856 18YL/PK

5 VOLT SUPPLY

3

T38 18YL/BR

LINE PRESSURE SENSOR SIGNAL

4

-

-

SENSOR-MAP (NGC) - GRAY 3 WAY

CAV

CIRCUIT

FUNCTION

1

K1 18VT/BR

MAP SIGNAL

2

K900 20DB/DG (3.7L/4.7L)

SENSOR GROUND

2

K900 18DB/DG (5.7L)

SENSOR GROUND

3

F856 18YL/PK

5 VOLT SUPPLY

SENSOR-MAP (SRT) - 3 WAY

CAV

CIRCUIT

FUNCTION

1

K1 18VT/BR

MAP SENSOR SIGNAL

2

K900 20DB/DG

SENSOR GROUND

3

F855 20PK/YL

5 VOLT SUPPLY

SENSOR-OUTPUT SPEED (RFE) - DK BLUE 2 WAY

CAV

CIRCUIT

FUNCTION

1

T14 18DG/BR

OUTPUT SPEED SENSOR SIGNAL

2

T13 18DG/VT

SPEED SENSOR GROUND

SENSOR-OUTPUT SPEED (RE) - 2 WAY

CAV

CIRCUIT

FUNCTION

1

T14 18DG/BR

OUTPUT SPEED SENSOR SIGNAL

2

T13 18DG/VT

SPEED SENSOR GROUND

8W - 80 - 116

8W-80 CONNECTOR PIN-OUTS

DR/DH

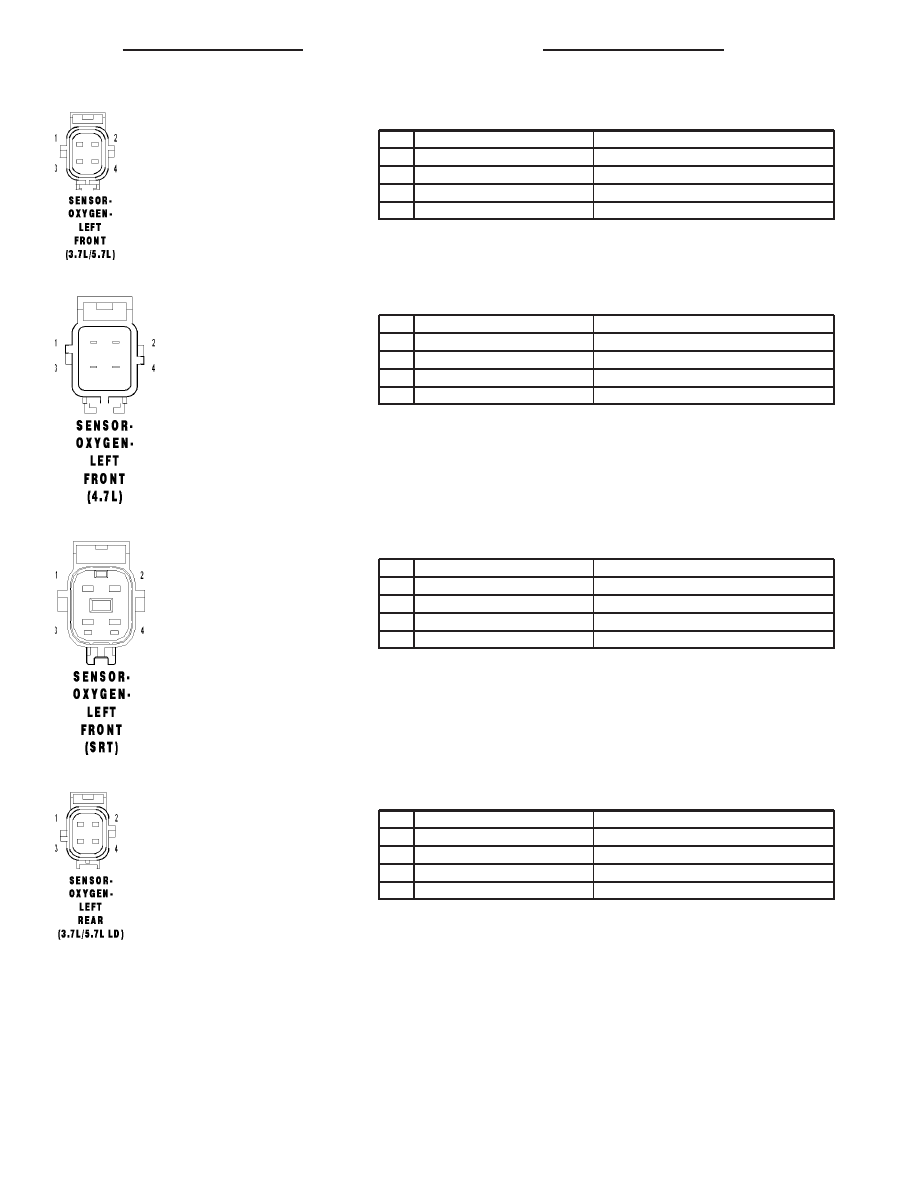

SENSOR-OXYGEN-LEFT FRONT (3.7L/5.7L) - BLACK 4 WAY

CAV

CIRCUIT

FUNCTION

1

K99 18BR/LG

O2 1/1 HEATER CONTROL

2

Z42 18BK/LG

GROUND

3

K902 18BR/DG

O2 RETURN (UP)

4

K41 18DB/LB

O2 1/1 SIGNAL

SENSOR-OXYGEN-LEFT FRONT (4.7L) - 4 WAY

CAV

CIRCUIT

FUNCTION

1

K99 18BR/LG

O2 1/1 HEATER CONTROL

2

Z42 18BK/LG

GROUND

3

K902 18BR/DG

O2 RETURN (UP)

4

K41 18DB/LB

O2 1/1 SIGNAL

SENSOR-OXYGEN-LEFT FRONT (SRT) - 4 WAY

CAV

CIRCUIT

FUNCTION

1

K343 16BR/YL

FUSED ASD RELAY OUTPUT

2

K99 18BR/LG

O2 1/1 HEATER CONTROL

3

K900 20DB/DG

SENSOR GROUND

4

K41 18DB/LB

O2 1/1 SIGNAL

SENSOR-OXYGEN-LEFT REAR (3.7L/5.7L LD) - 4 WAY

CAV

CIRCUIT

FUNCTION

1

K299 18BR/WT

O2 1/2 HEATER CONTROL

2

Z43 18BK/LB

GROUND

3

K904 18DB/DG

O2 RETURN (DOWN)

4

K141 18DB/YL

O2 1/2 SIGNAL

DR/DH

8W-80 CONNECTOR PIN-OUTS

8W - 80 - 117

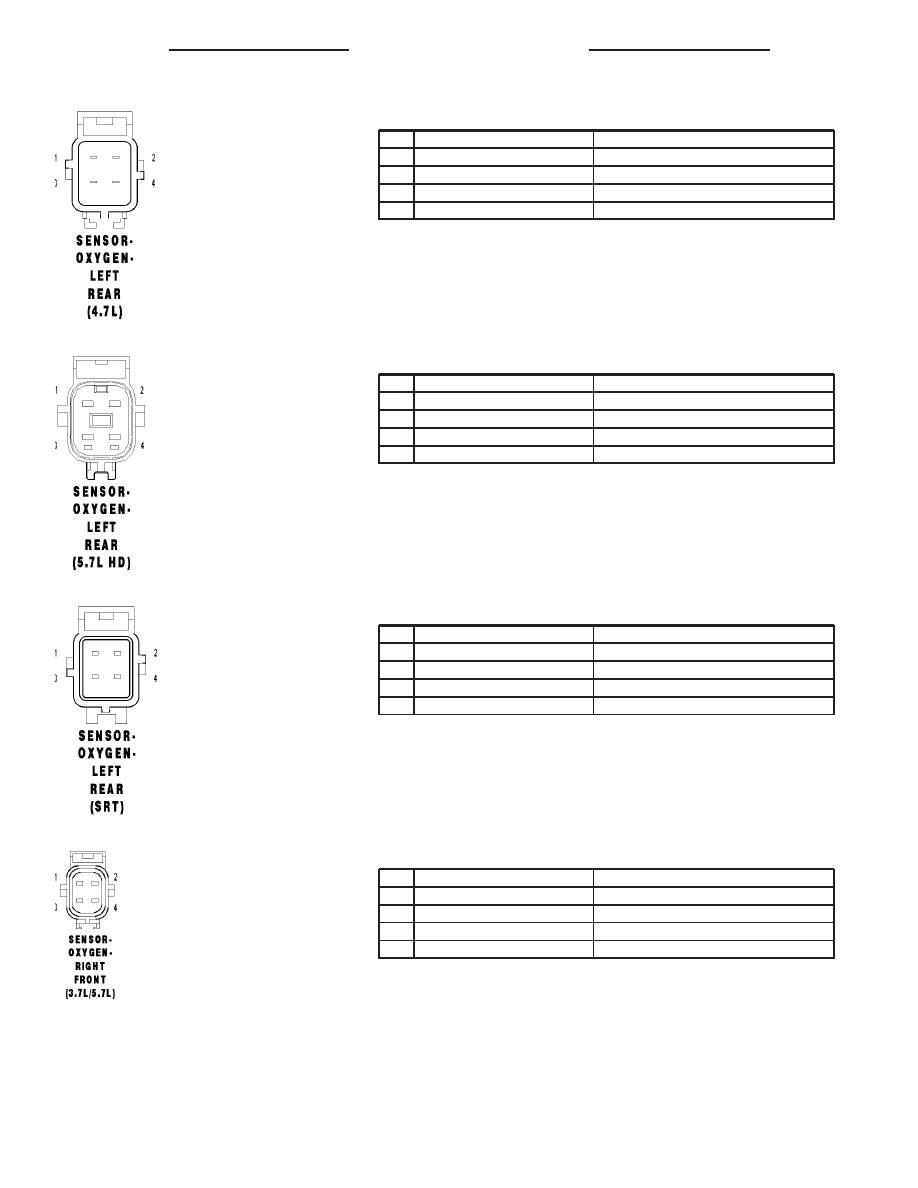

SENSOR-OXYGEN-LEFT REAR (4.7L) - 4 WAY

CAV

CIRCUIT

FUNCTION

1

K299 18BR/WT

O2 1/2 HEATER CONTROL

2

Z43 18BK/LB

GROUND

3

K904 18DB/DG

O2 RETURN (DOWN)

4

K141 18DB/YL

O2 1/2 SIGNAL

SENSOR-OXYGEN-LEFT REAR (5.7L HD) - 4 WAY

CAV

CIRCUIT

FUNCTION

1

K299 18BR/WT

O2 1/2 HEATER CONTROL

2

Z43 18BK/LB

GROUND

3

K904 18DB/DG

O2 RETURN (DOWN)

4

K141 18DB/YL

O2 1/2 SIGNAL

SENSOR-OXYGEN-LEFT REAR (SRT) - 4 WAY

CAV

CIRCUIT

FUNCTION

1

K344 18BR/GY

OXYGEN SENSOR DOWNSTREAM RELAY OUTPUT

2

Z1 18BK

GROUND

3

K900 20DB/DG

SENSOR GROUND

4

K141 18DB/YL

O2 1/2 SIGNAL

SENSOR-OXYGEN-RIGHT FRONT (3.7L/5.7L) - 4 WAY

CAV

CIRCUIT

FUNCTION

1

K199 18BR/VT

O2 2/1 HEATER CONTROL

2

Z934 18BK

GROUND

3

K902 18BR/DG

O2 RETURN (UP)

4

K43 18DB/LG

O2 2/1 SIGNAL

8W - 80 - 118

8W-80 CONNECTOR PIN-OUTS

DR/DH

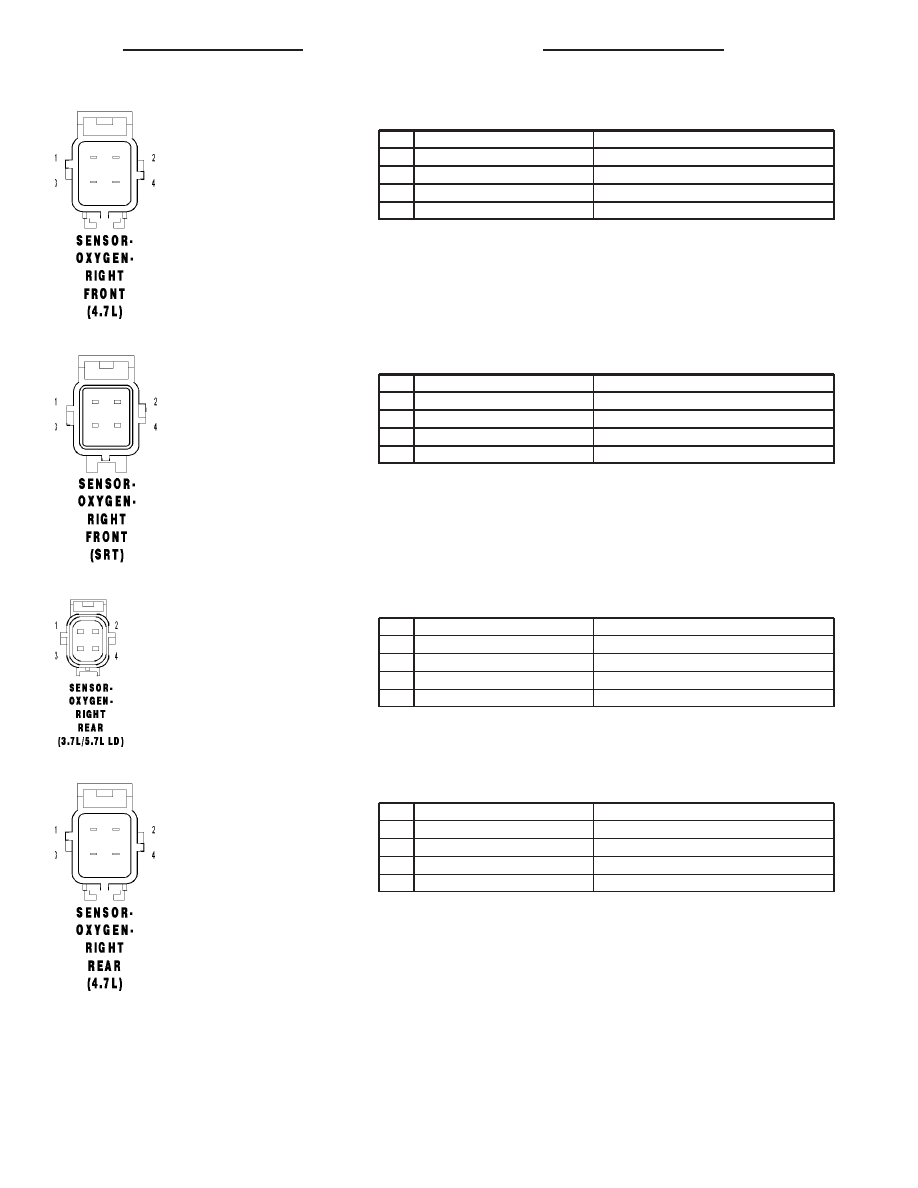

SENSOR-OXYGEN-RIGHT FRONT (4.7L) - 4 WAY

CAV

CIRCUIT

FUNCTION

1

K199 18BR/VT

O2 2/1 HEATER CONTROL

2

Z934 18BK

GROUND

3

K902 18BR/DG

O2 RETURN (UP)

4

K43 18DB/LG

O2 2/1 SIGNAL

SENSOR-OXYGEN-RIGHT FRONT (SRT) - 4 WAY

CAV

CIRCUIT

FUNCTION

1

K343 16BR/YL

FUSED ASD RELAY OUTPUT

2

K199 18BR/VT

O2 2/1 HEATER CONTROL

3

K900 20DB/DG

SENSOR GROUND

4

K43 18DB/LG

O2 2/1 SIGNAL

SENSOR-OXYGEN-RIGHT REAR (3.7L/5.7L LD) - 4 WAY

CAV

CIRCUIT

FUNCTION

1

K399 18BR/GY

O2 2/2 HEATER CONTROL

2

Z992 18BK

GROUND

3

K904 18DB/DG

O2 RETURN (DOWN)

4

K243 18BR

O2 2/2 SIGNAL

SENSOR-OXYGEN-RIGHT REAR (4.7L) - 4 WAY

CAV

CIRCUIT

FUNCTION

1

K399 18BR/GY

O2 2/2 HEATER CONTROL

2

Z992 18BK

GROUND

3

K904 18DB/DG

O2 RETURN (DOWN)

4

K243 18BR

O2 2/2 SIGNAL

DR/DH

8W-80 CONNECTOR PIN-OUTS

8W - 80 - 119
