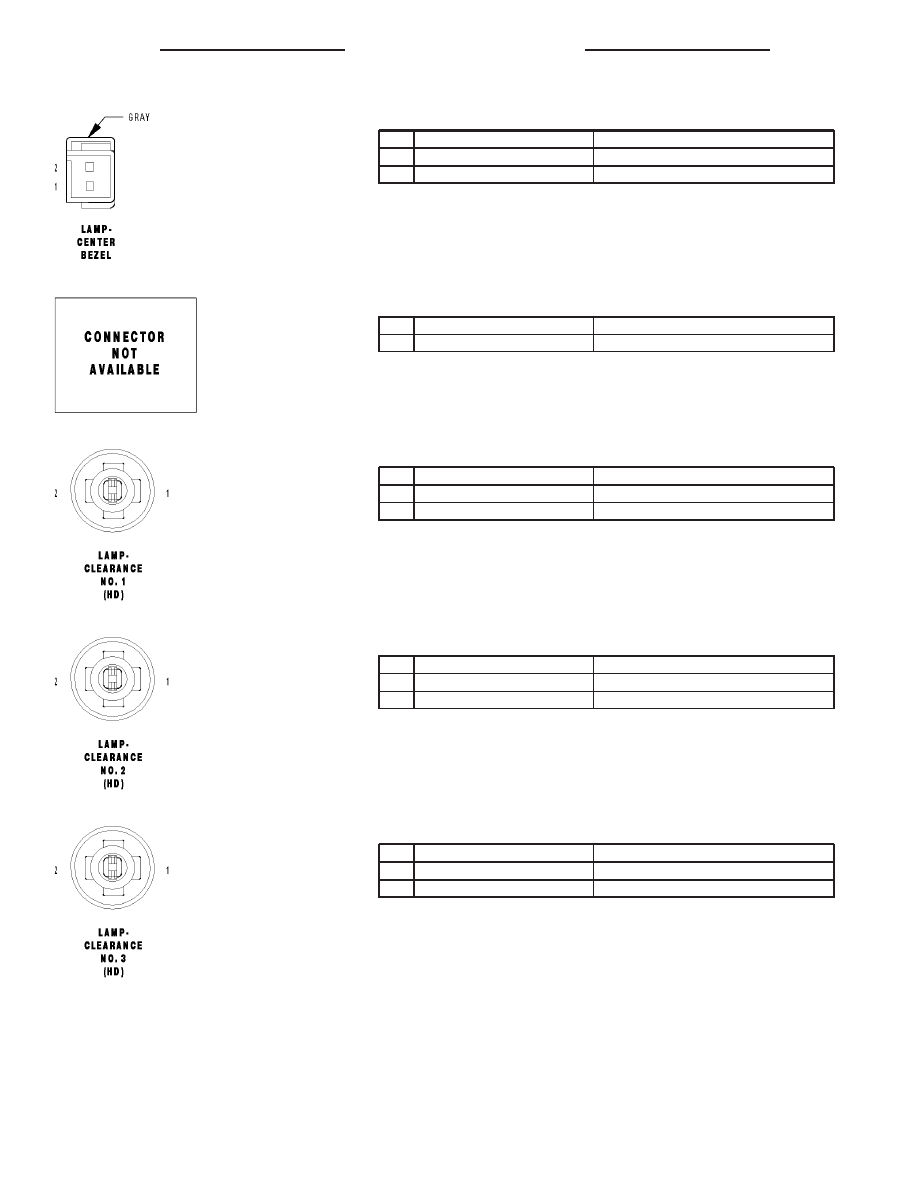

LAMP-CENTER BEZEL - GRAY 2 WAY

CAV

CIRCUIT

FUNCTION

1

L70 18WT/GY

FUSED PARK LAMP RELAY OUTPUT

2

Z923 18BK

GROUND

LAMP-CHMSL-AFTERMARKET - 1 WAY

CAV

CIRCUIT

FUNCTION

1

L50 18 WT/TN

BRAKE LAMP SWITCH OUTPUT

LAMP-CLEARANCE NO. 1 (HD) - 2 WAY

CAV

CIRCUIT

FUNCTION

1

L70 20WT/GY

FUSED PARK LAMP RELAY OUTPUT

2

Z946 20BK

GROUND

LAMP-CLEARANCE NO. 2 (HD) - 2 WAY

CAV

CIRCUIT

FUNCTION

1

L70 20WT/GY

FUSED PARK LAMP RELAY OUTPUT

2

Z946 20BK

GROUND

LAMP-CLEARANCE NO. 3 (HD) - 2 WAY

CAV

CIRCUIT

FUNCTION

1

L70 20WT/GY

FUSED PARK LAMP RELAY OUTPUT

2

Z946 20BK

GROUND

8W - 80 - 72

8W-80 CONNECTOR PIN-OUTS

DR/DH

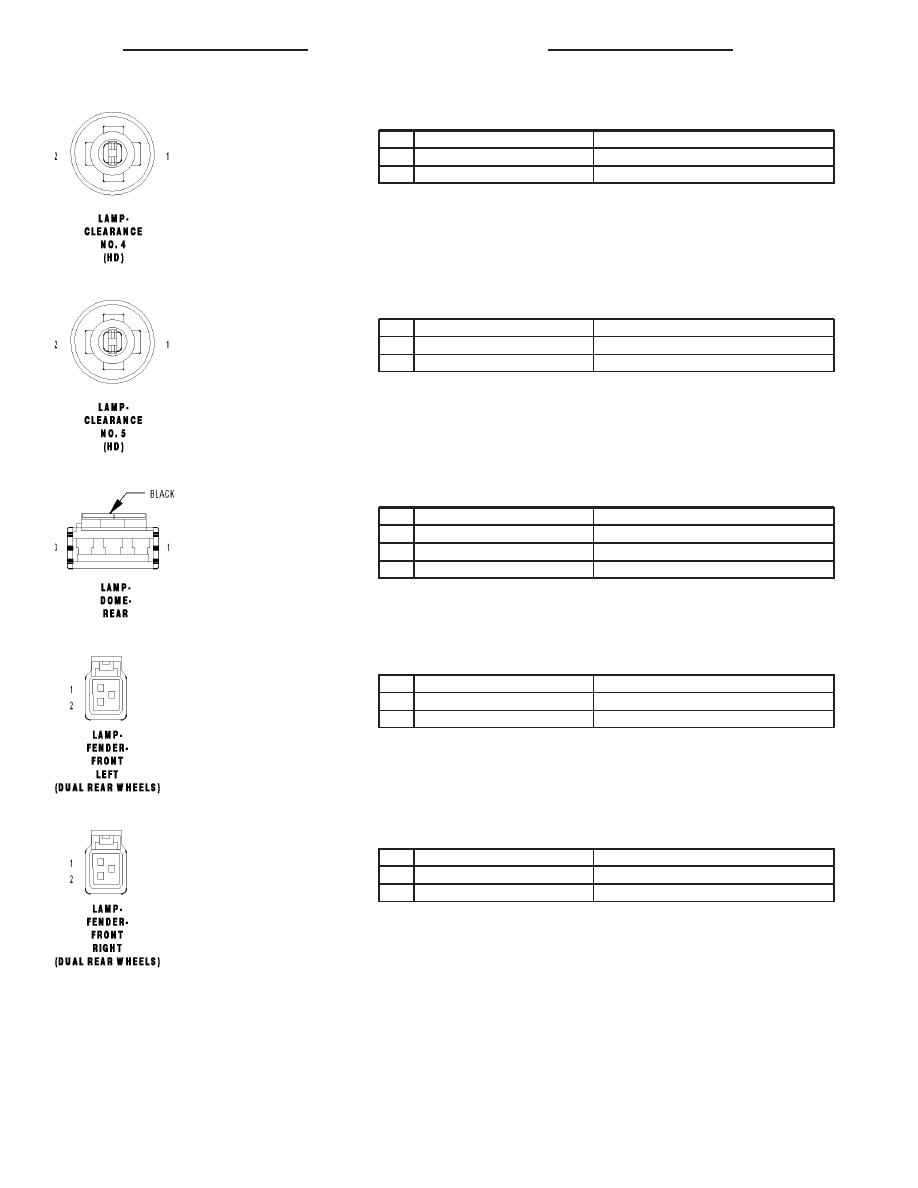

LAMP-CLEARANCE NO. 4 (HD) - 2 WAY

CAV

CIRCUIT

FUNCTION

1

L70 20WT/GY

FUSED PARK LAMP RELAY OUTPUT

2

Z946 20BK

GROUND

LAMP-CLEARANCE NO. 5 (HD) - 2 WAY

CAV

CIRCUIT

FUNCTION

1

L70 20WT/GY

FUSED PARK LAMP RELAY OUTPUT

2

Z946 20BK

GROUND

LAMP-DOME-REAR - BLACK 3 WAY

CAV

CIRCUIT

FUNCTION

1

M288 20YL/GY (LIGHT PACKAGE)

READING LAMPS DRIVER

2

M20 20YL/LB

COURTESY LAMPS DRIVER

3

Z964 20BK

GROUND

LAMP-FENDER-FRONT LEFT (DUAL REAR WHEELS) - 2 WAY

CAV

CIRCUIT

FUNCTION

1

L7 18WT/YL

FUSED PARK LAMP RELAY OUTPUT

2

Z947 18BK

GROUND

LAMP-FENDER-FRONT RIGHT (DUAL REAR WHEELS) - 2 WAY

CAV

CIRCUIT

FUNCTION

1

L70 18WT/YL

FUSED PARK LAMP RELAY OUTPUT

2

Z948 18BK

GROUND

DR/DH

8W-80 CONNECTOR PIN-OUTS

8W - 80 - 73

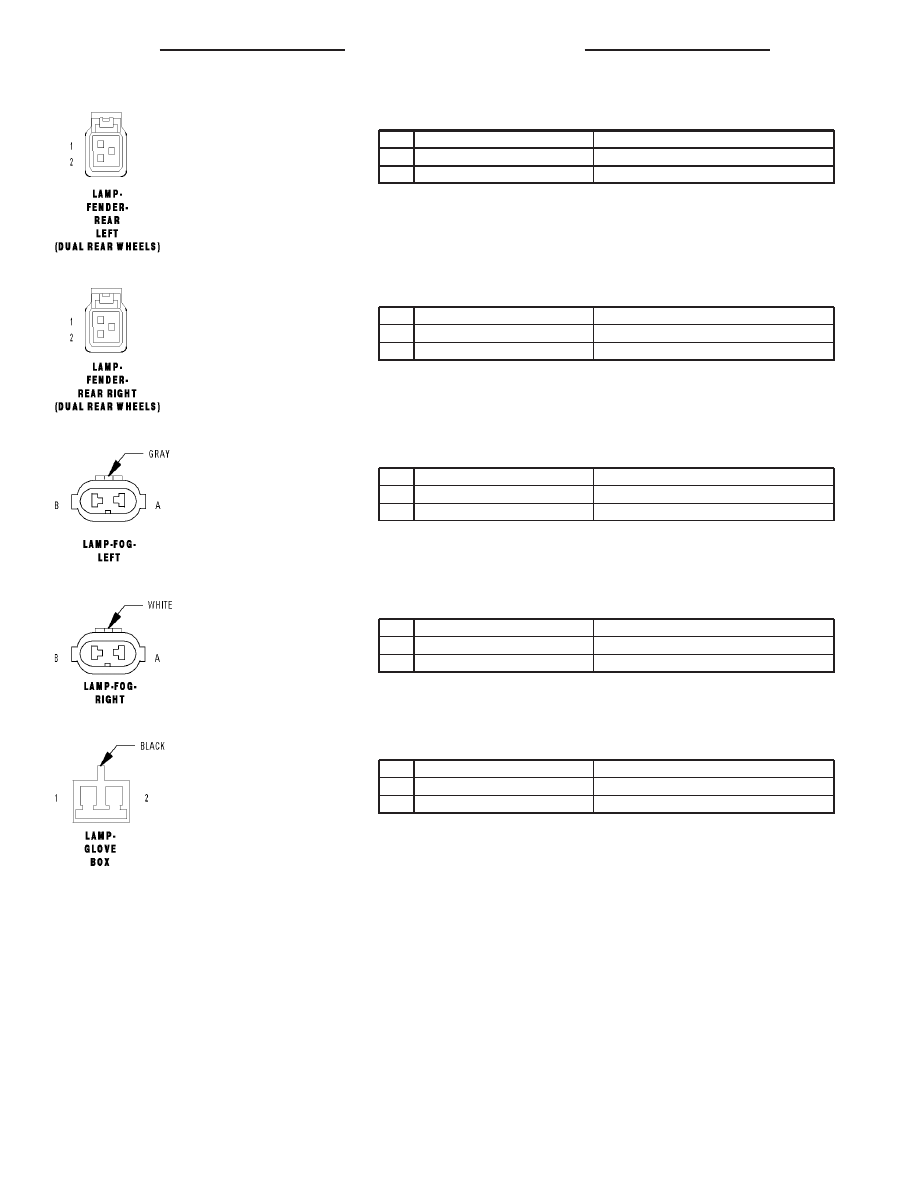

LAMP-FENDER-REAR LEFT (DUAL REAR WHEELS) - 2 WAY

CAV

CIRCUIT

FUNCTION

1

L7 18WT/YL

FUSED PARK LAMP RELAY OUTPUT

2

Z947 18BK

GROUND

LAMP-FENDER-REAR RIGHT (DUAL REAR WHEELS) - 2 WAY

CAV

CIRCUIT

FUNCTION

1

L70 18WT/YL

FUSED PARK LAMP RELAY OUTPUT

2

Z948 18BK

GROUND

LAMP-FOG-LEFT - GRAY 2 WAY

CAV

CIRCUIT

FUNCTION

A

Z926 18BK

GROUND

B

L89 18WT/YL

FOG LAMP RELAY OUTPUT

LAMP-FOG-RIGHT - WHITE 2 WAY

CAV

CIRCUIT

FUNCTION

A

Z926 18BK

GROUND

B

L89 18WT/YL

FOG LAMP RELAY OUTPUT

LAMP-GLOVE BOX - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

1

Z328 20BK/TN

GROUND

2

M228 18YL/LB

GLOVE BOX LAMP DRIVER

8W - 80 - 74

8W-80 CONNECTOR PIN-OUTS

DR/DH

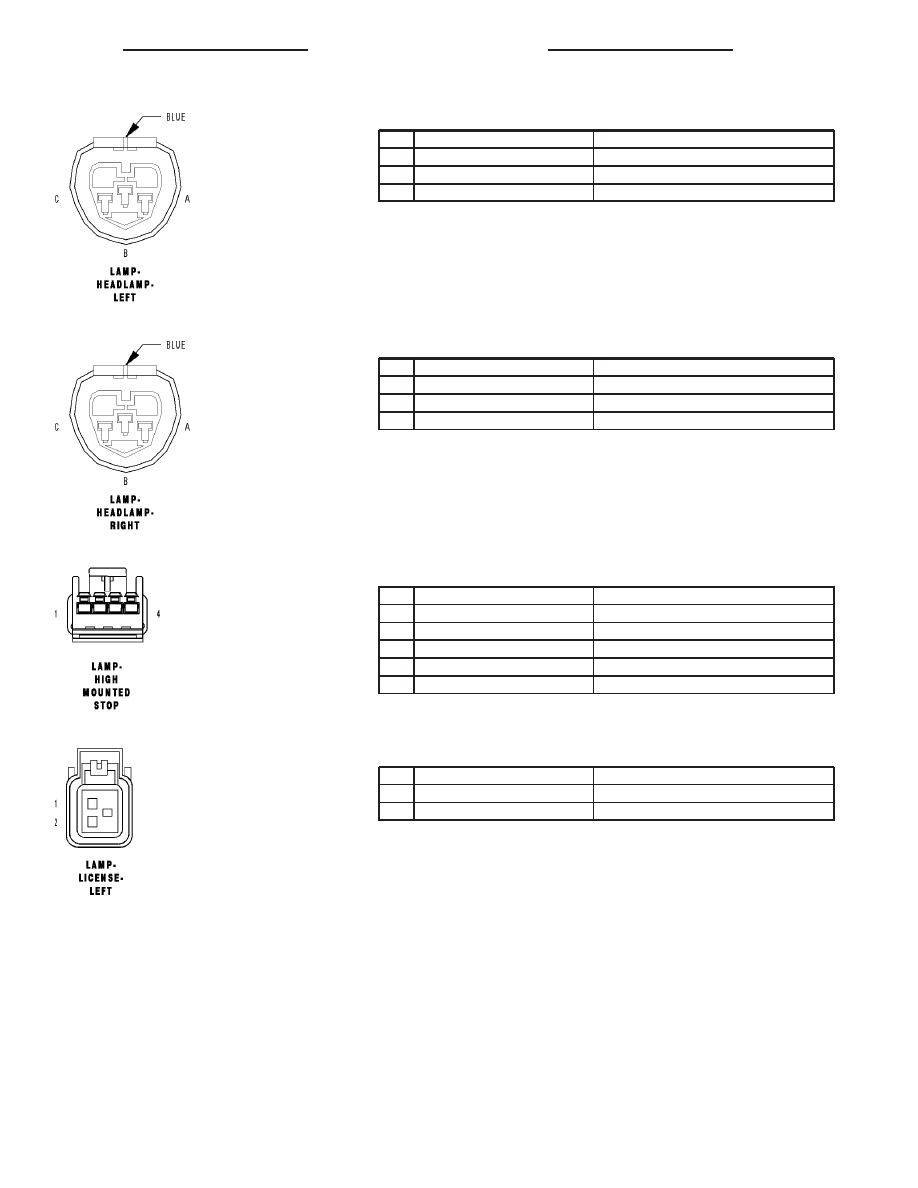

LAMP-HEADLAMP-LEFT - BLUE 3 WAY

CAV

CIRCUIT

FUNCTION

A

L43 18WT/DB

LEFT LOW BEAM DRIVER

B

Z345 18BK/LB

GROUND

C

L33 18WT/LG

LEFT HIGH BEAM DRIVER

LAMP-HEADLAMP-RIGHT - BLUE 3 WAY

CAV

CIRCUIT

FUNCTION

A

L44 18WT/TN

RIGHT LOW BEAM DRIVER

B

Z346 18BK/LG

GROUND

C

L34 18WT/GY

RIGHT HIGH BEAM DRIVER

LAMP-HIGH MOUNTED STOP - 4 WAY

CAV

CIRCUIT

FUNCTION

1

L14 20WT/TN (EXCEPT SUNROOF)

CARGO LAMP DRIVER

1

L14 20WT/BR (SUNROOF)

CARGO LAMP DRIVER

2

Z964 20BK

GROUND

3

Z964 20 BK

GROUND

4

L50 20WT/TN

BRAKE LAMP SWITCH OUTPUT

LAMP-LICENSE-LEFT - 2 WAY

CAV

CIRCUIT

FUNCTION

1

L7 18WT/YL

FUSED PARK LAMP RELAY OUTPUT

2

Z367 18BK/BR

GROUND

DR/DH

8W-80 CONNECTOR PIN-OUTS

8W - 80 - 75
