Dodge Ram Truck 1500-2500-3500. Manual - part 196

BASE BRAKE

SPECIFICATIONS

DESCRIPTION

SPECIFICATION

Front Disc Brake Caliper

Type

Dual Piston Sliding

Rear Disc Brake Caliper

Type

Single Piston Sliding

Rear Disc Brake Caliper

Type

SRT-10

Dual Piston Sliding

Rear Disc Brake Caliper

Type

Dual Piston Sliding

Front Disc Brake Caliper

2X54 mm (2.12 in.)

Front Disc Brake Caliper
SRT-10

4X57 mm (2.24 in.)

Front Disc Brake Caliper
HD

2X56 mm (2.20 in.)

Front Disc Brake Rotor
LD

336×28 mm (13.2×1.1 in.)

Front Disc Brake Rotor
SRT-10

380×35.5 mm (14.96×1.397 in.)

Front Disc Brake Rotor
HD

353×35.5 mm (13.89×1.397 in.)

Front/Rear Disc Brake Rotor
Max. Runout
LD

0.050 mm (0.002 in.)

Front Disc Brake Rotor
Max. Runout
SRT-10

0.050 mm (0.002 in.)

Rear Disc Brake Rotor
Max. Runout
SRT-10

0.050 mm (0.002 in.)

Front/Rear Disc Brake Rotor
Max. Runout
HD
SRW

0.131 mm (0.005 in.)

Rear Disc Brake Rotor
Max. Runout
HD
DRW

0.328 mm (0.012 in.)

Front/Rear Disc Brake Rotor
Max. Thickness Variation
LD

0.012 mm (0.0005 in.)

Front Disc Brake Rotor
Max. Thickness Variation
SRT-10

0.012 mm (0.0005 in.)

5 - 212

BRAKES - BASE - SERVICE INFORMATION

DR/DH

DESCRIPTION

SPECIFICATION

Rear Disc Brake Rotor
Max. Thickness Variation
SRT-10

0.012 mm (0.0005 in.)

Front/Rear Disc Brake Rotor
Max. Thickness Variation
HD

0.013 mm (0.0005 in.)
Loose Rotor

Minimum Front Rotor Thickness
LD

26.4 mm (1.039 in.)

Minimum Front Rotor Thickness
SRT-10

33.9 mm (1.344 in.)

Minimum Front Rotor Thickness
HD

34 mm (1.33 in.)

Mininium Rear Rotor Thickness
LD

20.4 mm (.803 in)

Mininium Rear Rotor Thickness
HD

28.39 mm (1.117 in)

Mininium Rear Rotor Thickness
SRT-10

28.4 mm (1.118 in.)

Rear Disc Brake Caliper
LD

1x54 mm (2.12 in)

Rear Disc Brake Caliper
SRT-10

2x36 mm (1.42 in)

Rear Disc Brake Caliper
HD
SRW

2x45 mm (1.77 in)

Rear Disc Brake Caliper
HD
DRW

2x51 mm (2.00 in)

Rear Disc Brake Rotor
LD

350x22 mm (13.77 X .86 in)

Rear Disc Brake Rotor
SRT-10

350x22 mm (13.77 X .86 in)

Rear Disc Brake Rotor
HD

353x30 mm (13.89 X 1.18 in)

Rear Disc Brake Rotor
Max Drum Diameter
SRT-10 & HD

207.2 mm (8.157 in.)

Brake Booster
Type
Gasoline Engines
LD

Vacuum Dual Diaphragm

Brake Booster
Type
Gasoline Engines
HD
SRW

Vacuum Dual Diaphragm

Brake Booster
Type
Diesel Engines
HD
DRW

Hydroboost

DR/DH

BRAKES - BASE - SERVICE INFORMATION

5 - 213

LINES-BRAKE

STANDARD PROCEDURE

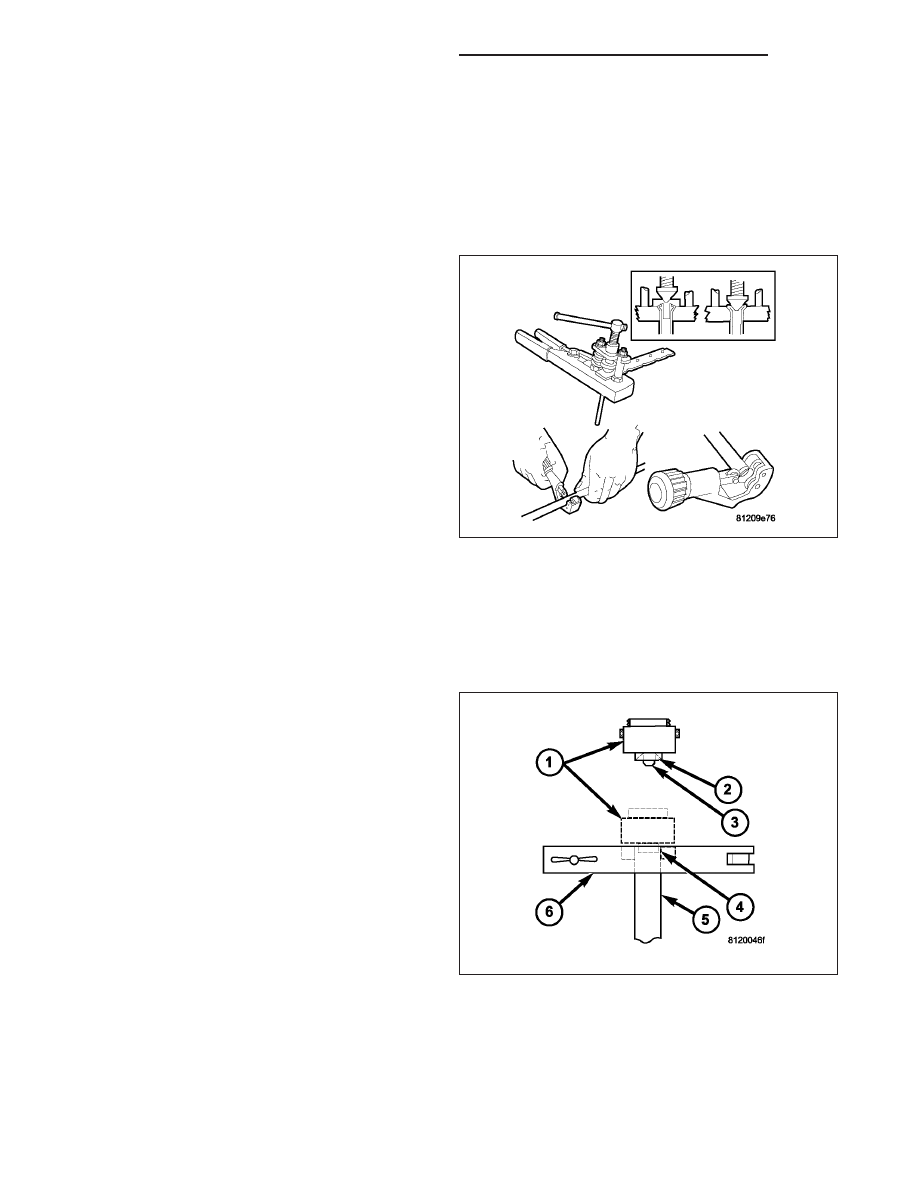

DOUBLE INVERTED FLARING

A preformed metal brake tube is recommended and preferred for all repairs. However, double-wall steel tube can be
used for emergency repair when factory replacement parts are not readily available.

1. Cut off damaged tube with Tubing Cutter.

2. Ream cut edges of tubing to ensure proper flare.

3. Install replacement tube nut on the tube.

4. Insert tube in flaring tool.

5. Place gauge form over the end of the tube.

6. Push tubing through flaring tool jaws until tube con-

tacts recessed notch in gauge that matches tube
diameter.

7. Tighten the tool bar on the tube

8. Insert plug on gauge in the tube. Then swing com-

pression disc over gauge and center tapered flaring
screw in recess of compression disc.

9. Tighten tool handle until plug gauge is squarely

seated on jaws of flaring tool. This will start the
inverted flare.

10. Remove the plug gauge and complete the inverted flare.

ISO FLARING

A preformed metal brake tube is recommended and preferred for all repairs. However, double-wall steel tube can be
used for emergency repair when factory replacement parts are not readily available.

To make a ISO flare use an ISO flaring tool kit.

1. Cut off damaged tube with Tubing Cutter.

2. Remove any burrs from the inside of the tube.

3. Install tube nut on the tube.

4. Position the tube in the flaring tool flush with the

top of the tool bar (6). Then tighten the tool bar on
the tube.

5. Install the correct size adaptor (1) on the flaring

tool yoke screw.

6. Lubricate the adaptor (2).

7. Align the adaptor and yoke screw over the tube.

8. Turn the yoke screw in until the adaptor is squarely

seated on the tool bar.

5 - 214

BRAKES - BASE - SERVICE INFORMATION

DR/DH

REMOVAL

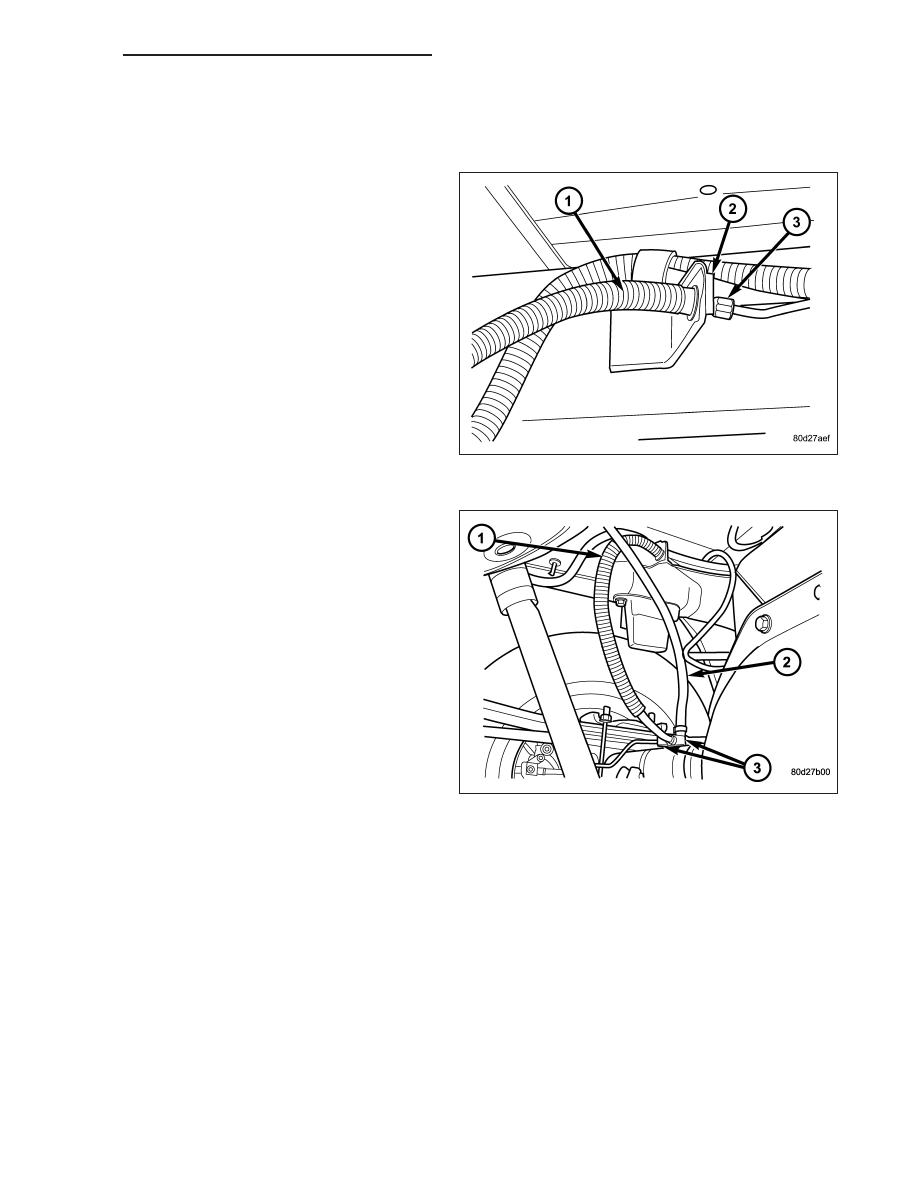

REAR BRAKE HOSE

1. Raise and support the vehicle.

2. Remove the brake line (3) from the hose (1) at the

frame.

3. Remove the brake hose clip (2) at the top of the

hose located at the frame.

4. Remove the vent hose (2).

5. Remove the two brake lines (3) at the bottom of

the hose (1) located at the axle.

6. Remove the mounting bolt for the brake hose at

the axle.

7. Remove the hose.

DR/DH

BRAKES - BASE - SERVICE INFORMATION

5 - 215
