MOTOR-ADJUSTABLE PEDALS

DESCRIPTION

The Adjustable Pedals System (APS) is designed to
enable the fore and aft repositioning of the brake and
accelerator pedals. This results in improved ergonom-
ics in relation to the steering wheel for taller and
shorter drivers. Being able to adjust the pedal posi-
tions also allows the driver to set steering wheel tilt
and seat position to the most comfortable position.
The position of the brake and accelerator pedals can
be adjusted without compromising safety or comfort in
actuating the pedals.

Change of pedal position is accomplished by means
of a motor driven screw. Operating the adjustable

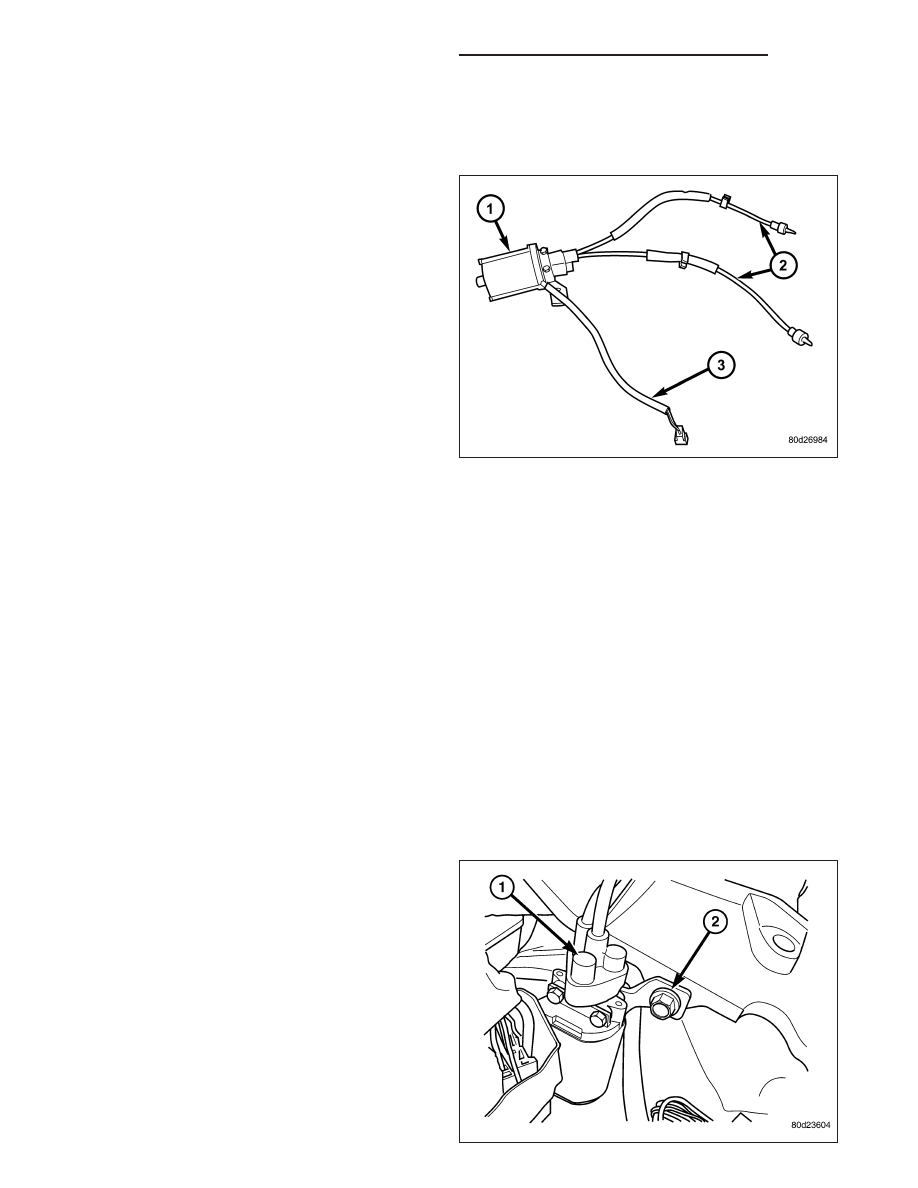

pedal switch activates the pedal drive motor (1). The
pedal drive motor turns a screw that changes the posi-
tion of the brake and accelerator pedals. The pedal
can be moved rearward (closer to the driver) or for-
ward (away from driver). The brake pedal is moved on
its drive screw to a position where the driver feels most comfortable.

The accelerator pedal is moved at the same time and the same distance as the brake pedal.

Neither the pedal drive motor (1) nor drive mechanism are subject to the mechanical stress of brake or accelerator
application.

SYSTEM FEATURES:

Range of Adjustment: The pedals may be adjusted up to 3 in. (75 mm)

Pedal Adjustment Speed: 0.5 in./sec (12.5 mm/sec)

Pedal Adjustment Inhibitors: Pedal adjustment is inhibited when the vehicle is in reverse or when

cruise control is activated.

REMOVAL

1. Disconnect the negative battery cable.

2. Remove the kneeblocker (Refer to 23 - BODY/INSTRUMENT PANEL/STEERING COLUMN OPENING COVER -

REMOVAL).

3. Remove the brake light switch and discard (Refer to 8 - ELECTRICAL/LAMPS/LIGHTING - EXTERIOR/BRAKE

LAMP SWITCH - REMOVAL).

4. Disconnect the adjustable pedal cables from the

brake and accelerator pedals Also clutch pedal if
equipped with a manual transmission
.

5. Disconnect the electrical connector.

6. Unclip the cable fasteners to the support.

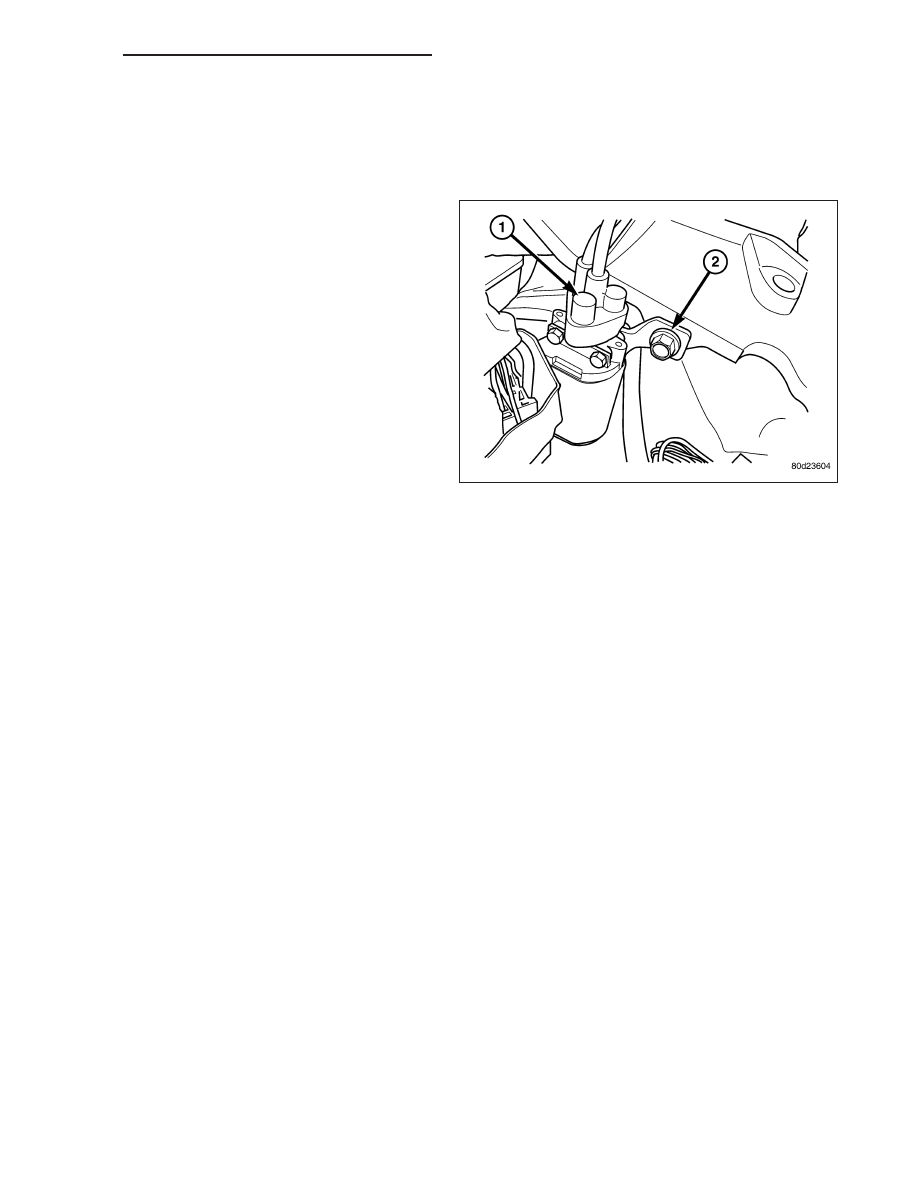

7. Remove the one mounting bolt (2) for the adjust-

able pedal motor (1).

8. Remove the adjustable pedal motor (1) with the

cables.

5 - 208

BRAKES - BASE - SERVICE INFORMATION

DR/DH

NOTE: Adjustable pedal cables are not serviceable. If they need service the adjustable pedal motor with the
cables must be installed.

INSTALLATION

NOTE: Adjustable pedal cables are not service-
able. If they need service the adjustable pedal
motor with the cables must be installed.

1. Install the adjustable pedal motor (1) with the

cables.

2. Install the one mounting bolt (2) for the adjustable

pedal motor (1).

3. Clip the cable fasteners to the support.

4. Reconnect the electrical connector.

5. Reconnect the adjustable pedal cables to the brake and accelerator pedals Also clutch pedal if equipped with

a manual transmission.

6. Install the new brake light switch (Refer to 8 - ELECTRICAL/LAMPS/LIGHTING - EXTERIOR/BRAKE LAMP

SWITCH - REMOVAL).

7. Install the kneeblocker (Refer to 23 - BODY/INSTRUMENT PANEL/STEERING COLUMN OPENING COVER -

INSTALLATION).

8. Reconnect the negative battery cable.

9. Check for proper operation of the pedals.

DR/DH

BRAKES - BASE - SERVICE INFORMATION

5 - 209

HYDRAULIC/MECHANICAL

SPECIFICATIONS

SPECIFICATIONS - TORQUE CHART

TORQUE SPECIFICATIONS

DESCRIPTION

N·m

Ft. Lbs.

In. Lbs.

Brake Booster

Mounting Nuts

28

21

250

Master Cylinder

Mounting Nuts

18

160

Caliper Bleed Screws

19

14

168

Caliper

Mounting Pins

Front

32

24

Caliper

Mounting Pins

Rear

30

22

Caliper

Adapter Mounting Bolts

Front

LD

176

130

Caliper

Adapter Mounting Bolts

Front

HD

&

SRT-10

339

250

Caliper

Adapter Mounting Bolts

Rear

LD

135

100

Caliper

Adapter Mounting Bolts

Rear

HD

&

SRT-10

197

145

Junction Block

Bolts To Frame

10

7.5

Brake Pedal Assembly

Bracket

Nuts

28

21

Support Plate

Mounting Bolts/Nuts

LD

64

47

Support Plate

Mounting Bolts/Nuts

SRT-10 & HD

203

150

Brake Line Fittings

Master Cylinder

19

14

170

5 - 210

BRAKES - BASE - SERVICE INFORMATION

DR/DH

DESCRIPTION

N·m

Ft. Lbs.

In. Lbs.

Brake Line Fittings

Junction Block

19

14

170

Caliper

Brake Line Banjo Bolt

Front

27

20

245

Caliper

Brake Line Banjo Bolt

Rear

27

20

245

Brake Hose

Front Bolts To Frame

10

7.5

Brake Hose

Front Fitting

19

14

250

Brake Hose

Rear Fitting

19

14

250

Parking Brake Pedal

Assembly

19

14

250

Rotor to Hub Bolt

Rear

HD DRW

128

95

Extension to Rotor Nut

HD DRW

Front

130

96

Hub/Bearing

Bolts

LD

&

SRT-10

163

120

Hub/Bearing

Bolts

Front 4X2 HD

176

130

DR/DH

BRAKES - BASE - SERVICE INFORMATION

5 - 211
