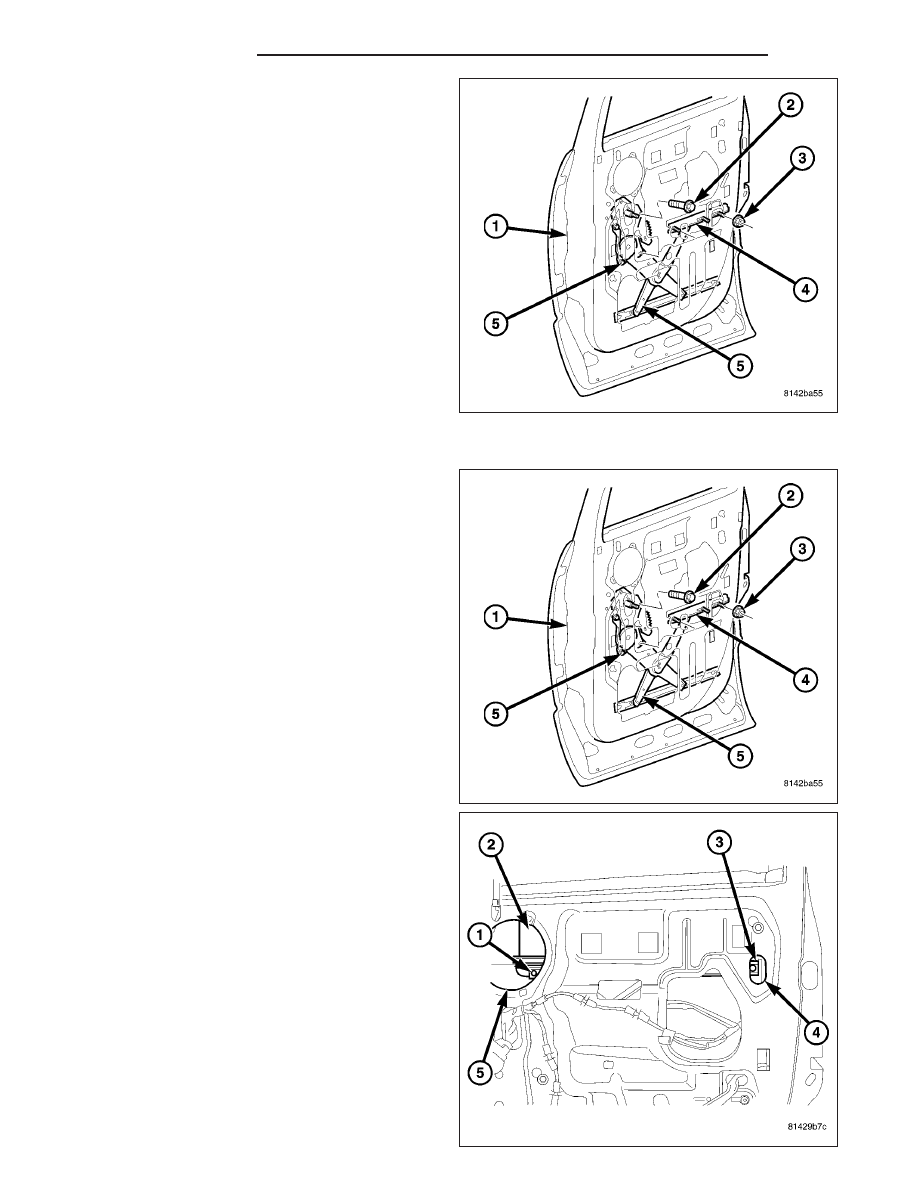

6. Lower the window regulator (5) and remove the

two nuts (3) that secure the regulator stabilizer (4)
to the door (1).

7. Remove the two bolts (2) that secure the window

regulator to the door and loosen the other two reg-
ulator bolts (6).

8. Slide the window regulator upward and disengage

the two regulator bolts from the door.

9. Remove the window regulator through the opening

in the door.

INSTALLATION

1. Install the window regulator (5) through the opening

in the door (1).

2. Engage the two regulator bolts (6) to the door.

3. Install the two bolts (2) that secure the window reg-

ulator to the door and tighten all four regulator bolts
to 10 N·m (89 in. lbs.).

4. Position the regulator stabilizer (4) onto the door

and install the two nuts (3). Tighten the nuts to 10
N·m (89 in. lbs.).

5. Raise the window regulator (3) to the position

shown and remove the manual window crank.

6. Support the door glass (2) and remove the wooden

wedge or equivalent.

7. Position the door glass to the window regulator and

install the two nuts (1) that secure the door glass to
the window regulator through the sight window (4)
and the speaker opening (5). Tighten the nuts to 10
N·m (89 in. lbs.).

8. Install the waterdam (Refer to 23 - BODY/DOORS

- REAR/WATERDAM - INSTALLATION).

9. Install the inner belt molding (Refer to 23 - BODY/

WEATHERSTRIP/SEALS/REAR

DOOR

INNER

BELT MOLDING - INSTALLATION).

23 - 78

DOORS - REAR

DR/DH

EXTERIOR

TABLE OF CONTENTS

page

page

BODY ISOLATORS

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 80

BODY SIDE MOLDINGS

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 81

CARGO BOX

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 83

CARGO BOX - TIE DOWN

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 84

COWL GRILLE

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 85

EXTERIOR NAME PLATES

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 87

FRONT FENDER

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 88

FUEL FILL DOOR

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 89

GRILLE

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 90

GRILLE FRAME

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 91

REAR FENDER-QUAD CAB MODELS

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 93

SIDE VIEW MIRROR

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 96

SIDE VIEW MIRROR GLASS

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 98

UPPER RADIATOR CROSSMEMBER

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 100

FRONT WHEELHOUSE SPLASH SHIELD

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 101

REAR WHEELHOUSE SPLASH SHIELD

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 102

BELLY PAN-SRT-10

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 103

CLADDING-BODY SIDE - BOX - SRT-10

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 104

CLADDING-BODY SIDE - CAB - SRT-10

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 106

CLADDING-BODY SIDE - DOOR - SRT-10

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 108

CLADDING-BODY SIDE - FENDER SRT-10

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 109

SPOILER - SRT-10

REMOVAL

WITHOUT CARGO BOX COVER

. . . . . . . . . 110

WITH CARGO BOX COVER

. . . . . . . . . . . . . 110

INSTALLATION

WITHOUT CARGO BOX COVER

. . . . . . . . . 111

WITH CARGO BOX COVER

. . . . . . . . . . . . . 111

DR/DH

EXTERIOR

23 - 79

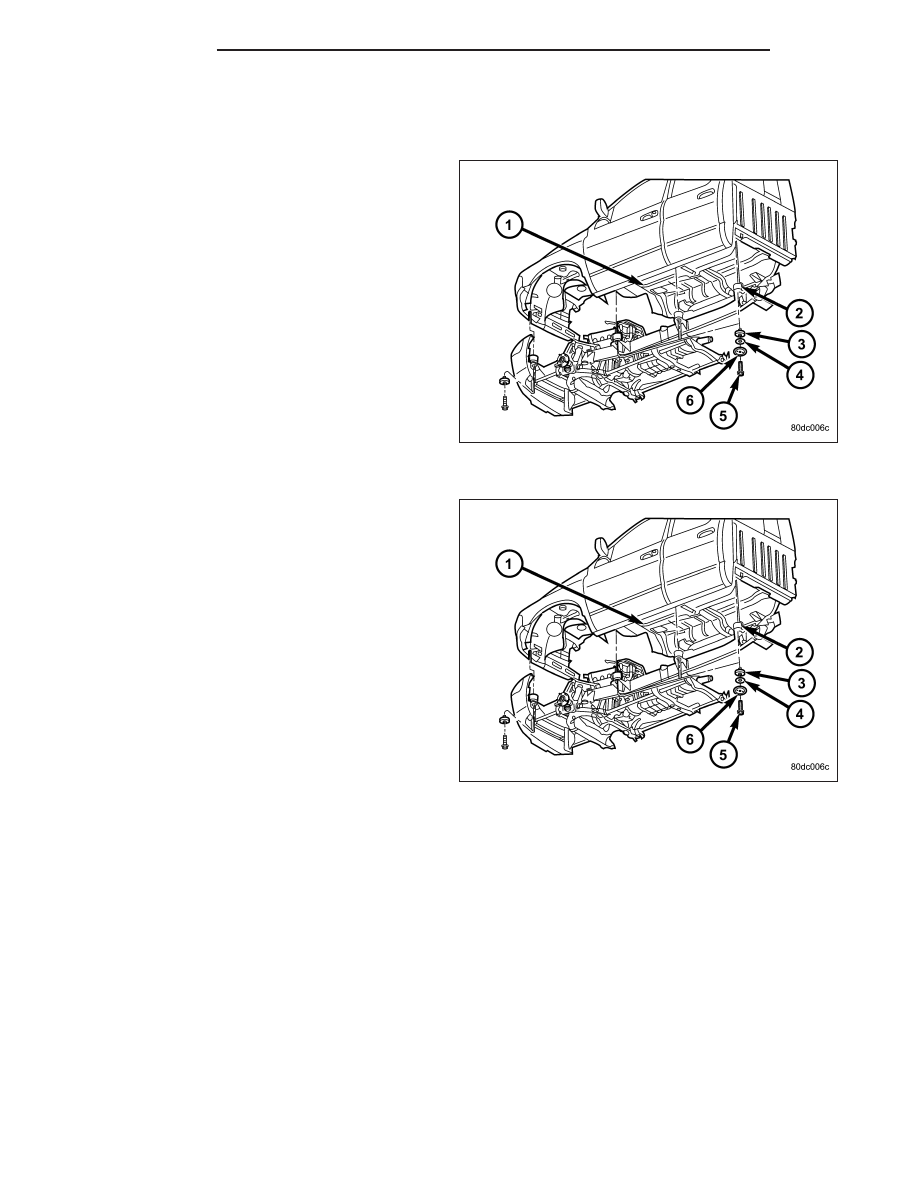

BODY ISOLATORS

REMOVAL

NOTE: Quad Cab model shown in the illustration.
Body isolators for Regular cab models are similar.

1. Loosen all cab to frame mounting bolts (5) (six

Regular cab, eight Quad Cab).

2. Remove the mounting bolts and rebound cushions

(3) as necessary.

NOTE: If servicing the rear isolators (2), remove
the reinforcement plates (6) and the washers (4).

3. Using a floor jack and wooden block under the cab

sill (1), lift the body to gain access to the isolators
and remove the isolators as necessary.

INSTALLATION

NOTE: Quad Cab model shown in the illustration.
Body isolators for Regular cab models are similar.

1. Position the isolators (2) under the cab as neces-

sary.

CAUTION: If servicing the rear isolators, install the
reinforcement plates (6) and the washers (4).

2. Lower the cab onto the isolators and install the

mounting bolts (5) and rebound cushions (3) as
necessary (six Regular cab, eight Quad Cab).

3. Tighten the mounting bolts to 81 N·m (60 ft. lbs.).

23 - 80

EXTERIOR

DR/DH

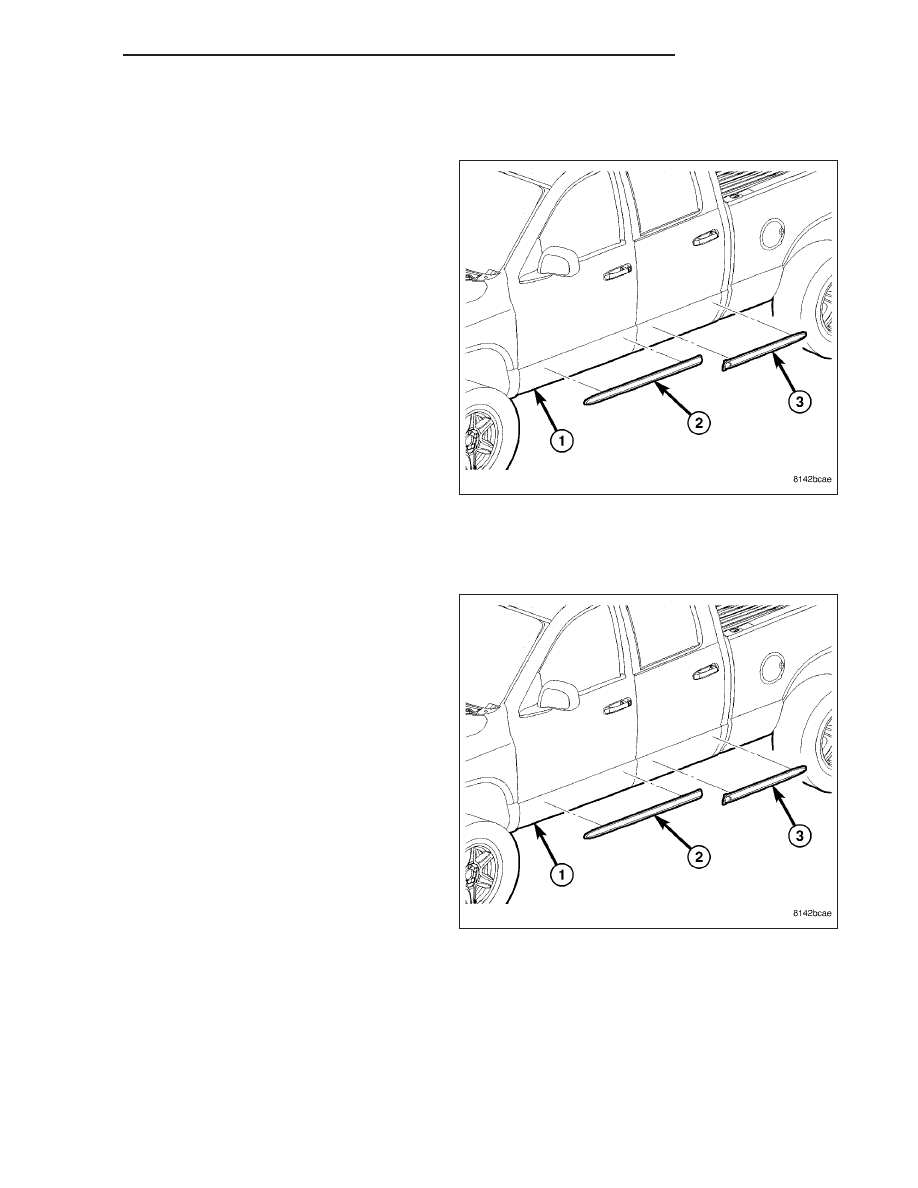

BODY SIDE MOLDINGS

REMOVAL

NOTE: Quad Cab model shown in the illustration.
Body side moldings for Regular cab models are
similar.

1. As a guide for installation, apply a length of mask-

ing tape on the rocker panels (1), parallel to the top
edge and, to one end of the body side molding (2
and 3) being removed

CAUTION: Do not exceed 52° C (120° F) when
heating the moldings or rocker panels. Failure to
follow this caution may result in damage to the
moldings and/or the vehicle paint finish.

2. If the temperature is below 21° C (70° F), warm the

body side moldings with a heat lamp or heat gun.

NOTE: The body side moldings are attached to the
cab with adhesive tape.

3. Using a trim stick C-4755 or equivalent, carefully remove the moldings from the rocker panels, as necessary.

INSTALLATION

NOTE: Quad Cab model shown in the illustration.
Body side moldings for Regular cab models are
similar.

1. Thoroughly clean all residue from the molding

attachment areas of the rocker panels (1).

2. Wipe the attachment areas with a clean, lint-free

cloth, moistened with a 50% solution of water and
alcohol and then wipe dry the areas immediately
with a dry, lint-free cloth.

CAUTION: Do not exceed 52° C (120° F) when
heating the moldings or rocker panels. Failure to
follow this caution may result in damage to the
moldings and/or the vehicle paint finish.

NOTE: If ambient temperatures are below 21° C
(70° F), warm the body side molding and rocker
panel with a heat lamp or gun to assure proper
adhesion.

3. Remove the protective covering from the back of the body side molding (2 and 3) and position the molding onto

the rocker panel using the previously installed guide tape.

NOTE: To ensure proper molding adhesion, apply consistent and uniform pressure of approximately 40
p.s.i. over the entire surface of each body side molding.

4. Install the body side molding onto the rocker panel.

DR/DH

EXTERIOR

23 - 81
