INTERIOR TRIM  9G – 5

DAEWOO V–121 BL4

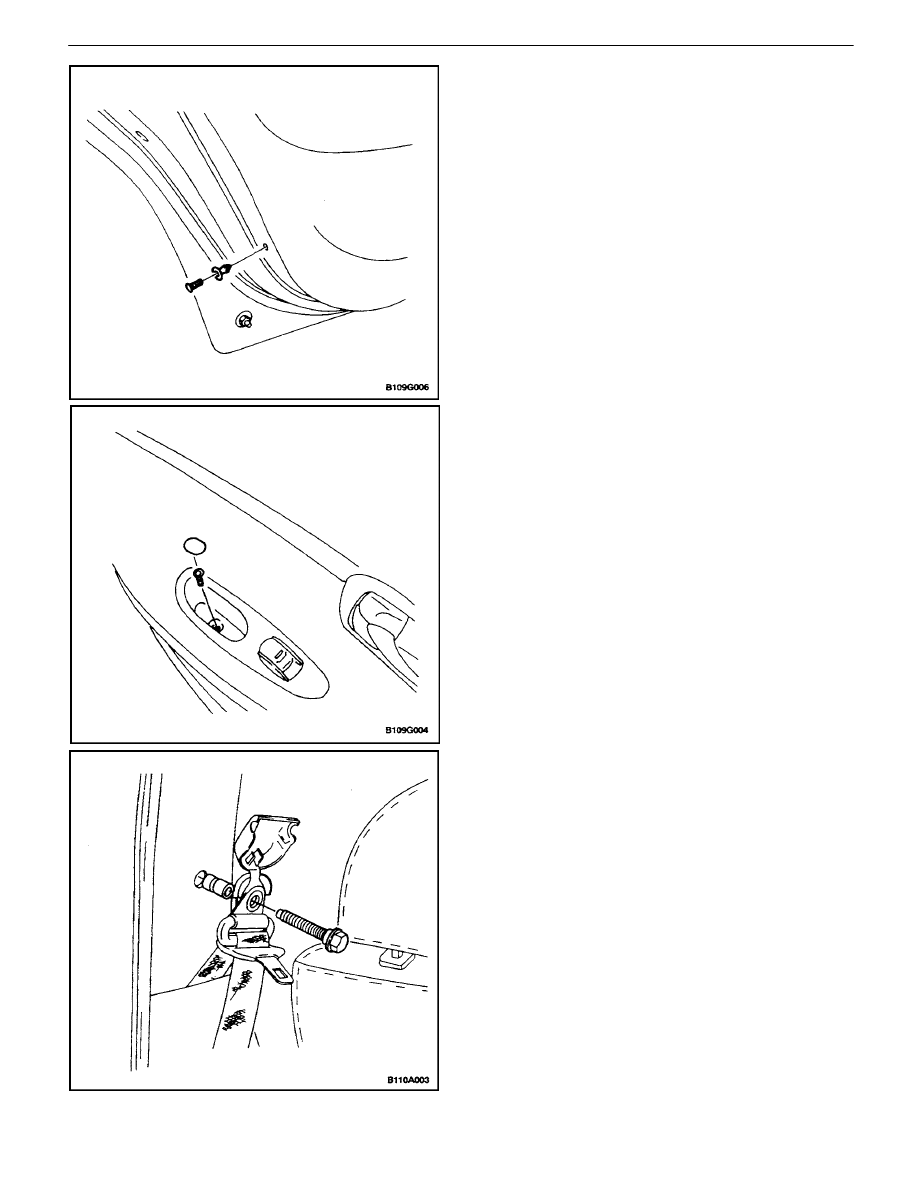

Installation Procedure

1.  Install the trim panel and secure it with the screws.

2.  Install the rear door interior garnish molding.
3.  Install the inside door handle trim bezel.
4.  Connect the power window control electrical con-

nector.

5.  Install the manual window regulator, if equipped.

Refer to Section 9P, Doors.

6.  Install the door pull with the screw.

Tighten

Tighten the door pull screw to 3.5 N

S

m (31 lb–in).

7.  Raise the window.
8.  Connect the negative battery cable.

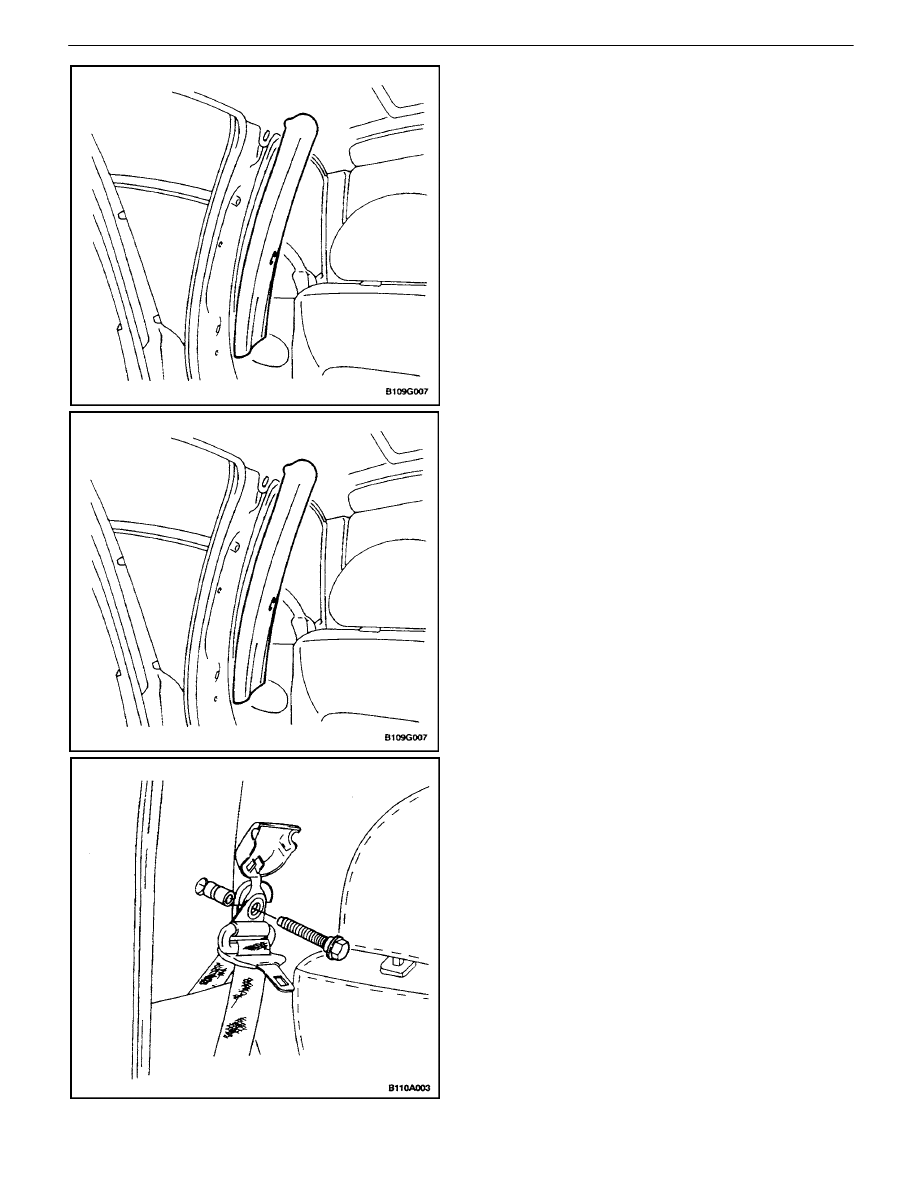

UPPER B–PILLAR TRIM PANEL

Removal Procedure

1.  Remove the bolt and the upper B–pillar seat belt

anchor.

9G – 6

I

INTERIOR TRIM

DAEWOO V–121 BL4

2.  Remove the lower B–pillar trim panel. Refer to”Low-

er B–Pillar Trim Panel”  in this section.

3.  Pry off the upper B–pillar trim panel.

Installation Procedure

1.  Install the upper B–pillar trim panel.

2.  Install the lower B–pillar trim panel. Refer to”Lower

B–Pillar Trim Panel” in this section.

3.  Install the upper B–pillar seat belt anchor with the

bolt.

Tighten

Tighten the seat belt anchor bolt to 35 N

S

m (26 lb–ft).

INTERIOR TRIM  9G – 7

DAEWOO V–121 BL4

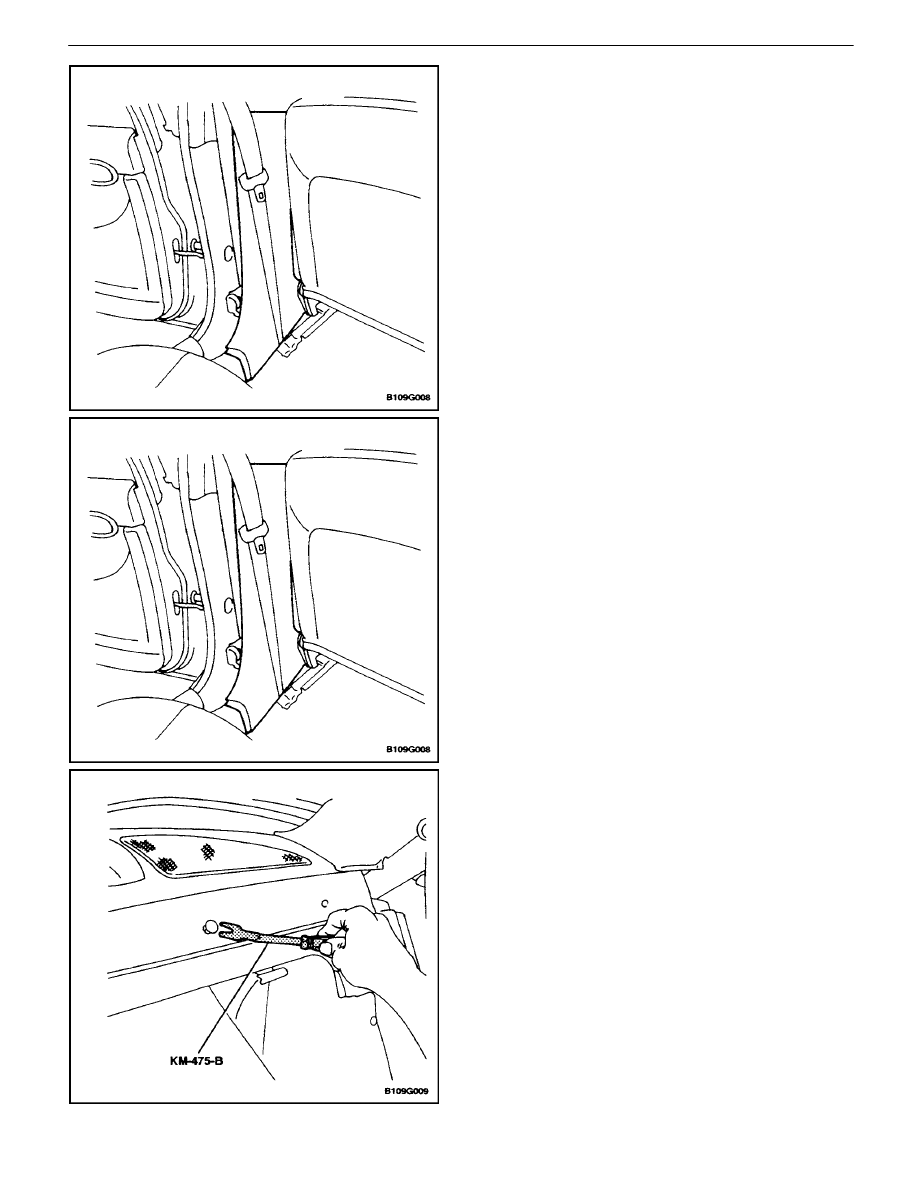

LOWER B–PILLAR TRIM PANEL

Removal Procedure

1.  Reposition the rear portion of the front rocker trim

panel and the front portion of the rear rocker trim
panel.

2.  Pry off the lower B–pillar trim panel.

Installation Procedure

1.  Install the lower B–pillar trim panel.
2.  Install the rear portion of the front rocker trim panel

and the front portion of the rear rocker trim panel.

DECK LID SILL PLATE COVER
(NOTCHBACK)

Tools Required

KM–475–B Trim Remover

Removal Procedure

1.  Remove one C–pillar trim panel. Refer to”C–Pillar

Trim Panel” in this section.

2.  Remove the rear seat back. Refer to Section 9H,

Seats.

3.  Remove child seat tether anchor bolts or plugs, if

equipped.

4.  Using the trim remover KM–475–B, remove the

plastic retaining clips and the deck lid sill plate cov-
er.

9G – 8

I

INTERIOR TRIM

DAEWOO V–121 BL4

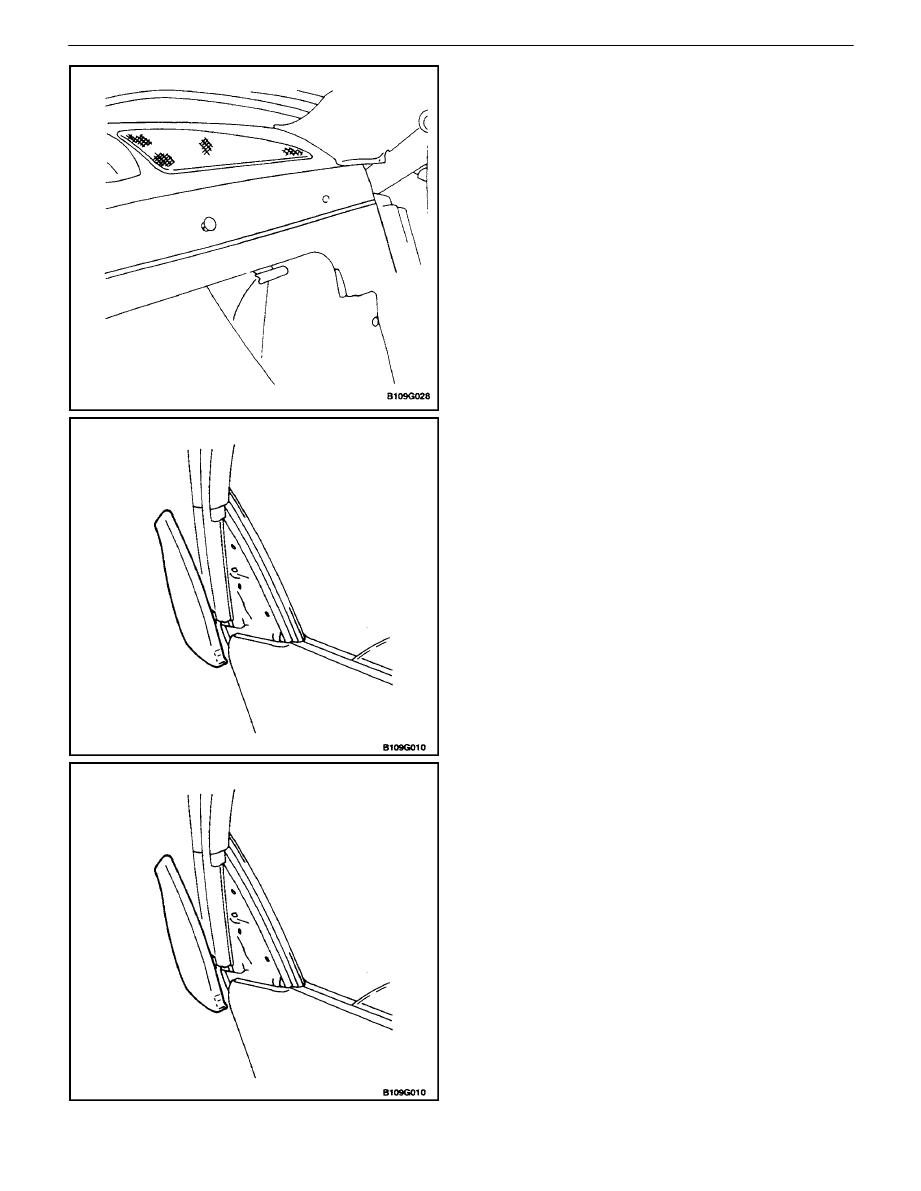

Installation Procedure

1.  Install the rear deck lid sill plate cover with the plas-

tic retaining clips.

2.  Install the child seat tether anchor bolts or plugs, if

equipped.

3.  Install the rear seat back. Refer to Section 9H,

Seats.

4.  Install the C–pillar trim panel. Refer to”C–Pillar Trim

Panel” in this section.

REAR DOOR INTERIOR GARNISH
MOLDING

(Typical)

Removal Procedure

1.  Pry off the rear door interior garnish molding.

Installation Procedure

1.  Install the rear door interior garnish molding.
