INTERIOR TRIM  9G – 9

DAEWOO V–121 BL4

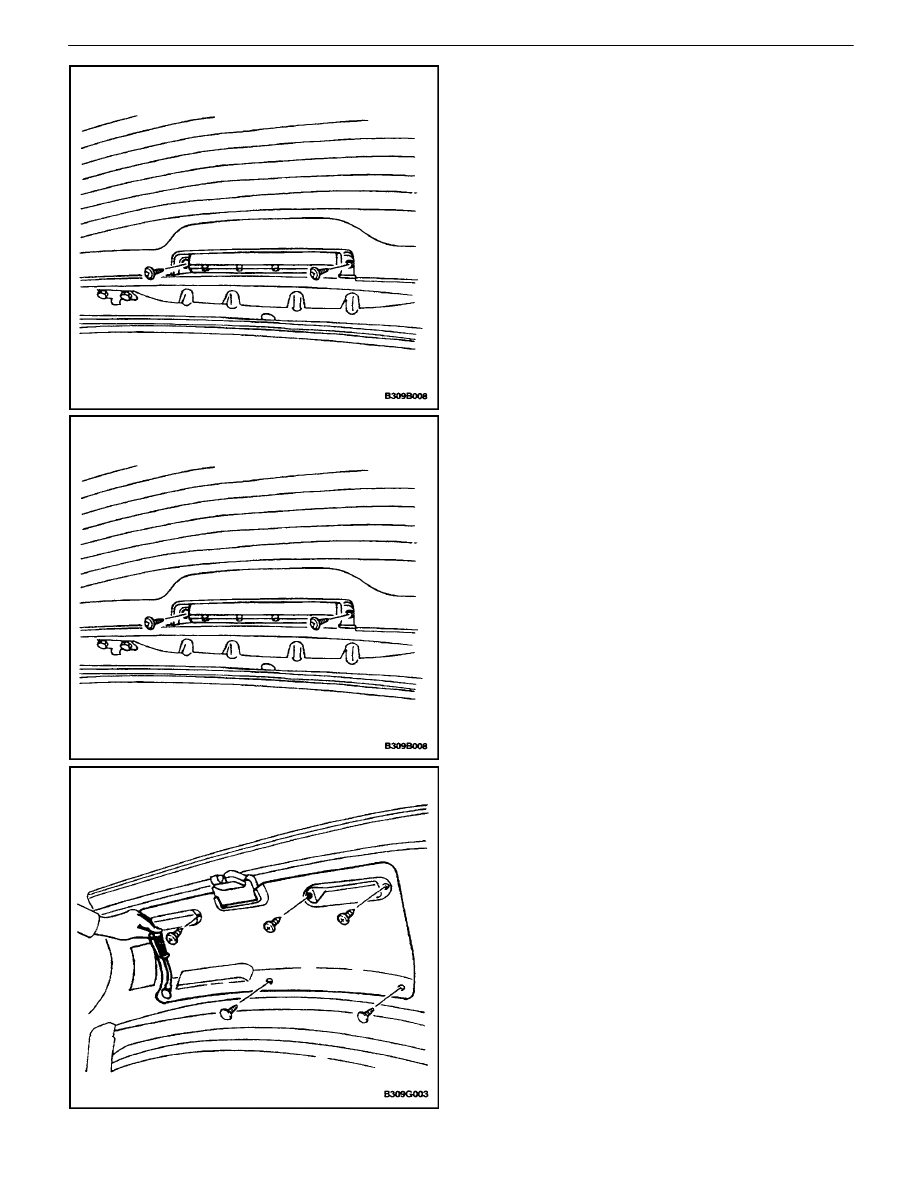

HATCHBACK DOOR UPPER
GARNISH MOLDING

Removal Procedure

1.  Remove the rear compartment security cover

mount.

2.  Remove the screws and the molding.

Installation Procedure

Notice :  Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

1.  Install the molding with the screws.

Tighten

Tighten the trim panel screws to 2 N

S

m (18 lb–in).

2.  Install the rear compartment security cover mount.

9G – 10

I

INTERIOR TRIM

DAEWOO V–121 BL4

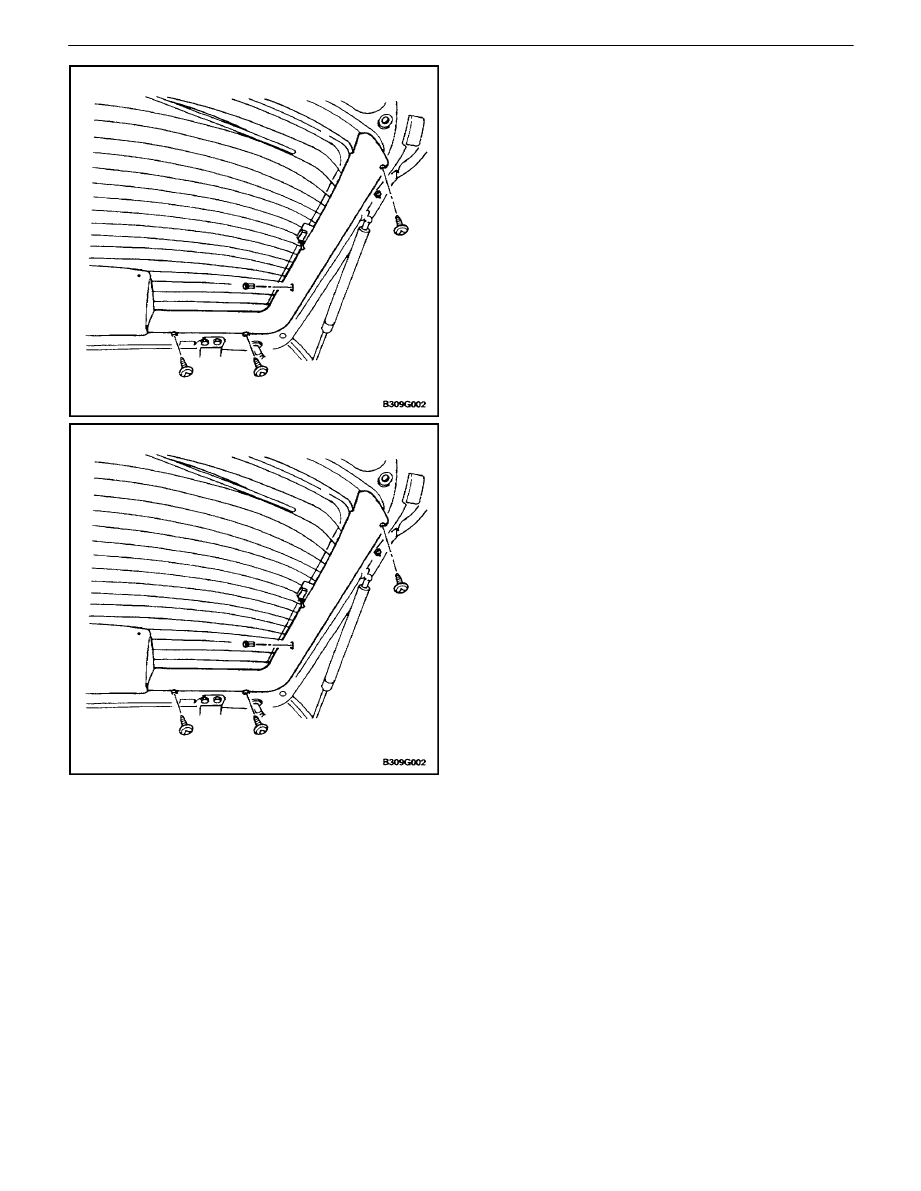

TAILGATE UPPER GARNISH
MOLDING (WAGON)

Removal Procedure

1.  Disconnect the negative battery cable.
2.  Open the tailgate.
3.  Remove the center high–mounted stop lamp ac-

cess cover.

4.  Remove the screws and the molding.
5.  Disconnect the electrical connector.

Installation Procedure

1.  Connect the electrical connector.

Notice :  Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

2.  Install the molding with the screws.

Tighten

Tighten the trim panel screws to 2 N

S

m (18 lb–in).

3.  Install the center high–mounted stop lamp access

cover.

4.  Connect the negative battery cable.

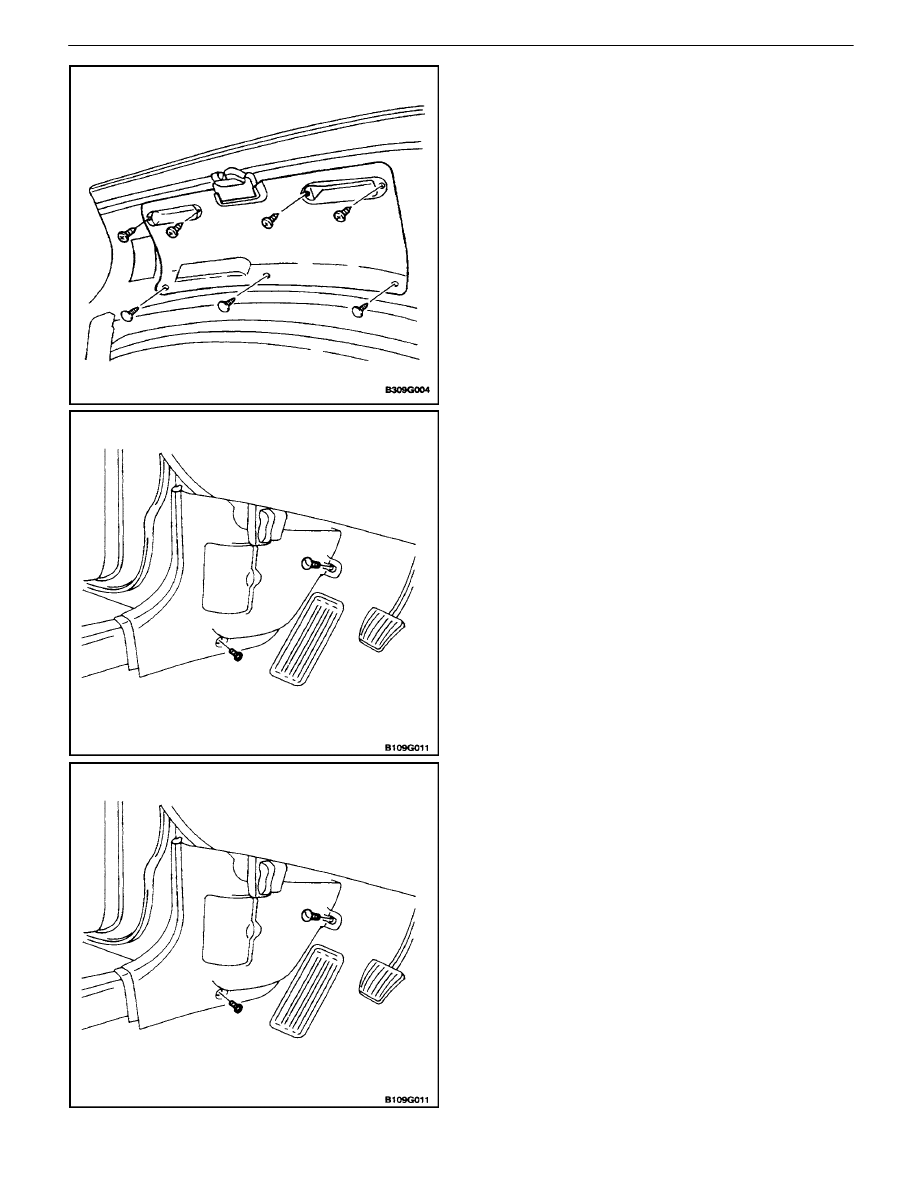

HATCHBACK DOOR LOWER
GARNISH MOLDING

Removal Procedure

1.  Open the hatchback door.
2.  Remove the screws and the lower garnish molding

clips using the trim remover KM–475–B.

3.  Remove the lower garnish molding.

INTERIOR TRIM  9G – 11

DAEWOO V–121 BL4

Installation Procedure

1.  Install the lower garnish molding with the clips and

the screws.

Tighten

Tighten the trim panel screws to 2 N

S

m (18 lb–in).

2.  Close the hatchback door.

KICK PANEL

(Left–Hand Drive Shown, Right–Hand
Drive Similar)

Removal Procedure

1.  Reposition the front portion of the front rocker pan-

el.

2.  Remove the kick panel screws.
3.  Pry off the kick panel.

Installation Procedure

1.  Install the kick panel.

Notice : Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

2.  Install the kick panel screws.

Tighten

Tighten the kick panel screws to 2 N

S

m (18 lb–in).

3.  Install the front portion of the front rocker panel to

its original position.

9G – 12

I

INTERIOR TRIM

DAEWOO V–121 BL4

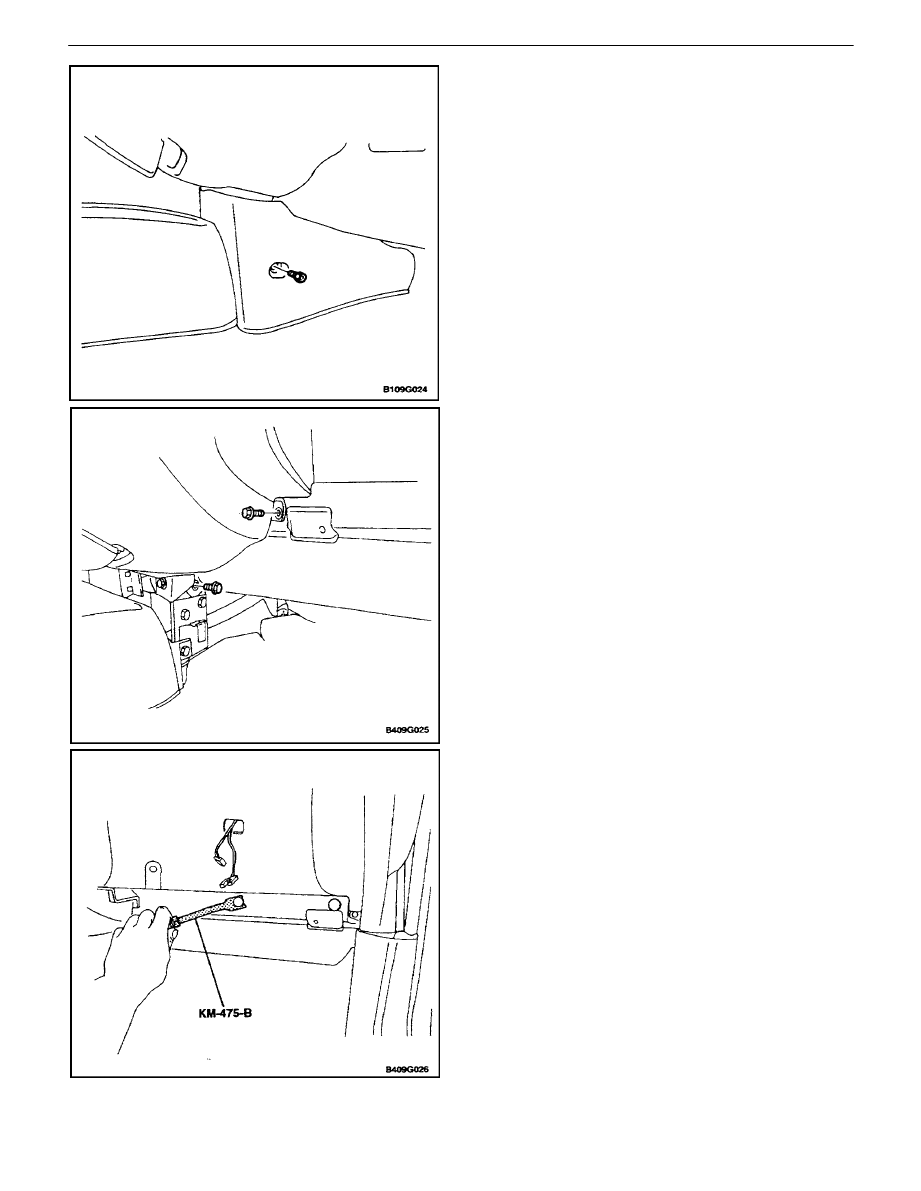

FOOTWELL UPPER COVER

Tools Required

KM–475–B Trim Remover

Removal Procedure

1.  Remove the glove box. Refer toSection 9E, Instru-

mentation/Driver Information.

2.  Remove the bolt and the floor console forward trim

panel.

3.  Remove the right side kick panel. Refer to”Kick

Panel” in this section.

4.  Remove the bolts from the footwell upper cover.

5.  Using the trim remover KM–475–B, remove the

plastic retaining clips and the footwell upper cover.
