Daewoo Nubira. Manual - part 200

SECTION : 9G

INTERIOR TRIM

CAUTION :  Disconnect the negative battery cable before removing or installing any electrical unit or when a tool
or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable will help
prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless otherwise noted.

TABLE OF CONTENTS

SPECIFICATIONS

9G–2

. . . . . . . . . . . . . . . . . . . . . . . . . .

FASTENER TIGHTENING

SPECIFICATIONS

9G–2

. . . . . . . . . . . . . . . . . . . . . . .

SPECIAL TOOLS

9G–2

. . . . . . . . . . . . . . . . . . . . . . . . . . .

SPECIAL TOOLS TABLE

9G–2

. . . . . . . . . . . . . . . . . .

MAINTENANCE AND REPAIR

9G–3

. . . . . . . . . . . . . . .

ON–VEHICLE SERVICE

9G–3

. . . . . . . . . . . . . . . . . . . . .

FRONT DOOR TRIM PANEL

9G–3

. . . . . . . . . . . . . . .

REAR DOOR TRIM PANEL

9G–4

. . . . . . . . . . . . . . . . .

UPPER B–PILLAR TRIM PANEL

9G–5

. . . . . . . . . . . .

LOWER B–PILLAR TRIM PANEL

9G–7

. . . . . . . . . . . .

DECK LID SILL PLATE COVER

(NOTCHBACK)

9G–7

. . . . . . . . . . . . . . . . . . . . . . . . . .

REAR DOOR INTERIOR

GARNISH MOLDING

9G–8

. . . . . . . . . . . . . . . . . . . . .

HATCHBACK DOOR UPPER

GARNISH MOLDING

9G–9

. . . . . . . . . . . . . . . . . . . . .

TAILGATE UPPER GARNISH

MOLDING (WAGON)

9G–10

. . . . . . . . . . . . . . . . . . . .

HATCHBACK DOOR LOWER

GARNISH MOLDING

9G–10

. . . . . . . . . . . . . . . . . . . .

KICK PANEL

9G–11

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

FOOTWELL UPPER COVER

9G–12

. . . . . . . . . . . . . .

FRONT ROCKER TRIM PANEL

9G–14

. . . . . . . . . . . .

REAR ROCKER TRIM PANEL

9G–14

. . . . . . . . . . . . .

FLOOR CARPET

9G–15

. . . . . . . . . . . . . . . . . . . . . . . . .

FLOOR CONSOLE

9G–16

. . . . . . . . . . . . . . . . . . . . . . .

A–PILLAR TRIM PANEL

9G–18

. . . . . . . . . . . . . . . . . . .

C–PILLAR TRIM PANEL (NOTCHBACK)

9G–19

. . . .

C–PILLAR TRIM PANEL (HATCHBACK)

9G–20

. . . .

D–PILLAR TRIM PANEL (WAGON)

9G–21

. . . . . . . . .

LUGGAGE COMPARTMENT WHEELHOUSE

TRIM PANEL (NOTCHBACK)

9G–21

. . . . . . . . . . . .

LUGGAGE COMPARTMENT WHEELHOUSE

TRIM PANEL (WAGON)

9G–22

. . . . . . . . . . . . . . . . .

LUGGAGE COMPARTMENT REAR

QUARTER TRIM PANEL

9G–23

. . . . . . . . . . . . . . . .

LUGGAGE COMPARTMENT

REAR TRIM PANEL

9G–23

. . . . . . . . . . . . . . . . . . . . .

DRIVER KNEE BOLSTER

9G–24

. . . . . . . . . . . . . . . . .

PASSENGER KNEE BOLSTER

9G–25

. . . . . . . . . . . .

GENERAL DESCRIPTION AND SYSTEM

OPERATION

9G–29

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

INTERIOR TRIM PANELS

9G–29

. . . . . . . . . . . . . . . . .

PRESSURE RELIEF VENT

9G–29

. . . . . . . . . . . . . . . .

REAR COMPARTMENT

SECURITY COVER

9G–29

. . . . . . . . . . . . . . . . . . . . .

FLOOR CONSOLE

9G–29

. . . . . . . . . . . . . . . . . . . . . . .

FLOOR CARPET

9G–29

. . . . . . . . . . . . . . . . . . . . . . . . .

9G – 2

I

INTERIOR TRIM

DAEWOO V–121 BL4

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

Application

N

S

m

Lb–Ft

Lb–In

Door Pull Screw

3.5

–

31

Floor Console Bolts 4

4

–

35

Floor Console Forward Trim Panel Bolt

4

–

35

Glove Box Housing Screws

4

–

35

Instrument Panel Lower Trim Piece Bolts

10

–

89

Kick Panel Screws

2

–

18

Knee Bolster Bolts

22

16

–

Knee Bolster Nut

22

16

–

Trim Panel Screw(s)

2

–

18

Seat Belt Anchor Bolt(s)

35

26

–

SPECIAL TOOLS

SPECIAL TOOLS TABLE

KM–475–B

Trim Remover

INTERIOR TRIM  9G – 3

DAEWOO V–121 BL4

MAINTENANCE AND REPAIR

ON–VEHICLE SERVICE

FRONT DOOR TRIM PANEL

Tools Required

KM–475–B Trim Remover

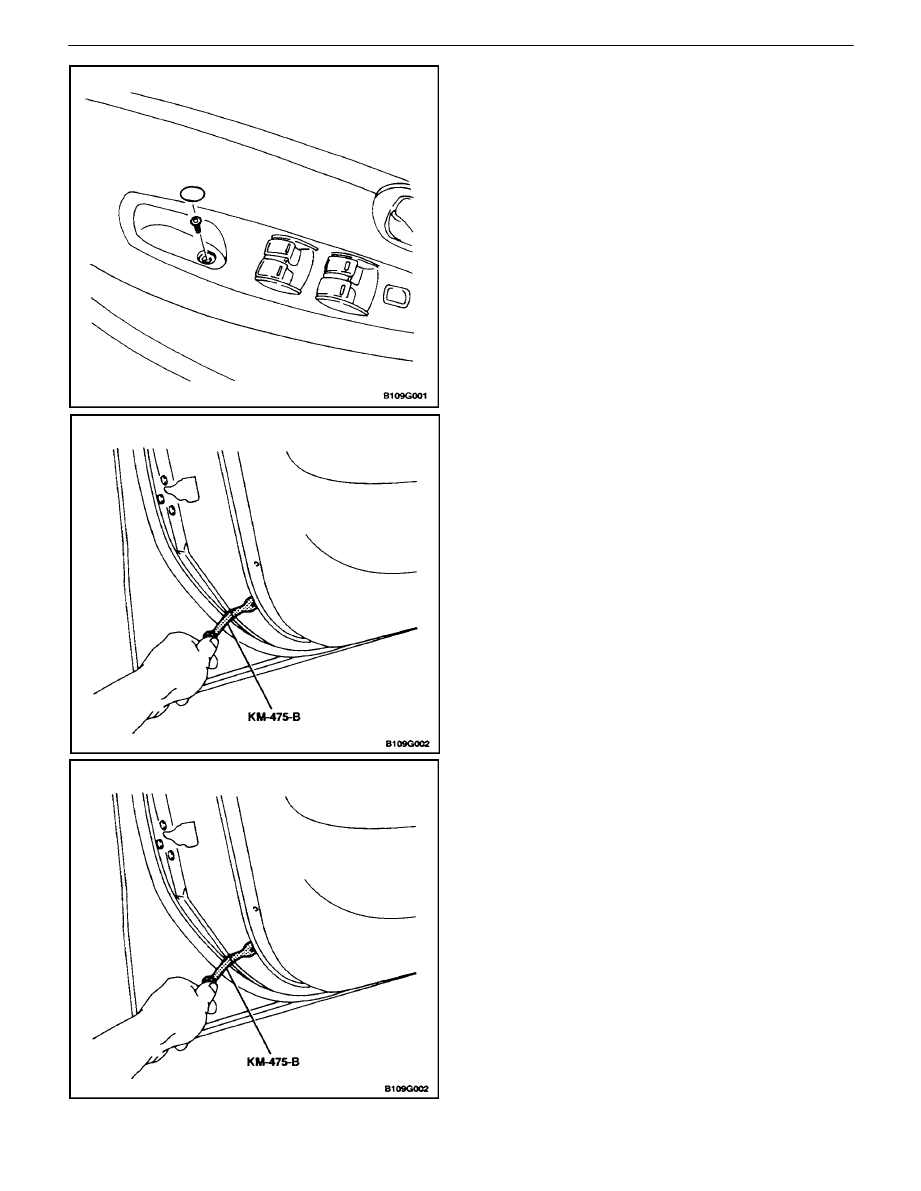

Removal Procedure

1.  Disconnect the negative battery cable.
2.  Lower the front window.
3.  Remove the door pull screw and the door pull.
4.  Disconnect the power window control electrical con-

nector.

5.  Pry off the inside door handle trim bezel.
6.  Remove the screws securing the trim panel.
7.  Using the trim remover KM–475–B, pry off the trim

panel.

Installation Procedure

1.  Install the trim panel and secure it with the screws.

9G – 4

I

INTERIOR TRIM

DAEWOO V–121 BL4

2.  Install the inside door handle trim bezel.
3.  Connect the power window control electrical con-

nector.

4.  Install the door pull with the screw.

Tighten

Tighten the door pull screw to 3.5 N

S

m (31 lb–in).

5.  Raise the window.
6.  Connect the negative battery cable.

REAR DOOR TRIM PANEL

Tools Required

KM–475–B Trim Remover

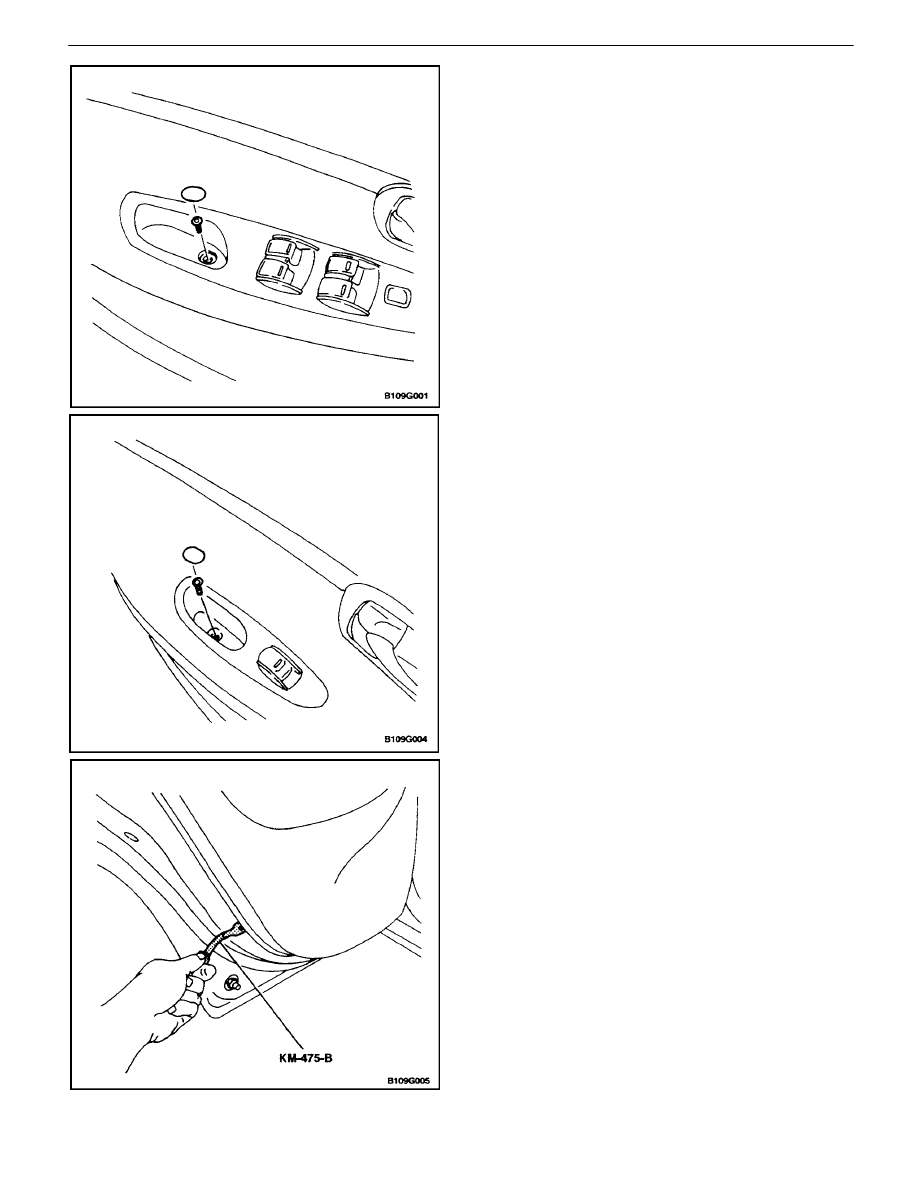

Removal Procedure

1.  Disconnect the negative battery cable.
2.  Lower the rear window.
3.  Remove the door pull screw and the door pull.

4.  Disconnect the power window control electrical con-

nector.

5.  Remove the manual window regulator handle, if

equipped. Refer to Section 9P, Doors.

6.  Pry off the inside door handle trim bezel.
7.  Remove the rear door interior garnish molding.
8.  Remove the screws securing the trim panel.
9.  Using the trim remover KM–475–B, pry off the trim

panel.
