9A – 6
I

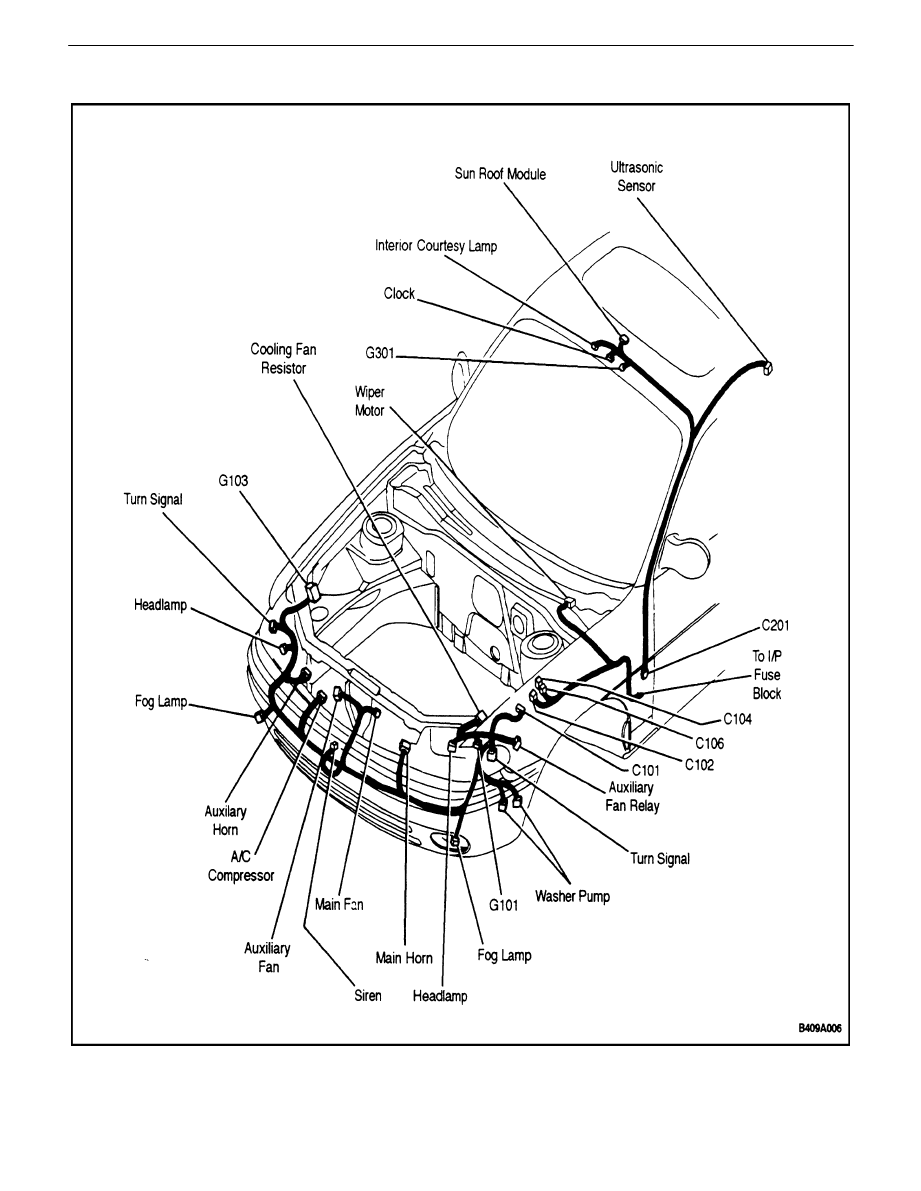

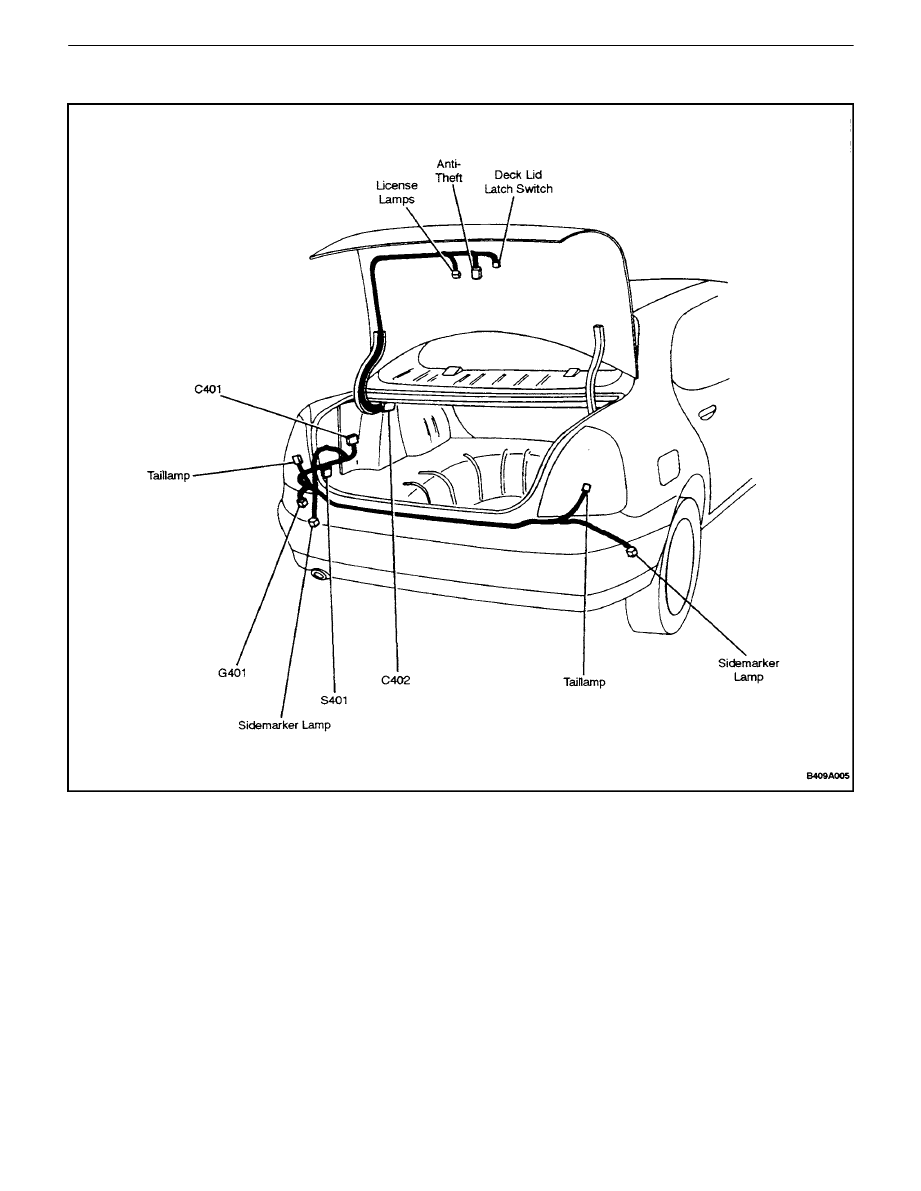

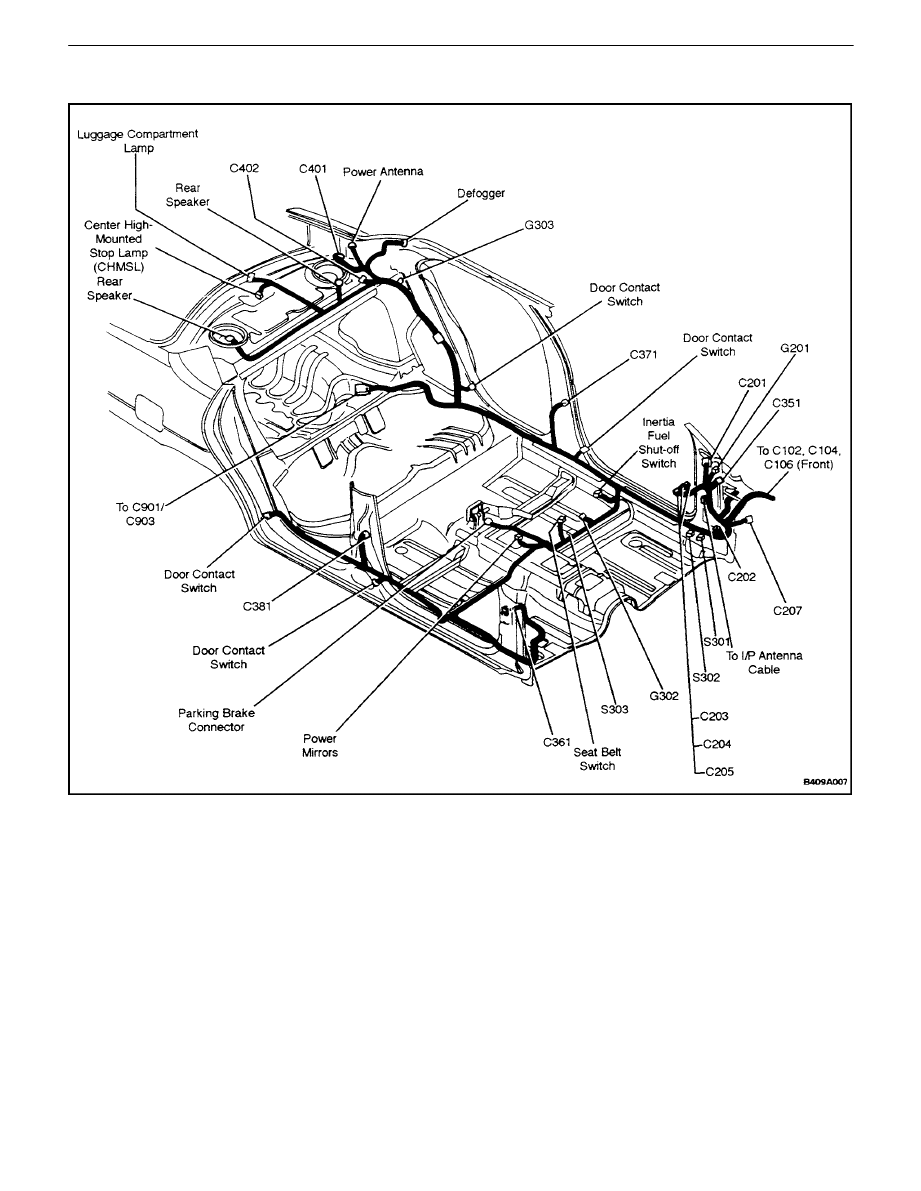

BODY WIRING SYSTEM
DAEWOO V–121 BL4
Fuse
Circuit
Rating/Source
EF33
10A
B+
A/C Compressor Relay,
A/C Compressor, D38
(diode)
EF34
25A
B+
Headlamp Relay, EF30,
EF25, EF31, EF26, High
Headlamp Switch, Passen-
ger Switch
EF35
10A
B+
Horn Switch and Horn
EF37
15A
B+
Fog Lamp Relay, Front Fog
Lamps
F1 (Fuse)
15A
EF6
Ign 1 Relay, Engine Control
Module, CMP
F2
10A
EF6
HVAC Switch
F3
15A
EF6
Hazard Switch/Turn Signal,
Digital Clock
F4
25A
EF6
Wiper Switch, Intermittent
Wiper Relay, Wiper Motor,
Rear Wiper Motor, Rear
Wiper Motor Switch
F5
10A
EF6
ABS Warning Lamp, Chime
Module, Transmission
Range Switch, Instrument
Cluster. BTSI Solenoid
F6
10A
EF6
SIR System
F7
10A
EF6
Backup Switch
F8
10A
EF6
Cruise Control, Immobilizer
F9
15A
EF6
Radio, Key Interlock Sole-
noid, Cigarette Lighter
F10
10A
EF1
Instrument Cluster
F12
10A
EF1
Engine Immobilizer
F13
15A
EF1
Anti–Theft System
F14
10A
EF1
Data Link Connector
F15
10A
EF5
Ign 2 Relay, A/C Relay, De-
fogger Relay, ABS Relay,
ABS EBCM
