BODY WIRING SYSTEM

DAEWOO V–121 BL4

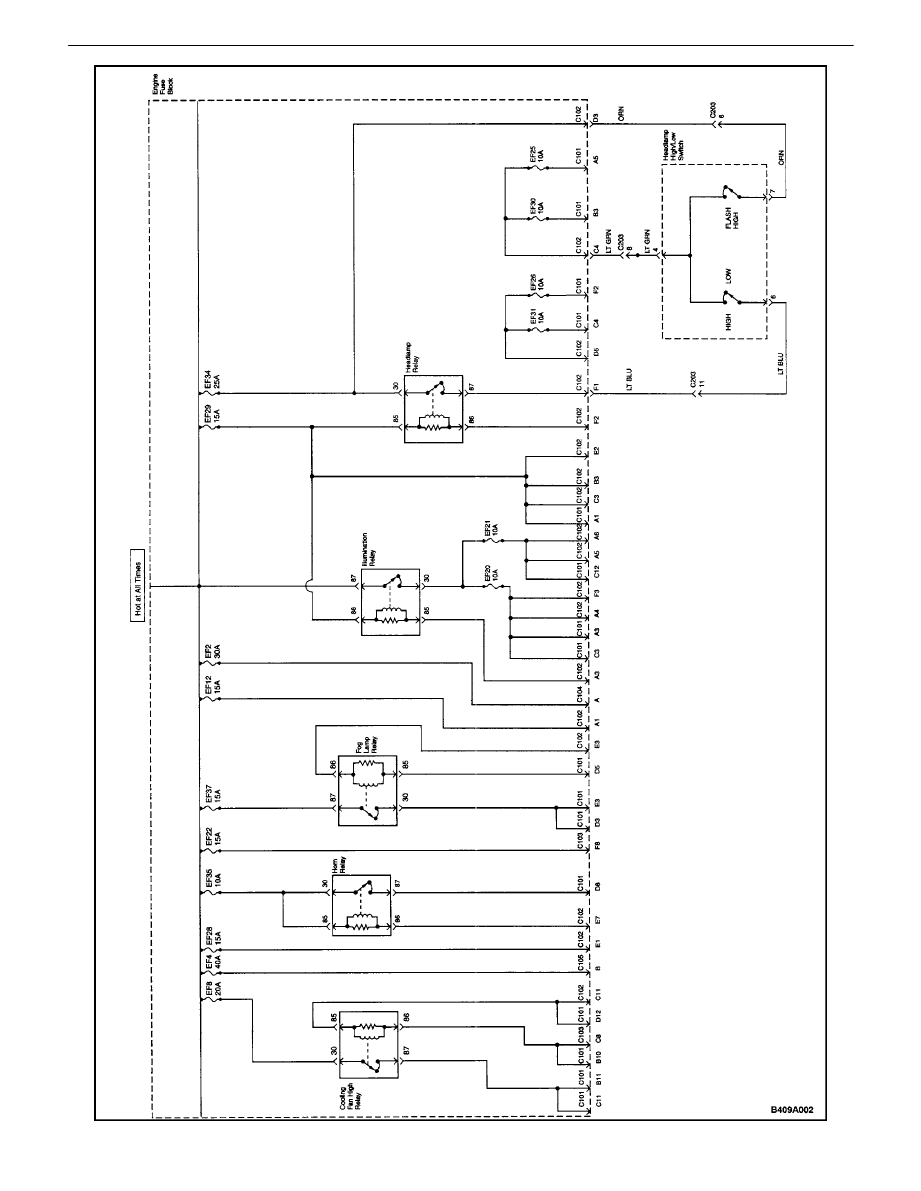

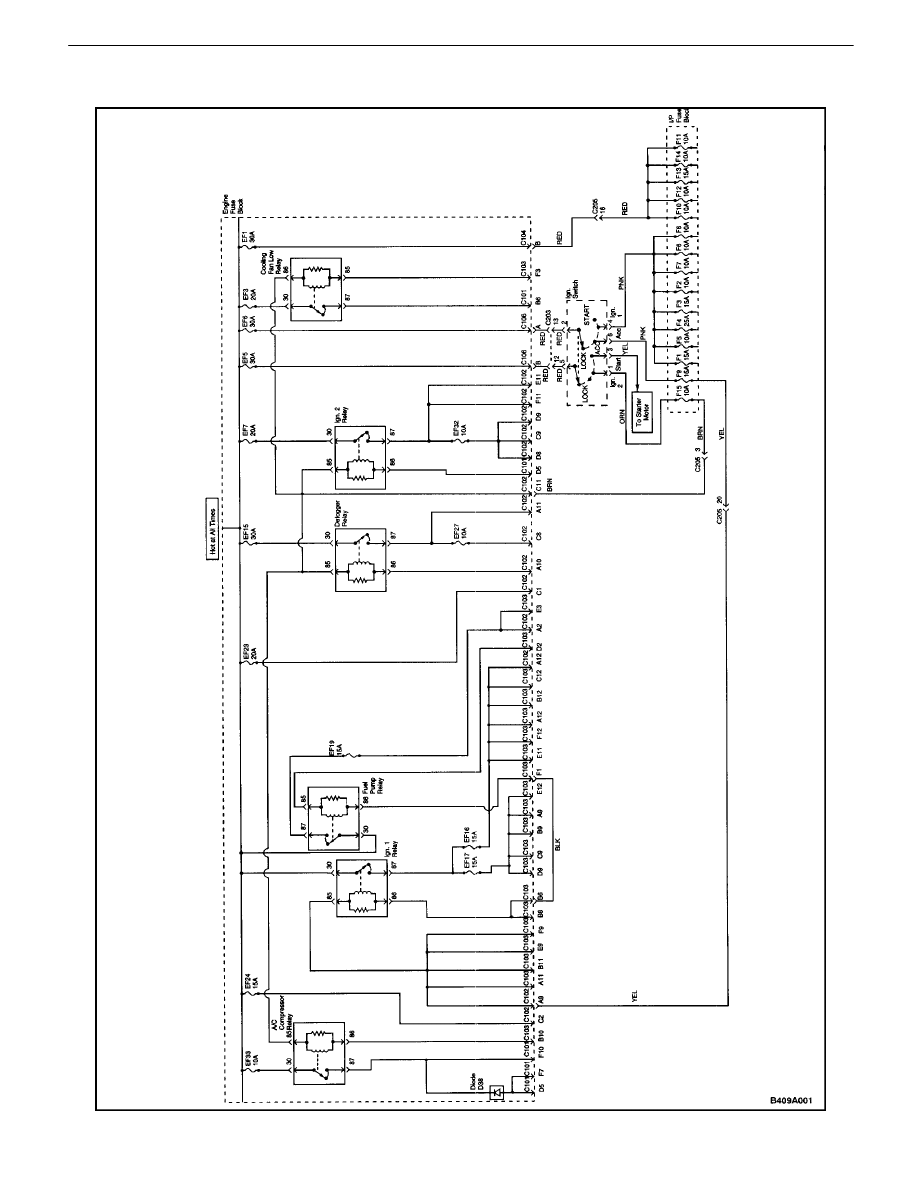

POWER DISTRIBUTION SCHEMATIC

BODY WIRING SYSTEM  9A – 3

DAEWOO V–121 BL4

9A – 4

I

BODY WIRING SYSTEM

DAEWOO V–121 BL4

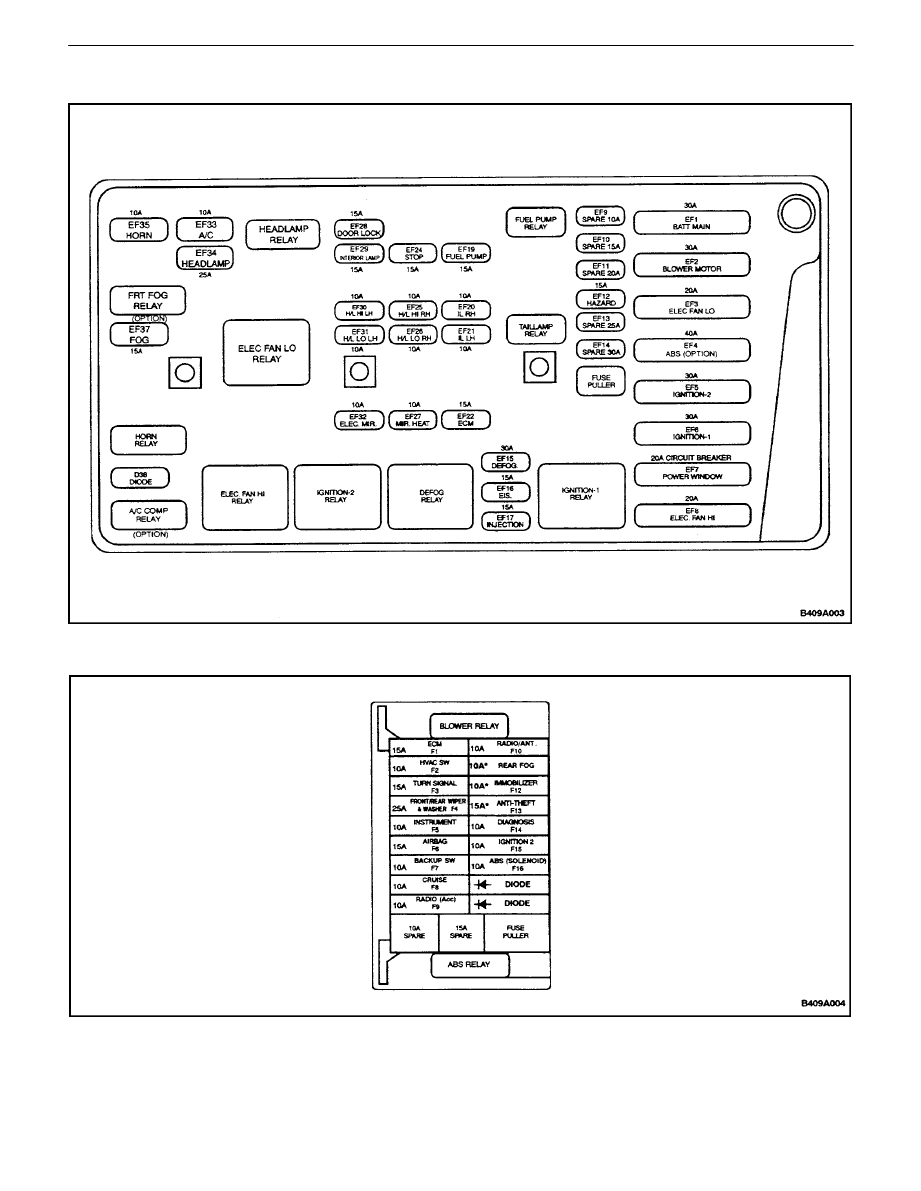

FUSE BLOCK LOCATOR (ENGINE)

FUSE BLOCK LOCATOR (PASSENGER COMPARTMENT)

BODY WIRING SYSTEM  9A – 5

DAEWOO V–121 BL4

FUSE CHART

Fuse

Rating/Source

Circuit

EF1 (Engine Fuse)

30A

B+

I/P Fuse Block, Engine
Control Module

EF2

30A

B+

Blower Motor

EF3

20A

B+

Cooling Fan (Low) Relay,
Cooling Fan

EF4

40A

B+

ABS Relay

EF5

30A

B+

Ign 2 (Ign Key)

EF6

30A

B+

Ign 1 (Ign Key)

EF7

20A

B+

Ign 2 Relay, EF32, Sun
Roof, Power Windows

EF8

20A

B+

Cooling Fan (High) Relay,
Cooling Fan Control Relay,
Cooling Fan

EF12

15A

B+

Hazard Switch

EF15

30A

B+

Defogger Relay, EF27,
Back Window Defogger

EF16

15A

B+

EVAP Solenoid, VGIS So-
lenoid, Generator Terminal
F,
Electronic Ignition System
Coil

EF17

15A

B+

Injector 1, Injector 2, Injec-
tor 3, Injector 4

EF19

15A

B+

Fuel Pump

EF20

10A

B+

Parking Lamp, RH Taillamp

EF21

10A

B+

Parking Lamp, License
Lamp, LH Taillamp

EF23

20A

B+

Cigar Lighter

EF24

15A

B+

Stoplamp Switch

EF25

10A

EF12

Headlamp High RH

EF26

10A

EF12

Headlamp Low RH

EF27

10A

EF32

Electric Outside Rearview
Mirror Defogger

EF28

15A

B+

Auto Door Lock

EF29

15A

B+

Illumination Relay, Siren,
Power Antenna, Luggage
Compartment Lamp, Interi-
or Courtesy Lamp, Head-
lamp Relay

EF30

10A

EF12

Headlamp High LH

EF31

10A

EF12

Headlamp Low LH

EF32

10A

EF7

Electric Outside Rearview
Mirror, Keyless Entry Sys-
tem Unit
