AUDIO SYSTEMS  9F – 11

DAEWOO V–121 BL4

Installation Procedure

1.  Install the rear speakers with the screws.

Tighten

Tighten the rear speaker screws to 4 N

S

m (35 lb–in).

2.  Connect the electrical connector.
3.  Install the deck lid sill plate trim cover and the right

side C–pillar trim panel. Refer tosection 9G, Interior
Trim.

4.  Install the rear seatback and the rear seat cushion.

Refer to Section 9H, Seats.

5.  Connect the negative battery cable.

REAR SPEAKERS (HATCHBACK)

Removal Procedure

1.  Disconnect the negative battery cable.
2.  Remove the rear speaker access cover.
3.  Remove the screws and the rear speaker.
4.  Disconnect the electrical connector.

Installation Procedure

1.  Connect the electrical connector.

Notice :  Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

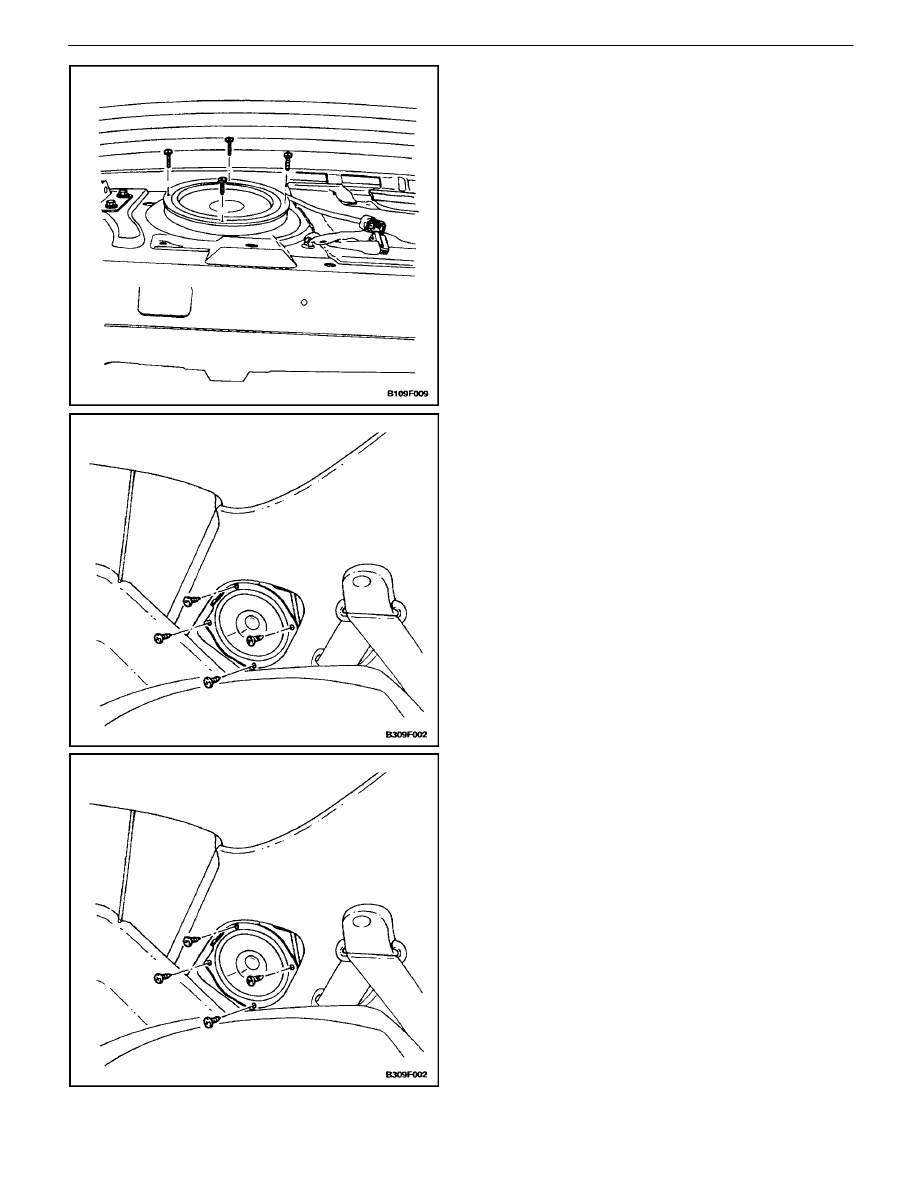

2.  Install the rear speaker with the screws.

Tighten

Tighten the rear speaker screws to 4 N

S

m (35 lb–in).

3.  Install the rear speaker access cover.
4.  Connect the negative battery cable.

9F – 12

I

AUDIO SYSTEMS

DAEWOO V–121 BL4

MAST ANTENNA

Removal Procedure

1.  Disconnect the negative battery cable.
2.  Remove the luggage compartment rear quarter trim

panel. Refer toSection 9G, Interior Trim.

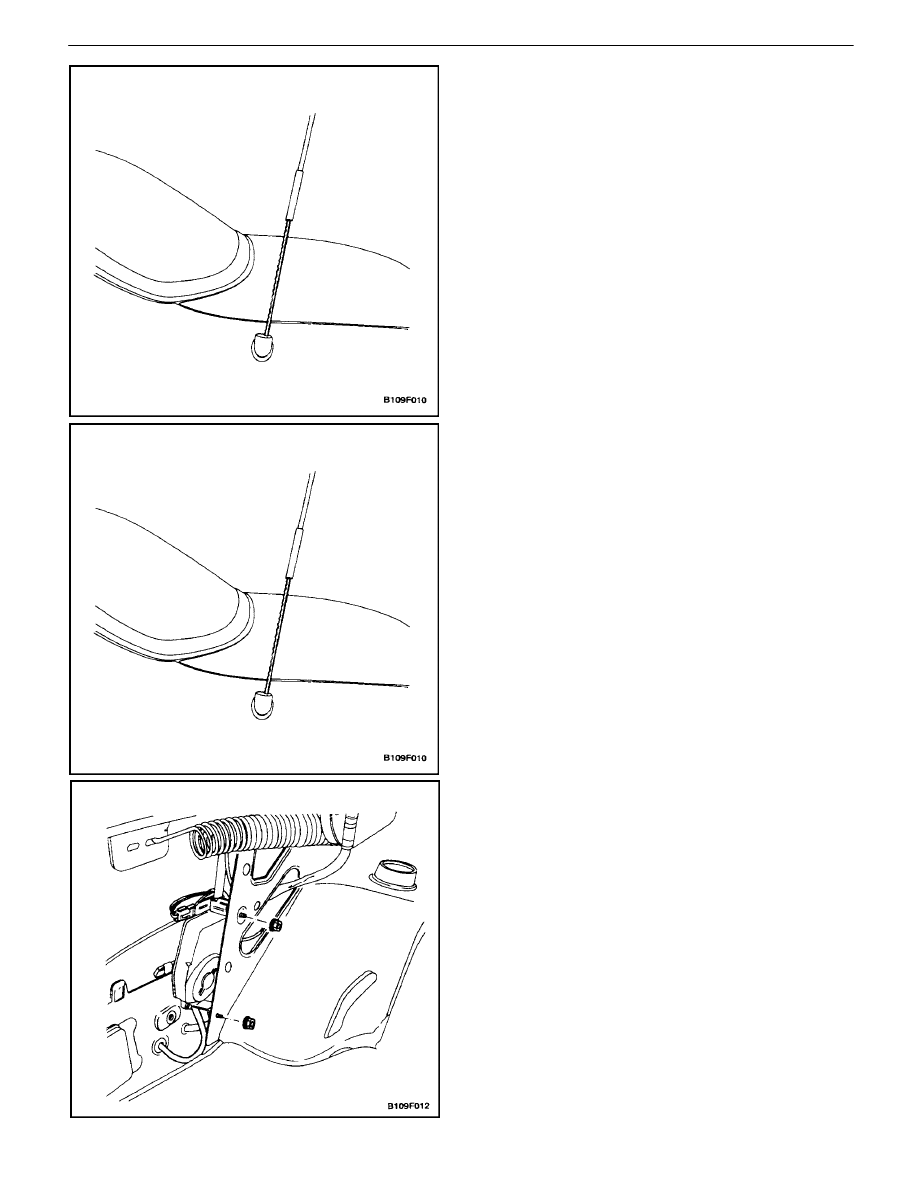

3.  Unscrew and remove the mast antenna.
4.  Remove the antenna cap nut and the rubber grom-

met.

Installation Procedure

Notice :  Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

1.  Install the mast antenna base with the nut.

Tighten

Tighten the mast antenna base nut to 4 N

S

m (35 lbin).

2.  Connect the antenna cable.
3.  Install the rubber grommet and the antenna cap

nut.

Tighten

Tighten the antenna cap nut to 7 N

S

m (62 lb–in).

4.  Install the mast antenna.
5.  Install the luggage compartment rear quarter trim

panel. Refer toSection 9G, Interior Trim.

6.  Connect the negative battery cable.

AUDIO SYSTEMS  9F – 13

DAEWOO V–121 BL4

ROOF ANTENNA

(Wagon Shown, Hatchback Similar)

Removal Procedure

1.  Disconnect the negative battery cable.
2.  Remove the formed headliner. Refer to Section 9Q,

Roof.

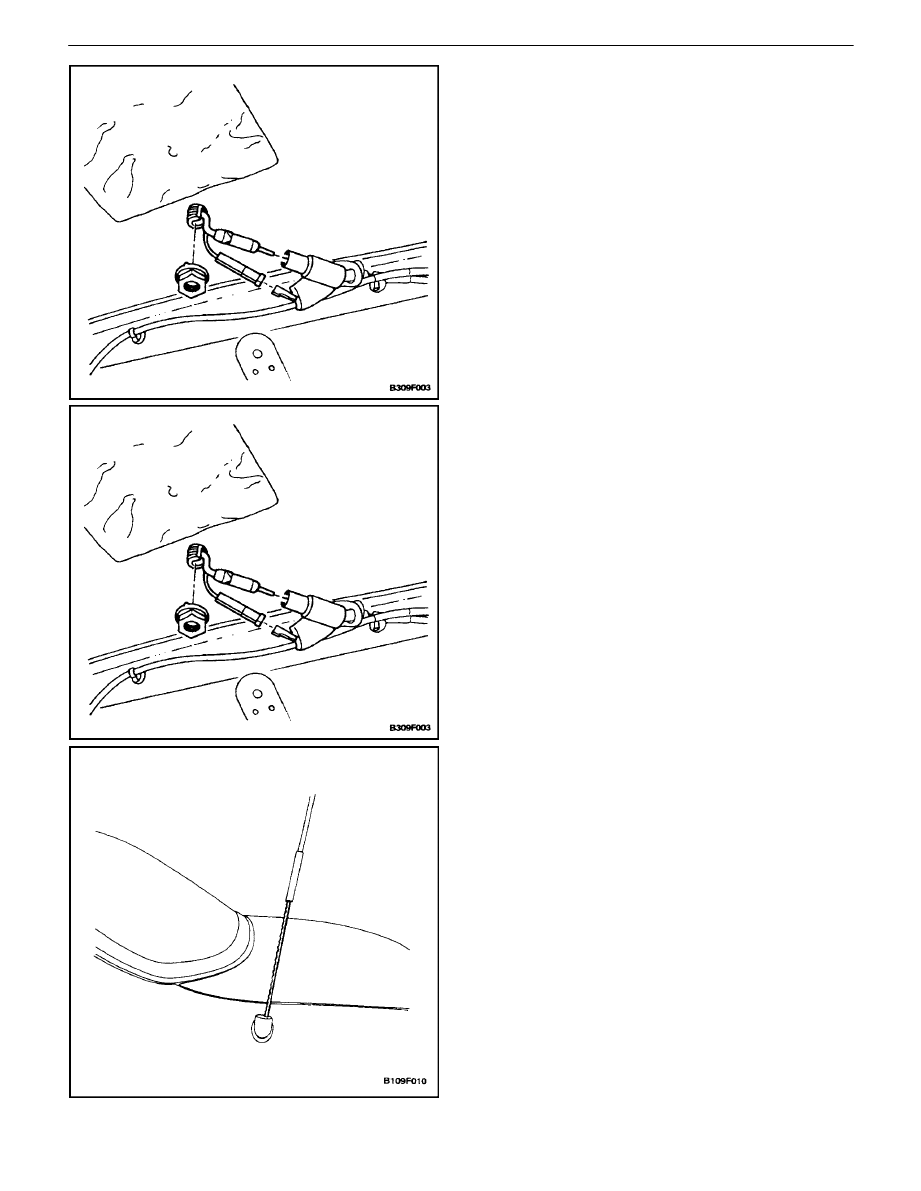

3.  Disconnect the antenna cable and the electrical

connector.

4.  Remove the nut and the antenna.

Installation Procedure

Notice :  Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

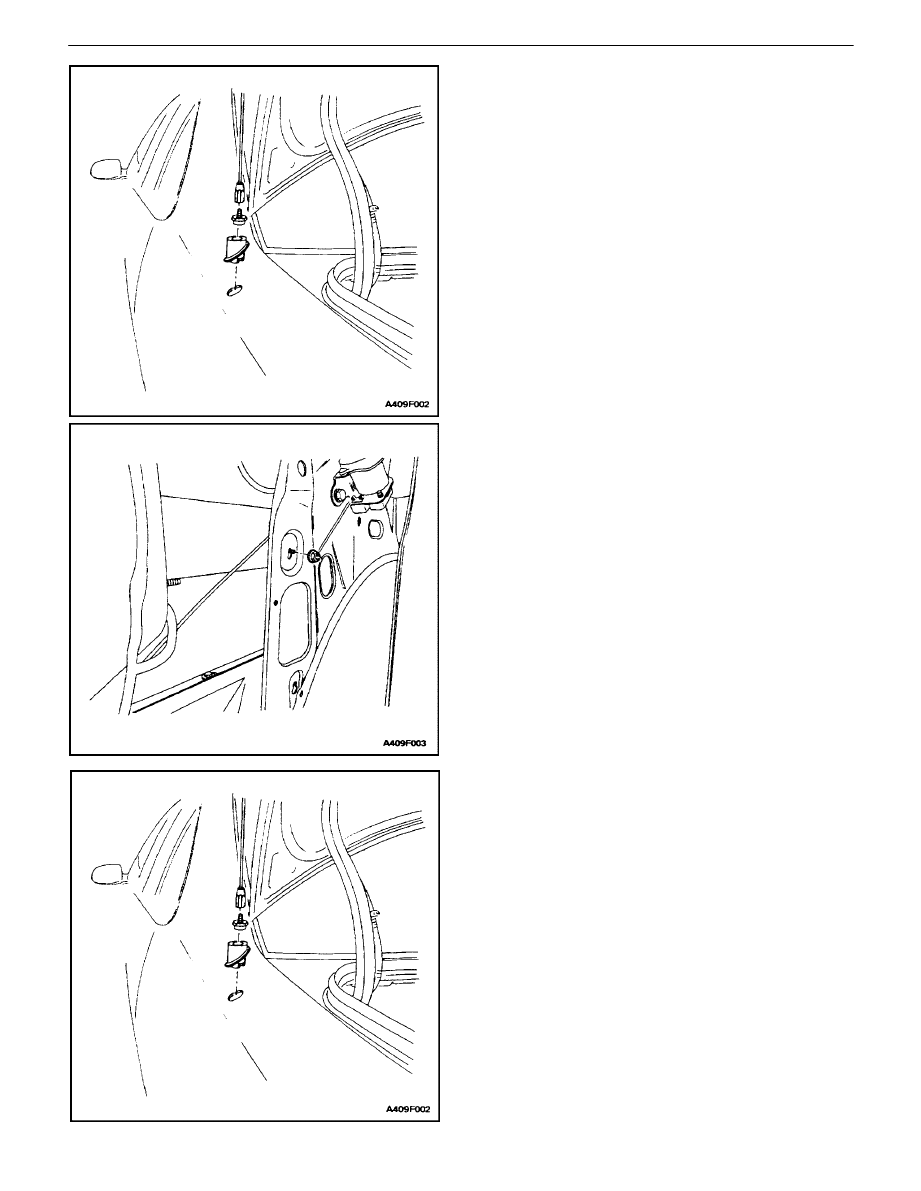

1.  Install the roof antenna with the nut.

Tighten

Tighten the roof antenna nut to 10 N

S

m (89 lb–in).

2.  Connect the antenna cable and the electrical con-

nector.

3.  Install the formed headliner. Refer to Section 9Q,

Roof.

4.  Connect the negative battery cable.

POWER ANTENNA
MAST(NOTCHBACK)

Removal Procedure

1.  Remove the antenna cap nut and the rubber grom-

met.

2.  Turn on the radio and remove the antenna mast

and cable.

3.  Turn off the radio.

9F – 14

I

AUDIO SYSTEMS

DAEWOO V–121 BL4

Installation Procedure

1.  Install the antenna mast with the teeth of the cable

facing the front of the vehicle.

2.  Install the rubber grommet and the antenna cap

nut.

Tighten

Tighten the antenna cap nut to 7 N

S

m (62 lb–in).

POWER ANTENNA MOTOR
(NOTCHBACK)

Removal Procedure

1.  Disconnect the negative battery cable.
2.  Remove the luggage compartment rear quarter trim

panel. Refer toSection 9G, Interior Trim.

3.  Remove the antenna cap nut and the rubber grom-

met.

4.  Loosen the nuts securing the antenna motor to the

vehicle.

5.  Remove the antenna motor.
6.  Disconnect the electrical connector and the drain

hose from the antenna motor.
