AUDIO SYSTEMS  9F – 15

DAEWOO V–121 BL4

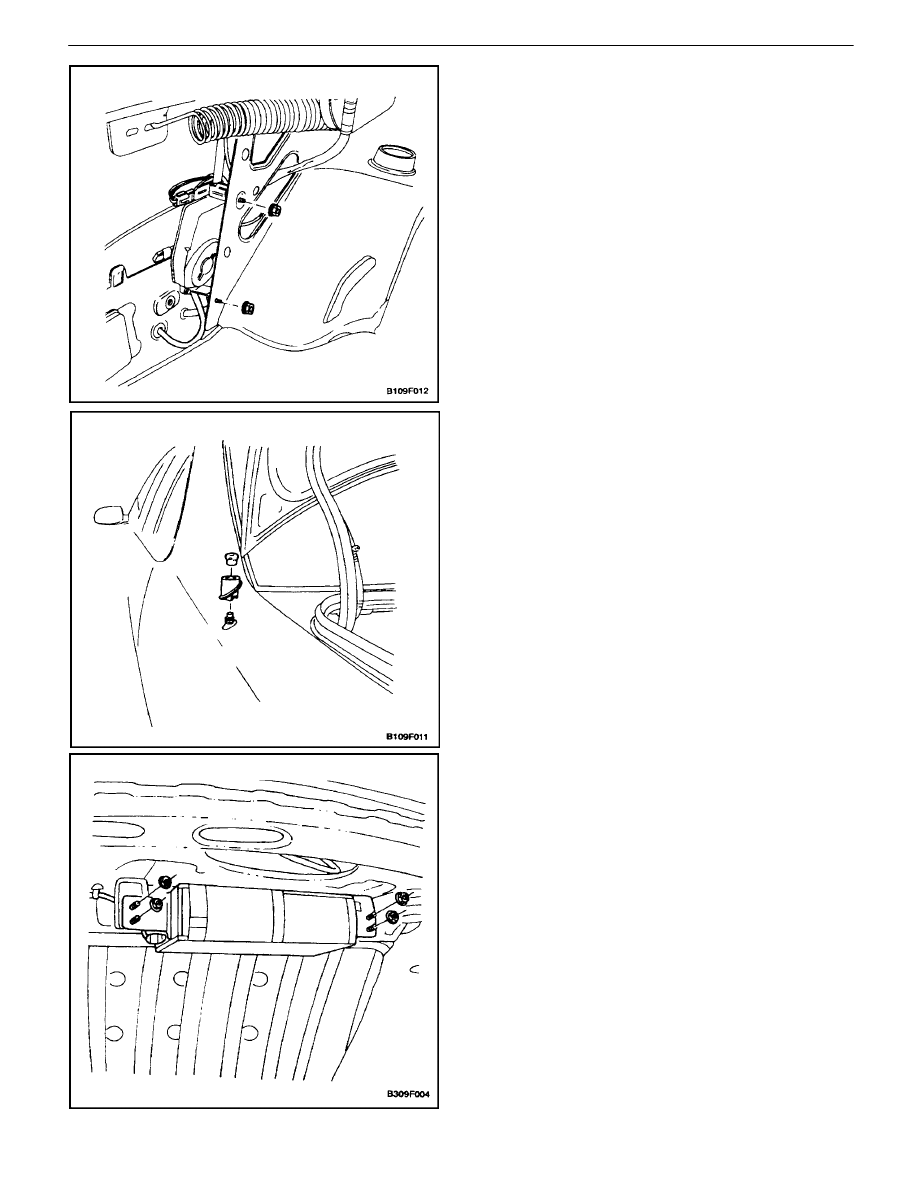

Installation Procedure

1.  Connect the electrical connector and the drain hose

to the antenna motor.

2.  Install the antenna motor with the nuts.

Tighten

Tighten the antenna motor nuts to 7 N

S

m (62 lb–in).

3.  Install the antenna cap nut.
4.  Install the luggage compartment rear quarter trim

panel. Refer to Section 9G, Interior Trim.

Tighten

Tighten the antenna cap nut to 7 N

S

m (62 lb–in).

5.  Connect the negative battery cable.

COMPACT DISC CHANGER

Removal Procedure

1.  Disconnect the negative battery cable.
2.  Disconnect the CD changer electrical connector.
3.  Remove the nuts and the CD changer.

9F – 16

I

AUDIO SYSTEMS

DAEWOO V–121 BL4

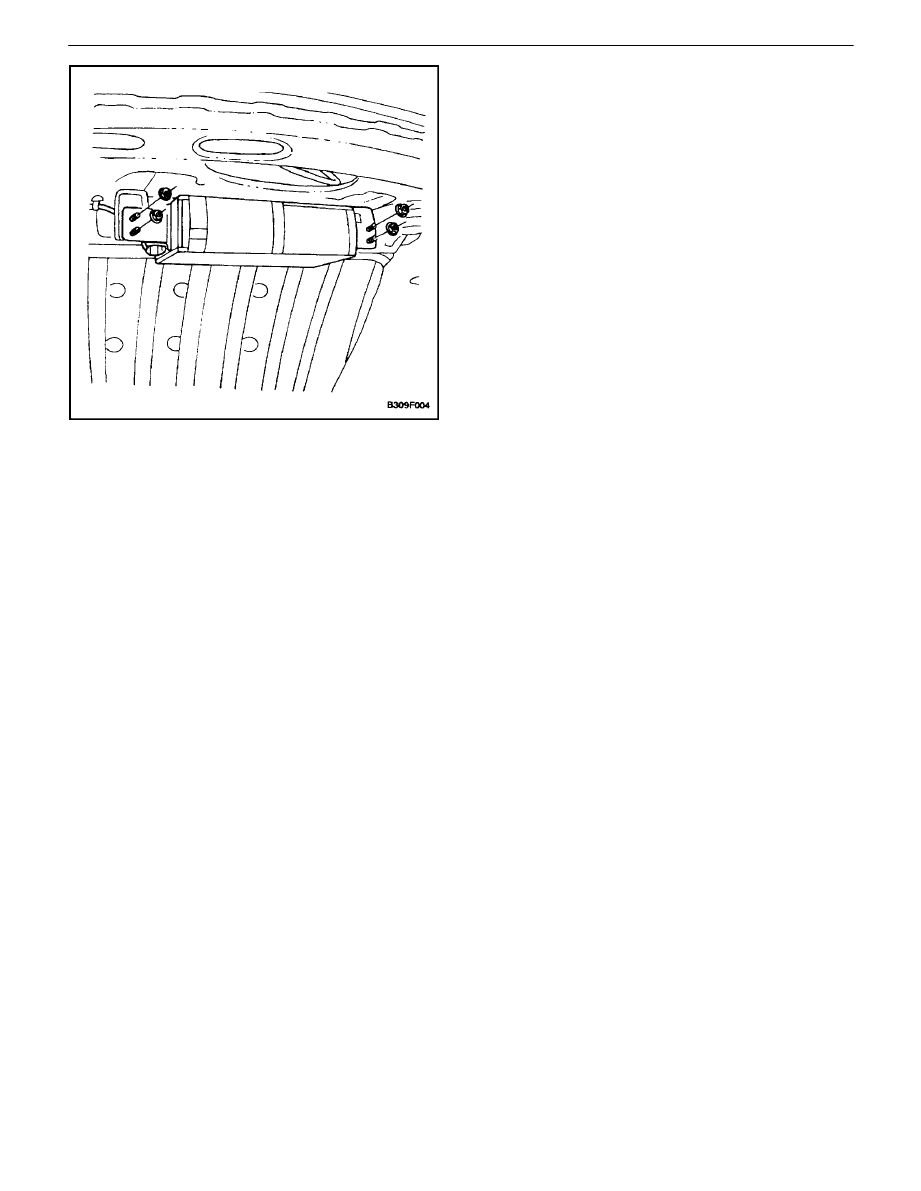

Installation Procedure

1.  Install the CD changer with the nuts.

Tighten

Tighten the CD changer nuts to 7 N

S

m (62 lb–in).

2.  Connect the CD changer electrical connector.
3.  Connect the negative battery cable.

AUDIO SYSTEMS  9F – 17

DAEWOO V–121 BL4

GENERAL DESCRIPTION

AND SYSTEM OPERATION

AUDIO SYSTEMS

There are three audio systems available:

S



Stereo digital logic cassette AM/FM radio with elec-
tronic tape ejection.

S



Stereo digital logic AM/FM radio with CD player.

S



Trunk mounted CD changer which is available with
the cassette AM/FM radio.

AUDIO SECURITY SYSTEM

The audio security system is activated whenever the audio
system circuit is disconnected from the battery. A four–
digit security code must be entered in order for the audio
system to resume functioning. The security code is
stamped on a card located in the vehicle (usually in the
glove box). The following security code entering proce-
dure must be used to deactivate the audio security sys-
tem:

1.  After connecting the audio security system to the

battery, ”COdE”will flash on the display.

2.  Enter the proper security number into the unit, us-

ing the preset buttons No. 1 through 8. For exam-
ple, if the security number is ”1234”:

1) Press the preset button No. 1. ”COdE”: will dis-

appear and ”1–––” will appear on the display.

2) Press the preset button No. 2, and ”12––” will

appear.

3) Press the preset button No. 3, and ”123–” will

appear.

4) Press the preset button No. 4, and ”1234”will

appear.

1.  The audio system will function and will transfer to

the radio.

If you fail to enter the correct security number into the unit,
”Err” will appear followed by ”COdE” and there will be sev-
eral audible beeps. If this happens, repeat the security en-
tering procedure beginning with step 2.

FRONT AND REAR SPEAKERS

All audio systems use four speakers: two speakers
mounted in the front doors and two speakers mounted in
the rear. A coaxial two–way rear speaker is offered as an
option.

TWEETER SPEAKERS

The tweeter speakers are mounted on the front door es-
chutcheon next to the dash panel.

MAST ANTENNA

The manual antenna is designed to withstand most car
washes without damage. If the mast becomes slightly
bent, it can be straightened by hand. The manual antenna
can be replaced if it is severely bent. Manual antennas
must be kept clean for good performance.

POWER ANTENNA

The optional power antenna is controlled by the radio.
When the radio power is turned on, the antenna is ex-
tended. When the radio is turned off, either by turning the
power off or by turning the ignition off, the antenna is re-
tracted.

ROOF ANTENNA

The two–piece roof antenna is standard equipment on the
hatchback and the wagon. The top half of the anten–na
can be unscrewed and removed if height clearance prob-
lems occur.

TAPE PLAYER AND CASSETTE
CARE

The head and the capstan are the two parts of the tape
player that should be cleaned. To clean the head and the
capstan, use a cotton swab dipped in rubbing alcohol. A
cassette cleaning kit may also be used to clean the head
and the capstan. Follow the cleaning kit instructions to
clean the tape player. This service should be performed
every 100 hours of cassette operation.

Do not touch the tape head with magnetized tools. If the
head becomes magnetized, it will degrade cassettes
played in the player. No service is performed on the cas-
settes. The cassette manufacturer handles warranties of
the cassettes. Store cassettes away from extreme heat
and direct sunlight.

COMPACT DISC CARE

Handle discs carefully. Store the discs in protective cases
away from the sun, heat, and dust. If the surface is soiled,
dampen a clean, soft cloth in a solution of mild neutral de-
tergent and wipe the disc clean.

SECTION : 9A

BODY WIRING SYSTEM

CAUTION :  Disconnect the negative battery cable before removing or installing any electrical unit or when a tool
or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable will help
prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless otherwise noted..

TABLE OF CONTENTS

SCHEMATIC AND ROUTING DIAGRAMS

9A–1

. . . . .

WIRE COLOR CHART

9A–1

. . . . . . . . . . . . . . . . . . . . .

POWER DISTRIBUTION SCHEMATIC

9A–2

. . . . . . .

FUSE BLOCK LOCATOR (ENGINE)

9A–4

. . . . . . . . .

FUSE BLOCK LOCATOR (PASSENGER

COMPARTMENT)

9A–4

. . . . . . . . . . . . . . . . . . . . . . .

FUSE CHART

9A–5

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

REAR HARNESS ROUTING

9A–7

. . . . . . . . . . . . . . . .

FRONT HARNESS ROUTING

9A–8

. . . . . . . . . . . . . .

FLOOR HARNESS ROUTING

9A–9

. . . . . . . . . . . . . .

INSTRUMENT HARNESS ROUTING

9A–10

. . . . . . .

DOOR HARNESS ROUTING

9A–11

. . . . . . . . . . . . . .

SCHEMATIC AND ROUTING DIAGRAMS

WIRE COLOR CHART

Wire Color

Abbreviation On Schematic

 Green

 DK GRN

Light Green

LT GRN

Blue

DK BLU

Brown

BRN

Orange

ORN

Yellow

YEL

Grey

GRY

Sky Blue

LT BLU

Red

RED

Black

BLK

Pink

PNK

White

WHT

Purple

PPL

Wires With Tracers

Wire Color

Abbreviation On Schematic

Red with White Tracer

RED/WHT
