Daewoo Nubira. Manual - part 75

9A – 10

I

BODY WIRING SYSTEM

DAEWOO V–121 BL4

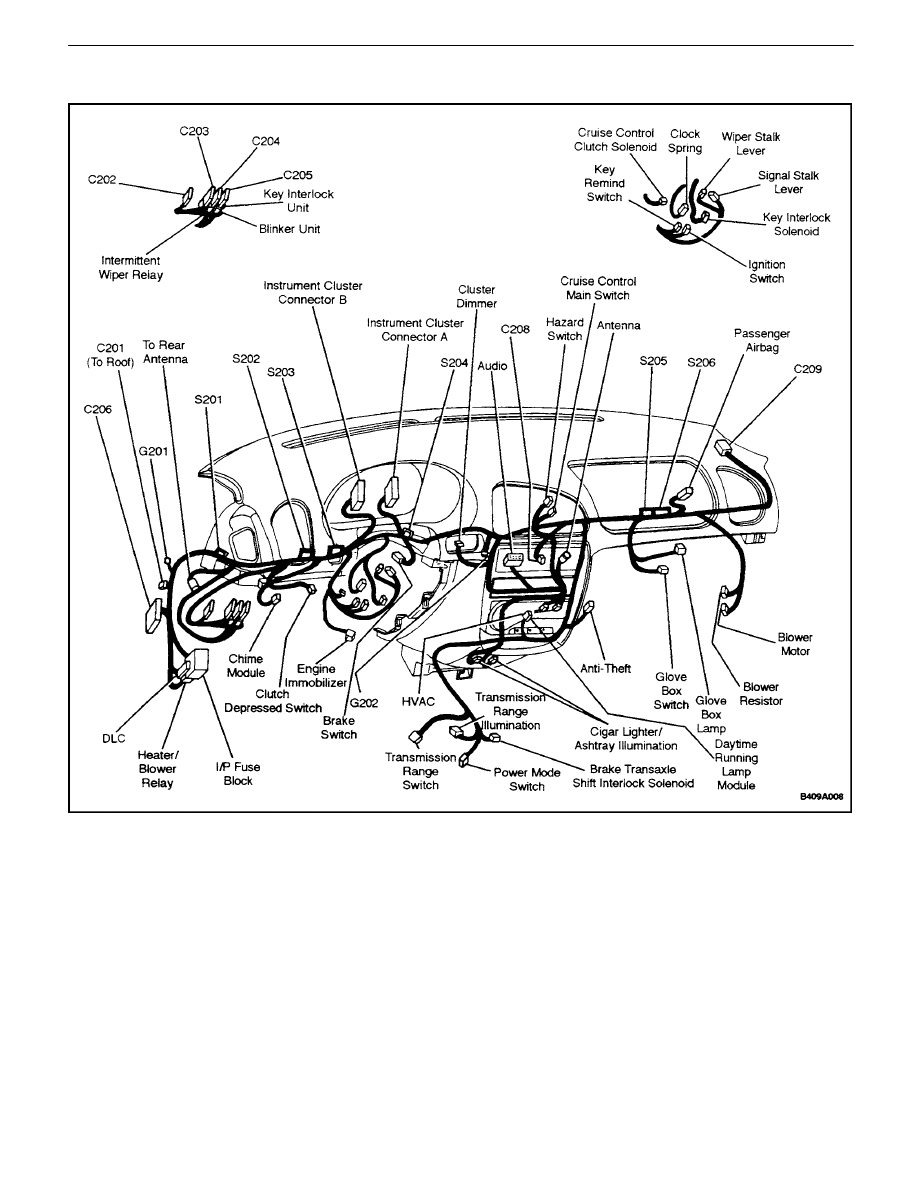

INSTRUMENT HARNESS ROUTING

BODY WIRING SYSTEM  9A – 11

DAEWOO V–121 BL4

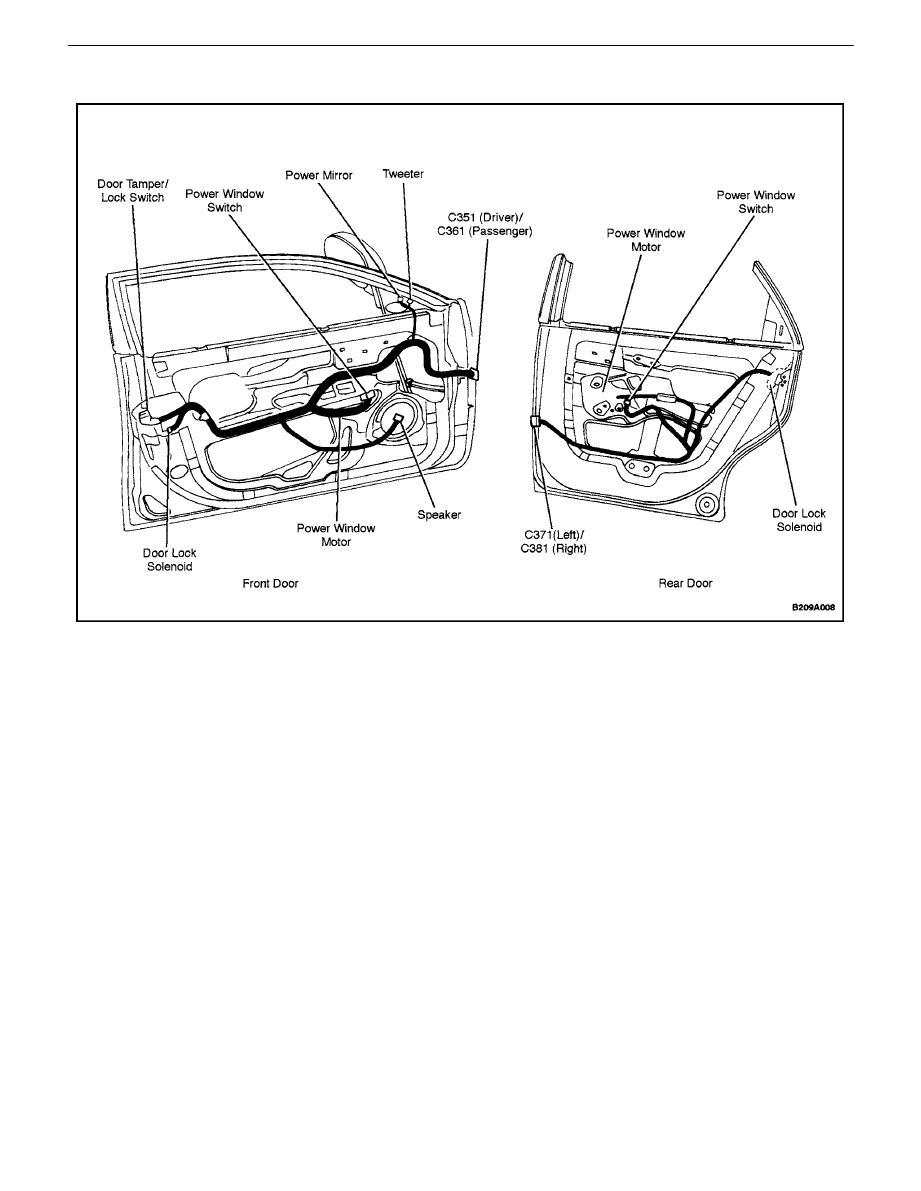

DOOR HARNESS ROUTING



SECTION : 9U

CRUISE CONTROL SYSTEM

CAUTION :  Disconnect the negative battery cable before removing or installing any electrical unit or when a tool
or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable will help
prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless otherwise noted.

TABLE OF CONTENTS

SPECIFICATIONS

9U–1

. . . . . . . . . . . . . . . . . . . . . . . . . .

FASTENER TIGHTENING SPECIFICATIONS

9U–1

.

SCHEMATIC AND ROUTING DIAGRAMS

9U–2

. . . . .

CRUISE CONTROL SYSTEM (AUTOMATIC

TRANSAXLE) (1 OF 2)

9U–2

. . . . . . . . . . . . . . . . . . .

CRUISE CONTROL SYSTEM (AUTOMATIC

TRANSAXLE) (2 OF 2)

9U–3

. . . . . . . . . . . . . . . . . . .

CRUISE CONTROL SYSTEM (MANUAL

TRANSAXLE) (1 OF 2)

9U–4

. . . . . . . . . . . . . . . . . . .

CRUISE CONTROL SYSTEM (MANUAL

TRANSAXLE) (2 OF 2)

9U–5

. . . . . . . . . . . . . . . . . . .

DIAGNOSIS

9U–6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CRUISE CONTROL DIAGNOSIS

9U–6

. . . . . . . . . . . .

MAINTENANCE AND REPAIR

9U–11

. . . . . . . . . . . . . .

ON–VEHICLE SERVICE

9U–11

. . . . . . . . . . . . . . . . . . . .

CRUISE CONTROL ACTUATOR

9U–11

. . . . . . . . . . .

ACTUATOR CONTROL CABLE

9U–15

. . . . . . . . . . . .

MAIN SWITCH

9U–17

. . . . . . . . . . . . . . . . . . . . . . . . . . .

GENERAL DESCRIPTION AND SYSTEM

OPERATION

9U–19

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CRUISE CONTROL SYSTEM OPERATION

9U–19

.

CRUISE CONTROL ACTUATOR

9U–19

. . . . . . . . . . .

MAIN SWITCH

9U–19

. . . . . . . . . . . . . . . . . . . . . . . . . . .

LEVER SWITCH

9U–19

. . . . . . . . . . . . . . . . . . . . . . . . .

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

Application

N

S

m

Lb–Ft

Lb–In

Actuator Bolts

4

–

35

Actuator Bracket Nuts

18

13

–

9U – 2

I

CRUISE CONRTOL SYSTEM

DAEWOO V–121 BL4

SCHEMATIC AND ROUTING DIAGRAMS

CRUISE CONTROL SYSTEM (AUTOMATIC TRANSAXLE)

(1 OF 2)
