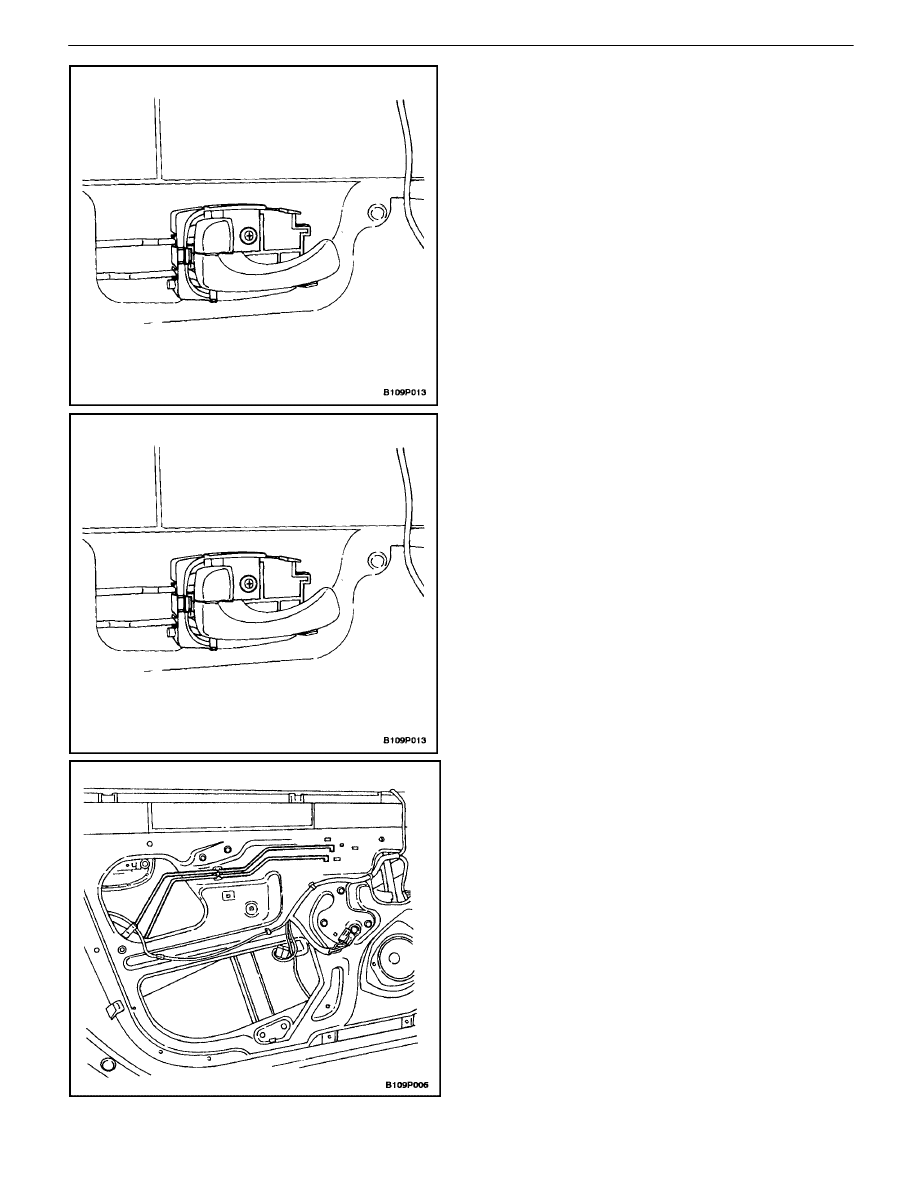

DOORS  9P – 19

DAEWOO V–121 BL4

INSIDE DOOR HANDLE

Removal Procedure

1.  Remove the door seal trim. Refer to”Door Seal

Trim”  in this section.

2.  Remove the screw securing the door handle to the

door.

3.  Slide the door handle forward and remove it from

the door.

4.  Disconnect the inside door handle and the lock

rods.

Installation Procedure

1.  Connect the inside door handle and the lock rods.
2.  Insert the inside door handle into the slots in the

door.

3.  Slide the door handle rearward.

Notice : Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

4.  Install the inside door handle screw.

Tighten

Tighten the inside door handle screw to 1.5 N

S

m (13

lb–in).

5.  Install the door seal trim. Refer to”Door Seal Trim”

in this section.

INSIDE LOCK ROD

Removal Procedure

1.  Remove the door seal trim. Refer to”Door Seal

Trim”  in this section.

2.  Disconnect the inside lock rods from the door han-

dle and the lock.

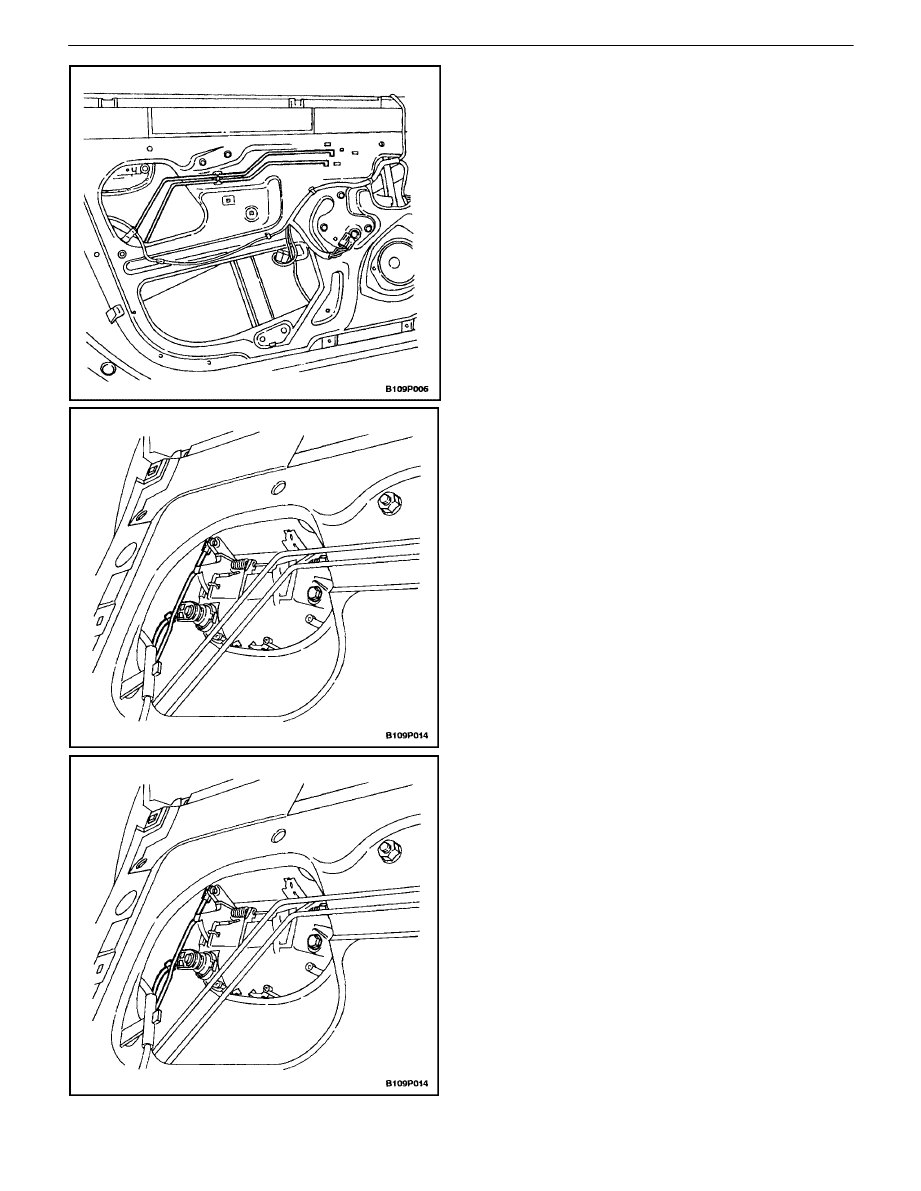

9P – 20

I

DOORS

DAEWOO V–121 BL4

Installation Procedure

1.  Connect the inside lock rods to the door handle and

the lock.

2.  Install the door seal trim. Refer to”Door Seal Trim”

in this section.

OUTSIDE DOOR HANDLE

Removal Procedure

1.  Remove the door seal trim. Refer to”Door Seal

Trim” in this section.

2.  Disconnect the outside door handle and the lock

rods.

3.  Remove the bolts and the door handle.

Installation Procedure

1.  Connect the outside door handle and the lock rods.

Notice : Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

2.  Install the door handle with the bolts.

Tighten

Tighten the outside door handle bolts to 4 N

S

m (35

lbin).

3.  Install the door seal trim. Refer to”Door Seal Trim”

in this section.

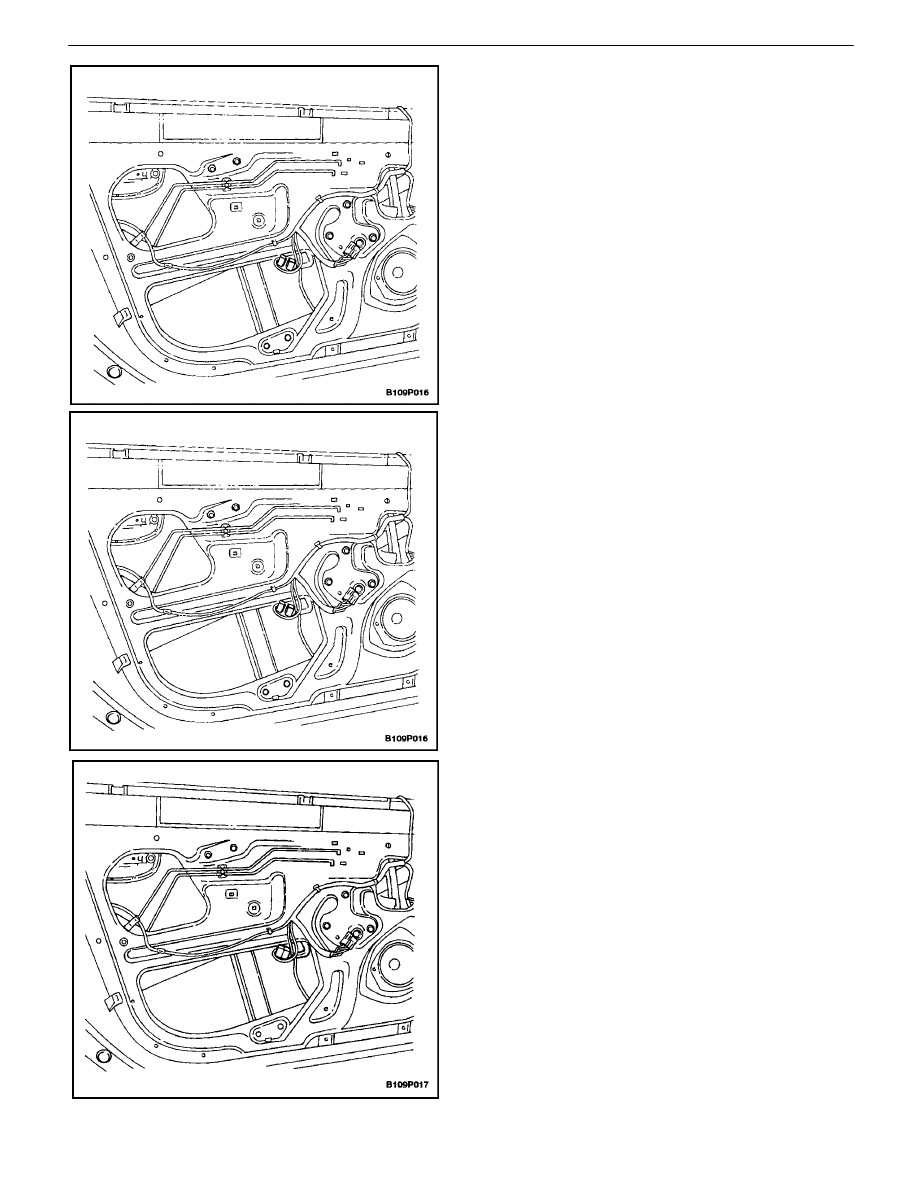

DOORS  9P – 21

DAEWOO V–121 BL4

DOOR LOCK CYLINDER

Removal Procedure

1.  Remove the door seal trim. Refer to”Door Seal

Trim” in this section.

2.  Disconnect the outside door handle lock rod.
3.  Remove the retaining clip and the lock cylinder.

Installation Procedure

1.  Install the lock cylinder with the retaining clip.
2.  Connect the outside door handle lock rod.
3.  Install the door seal trim. Refer to”Door Seal Trim”

in this section.

POWER FRONT WINDOW
REGULATOR

Removal Procedure

1.  Disconnect the negative battery cable.
2.  Remove the front door glass. Refer to Section 9L,

Glass and Mirrors.

3.  Disconnect the electrical connector.

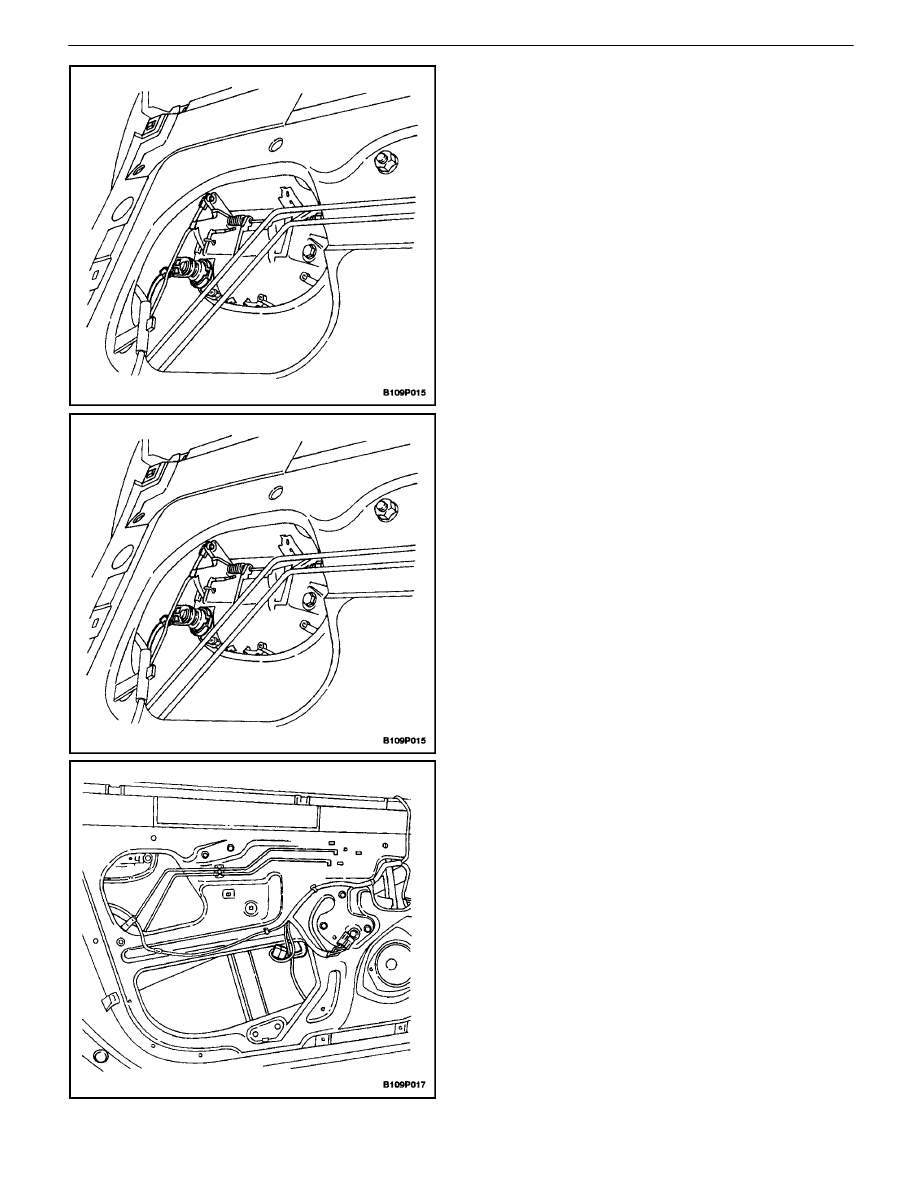

9P – 22

I

DOORS

DAEWOO V–121 BL4

4.  Remove the nuts and the regulator.

Installation Procedure

Notice :  Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

1.  Install the window regulator with the nuts.

Tighten

Tighten the window regulator nuts to 8 N

S

m (71 lb–in).

2.  Connect the electrical connector.
3.  Install the front door glass. Refer to Section 9L,

Glass and Mirrors.

4.  Connect the negative battery cable.
