DOORS  9P – 23

DAEWOO V–121 BL4

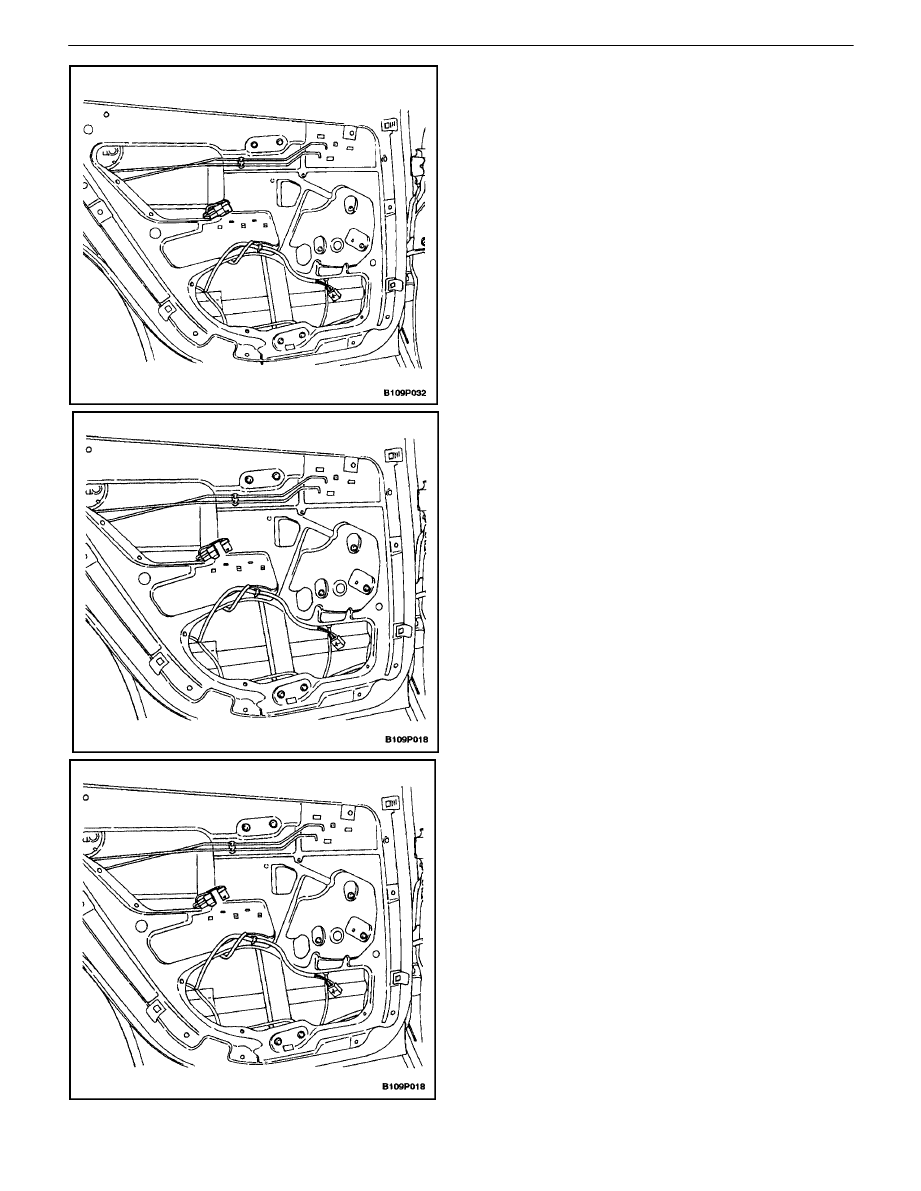

POWER REAR WINDOW
REGULATOR

Removal Procedure

1.  Disconnect the negative battery cable.
2.  Remove the rear door glass. Refer to Section 9L,

Glass and Mirrors.

3.  Disconnect the electrical connector.

4.  Remove the nuts and the window regulator.

Installation Procedure

Notice :  Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

1.  Install the window regulator with the nuts.

Tighten

Tighten the window regulator nuts to 8 N

S

m (71 lb–in).

9P – 24

I

DOORS

DAEWOO V–121 BL4

2.  Connect the electrical connector.
3.  Install the rear door glass. Refer to Section 9L,

Glass and Mirrors.

4.  Connect the negative battery cable.

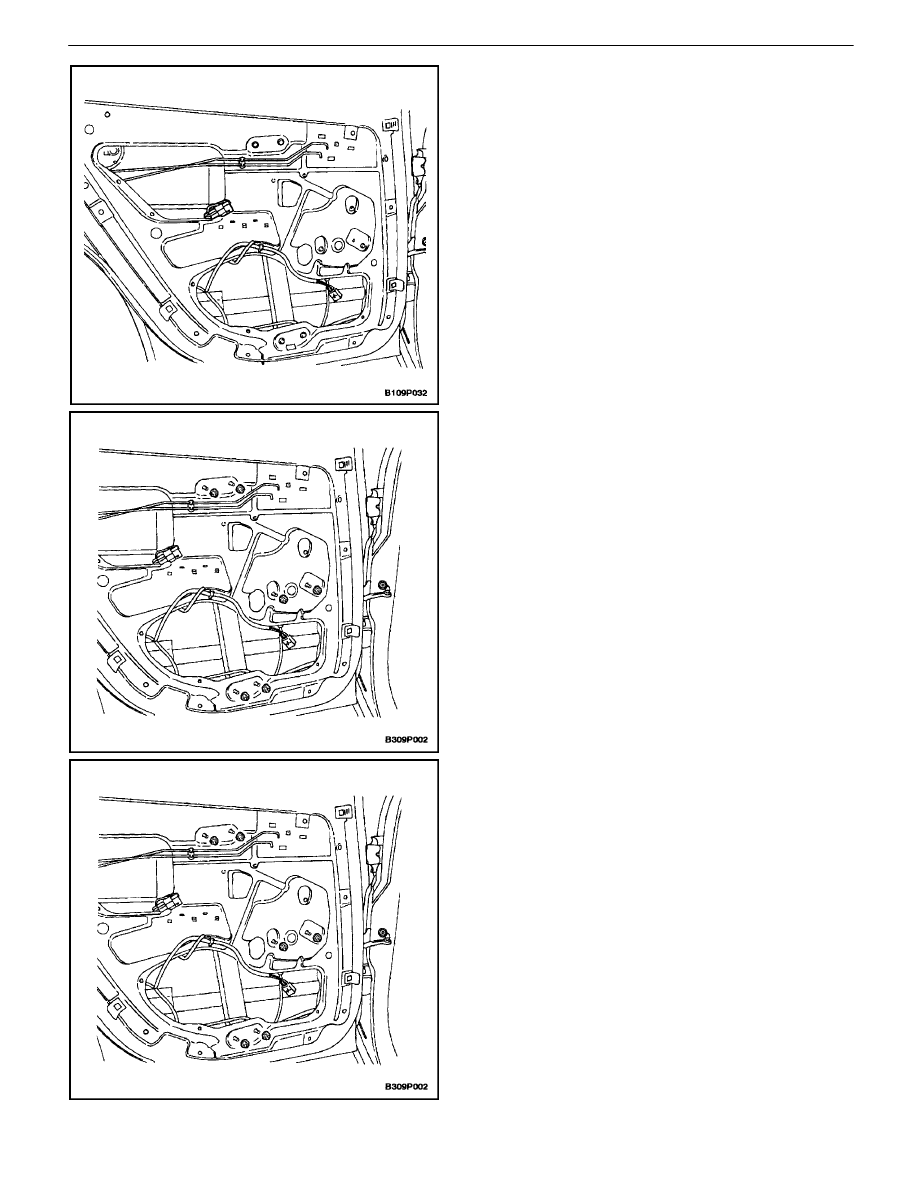

MANUAL REAR WINDOW
REGULATOR

Removal Procedure

1.  Remove the regulator handle. Refer to”Manual

Rear Window Regulator Handle”  in this section.

2.  Remove the rear door glass. Refer to Section 9L,

Glass and Mirrors.

3.  Remove the nuts and the window regulator.

Installation Procedure

Notice :  Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

1.  Install the window regulator with the nuts.

Tighten

Tighten the window regulator nuts to 8 N

S

m (71 lb–in).

2.  Install the rear door glass. Refer to Section 9L,

Glass and Mirrors.

3.  Install the regulator handle. Refer to”Manual Rear

Window Regulator Handle” in this section.

DOORS  9P – 25

DAEWOO V–121 BL4

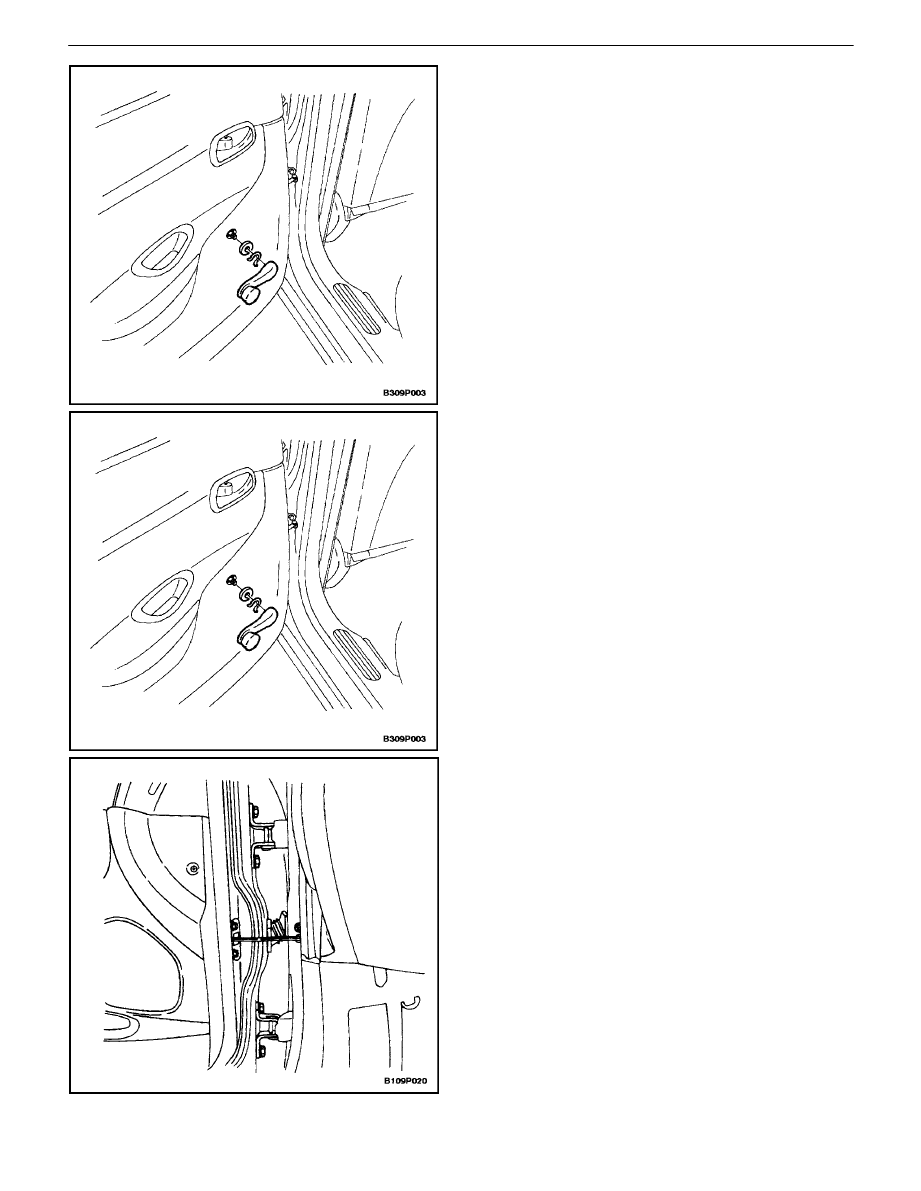

MANUAL REAR WINDOW
REGULATOR HANDLE

Removal Procedure

1.  Reposition the plastic ring behind the window regu-

lator handle to reveal the ”C” clip.

2. Remove

the

”C” clip.

3.  Remove the window regulator handle and the plas-

tic ring.

Installation Procedure

1.  Install the plastic ring.
2. Install

the

”C” clip onto the window regulator han-

dle.

3.  Install the window regulator handle.

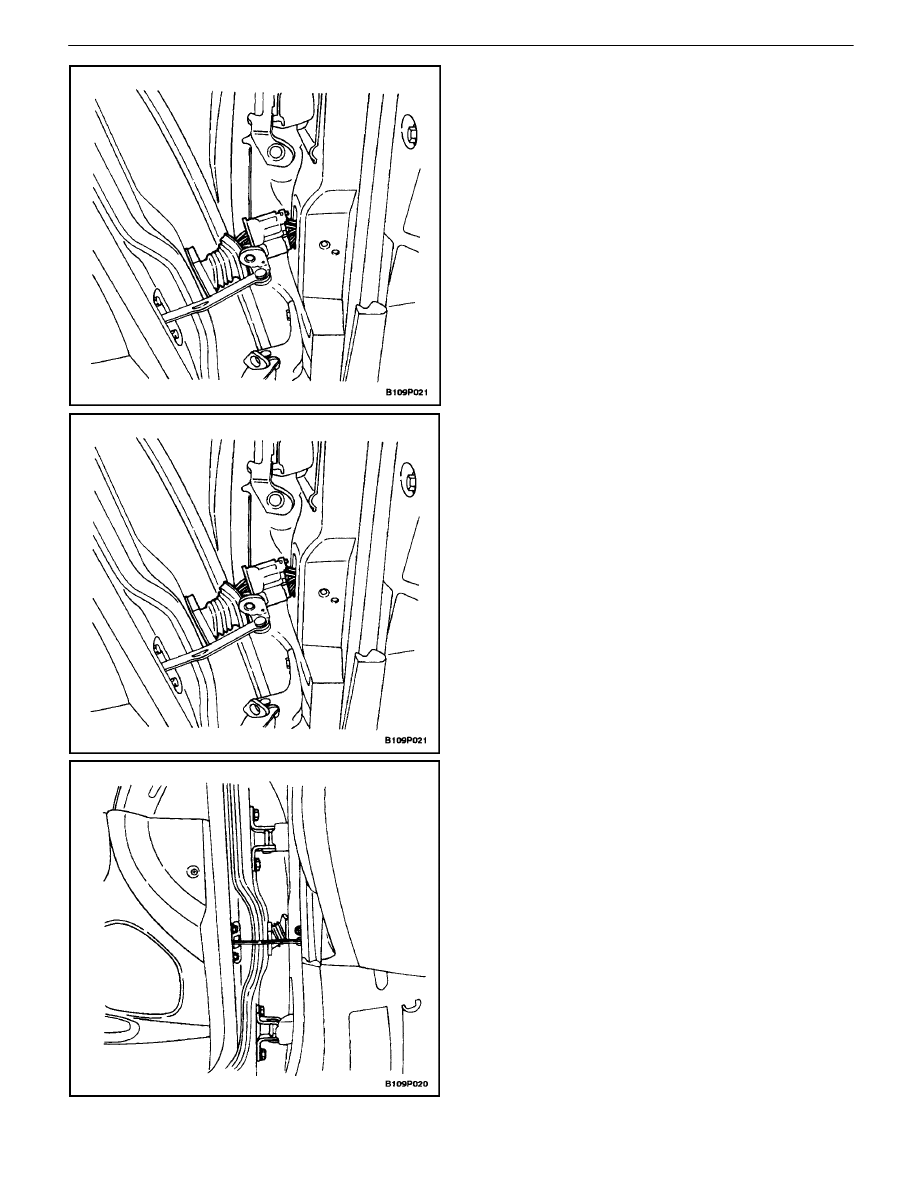

FRONT DOOR ASSEMBLY

Removal Procedure

1.  Disconnect the negative battery cable.
2.  Remove the bolt and the door hold open link from

the body.

3.  With the aid of another technician, remove the door

hinge bolts and the front door.

9P – 26

I

DOORS

DAEWOO V–121 BL4

4.  Disconnect the body–to–door rubber grommet and

the electrical connector.

Installation Procedure

1.  Connect the electrical connector and the body–to–

door rubber grommet.

Notice :  Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

2.  With the aid of another technician, lightly secure the

front door with the door hinge bolts.

3.  Adjust the door for proper fit.

Tighten

Tighten the door hinge bolts to 25 N

S

m(18 lb–ft).

4.  Install the door hold open link to the body with the

bolt.

Tighten

Tighten the door hold open link–to–body bolt to 27
N

S

m (20 lb–ft).

5.  Connect the negative battery cable.
6.  Perform the waterleak test. Refer toSection 9I, Wa-

terleaks.

7.  Check for windnoise. Refer toSection 9J, Wind-

noise.
