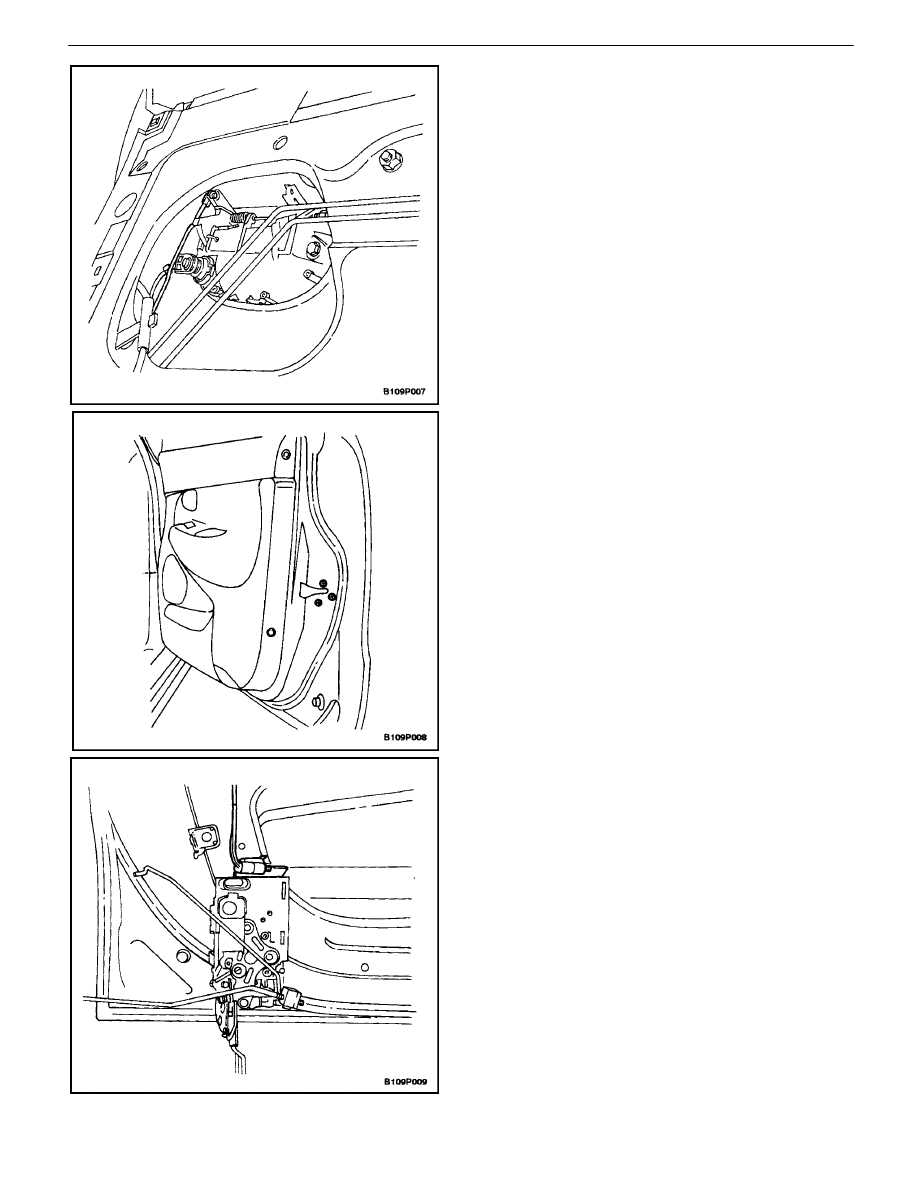

DOORS  9P – 15

DAEWOO V–121 BL4

4.  Disconnect the outside door handle and the lock

rods.

5.  Remove the screws and the front door lock.

6.  Disconnect the electrical connector.

9P – 16

I

DOORS

DAEWOO V–121 BL4

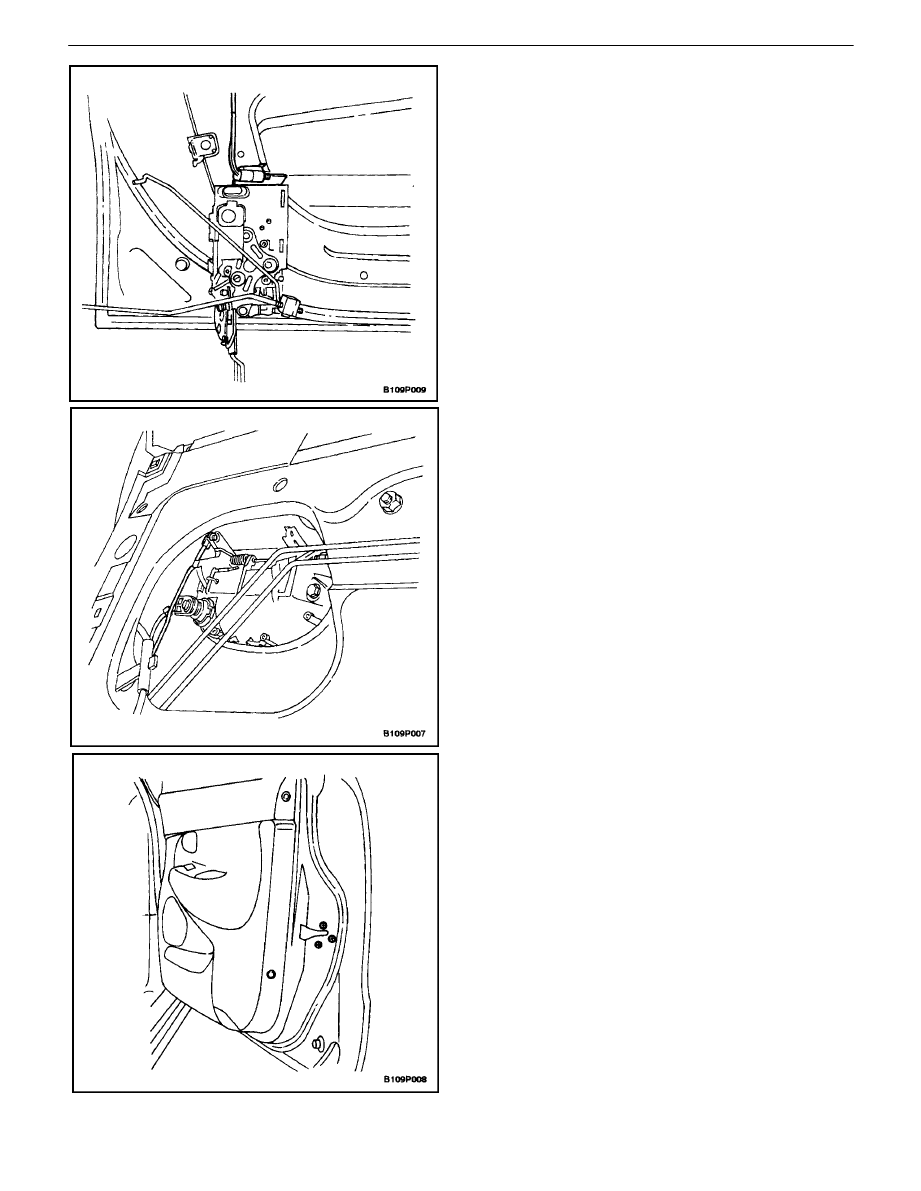

Installation Procedure

1.  Connect the electrical connector.

2.  Connect the inside door handle and the lock rods.
3.  Connect the outside door handle and the lock rods.

Notice : It is important to use a flat–end rotary file in order
not to damage the tapped floating cage plate. The striker
screws and the tapped floating cage plate are important
attaching parts that could affect the performance of vital
components and systems.

4.  Install the front door lock with the screws.

Tighten

Tighten the front door lock screws to 10 N

S

m (89 lbin).

5.  Install the seal trim. Refer to”Door Seal Trim” in this

section.

6.  Connect the negative battery cable.

DOORS  9P – 17

DAEWOO V–121 BL4

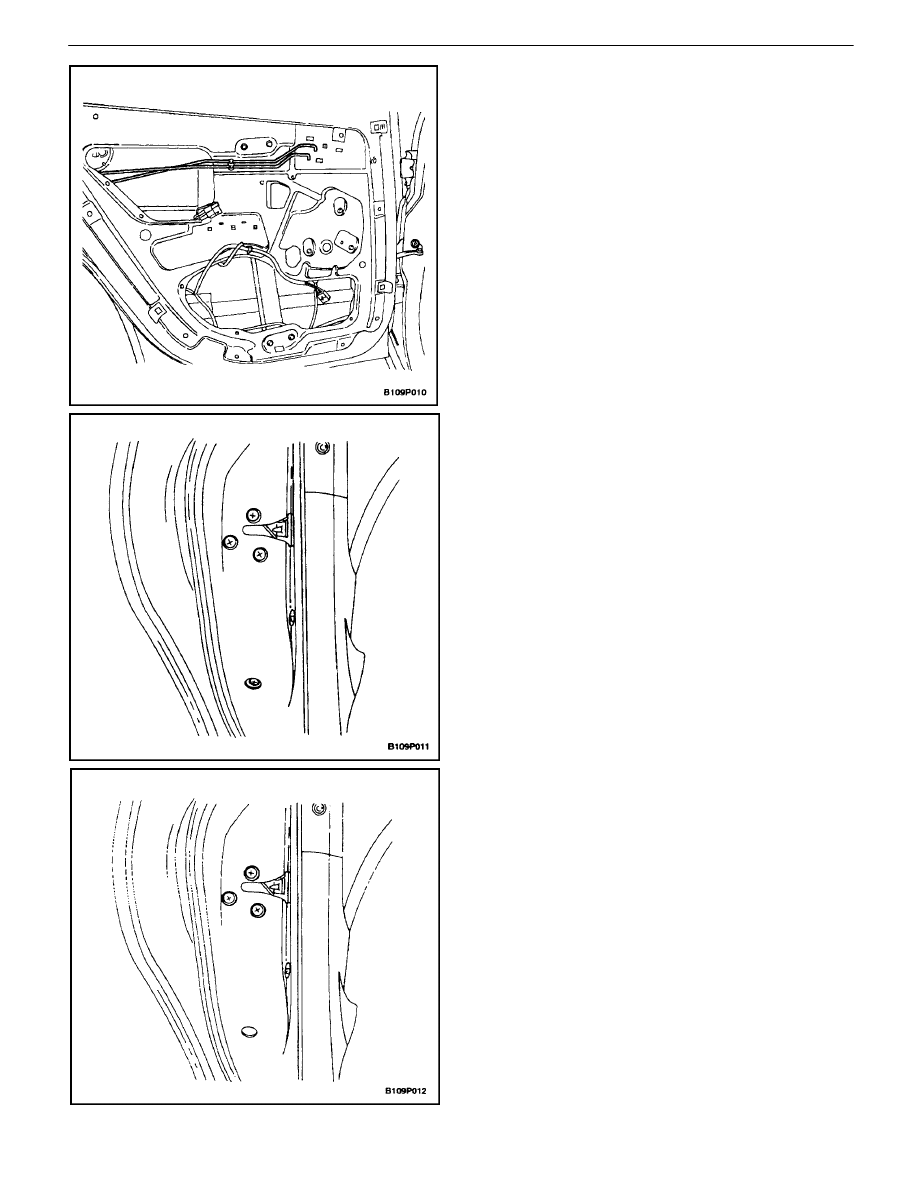

CHILDPROOF REAR DOOR LOCK

Removal Procedure

1.  Disconnect the negative battery cable.
2.  Remove the door seal trim. Refer to”Door Seal

Trim” in this section.

3.  Disconnect the inside door handle and the lock

rods.

4.  Disconnect the outside door handle and the lock

rods.

5.  Remove the screw and the guide rail.

6.  Disconnect the electrical connector.
7.  Disconnect the electrical connector.
8.  Disconnect the lock rods at the lock.

9P – 18

I

DOORS

DAEWOO V–121 BL4

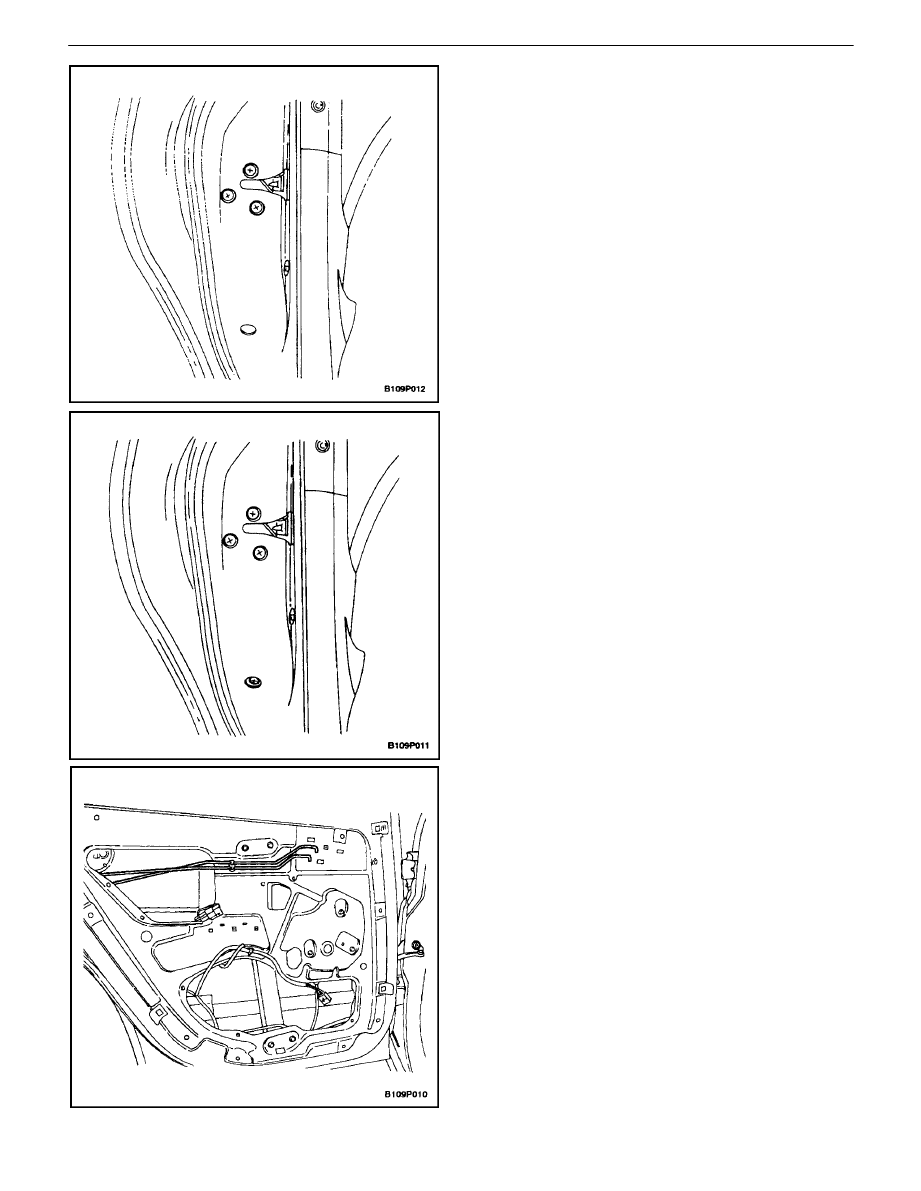

Installation Procedure

Notice : Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

1.  Install the rear door lock with the screws.

Tighten

Tighten the rear door lock screws to 10 N

S

m (89 lbin).

2.  Connect the electrical connector.
3.  Install the guide rail with the screw.

4.  Connect the outside door handle and the lock rods.
5.  Connect the inside door handle and the lock rods.
6.  Install the door seal trim. Refer to”Door Seal Trim”

in this section.

7.  Connect the negative battery cable.
