DOORS  9P – 11

DAEWOO V–121 BL4

FRONT DOOR SECONDARY
WEATHERSTRIP

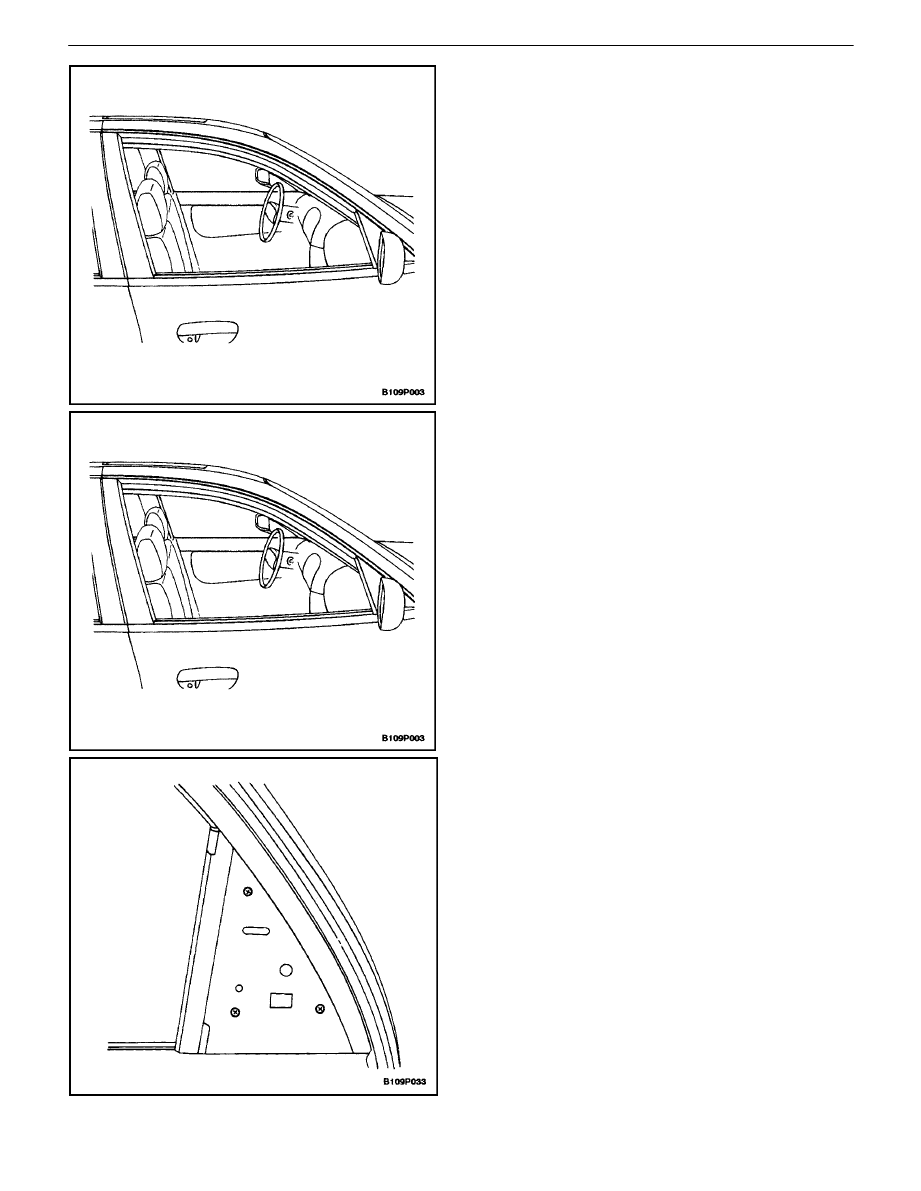

Removal Procedure

1.  Remove the outside rearview mirror. Refer to Sec-

tion 9L, Glass and Mirrors.

2.  Remove the front door secondary weatherstrip.

Installation Procedure

1.  Install the front door secondary weatherstrip.
2.  Install the outside rearview mirror. Refer to Section

9L, Glass and Mirrors.

REAR DOOR SECONDARY
WEATHERSTRIP

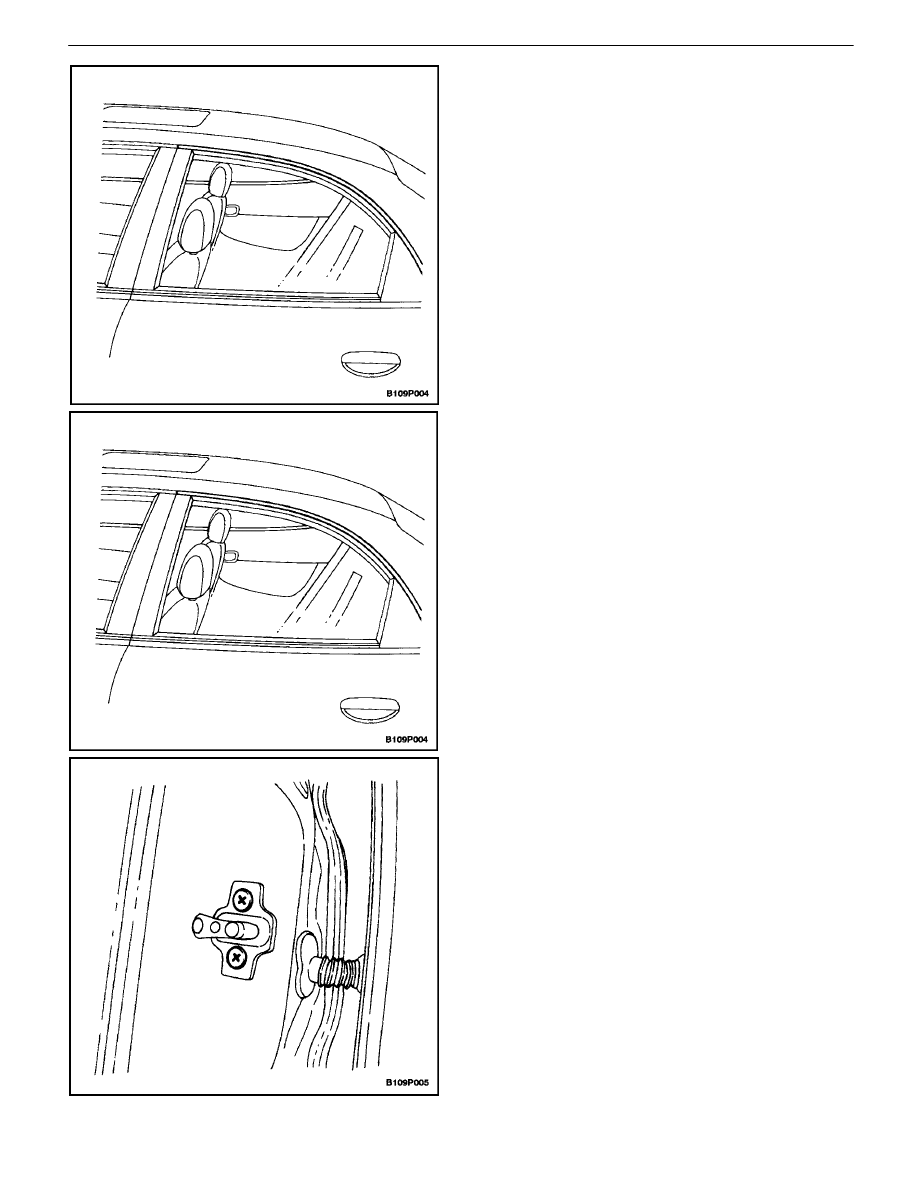

Removal Procedure

1.  Remove the interior garnish molding.
2.  Remove the screws and the exterior garnish mold-

ing.

9P – 12

I

DOORS

DAEWOO V–121 BL4

3.  Remove the rear door secondary weatherstrip.

Installation Procedure

1.  Install the rear door secondary weatherstrip.

Notice :  Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

2.  Install the exterior garnish molding with the screws.

Tighten

Tighten the rear door exterior garnish molding screws
to 1.5 N

S

m (13 lb–in).

3.  Install the interior garnish molding.

DOOR LOCK STRIKER

Removal Procedure

1.  Remove the screws and the door lock striker.

DOORS  9P – 13

DAEWOO V–121 BL4

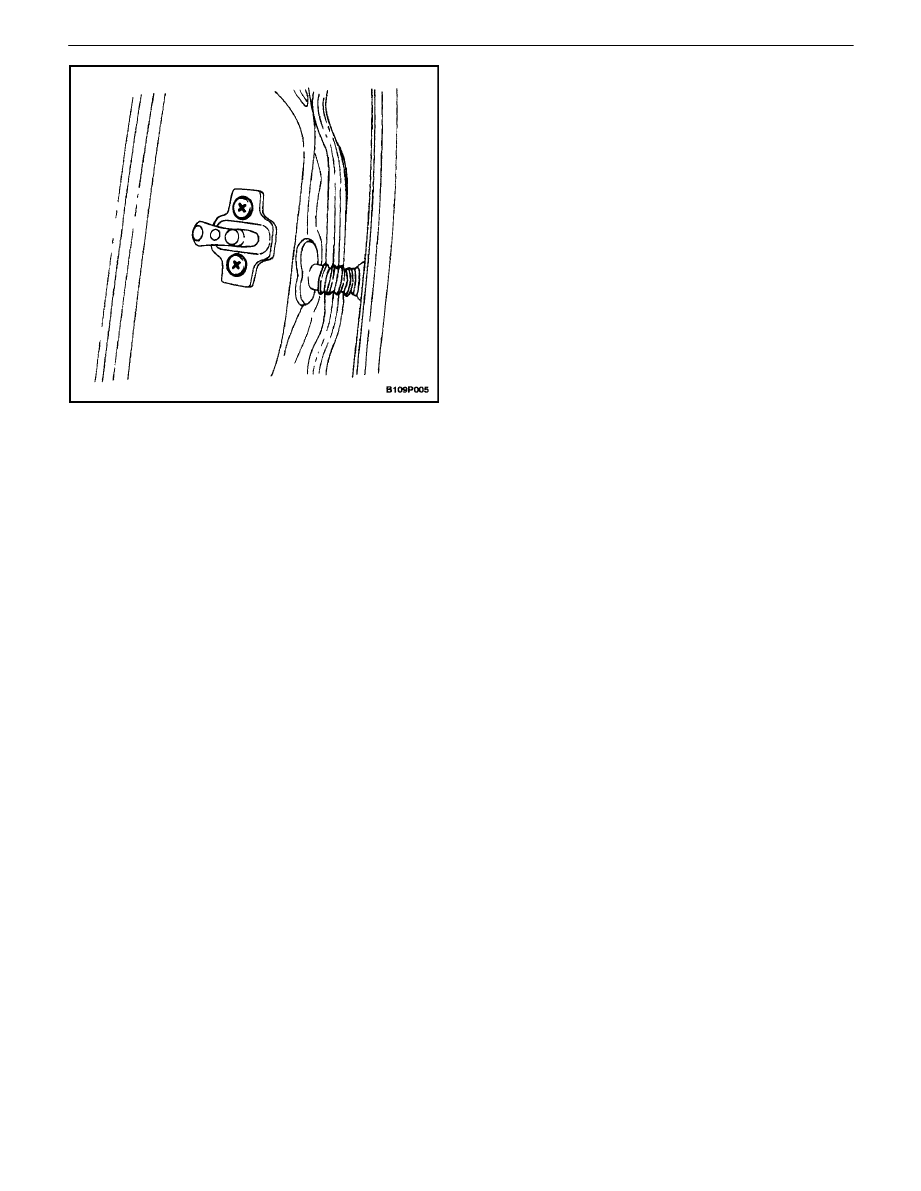

Installation Procedure

Notice :  Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

1.  Install the screws and the door lock striker.

Tighten

Tighten the door lock striker screws to 10 N

S

m (89 lb–

in).

DOOR LOCK STRIKER ADJUSTMENT

The door lock striker consists of a striker with two screws
that are threaded into a tapped, floating cage plate located
in the appropriate body pillar. This floating cage plate al-
lows the striker to be easily adjusted in or out and up or
down. The door is secured in the closed position when the
door lock fork snaps over and engages the striker.

Notice :  The door lock striker is an important attaching
part that can affect the performance of vital components
and systems and can cause major repair expenses. If re-
placement becomes necessary, the door lock striker must
be replaced by one with the same part number or with an
equivalent. Do not use a replacement part of lesser quality
or of a substitute design. The specified torque values must
be used during reassembly in order to ensure the proper
retention of the part.

9P – 14

I

DOORS

DAEWOO V–121 BL4

Up/Down or In/Out Adjustment
An adjustment of the striker in the up and down or in and
out directions may be necessary for a number of reasons:
vehicle frame damage as the result of a collision, installa-
tion of new door weatherstripping, customer complaints of
excessive windnoise, or difficulty in opening or closing the
door. In order to adjust the door striker in an up and down
or in and out direction, performthe following procedure:
1.  The door must be properly aligned.
2.  Loosen the striker screws.
3.  The floating cage plate can be moved slightly using

the ends of the striker screws. Move the floating
cage plate to the desired position.

Notice : It is important to use a flat–end rotary file in order
not to damage the tapped floating cage plate. The striker
screws and the tapped floating cage plate are important
attaching parts that could affect the performance of vital
components and systems.
4.  If proper adjustment requires that the floating cage

plate be moved more than is possible, use an elec-
tric hand drill and a 3/8–inch rotary file with a flat
head in order to enlarge the body opening in the
direction required.

5.  Tighten the striker screws to the correct position.

Tighten

Tighten the door lock striker screws to 10 N

S

m (89 lb–

in).

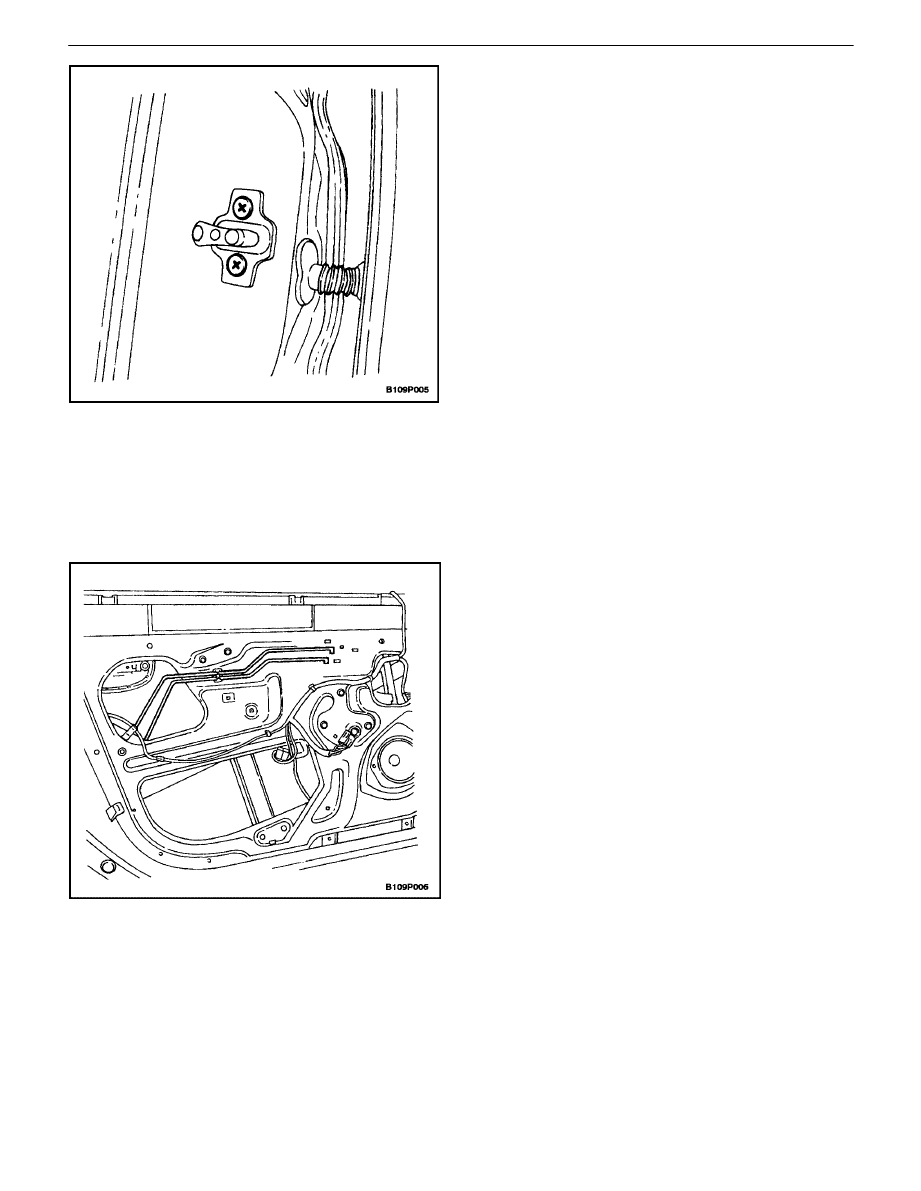

FRONT DOOR LOCK

Removal Procedure

1.  Disconnect the negative battery cable.
2.  Remove the seal trim. Refer to”Door Seal Trim” in

this section.

3.  Disconnect the inside door handle and the lock

rods.
