Citroën C-Elysée (2022 year). Manual in english - page 7

98

Technical data

Engines and towed loads - Petrol

Engines

1,2 PureTech 82 BVM5

1,6 VTi 115 EAT6

1,6 VTi 115 BVM5

Gearboxes

Manual 5-speed

Automatic 6-speed

Manual 5-speed

Code

EB2F

EC5F

EC5M

Model codes

HMZ6

NFPT

NFH5

Cubic capacity (cc)

1,199

1,587

1,587

Max. power: EC standard (kW)

60

85

85

Fuel

Unleaded 91 RON to 98 RON

Unleaded 91 RON to 98 RON

Unleaded 91 RON to 98 RON

Braked trailer (within the GTW

limit) (kg)

on a 10 % or 12 % gradient

450

750

750

Unbraked trailer (kg)

450

580

580

Maximum authorised nose weight

(kg)

55

55

55

99

Technical data

9

Engines and towed loads - Diesel

Engine

1,6 HDi 92 BVM5

1,5 BlueHDi 100 S&S BVM6

Gearboxes

Manual 5-speed

Manual 6-speed

Code

DV6DM euro 4

DV6D euro 5

DV5RCf euro 6.3

Model codes

9HJC

9HP0

YHT2

Cubic capacity (cc)

1,560

1,499

Max. power: EC standard (kW)

68

75

Fuel

Diesel

Diesel

Braked trailer (within the GTW

limit) (kg)

on a 10% or 12% gradient

750

750

Unbraked trailer (kg)

580

580

Maximum authorised nose weight

(kg)

55

55

100

Technical data

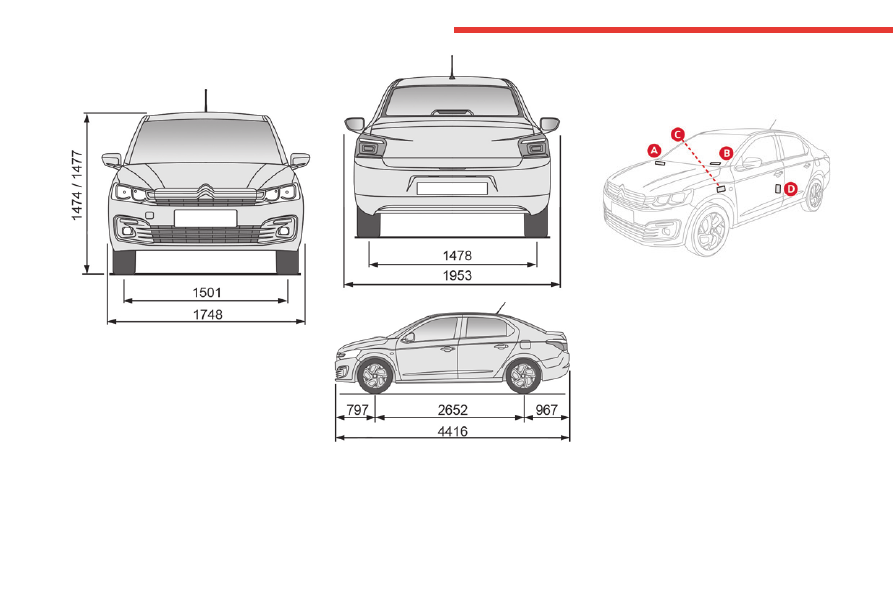

Dimensions (in mm)













Identification markings

Various visible markings for vehicle identification

and vehicle search.





A. Vehicle Identification Number (VIN), under

the bonnet.

Stamped on the chassis.

B. Vehicle Identification Number (VIN), on the

dashboard.

Printed on an adhesive label visible through the

windscreen.

C. Manufacturer's label.

Affixed to the right-hand door.

Bears the following information:

–  Manufacturer’s name.

–  European whole vehicle type approval

number.

–  Vehicle Identification number (VIN).

–  Gross vehicle weight (GVW).

–  Gross train weight (GTW).

–  Maximum weight on the front axle.

–  Maximum weight on the rear axle.

D. Tyres/paint code label.

101

Technical data

9

Affixed to the driver's door.

Bears the following information about the tyres:

–  Tyre pressures, unladen and laden.

–  Tyre specification, made up of the dimensions

and type as well as the load and speed indices.

–  Spare tyre inflation pressure.

Also indicates the paint colour code.

The vehicle may be originally equipped

with tyres with higher load and speed

indices than those indicated on the label,

without affecting tyre pressure (on cold tyres).

In the event of a change in the type of tyres,

contact a CITROËN dealer for the tyre fits

approved for the vehicle.

102

Bluetooth® audio system

Bluetooth

®

 audio system





As a safety measure and because it

requires sustained attention by the driver,

the pairing of a Bluetooth mobile telephone

with the Bluetooth hands-free system of your

audio system must be done with the

vehicle

stationary

 and the ignition on.

Your audio system is coded in such a

way that it will only operate in your

vehicle.

All work on the system must be carried out

exclusively by a dealer or qualified workshop,

to avoid any risk of electrocution, fire or

mechanical faults.

To avoid discharging the battery, the

audio system may switch off after a few

minutes if the engine is not running.

First steps

Volume adjustment.

On / Off.



TA (Traffic Announcement) function On /

Off.

Long press: access to type of information.

Select the source:

Radio, CD, AUX, USB, Streaming.

Accept an incoming call.

Manual step by step up / down frequency

search for radio stations.

Select previous / next MP3 track.

Select previous / next folder / genre / artist /

playlist of the USB device.

Scroll in a list.

Access to the main menu.

Automatic search for a lower / higher

radio frequency.

Select previous / next CD, USB, streaming track.

Scroll in a list.

Select a preset radio station.

Long press: memorise a radio station.

Cancel the current operation.

Go up one level (menu or folder).

Confirm or display contextual menu.



Display the list of stations received, the

CD / MP3 tracks or folders.

Long press: manage the classification of MP3 /

WMA files  update the list of stations received.

Adjust audio settings: sound ambience,

treble, bass, loudness, distribution, left /

right balance, front / rear balance, automatic

volume.

Select the screen display mode, between:

Full screen: Audio (or telephone if call in

progress) /

Windowed screen: Audio (or telephone if call in

progress) - Time or Trip computer.

Long press: black screen (DARK).

Select AM / FM wavebands.

Steering mounted controls

Radio: automatic search for lower

frequency.

CD /MP3 / USB: selection of the previous track.

CD / USB: press and hold: fast back.

Skip in the list.

Change the audio source.

Confirm a selection.

Call/end call on the telephone.

Press for more than 2 seconds: access

telephone main menu.

Radio: automatic search for a higher

frequency.

CD / MP3 / USB: select the next track.

CD / USB: press and hold: fast forward.

Skip in the list.

Increase volume.

Decrease volume.

103

Bluetooth® audio system

10

Mute on: cut the sound by simultaneously

pressing the volume up and down

buttons.

Radio: select the previous / next preset

radio station.

USB: select the genre / artist / folder from the list

depending on classification.

Select the previous / next item in a menu.

Menus

Screen C

“

Multimedia

": Media settings, Radio

settings.

“

Telephone

" : Call, Directory

management, Telephone management,

Hang up.

“

Trip computer

": Warning log.

“

Bluetooth connection

" : Connections

management, Search for a device.

“

Personalisation-configuration

" : Define

the vehicle parameters, Choice of

language, Display configuration, Choice of units,

Date and time adjustment.

Radio

Selecting a station

The external environment (hills,

buildings, tunnels, basement car parks,

...) may block reception, including in RDS

mode. This is a normal effect of the way in

which radio waves are transmitted and does

not indicate any failure of the audio

equipment.

Press the

SRC/TEL

 button repeatedly to

select the radio.

Press

BAND

 to select a waveband.

Press

LIST

 to display the list of stations

received, in alphabetical order.

Select the desired radio station by turning

the thumb wheel then confirm by

pressing.





A press changes to the next or previous letter

(e.g. A, B, D, F, G, J, K, ...).

A long press on

LIST

 builds or updates

the list of stations; audio reception is cut

momentarily.

RDS

RDS, if displayed, makes it possible to

continue listening to the same radio

station using the alternative frequencies

function. However, in certain conditions,

coverage of an RDS station may not be

assured throughout the entire country as

radio stations do not cover 100% of the

territory. This explains the loss of reception of

the station during a journey.

With the radio displayed on the screen,

press OK to display the contextual menu.

Select "

RDS

" and confirm to save.

"

RDS

" is displayed in the screen.

Play TA messages

The TA (Traffic Announcement) function

gives priority to TA alert messages. To

operate, this function needs good reception of

a radio station that carries this type of

message. When a traffic report is transmitted,

the current audio source (Radio, CD, USB, ...)

is interrupted automatically to play the TA

message. Normal play of the media

previously playing is resumed at the end of

the message.

Press

TA

 to activate or deactivate the

reception of traffic messages.

Display TEXT INFO

Text info is information transmitted by the

radio station related to the current

programme or song.

104

Bluetooth® audio system

Screen C

With the radio displayed on the screen,

press OK to display the contextual menu.

Turn the thumb wheel to select '’

RADIO

TEXT

'', press to save.

Media

Audio CD

Playing a CD

Insert 12 cm diameter circular compact

discs only.

Some anti-pirating systems, on original discs

or CDs copied using a personal recorder, may

cause faults which are no reflection on the

quality of the original player.

Without pressing the

EJECT

 button, insert a CD

in the player, play begins automatically.

To play a disc which has already been

inserted, press the

SRC/TEL

 button

several times and select "

CD

".

Press one of the buttons to select

a track on the CD.

Press

LIST

 to display the list of tracks on

the CD.

Press and hold one of these

buttons for fast forward or fast

back.

CD, USB

Information and advice

The audio system will only play files with

extension ".mp3" or ".wma" and a

compression rate that is constant or variable

between 32 Kbps and 320 Kbps.

File names should have less than 20

characters, avoiding special characters

(e.g.: “ ? ; ù) so as to avoid any reading or

display problems.

Playlists accepted are types .m3u and

.pls.

The number of files is limited to 5 000 in 500

directories on a maximum of 8 levels.

On a single disc, the CD player can read

up to 255 MP3 files spread over 8

directory levels. However, it is recommended

that this be kept to 2 levels so as to limit the

time taken to access and play the CD.

The folder structure is not observed during

playback.

In order to be able to play a burned CDR

or CDRW, select standards ISO 9660

level 1, 2 or Joliet if possible when burning the

CD.

If the disc is burned in another format, it may not

be played correctly.

It is recommended that the same burning

standard is always used on an individual disc,

with the lowest speed possible (4x maximum) for

the best acoustic quality.

In the particular case of a multi-session CD, the

Joliet standard is recommended.

Do not connect a hard disk or USB

device other than audio players to the

USB port. This may cause damage to your

installation.

Playing a compilation

Insert an MP3 compilation in the CD player or

connect a memory stick to the USB port, directly

or via an extension lead.

The system creates playlists (temporary

memory); this operation can take from a

few seconds to several minutes.

The playlists are updated every time the

ignition is switched off or a USB memory stick

is connected.

Play starts automatically after a certain

amount of time depending on the capacity of

the USB memory stick.

Use only USB memory sticks formatted FAT

32 (File Allocation Table).

On first connection, the order suggested is

by folder. When connecting again, the order

previously chosen is retained.

To play a disc or memory stick which has

already been inserted, press the

SRC/

TEL

 button repeatedly and select "

CD

" or "

USB

".



105

Bluetooth® audio system

10



Press one of the buttons to select the next or

previous track.

Rotate the thumb wheel to select the next

or previous folder in the order chosen.

Press and hold one of these

buttons for fast forward or fast

back.

Press

LIST

 to display the structure of the

folders in the compilation.

Select a line in the list.

Select a track or a folder.

Up a level in the menu.

Skip a track.

USB memory stick - File

sorting

Make a long press on

LIST

 or press

MENU

, select “

Multimedia

", then “

Media

settings

" and finally “

Choice of track listing

" to

display the different types of sorting.

Having selected the desired sorting (“

By

folders

", “

By artists

", “

By genres

", “

By

playlists

") press the thumb wheel.

* (Check the manual for your player)

Then press the thumb wheel to confirm and save

the changes.

–

By folders

: all folders containing audio

files recognised on the peripheral device, in

alphabetical order without following the folder

structure.

–

By artists

: all of the artist names defined in

the ID3 Tags, in alphabetical order.

–

By genres

: all of the genres defined in the

ID3 Tags.

–

By playlists

: if playlists have been saved.

Apple

®

 players or portable

player

Audio files on a portable mass storage player*

can be heard through the vehicle's speakers

by connecting it to the USB port (cable not

supplied).

Management of the device is via the

audio system controls.

If the portable player is not recognised by

the USB port, connect it to the auxiliary Jack

socket.

The Apple

®

 player software must be updated

regularly for the best connection.

The playlists are those defined in the Apple

®



player.

The Apple

®

 player must be generation 5 or

later.

Auxiliary input (AUX)

JACK socket

The auxiliary Jack socket permits the

connection of a portable non-mass

storage device or an Apple

®

 player if not

recognised by the USB port.

Do not connect a device to the USB port

and to the auxiliary Jack socket at the

same time.

Connect the portable device to the auxiliary Jack

socket using a suitable cable (not supplied).

Press the

SRC/TEL

 button repeatedly

and select "

AUX

".

First adjust the volume on your portable device.

Then adjust the volume of the

audio system.

The display and management of controls

is on the portable device.

106

Bluetooth® audio system

Streaming - Playing audio

files via Bluetooth

Depending on the compatibility of the

phone

Streaming allows music files on a

telephone to be heard via the vehicle's

speakers.

The telephone must support the appropriate

Bluetooth profiles (Profiles A2DP / AVRCP).

Pair/connect the telephone: see the

TELEPHONE section.

Activate the streaming source by pressing

SRC/TEL

. Control of playback is via the

audio system. The contextual information can be

displayed in the screen.

In certain cases, playing of the audio files

must be initiated from the telephone.

The audio quality depends on the quality of

transmission by the telephone.

Play mode

The play modes available are:

–  Normal Normal: the tracks are played

in order, depending on the classification of the

selected files.

–  Random Random: the tracks in an album or

folder are played in a random order.

–  Random all Random all: all of the tracks

saved in the media are played in random

order.

–  Repeat Repeat: the tracks played are only

those from the current album or folder.

Press the thumb wheel to access the

contextual menu.

or

Press

MENU

.





Select “

Multimedia

" and confirm.

Select “

Media settings

" and confirm.

Select “

Read mode

" and confirm.

Choose the desired playback method then

press the thumb wheel to validate and save the

changes.

Telephone

Pairing a telephone
First connection

The services offered depend on the

network, the SIM card and the

compatibility of the Bluetooth telephone used.

Check the instructions for your telephone and

with your service provider for the services to

which you have access.

As a safety measure and because they

require prolonged attention on the part of

the driver, the operations for pairing of the

Bluetooth mobile telephone with the Bluetooth

hands-free system of your audio system must

be carried out with the

vehicle stationary



and the ignition on.

For more information (compatibility, more

help, ...), visit the Manufacturer's website in

your country.

Activate the telephone's Bluetooth function

and ensure that it is "visible to all" (refer to the

telephone user guide).

Press

MENU

.





Select “

Bluetooth connection

" and confirm.

Select “

Search for a device

".

A window is displayed with “

Search in

progress…

".

Select the telephone to be connected

from the list. Only one telephone can be

connected at a time.

In some cases, the reference number of

the telephone or the Bluetooth address

may appear instead of the name of the

telephone.

107

Bluetooth® audio system

10





A virtual keypad is displayed on the screen: enter

a code of at least 4 digits then press the control

knob to confirm.

A message is displayed on the screen of the

telephone: enter the same code and confirm.

If pairing fails, the number of attempts is

not restricted.

Accept the connection on the telephone.

A message appears in the screen to confirm the

result of the connection.

Pairing can also be initiated from the

telephone by searching for detected

Bluetooth devices.

The directory and the call list can be

accessed after the necessary synchronisation

period (if the telephone is compatible).

Automatic connection must be configured in

the telephone to allow the connection each

time the vehicle is started.

Streaming - Playing audio

files via Bluetooth

Pair/connect the telephone and listen: see the

AUDIO chapter.

Status of the telephone

To find out the status of the telephone,

press

MENU

.





Select “

Telephone

" and confirm

Select “

Telephone management

" and

confirm

Select “

Telephone status

" and confirm



The screen displays the name of the

telephone, the name of the network, the

quality of network reception, and the

confirmation of the Bluetooth and streaming

connections.

Managing connections

The telephone connection automatically

includes hands free operation and audio

streaming.

The ability of the system to connect to just

one profile depends on the telephone. Both

profiles may connect by default.

Press

MENU

.

Select “

Bluetooth

connection

" and confirm.

Select “

Connections management

" and

confirm the list of paired devices is

displayed.

Indicates that a device is connected.

Indicates connection of the audio

steaming profile.

Indicates the hands-free telephone

profile.

Select a telephone and confirm.



Then select and confirm:



– “

Connect telephone

" / “

Disconnect

telephone

" : to connect / disconnect the

telephone or the hands-free connection only.

– “

Connect media player

" / “

Disconnect

media player

" : to connect / disconnect only

streaming.

– “

Connect telephone + media player

" /

“

Disconnect telephone + media player

" : to

connect / disconnect the telephone (hands-free

and streaming).

– “

Delete connection

": to delete the pairing.

Making a call - Dialling

To display the "

TELEPHONE

"

menu:

–  Press and hold

SRC/TEL

.

–  Or, press the thumb wheel to display the

context menu. Select “

Call

" and confirm.

–  Or, press

MENU

, select “

Telephone

" and

confirm. Select “

Call

" and confirm.

Select “

Dial

" to enter a number and

confirm.



Select numbers one at a time using the

7

 and

8

 buttons and confirm.



108

Bluetooth® audio system

Correction allows numbers to be deleted

one at a time.

Press the thumb wheel to confirm and

place the call.

Making a call - Recently

called numbers

(Depending on the compatibility of the phone)

To display the "

TELEPHONE

" menu:

–  Press and hold

SRC/TEL

.

–  Or, press the thumb wheel to display the

context menu. Select "

Call

" and confirm.

–  Or, press

MENU

, select "

Telephone

" and

confirm. Select "

Call

" and confirm.

Select "

Calls list

" and confirm.



Select the number and confirm to start the

call.

The calls list includes calls sent and

received in the vehicle using the

connected telephone.

It is possible to make a call directly from

the telephone; park the vehicle first as a

safety measure.

Making a call - From the

directory of contacts

To display the "

TELEPHONE

" menu:

–  Press and hold

SRC/TEL

.

–  Or, press the thumb wheel to display the

context menu. Select “

Call

" and confirm.

–  Or, press

MENU

, select “

Telephone

" and

confirm. Select “

Call

" and confirm.

Select “

Directory

" and confirm



Select a contact then confirm.







Home / Work / Mobile

(depending on the information available in the

contact records of the connected telephone).

Select the number and confirm.



Receiving a call

An incoming call is announced by a ring and

a superimposed display in the multifunction

screen.

"

YES

" to accept the call is

selected by default.

Press the thumb wheel to accept the call.

Select "

NO

" and confirm to reject the call.

or

Press one of these buttons to

accept the call.

A long press on

BACK

 or

on

SRC/TEL

 also rejects an

incoming call.

Managing calls

During a call, press the thumb wheel to

display the contextual menu.

Hang up

In the contextual menu, select “

Hang up

"

to end the call.

A long press on one of these

buttons also ends the call.

Secret - Mute

(so that the caller cannot hear)

In the contextual menu:

–  select “

Micro OFF

" to switch off the

microphone.

–  deselect “

Micro OFF

" to switch the

microphone on.

Combined mode

(to leave the vehicle without ending the call)

In the contextual menu:

–  select “

Telephone mode

" to transfer the call

to the telephone.

–  deselect “

Telephone mode

" to transfer the

call to the vehicle.

109

Bluetooth® audio system

10

In some cases, the combined mode must

be activated from the telephone.

If contact has been cut off, when you

reconnect on returning to the vehicle,

the Bluetooth connection will be restored

automatically (depending on the compatibility

of the telephone).

Interactive voice response

From the contextual menu, select “

DTMF

tones

" and confirm to use the digital

keypad to navigate in the interactive voice

response menu.

Consultation call

From the contextual menu, select

“

Switch

" and validate to return to a call

left on hold.

Directory

The directory of the telephone is

transmitted to the system,

depending on the compatibility of the

telephone.

The directory is temporary and depends on

the Bluetooth connection.

The contacts, imported from the

telephone to the audio system

directory, are saved in a permanent directory

visible to all, regardless of the telephone

connected.

To access the directory, press and hold

SRC/TEL

.

or

Press on the thumb wheel then select

“

Call

" and confirm.

Select “

Directory

" to see the list of

contacts.

To modify the contacts saved in the

system, press

MENU

 then select

“

Telephone

" and confirm.

Select “

Directory management

" and

confirm

You can:

– “

Consult an entry

",

– “

Delete an entry

",

– “

Delete all entries

".

Audio settings

Screen C







Press

¯

 to display the audio settings menu.

The settings available are:

– Ambience,

– Bass,

– Treble,

– Loudness,

–  Distribution : Personalised or Driver,

–  Left / right balance,

–  Fader (front / rear balance),

–  Auto. volume

Select and confirm "

Other settings…

" to

display the rest of the list of settings

available.

The distribution (or spatialisation using

the Arkamys

 system), is an audio

process which allows the sound quality to be

improved according to the setting chosen,

corresponding to the position of the listeners

in the vehicle.

The audio Ambience, Treble and

Bass settings are different and

independent for each sound source.

Onboard audio: Arkamys sound staging

.

With Sound Staging, the driver and the

passengers are immersed into a "sound

stage" recreating the natural atmosphere of a

theatre: truly centre stage in surround sound.

This new sensation is possible thanks to

the software installed in the radio which

processes the digital signals of the media

players (radio, CD, MP3...) without changing

the setting of the loudspeakers. This

process takes into account the features of

110

Bluetooth® audio system

the passenger compartment for optimum

performance.

The Arkamys

 software installed in your audio

system processes the digital signals of all

the media players (radio, CD, MP3...) and

makes it possible to recreate a natural sound

setting, with a harmonious placement of the

instruments and voices in space, facing the

passengers, positioned at the height of the

windscreen.

Frequently asked

questions

The following information groups together the

answers to the most frequently asked questions

concerning your audio system.

There is a difference in sound quality

between the different audio sources (radio,

CD, etc.).

To allow for optimal listening quality, the audio

settings (Volume, Bass, Treble, Ambience,

Loudness) can be tailored to different sound

sources, which can generate audible differences

when changing source (radio, CD, etc.).

Check that the audio settings (Volume, Bass,

Treble, Ambience, Loudness) are adapted to

the sources listened to. It is advisable to set

the AUDIO functions (Bass, Treble, Front-Rear

Fader, Left-Right Balance) to the middle position,

select the musical ambience "None" and set the

loudness correction to the "Active" position in CD

mode or to the "Inactive" position in radio mode.

When changing the settings for treble and

bass, the ambience setting is deselected.

When changing the ambience setting, treble

and bass are reset to zero.

Choosing an ambience imposes settings for

treble and bass. Modifying one without the other

is not possible.

Modify the treble and bass settings or the

ambience setting to obtain the desired sound

quality.

When changing the balance setting,

distribution is deselected.

Choosing a distribution setting imposes a

balance setting. Modifying one without the other

is not possible.

Modify the balance or distribution settings to

obtain the desired sound quality.

The reception quality of the tuned radio

station gradually deteriorates or the stored

stations are not working (no sound, 87.5 Mhz

is displayed, etc.).

1.

The vehicle is too far from the transmitter of

the station or no transmitter is present in the

geographical area.

Activate the RDS mode and start a new search

for the station so that the system can check

whether a stronger transmitter is available in the

geographic area.

2.

The environment (hills, buildings, tunnels,

basement car parks, etc.) block reception,

including in RDS tracking mode.

This phenomenon is normal and does not

indicate a failure of the audio equipment.

3.

The aerial is absent or has been damaged (for

example when going through an automatic car

wash or in an underground car park).

Have the antenna checked by the network

CITROËN.

Sound cut-outs of 1 to 2 seconds in radio

mode.

During this brief sound cut-out, the RDS

searches for another frequency giving better

reception of the station.

Switch off the RDS function if the phenomenon is

too frequent and always on the same route.

The traffic announcement (TA) is displayed. I

do not receive any traffic information.

The radio station does not broadcast traffic

information.

Tune to a radio station which broadcasts traffic

information.

The stored stations are not found (no sound,

87.5 MHz is displayed, etc.).

An incorrect waveband is selected.

Press the BAND button to return to the

waveband on which the stations are stored.

The CD is ejected every time or is not played.

The CD is upside down, cannot be read, does

not contain audio files or contains audio files

of a format that cannot be played by the audio

system.

The CD is protected by an anti-pirating system

not recognised by the audio system.

111

Bluetooth® audio system

10

–  Check that the CD is inserted in the player the

right way up.

–  Check the condition of the CD: the CD cannot

be played if it is too badly damaged.

–  Check the content in the case of a recorded

CD: consult the advice in the "Audio" section.

–  The audio system’s CD player does not read

DVDs.

–  Because of low quality, certain burned CDs

will not be read by the audio system.

The CD sound is of poor quality.

1.

The CD used is scratched or of poor quality.

Insert good quality CDs and store them in

suitable conditions.

2.

The audio settings (bass, treble, ambience) are

unsuitable.

Return bass and treble settings to 0, without

selecting an ambience.

I am unable to connect my Bluetooth

telephone.

1.

It is possible that Bluetooth is switched off on

the telephone or that the telephone has been

made not visible.

–  Check that your telephone has Bluetooth

switched on.

–  Check in the telephone settings that it is

"visible to all".

2.

The Bluetooth telephone is not compatible with

the system.

To check the compatibility of your telephone

(services), visit the Manufacturer's website in

your country.

The Bluetooth connection is cut.

The battery of the peripheral may not be

sufficiently charged.

Charge the battery of the peripheral device.

The "USB peripheral error" or "Peripheral not

recognised" message appears on the screen.

The USB memory stick is not recognised. The

memory stick could be corrupt.

Reformat the memory stick (FAT 32).

A telephone connects automatically,

disconnecting another telephone.

Automatic connection overrides manual

connection.

Modify the telephone settings to remove

automatic connection.

The Apple

®

 player is not recognised when

connecting to the USB port.

The Apple

®

 player is of a generation that is not

compatible with a USB connection.

Connect the Apple

®

 player to the AUX Jack

socket using a suitable cable (not supplied).

The hard disk or peripheral is not recognised

when connecting to the USB socket.

Some hard disks and devices need a power

supply greater than is provided by the audio

system.

Connect the peripheral to the 230 V socket, the

12V socket or an external power supply.

Ensure that the device does not transmit

a voltage greater than 5 V (risk of

destruction of the system).

When streaming, the sound cuts

momentarily.

Some telephones prioritise connection of the

"hands-free" profile.

Delete the "hands-free" connection profile to

improve streaming.

In "Random all" play, not all of the tracks are

played.

In "Random all" play, the system can only take

into account up to 999 tracks.

With the engine off, the audio system

switches off after a few minutes of use.

When the engine is switched off, the audio

system operating time depends on the battery

charge.

The switch-off is normal: the audio system

switches to economy mode and switches off to

prevent discharging the vehicle's battery.

Start the vehicle’s engine to increase the battery

charge.

The message "the audio system is

overheated" appears on the display.

In order to protect the installation if the

surrounding temperature is too high, the audio

system switches to an automatic thermal

protection mode leading to a reduction of the

volume or stopping of the playing of the CD.

Switch the audio system off for a few minutes to

allow the system to cool.

112

CITROËN Connect Radio

CITROËN Connect Radio

Multimedia audio system -

Applications - Bluetooth

®



telephone

The functions and settings described

vary according to the vehicle version and

configuration, as well as the country of sale.

For safety reasons and because they

require sustained attention by the driver,

the following operations must be carried out

with the

vehicle stationary

 and the ignition

on:

–  Pairing the smartphone with the system via

Bluetooth.

–  Using the smartphone.

–  Connecting to the CarPlay

®

 or Android

Auto applications (certain applications stop

displaying when the vehicle is moving).

–  Changing the system settings and

configuration.

The system is protected so that it only

operates in the vehicle.

The message

Energy economy mode

 is

displayed when the system is about to go into

standby.

The system’s Open Source Software

(OSS) source codes are available at the

following addresses:

https://www.groupe-psa.com/fr/oss/

https://www.groupe-psa.com/en/oss/

First steps

With the engine running, a press mutes

the sound.

With the ignition off, a press turns the system on.

Increase or decrease the volume using

the wheel or the "plus" or "minus" buttons

(depending on the equipment).

Use the buttons on either side of or below the

touch screen to access the menus, then press

the virtual buttons on the touch screen.

Depending on the model, use the "Source" and

"Menu" buttons on the left of the touch screen to

access the menus, then press the virtual buttons

on the touch screen.

At all times it is possible to display the rolling

menus by pressing the screen briefly with three

fingers.

All touch-sensitive areas on the screen are

white.

On pages with multiple tabs at the bottom of the

screen, you can switch between pages either

by tapping the tab for the desired page or by

swiping the pages to the left or right with your

finger.

Press in the shaded area to go back up a level

or confirm.

Press the back arrow to go back a level or

confirm.

The touch screen is of the "capacitive"

type.

To clean the screen, use a soft, non-abrasive

cloth (e.g. spectacles cloth) with no additional

product.

Do not use sharp objects on the screen.

Do not touch the screen with wet hands.

Certain information is displayed permanently in

the upper bar of the touch screen:

–  Air conditioning status information (depending

on version), and direct access to the

corresponding menu.

–  Radio Media and Telephone menu status

information.

–  Privacy status information.

–  Access to the touch screen and digital

instrument panel settings.

Audio source selection (depending on

equipment):

–  FM/DAB/AM radio stations (depending on

equipment).

–  Telephone connected via Bluetooth and

Bluetooth multimedia broadcast (streaming).

–  USB Memory stick.

–  Media player connected via the auxiliary

socket (depending on equipment).



113

CITROËN Connect Radio

11



In the "Settings" menu, it is possible to

create a profile for an individual or for a

group of people with shared interests, and

configure a wide range of settings (radio

presets, audio settings, ambiences, etc.).

Settings are applied automatically.

In very hot conditions, the volume may

be limited to protect the system. It may

enter standby mode (with the screen and

sound off) for 5 minutes or more.

The system will resume normal operation

when the temperature in the passenger

compartment has dropped.

Steering mounted controls

Steering mounted controls -

Type 1





Radio:

Select the previous/next preset radio

station.

Select the previous/next item in a menu or a list.

Media:

Select the previous/next track.

Select the previous/next item in a menu or a list.

Radio:

Short press: display the list of radio

stations.

Long press: update the list.

Media:

Short press: display the list of folders.

Long press: display the available sorting options.

Change audio source (radio; USB; AUX if

equipment connected; CD; streaming).

Confirm a selection.



Increase volume.

Decrease volume.

Mute/restore sound by simultaneously

pressing the increase and decrease

volume buttons.

Steering mounted controls -

Type 2





Voice commands

:

This control is located on the steering wheel or

at the end of the lighting control stalk (depending

on equipment).

Short press, smartphone voice commands via

the system.

Increase volume.

Decrease volume.

Mute by pressing the volume increase

and decrease buttons simultaneously

(depending on equipment).

Restore the sound by pressing one of the two

volume buttons.

Media

 (short press): change the

multimedia source.

Telephone

 (short press): start telephone

call.

Call in progress

 (short press): access

telephone menu.

Telephone

 (long press): reject an incoming call,

end call; when no call is in progress, access

telephone menu.

Radio

 (rotate): automatic search for the

previous/next station.

Media

 (rotate): previous/next track, move in a

list.

Short press

: confirm a selection; if nothing

selected, access to presets.

Radio

: display the list of stations.

Media

: display the list of tracks.

Radio

 (press and hold): update the list of

stations received.
