82

Practical information

Comply with the instructions for use stated on

the product.

Decals

(Depending on version)

Do not use a high-pressure washer to

clean the vehicle - risk of damaging or

detaching the decals!

Use a high-flow hose (temperature

between 25°C and 40°C).

Place the jet of water perpendicular to the

surface to be cleaned.

Rinse the vehicle with demineralised water.

Textile

The dashboard, door panels and seats may

contain parts made of textile material.

Maintenance

Do not use aggressive cleaning products

(e.g. alcohol, solvent or ammonia).

Do not use steam-cleaning systems - risk of

affecting the adhesion of the fabrics!

Remove dust from the textile parts

regularly with a dry cloth, soft brush or

vacuum cleaner.

Rub down the textile parts once per year with

a clean, damp cloth. After leaving overnight to

dry, brush with a soft-bristled brush.

Stain removal

Do not rub the stain or it may spread or

you may cause the substance to

penetrate the surface.

Act quickly by reducing the stain from its

edges inwards.

Remove as much substance or solids as

possible using a spoon or spatula, and

remove as much liquid as possible using

absorbent paper.

Product/Procedure to use depending

on the type of stain:

–  Grease, oil and ink: clean with a pH-neutral

detergent.

–  Vomit: clean with sparkling mineral water.

–  Blood: spread flour over the stain and allow

to dry; remove with a slightly damp cloth.

–  Mud: allow to dry and then remove with a

slightly damp cloth.

–  Cake, chocolate, ice cream: clean with

lukewarm water.

–  Sugary and/or alcoholic drinks: clean with

lukewarm water, or lemon juice if the stain is

persistent.

–  Hair gel, coffee, tomato sauce, vinegar:

clean with lukewarm water and lemon juice.

For solid substances, then use a soft brush or

vacuum cleaner.

For liquid substances, then use a damp

microfibre cloth and then dry with another

cloth.

Leather

Leather is a natural product. Appropriate regular

care is essential for its durability.

It must be protected and nourished using a

specific leather product, to keep it supple and

preserve its original appearance.

Do not use maintenance products which

are not suitable for cleaning leather

(e.g. solvent, detergent, petrol, pure alcohol).

Do not use bleaching or colour-removal

products (e.g. perchloroethylene).

When cleaning items partly made from

leather, take care not to damage the other

materials with the specific leather product.

Before cleaning greasy stains or liquids,

quickly mop up any surplus.

Before cleaning, wipe off any residues liable

to scuff the leather, using a cloth that has

been dampened with demineralised water

and thoroughly wrung out.

Clean the leather, without rubbing too

vigorously, using a soft cloth moistened with

soapy water or a pH-neutral product.

Dry with a soft, dry cloth.

83

In the event of a breakdown

8

Warning triangle

This reflective and dismantable device is to be

installed on the side of the road when a vehicle

is broken down or damaged.

Before getting out of the vehicle

Turn on the hazard warning lamps, then

put on the safety vest to assemble and install

the triangle.

Assembling and placing the

triangle





For versions supplied with a triangle as original

equipment, refer to the illustration above.

For other versions, refer to the assembly

instructions provided with the triangle.

►  Put the triangle in place behind the vehicle,

as required by local legislation.

Running out of fuel

(Diesel)

With Diesel engines, the fuel system must be

primed if you run out of fuel.

Before starting to prime the system

, it is

essential to put at least 5 litres of Diesel into the

fuel tank.

For more information on

Refuelling

 and

on

Misfuel prevention (Diesel)

, refer to

the corresponding section.

For non-BlueHDi versions, the fuel system

components are located in the engine

compartment; this may be under a removable

cover.

For more information on the

Engine

compartment

, in particular the location

of these components under the bonnet, refer

to the corresponding section.

1.6 HDi engines

►  Open the bonnet and then, if necessary,

unclip the cover to access the priming pump.

►  Operate the priming pump repeatedly

until resistance is felt (resistance may be

felt at the first press).

►  Operate the starter motor to start the engine

(if the engine does not start at the first attempt,

wait around 15 seconds before trying again).

►  If the engine does not start after a few

attempts, operate the priming pump again, then

the starter motor.

►  Put the cover back in place and clip it in, then

close the bonnet.

1.5 BlueHDi engines

►  Switch on the ignition (without starting the

engine).

►  Wait around 1 minute and switch off the

ignition.

►  Operate the starter motor to start the engine.

If the engine does not start at the first attempt,

do not keep trying, but restart the procedure.

Tool kit

Set of tools supplied with the vehicle.

Access to the tools

The tool kit is stored in the boot, under the floor.





84

In the event of a breakdown

►  Lift the floor and remove it to access the

tools.

These tools are specific to the vehicle

and may vary according to the level of

equipment.

Do not use them for any other purpose.

The jack must only be used to change a

wheel with a damaged or punctured tyre.

Do not use any jack other than the one

supplied with the vehicle.

If the vehicle does not have its original jack,

contact a CITROËN dealer or a qualified

workshop to obtain the one that was intended

by the manufacturer.

The jack meets European standards, as

defined in the Machinery Directive 2006/42/

CE.

The jack does not require any maintenance.

List of tools





These tools are specific to your vehicle and may

vary according to the level of equipment. Do

not use them for any purpose other than those

detailed below.

1.

Wheelbrace

For removing the wheel trim and the wheel

bolts.

2.

Jack with integrated handle

To raise the vehicle.

3.

Wheel bolt cap removal tool

For removing the wheel bolt head finishers on

alloy wheels.

4.

Removable towing eye

For more information on

Towing the vehicle



and using the removable towing eye, refer to the

corresponding section.

Spare wheel

Visit this link to view explanatory videos:

http://q-r.to/bagGl9

For more information on the

Tool kit

,

refer to the corresponding section.

Accessing the spare wheel





The spare wheel is stored in the boot, under the

floor.

To access the spare wheel, first refer to the

Tool

kit

 section.

85

In the event of a breakdown

8

Depending on engine, the spare wheel

may be a standard steel or 'space-saver'

wheel (BlueHDi 100).

Removing the spare wheel





►  Unclip the tool storage box (standard spare

wheel).

►  Slacken the central nut.

►  Remove the fastening device (nut and bolt).

►  Lift the spare wheel towards you from the

rear.

►  Take the wheel out of the boot.

Putting the spare wheel back in place

The punctured wheel cannot be put

under the boot floor.





►  Put the spare wheel back in place in its

housing.

►  Slacken the nut on the bolt by a few turns.

►  Position the fastening device (nut and bolt) in

the middle of the wheel.

►  Tighten the central nut sufficiently to retain

the wheel correctly.

►  Put the tool box back in place in the middle of

the wheel and clip it in place.

Removing a wheel

Parking the vehicle

Immobilise the vehicle where it does

not obstruct traffic: the ground must be level,

stable and non-slippery.

With a manual gearbox, engage first gear

to lock the wheels, apply the parking brake,

unless it is set to automatic mode, and switch

off the ignition.

With an automatic gearbox, select mode

P



to lock the wheels, apply the parking brake,

unless it is set to automatic mode, and switch

off the ignition.

Check that the parking brake indicator lamps

on the instrument panel are on fixed.

The occupants must get out of the vehicle

and wait where they are safe.

If necessary, place a chock under the wheel

diagonally opposite the wheel to be changed.

Never go underneath a vehicle raised using a

jack; use an axle stand.

Wheel with wheel trim

When removing the wheel

, first remove

the wheel trim by pulling at the valve aperture

using the wheelbrace.

When refitting the wheel

, refit the wheel

trim, starting by placing its aperture in line

with the valve and then pushing it into place

all round its edge with the palm of your hand.







86

In the event of a breakdown



►  Remove each wheel bolt cover using the

tool

3

 (alloy wheels).

►  Slacken the other bolts using the

wheelbrace

1

 only.





►  Place the foot of jack

2

 on the ground and

ensure that it is directly below the front

A

 or

rear

B

 jacking point on the underbody, whichever

is closest to the wheel to be changed.





►  Extend jack

2

 until its head comes into

contact with jacking point

A

 or

B

; contact area

A



or

B

 on the vehicle must be properly inserted

into the central part of the head of the jack.

►  Raise the vehicle until there is sufficient

space between the wheel and the ground to

easily admit the spare (not punctured) wheel.

Ensure that the jack is stable. If the

ground is slippery or loose, the jack may

slip or collapse - risk of injury!

Take care to position the jack strictly at

one of the jacking points

A

 or

B

 under the

vehicle, ensuring that the head of the jack is

centred under the contact area on the vehicle.

Otherwise, there is a risk of damage to the

vehicle and/or of the jack collapsing - risk of

injury!





►  Remove the bolts and store them in a clean

place.

►  Remove the wheel.

Fitting a wheel

Fitting a steel or "space-saver" type

spare wheel

If the vehicle is fitted with alloy wheels, the

washers

A

 do not make contact with the steel

or "space-saver" type spare wheel. The wheel

is held in place by the conical contact surface

B

 of each bolt.





►  Fit the wheel on the hub.

►  Screw in the bolts by hand as far as possible.

►  Pre-tighten the bolts using the wheelbrace

1



only.



87

In the event of a breakdown

8



►  Lower the vehicle again fully.

►  Fold jack

2

 and remove it.





►  Tighten the bolts using the wheelbrace

1

 only.

►  Refit the bolt covers to each of the bolts

(depending on equipment).

►  Store the tools.

After changing a wheel

Store the punctured wheel in the boot or,

depending on version, remove the central cover

first to store it beneath the floor in place of the

spare wheel.

With a non-standard or 'space-saver'

spare wheel

Do not exceed the maximum authorised

speed of 50 mph (80 km/h) or the maximum

distance of 50 miles (80 km).

Driving with more than one spare wheel of

this type is prohibited.

The wheel trim from the replaced wheel must

not be refitted.

Visit a CITROËN dealer or a qualified

workshop.

Have the tightening of the spare wheel's bolts

and its tyre pressure checked.

Have the punctured tyre examined. After

inspection, the technician will advise you on

whether the tyre can be repaired or if it must

be replaced.

Changing a bulb

In some weather conditions (e.g. low

temperature or humidity), misting on the

internal surface of the glass of the headlamps

and rear lamps is normal, and will disappear

after the lamps have been on for a few

minutes.

Never look too closely at the light beam

of LED technology lamps - risk of serious

eye injury!





The headlamps have polycarbonate

lenses with a protective coating:

–

Do not clean them with a dry or abrasive

cloth, nor with detergent or solvent

products.

–  Use a sponge and soapy water or a pH

neutral product.

–  When using a high-pressure washer on

persistent marks, do not keep the lance

directed towards the headlamps, lamps or

their edges for too long, so as not to damage

their protective coating and seals.

Changing a bulb must only be done with

the ignition off and after the headlamp /

88

In the event of a breakdown

lamp has been switched off for several

minutes - risk of serious burns!

Do not touch the bulb directly with your

fingers; use a lint-free cloth.

It is essential only to use anti-ultraviolet

(UV) type bulbs, so as not to damage the

headlamp.

Always replace a failed bulb with a new bulb

of the same type and specification. To avoid

lighting imbalance, replace the bulbs in pairs.

Refitting the lamp units

Perform the operations in the reverse

order to dismantling.

Light-emitting diode (LED)

headlamps and lamps

Depending on version, the affected types of

headlamps/lamps are:

–  Daytime running lamps/sidelamps.

If you need to replace this type of bulb,

you must contact a CITROËN dealer or a

qualified workshop.

Do not touch the LED technology bulbs - risk

of electrocution!

Front lamps

Halogen headlamps

1.

Direction indicators (PY21W)

2.

Main beam headlamps (H1)

3.

Dipped beam headlamps (H7LL)

4.

Sidelamps (W5W)

Halogen lamps with daytime running

lamps and front foglamps

1.

Direction indicators (PY21W)

2.

Main beam headlamps (H1)

3.

Dipped beam headlamps (H7LL)

4.

Daytime running lamps/Sidelamps (LED)

5.

Front foglamps (H11)

Direction indicators

Rapid flashing of the direction indicator

lamp (left or right) indicates that one of

the bulbs on the corresponding side has

failed.





►  Turn the connector a quarter turn

anti-clockwise.

►  Pull the bulb connector.

►  Remove the bulb and replace it.

Amber coloured bulbs, such as the

direction indicators, must be replaced by

bulbs with identical colour and specifications.

89

In the event of a breakdown

8

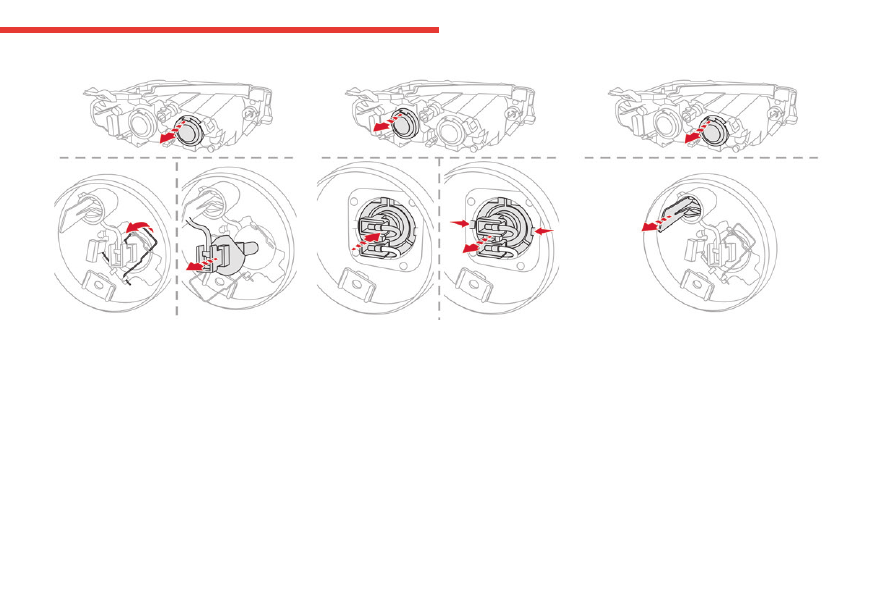

Main beam headlamps





►  Remove the protective cover by pulling on

the tab.

►  Unclip the module support unit.

►  Remove the bulb connector.

►  Remove the bulb and replace it.

To reassemble it, reposition the unit in the

housing and clip it back.

Make sure to replace the protective cover with

the tab facing upward.

Dipped beam headlamps





►  Remove the protective cover by pulling the

tab.

►  Push the entire module relative to the support

to unclip one of the two tabs.

►  Once the first tab is unclipped, release the

second tab.

►  Remove the bulb connector.

►  Remove the bulb and replace it.

To reassemble it, position the unit in the housing

and push until the two tabs "clip".

Make sure to replace the protective cover with

the tab facing upward.

Sidelamps





►  Remove the protective cover by pulling on

the tab.

►  Remove the bulb connector.

►  Remove the bulb and replace it.

Make sure to replace the protective cover with

the tab facing upward.

90

In the event of a breakdown

Front foglamps





►  Insert a flat screwdriver between the lamp

and the cover.

►  Pull and lever to unclip the cover.





►  Remove the two fastening screws of the

module.

►  Remove the module from its housing.





►  Press the locking clip and disconnect the

connector.

►  Turn the bulb holder a quarter turn

anti-clockwise.

►  Remove the bulb holder.

►  Remove the bulb and replace it.

If you experience any difficulty in

replacing these bulbs, you can also

contact a CITROËN dealer or a qualified

workshop.

Direction indicator side repeaters





►  Insert a screwdriver towards the centre of the

repeater, between the repeater and the base of

the bodywork.

►  Lever with the screwdriver to extract the

repeater and pull it out.

►  Disconnect the connector from the repeater.

►  Replace the module.

Contact a CITROËN dealer or a qualified

workshop to obtain the module.

Rear lamps





1.

Brake lamps/Sidelamps (P21/5W)

2.

Direction indicators (PY21W)

3.

Reversing lamps (W16W)

4.

Foglamp (P21/5W)

These bulbs are changed from inside the boot:

►  Open the boot.

►  Remove the access grille from the

corresponding side trim panel.

►  Disconnect the lamp connector.



91

In the event of a breakdown

8



►  Loosen and remove the nut.

►  From the outside, cautiously remove the lamp

unit straight from its housing.





►  Remove the four screws and lift off the bulb

holder.

►  Turn the failed bulb a quarter of a turn and

replace it.

For reassembly, take care to engage the lamp

unit in its guides, while keeping it in line with the

vehicle.

Tighten sufficiently to ensure sealing, but without

damaging the lamp.

Third brake lamp

(W5W)

From the rear bench seat, you must access the

unit located on the rear shelf:





►  Pull the unit’s cover towards you and up to

disengage it.

►  Disconnect the lamp unit connector.





►  Unclip the bulb holder by lifting the two lugs

and remove it.

►  Replace the faulty bulb.

To refit, carry out these operations in reverse

order.

Check that the unit’s cover is positioned

correctly on its support before clipping it

on.

Number plate lamps

(W5W)





►  Insert a thin screwdriver into one of the

exterior holes of the transparent lens.

►  Push it outwards to unclip it and remove it.

►  Remove the defective bulb and replace it.

To refit, carry out these operations in reverse

order.

Fuses

Changing a fuse

All work must be carried out only by a

CITROËN dealer or a qualified workshop

The replacement of a fuse by a third party

could cause a serious malfunction of the

vehicle.

92

In the event of a breakdown

Installing electrical accessories

The vehicle's electrical system is

designed to operate with standard or optional

equipment.

Before fitting other electrical equipment

or accessories to your vehicle, contact a

CITROËN dealer or a qualified workshop.

CITROËN accepts no responsibility for

the cost incurred in repairing the vehicle

or for rectifying malfunctions resulting from

the installation of accessories not supplied or

not recommended by CITROËN and not

installed in accordance with its

recommendations, in particular when the

combined power consumption of all of the

additional equipment connected exceeds 10

milliamperes.

12 V battery

Lead-acid starter batteries

These batteries contain harmful

substances (sulphuric acid and lead).

They must be disposed of in accordance

with regulations and must never under any

circumstances be discarded with household

waste.

Dispose of used batteries at a designated

collection point.

Protect your eyes and face before

handling the battery.

All operations on the battery must be carried

out in a well ventilated area and away from

naked flames and sources of sparks, to avoid

any risk of explosion or fire.

Wash your hands afterwards.

Electronic control units/LED

technology headlamps

Never connect the negative jump lead to the

metal part of the electronic control units or at

the back of the headlamps.

Risk of destroying the electronic control units

and/or headlamps!

Connect to the remote earth point provided

for this purpose.

Frozen battery

Never try to charge a frozen battery - risk

of explosion!

If the battery has frozen, have it checked by a

CITROËN dealer or by a qualified workshop,

who will verify that the internal components

have not been damaged and that the case

has not cracked, which could lead to a risk of

leakage of toxic and corrosive acid.

Automatic gearbox

Never try to start the engine by pushing

the vehicle.

Symbols

No sparks or naked flames, no smoking.



Always protect your eyes. Explosive

gases can cause blindness and injury.

Keep the vehicle's battery out of the reach

of children.

The vehicle's battery contains sulphuric

acid which can make you go blind or

cause severe burns.

For more information, refer to the

handbook.

Explosive gases can be present close to

the battery.

Procedure for starting the engine using another

battery or for charging a discharged battery.

Accessing the battery

The battery is located under the bonnet.





For access to the (+) terminal:

93

In the event of a breakdown

8

►  Release the bonnet by pulling the internal

release lever, then the external safety catch.

►  Raise the bonnet.

(+)

 Positive terminal with a quick-release

terminal.

(-)

 Negative terminal.

As the battery's negative terminal is not

accessible, a remote earth point is located on

the engine.

Starting using another battery

If the vehicle's battery is flat, the engine can be

started using a backup battery (either external or

from another vehicle) and jump leads or using a

battery booster.

Never start the engine by connecting a

battery charger.

Never use a 24 V or higher battery booster.

Check beforehand that the backup battery

has a nominal voltage of 12 V and a capacity

at least equal to that of the discharged

battery.

The two vehicles must not be in contact with

each other.

Switch off all electricity-consuming equipment

on both vehicles (audio system, wipers,

lighting, etc.).

Make sure that the jump leads are well away

from the engine’s moving parts (fan, belt,

etc.).

Do not disconnect the (+) terminal while the

engine is running.





►  Lift the plastic cover on the (+) terminal, if the

vehicle has one.

►  Connect the red cable to the (+) terminal of

flat battery

A

 (at the metal elbow), then to the

(+) terminal of the backup battery

B

 or of the

booster.

►  Connect one end of the green or black cable

to the (-) terminal of the backup battery

B

 or of

the booster (or to an earth point on the assisting

vehicle).

►  Connect the other end of the green or black

cable to the earth point

C

.

►  Start the engine on the assisting vehicle and

leave it running for a few minutes.

►  Operate the starter on the broken down

vehicle and let the engine run.

If the engine does not start immediately, switch

off the ignition and wait a few moments before

trying again.

►  Wait for it to return to idle.

►  Disconnect the jump leads

in reverse order

.

►  Refit the plastic cover to the (+) terminal, if

the vehicle has one.

►  Allow the engine to run for at least

30 minutes, with the vehicle stationary, so that

the battery reaches an adequate state of charge.

Driving immediately without having

reached a sufficient level of charge may

affect some of the vehicle's functions (e.g.

Stop & Start).

Charging the battery using a battery

charger

For optimum service life of the battery, it is

essential to maintain an adequate state of

charge.

In some circumstances, it may be necessary to

charge the battery:

–  When using the vehicle mainly for short

journeys.

–  If the vehicle is to be taken off the road for

several weeks.

Contact a CITROËN dealer or a qualified

workshop.

To charge the vehicle's battery yourself,

use only a charger compatible with

lead-acid batteries with a nominal voltage of

12 V.

Follow the instructions provided by the

manufacturer of the charger.

Never reverse polarities.

94

In the event of a breakdown

It is not necessary to disconnect the

battery.

►  Switch the ignition off.

►  Switch off all electrical consumers (audio

system, lighting, wipers, etc.).





►  Switch off charger

B

 before connecting

the cables to the battery, so as to avoid any

dangerous sparks.

►  Ensure that the charger cables are in good

condition.

►  Lift the plastic cover on the (+) terminal, if the

vehicle has one.

►  Connect the cables of charger

B

 as follows:

•  the positive (+) red cable to the (+) terminal

of battery

A

.

•  the negative (-) black cable to earth point

C



on the vehicle.

►  At the end of the charging operation, switch

off charger

B

 before disconnecting the cables

from battery

A

.

If this label is present, use only a 12 V

charger to avoid causing irreversible

damage to the electrical components.

24V

12V

+

Disconnecting/reconnecting the

battery

In order to maintain an adequate state of

charge for starting the engine, we recommend

disconnecting the battery if the vehicle is to be

unused for an extended period.

Before disconnecting the battery:

►  Close all openings (doors, tailgate, windows).

►  Switch off all electricity-consuming devices

(audio system, wipers, lamps, etc.).

►  Switch off the ignition and wait for 4 minutes.

After accessing the battery, it is only necessary

to disconnect the (+) terminal.

Quick-release terminal clamp

Disconnecting the (+) terminal





►  Depending on equipment, lift the plastic cover

on the

(+)

 terminal.

►  Raise lever

A

 fully to release clamp

B

.

►  Remove clamp

B

 by lifting it off.

Reconnecting the (+) terminal





►  Raise lever

A

 fully.

►  Refit open clamp

B

 on the

(+)

 terminal.

95

In the event of a breakdown

8

►  Push clamp

B

 fully down.

►  Lower lever

A

 to lock clamp

B

.

►  Depending on equipment, lower the plastic

cover on the

(+)

 terminal.

Do not force the lever when pressing on

it, as if the clamp is not positioned

correctly, locking will then not be possible.

Start the procedure again.

The Stop & Start system may not be

operational during the trip following the

first engine start.

In this case, the system will only be available

again after a continuous period with the

vehicle immobilised, the duration of which

depends on the exterior temperature and the

state of charge of the battery (up to about 8

hours).

Following reconnection

After reconnecting the battery, turn on the

ignition and wait 1 minute before starting the

engine, to enable the electronic systems to

initialise.

If minor problems nevertheless persist following

this operation, contact a CITROËN dealer or a

qualified workshop.

Referring to the relevant section, reinitialise

certain equipment:

–  Remote control key.

–  Electric windows.

–  Date and time.

–  Preset radio stations.

Towing the vehicle

General recommendations

Observe the legislation in force in the

country where you are driving.

Check that the towing vehicle is heavier than

the towed vehicle.

The driver must remain at the wheel of the

towed vehicle and must have a valid driving

licence.

When towing a vehicle with all four wheels on

the ground, always use an approved towbar;

ropes and straps are prohibited.

The towing vehicle must move off gently.

When the vehicle is towed with its engine

off, there is no longer braking and steering

assistance.

A professional recovery service must

be called in the following cases:

–  broken down on a motorway or main road;

–  not possible to put the gearbox into neutral,

unlock the steering, or release the parking

brake;

–  not possible to tow a vehicle with an

automatic gearbox, with the engine running;

–  towing with only two wheels on the ground;

–  four-wheel drive vehicle;

–  no approved towbar available.

Towing constraints

Type of vehicle

(engine/gearbox)

Front wheels on the

ground

Rear wheels on the

ground

Flatbed

4 wheels on the ground

with towbar

Internal combustion/Manual

















96

In the event of a breakdown

Towing constraints

Type of vehicle

(engine/gearbox)

Front wheels on the

ground

Rear wheels on the

ground

Flatbed

4 wheels on the ground

with towbar

Internal combustion/Automatic

















Accessing the tools





The towing eye is stored under the boot floor.

For more information on accessing the

Tool kit

,

refer to the corresponding section.

Towing your vehicle

To access the front screw thread:





►  Unclip the cover by pressing on its left-hand

section.

To be towed:

►  Screw the towing eye in fully.

►  Install the towbar.

►  Put the gearbox into neutral.

Failure to observe this instruction could

result in damage to certain components

(e.g. braking, transmission) and to the

absence of braking assistance the next time

the engine is started.

Automatic gearbox

Never tow the vehicle with the driving

wheels on the ground and the engine off.

►  Unlock the steering and release the parking

brake.

►  Switch on the hazard warning lamps on both

vehicles in accordance with the legislation in

force in the country in which you are driving.

►  Move off gently, drive slowly and only for a

short distance.

Towing another vehicle

This towing is strictly prohibited (risk of

damaging your vehicle).

97

Technical data

9

Engine technical data and

towed loads

Engines

The engine characteristics are given in the

vehicle's registration document, as well as in

sales brochures.

Only the values available at the time of

publication are presented in the tables.

Contact a CITROËN dealer or a qualified

workshop to obtain missing values.

The maximum power corresponds to the

value type-approved on a test bed, under

conditions defined by European legislation

(Directive 1999/99/EC).

For more information, contact a CITROËN dealer

or a qualified workshop.

Weights and towed loads

The weights and towed loads relating to

the vehicle are indicated on the registration

document, as well as in sales brochures.

These values are also indicated on the

manufacturer's plate or label.

For more information, contact a CITROËN dealer

or a qualified workshop.

The GTW (Gross Train Weight) and towed load

values indicated are valid up to a maximum

altitude of 1,000 metres. The towed load value

must be reduced by 10% for each additional

1,000 metres of altitude.

The maximum authorised nose weight

corresponds to the weight permitted on the

towball.

When exterior temperatures are high, the

vehicle performance may be limited in

order to protect the engine. When the exterior

temperature is higher than 37°C, reduce the

towed weight.

Towing even with a lightly loaded vehicle

can adversely affect its road holding.

Braking distances are increased when towing

a trailer.

When using a vehicle to tow, never exceed

a speed of 62 mph (100 km/h) (observe the

local legislation in force).
