178

In the event of a breakdown

Reconnecting the (+) terminal





►  Raise lever

A

 fully.

►  Refit open clamp

B

 on the

(+)

 terminal.

►  Push clamp

B

 fully down.

►  Lower lever

A

 to lock clamp

B

.

►  Depending on equipment, lower the plastic

cover on the

(+)

 terminal.

Do not force the lever when pressing on

it, as if the clamp is not positioned

correctly, locking will then not be possible.

Start the procedure again.

Following reconnection

After reconnecting the battery, turn on the

ignition and wait 1 minute before starting the

engine, to enable the electronic systems to

initialise.

If minor problems nevertheless persist following

this operation, contact a CITROËN dealer or a

qualified workshop.

Referring to the relevant section, reinitialise

certain equipment:

–  Remote control key or electronic key

(depending on version).

– Sunroof.

–  Electric windows.

–  Date and time.

–  Preset radio stations.

The Stop & Start system may not be

operational during the trip following the

first engine start.

In this case, the system will only be available

again after a continuous period with the

vehicle immobilised, the duration of which

depends on the exterior temperature and the

state of charge of the battery (up to about 8

hours).

Towing the vehicle

General recommendations

Observe the legislation in force in the

country where you are driving.

Ensure that the weight of the towing vehicle is

higher than that of the towed vehicle.

The driver must remain at the wheel of the

towed vehicle and must have a valid driving

licence.

When towing a vehicle with all four wheels on

the ground, always use an approved towing

arm; rope and straps are prohibited.

The towing vehicle must move off gently.

When the vehicle is towed with its engine

off, there is no longer braking and steering

assistance.

A professional towing service must be

called if:

–  Broken down on a motorway or main road.

–  Not possible to put the gearbox into neutral,

unlock the steering, or release the parking

brake.

–  Not possible to tow a vehicle with an

automatic gearbox, with the engine running.

–  Towing with only two wheels on the ground.

–  Four-wheel drive vehicle.

–  No approved towbar available.

Before towing the vehicle, it is essential

to put the vehicle in free-wheeling mode.

For more information on

Free-wheeling

, refer

to the corresponding section.

Electric motor

An electric vehicle cannot under any

circumstances be used to tow another

vehicle.

However, it may be used, for example, to exit

a rut.

179

In the event of a breakdown

8

Towing constraints

Type of vehicle

(engine/gearbox)

Front wheels on the

ground

Rear wheels on the

ground

Flatbed

4 wheels on the ground

with towbar

Internal combustion/Manual

















Internal combustion/Automatic

















Electric

















In case of battery or electric parking brake failure, it is essential to call a professional using flatbed recovery vehicles (excluding manual gearbox).



Accessing the tools

The towing eye is stored with the tool kit in the

boot.

For more information on accessing the

Tool kit

,

refer to the corresponding section.

Towing your vehicle

To access the front screw thread:





►  Unclip the cover by pressing on its left-hand

section.

►  Release the cover downwards.

To be towed:

►  Screw the towing eye in fully.

►  Install the towbar.

►  Put the gearbox into neutral.

Failure to observe this instruction could

result in damage to certain components

(braking, transmission, etc.) and to the

absence of braking assistance the next time

the engine is started.

Automatic gearbox

Never tow the vehicle with the driving

wheels on the ground and the engine off.

►  Unlock the steering and release the parking

brake.

180

In the event of a breakdown

►  Switch on the hazard warning lamps on both

vehicles.

►  Move off gently, drive slowly and only for a

short distance.

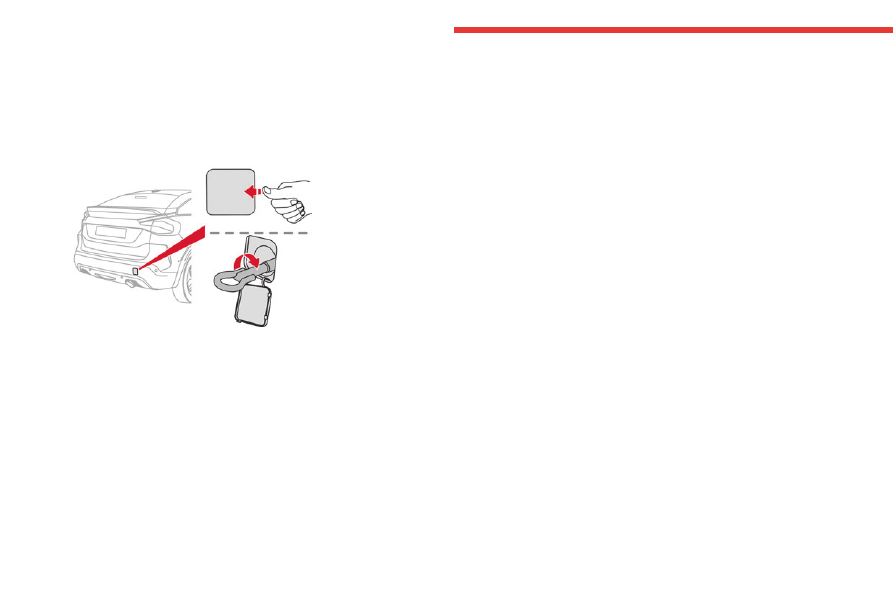

Towing another vehicle

To access the rear screw thread:





►  Unclip the cover by pressing at its right-hand

section.

►  Pull the cover downwards.

To tow:

►  Screw the towing eye in fully.

►  Install the towbar.

►  Switch on the hazard warning lamps on both

vehicles.

►  Move off gently, drive slowly and only for a

short distance.

181

Technical data

9

Engine technical data and

towed loads

Engines

The engine characteristics are given in the

vehicle's registration document, as well as in

sales brochures.

Only the values available at the time of

publication are presented in the tables.

Contact a CITROËN dealer or a qualified

workshop to obtain missing values.

The maximum power corresponds to the

value type-approved on a test bed, under

conditions defined by European legislation

(Directive 1999/99/EC).

For more information, contact a CITROËN dealer

or a qualified workshop.

Weights and towed loads

The weights and towed loads relating to

the vehicle are indicated on the registration

document, as well as in sales brochures.

These values are also indicated on the

manufacturer's plate or label.

For more information, contact a CITROËN dealer

or a qualified workshop.

The GTW (Gross Train Weight) and towed load

values indicated are valid up to a maximum

altitude of 1,000 metres. The towed load value

must be reduced by 10% for each additional

1,000 metres of altitude.

The maximum authorised nose weight

corresponds to the weight permitted on the

towball.

When exterior temperatures are high, the

vehicle performance may be limited in

order to protect the engine. When the exterior

temperature is higher than 37°C, reduce the

towed weight.

Towing even with a lightly loaded vehicle

can adversely affect its road holding.

Braking distances are increased when towing

a trailer.

When using a vehicle to tow, never exceed

a speed of 62 mph (100 km/h) (observe the

local legislation in force).

182

Technical data

Engines and towed loads - Petrol

Engines

PureTech 100 S&S

PureTech 130 S&S

PureTech 130 S&S

PureTech 155 S&S

Gearboxes

BVM6

(Manual 6-speed)

BVM6

(Manual 6-speed)

EAT8

(Automatic

8-speed)

EAT8

(Automatic

8-speed)

Codes

EB2ADTD_B MB6

STTd

EB2ADTS MB6

STTd

EB2ADTS ATN8

STTd

EB2ADTX ATN8

STTd

Model codes

BAHNEA

BAHNSA

BAHNSB

BAHNNB

Cubic capacity (cc)

1,199

1,199

1,199

1,199

Max. power: EC standard (kW)

75

96

96

114

Fuel

Unleaded

Unleaded

Unleaded

Unleaded

Braked trailer (within the GTW limit) (kg)

on a 10% or 12% gradient

1,000

1,200

1,200

1,200

Unbraked trailer (kg)

640

660

680

670

Maximum authorised nose weight (kg)

61

61

61

61

183

Technical data

9

Engines and towed loads - Diesel

Engines

BlueHDi 110

BlueHDi 130

Gearboxes

BVM6

(Manual 6-speed)

EAT8

(Automatic 8-speed)

Codes

DV5RCe MB6 STTd

DV5RC ATN8 STTd

Model codes

BBYHSA

BBYHZB

Cubic capacity (cc)

1,499

1,499

Max. power: EC standard (kW)

81

96

Fuel

Diesel

Diesel

Braked trailer (within the GTW limit) (kg)

on a 10% or 12% gradient

1,200

1,200

Unbraked trailer (kg)

660

690

Maximum authorised nose weight (kg)

61

61

184

Technical data

Electric motor

Model codes:

BCZKXC

Braked trailer (within the GTW limit) (kg)

on a 10% or 12% gradient

0

Unbraked trailer (kg)

0

Maximum authorised nose weight (kg)

0

Electric motor

Technology

Synchronous with permanent magnets

Max. power : EC standard (kW)/(hp)

100/136

Traction battery

Technology

Lithium-Ion

Installed capacity (kWh)

50

Domestic charging

Mode 2

Alternating current (AC) voltage

Rating (A)

230 (single-phase)

8 or 16

Accelerated charging

Mode 3

Alternating current (AC) voltage

Rating (A)

230 (single-phase or three-phase)

16 or 32

Superfast charging

Mode 4

Direct current (DC) voltage

400

185

Technical data

9

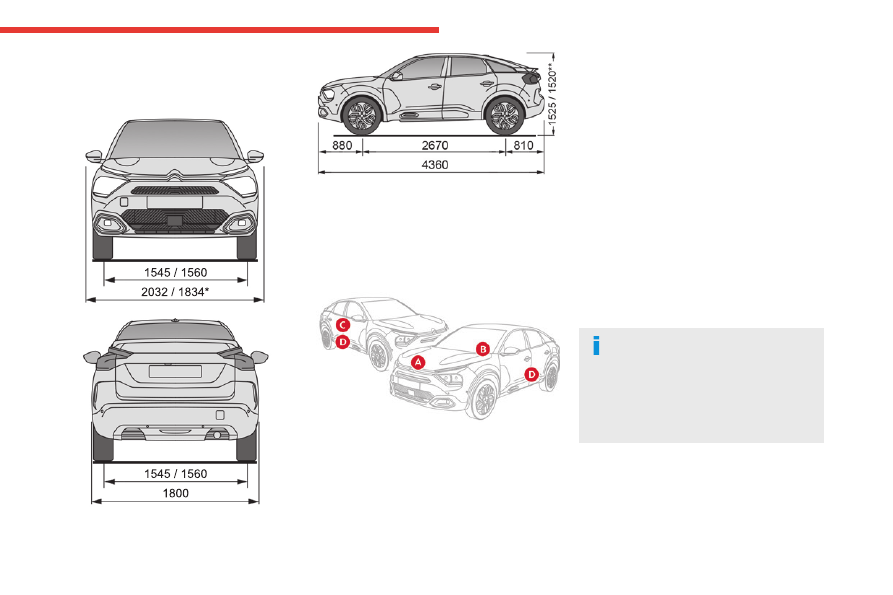

Dimensions (mm)

These dimensions have been measured on an

unladen vehicle.













* Mirrors folded

** Electric versions

Identification

markings

Various visible markings for vehicle identification

and vehicle search.





A. Vehicle Identification Number (VIN), under

the bonnet.

Stamped on the chassis.

B. Vehicle Identification Number (VIN), on the

dashboard.

Printed on an adhesive label visible through the

windscreen.

C. Manufacturer's label.

Affixed to the right-hand door.

Bears the following information:

–  Manufacturer’s name.

–  European whole vehicle type approval

number.

–  Vehicle Identification number (VIN).

–  Gross vehicle weight (GVW).

–  Gross train weight (GTW).

–  Maximum weight on the front axle.

–  Maximum weight on the rear axle.

D. Tyres/paint code label.

Affixed to the driver's door.

Bears the following information about the tyres:

–  Tyre pressures, unladen and laden.

–  Tyre specification, made up of the dimensions

and type as well as the load and speed indices.

–  Spare tyre inflation pressure.

Also indicates the paint colour code.

The vehicle may be originally equipped

with tyres with higher load and speed

indices than those indicated on the label,

without affecting tyre pressure (on cold tyres).

In the event of a change in the type of tyres,

contact a CITROËN dealer for the tyre fits

approved for the vehicle.

186

Touch screen BLUETOOTH audio system

Touch screen

BLUETOOTH audio

system

Multimedia audio system -

Bluetooth

®

 telephone

The functions and settings described

vary according to the vehicle version and

configuration.

For safety reasons and because they

require sustained attention by the driver,

the following operations must be carried out

with the

vehicle stationary

 and the ignition

on:

–  Pairing the smartphone with the system in

Bluetooth mode.

–  Using the smartphone.

–  Changing the system settings and

configuration.

The system is protected in such a way

that it will only operate in the vehicle.

The

Energy Economy Mode

 message is

displayed when the system is about to enter

the corresponding mode.

First steps

With the engine running, a press mutes

the sound.

With the ignition off, a press turns the system on.

Increase or decrease the volume using

the thumbwheel on the left-hand side.

To access the menus, press this button

on the touch screen.

Press the back arrow to go back a level.

To clean the screen, use a soft,

non-abrasive cloth (e.g. spectacles cloth)

with no additional product.

Do not use sharp objects on the screen.

Do not touch the screen with wet hands.

Certain information is displayed permanently in

the upper bar of the touch screen:

–  Air conditioning information (depending on

version).

–  Bluetooth connection.

–  Indication of location data sharing.

Selection of the audio source:

–  FM/AM/DAB radio stations (depending on

equipment).

–  Telephone connected via Bluetooth and

Bluetooth multimedia broadcast (streaming).

–  USB memory stick.

–  Media player connected via the auxiliary

socket (depending on equipment).

In very hot conditions, the volume may

be limited to protect the system. It may

go into standby (screen and sound off) for at

least 5 minutes.

The return to normal takes place when the

temperature in the passenger compartment

has dropped.

Steering mounted controls

Steering mounted controls -

Type 1





Radio:

Select the previous/next preset radio

station.

Select the previous/next item in a menu or a list.

Media:

Select the previous/next track.

Select the previous/next item in a menu or a list.

Radio:

Short press: display the list of radio

stations.

Long press: update the list.

Media:

Short press: display the list of folders.

Long press: display the available sorting options.

Short press: change audio source (radio;

USB; AUX if equipment connected; CD;

streaming).

187

Touch screen BLUETOOTH audio system

10

Long press: display the call log.

Short press during an incoming call: accept the

call.

Short press during a call in progress: end the

call.

Confirm a selection.



Increase volume.

Decrease volume.

Mute/restore sound by simultaneously

pressing the increase and decrease

volume buttons.

Steering mounted controls -

Type 2





Voice commands

:

This control is located on the steering

wheel or at the end of the lighting control stalk

(depending on equipment).

Short press, smartphone voice commands via

the system.

Increase volume.

Decrease volume.

Mute by pressing the volume increase

and decrease buttons simultaneously

(depending on equipment).

Restore the sound by pressing one of the two

volume buttons.

Change the multimedia source.

Short press: display the calls log.

Short press during an incoming call:

accept the call.

Long press during an incoming call: reject the

call.

Short press during a call in progress: end the

call.

Radio

 (rotate): previous/next preset

station.

Media

 (rotate): previous/next track, move in a

list.

Short press

: confirm a selection; if nothing

selected, access to presets.

Radio

: display the list of stations.

Media

: display the list of tracks.

Menus

Radio





Select a radio station.

Media





Select an audio source.

188

Touch screen BLUETOOTH audio system

Telephone





Connect a mobile phone via Bluetooth

®

.

Driving





Activate, deactivate or configure certain

vehicle functions (depending on

equipment/version).

Settings





Adjust the sound settings (balance,

ambience, etc.), the display (language,

units, date, time, etc.) or configure the system

(privacy).

Air conditioning/Heating





Depending on equipment/Depending on version.

Manage various temperature and air flow

settings.

Radio

Choose the band

Press the "

Radio

" menu.

Press the "

SOURCE

" button.

Choose the band:

FM

,

AM

 or

DAB

, depending

on equipment.

Selecting a station

Press one of the buttons for an automatic

search for radio stations.

Or

Press on the displayed frequency.

Enter the FM and AM waveband values

using the virtual keypad.

Or

Press this button to display the list of

stations received and available on the

waveband.

Radio reception may be affected by the

use of electrical equipment not approved

by the Brand, such as a USB charger

connected to the 12 V socket.

The exterior environment (hills, buildings,

tunnels, basement car parks, etc.) may block

reception, including in RDS mode. This

behaviour is normal in propagation of radio

waves and does not indicate any failure of the

audio system.

189

Touch screen BLUETOOTH audio system

10

Presetting a station

Select a radio station or frequency.

Press the "

Presets

" button.

Make a long press on an empty line to preset the

station. An audible signal confirms the presetting

of the station.

It is possible to preset up to 16 stations.

To replace a preset station by the

currently playing station, make a long

press on the preset station.

Activating/Deactivating RDS

RDS, if activated, allows you to continue

listening to the same station by automatically

retuning to alternative frequencies.

In certain conditions, tracking may not be

assured throughout the entire country as

radio stations do not cover 100% of the

territory. This explains the loss of reception of

the station during a journey.

Press the "

Radio Settings

" button.

Activate/Deactivate "

RDS options

".

Playing TA messages

The TA (Traffic Announcement) function gives

priority to TA alert messages.

To operate, this function needs good reception

of a radio station that transmits this type of

message. While traffic information is being

broadcast, the current media is automatically

interrupted so that the TA message can be

heard. Normal play of the media previously

playing is resumed at the end of the message.

Press the "

Radio Settings

" button.

Activate/Deactivate "

Traffic

announcement (TA)

".

Audio settings

Press the "

Radio Settings

" button.

In the list, select "

Audio Settings

".

Activate/deactivate and configure the available

options (sound balance, ambiances, etc.).

The sound balance/distribution is audio

processing that allows the quality of the

sound to be adapted according to where the

passengers are sitting in the vehicle.

DAB (Digital Audio

Broadcasting) radio

Terrestrial Digital Radio

Choosing the DAB radio

Terrestrial digital radio (DAB) provides higher

quality reception.

The different "multiplexes/ensembles" offer a

choice of radio stations arranged in alphabetical

order.

Press the "

Radio

" menu.

Press the "

SOURCE

" button.

In the list of available sources, choose "

DAB

Radio

".

Activating FM-DAB Tracking

"DAB" does not cover 100% of the territory.

When the digital radio signal is poor, the

"FM-DAB tracking" allows you to continue

listening to the same station, by automatically

switching to the corresponding "FM" analogue

station (if there is one).

Press the "

Radio Settings

" button.

Activate "

DAB-FM

".

If "FM-DAB tracking" is activated, there

may be a difference of a few seconds

190

Touch screen BLUETOOTH audio system

when the system switches to "FM" analogue

radio with sometimes a variation in volume.

Once the digital signal quality is restored, the

system automatically changes back to "DAB".

If the "DAB" station being listened to is

not available on "FM", or if the "FM-DAB

tracking" is not activated, the sound will cut

out while the digital signal is too weak.

Media

Selecting the source

Press the "

Media

" menu.

Press the "

SOURCE

" button.

Select the source (USB, Bluetooth or AUX,

depending on equipment).

USB port

Insert the USB memory stick into the USB

port or connect the USB device to the

USB port using a suitable cable (not supplied).

To protect the system, do not use a USB

hub.

The system builds playlists (in temporary

memory); this operation can take from a

few seconds to several minutes at the first

connection.

Playlists are updated whenever a USB memory

stick is connected or the contents of a particular

USB memory stick are changed. The lists

are memorised: if they are not modified, the

subsequent loading time will be shorter.

Auxiliary (AUX) jack socket

Depending on equipment

Connect a portable device (MP3 player,

etc.) to the auxiliary jack socket using an

audio cable (not supplied).

This source is only available if "

Aux

Amplification

" has been selected in the audio

settings.

First adjust the volume on the portable device

(to a high level). Then adjust the volume of the

audio system.

Controls are managed via the portable device.

Bluetooth

®

streaming

Streaming allows you to listen to music from your

smartphone.

The Bluetooth profile must be activated, first

adjust the volume on the portable device (to a

high level).

Then adjust the volume of the system.

If play does not start automatically, it may be

necessary to start the audio playback from the

smartphone.

Control is from the portable device or by using

the system's touch buttons.

Once connected in Streaming mode, the

smartphone is considered to be a media

source.

Connecting Apple

®

 players

Connect the Apple

®

 player to the USB socket

using a suitable cable (not supplied).

Play starts automatically.

Control is via the audio system.

The classifications available are those of

the portable device connected (artists/

albums/genres/playlists/audio books/

podcasts). It is also possible to use a

classification structured in the form of a

library.

The default classification used is by artist. To

modify the classification used, return to the

first level of the menu then select the desired

classification (playlists for example) and

confirm to go down through the menu to the

desired track.

The version of software in the audio system may

not be compatible with the generation of the

Apple

®

 player.

Media settings

Press the "

Media Settings

" button.

Activate/deactivate track playback options and

access the audio settings.

191

Touch screen BLUETOOTH audio system

10

The audio settings are the same as the

audio settings for the radio. For more

information on the "

Audio settings

", refer to

the corresponding section.

Information and advice

The system supports USB mass storage

devices, BlackBerry

®

 devices or Apple

®

 players

via the USB ports. The adapter cable is not

supplied.

Devices are managed using the audio system

controls.

Other devices, not recognised on connection,

must be connected to the auxiliary socket using

a jack cable (not supplied) or via Bluetooth

streaming, if compatible.

To protect the system, do not use a USB

hub.

The audio system will only play audio files with

".wav", ".wma", ".aac", ".mp3", ".mp4", ".m4a",

".flac", ".ogg" file extensions and with a bit rate

of between 32 Kbps and 320 Kbps (300 Kbps

maximum for ".flac" files).

It also supports VBR (Variable Bit Rate) mode.

All ".wma" files must be standard WMA 9 files.

The supported sampling rates are 11, 22, 44 and

48 KHz.

To avoid reading and display problems, we

recommend choosing file names less than 20

characters long that do not contain any special

characters (e.g. “ ? . ; ù).

Use only USB memory sticks in FAT or FAT32

format (File Allocation Table).

We recommend using the original USB

cable for the portable device.

Telephone

Pairing a Bluetooth

®



telephone

Up to 10 phones can be paired to the system.

Activate the Bluetooth function on the telephone

beforehand and ensure that it is "visible to all"

(telephone configuration).

To complete the pairing, whichever procedure is

used (from the telephone or from the system),

ensure that the code is the same in the system

and in the telephone.

The services available depend on the

network, the SIM card and the

compatibility of the Bluetooth devices used.

Check for services availability in the phone's

manual and with the operator.

The profiles compatible with the system

are: HFP, OPP, PBAP, DID, A2DP,

AVRCP, SPP and PAN.

Go to the Brand's website for more information

(compatibility, additional help, etc.).

Procedure from the telephone

Select the name of the system in the list

of devices detected.

In the system, accept the connection request

from the telephone.

Procedure from the system

Press the

Home

 button to access the

menus.

Select the "

Telephone

" menu.

Press "

Manage connections

".

The list of telephones detected is displayed.

Select the name of the telephone in the list.

The system offers to connect the telephone with

two profiles:

–  as "

Telephone

": hands-free kit, telephone

only.

–  as "

Streaming

": wireless playing of audio files

on the telephone.

The system cannot be connected to

multiple telephones with the same profile.

No more than 2 phones can be connected

simultaneously (

1 per profile

).

The Bluetooth profiles chosen on the

phone have priority over the profiles

selected on the system.

If the pairing procedure fails, it is recommended

that you deactivate and then reactivate the

Bluetooth function on the telephone.

192

Touch screen BLUETOOTH audio system

Depending on the type of telephone, the

option is given to accept or not accept

the transfer of contacts and the call log.

Automatic reconnection

On return to the vehicle, if the last telephone

connected is present again, it is automatically

recognised and within about 30 seconds

of switching on the ignition, the pairing is

established automatically (Bluetooth activated).

Managing paired telephones

To connect or disconnect a paired telephone:

Select the "

Telephone

" menu.

Press "

Bluetooth

" to display the list of

paired devices.

Press on the name of the telephone chosen in

the list to disconnect it.

Press again to connect it.

Deleting a telephone

Press the "

Bluetooth

" button.

Press "

Manage connections

".

In the displayed window select "

Delete

".

The list of paired devices is displayed.

Press on the name of the telephone to delete.

Receiving a call

An incoming call is announced by a ring and a

superimposed display in the screen.

To accept the call:

Make a short press on the steering

mounted

TEL

 button.

To reject the call:

Make a long press

on the steering mounted

TEL

 button.

Or

Press "

End call

" on the touch screen.

Making a call

Using the telephone is not recommended

while driving.

Parking the vehicle.

Make the call using the steering mounted

controls.

Calling a new number

Press "

Telephone

".

Press the "

Keypad

" button.

Enter the phone number using the digital

keypad.

Press "

OK

" to start the call.

Calling a contact

Press the "

Telephone

" menu.

Or make a long press

on the steering mounted

TEL

 button.

Press "

Contacts

".

Select the desired contact from the list offered.

Calling a recently used number

Press "

Telephone

".

Press "

Calls

".

Or

Make a long press

on the steering mounted

TEL

 button.

Select the desired contact from the list offered.

A call in progress remains active in the

vehicle for 10 minutes after switching off

the ignition. After that, the system switches off

and the call automatically redirects to the

telephone.

It is always possible to make a call

directly from the telephone; as a safety

measure, first park the vehicle.

193

Touch screen BLUETOOTH audio system

10

Settings

Adjusting the brightness

Press "

Settings

".

Select "

Display

".

Press the buttons to adjust the

brightness of the screen and/or of

the instrument panel (depending on version).

Modifying system settings

Press "

Settings

".

Press "

System

".

Press "

Privacy

" to access the privacy

settings.

Select "

Units

" to change the units of

distance, fuel consumption and

temperature.

Press "

Factory settings

" to return to the

initial settings.

Press "

System Info

" to check the system

version.

Privacy settings

Three data privacy options are available:

"

No data sharing (data, vehicle

position)

"

"

Only data sharing

"

“

Data and vehicle position sharing

"

When data and vehicle position sharing

are enabled, this symbol is displayed in

the upper bar of the touch screen.

Selecting the language

Press "

Settings

".

Select "

Languages

" to change the

language.

Setting the date and time

Press "

Settings

".

Press "

Date/Time

".

Setting the date:

Press the arrows to set the day, month

and year.

First set the day, then the month.

Setting the time:

Press these buttons to set hours and

minutes.

Select or deselect the 24h format.

In 12h format, choose "

AM

" or "

PM

".

The system does not automatically

manage the change between winter and

summer time.

Date format:

Select the display format for the date.

Frequently asked

questions

The following information groups together the

answers to the most frequently asked questions

concerning the system.

Radio

The reception quality of the tuned radio

station gradually deteriorates or the station

presets are not working (no sound, 87.5 MHz

is displayed, etc.).

The vehicle is too far from the selected station’s

transmitter, or no transmitter is present in the

geographical area.

►  Activate the "RDS" function in the upper bar

to enable the system to check whether there is

a more powerful transmitter in the geographical

area.

The environment (hills, buildings, tunnels,

basement car parks, etc.) is blocking reception,

including in RDS mode.

This is a perfectly normal phenomenon, and is

not indicative of an audio system malfunction.

The aerial is missing or has been damaged

(for example while entering a car wash or

underground car park).

►  Have the aerial checked by a dealer.
