Changing to free-wheeling

In certain situations, it is necessary to put the

vehicle into free-wheeling mode (e.g. towing, on

a rolling road, automatic car wash (Wash mode),

rail or sea transport).

The procedure varies according to the type of

gearbox and parking brake.

Never leave the vehicle unattended with

the vehicle into free-wheeling mode.

Keyless Entry and Start

You must not depress the brake pedal

while switching the ignition on again, then

switching it off. If you do, the engine will start,

requiring you to restart the procedure.



/



Release procedure

►  With the vehicle stationary and the engine

running, depress the brake pedal and select

mode

N

.

Within 5 seconds:

►  Depress and hold the brake pedal, then

observe this order: switch off the engine and

move the push selector forwards or backwards.

►  Release the brake pedal, then switch on the

ignition.

►  Place your foot on the brake and press the

electric parking brake control to release it.

►  Release the brake pedal, then switch off the

ignition.

A message is displayed on the

instrument panel to confirm the unlocking

of the wheels for 15 minutes.

After 15 minutes or reverting to normal

operation

►  While depressing the brake pedal, restart the

engine and select mode

P

.

Advice on care and

maintenance

General recommendations

Observe the following recommendations to avoid

damaging the vehicle.

Exterior

Never use a high-pressure jet wash in

the engine compartment - risk of

damaging the electrical components!

Do not wash the vehicle in bright sunshine or

extremely cold conditions.

When washing the vehicle in an

automatic roller-brush car wash, be sure

to lock the doors and, depending on version,

move the electronic key away.

When using a pressure washer, keep the jet

nozzle at a minimum distance of 30 cm from

the vehicle (particularly when cleaning areas

containing chipped paint, sensors or seals).

Promptly clean up any stains containing

chemicals liable to damage the vehicle's

paintwork (including tree resin, bird

droppings, insect secretions, pollen and tar).

Depending on the environment, clean the

vehicle frequently to remove salty deposits

(in coastal areas), soot (in industrial areas)

and mud/salts (in wet or cold areas). These

substances can be highly corrosive.

Contact a CITROËN dealer or a qualified

workshop for advice on removing stubborn

stains requiring special products (such as tar

or insect removers).

Preferably, have paint touch-ups performed

by a CITROËN dealer or a qualified

workshop.

Interior

When washing the vehicle, never use a

water hose or high-pressure jet to clean

the interior.

Liquids carried in cups or other open

containers can spill, presenting a risk of

damage to the instruments and controls and

the controls located on the centre console. Be

vigilant!

163

Practical information

7

To clean instrument panels, touch screens

or other displays, wipe gently with a soft,

dry cloth. Do not use products (e.g. alcohol,

disinfectant) or soapy water directly on these

surfaces - risk of damage!

Bodywork

High-gloss paint

Do not use abrasive products, solvents,

petrol or oil to clean the bodywork.

Never use an abrasive sponge to clean

stubborn stains - risk of scratching the

paintwork!

Do not apply polish in strong sunshine, or to

plastic or rubber parts.

Use a soft cloth and soapy water or a pH

neutral product.

Gently wipe the bodywork with a clean

microfibre cloth.

Apply polish with the vehicle clean and dry.

Comply with the instructions for use stated on

the product.

Decals

(Depending on version)

Do not use a high-pressure washer to

clean the vehicle - risk of damaging or

detaching the decals!

Use a high-flow hose (temperature

between 25°C and 40°C).

Place the jet of water perpendicular to the

surface to be cleaned.

Rinse the vehicle with demineralised water.

Textile

The dashboard, door panels and seats may

contain parts made of textile material.

Maintenance

Do not use aggressive cleaning products

(e.g. alcohol, solvent or ammonia).

Do not use steam-cleaning systems - risk of

affecting the adhesion of the fabrics!

Remove dust from the textile parts

regularly with a dry cloth, soft brush or

vacuum cleaner.

Rub down the textile parts once per year with

a clean, damp cloth. After leaving overnight to

dry, brush with a soft-bristled brush.

Stain removal

Do not rub the stain or it may spread or

you may cause the substance to

penetrate the surface.

Act quickly by reducing the stain from its

edges inwards.

Remove as much substance or solids as

possible using a spoon or spatula, and

remove as much liquid as possible using

absorbent paper.

Product/Procedure to use depending

on the type of stain:

–  Grease, oil and ink: clean with a pH-neutral

detergent.

–  Vomit: clean with sparkling mineral water.

–  Blood: spread flour over the stain and allow

to dry; remove with a slightly damp cloth.

–  Mud: allow to dry and then remove with a

slightly damp cloth.

–  Cake, chocolate, ice cream: clean with

lukewarm water.

–  Sugary and/or alcoholic drinks: clean with

lukewarm water, or lemon juice if the stain is

persistent.

–  Hair gel, coffee, tomato sauce, vinegar:

clean with lukewarm water and lemon juice.

For solid substances, then use a soft brush or

vacuum cleaner.

For liquid substances, then use a damp

microfibre cloth and then dry with another

cloth.

Leather

Leather is a natural product. Appropriate regular

care is essential for its durability.

164

Practical information

It must be protected and nourished using a

specific leather product, to keep it supple and

preserve its original appearance.

Do not clean leather using unsuitable

cleaning agents such as solvents,

detergents, petrol or pure alcohol.

When cleaning items partly made from

leather, take care not to damage the other

materials with the specific leather product.

Before cleaning greasy stains or liquids,

quickly mop up any surplus.

Before cleaning, wipe off any residues liable

to scuff the leather, using a cloth that has

been dampened with demineralised water

and thoroughly wrung out.

Clean leather using a soft cloth moistened

with soapy water or a pH-neutral product.

Dry with a soft, dry cloth.

165

In the event of a breakdown

8

Warning triangle

This reflective and dismantlable device is to be

installed on the side of the road when a vehicle

is broken down or damaged.

Before getting out of the vehicle

Turn on the hazard warning lamps, then

put on the safety vest to assemble and install

the triangle.

Storage





Use the straps on the boot side trim to stow the

folded triangle or its storage box.

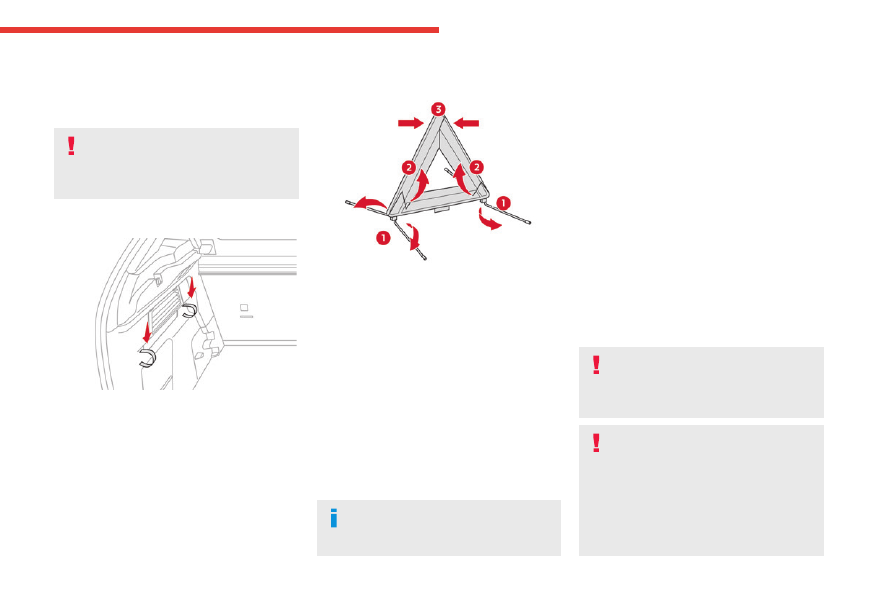

Assembling and placing the

triangle





For versions supplied with a triangle as original

equipment, refer to the illustration above.

For other versions, refer to the assembly

instructions provided with the triangle.

►  Put the triangle in place behind the vehicle,

as required by local legislation.

Running out of fuel

(Diesel)

With Diesel engines, the fuel system must be

primed if you run out of fuel.

Before starting to prime the system

, it is

essential to put at least 5 litres of Diesel into the

fuel tank.

For more information on

Refuelling

 and

on

Misfuel prevention (Diesel)

, refer to

the corresponding section.

1.5 BlueHDi engines

►  Switch on the ignition (without starting the

engine).

►  Wait around 1 minute and switch off the

ignition.

►  Operate the starter motor to start the engine.

If the engine does not start at the first attempt,

do not keep trying, but restart the procedure.

Tool kit

Set of tools supplied with the vehicle.

Its content depends on your vehicle's equipment:

–  Temporary puncture repair kit.

–  Spare wheel.

Access to the tools

Depending on version, the tool kit is stored in a

bag or in a storage box in the boot.

These tools are specific to the vehicle

and may vary according to the level of

equipment.

Do not use them for any other purpose.

The jack must only be used to change a

wheel with a damaged or punctured tyre.

Do not use any jack other than the one

supplied with the vehicle.

If the vehicle does not have its original jack,

contact a CITROËN dealer or a qualified

workshop to obtain the one that was intended

by the manufacturer.

166

In the event of a breakdown

The jack meets European standards, as

defined in the Machinery Directive 2006/42/

CE.

The jack does not require any maintenance.

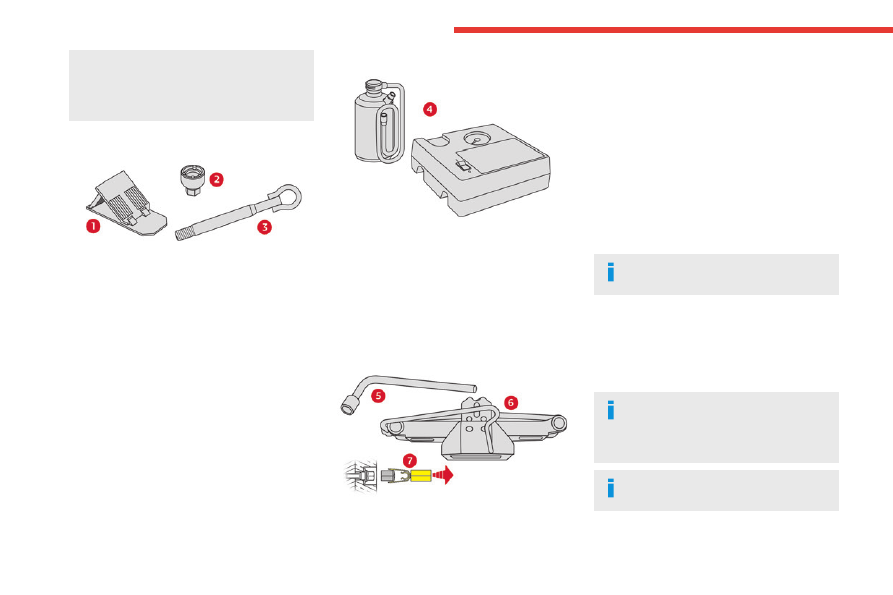

List of tools





1.

Chock to immobilise the vehicle (depending

on equipment)

2.

Socket for the wheel security bolts (located in

the glove box) (depending on equipment)

To adapt the wheelbrace to the special

‘security’ bolts.

3.

Removable towing eye

For more information on

Towing the vehicle



and using the removable towing eye, refer to the

corresponding section.

With temporary puncture repair kit





4.

12 V compressor with cartridge of sealant

and speed limit sticker

For temporary repair of a tyre and to adjust

the tyre pressure.

For more information about the

Temporary

puncture repair kit

, refer to the corresponding

section.

With spare wheel





5.

Wheelbrace

For removing the wheel bolts.

6.

Jack with integrated handle

To raise the vehicle.

7.

Wheel bolt cap removal tool (depending on

equipment)

For removing the wheel bolt head finishers on

alloy wheels.

For more information on the

Spare wheel

, refer

to the corresponding section.

Temporary puncture

repair kit

Scan the QR Code on page 3 to view

explanatory videos.

Made up of a compressor and a sealant

cartridge, it allows you to carry out a

temporary

repair

 of the tyre so that you can drive to the

nearest garage.

It is designed to repair most punctures located

on the tyre tread.

The vehicle's electric system allows the

connection of the compressor to the 12 V

power supply for long enough to repair a tyre

after a puncture.

For more information on the

Tool kit

,

refer to the corresponding section.

167

In the event of a breakdown

8

Tyre inflation pressures are indicated on

this label.

For more information on

Identification

markings

, particularly this label, refer to the

corresponding section.

Should the pressure of one or more tyres

be adjusted, it is necessary to reinitialise

the under-inflation detection system.

For more information on

Tyre under-inflation

detection

, refer to the corresponding section.

Repair procedure

Do not remove any foreign body

(e.g. nail, screw) which has penetrated

the tyre.

►  Park the vehicle without obstructing traffic

and apply the parking brake.

►  Follow the safety instructions (hazard

warning lamps, warning triangle, high visibility

jacket, etc.) according to the legislation in force

in the country in which you are driving.

►  Switch the ignition off.

►  Uncoil the pipe stowed under the compressor.





►  Connect the pipe from the compressor to the

bottle of sealant.





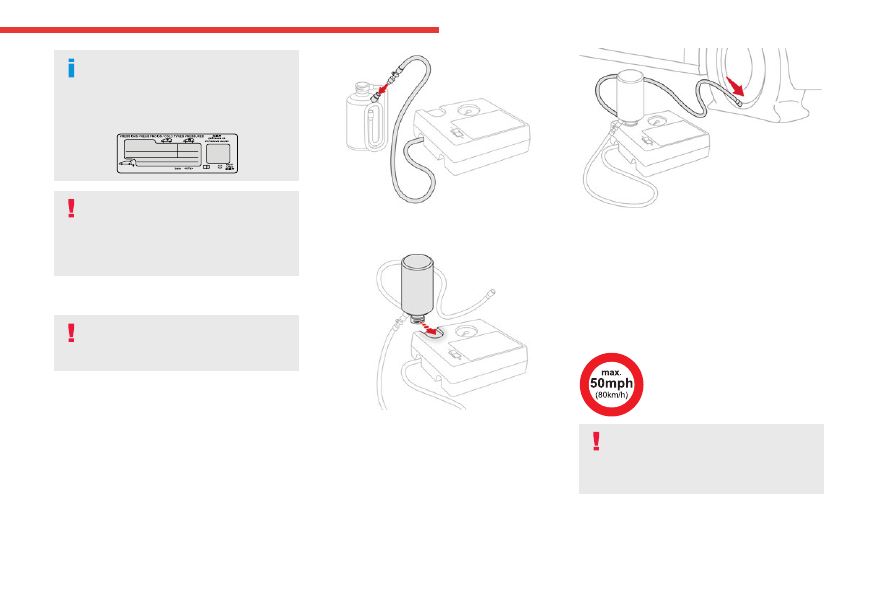

►  Turn the bottle of sealant over and secure it

in the notch provided on the compressor.

►  Remove the valve cap from the tyre to be

repaired, and place it in a clean place.





►  Connect the hose from the bottle of sealant

to the valve of the tyre to be repaired and tighten

firmly.

►  Check that the compressor switch is in

position "

O

".

►  Fully uncoil the electric cable stowed under

the compressor.

►  Connect the compressor's electric plug to the

vehicle's 12 V socket.

►  Affix the speed limit sticker.

The speed limit sticker must be affixed

inside the vehicle in the area close to the

driver, to remind them that a wheel is in

temporary use.

►  Switch the ignition on.



168

In the event of a breakdown



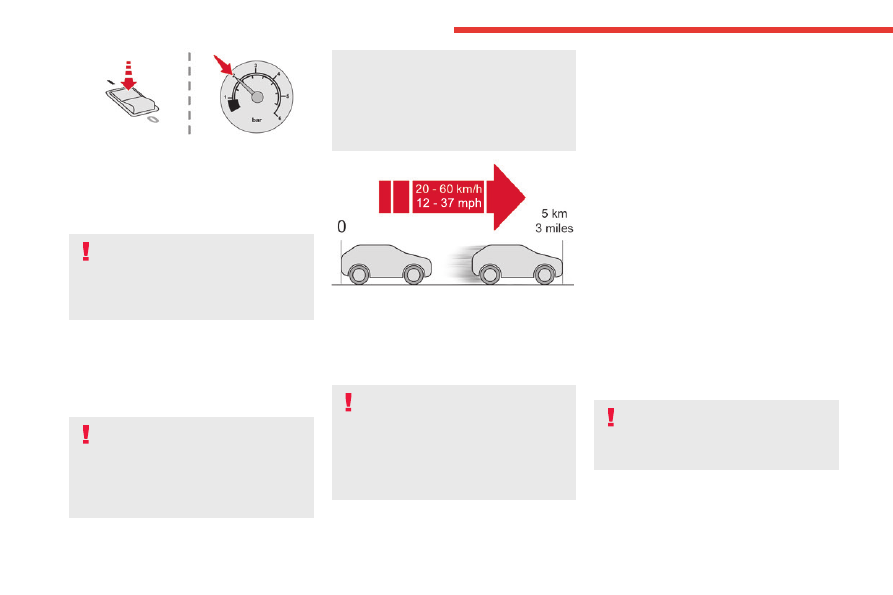

►  Switch on the compressor by moving the

switch to position "

I

" until the tyre pressure

reaches 2 bar. The sealant product is injected

under pressure into the tyre; do not disconnect

the pipe from the valve during this operation (risk

of blowback).

If after approximately 7 minutes, the

pressure of 2 bar is not reached, this

indicates that the tyre is not repairable;

contact a CITROËN dealer or a qualified

workshop for assistance.

►  Move the switch to position "

O

".

►  Disconnect the compressor's electric plug

from the vehicle's 12 V socket.

►  Remove the kit.

►  Refit the cap on the valve.

►  Remove and store the bottle of sealant.

The sealant product is harmful if

swallowed and causes irritation to the

eyes.

Keep this product out of the reach of children.

The use-by date of the fluid is marked on the

bottle.

After use, do not discard the bottle into the

environment; take it to a CITROËN dealer or

an authorised waste disposal site.

Do not forget to obtain a new bottle of

sealant, available from a CITROËN dealer or

a qualified workshop.





►  Drive immediately for approximately 3 miles

(5 kilometres) at reduced speed (between

12 and 37 mph (20 and 60 km/h)) to plug the

puncture.

►  Stop to check the repair

and the tyre

pressure

 using the kit.

With a tyre repaired using this type of kit,

do not exceed a speed of 50 mph

(80 km/h) and do not drive more than

50 miles (80 km).

You must contact a CITROËN dealer or a

qualified workshop to have the repair checked

and the tyre changed.

Checking/adjusting tyre

pressures

The compressor can be used,

without injecting

sealant

, to check and, if necessary, adjust the

tyre pressures.

►  Remove the valve cap from the tyre and keep

it in a clean place.

►  Uncoil the pipe stowed under the compressor.

►  Screw the pipe onto the valve and tighten

firmly.

►  Check that the compressor switch is in

position "

O

".

►  Fully uncoil the electric cable stowed under

the compressor.

►  Connect the compressor's electric plug to the

vehicle's 12 V socket.

►  Switch the ignition on.

►  Start the compressor by placing the switch at

position "

I

" and adjust the pressure to the value

shown on the vehicle's tyre pressure label. To

deflate: press the black button located on the

compressor pipe, near the valve connection.

If after 7 minutes the pressure of 2 bar is

not reached, the tyre is damaged;

contact a CITROËN dealer or a qualified

workshop for assistance.

►  Once the correct pressure is reached, put the

switch in position "

O

".

►  Remove the kit and stow it.

►  Refit the cap on the valve.

169

In the event of a breakdown

8

Spare wheel

Scan the QR Code on page 3 to view

explanatory videos.

For more information on the

Tool kit

,

refer to the corresponding section.

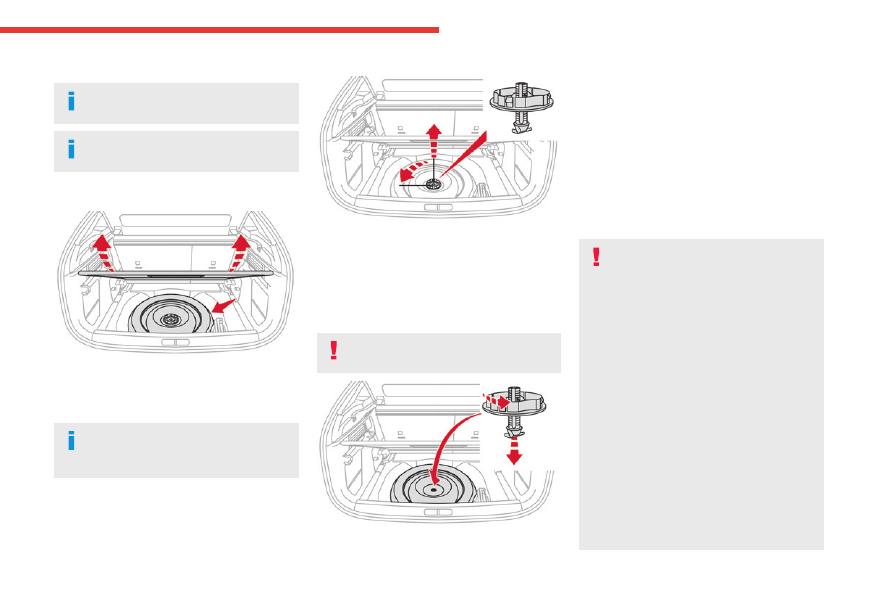

Accessing the spare wheel





The spare wheel is stored in the boot, under the

floor.

To access the spare wheel, first refer to the

Tool

kit

 section.

Depending on version, the spare wheel

may be a standard (steel or aluminium)

or 'space-saver' wheel.

Removing the spare wheel





►  Slacken the central nut.

►  Remove the fastening device (nut and bolt).

►  Lift the spare wheel towards you from the

rear.

►  Take the wheel out of the boot.

Putting the spare wheel back in place

The punctured wheel cannot be put

under the boot floor.





►  Put the spare wheel back in place in its

housing.

►  Slacken the nut on the bolt by a few turns.

►  Position the fastening device (nut and bolt) in

the middle of the wheel.

►  Tighten the central nut sufficiently to retain

the wheel correctly.

►  Depending on version, put the tool box back

in place in the middle of the wheel and clip it in

place.

Removing a wheel

Parking the vehicle

Immobilise the vehicle where it does

not obstruct traffic: the ground must be level,

stable and non-slippery.

With a manual gearbox, engage first gear

to lock the wheels, apply the parking brake,

unless it is set to automatic mode, and switch

off the ignition.

With an automatic gearbox, select mode

P



to lock the wheels, apply the parking brake,

unless it is set to automatic mode, and switch

off the ignition.

Check that the parking brake indicator lamps

on the instrument panel are on fixed.

The occupants must get out of the vehicle

and wait where they are safe.

If necessary, place a chock under the wheel

diagonally opposite the wheel to be changed.

Never go underneath a vehicle raised using a

jack; use an axle stand.

170

In the event of a breakdown

Wheel with wheel trim

When removing the wheel

, first remove

the wheel trim by pulling at the valve aperture

using the wheelbrace.

When refitting the wheel

, refit the wheel

trim, starting by placing its aperture in line

with the valve and then pushing it into place

all round its edge with the palm of your hand.

Wheel trims are identified by a "LEFT" mark

on the left-hand side and a "RIGHT" mark

on the right-hand side. Do not reverse these

when removing/refitting the wheel.









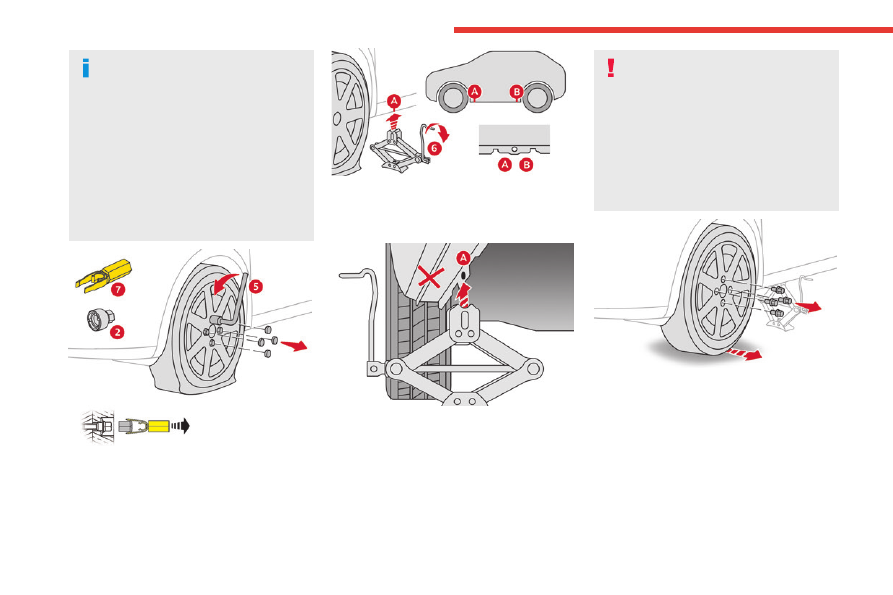

►  To remove the wheel bolt cover on each of

the bolts, use tool

7

 (alloy wheels).

►  Fit security socket

2

 on wheelbrace

5

 to

slacken the security bolt.

►  Slacken the other bolts using the

wheelbrace

5

 only.





►  Place the foot of jack

6

 on the ground and

ensure that it is directly below the front

A

 or

rear

B

 jacking point on the underbody, whichever

is closest to the wheel to be changed.





►  Extend jack

6

 until its head comes into

contact with jacking point

A

 or

B

; contact area

A



or

B

 on the vehicle must be properly inserted

into the central part of the head of the jack.

►  Raise the vehicle until there is sufficient

space between the wheel and the ground to

easily admit the spare (not punctured) wheel.

Ensure that the jack is stable. If the

ground is slippery or loose, the jack may

slip or collapse - risk of injury!

Take care to position the jack strictly at

one of the jacking points

A

 or

B

 under the

vehicle, ensuring that the head of the jack is

centred under the contact area on the vehicle.

Otherwise, there is a risk of damage to the

vehicle and/or of the jack collapsing - risk of

injury!





►  Remove the bolts and store them in a clean

place.

►  Remove the wheel.

171

In the event of a breakdown

8

Fitting a wheel

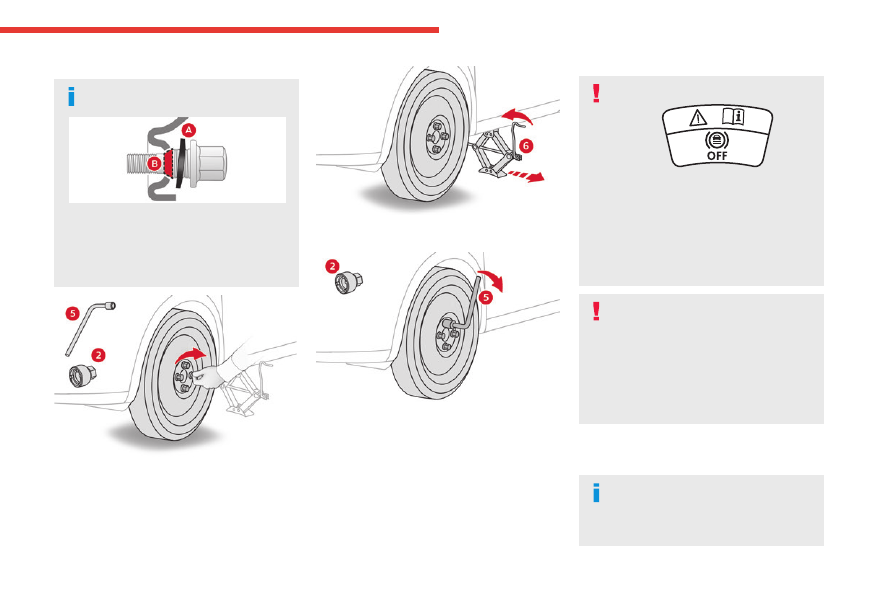

Fitting a steel or "space-saver" type

spare wheel

If the vehicle is fitted with alloy wheels, the

washers

A

 do not make contact with the steel

or "space-saver" type spare wheel. The wheel

is held in place by the conical contact surface

B

 of each bolt.





►  Fit the wheel on the hub.

►  Screw in the bolts by hand as far as possible.

►  Pre-tighten the security bolt using the

wheelbrace

5

 equipped with a security socket

2

.

►  Pre-tighten the other bolts using the

wheelbrace

5

 only.





►  Lower the vehicle again fully.

►  Fold jack

6

 and remove it.





►  Tighten the security bolt using the

wheelbrace

5

 equipped with a security socket

2

.

►  Tighten the other bolts using the

wheelbrace

5

 only.

►  Refit the bolt covers to each of the bolts

(depending on equipment).

►  Store the tools.

After changing a wheel

With a "space-saver" type spare wheel

Deactivate certain driving aid functions

(Active Safety Brake, Adaptive cruise control,

etc.).

Do not exceed the maximum authorised

speed of 50 mph (80 km/h).

Driving with more than one "space-saver"

type spare wheel is prohibited.

Visit a CITROËN dealer or a qualified

workshop.

Have the tightening of the spare wheel's bolts

and its tyre pressure checked.

Have the punctured tyre examined. After

inspection, the technician will advise you on

whether the tyre can be repaired or if it must

be replaced.

Changing a bulb

In some weather conditions (e.g. low

temperature or humidity), misting on the

internal surface of the glass of the headlamps

and rear lamps is normal, and will disappear

172

In the event of a breakdown

after the lamps have been on for a few

minutes.

Never look too closely at the light beam

of LED technology lamps - risk of serious

eye injury!





The headlamps have polycarbonate

lenses with a protective coating:

–

Do not clean them with a dry or abrasive

cloth, nor with detergent or solvent

products.

–  Use a sponge and soapy water or a pH

neutral product.

–  When using a high-pressure washer on

persistent marks, do not keep the lance

directed towards the headlamps, lamps or

their edges for too long, so as not to damage

their protective coating and seals.

Changing a bulb must only be done with

the ignition off and after the headlamp /

lamp has been switched off for several

minutes - risk of serious burns!

Do not touch the bulb directly with your

fingers; use a lint-free cloth.

It is essential only to use anti-ultraviolet

(UV) type bulbs, so as not to damage the

headlamp.

Always replace a failed bulb with a new bulb

of the same type and specification. To avoid

lighting imbalance, replace the bulbs in pairs.

Refitting the lamp units

Perform the operations in the reverse

order to dismantling.

Light-emitting diode (LED)

headlamps and lamps

Depending on version, the affected types of

headlamps/lamps are:

–  "LED" technology headlamps.

–  Front foglamps.

–  Daytime running lamps/sidelamps.

–  Direction indicator side repeaters.

–  Side spotlamps.

–  Third brake lamp.

–  Number plate lamps.

If you need to replace this type of bulb,

you must contact a CITROËN dealer or a

qualified workshop.

Do not touch the LED technology bulbs - risk

of electrocution!

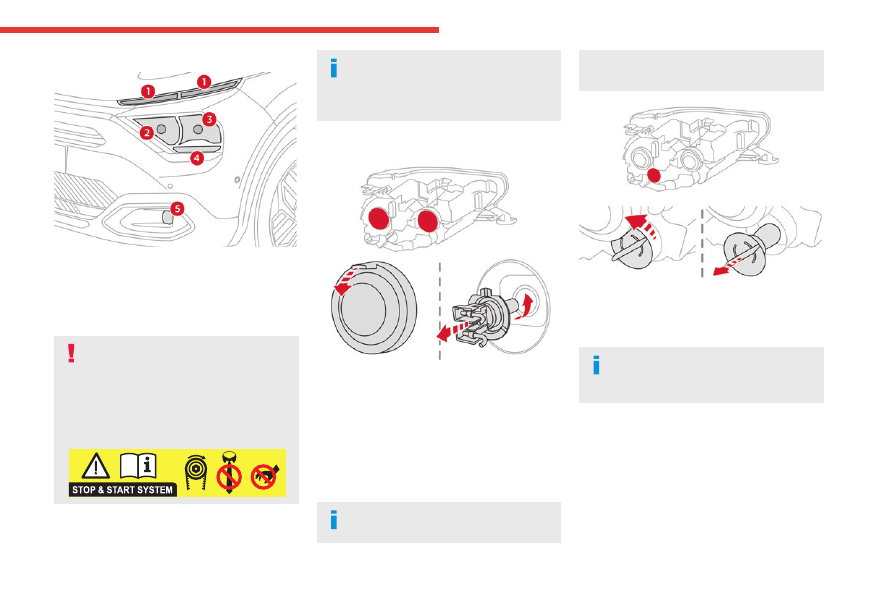

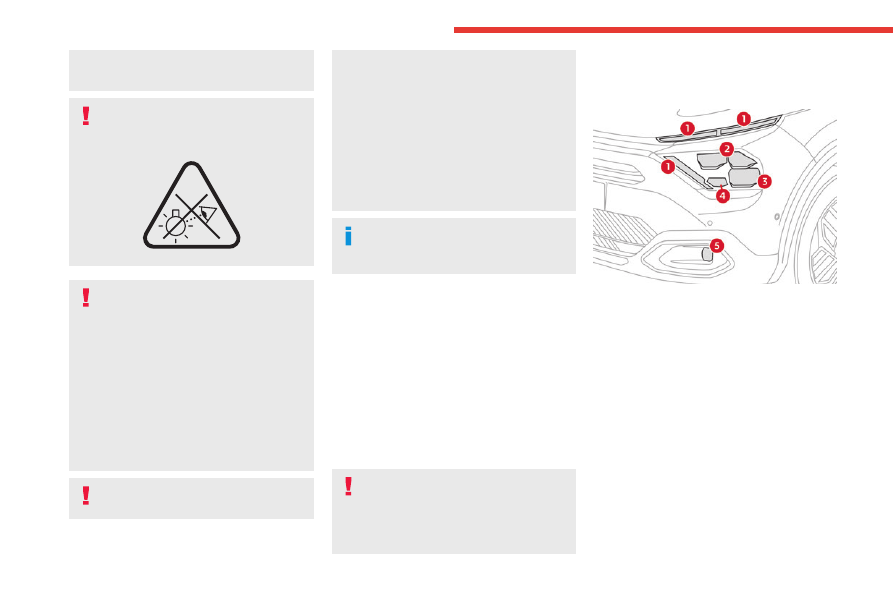

Front lamps

Model with LED headlamps





1.

Daytime running lamps/Sidelamps

2.

Dipped beam headlamps

3.

Main beam headlamps

4.

Direction indicators

5.

Foglamps

173

In the event of a breakdown

8

Model with halogen headlamps

1.

Daytime running lamps/Sidelamps (LED)

2.

Main beam headlamps (H7)

3.

Dipped beam headlamps (H7)

4.

Direction indicators (PY21W)

5.

Foglamps (LED)

Opening the bonnet/Accessing the

bulbs

Proceed with caution when the engine is hot -

risk of burns!

Take care with objects or clothing that could

be caught in the blades of the cooling fan -

risk of strangulation!

Halogen bulbs (Hx)

To ensure good quality lighting, check

that the bulb is correctly positioned in its

housing.

Main/Dipped beam headlamps





►  Remove the protective cover by pulling on

the tab.

►  Disconnect the bulb connector.

►  Remove the bulb and replace it.

To refit, carry out these operations in reverse

order, directing the bulb’s positioning lug

downwards.

Direction indicators

Rapid flashing of the indicator lamp for a

direction indicator (left or right) indicates

that one of the bulbs on the corresponding

side has failed.





►  Turn the connector a quarter turn

anti-clockwise.

►  Pull the bulb connector.

►  Remove the bulb and replace it.

Amber-coloured bulbs must be replaced

by bulbs with identical specifications and

colour.

174

In the event of a breakdown

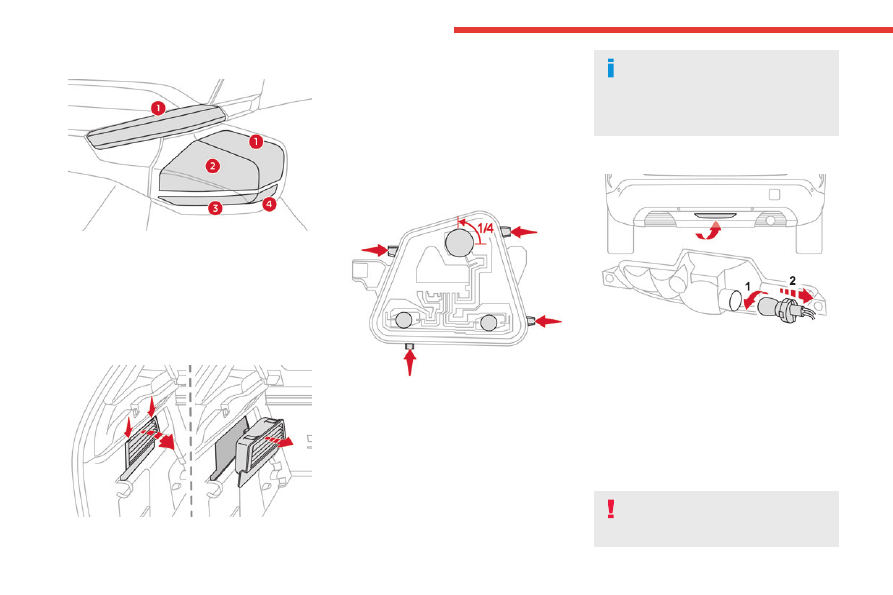

Rear lamps





1.

Sidelamps (LED)

2.

Brake lamps (P21W)

3.

Reversing lamps (W16W)

4.

Direction indicators (WY16W)

Changing bulbs

The bulbs are changed from inside the boot.

►  Open the boot.





►  Remove the access flap on the

corresponding side trim:

•  Press each of the notches in the upper part

of the flap to unclip it.

•  Tilt the flap and its support then extract the

assembly.

►  Disconnect the lamp unit connector.

►  Unlock the nut using a 10 mm pipe wrench

then unscrew and remove it.

Be careful not to

drop it.

►  Dismantle the lamp unit and carefully extract

it, pulling it straight towards the outside.





►  Unclip the bulb holder and remove it. Be

careful not to disconnect the wiring harness.

►  For the brake lamp, turn the bulb a quarter

turn and replace it.

►  For the reversing lamp and direction

indicator, pull the bulb out and replace it.

Make sure to engage the lamp unit in its

guides while keeping it in line with the

vehicle.

Tighten sufficiently to ensure sealing, but

without damaging the lamp unit.

Foglamp (P21W)





For access, pass your hand under the bumper

on the left-hand side.

►  Turn the bulb holder a quarter turn to the left

and pull it out.

►  Turn the bulb a quarter turn to the left and

pull it out.

►  Replace the bulb.

Fuses

Changing a fuse

All work must be carried out only by a

CITROËN dealer or a qualified workshop

175

In the event of a breakdown

8

The replacement of a fuse by a third party

could cause a serious malfunction of the

vehicle.

Installing electrical accessories

The vehicle's electrical system is

designed to operate with standard or optional

equipment.

Before fitting other electrical equipment

or accessories to your vehicle, contact a

CITROËN dealer or a qualified workshop.

CITROËN accepts no responsibility for

the cost incurred in repairing the vehicle

or for rectifying malfunctions resulting from

the installation of accessories not supplied or

not recommended by CITROËN and not

installed in accordance with its

recommendations, in particular when the

combined power consumption of all of the

additional equipment connected exceeds 10

milliamperes.

12 V battery / Accessory

battery

Lead-acid starter batteries

These batteries contain harmful

substances (sulphuric acid and lead).

They must be disposed of in accordance

with regulations and must never under any

circumstances be discarded with household

waste.

Dispose of used batteries at a designated

collection point.

Protect your eyes and face before

handling the battery.

All operations on the battery must be carried

out in a well ventilated area and away from

naked flames and sources of sparks, to avoid

any risk of explosion or fire.

Wash your hands afterwards.

Frozen battery

Never try to charge a frozen battery - risk

of explosion!

If the battery has frozen, have it checked by a

CITROËN dealer or by a qualified workshop,

who will verify that the internal components

have not been damaged and that the case

has not cracked, which could lead to a risk of

leakage of toxic and corrosive acid.

Automatic gearbox

Never try to start the engine by pushing

the vehicle.

Electric motor

Flat accessory battery

It is no longer possible to start the motor

or recharge the traction battery.

Precautions before working on the

accessory battery

Select mode

P

, switch off the ignition, check

that the instrument panel is off and that the

vehicle is not being charged.

Jump-starting another vehicle

Do not use the accessory battery to

jump-start another vehicle or to charge

another vehicle's battery.

Symbols

No sparks or naked flames, no smoking.



Always protect your eyes. Explosive

gases can cause blindness and injury.

Keep the vehicle's battery out of the reach

of children.

The vehicle's battery contains sulphuric

acid which can make you go blind or

cause severe burns.

176

In the event of a breakdown

For more information, refer to the

handbook.

Explosive gases can be present close to

the battery.

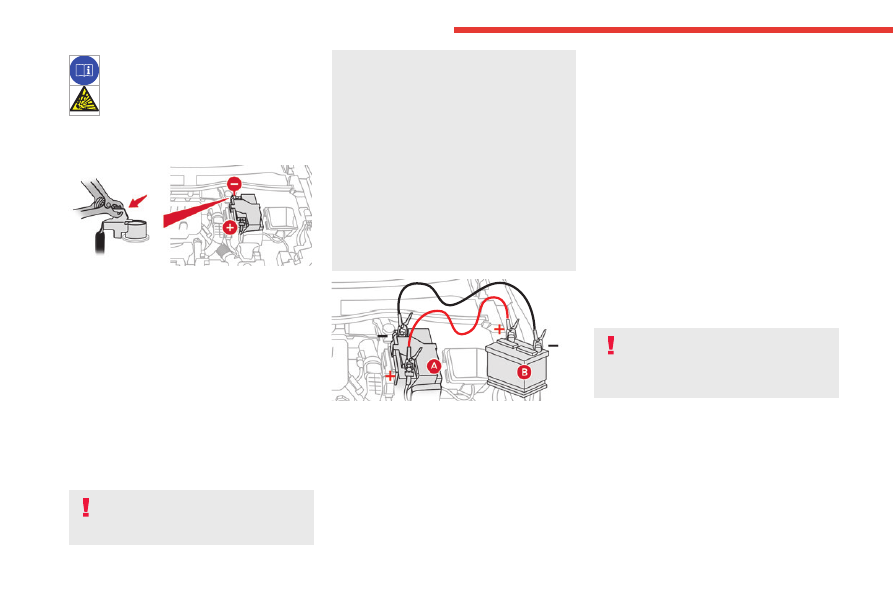

Accessing the battery

The battery is located under the bonnet.





For access to the (+) terminal:

►  Release the bonnet by pulling the internal

release lever, then the external safety catch.

►  Raise the bonnet.

(+)

 Positive terminal with a quick-release

terminal.

(-)

 Negative terminal.

Starting using another

battery

If the vehicle's battery is flat, the engine can be

started using a backup battery (either external or

from another vehicle) and jump leads or using a

battery booster.

Never start the engine by connecting a

battery charger.

Never use a 24 V or higher battery booster.

Check beforehand that the backup battery

has a nominal voltage of 12 V and a capacity

at least equal to that of the discharged

battery.

The two vehicles must not be in contact with

each other.

Switch off all electricity-consuming equipment

on both vehicles (audio system, wipers,

lighting, etc.).

Make sure that the jump leads are well away

from the engine’s moving parts (fan, belt,

etc.).

Do not disconnect the (+) terminal while the

engine is running.





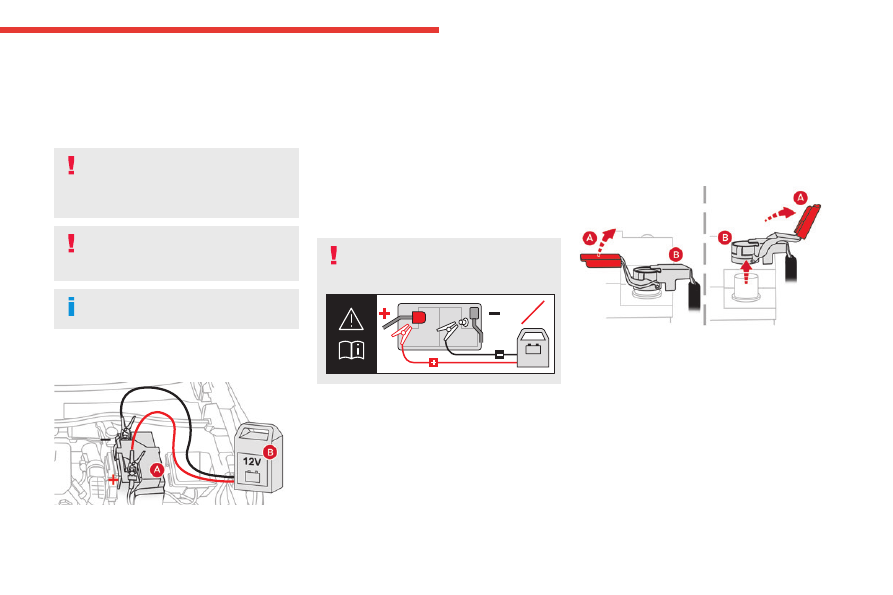

►  Lift the plastic cover on the (+) terminal, if the

vehicle has one.

►  Connect the red cable to the (+) terminal of

flat battery

A

 (at the metal elbow), then to the

(+) terminal of the backup battery

B

 or of the

booster.

►  Connect one end of the green or black cable

to the (-) terminal of the backup battery

B

 or of

the booster (or to an earth point on the assisting

vehicle).

►  Connect the other end of the green or black

cable to the (-) terminal of flat battery

A

.

►  Start the engine on the assisting vehicle and

leave it running for a few minutes.

►  Operate the starter on the broken down

vehicle and let the engine run.

If the engine does not start immediately, switch

off the ignition and wait a few moments before

trying again.

►  Wait for it to return to idle.

►  Disconnect the jump leads

in reverse order

.

►  Refit the plastic cover to the (+) terminal, if

the vehicle has one.

►  Allow the engine to run for at least

30 minutes, with the vehicle stationary, so that

the battery reaches an adequate state of charge.

Driving immediately without having

reached a sufficient level of charge may

affect some of the vehicle's functions (e.g.

Stop & Start).

Charging the battery using a

battery charger

For optimum service life of the battery, it is

essential to maintain an adequate state of

charge.

In some circumstances, it may be necessary to

charge the battery:

177

In the event of a breakdown

8

–  When using the vehicle mainly for short

journeys.

–  If the vehicle is to be taken off the road for

several weeks.

Contact a CITROËN dealer or a qualified

workshop.

To charge the vehicle's battery yourself,

use only a charger compatible with

lead-acid batteries with a nominal voltage of

12 V.

Follow the instructions provided by the

manufacturer of the charger.

Never reverse polarities.

It is not necessary to disconnect the

battery.

►  Switch the ignition off.

►  Switch off all electrical consumers (audio

system, lighting, wipers, etc.).





►  Switch off charger

B

 before connecting

the cables to the battery, so as to avoid any

dangerous sparks.

►  Ensure that the charger cables are in good

condition.

►  Lift the plastic cover on the (+) terminal, if the

vehicle has one.

►  Connect the cables of charger

B

 as follows:

•  the positive (+) red cable to the (+) terminal

of battery

A

.

•  the negative (-) black cable to the (-) terminal

of battery

A

.

►  At the end of the charging operation, switch

off charger

B

 before disconnecting the cables

from battery

A

.

If this label is present, use only a 12 V

charger to avoid causing irreversible

damage to the electrical components.

24V

12V

Disconnecting the battery

In order to maintain an adequate state of

charge for starting the engine, we recommend

disconnecting the battery if the vehicle is to be

unused for an extended period.

Before disconnecting the battery:

►  Close all openings (doors, boot, windows,

roof).

►  Switch off all electricity-consuming devices

(audio system, wipers, lamps, etc.).

►  Switch off the ignition and wait for 4 minutes.

After accessing the battery, it is only necessary

to disconnect the (+) terminal.

Quick-release terminal clamp

Disconnecting the (+) terminal





►  Depending on equipment, lift the plastic cover

on the

(+)

 terminal.

►  Raise lever

A

 fully to release clamp

B

.

►  Remove clamp

B

 by lifting it off.
