130

Driving

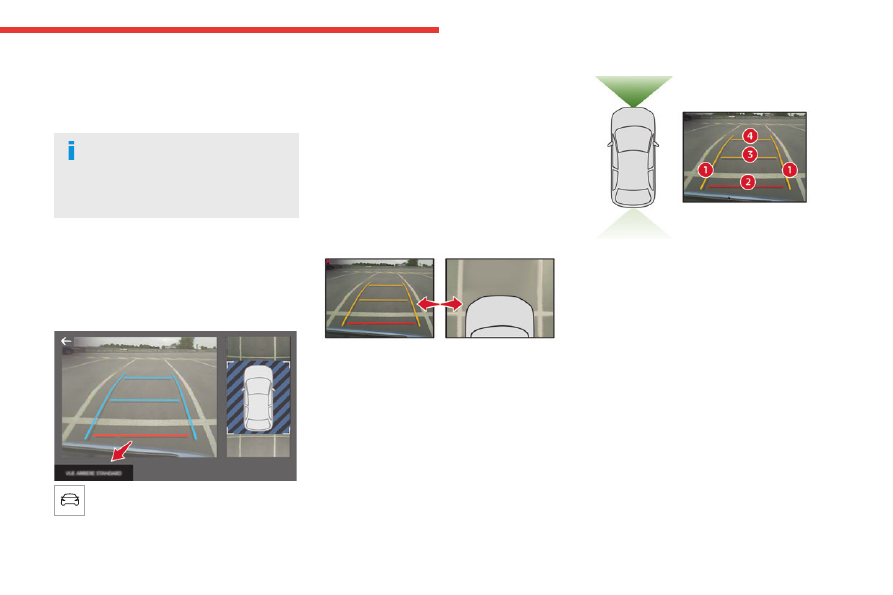

The blue lines

1

 represent the width of your

vehicle, with the mirrors unfolded; their direction

changes according to the position of the steering

wheel.

The red line

2

 represents a distance of 30 cm

from the rear bumper; the two blue lines

3

 and

4



represent 1 m and 2 m, respectively.

This view is available with AUTO mode or in the

view selection menu.

Zoom view





The camera records the vehicle's surroundings

during the manoeuvre in order to create a

view from above the rear of the vehicle in its

near surroundings, allowing the vehicle to be

manoeuvred around nearby obstacles.

This view is available with AUTO mode or in the

view selection menu.

Obstacles may appear further away than

they actually are.

It is important to monitor the sides of the

vehicle during the manoeuvre, using the

mirrors.

Parking sensors also provide additional

information about the area around the vehicle.

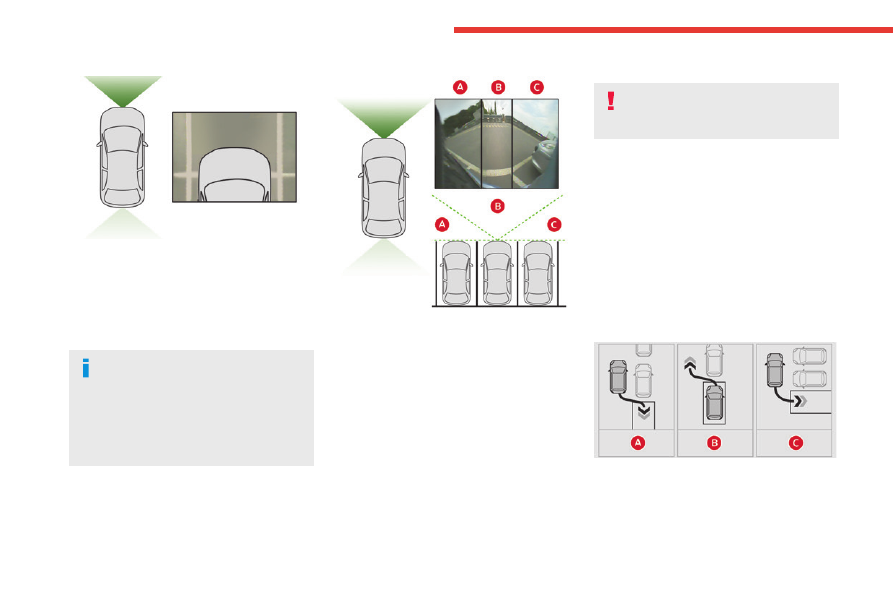

180° view





The 180° view facilitates reversing out of a

parking space, making it possible to see the

approach of vehicles, pedestrians and cyclists.

This view is not recommended for carrying out a

complete manoeuvre.

It features 3 areas: left

A

, centre

B

 and right

C

.

This view is only available via the view selection

menu.

360 vision

The vehicle has a camera at the front

, fitted in

the grille, and a camera at the rear, located close

to the number plate lamps.

Using these cameras, the system displays the

vehicle's near surroundings on the touch screen,

offering views from the rear of the vehicle (rear

vision) when reverse gear is engaged and views

from the front of the vehicle (front vision) when

the gearbox is in neutral or a gear is engaged.

Rear vision





The system activates automatically when

reverse gear is engaged.

The system is deactivated:

–  Automatically, at speeds above approximately

12 mph (20 km/h),

131

Driving

6

–  when shifting out of reverse (the rear view

image is replaced by the front view image after

7 seconds).

–  By pressing the white arrow in the upper-left

corner of the touch screen.

If a trailer or a bicycle carrier is fitted to

the towball, the area behind the vehicle

on the view from above goes dark.

The surroundings are reconstructed by the

front camera only.

The rear vision views are similar to those for the

Top Rear Vision function.

For more information on the

Top Rear

Vision

 function, refer to the corresponding

section.

Front and rear vision





With the engine running and the speed

below 12 mph (20 km/h), the system is

activated via the

Driving/Vehicle

 touch screen

menu:

►  Select "

Visual parking assistance

".

AUTO mode is displayed by default, with front

vision, if the gearbox is in neutral or with a

gear engaged, or with rear vision, if reverse is

engaged.

The system is deactivated:

–  Automatically above about 19 mph (30 km/h)

(the image disappears temporarily from 12 mph

(20 km/h)).

–  By pressing the white arrow in the upper-left

corner of the touch screen.

AUTO mode





This mode is activated by default.

Using sensors in the front bumper, the automatic

view changes from the front view (standard) to

the view from above (zoom) as an obstacle is

approached during a manoeuvre.

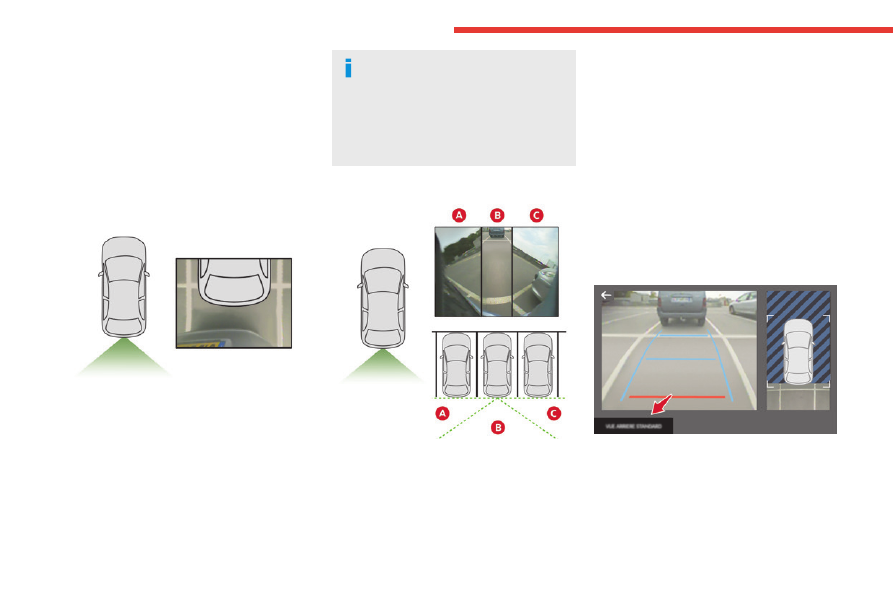

Standard view





The area in front of your vehicle is displayed on

the screen.

The orange lines

1

 represent the width of your

vehicle, with the mirrors unfolded; their direction

changes according to the position of the steering

wheel.

The red line

2

 represents a distance of 30 cm

from the front bumper; the two orange lines

3



and

4

 represent 1 m and 2 m, respectively.

This view is available with AUTO mode or in the

view selection menu.

132

Driving

Zoom view





The camera records the vehicle's surroundings

during the manoeuvre in order to create a

view from above the front of the vehicle in its

near surroundings, allowing the vehicle to be

manoeuvred around obstacles nearby.

This view is available with AUTO mode or in the

view selection menu.

Obstacles may appear further away than

they actually are.

It is important to check the sides of the

vehicle during the manoeuvre, using the

mirrors.

The parking sensors also supplement the

information on the vehicle's surroundings.

180° view





The 180° view assists with exiting from a parking

space in forward gear, making it possible to

see the approach of vehicles, pedestrians and

cyclists.

This view is not recommended for carrying out a

complete manoeuvre.

It consists of 3 areas: left

A

, centre

B

 and right

C

.

This view is available only from the view

selection menu.

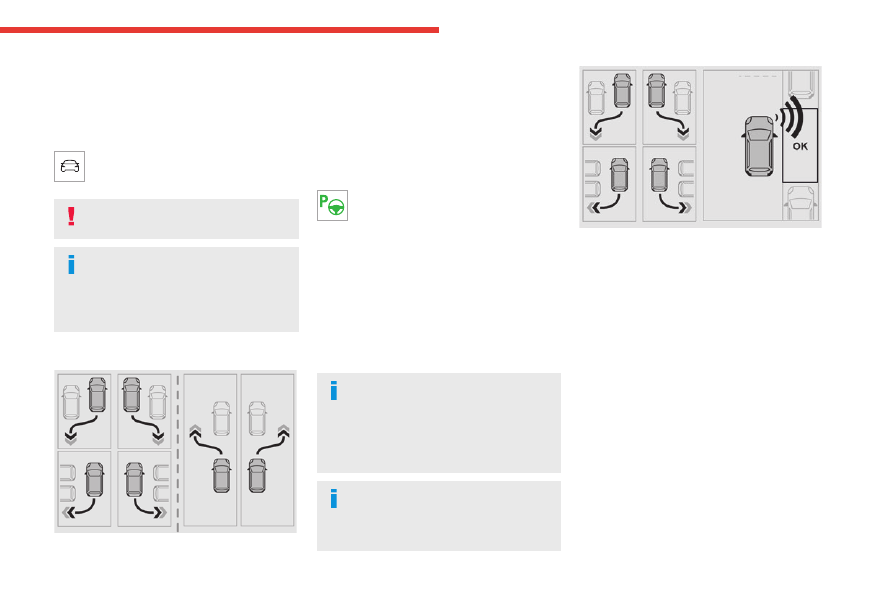

Park Assist

For more information, refer to the

General recommendations on the use

of driving and manoeuvring aids

.

This system provides active parking assistance:

it detects a parking space and then steers in the

appropriate direction to park in the space while

the driver controls the driving direction, gear

changes, acceleration and braking.

To help the driver monitor the manoeuvre, the

system automatically triggers the display from

the Top Rear Vision or 360 vision function and

activates the parking sensors.

The system measures the available parking

spaces and calculates the distances to obstacles

using ultrasonic sensors built into the front and

rear bumpers of the vehicle.





The system assists with the following

manoeuvres:

A.

Entering a "parallel" parking space

B.

Leaving a "parallel" parking space

C.

Entering a "bay" parking space

133

Driving

6

Operation

►  When approaching a parking area, reduce

the speed of your vehicle to 19 mph (30 km/h)

or less.

Activating the function

The function is activated in the

Vehicle/

Driving

 touch screen menu.

Select "

Park Assist

".

Activating the function deactivates the

Blind spot monitoring system.

You can deactivate the function at any

time until the parking space entry or exit

manoeuvre begins, by pressing the arrow

located in the top left-hand corner of the

display page.

Selecting the type of manoeuvre





A manoeuvre selection page is displayed on the

touch screen: by default, the "Entry" page if the

vehicle has been running since the ignition was

switched on, otherwise, the "Exit" page.

►  Select the type and side of the manoeuvre to

activate the parking space search.

The selected manoeuvre can be changed at

any time, even while searching for an available

space.

This indicator lamp comes on to confirm

the selection.

Parking space search

►  You should drive at a distance of between

0.50 m and 1.50 m from the row of parked

vehicles, without ever exceeding 19 mph

(30 km/h), until the system finds an available

space.

The parking space search stops over this limit.

The function automatically deactivates once the

vehicle speed exceeds 31 mph (50 km/h).

For ''parallel'' parking, the space must at

a minimum be equal to the length of your

vehicle plus 0.60 m.

For ''bay'' parking, the width of the space

must be equal to the width of your vehicle

plus 0.70 m.

If the parking sensors function has been

deactivated in the

Driving

/

Vehicle

 menu

of the touch screen, it will be automatically

reactivated when the system is activated.





When the system finds an available space, "

OK

"

is displayed on the parking view, accompanied

by an audible signal.

Preparing for the manoeuvre

►  Move very slowly until the request to stop

the vehicle is displayed: "

Stop the vehicle

",

accompanied by the "

STOP

" sign and an audible

signal.

Once the vehicle has stopped, an instructions

page is displayed on the screen.

►  To prepare for the manoeuvre, follow the

instructions.

The start of the manoeuvre is indicated by

the message "

Manoeuvre under way

",

accompanied by an audible signal.

Reversing is indicated by this message:

"

Release the steering wheel, reverse

".

The Top Rear Vision or Vision 360 function

and the parking sensors are automatically

134

Driving

activated to help you monitor your vehicle's close

surroundings during the manoeuvre.

During the manoeuvre

The system controls the vehicle’s steering.  It

gives instructions on the manoeuvring direction

when starting "parallel" entry and exit parking

manoeuvres, and for all "bay" entry manoeuvres.

These instructions are displayed as a symbol

accompanied by a message:

"Reverse".

“Go forwards".

The manoeuvring status is indicated by these

symbols:

Manoeuvre in progress (green).

Manoeuvre cancelled or finished (red)

(the arrows indicate that the driver must

resume control of the vehicle).

The maximum speeds during manoeuvres are

indicated by these symbols:

7

5 mph or 7 km/h, for parking space entry.

5

3 mph or 5 km/h, for parking space exit.

During manoeuvring phases, the steering

wheel performs rapid turns: do not hold

the steering wheel or put your hands between

the spokes of the steering wheel. Watch out

for any objects that could interfere with the

manoeuvre (loose clothing, scarf, tie, etc.).

Risk of injury!

It is the driver's responsibility to constantly

monitor the traffic, especially vehicles coming

towards you.

The driver should check that no objects or

people are obstructing the vehicle’s path.

The images from the camera(s)

displayed on the touch screen may be

distorted by the terrain.

In shady areas, or in inadequate sunlight

or lighting conditions, the image may be

darkened and with lower contrast.

The manoeuvre can be permanently interrupted

at any time, either by the driver or automatically

by the system.

Interruption by the driver:

–  taking over control of the steering.

–  activating the direction indicator lamps on the

opposite side to that of the manoeuvre.

–  unfastening the driver's seat belt.

–  switching off the ignition.

Interruption by the system:

–  vehicle exceeding the speed limit of

5 mph (7 km/h) during parking space entry

manoeuvres, or 3 mph (5 km/h) during parking

space exit manoeuvres.

–  activation of anti-slip regulation on a slippery

road.

–  opening of a door or the boot.

–  engine stall.

–  system malfunction.

–  after 10 manoeuvres to enter or exit a parallel

parking space and after 7 manoeuvres to enter a

parking bay.

Interrupting the manoeuvre automatically

deactivates the function.

The manoeuvre symbol is displayed in red,

accompanied by the "

Manoeuvre cancelled

"

message on the touch screen.

A message prompts the driver to take back

control of the vehicle.

The function is deactivated after a few

seconds; this indicator lamp goes off and

the function returns to the initial display.

End of the parking space entry or exit

manoeuvre

The vehicle stops as soon as the manoeuvre is

completed.

The manoeuvre symbol is displayed in red,

accompanied by the message "

Manoeuvre

completed

" on the touch screen.

When the function is deactivated, this

indicator lamp goes off, accompanied by

an audible signal.

When entering a parking space, the driver may

be required to complete the manoeuvre.

Operating limits

–  The system may suggest an inappropriate

parking space (parking prohibited, work in

progress with damaged road surface, location

alongside a ditch, etc.).

135

Driving

6

–  The system may indicate that a space has

been found but will not offer it because of a fixed

obstacle on the opposite side of the manoeuvre,

which would not allow the vehicle to follow a

trajectory required for parking.

–  The system may indicate that a space has

been found but the manoeuvre will not be

triggered, because the width of the lane is

insufficient.

–  The system is not designed for performing the

parking manoeuvre on a sharp bend.

–  The system does not detect spaces that

are much larger than the vehicle itself or that

are delimited by obstacles that are too low

(pavements, studs, etc.) or too thin (trees, posts,

wire fences, etc.).

–  If the boot is heavily loaded, the tilt of the

vehicle towards the rear may interfere with the

distance measurements.

Do not use the function under the

following exterior conditions:

–  Alongside a soft shoulder (e.g. ditch) or

quay or on the edge of a drop.

–  When the road surface is slippery (e.g. ice).

If any of the following malfunctions

occurs, do not use the system:

–  If a tyre is under-inflated.

–  If one of the bumpers is damaged.

–  If one of the cameras is faulty.

If the vehicle has undergone any of the

following modifications, do not use the

function:

–  When carrying an object extending beyond

the dimensions of the vehicle (ladder on the

roof bars, bicycle carrier on the tailgate, etc.).

–  With a non-approved towball in place.

–  With snow chains fitted.

–  When driving on a small-diameter or

"space-saver" type spare wheel.

–  When the wheels fitted are a different size

from the original ones.

–  After modifying one or both bumpers

(added protection).

–  If the sensors have been repainted other

than by the CITROËN dealer network.

–  With sensors not approved for the vehicle.

Malfunctions

When the function is not activated, this

indicator lamp will flash briefly and an

audible signal will be emitted to indicate a

system malfunction.

If the malfunction occurs while the system is in

use, the warning lamp goes off.

If the parking sensor malfunction occurs

during use, indicated by this warning lamp

coming on and the display of a message, it

causes the function to deactivate.

In the event of a malfunction, have the system

checked by a CITROËN dealer or a qualified

workshop.

In the event of a power steering

malfunction, this warning lamp is

displayed on the instrument panel, accompanied

by a warning message.

You must stop as soon as it is safe to do so.

Contact a CITROËN dealer or a qualified

workshop.





WITH TOTAL QUARTZ LUBRICANTS

FILL UP WITH

CONFIDENCE

For more than 50 years, TOTAL and CITROËN

have shared common values: excellence, creativity

and technological innovation.
It is in this same spirit that TOTAL has developed

a range of TOTAL QUARTZ lubricants adapted for

engines in CITROËN vehicles, making them ever

more fuel efficient and environmentally friendly.
TOTAL and CITROËN test the reliability and the

performance of their products under extreme

motorsport conditions.
Choose TOTAL QUARTZ lubricants when

servicing your vehicle; they are your assurance

of optimum engine life and performance.



prefers











137

Practical information

7

Compatibility of fuels





Petrol fuels conforming to the EN228 standard

containing up to 5% and 10% ethanol

respectively.





Diesel fuels conforming to the EN590, EN16734

and EN16709 standards and containing up to

7%, 10%, 20% and 30% fatty acid methyl ester

respectively. The use of B20 or B30 fuels, even

occasionally, imposes special maintenance

conditions referred to as "Arduous conditions".





Paraffinic Diesel fuel conforming to the EN15940

standard.

The use of any other type of (bio) fuel

(vegetable or animal oils, pure or diluted,

domestic fuel, etc.) is strictly prohibited (risk

of damage to the engine and fuel system).

The only fuel additives authorised for use

are those that meet the B715001 (petrol)

or B715000 (Diesel) standards.

Diesel at low temperature

At temperatures below 0 °C (+32 °F), the

formation of paraffins in summer-type Diesel

fuels could prevent the engine from operating

correctly. In these temperature conditions, use

winter-type Diesel fuel and keep the fuel tank

more than 50 % full.

At temperatures below -15 °C (+5 °F) to avoid

problems starting, it is best to park the vehicle

under shelter (heated garage).

Travelling abroad

Certain fuels could damage your vehicle’s

engine.

In certain countries, the use of a particular

fuel may be required (specific octane rating,

specific trade name, etc.) to ensure correct

operation of the engine.

For all additional information, consult a dealer.

Refuelling

Fuel tank capacity: approximately 50 litres.

Reserve level: approximately 6 litres.

Low fuel level

When the low fuel level is reached, this

warning lamp lights up on the instrument

panel, accompanied by the display of a message

and an audible signal. When it first comes on,

about 6 litres

 of fuel remain.

Until sufficient fuel is added, this warning lamp

appears every time the ignition is switched on,

accompanied by an onscreen message and

an audible signal. When driving, this message

and audible signal are repeated with increasing

frequency as the fuel level drops towards

0

.

You must refuel as soon as possible to avoid

running out of fuel.

For more information on

Running out of fuel

(Diesel)

, refer to the corresponding section.

A small arrow by the warning lamp

indicates which side of the vehicle the

fuel filler flap is located on.

Stop & Start

Never refuel with the engine in STOP

mode; you must switch off the ignition.

Refuelling

When refuelling, at least 5 litres must be added

in order to be registered by the fuel gauge.

Opening the filler cap may create a noise caused

by an inrush of air. This vacuum is normal,

caused by the sealing of the fuel system.

To refuel in complete safety:

►

Always switch off the engine.



138

Practical information



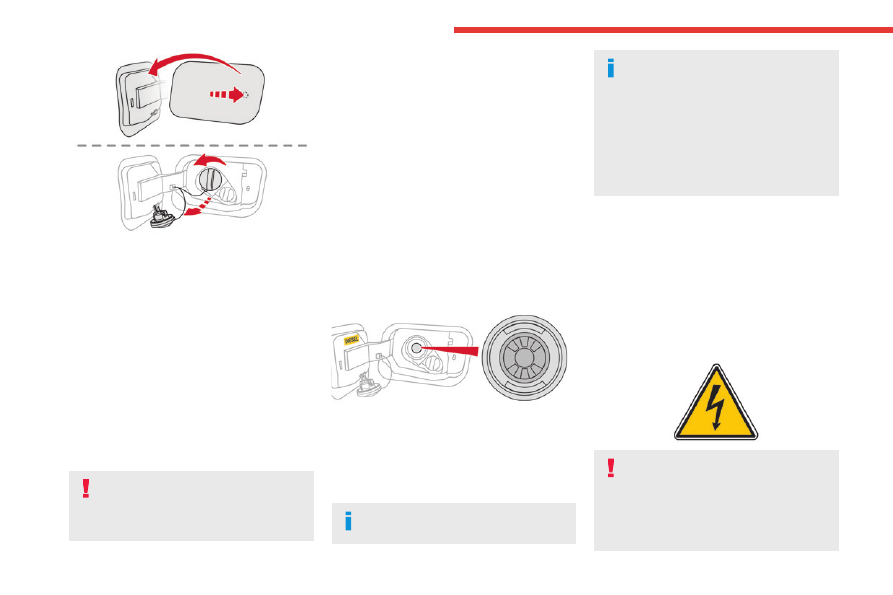

►  With the vehicle unlocked, press the rear-

central part of the filler flap to open it.

►  Take care to select the pump that delivers the

correct fuel type for your vehicle's engine (see a

reminder label on the inside of the filler flap).

►  Turn the filler cap to the left, remove it and

place it on its support (on the filler flap).

►  Insert the filler nozzle and push it in as far as

possible before starting to refuel (to minimise the

risk of splashing).

Do not continue after the nozzle’s third cut-

out. Doing so may cause malfunctions.

►  Put the filler cap back in place and turn it to

the right.

►  Close the fuel filler flap.

If you have put in the wrong fuel for the

vehicle, you must have the fuel tank

drained and filled with the correct fuel before

starting the engine.

The vehicle is fitted with a catalytic converter,

which helps to reduce the level of harmful

emissions in the exhaust gases.

For petrol engines, you must use unleaded

fuel.

The filler neck is narrower, admitting unleaded

petrol nozzles only.

Misfuel prevention (Diesel)

(Depending on country of sale.)

This mechanical device prevents filling the tank

of a Diesel vehicle with petrol.

Located in the filler neck, the misfuel prevention

device is visible when the filler cap is removed.

Operation





When a petrol filler nozzle is introduced into the

fuel filler neck of a Diesel vehicle, it comes into

contact with the flap. The system remains closed

and prevents filling.

Do not persist but introduce a Diesel type

filler nozzle.

The use of a fuel jerrycan to fill the tank

remains possible.

Travelling abroad

As Diesel fuel pump nozzles may be

different in other countries, the presence

of the misfuel prevention device may make

refuelling impossible.

Before travelling abroad, it is advisable to

check with a CITROËN dealer if the vehicle is

suitable for the distribution equipment of the

countries visited.

Charging system

(Electric)

400 V electrical system

The electric drive system, which operates at a

voltage of approximately 400 V, is identified by

orange cables and its components are marked

with this symbol:





An electric vehicle’s power train can

become hot during use and after

switching off the ignition.

Comply with the warning messages shown

on the labels, particularly inside the charging

flap.

139

Practical information

7

High voltage system voltage is

dangerous and can cause burns or other

injuries or even fatal electric shock.

Since damage to high voltage components is

not visible, CITROËN recommends that you:

–  Never touch the components, damaged

or not, and never let your jewelry or other

metallic objects come into contact with these

components.

–  Never work on the orange high voltage

cables or on any other high voltage

component marked with the Electric risk label.

Any intervention on the high voltage system

must be carried out by qualified persons in

workshops qualified and approved to carry

out this type of work.

–  Never damage, modify or remove the

orange high voltage cables or disconnect

them from the high voltage network.

–  Never open, modify or remove the cover of

the traction battery.

–  Never work with cutting and forming

tools or heat sources near high voltage

components and cables.

In case of low level of fluid in the cooling

tank, the refilling shall only be performed in a

qualified and trained workshop to verify that

the leakage is not in the traction battery.

Any intervention on the high voltage system

must be carried out by qualified persons in

workshops qualified and approved to carry

out this type of work.

Damage to the vehicle or the traction battery

could result in the leakage of toxic gases or

fluids either immediately or later. CITROËN

recommends that you:

–  Always inform the fire and emergency

services in the event of an incident, warning

that the vehicle is equipped with a traction

battery.

–  Never touch the liquids leaking from the

traction battery.

–  Do not inhale the gases emitted by the

traction battery which are toxic.

–  Move away from the vehicle in the event of

incident or accident, the gases emitted being

flammable and could cause a fire.





This label is intended solely for use by

firefighters and maintenance services in

the event of any work on the vehicle.

No other person must touch the device shown

on this label.

In the event of an accident or impact

to the vehicle’s underbody

In these situations, the electrical circuit or the

traction battery can be seriously damaged.

Stop as soon as it is safe to do so and switch

off the ignition.

Contact a CITROËN dealer or a qualified

workshop.

When washing

Before washing the vehicle, always

check that the charging flap is closed

correctly.

Never wash the vehicle while the battery is

on charge.

High-pressure washing

To avoid damaging the electrical

components, it is expressly prohibited to

use high-pressure washing in the engine

compartment or under the body.

Do not use a pressure greater than 80 bar

when washing the bodywork.

Never allow water or dust to enter the

connector or charging nozzle - risk of

electrocution or fire!

Never connect / disconnect the charging

nozzle or cable with wet hands - risk of

electrocution!

140

Practical information

Traction battery

This battery stores the energy that powers

the electric motor and the thermal comfort

equipment in the passenger compartment. It is

discharged during use, and must therefore be

regularly recharged. There is no need to wait

for the traction battery to fall to its reserve level

before recharging.

The range of the battery may vary according

to the type of driving, the route, the use of

thermal comfort equipment and the ageing of its

components.

The lifespan of the traction battery

depends on multiple factors, such as

climatic conditions, distance travelled and

how often it has been fast-charged.

To preserve the mileage of your vehicle

and the durability of your traction battery,

CITROËN recommends that you:

–  Do not fully charge the battery of your

electric vehicle daily (charge the traction

battery below 80% as often as possible).

–  Do not completely discharge the battery.

–  Do not store the vehicle for a long period

of non-use (more than 12 hours) when the

traction battery has a low or high charge level.

Prefer a charge level between 20 and 40%.

–  Limit the use of fast charging.

–  Do not expose the vehicle to temperatures

below -30°C and above +60°C for more than

24 hours.

–  Avoid charging the vehicle at negative

temperatures (except if the vehicle ran more

than 20 minutes) or above +30°C.

–  Do not use the vehicle's traction battery as

a generator of energy.

–  Do not use a generator to recharge your

vehicle's traction battery.

In the event of damage to the traction

battery

It is strictly prohibited to work on the vehicle

yourself.

Do not touch liquids coming from the battery,

and in the event of skin contact with these

products, wash abundantly with water and

contact a doctor as soon as possible.

Contact a CITROËN dealer or a qualified

workshop to have the system checked.

Disposal of the traction battery

The traction battery is designed for the life of the

vehicle if the recommendations of CITROËN are

followed.

If it becomes necessary to replace the battery,

contact the CITROËN dealer for instructions on

its disposal. Improper disposal carries the risk of

severe burns, electric shock, and damage to the

environment.

In accordance with regulations, CITROËN

ensures a second life or recycling of this

component in collaboration with qualified

operators.

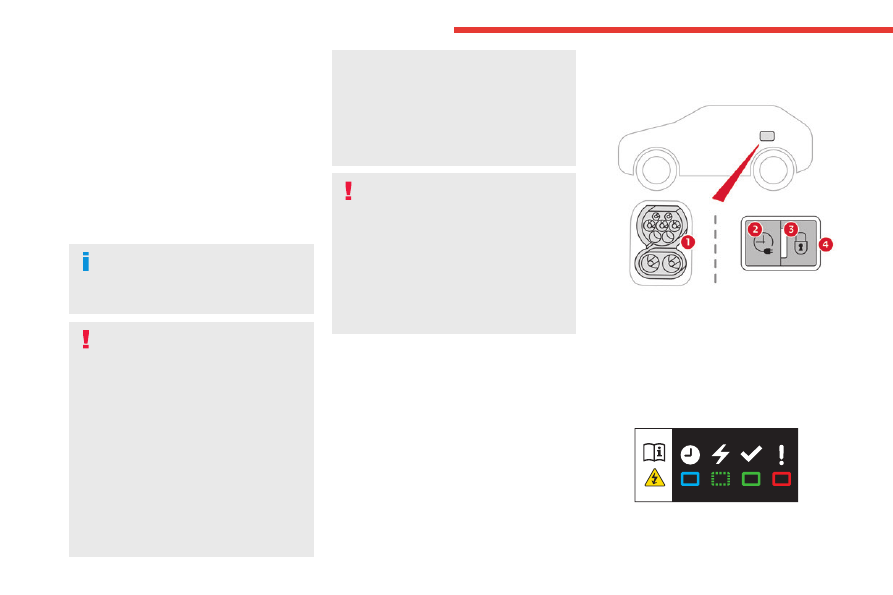

Charging connectors and

indicator lamps





1.

Charging connectors

2.

Deferred charging activation button

3.

Nozzle locking indicator lamp

Fixed red: nozzle positioned correctly and

locked in the connector.

Flashing red: nozzle incorrectly positioned or

locking not possible.

4.

Charging indicator lamp





141

Practical information

7

State of charging

indicator lamp

Meaning

Fixed white

Welcome lighting on

opening the flap and

disconnecting the

charging cable.

Fixed blue

Deferred charging.

Flashing green

Charging.

Fixed green

Charging complete.

The charging

indicator lamp goes

off after about 2

minutes as the

vehicle's functions go

into standby.

The indicator lamp

comes on again

when the vehicle is

unlocked with the

Keyless Entry and

Start system or when

a door is opened

to indicate that

the battery is fully

charged.

State of charging

indicator lamp

Meaning

Fixed red

Malfunction.

In case of impact, even light, against the

charging flap, do not use it.

Do not dismantle or modify the charging

connector - risk of electrocution and/or fire!

Contact a CITROËN dealer or a qualified

workshop.

Charging cables, sockets

and chargers

The charging cable supplied with the vehicle

(depending on version) is compatible with the

electrical systems in the country of sale. When

travelling abroad, check the compatibility of local

electrical systems with the charging cable.

A full range of charging cables is available from

your dealer.

Contact a CITROËN dealer or a qualified

workshop for more information and to obtain

suitable charging cables.

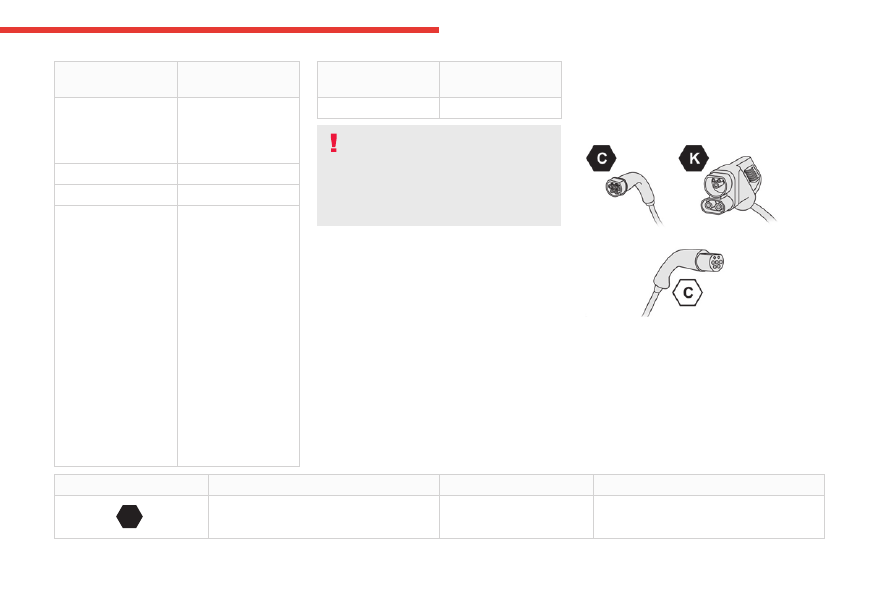

Identification labels on charging

sockets/connectors

Identification labels are affixed to the vehicle,

charging cable and charger to inform the user

about which device needs to be used.









The meaning of each identification label is as

follows:

Identification label

Location

Configuration

Power type/Voltage range



C



Charging connector (vehicle side)

TYPE 2

AC

< 480 Vrms

142

Practical information

Identification label

Location

Configuration

Power type/Voltage range



C



Charging socket (charger side)

TYPE 2

AC

< 480 Vrms



K



Charging connector (vehicle side)

COMBO 2 (FF)

DC

50 V – 500 V

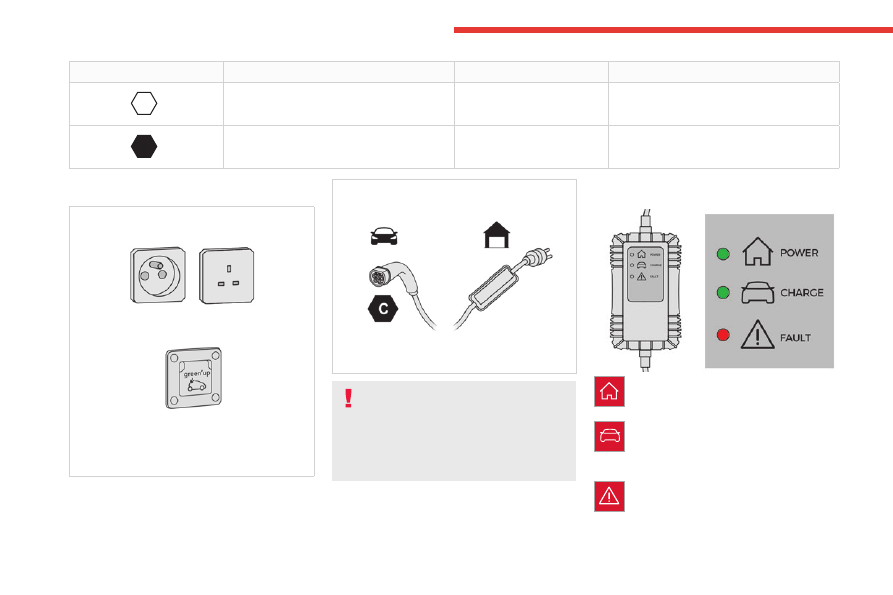

Standard charging, mode 2

Domestic socket

(standard charging - alternating current (AC))





Mode 2 with a standard socket: 8 A maximum

charging current.





Mode 2 with a Green'Up socket: 16 A

maximum charging current.

To have this type of socket installed, call a

professional installer.

Specific domestic charging cable - mode

2 (AC)





Identification label

C

 on the charging

connector (vehicle side).

Specific domestic charging cable

(mode 2)

You must not damage the cable.

In the event of damage, do not use it and

contact a CITROËN dealer or a qualified

workshop to replace it.

Control unit (mode 2)





POWER

Green: electrical connection established;

charging can begin.

CHARGE

Flashing green: charging in progress or

temperature pre-conditioning activated.

Fixed green: charging complete.

FAULT

Red: fault; charging not permitted or must

be stopped immediately. Check that everything

143

Practical information

7

is connected correctly and that the electrical

system is not faulty.

If the indicator lamp does not go off, contact a

CITROËN dealer or a qualified workshop.

Upon plugging the charging cable into a

domestic socket, all of the indicator lamps come

on briefly.

If no indicator lamps come on, check the

domestic socket's circuit-breaker:

–  If the circuit-breaker has tripped, contact a

professional to check that the electrical system

is compatible and/or carry out any necessary

repairs.

–  If the circuit-breaker has not tripped, stop

using the charging cable and contact a

CITROËN dealer or a qualified workshop.

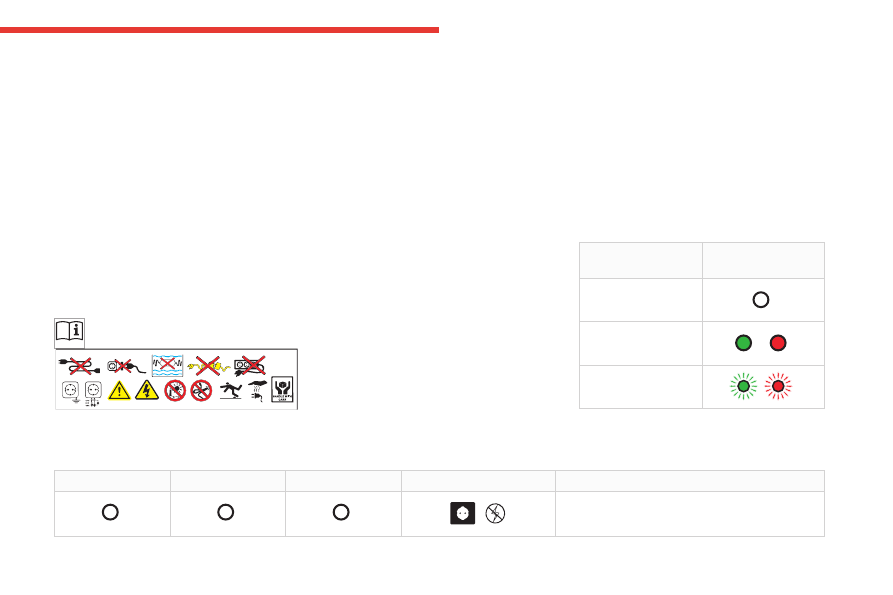

Control unit label - Recommendations

Refer to the handbook before use.

1.

Incorrect use of this charging cable may

result in fire, property damage and serious

injury or death by electrocution!

2.

Always use a correctly earthed power

socket, protected by a 30 mA residual

current device.

3.

Always use an electrical socket protected

by a circuit-breaker appropriate for the

electrical circuit’s current rating.

4.

The weight of the control unit must not be

borne by the electrical socket, plug and

cables.

5.

Never use this charging cable if it is

defective or in any way damaged.

6.

Never attempt to repair or open this

charging cable. It contains no repairable

parts - replace the charging cable if it is

damaged.

7.

Never immerse this charging cable in water.

8.

Never use this charging cable with an

extension cable, a multi-plug socket, a

conversion adaptor or on a damaged

electrical socket.

9.

Do not unplug the plug from the wall as a

means of stopping charging.

10.

Immediately stop charging, by locking and

then unlocking the vehicle using the remote

control key, if the charging cable or wall

socket feel burning hot to the touch.

11.

This charging cable includes components

liable to cause electrical arcing or sparks.

Do not expose to flammable vapours.

12.

Only use this charging cable with CITROËN

vehicles.

13.

Never plug the cable into the wall socket (or

unplug it) with wet hands.

14.

Do not force the connector if it is locked into

the vehicle.

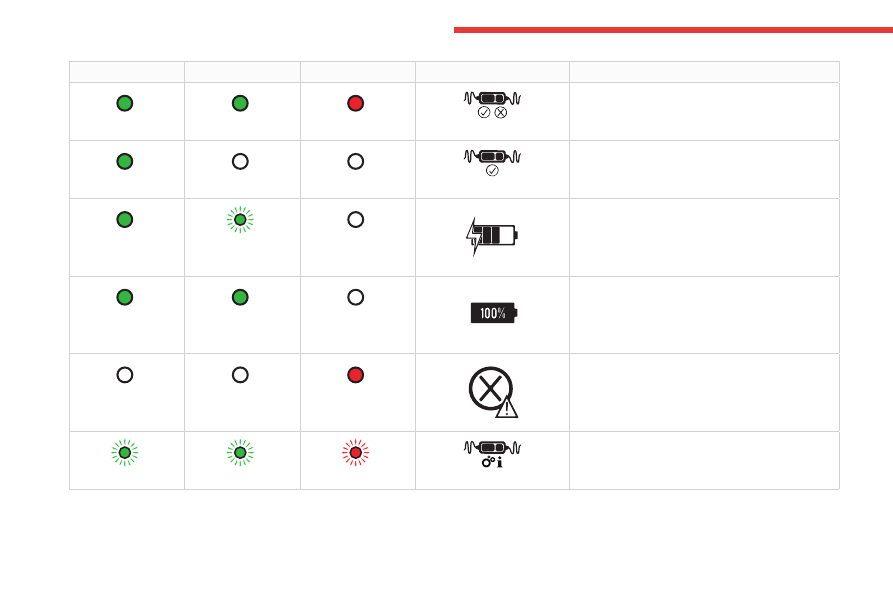

Control unit label - State of indicator

lamps

State of the

indicator lamp

Off





On







Flashing







POWER

CHARGE

FAULT

Symbol

Description

















Not connected to the power supply or power is not

available from the infrastructure.

144

Practical information

POWER

CHARGE

FAULT

Symbol

Description





(green)





(green)





(red)





The control unit is currently performing a self-test.





(green)













Connected only to the infrastructure or to the

infrastructure and to the Electric Vehicle (EV) but

no charging in progress.





(green)





(green)









Connected to the power supply and to the Electric

Vehicle (EV).

The EV is on charge or in a temperature pre-

conditioning sequence.





(green)





(green)









Connected to the power supply and to the Electric

Vehicle (EV).

The EV is waiting for charging or the charging of

the EV is completed.













(red)





Control unit malfunction. No charging allowed.

If an error indicator reappears after a manual reset,

the control unit must be checked by a CITROËN

dealer before the next charge.





(green)





(green)





(red)





The control unit is in diagnostic mode.

Manual reset procedure

The control unit can be reset by simultaneously disconnecting the charging connector and the wall socket.

Then, reconnect the wall socket first. For more information, refer to the handbook.

145

Practical information

7

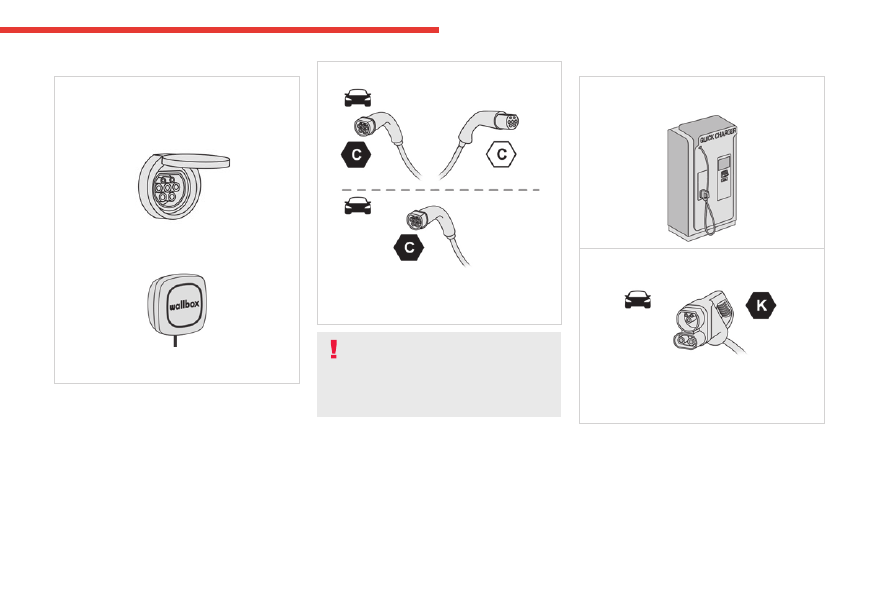

Accelerated charging, mode 3

Accelerated charging unit (depending on

version)

(accelerated charging - single-phase or three-

phase alternating current (AC))





In mode 3 with an accelerated charging unit:

32 A maximum charging current.





In mode 3 with an accelerated charging unit

(Wallbox): 32 A maximum charging current.

Charging cable, mode 3 (AC)





Identification labels

C

 on the charging

connector (vehicle side) and on the socket

(charger side).

Accelerated charging unit

Do not disassemble or modify the

charging unit - risk of electrocution and/or fire!

Refer to the charging unit manufacturer's user

manual for the operating instructions.

Superfast charging, mode 4

Fast public charger

(superfast charging - direct current (DC))





Charging cable, mode 4 (DC)

(integrated into the fast public charger)





Identification label

K

 on the charging

connector (vehicle side).

Only use fast public chargers where the cable

length does not exceed 30 metres.

Charging the traction

battery (Electric)

To recharge, connect the vehicle to a domestic

electricity supply (domestic or accelerated

charging) or to a fast public charger (superfast

charging).
